EdgeSwitch PoE 48 (750W) — Wired UISP EdgeMAX Switching

SKU:ES-48-750W

$1,732.00

~~$1,732.00~~ $1,732.00

0% Off | Save $0.00 Sold out

Taxes included. Shipping calculated at checkout.

Out of stock

Business purchase? Contact us below for bulk discounts!

Quantity

Authorised Reseller | Australian Stock | Australian Warranty

View full details

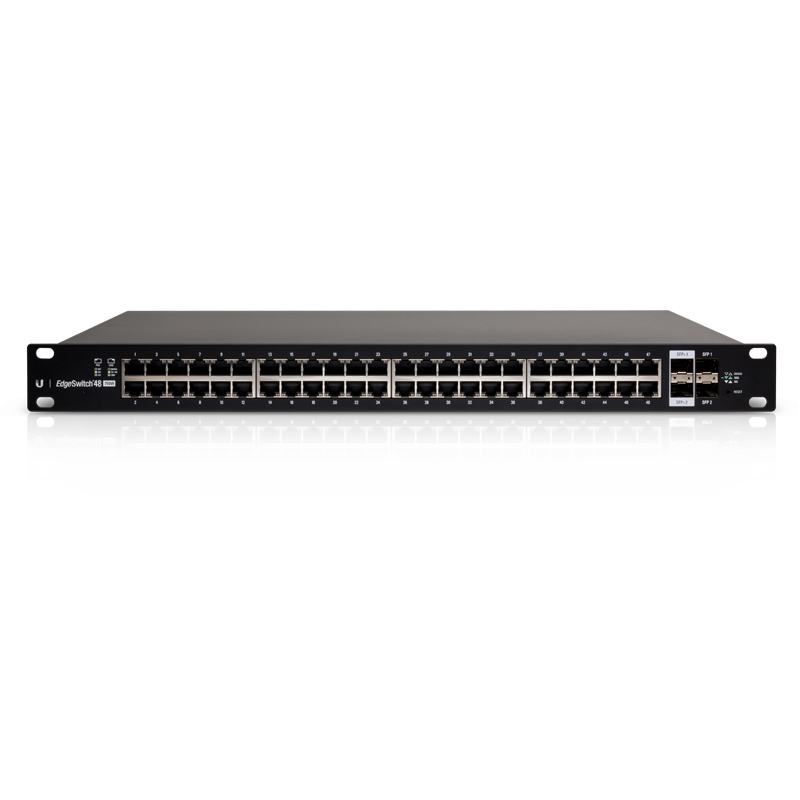

Advanced Layer 2/3, PoE+ switch featuring (48) Gigabit RJ45 ports, (2) SFP+ ports, (2) SFP ports, and a robust 750W power supply, ideal for Australian networks.

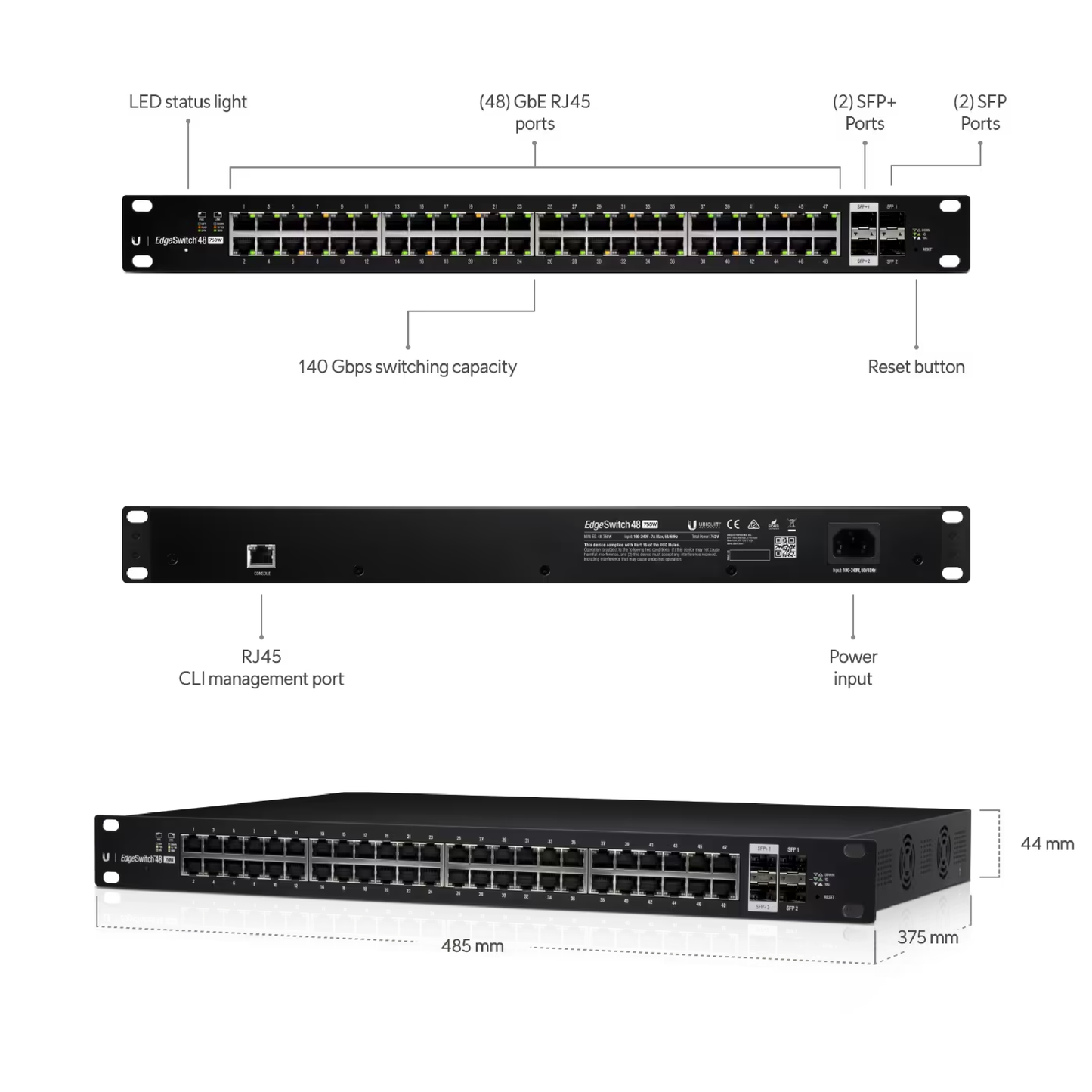

(48) Gigabit Ethernet RJ45 ports for high-speed connectivity
(2) SFP and (2) SFP+ ports for enhanced network flexibility
Substantial 750W total Power over Ethernet (PoE) capacity
Easily rack-mountable in a 1U form factor for efficient space utilisation

Mechanical
Dimensions	485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75")
Weight	6.5 kg (14.3 lb)
Hardware
Networking Interfaces	(48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface	(1) RJ45 Serial Port, Ethernet In/Out Band
Total Non-Blocking Throughput	70 Gbps
Switching Capacity	140 Gbps
Forwarding Rate	104.16 Mpps
Max. Power Consumption Includes PoE Output Excludes PoE Output	750W 64W
Power Method	100-240VAC/50-60 Hz, Universal Input
Power Supply	AC/DC, Internal, 750W DC
LEDs Per Port RJ45 Data Ports SFP+/SFP Data Ports	PoE, Speed/Link/Activity Speed/Link/Activity
Rackmount	Yes, 1U High
ESD/EMP Protection	Air: ±24 kV, Contact: ±24 kV
Shock and Vibration	ETSI300-019-1.4 Standard
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
PoE Per Port
PoE Interfaces	PoE/PoE+ (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE	34.2W
Voltage Range PoE+ Mode	50–57V
Max. Passive PoE Wattage per Port	17W
24V Passive PoE Voltage Range	20-27V
