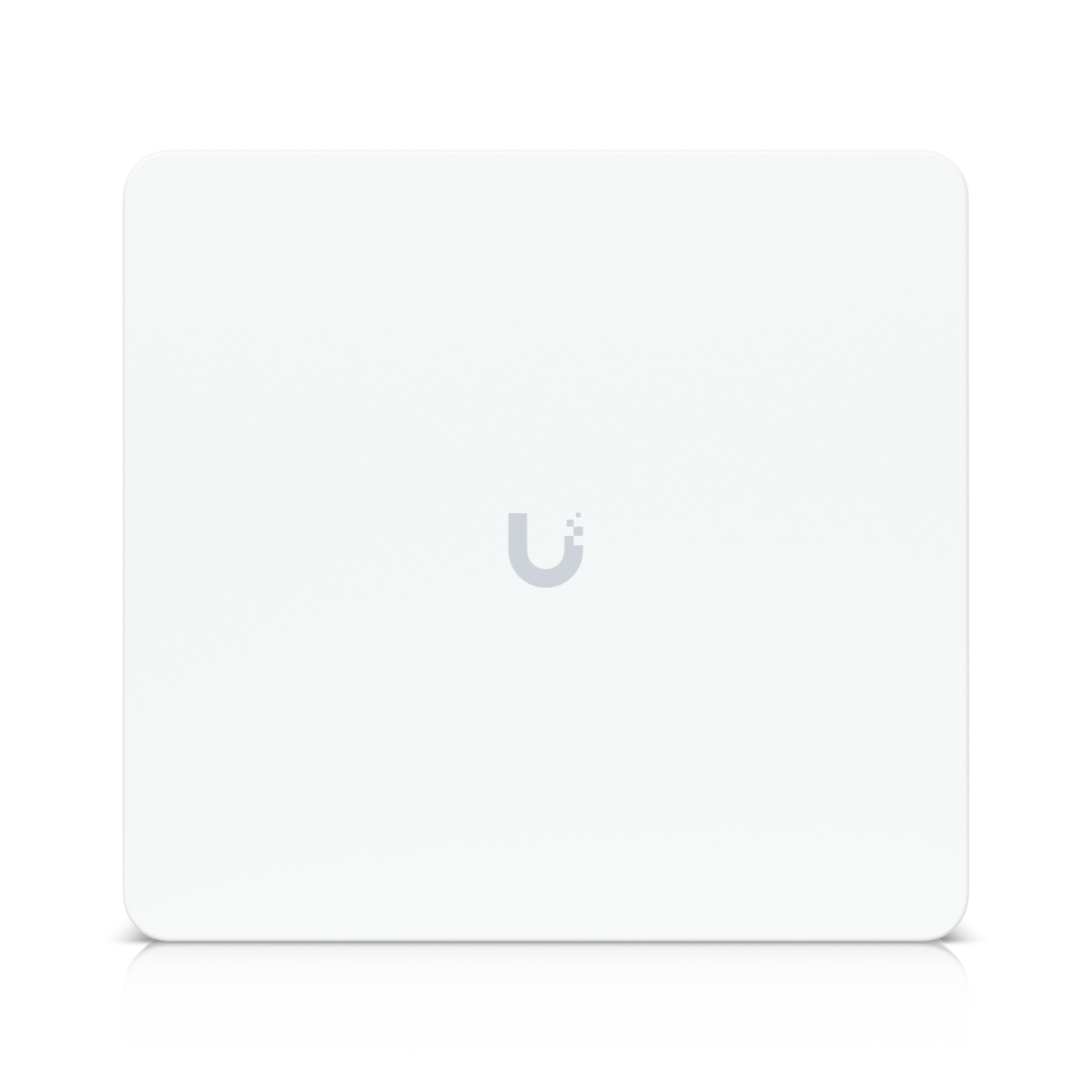

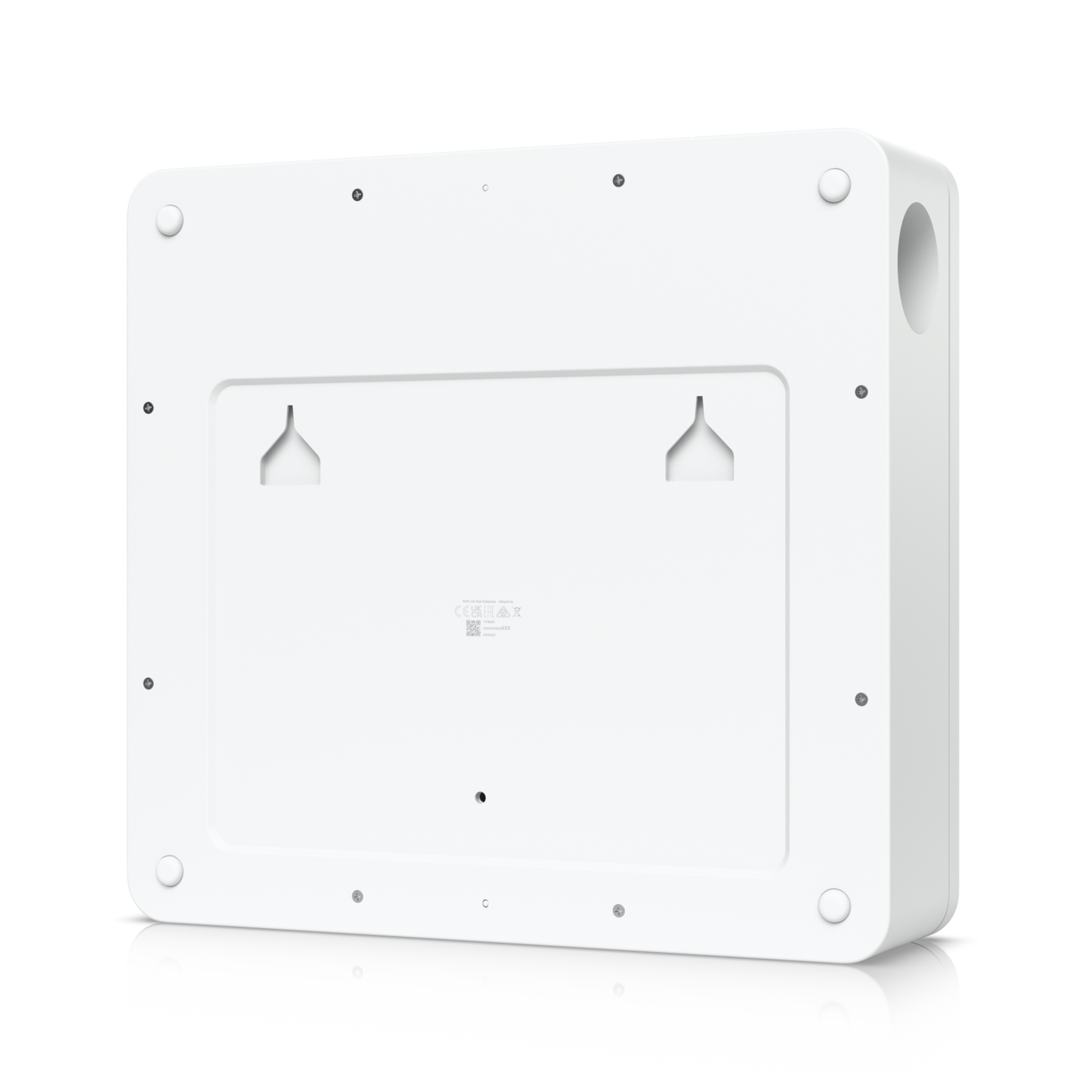

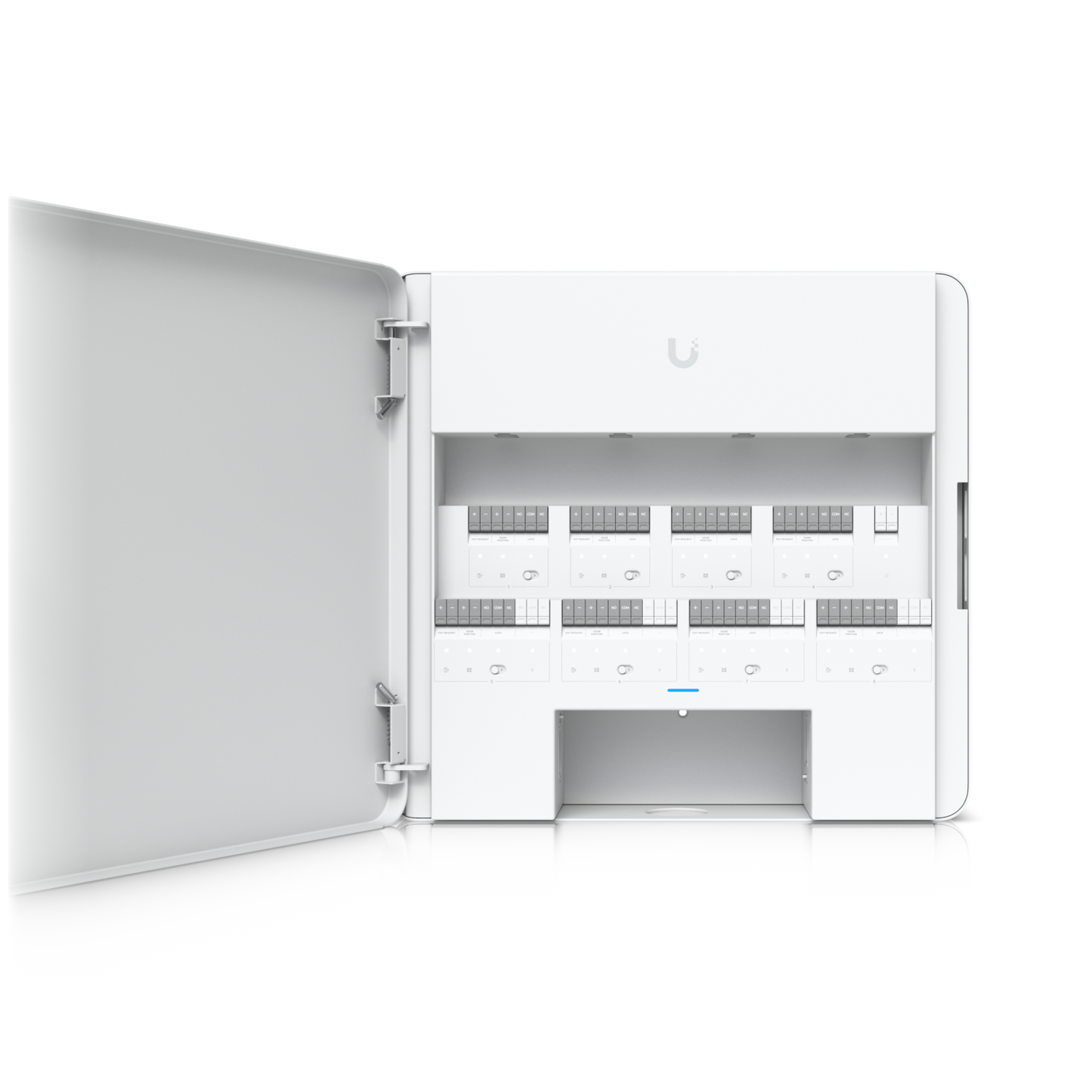

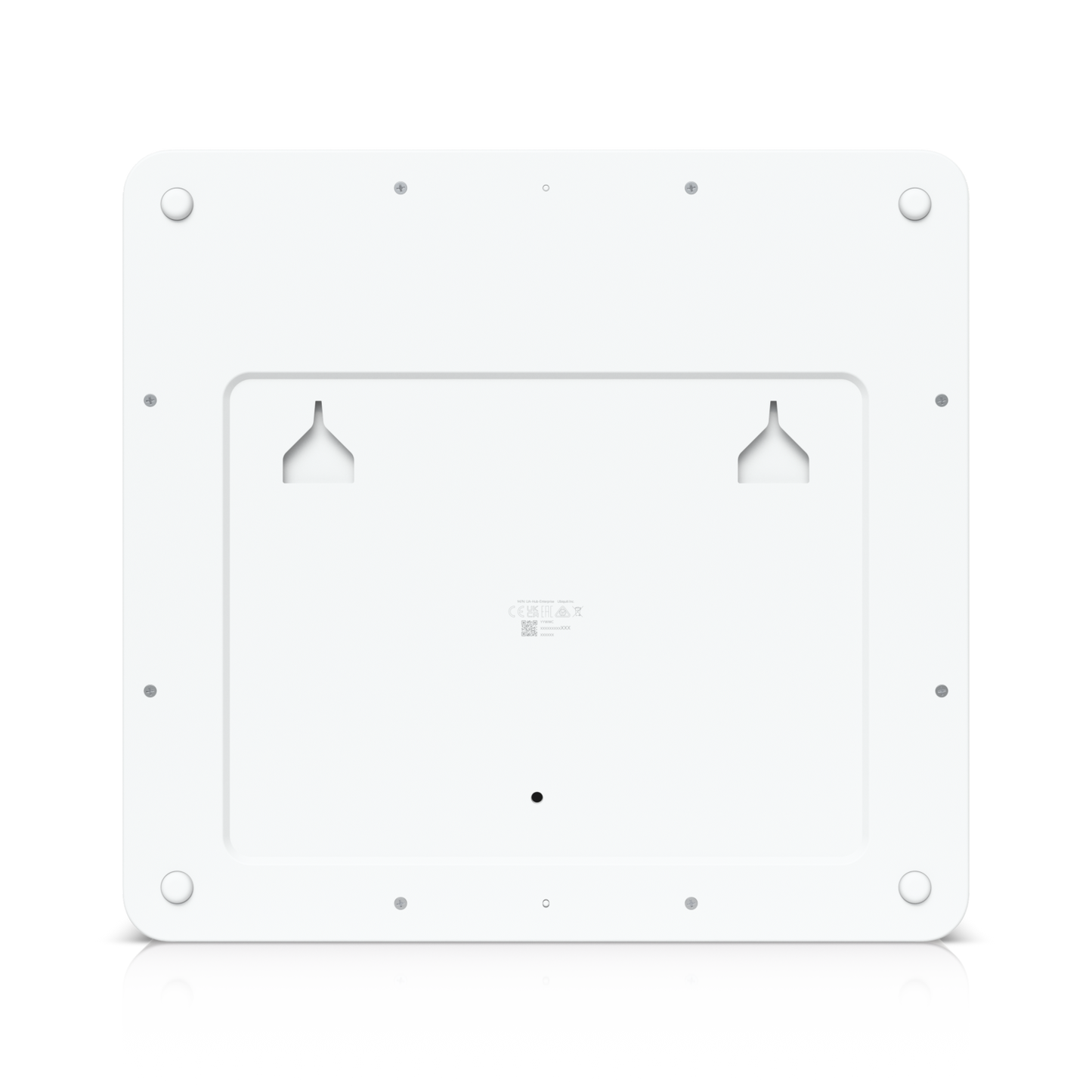

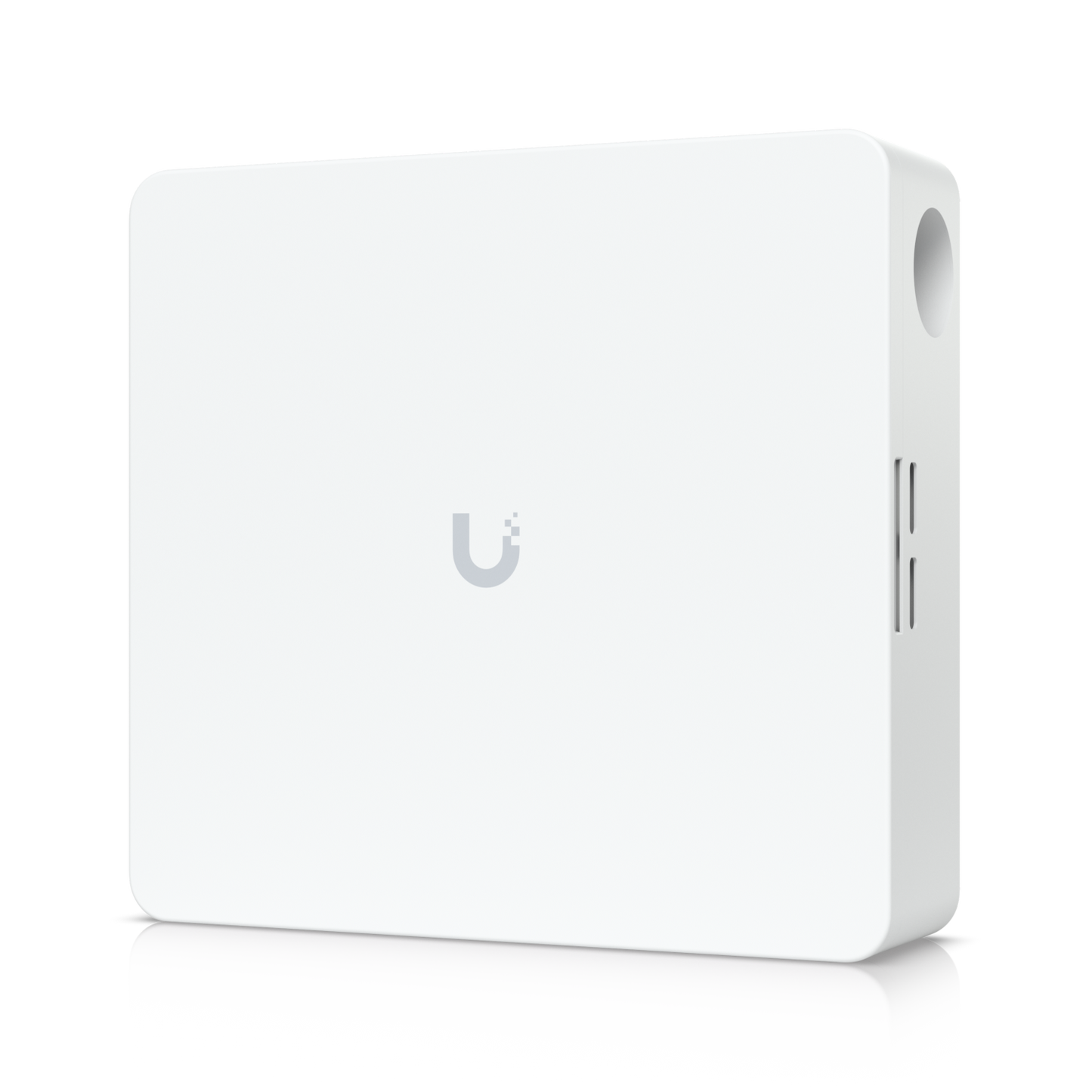

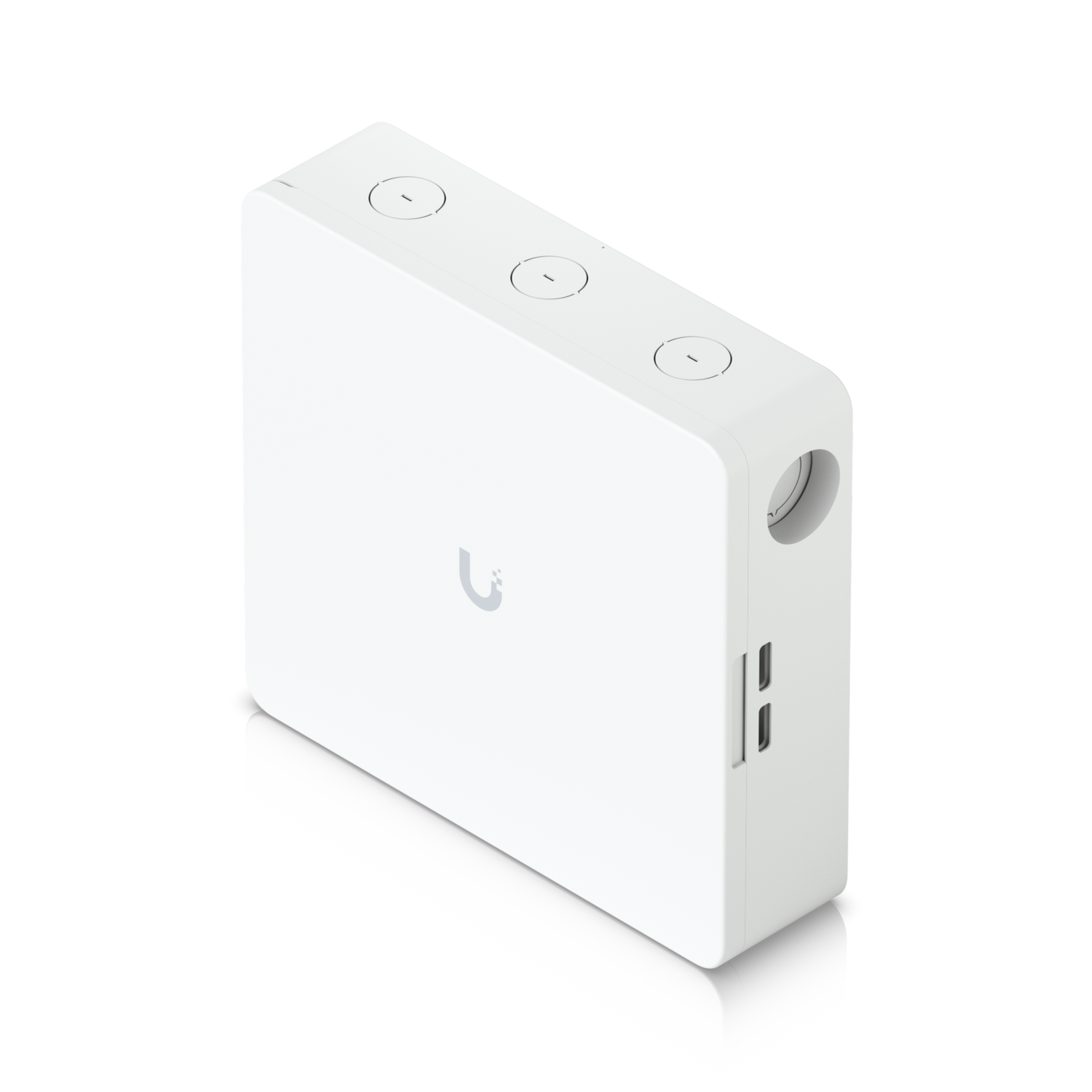

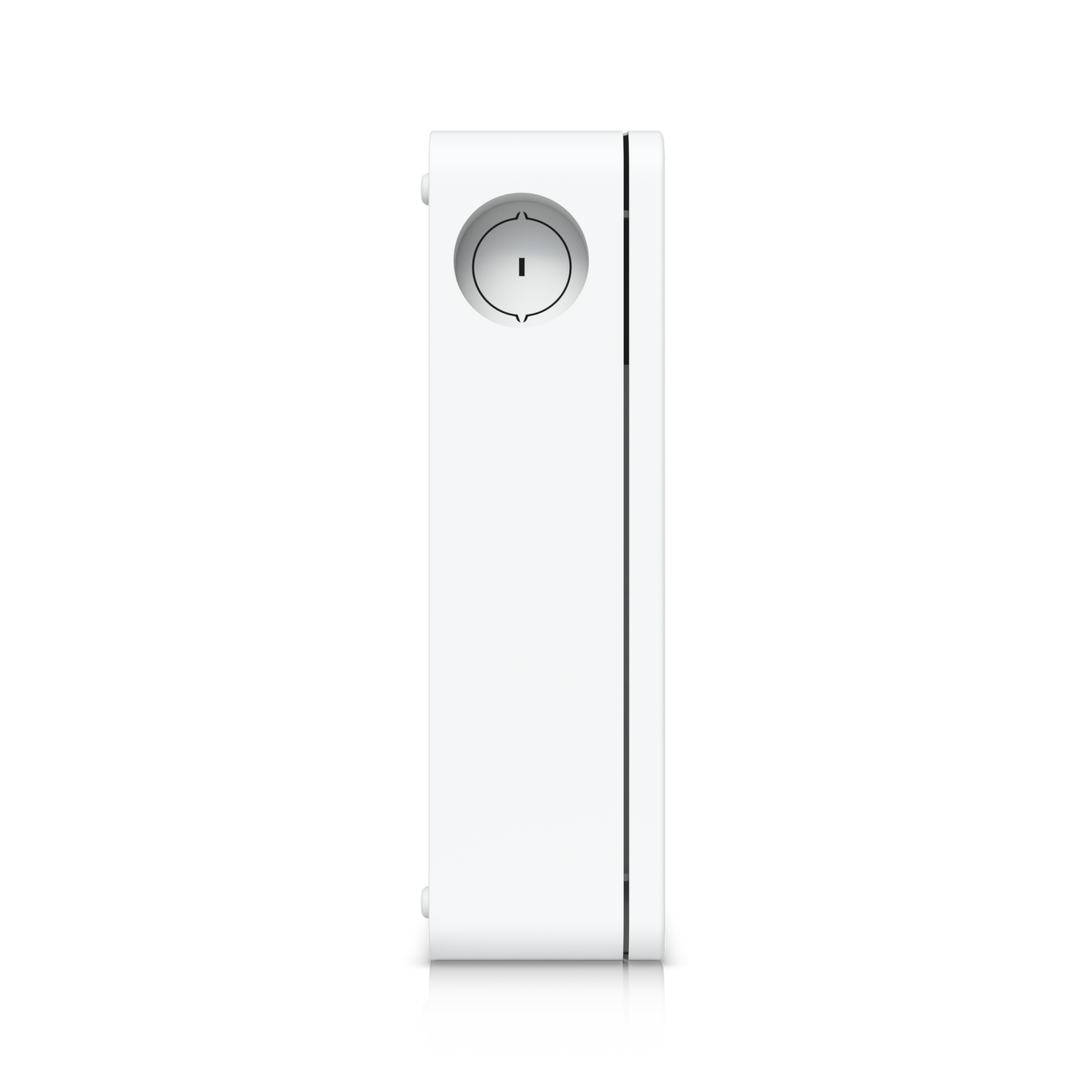

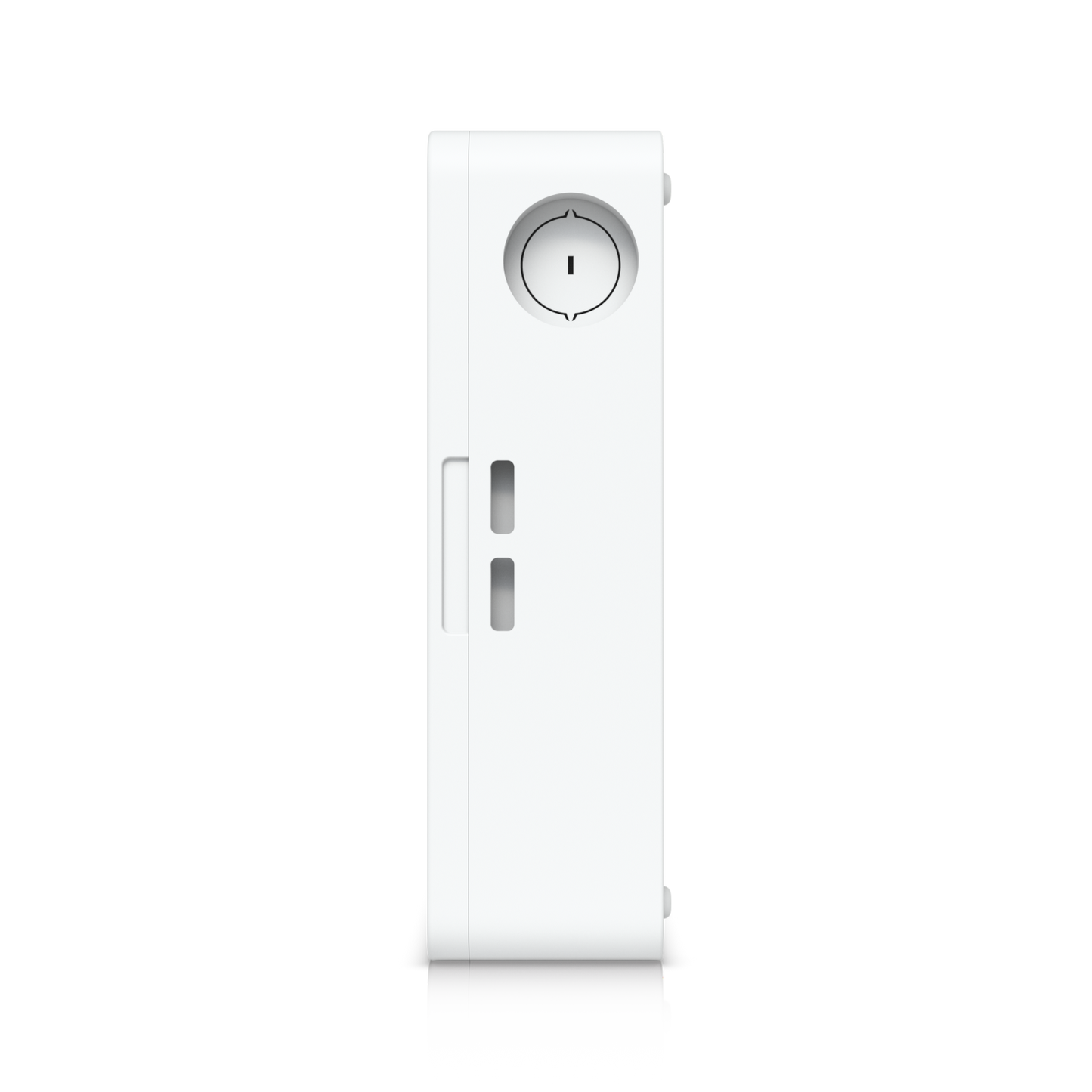

Enterprise Access Hub — UniFi Door Access
Enterprise Access Hub — UniFi Door Access
SKU:EAH-8
Low stock
Business purchase? Contact us below for bulk discounts!
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty
Top-tier enterprise access hub offering comprehensive entry and exit management for up to eight doors, complete with battery backup support.
- (8) Lock terminals (12V or Dry) for secure door locking mechanisms
- (16) Inputs for request-to-exit devices and door position sensors, ensuring precise access control
- (8) PoE (Power over Ethernet) ports tailored for Ubiquiti Access Readers, enabling efficient power and data transmission
- (4) Auxiliary terminals for additional security components like chimes, sirens, or door openers
- (1) Battery backup input (32–48V) for uninterrupted operation during power outages
Designed for Australian businesses, the Ubiquiti Enterprise Access Hub is an ideal solution for robust and reliable security management in commercial settings. Its advanced features provide seamless integration with existing security systems, making it a versatile choice for enterprises seeking top-notch access control.
| Mechanical | |
|---|---|

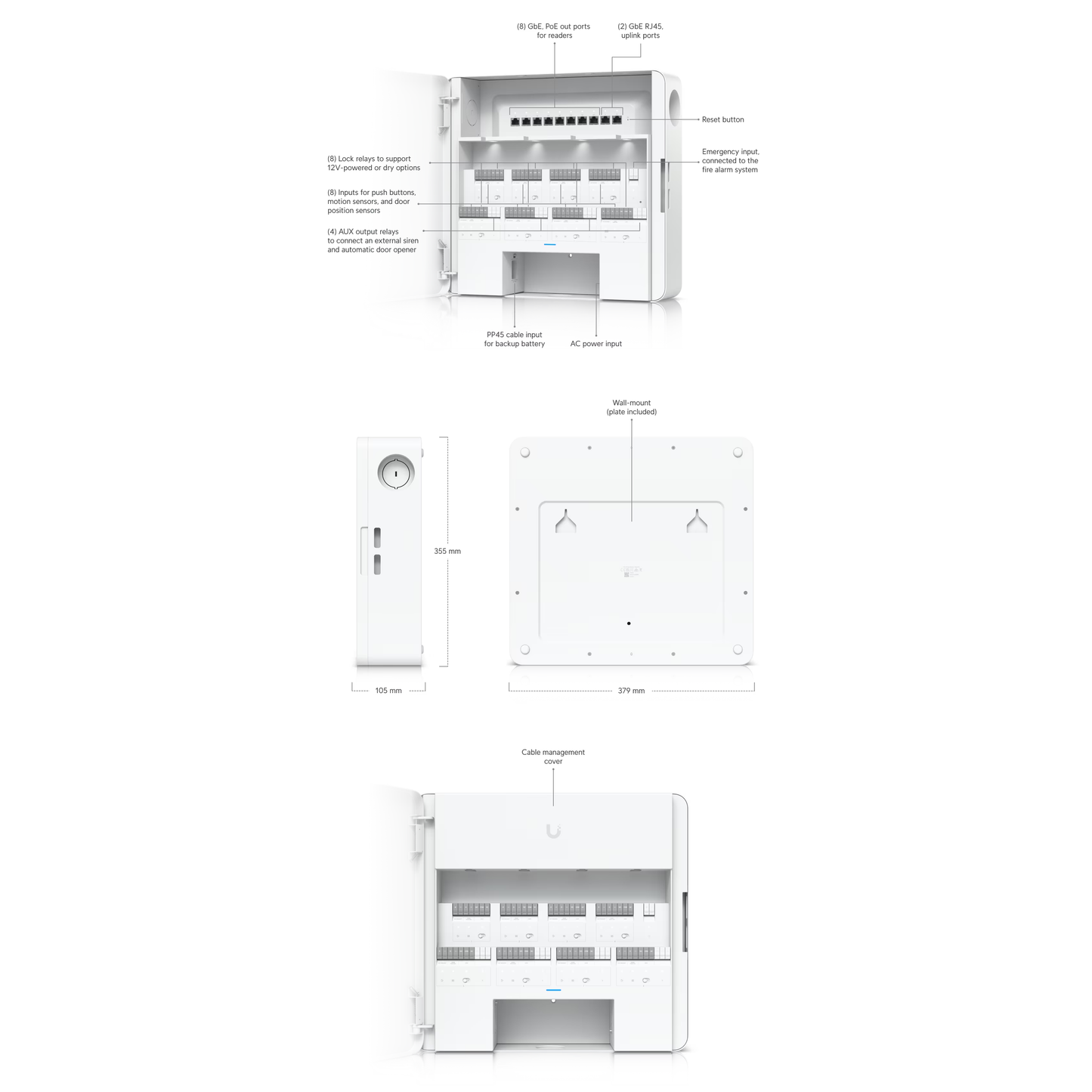

| Dimensions | 379 x 355 x 105 mm (15 x 14 x 4.1") |
| Weight | Device: 9.1 kg (20 lb) Mount: 624 g (1.4 lb) |
| Enclosure material | SGCC housing with PC cover |
| Mounting material | SGCC wall mount plate |
| Hardware | |
| Networking interface | (10) 10/100/1000 Base-T |
| Power method | Universal input, 100-240V AC,~4.4A Max, 50/60Hz 32-48V DC Lead Acid Battery |
| Power supply | AC/DC, internal |
| Max. power consumption | 240W |
| PoE interface | (8) PoE (Pins 1, 2+; 3, 6-) |
| Voltage range PoE mode | 44-57V DC |
| Total available PoE | 60W |
| Max. PoE wattage per port | 15.4W |
| Button | (1) Factory-reset |
| LEDs | System: white/blue Output relays: steady white Ethernet: flashing white |
| Digital input | (8) Inputs for request-to-exit devices (8) Inputs for door position sensors (1) Emergency |
| Dry output relay | (8) Lock terminals (12V or Dry) (4) AUX terminals for advanced setup (Chime/Siren/Door opener) |
| Powered output relay | Lock: 12V DC, 1A/ Dry Aux: Dry only |
| Operating environment | Indoor use only |
| Operating temperature | 0 to 40° C (32 to 104° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
Recommend max. cable length
| 18 AWG UACC-Cable-DoorLockRelay length |
20 AWG length | 22 AWG length | 24 AWG length | |
|---|---|---|---|---|
| UA-Lock-Electric (400mA) |
100 m (328 ft) |
66 m (217 ft) |
42 m (138 ft) |
25 m (82 ft) |
| UA-Lock-Magnetic-270kg (800mA) |
46 m (151 ft) |
30 m (98 ft) |
20 m (66 ft) |
12 m (29 ft) |
| UA-Lock-Magnetic-540kg (500mA) |
80 m (262 ft) |
51 m (167 ft) |
32 m (105 ft) |
20 m (66 ft) |
| Other locks (1A) |
36 m (118 ft) |
24 m (79 ft) |
15 m (49 ft) |
9 m (30 ft) |
