UniFi Flex 10 GbE Layer 2 Switch
Ubiquiti USW-Flex-XG UniFi Flex 10 GbE Layer 2 Switch
SKU:USW-Flex-XG
Regular price
$500.00
Regular price
$672.00
Sale price
$500.00
Unit price
per
45 in stock
Authorised Reseller | Australian Stock | Australian Warranty

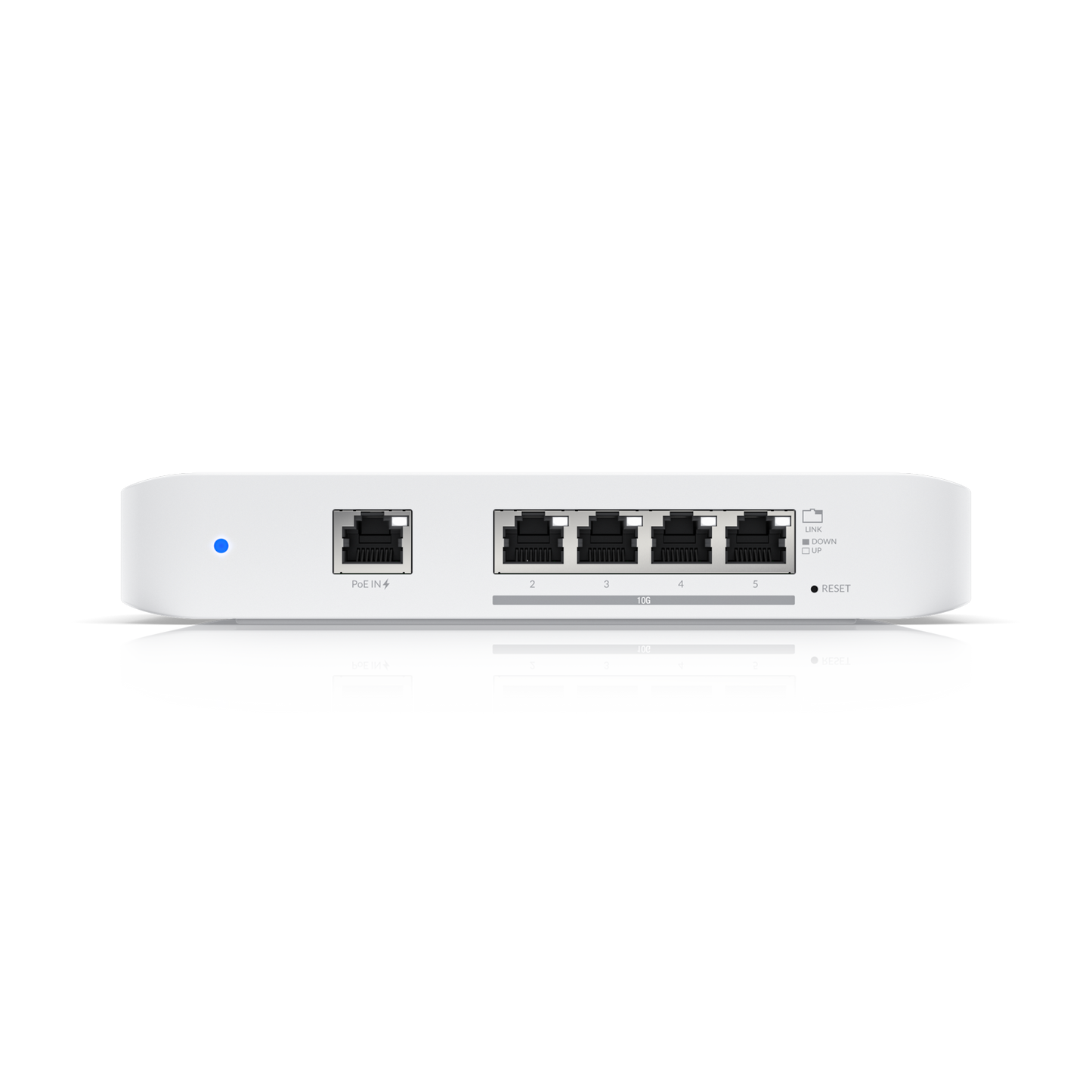

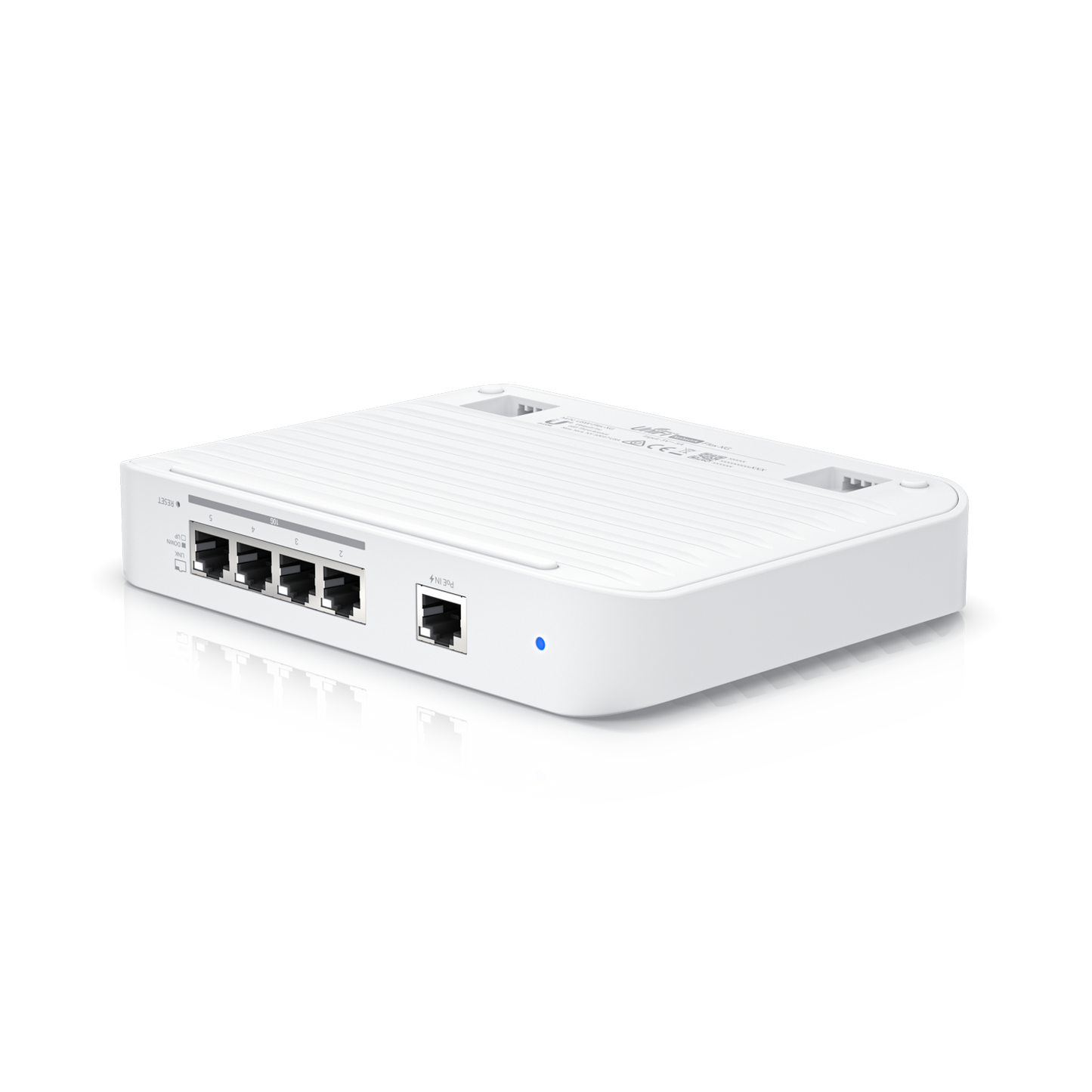

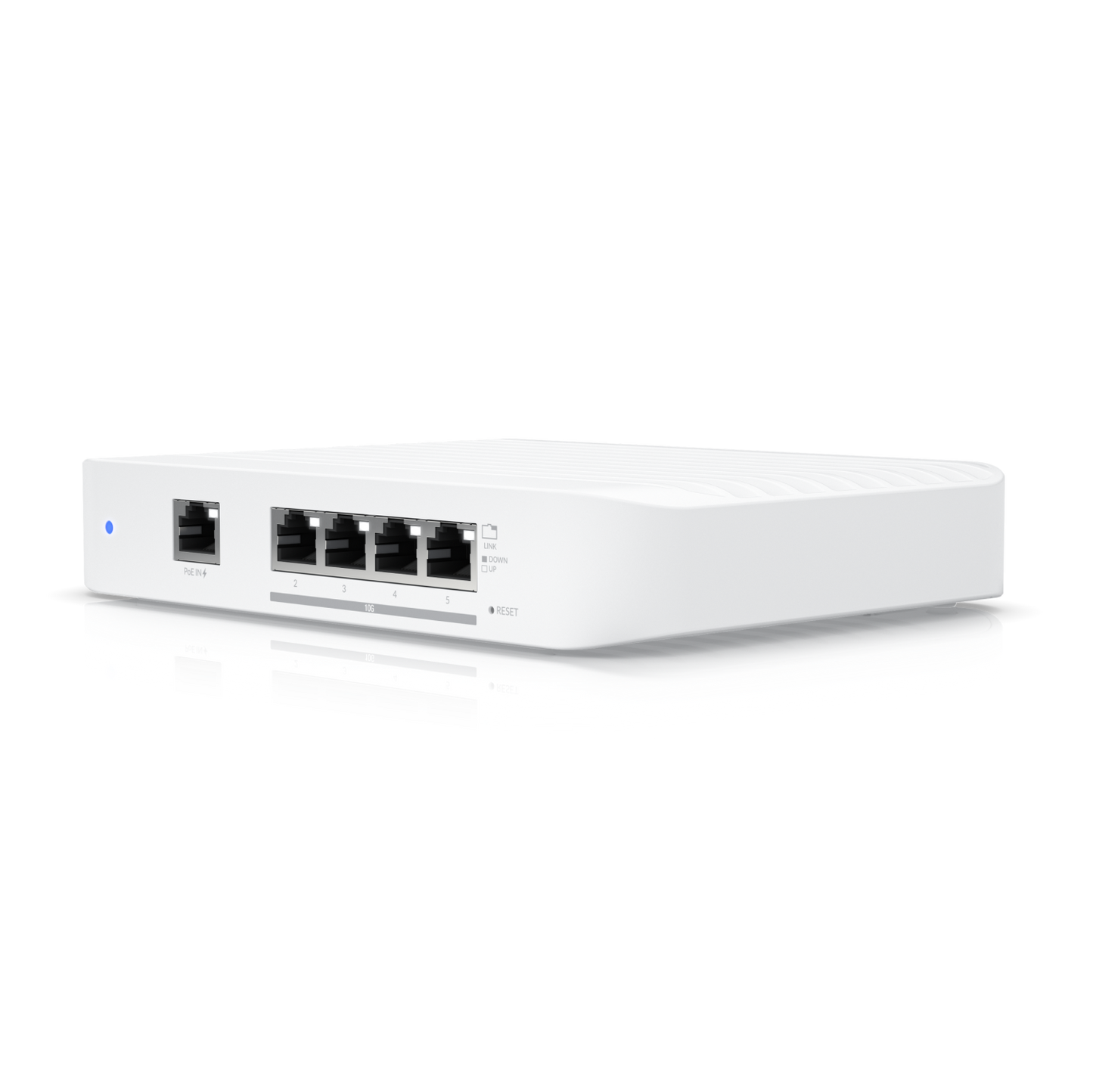

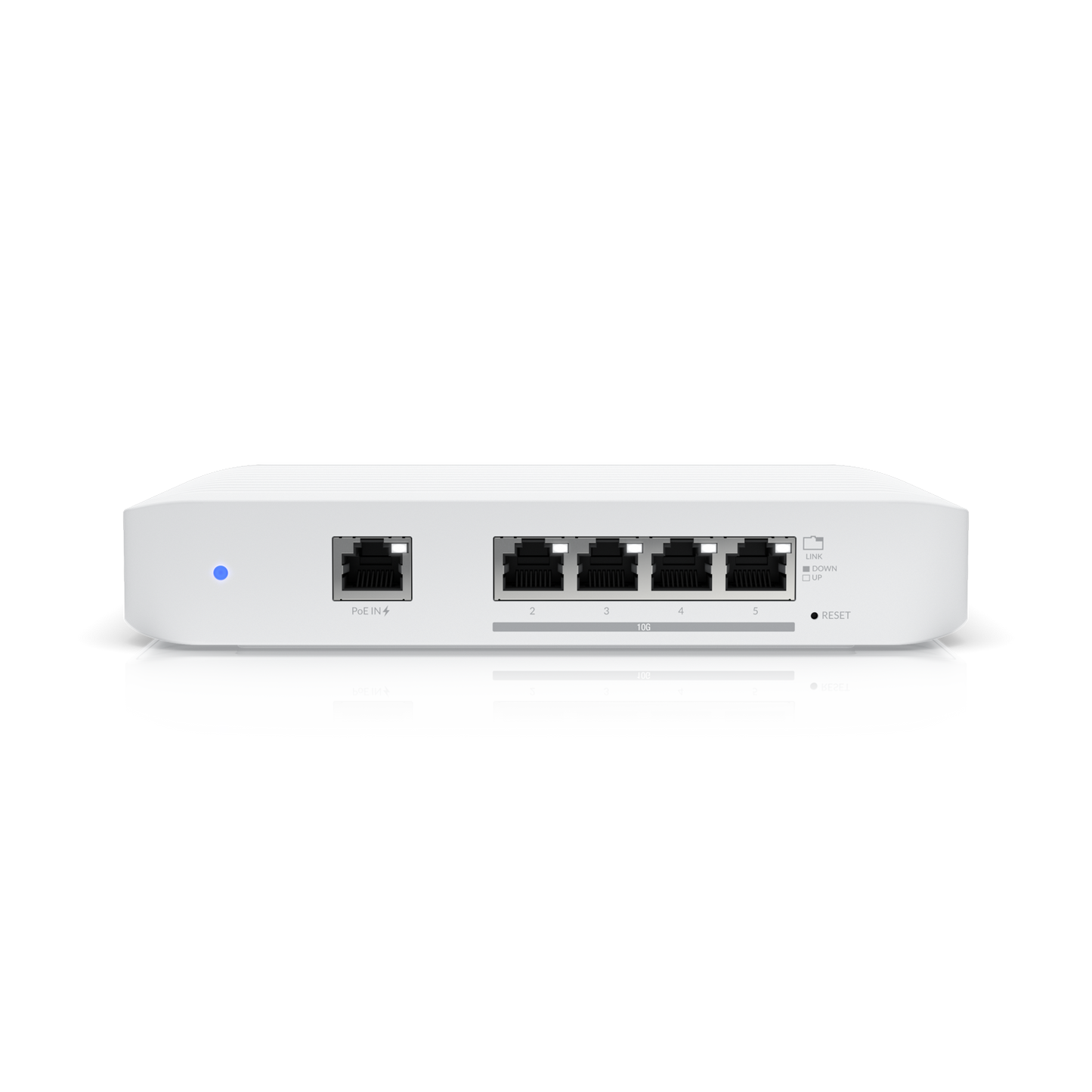

A compact, 5-port, Layer 2 switch that supports 10 GbE speeds and can be powered with PoE or a 5V USB-C adapter.
- (4) 10 GbE ports.
- (1) GbE PoE+ input port for power.
Mechanical | |
---|---|
Dimensions | 135 x 185 x 32 mm (5.3 x 7.3 x 1.3") |
Weight | 1.2 kg (2.7 lb) |
Enclosure material | Polycarbonate |
Hardware | |
Management interface | Ethernet In-Band |
Networking interface |
(1) GbE, PoE+ RJ45 port (4) 10 GbE RJ45 ports |
Total non-blocking throughput | 41 Gbps |
Switching capacity | 82 Gbps |
Forwarding rate | 61.012 Mpps |
Power method |

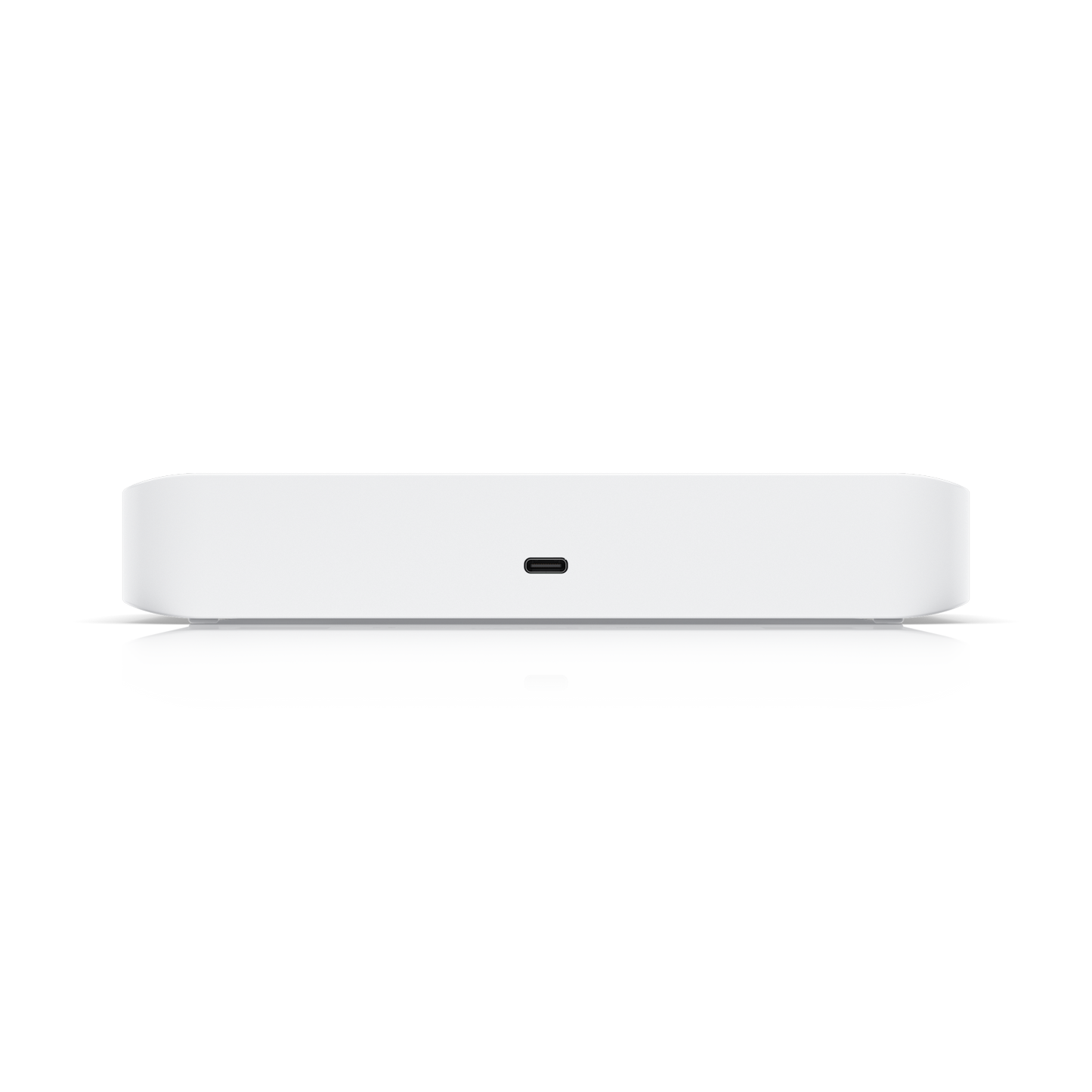

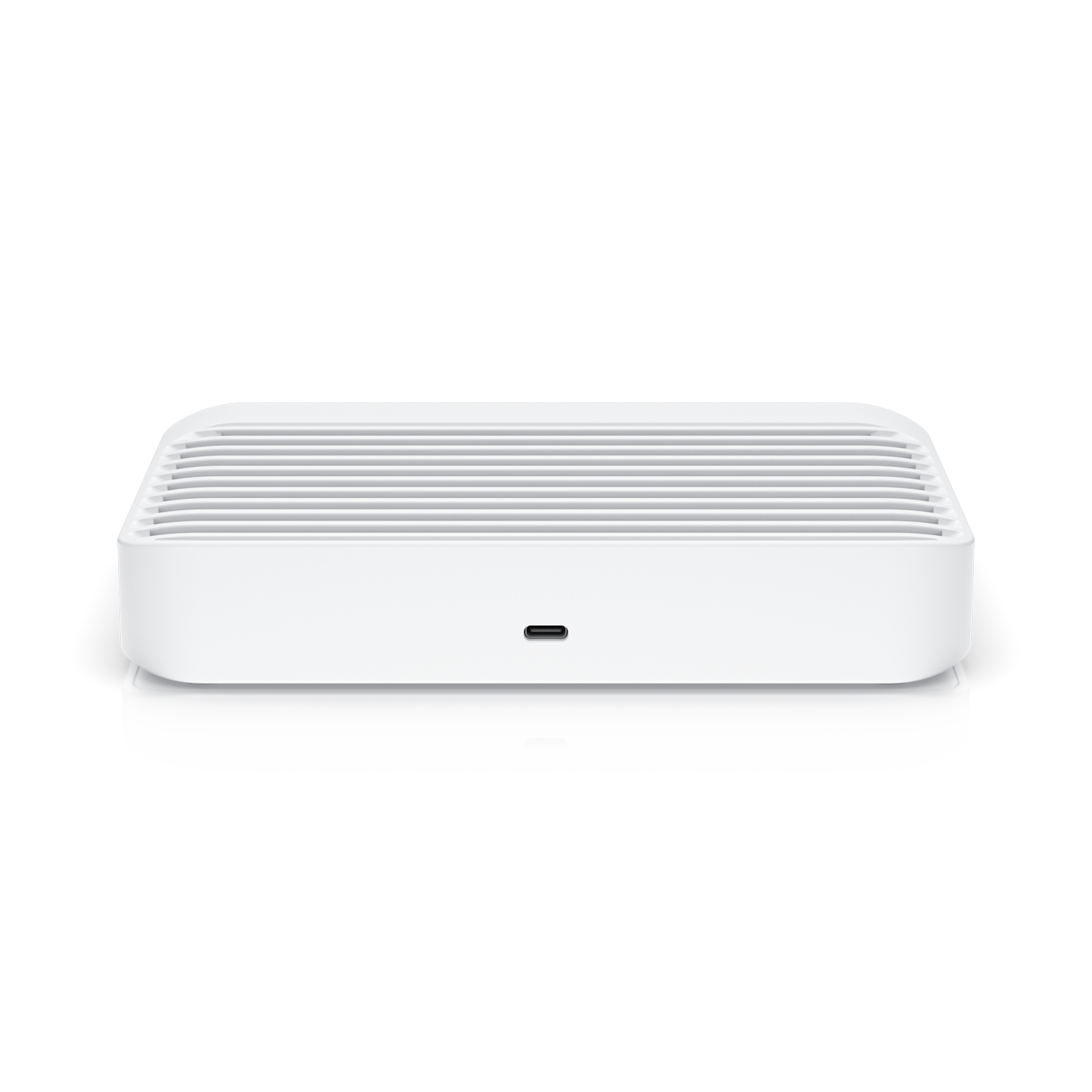

(1) PoE+, 50—57V DC, 25W (1) USB Type-C, 5V DC, 5A |
Power supply |
PoE+ (Pins 1, 2+/3, 6- or 4, 5+/7, 8-) AC/DC power adapter, 5V DC, 5A, 1.5 m cord (Included) |
Supported voltage range | 90—264V AC (Adapter) |
Max. power consumption | 25W |
ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
Button | Factory reset |
Ambient operating temperature | -5 to 45° C (23 to 113° F) |
Ambient operating humidity | 10 to 90% noncondensing |
Certifications | CE, FCC, IC |
Switching Features | |
Layer 2 features |
IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
Layer 3 features | – |
LEDs | |
System | Status |
Ethernet | Speed/link/activity |
Application Requirements | |
UniFi Network | Version 6.1.67 and later |
Visit Ubiquiti for more information.
