Ubiquiti
Ubiquiti

Flex Mini — UniFi Switching

Flex Mini — UniFi Switching

Regular price $66.00
Regular price $76.00 Sale price $66.00
13% Off | Save $10.00 Sold out
Taxes included. Shipping calculated at checkout.

SKU:USW-Flex-Mini

Pack

In stock

View full details

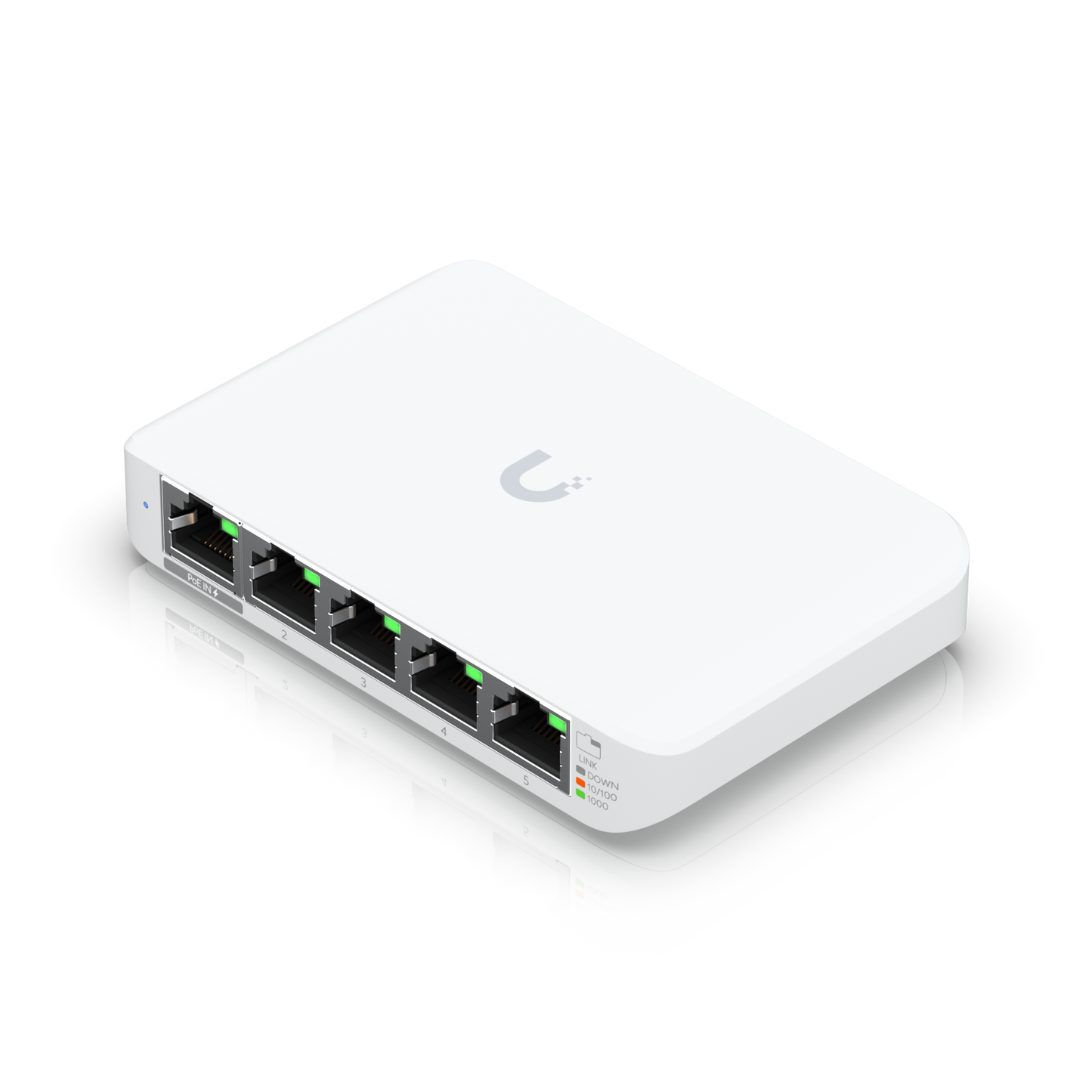

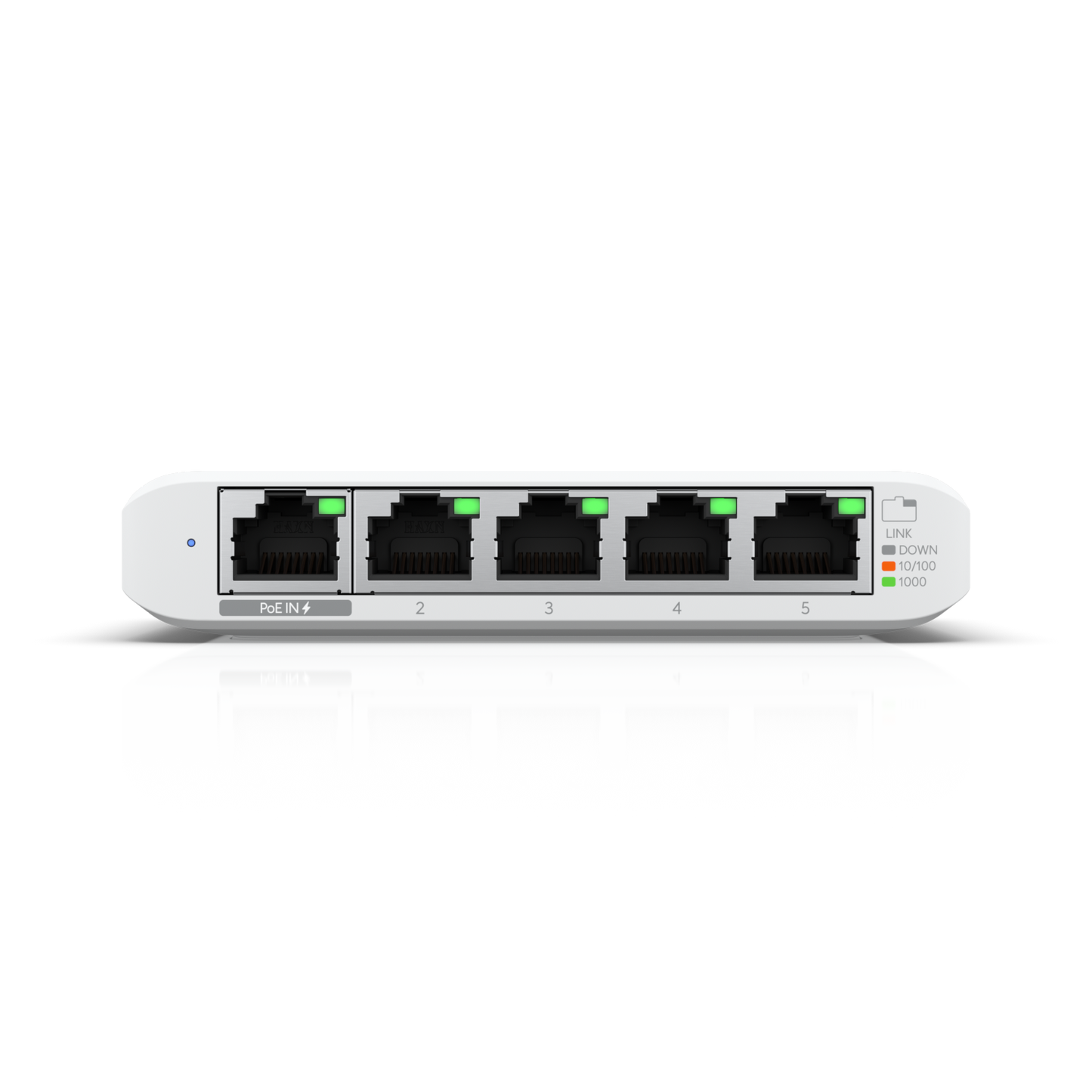

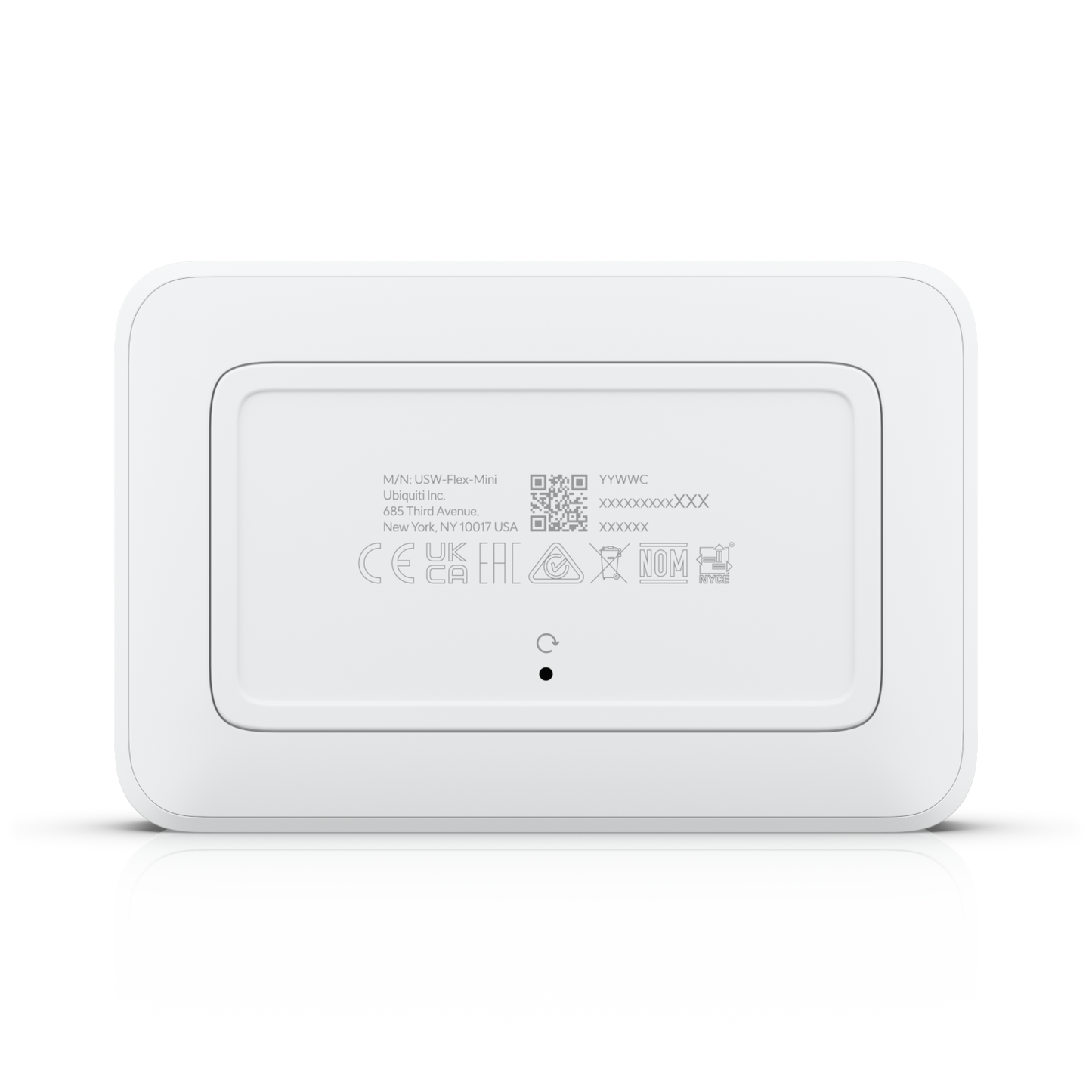

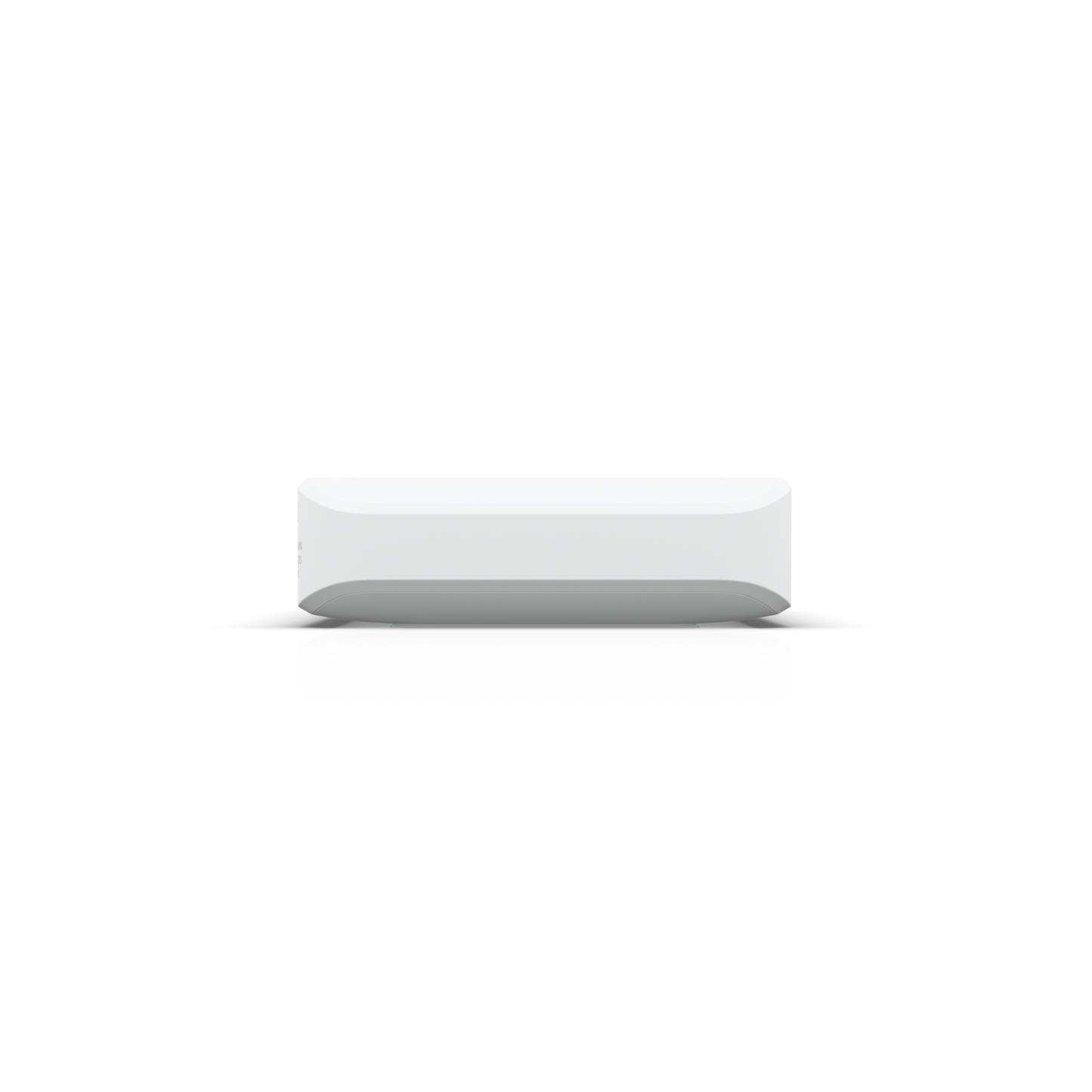

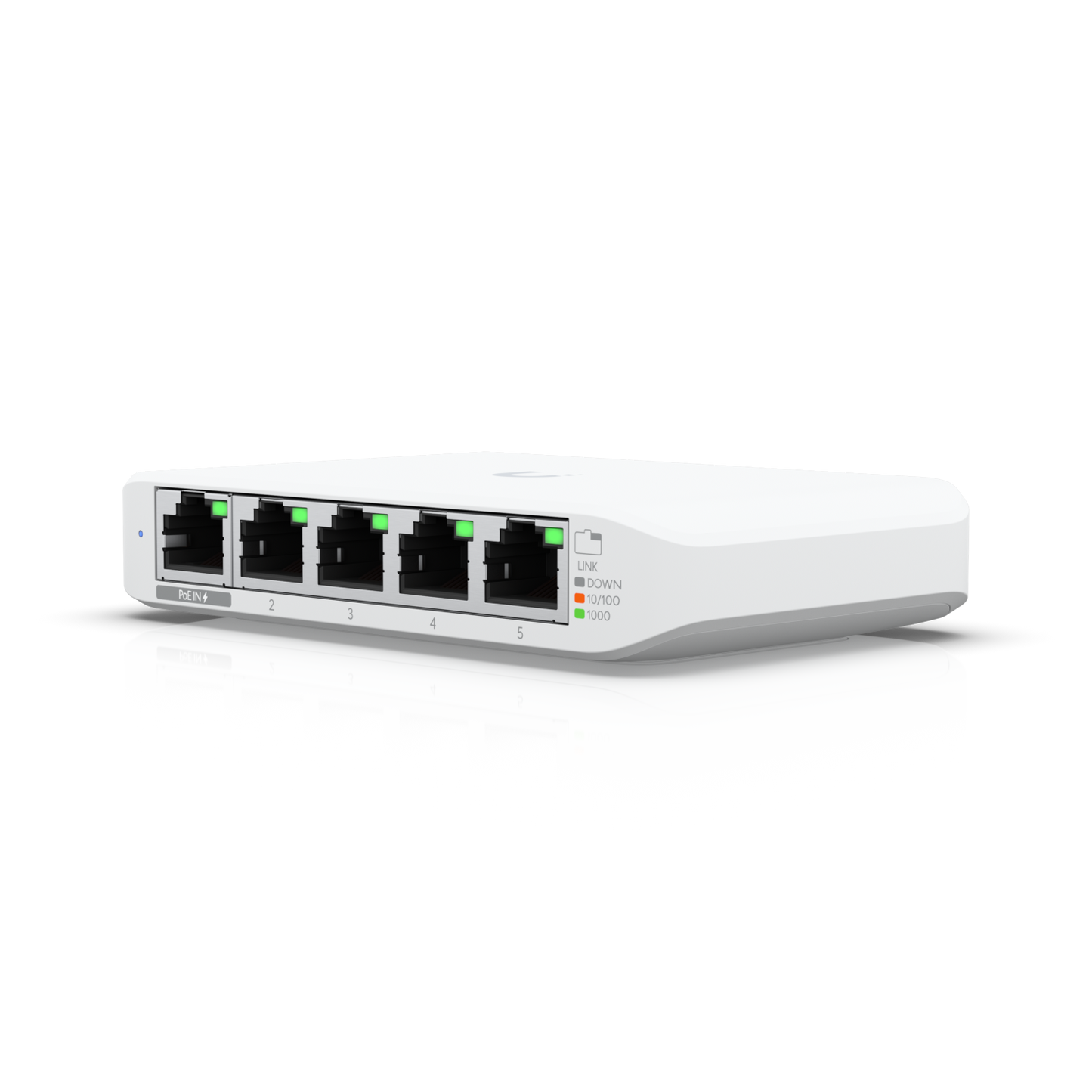

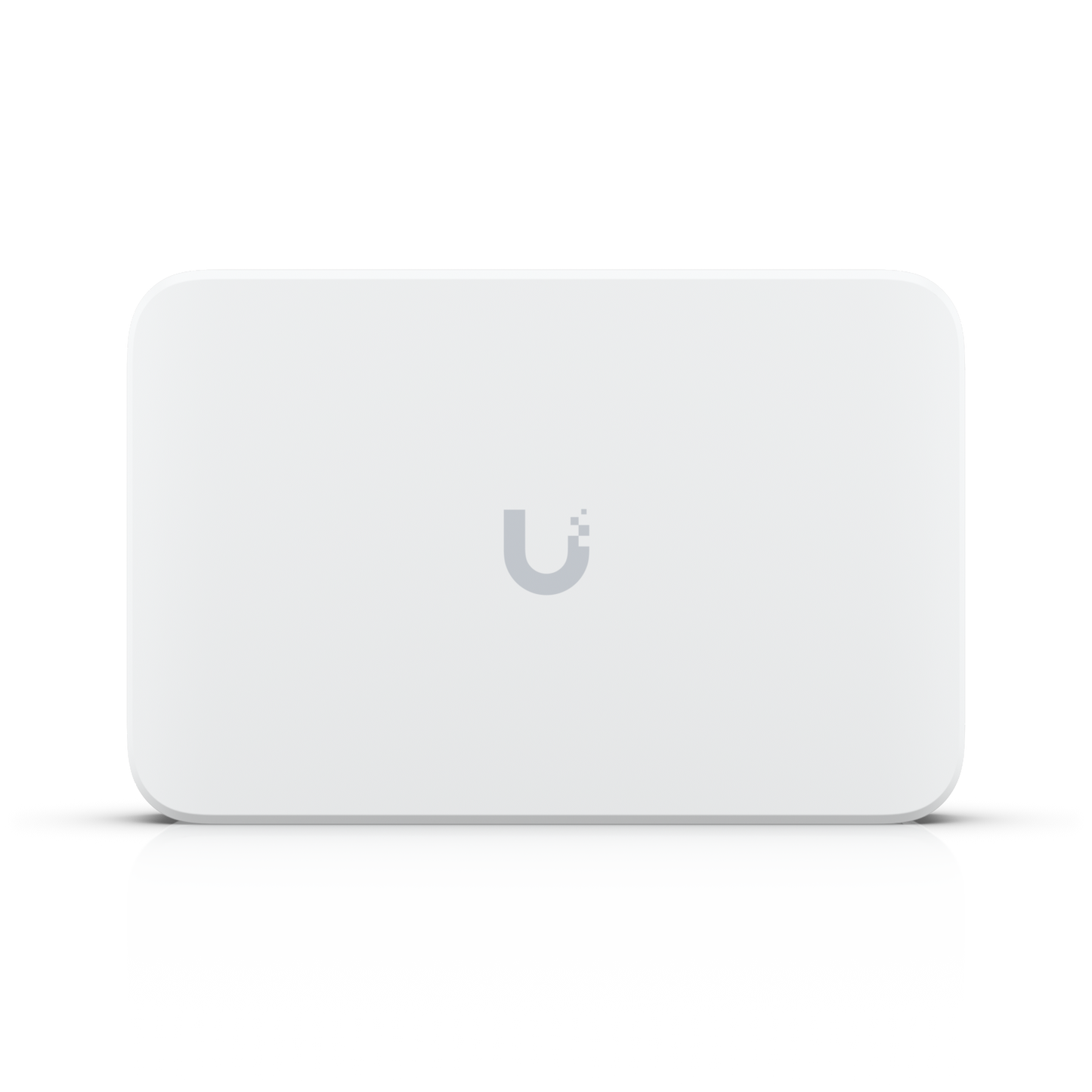

A compact, 5-port, Layer 2 switch that can be powered with PoE or a 5V USB-C adapter.

  • (4) GbE ports
  • (1) GbE PoE input port for power
  • Optional powering with included 5V, 1A USB-C adapter*

* Adapter included with single unit purchases.

Mechanical
Dimensions 107 x 70 x 21 mm (4.2 x 2.8 x 0.8")
Weight 150 g (5.3 oz)
Enclosure material Polycarbonate
Hardware
Management interface Ethernet In-Band
Networking interface (5) GbE RJ45 ports
Total non-blocking throughput 5 Gbps
Switching capacity 10 Gbps
Forwarding rate 7.44 Mpps

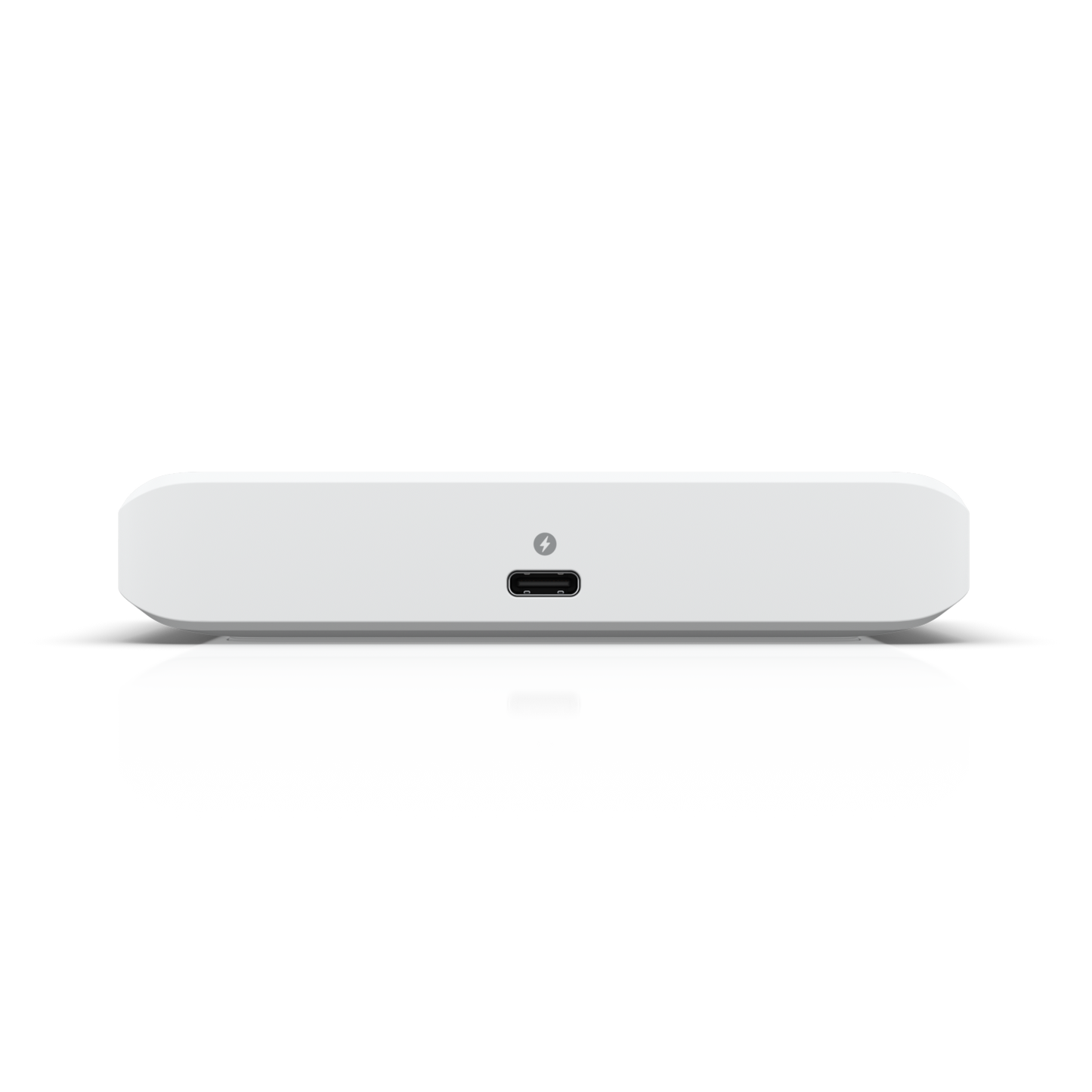

Power method (1) USB Type C, 5V
(1) PoE/PoE+, 44—57V DC, 0.05—0.04A
Power supply 5V, 1A power adapter*
*Only single-unit packages include the 5V, 1A USB-C power adapter.
Supported voltage range USB Type C: 4.7—5.3V DC
PoE/PoE+: 44—57V DC
Max. power consumption 2.5W
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
Button Factory reset
Ambient operating temperature -5 to 45° C (23 to 113° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
Layer 3 features
LEDs
System Status
Ethernet Speed/link/activity
Application Requirements
UniFi Network Version 5.12.5 and later
