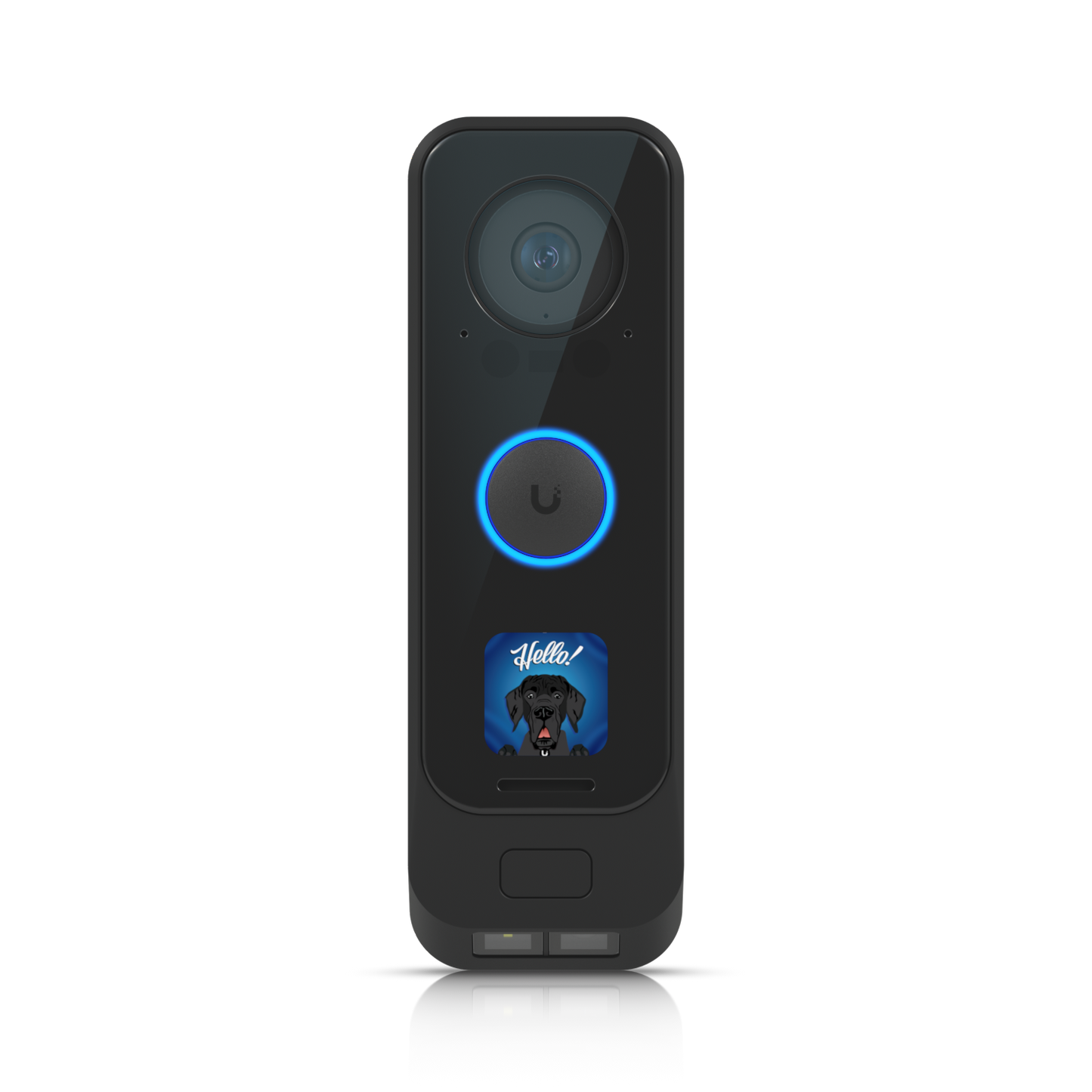

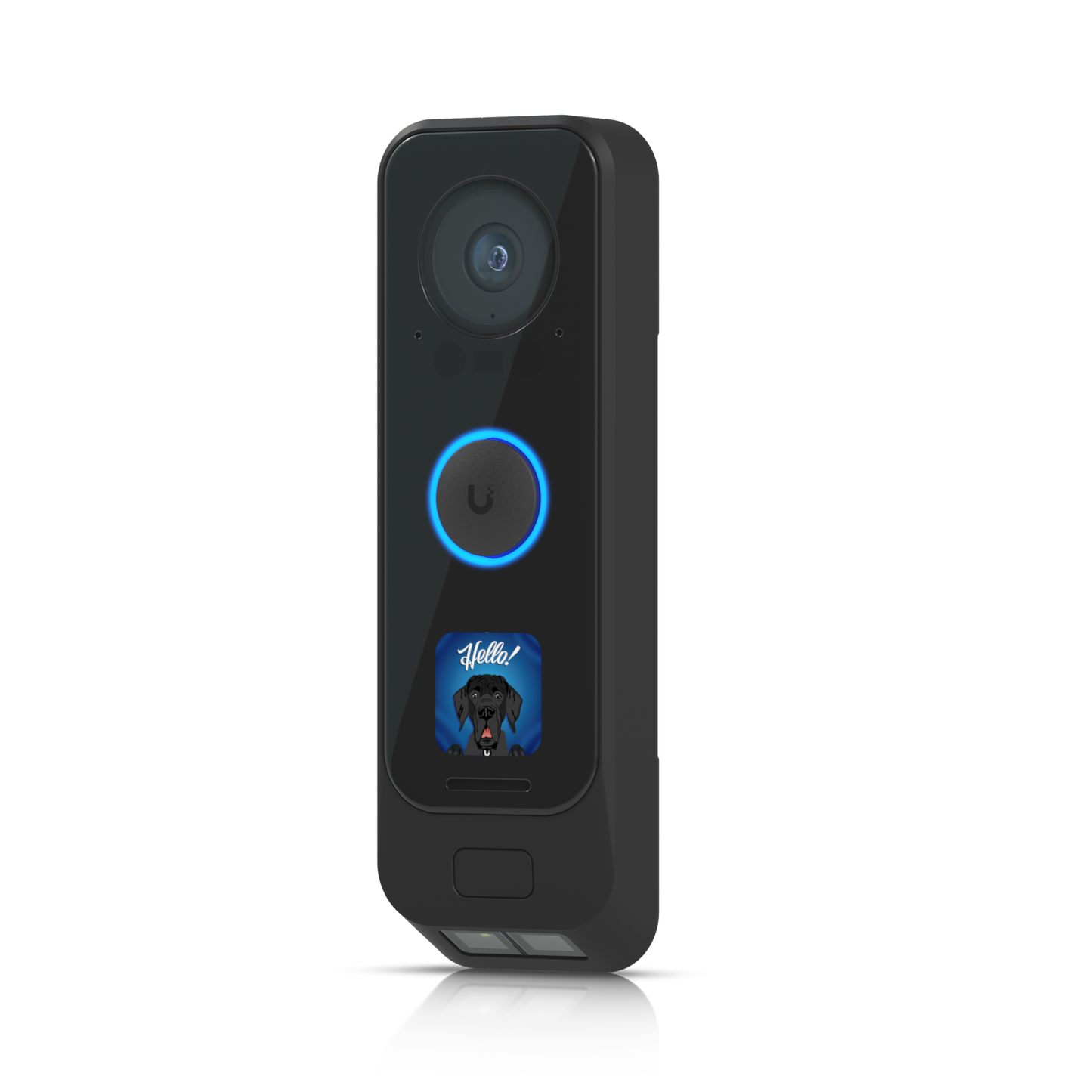

Premium UniFi doorbell with an enhanced package detection camera and integrated display.
- Improved HDR and low-light performance.

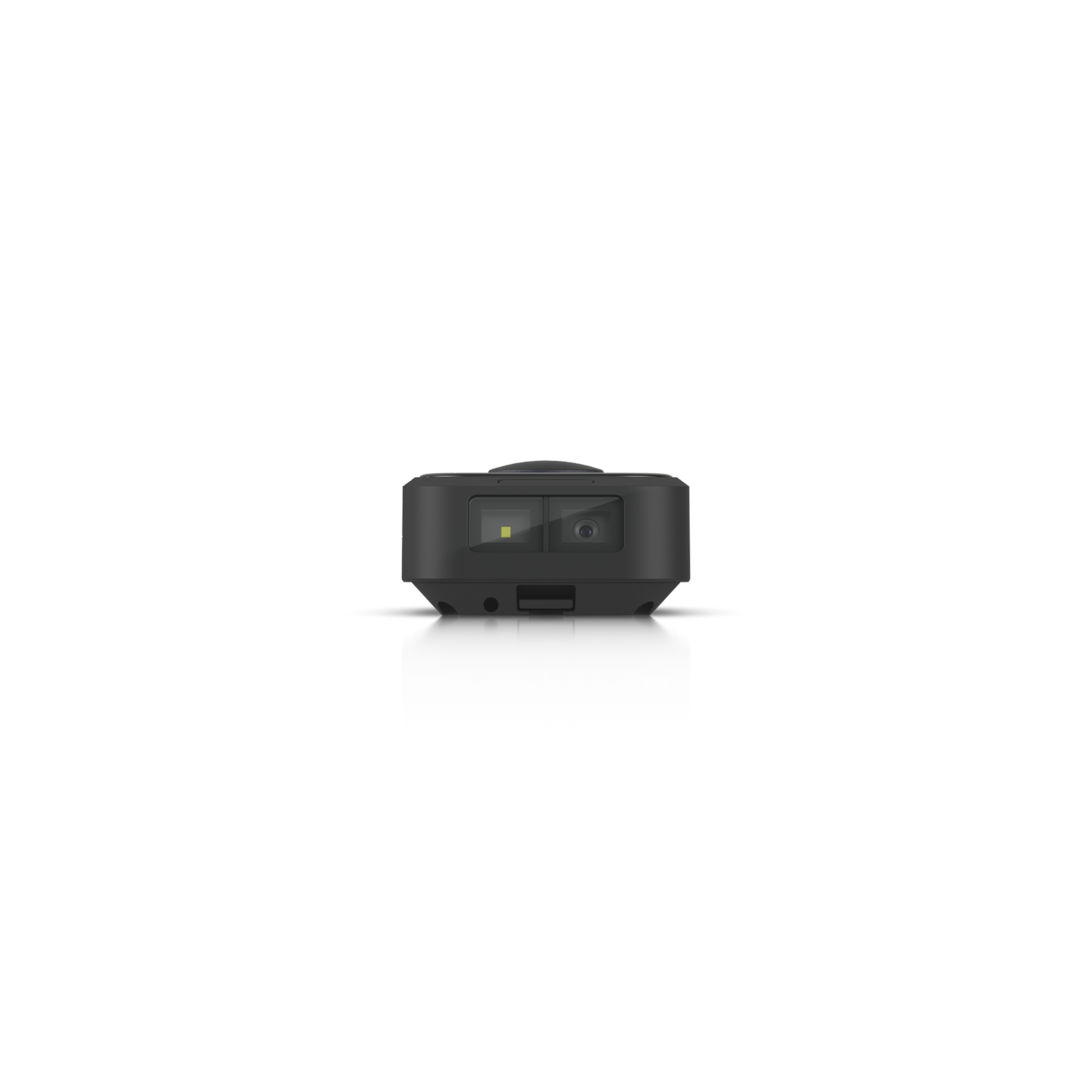

- Programmable welcome display and secondary package-detection camera.
- 6 m (20 ft) IR night vision.
- AI event detections.
- Wirelessly connected with UniFi WiFi Auto-Link.
- Integrated 2-way audio.
- Weather-resistant (outdoor covered).
Third-party WiFi configuration available during setup with the UniFi Protect mobile app.

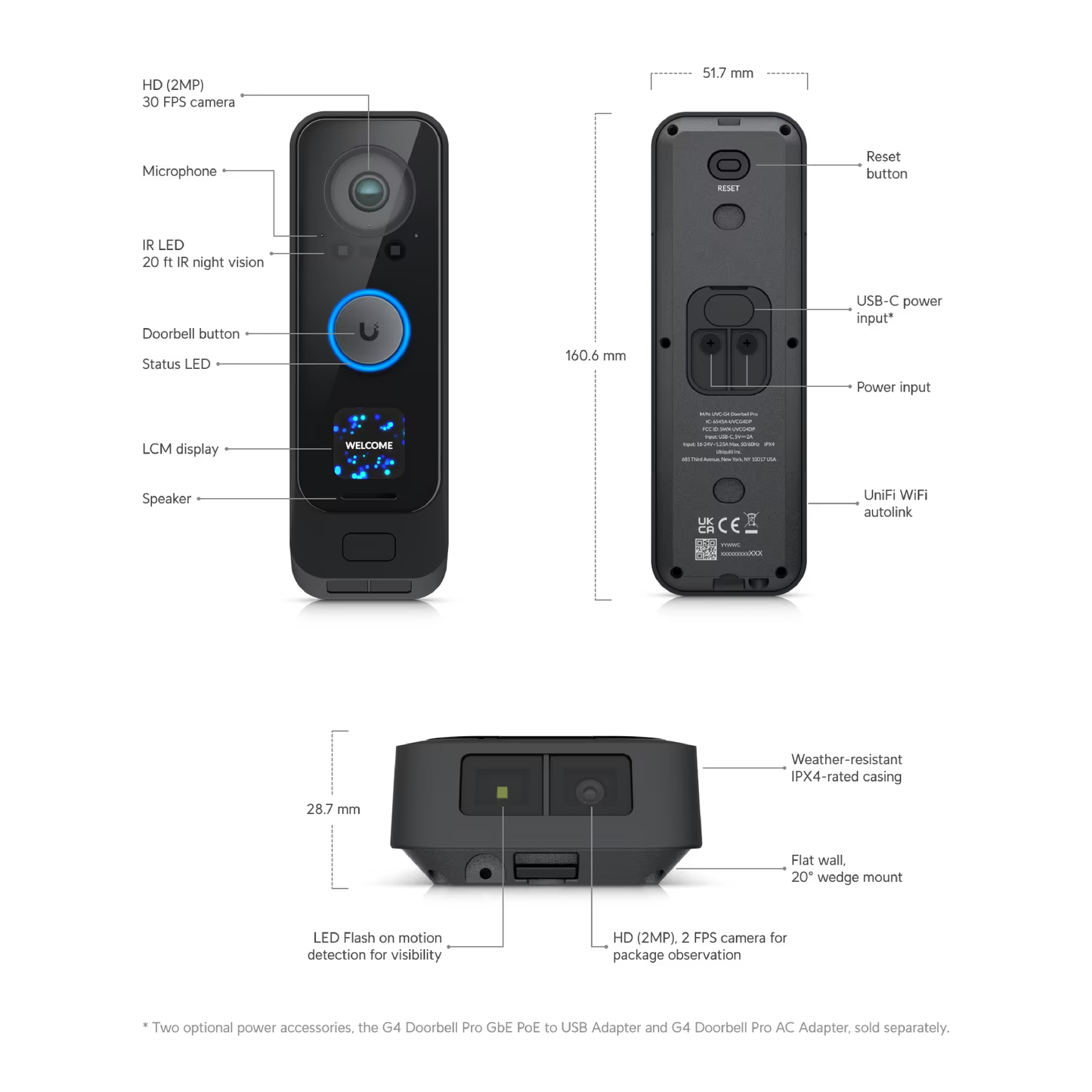

Mechanical |
Dimensions |
160.6 x 51.7 x 28.7 mm (6.3 x 2 x 1.1") |
Weight |
Without mount: 253 g (8.9 oz)
With flat wall mount: 286 g (10.1 oz)
With 20° wedge mount: 325 g (11.5 oz)
|
Enclosure material |
Polycarbonate, aluminum alloy |
Mount material |
Flat wall mount: aluminum alloy
20° wedge mount: polycarbonate
|
Weatherproofing |
IPX4 |
Optics |
Sensor |
Main camera: 5MP CMOS
Package camera: 8MP CMOS
|
Lens |
Fixed focal length |
View angle |
Main camera: H: 138°, V: 114°, D: 155°
Package camera: H: 97.5°, V: 79.4°, D: 118.2°
|
Night mode |
Built-in IR LED illumination and IR cut filter |
Video |
Resolution |
Main camera: 2MP 1600 x 1200 (4:3)
Package camera: 2MP 1600 x 1200 (4:3)
|
Max. frame rate |
30 FPS |
System |
Processor |
Quad-core Arm Cortex-A53 based chip |
Networking interface |
802.11a/b/g/n/ac WiFi
Bluetooth 5.0
GbE support (with UACC-Adapter-DBPOE)
|
Max. power consumption |
10W |
Power method |
16—24V AC, 1.25A max., 50/60 Hz
USB-C power cable, 5V DC, 2A
|
Supported voltage range |
37—57V DC |
LED |
Link/activity |
Button |
(1) Ring button
(1) Factory reset
|
Mounting |
Flat wall, 20° wedge (Included) |
Ambient operating temperature |
-10 to 40º C (14 to 104º F) |
Ambient operating humidity |
10 to 90% noncondensing |
Certifications |
FCC, IC, CE |
Audio |
Microphone |
Yes (Can be disabled) |
Speaker |
Yes |
Software |
Web application |
UniFi Protect: Version 1.21.0 and later |
Mobile app |
UniFi Protect iOS: Version 1.5.8 and later
UniFi Protect Android: Version 1.4.8 and later
|
Compatible Mechanical Chimes |
Manufacturer
Broan-NuTone
Broan-NuTone
Heath Zenith
Craftmade
Broan-NuTone
Newhouse Hardware
|
Model
LA126WH
LA11WH
SL-2735
CTPW-RG
LA39WH
CHM3D
|
Compatible Digital Chimes |
Manufacturer
Broan-NuTone
IQ AMERICA
IQ AMERICA
|
Model
LA600WH
DW-2850
DW-2840
|
Visit Ubiquiti for more information.
