Ubiquiti

UniFi G4 Doorbell Pro PoE Kit

Ubiquiti UniFi G4 Doorbell Pro PoE Kit

SKU:UVC-G4 Doorbell Pro PoE Kit

Regular price $776.00
Regular price $902.00 Sale price $776.00
14% Off | Save $126.00 Sold out
Taxes included. Shipping calculated at checkout.

Colour

89 in stock

Authorised Reseller | Australian Stock | Australian Warranty

View full details

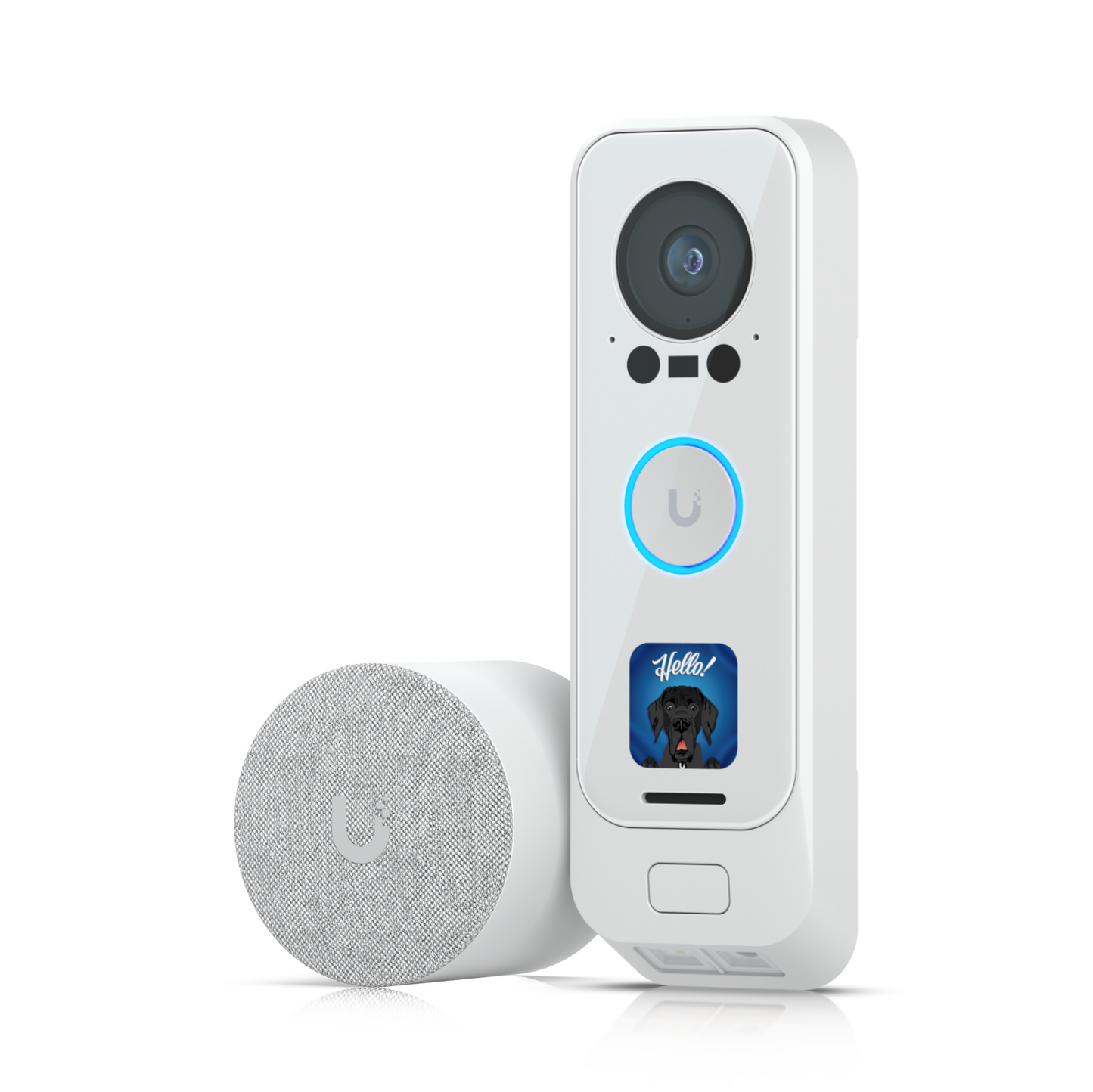

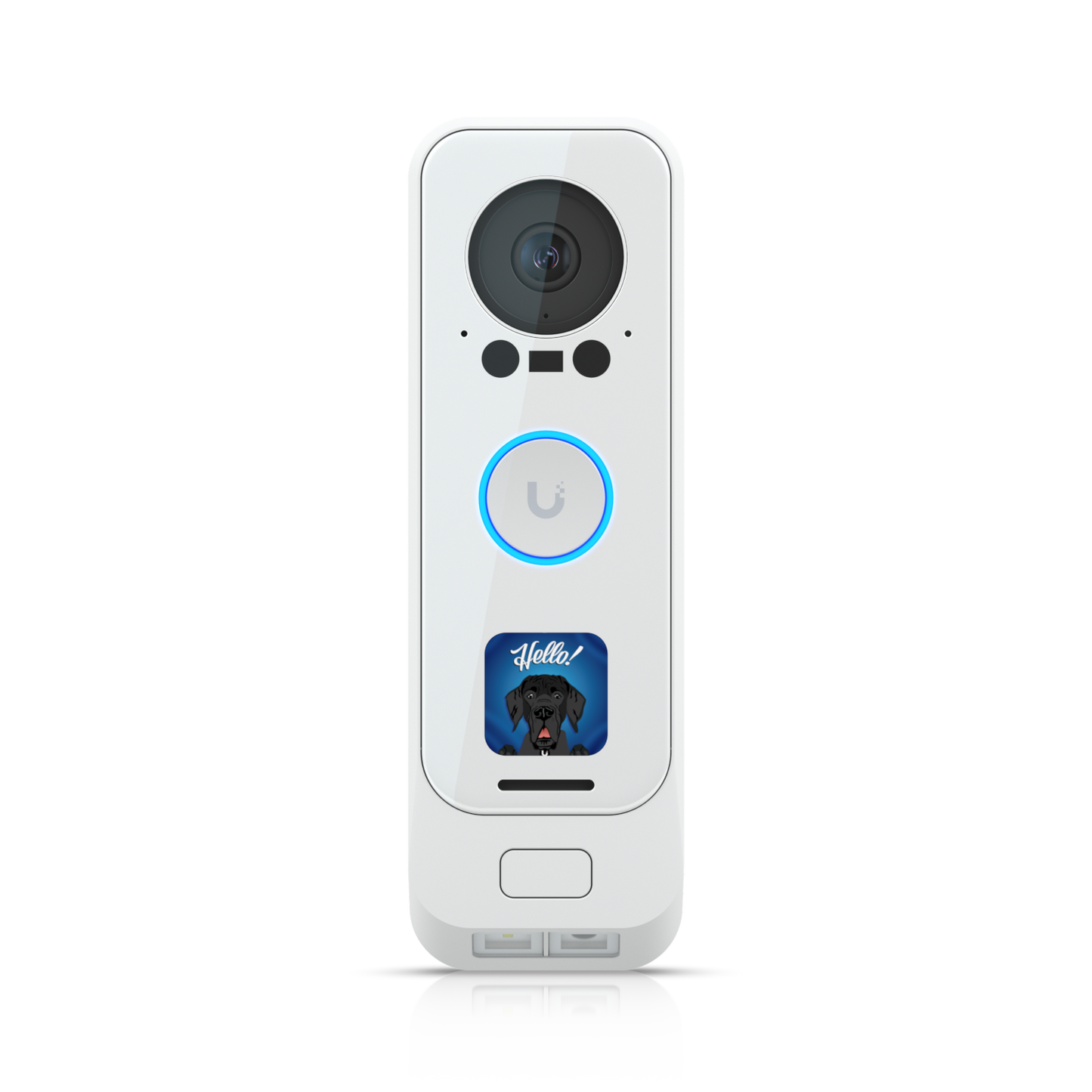

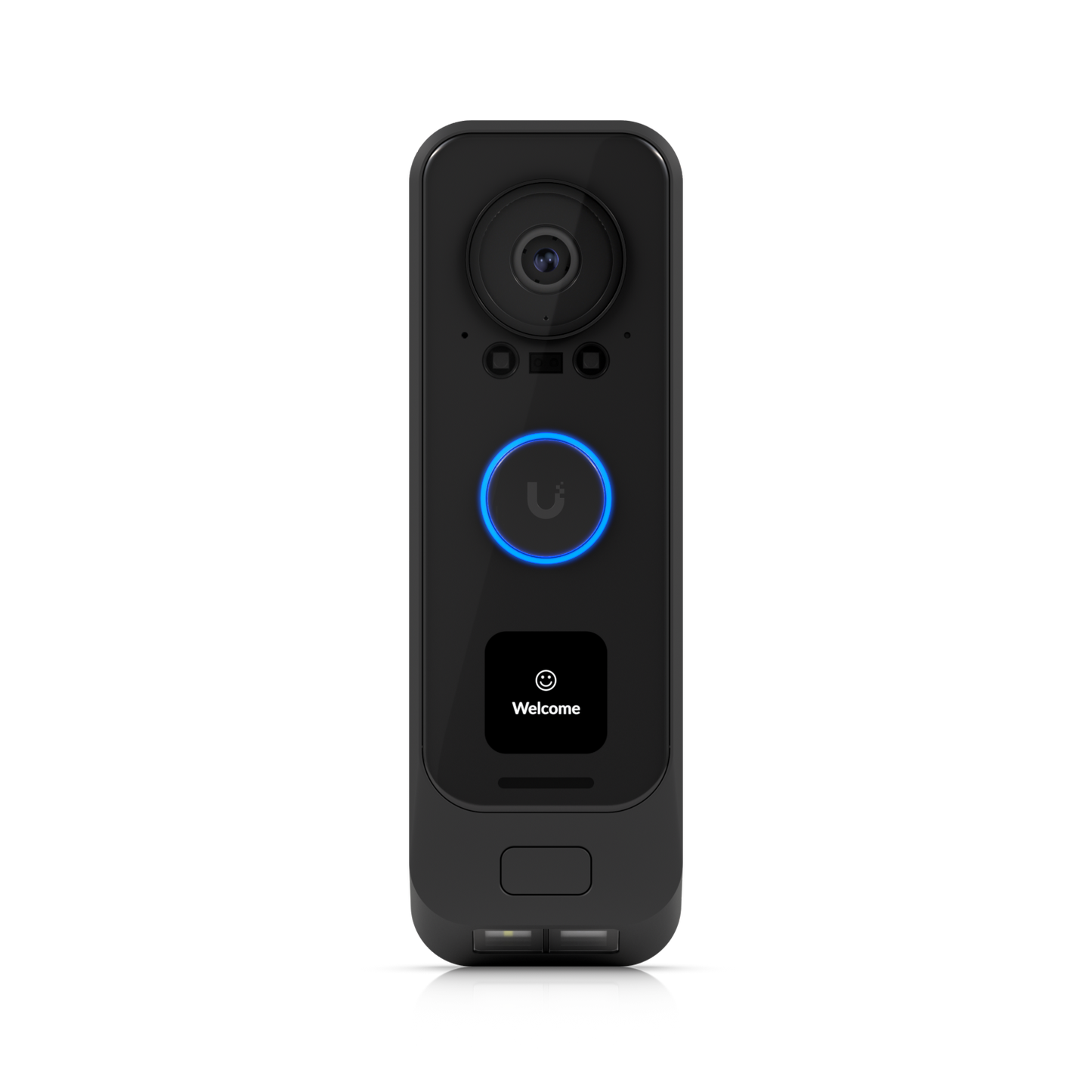

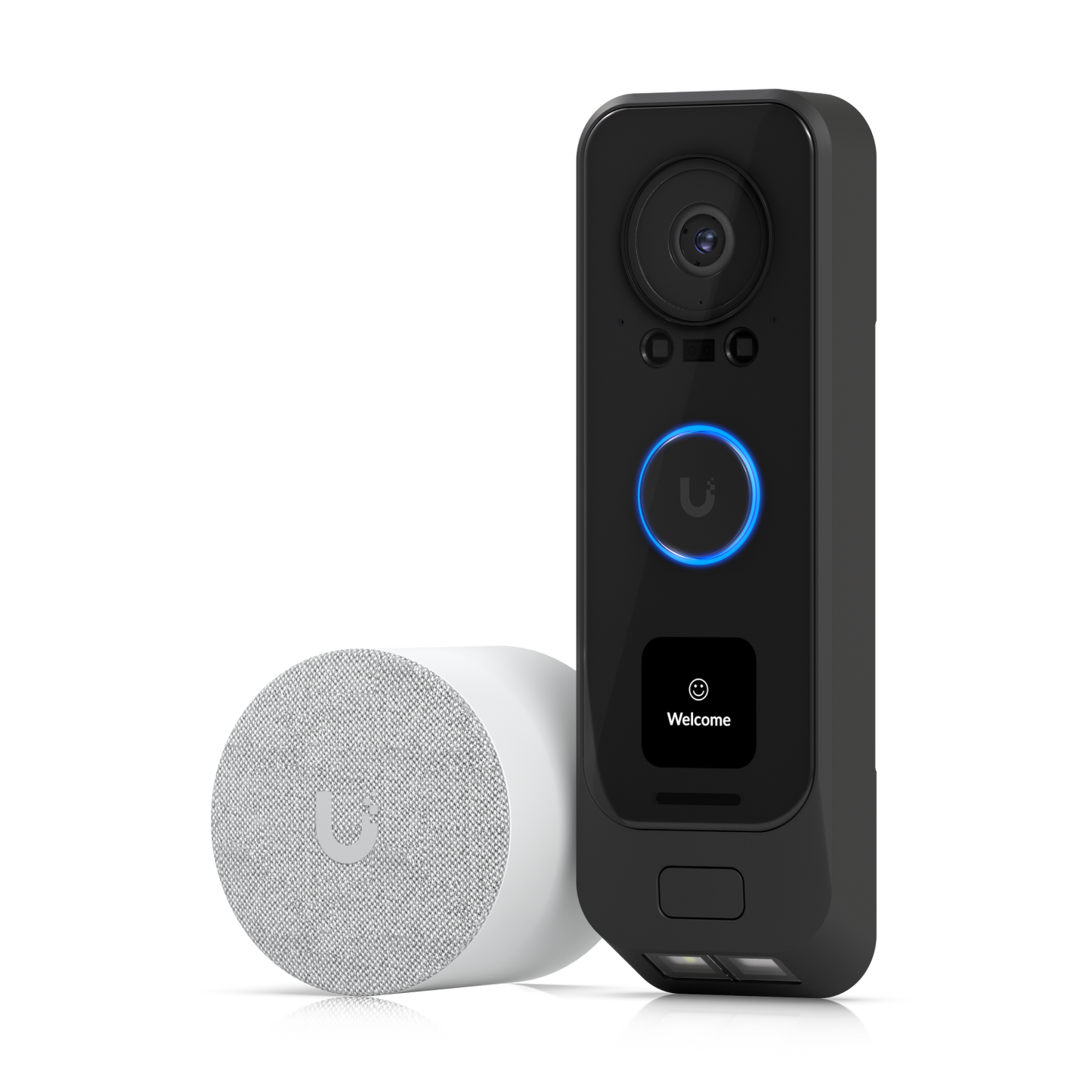

Premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation.

  • Improved HDR and low-light performance.
  • Programmable welcome display and secondary package-detection camera.
  • AI event detections.
  • Connect and power using PoE.
  • Integrated 2-way audio.
  • Includes PoE Chime.
  • Weather-resistant (outdoor covered).
Mechanical
Dimensions UVC-G4 Doorbell Pro
Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4")
Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7")
Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1")
On-wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1")

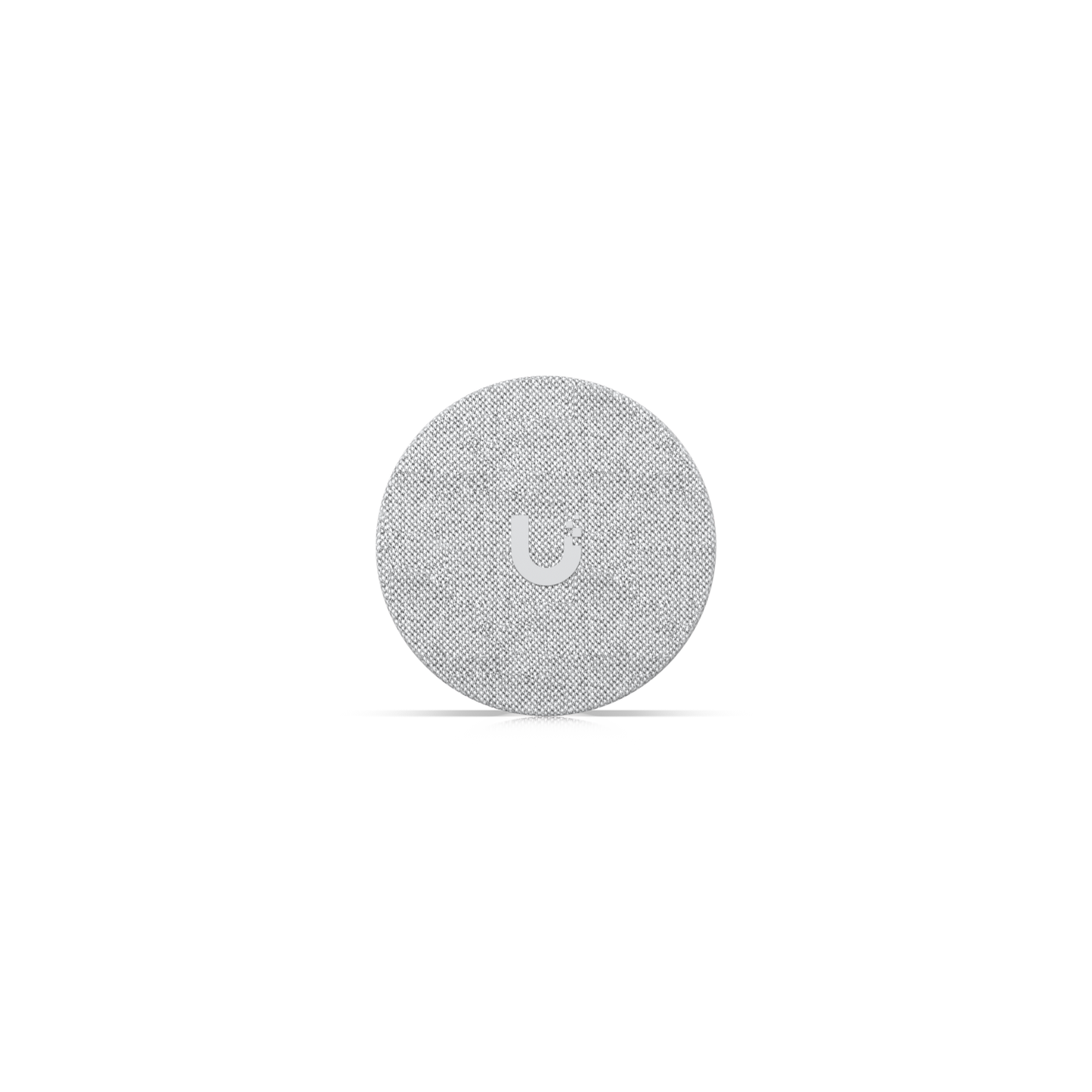

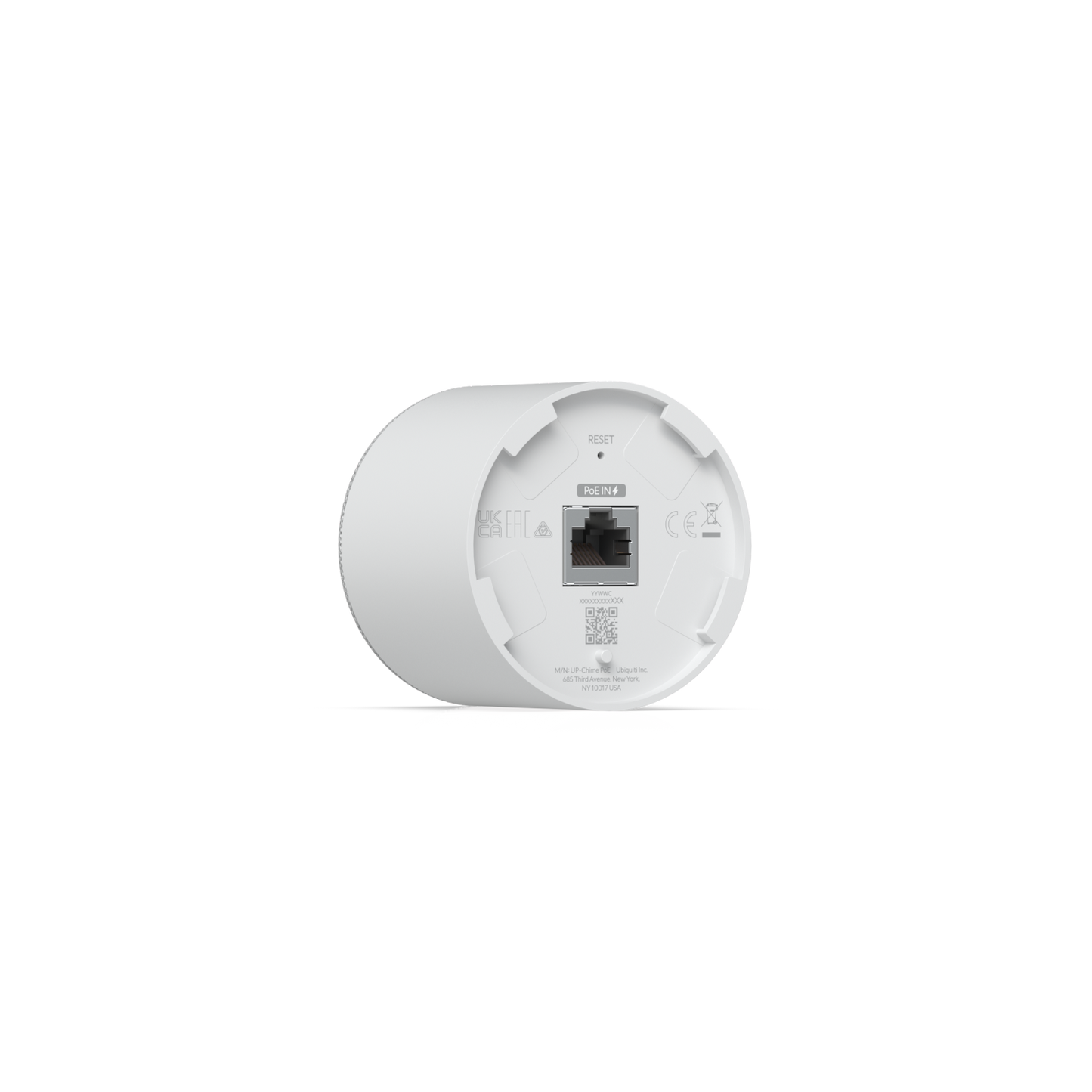

UP-Chime PoE
Device: Ø62 x 54 mm (Ø2.5 x 2.1")
In-wall mount: Ø89 x 63.1 mm (Ø3.5 x 2.5")
On-wall mount: Ø62 x 20.2 mm (Ø2.5 x 0.8")
Weight UVC-G4 Doorbell Pro
Device: 264 g (9.3 oz)
Wall mount: 56 g (2 oz)
Wedge: 33 g (1.2 oz)
On-wall mount: 53 g (1.9 oz)

UP-Chime PoE
Device: 158 g (5.6 oz)
In-wall mount: 91 g (3.2 oz)
On-wall mount: 28 g (1 oz)
Enclosure material Aluminum alloy, polycarbonate
Mount material Wall mount: aluminum alloy
Wedge: polycarbonate
On-wall mount: polycarbonate
Chime mout: polycarbonate, zinc alloy
Weatherproofing IPX4 (UVC-G4 Doorbell Pro)

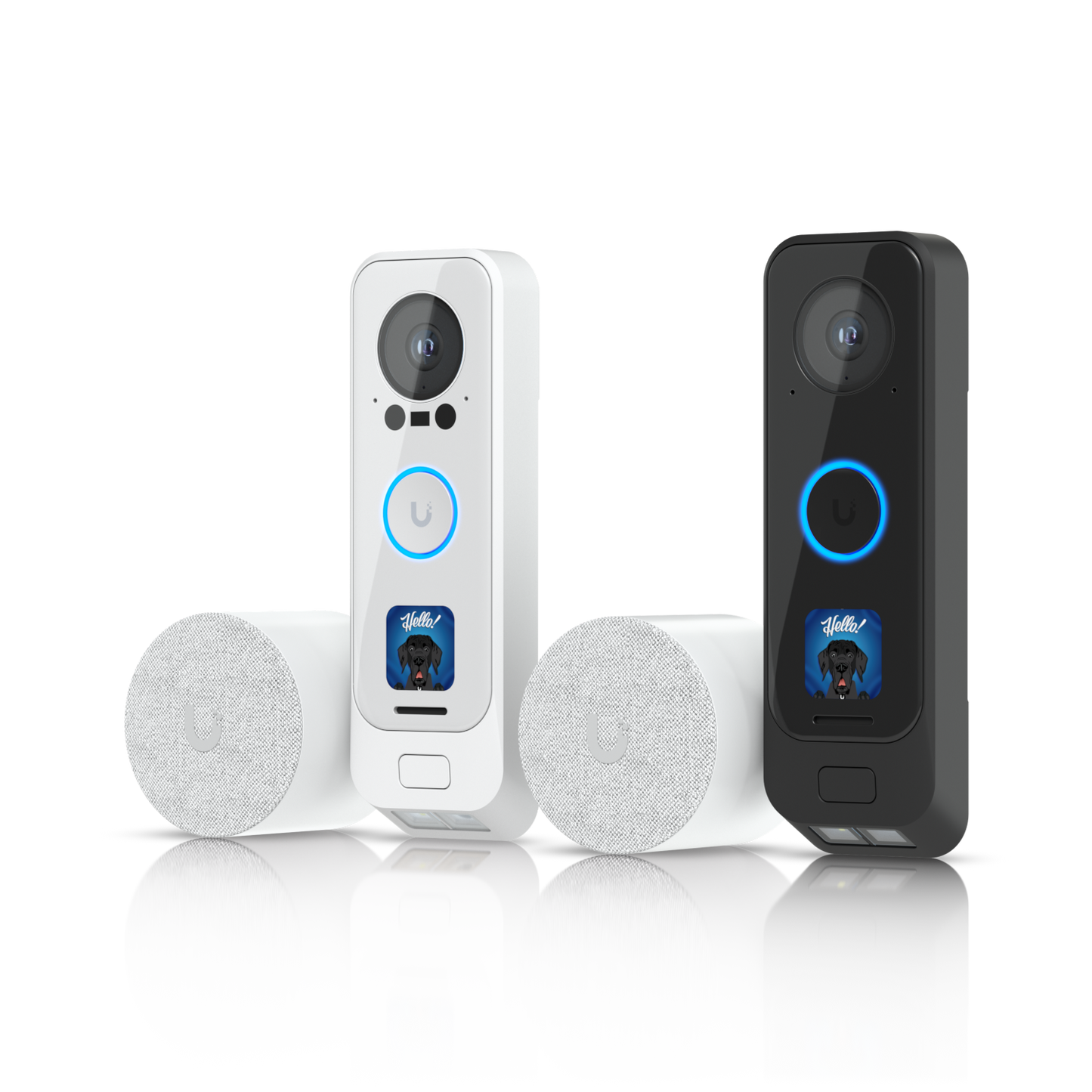

Color Black

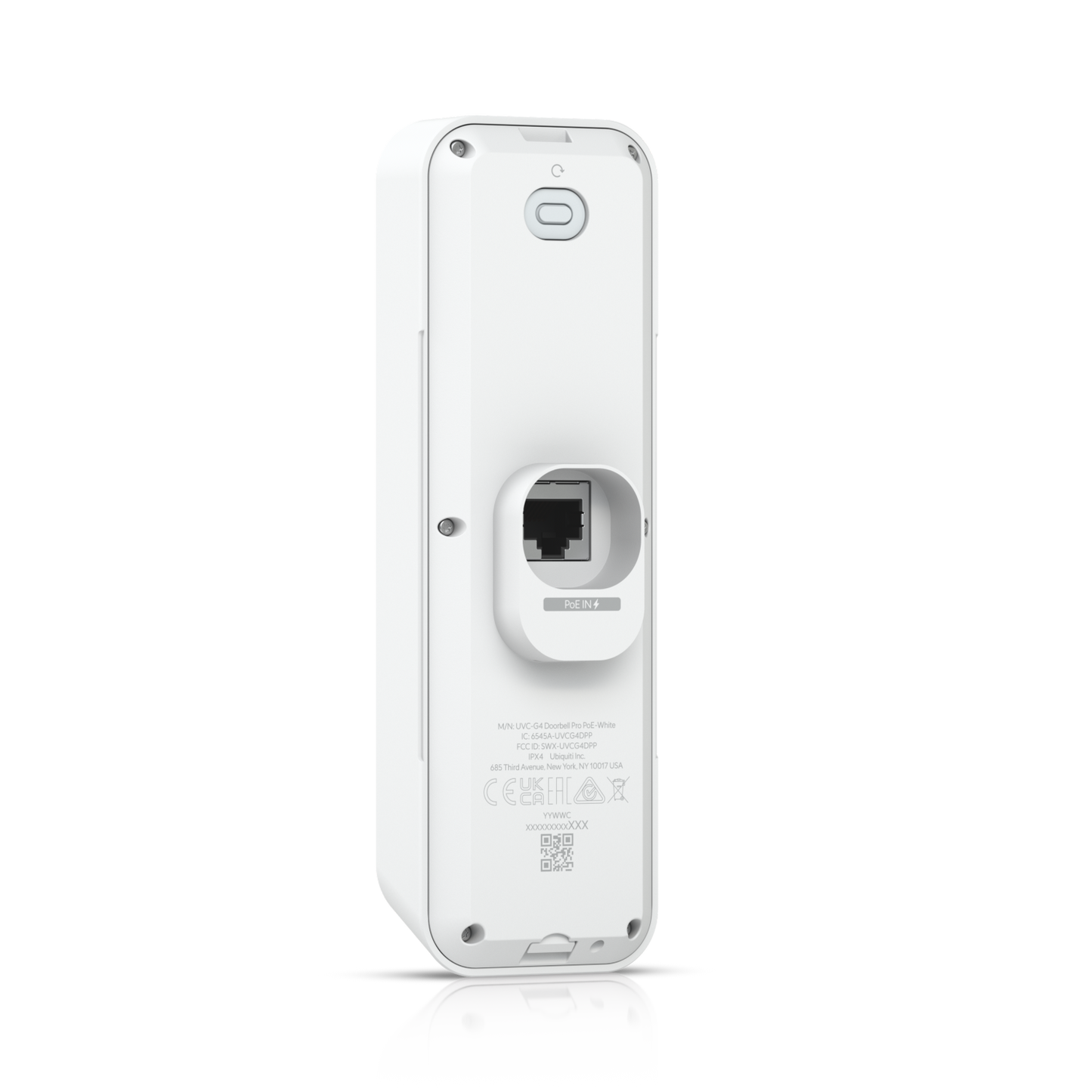

White
Optics

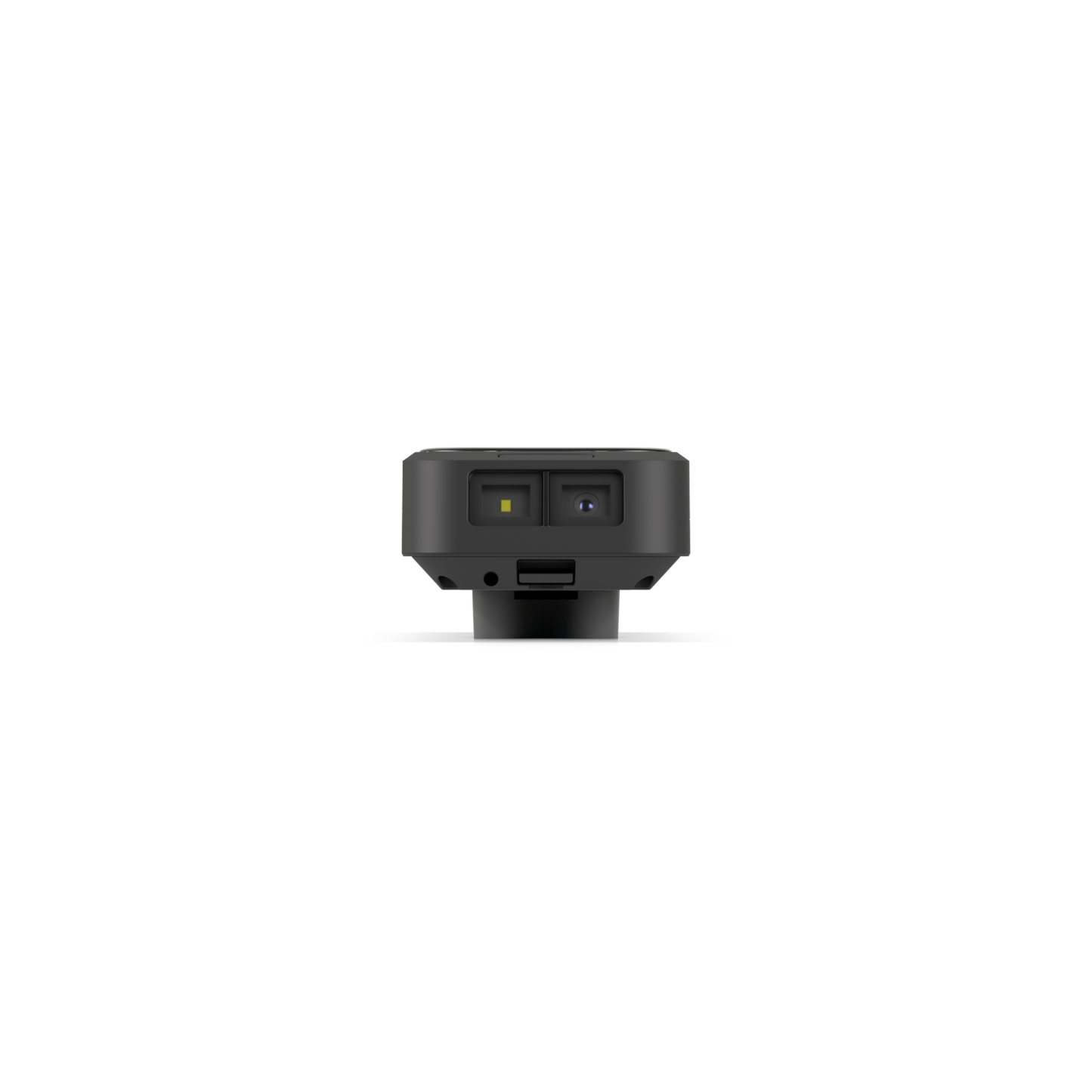

Sensor Main camera: 5MP CMOS

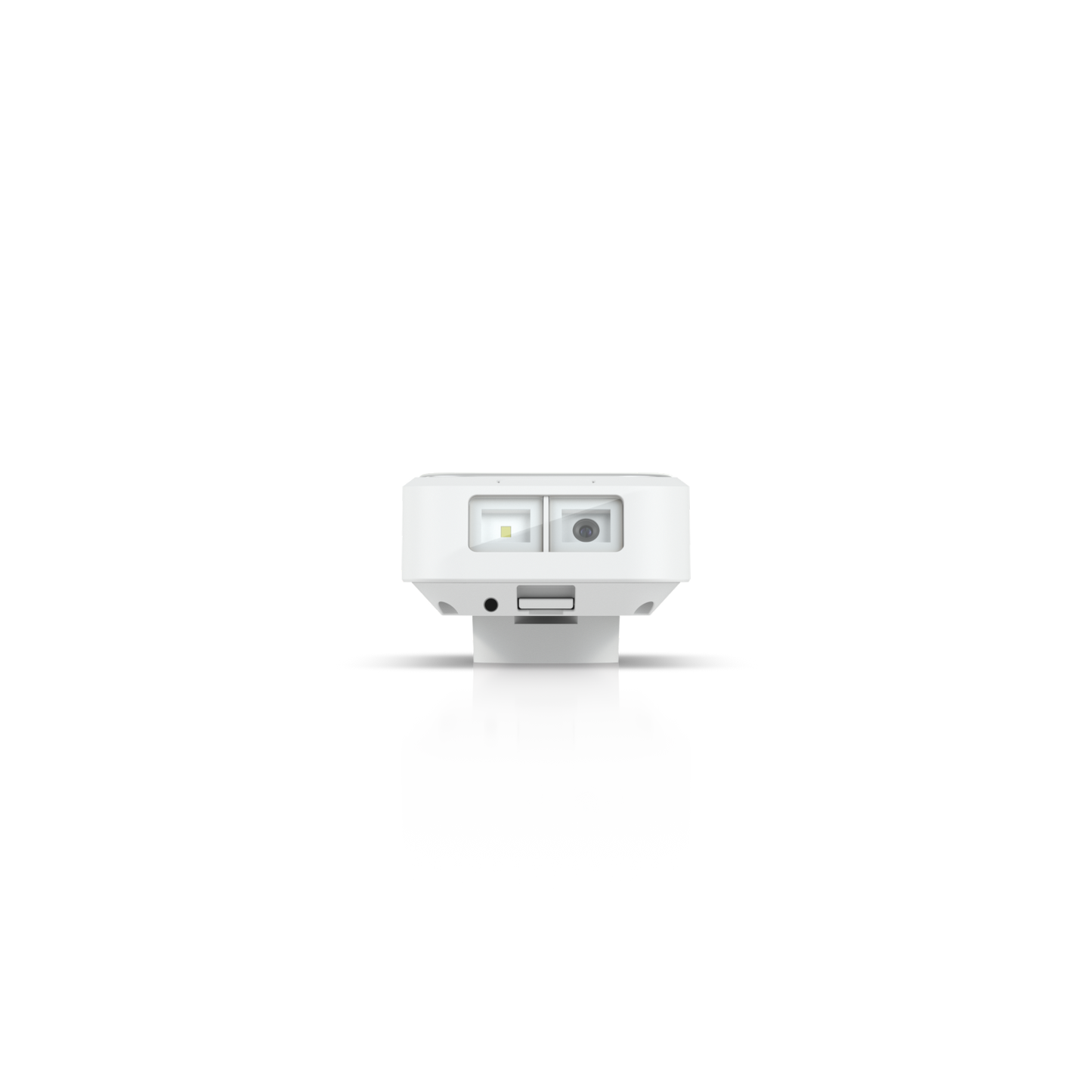

Package camera: 8MP CMOS
Lens Fixed focal length
View angle Main camera: H: 138°, V: 114°, D: 155° (LDC On)
Main camera: H: 160°, V: 117°, D: 160° (LDC Off)
Package camera: H: 97.5°, V: 79.4°, D: 118.2°
Night mode Built-in IR LED illumination and IR cut filter
Video
Resolution Main camera: 2MP 1600 x 1200 (4:3)
Package camera: 2MP 1600 x 1200 (4:3)
Max. frame rate 30 FPS
System
Processor Quad-core Arm Cortex-A53 based chip

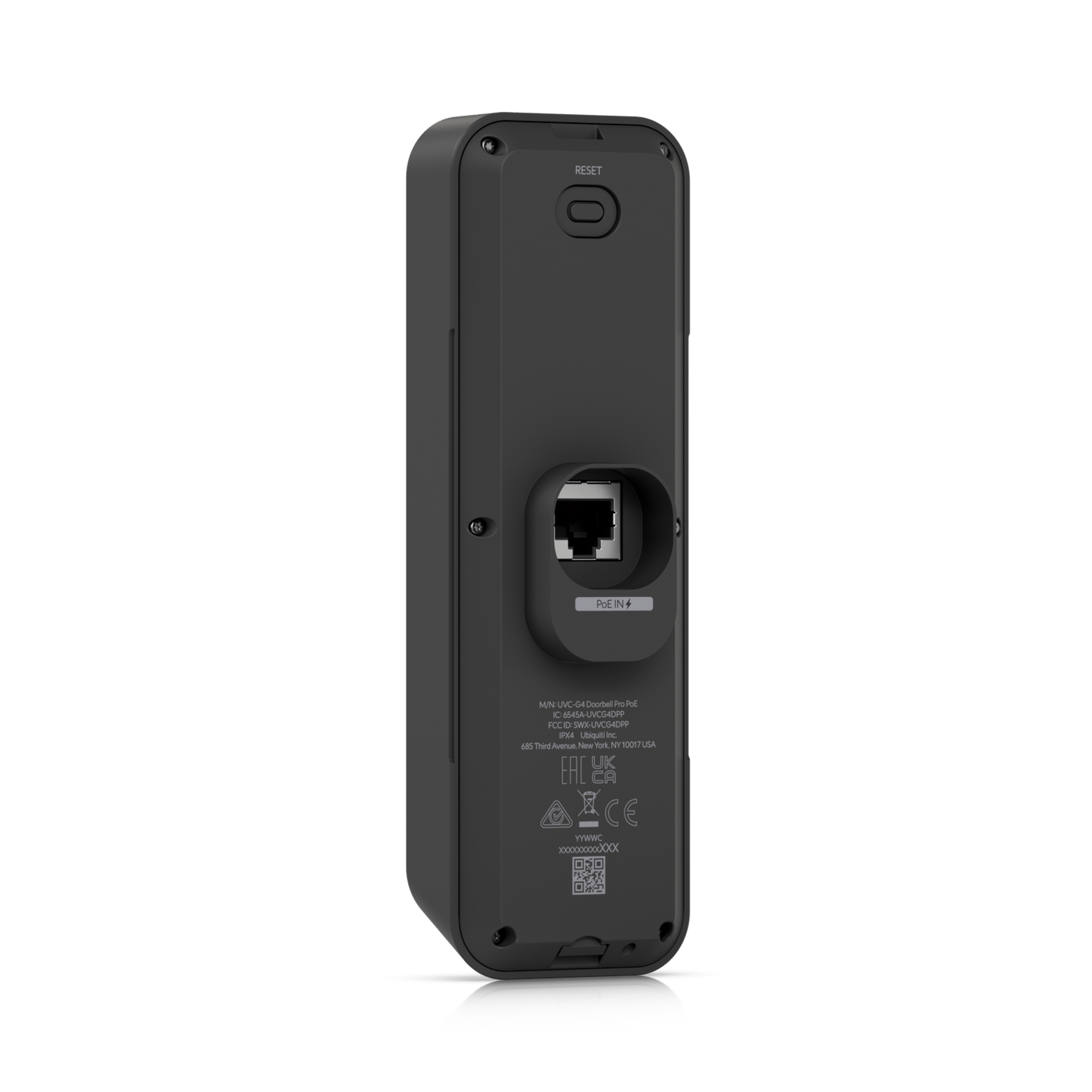

Networking interface UVC-G4 Doorbell Pro: GbE RJ45 port
UP-Chime PoE: 10/100 MbE port
Power method PoE
Supported voltage range UVC-G4 Doorbell Pro: 37—57V DC
UP-Chime PoE: 44–57V DC
Max. power consumption UVC-G4 Doorbell Pro: 7W
UP-Chime PoE: 3.5W
LED Link/activity
Buttons (1) Ring button
(1) Factory reset
Ambient operating temperature UVC-G4 Doorbell Pro: -30 to 40º C (-22 to 104º F)
UP-Chime PoE: 0 to 40° C (32 to 104° F)
Ambient operating humidity UVC-G4 Doorbell Pro: 0 to 90% noncondensing
UP-Chime PoE: 10 to 90% noncondensing
Certifications CE, FCC, IC
Audio
Microphone Yes (Can be disabled for the Doorbell)
Speaker Yes
Buzzer Yes (UP-Chime PoE)
Software
UniFi OS application UniFi Protect
Mobile app UniFi Protect iOS and Android

Visit Ubiquiti for more information.
