UniFi Gateway Max
Ubiquiti UXG-Max UniFi Gateway Max
SKU:UXG-Max
Regular price
$366.00
Regular price
$398.00
Sale price
$366.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Price includes 2-Year Warranty.
Learn more.
Sale ending soon! Limited promotional stock available — don’t miss out!
109 in stock and ready to ship today.
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Compact, multi-WAN independent gateway with full 2.5G support for high-performance networking at small-to-medium sites.
- Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server.
- Up to 1.5 Gbps routing with IDS/IPS.

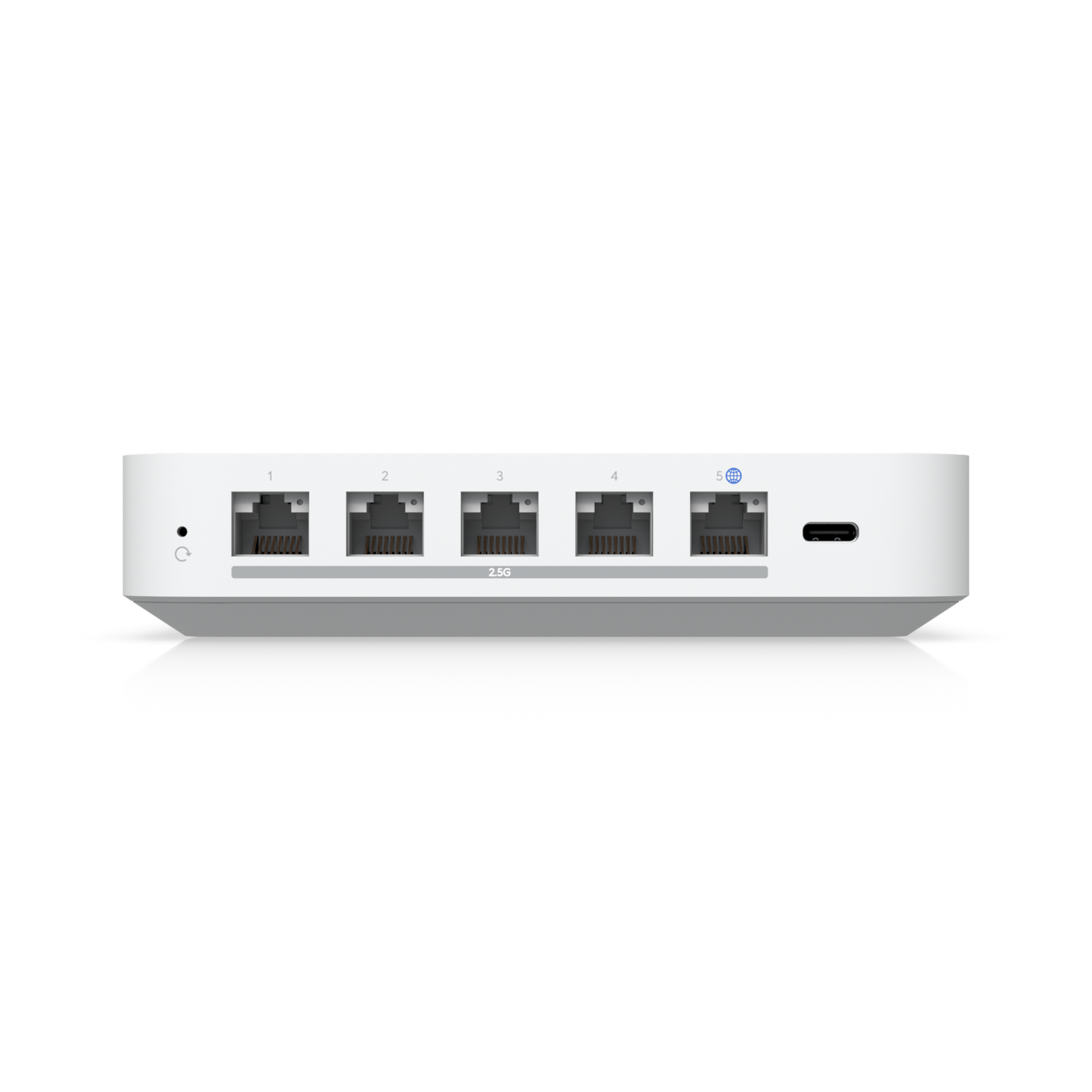

- (1) 2.5 GbE WAN port
- (4) 2.5 GbE LAN ports, including (1) remappable to WAN.
- USB-C powered (adapter included).
- Managed with UniFi Network 8.1.113 and later.
| Mechanical | |
|---|---|
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| Weight | 520 g (1.1 lb) |
| Enclosure material | Polycarbonate |
| Resistance | IK04 |
| Hardware | |
| Processor | Quad-core ARM Cortex-A53 at 1.5 GHz |
| Memory information | 2 GB DDR4 |
| Management interface |
Ethernet Bluetooth |
| Networking interface |
LAN: (4) 2.5 GbE RJ45 ports WAN: (1) 2.5 GbE RJ45 port |
| IDS/IPS throughput |
1.5 Gbps* *Measured with iPerf3 on DHCP WAN. Performance may be reduced with PPPoE depending on ISP implementation. |
| Power method | USB type C (5V/3A) |
| Supported voltage range | 100–240V |
| Max. power consumption | 9.6W |
| LED |
Ethernet White: link/activity |
| Button | (1) Factory reset |
| Ambient operating temperature | -10 to 40° C (14 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance |
WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Internet quality and outage reporting |
| Next-generation security |
Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking |
License-free SD-WAN* WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport* and Identity Enterprise VPN** Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IPv6 ISP support *When paired with a CloudKey or Official UniFi Hosting. **When paired with a CloudKey. |
| Application Requirements | |
| UniFi Network | Version 8.1.113 and later |
Visit Ubiquiti for more information.
