Ubiquiti
Ubiquiti

Industrial — UniFi Switching

Industrial — UniFi Switching

Regular price $934.00
Regular price $1,126.00 Sale price $934.00
17% Off | Save $192.00 Sold out
Taxes included. Shipping calculated at checkout.

SKU:USW-Industrial

Out of stock

View full details

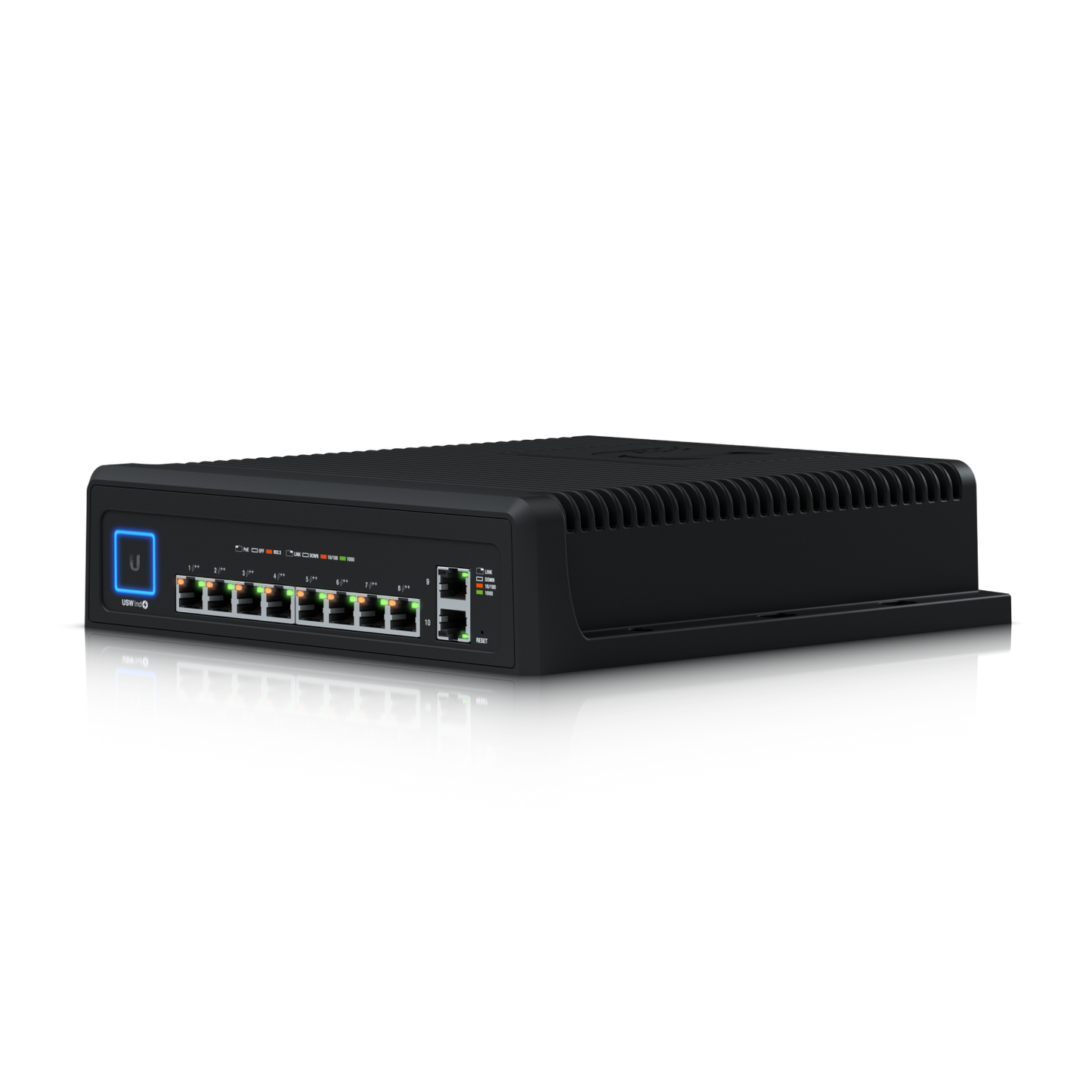

An 8-port, Layer 2 PoE switch with a silent, fanless cooling system.

  • (8) GbE PoE++ ports
  • (2) GbE ports
  • 430W total PoE availability
  • Wide operating temperature range
  • Fanless, silent cooling
Mechanical
Dimensions 254 x 235 x 60 mm (10 x 9.3 x 2.4")
Weight 3.9 kg (8.5 lb)
Enclosure material Die-cast aluminum with black powder coated finish
Hardware
Management interface Ethernet In-Band
Networking interface (10) GbE RJ45 ports
PoE interface (8) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 10 Gbps
Switching capacity 20 Gbps
Forwarding rate 14.88 Mpps
Power method Universal input, 100—240V AC, 6A Max., 50/60 Hz
Power supply AC/DC, internal, 450W
Supported voltage range 100—240V AC
Max. power consumption 20W (Excluding PoE output)
Total available PoE 430W
Max. PoE wattage per port by PSE PoE++: 60W
Voltage range PoE mode PoE++: 50—57V
ESD/EMP protection Air: ± 24kV, contact: ± 24kV
Shock and vibration ETSI300-019-1.4 Standard
Ambient operating temperature Internal AC/DC @ 450W: -40 to 50° C (-40 to 122° F)
Internal AC/DC @ 240W: -40 to 60° C (-40 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Layer 3 features
LEDs
System Status
Ethernet PoE
Speed/link/activity
