Lite 16 PoE — UniFi Switching

Lite 16 PoE — UniFi Switching

Regular price $356.00
Regular price $456.00 Sale price $356.00
22% Off | Save $100.00 Sold out
Taxes included. Shipping calculated at checkout.

SKU:USW-Lite-16-PoE

In stock

View full details

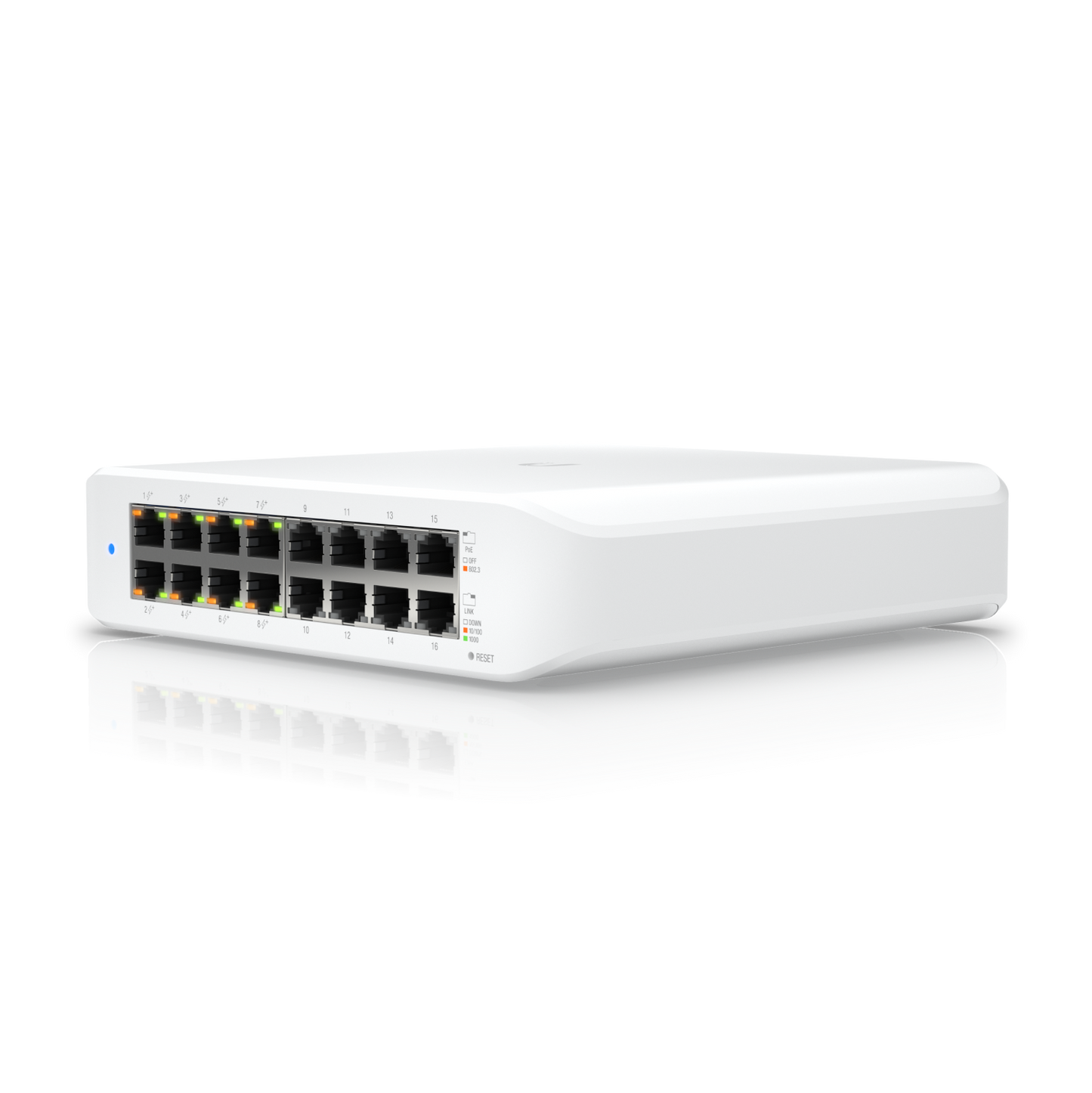

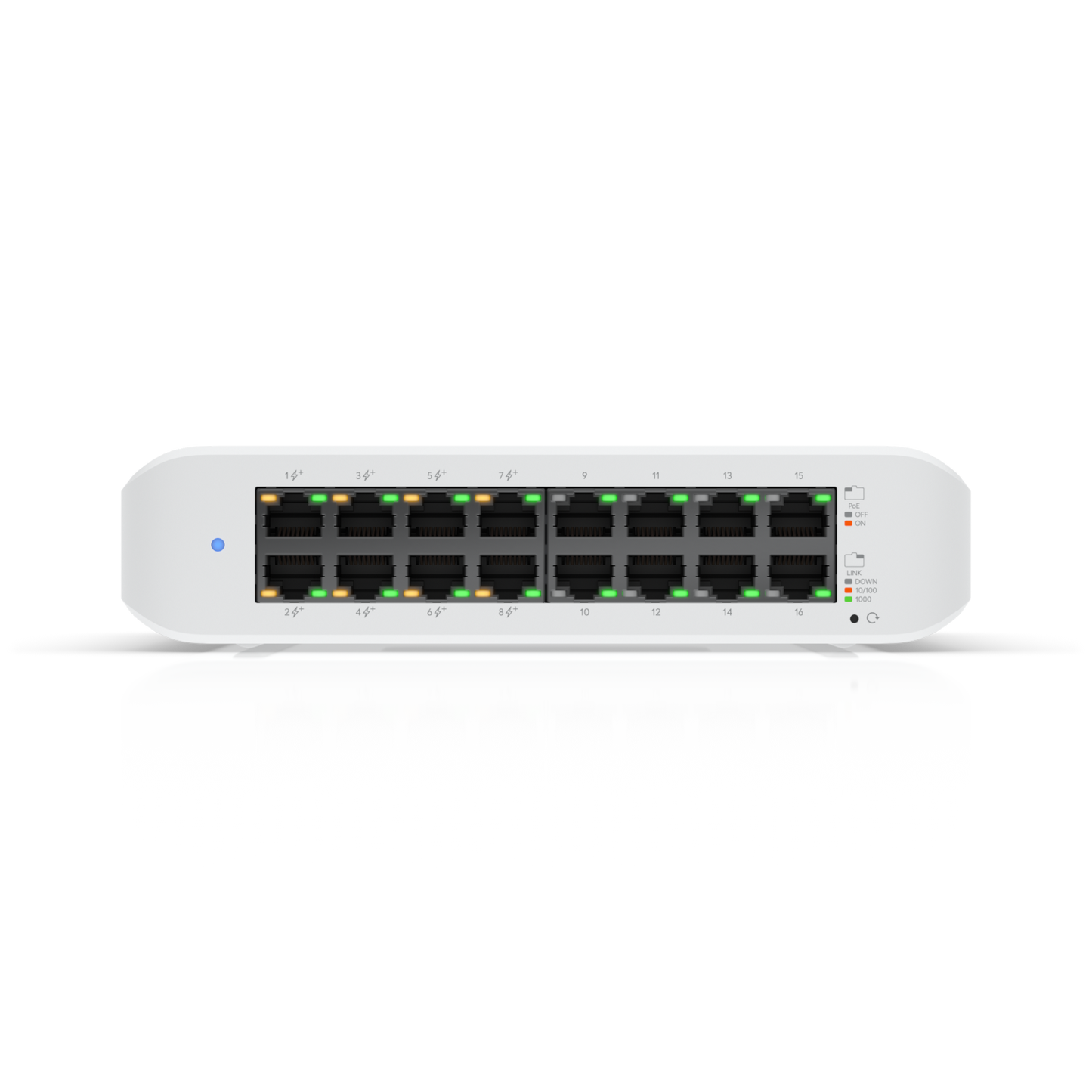

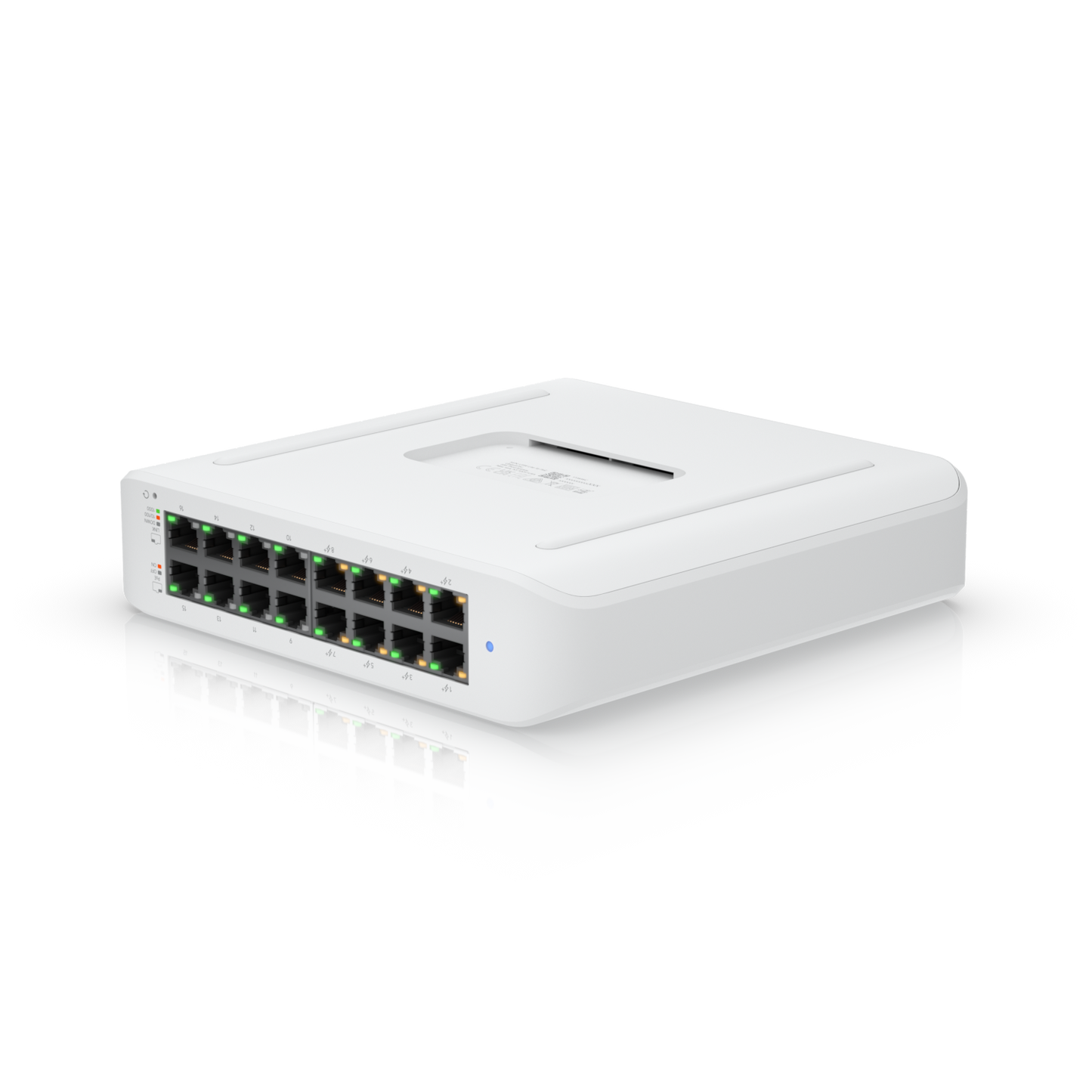

A wall-mountable, 16-port, Layer 2 PoE switch with a fanless cooling system.

  • (8) GbE PoE+, (8) GbE ports
  • 45W total PoE availability
  • Wall mountable
Mechanical
Dimensions 192 x 185 x 44 mm (7.6 x 7.3 x 1.7")
Weight 1.2 kg (2.6 lb)
Enclosure material Polycarbonate
Hardware
Management interface Ethernet In-Band
Networking interface (16) GbE RJ45 ports
PoE interface (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 16 Gbps
Switching capacity 32 Gbps

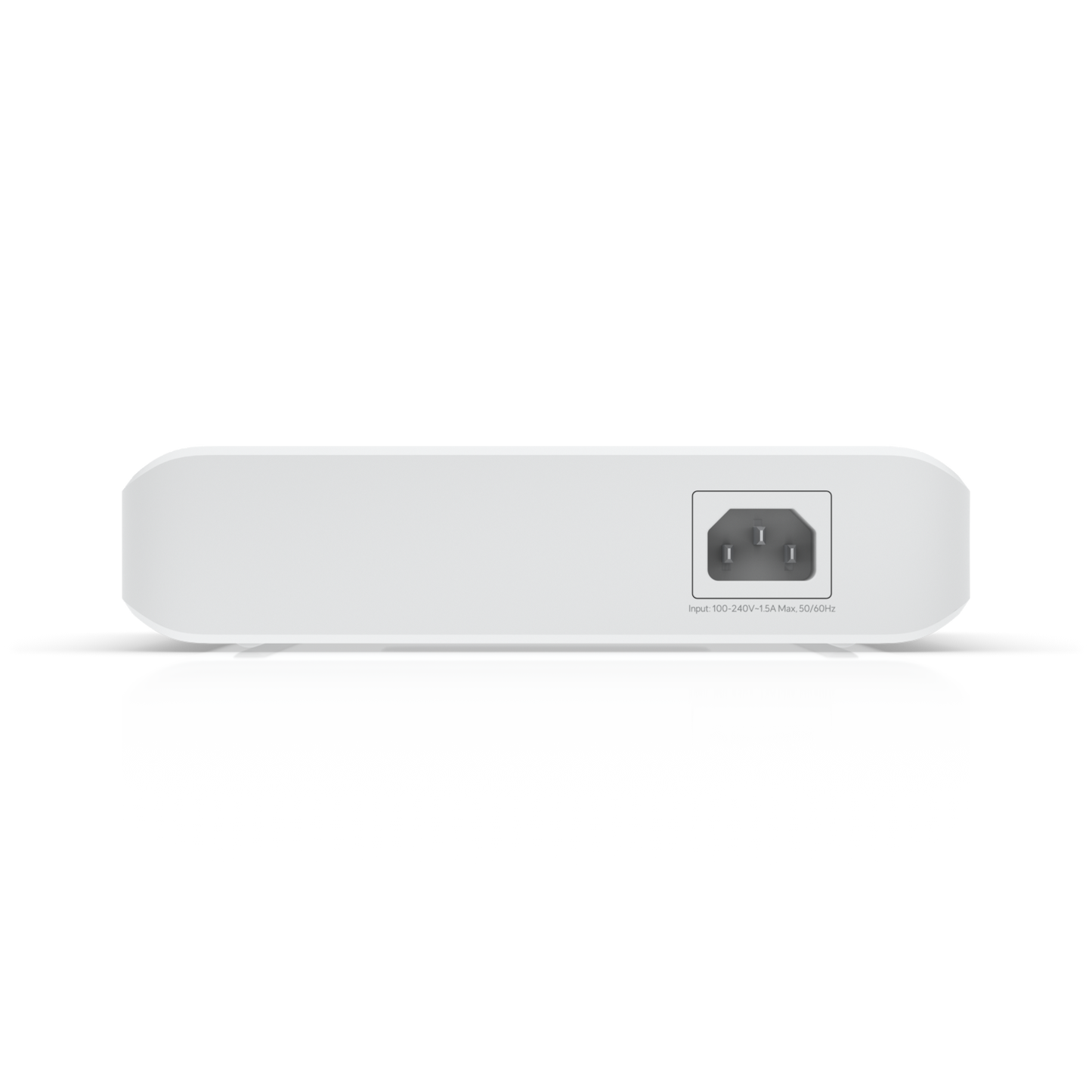

Power method Universal input, 100—240V AC
Power supply AC/DC, internal, 60W
Max. power consumption 15W (Excluding PoE output)
Total available PoE 45W
Max. PoE wattage per port by PSE PoE+: 30W
Button Factory reset
Ambient operating temperature -15 to 40° C (5 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features
LEDs
System Status
Ethernet PoE
Speed/link/activity
PoE Link/activity
Application Requirements
UniFi Network Version 7.2.94 and later
