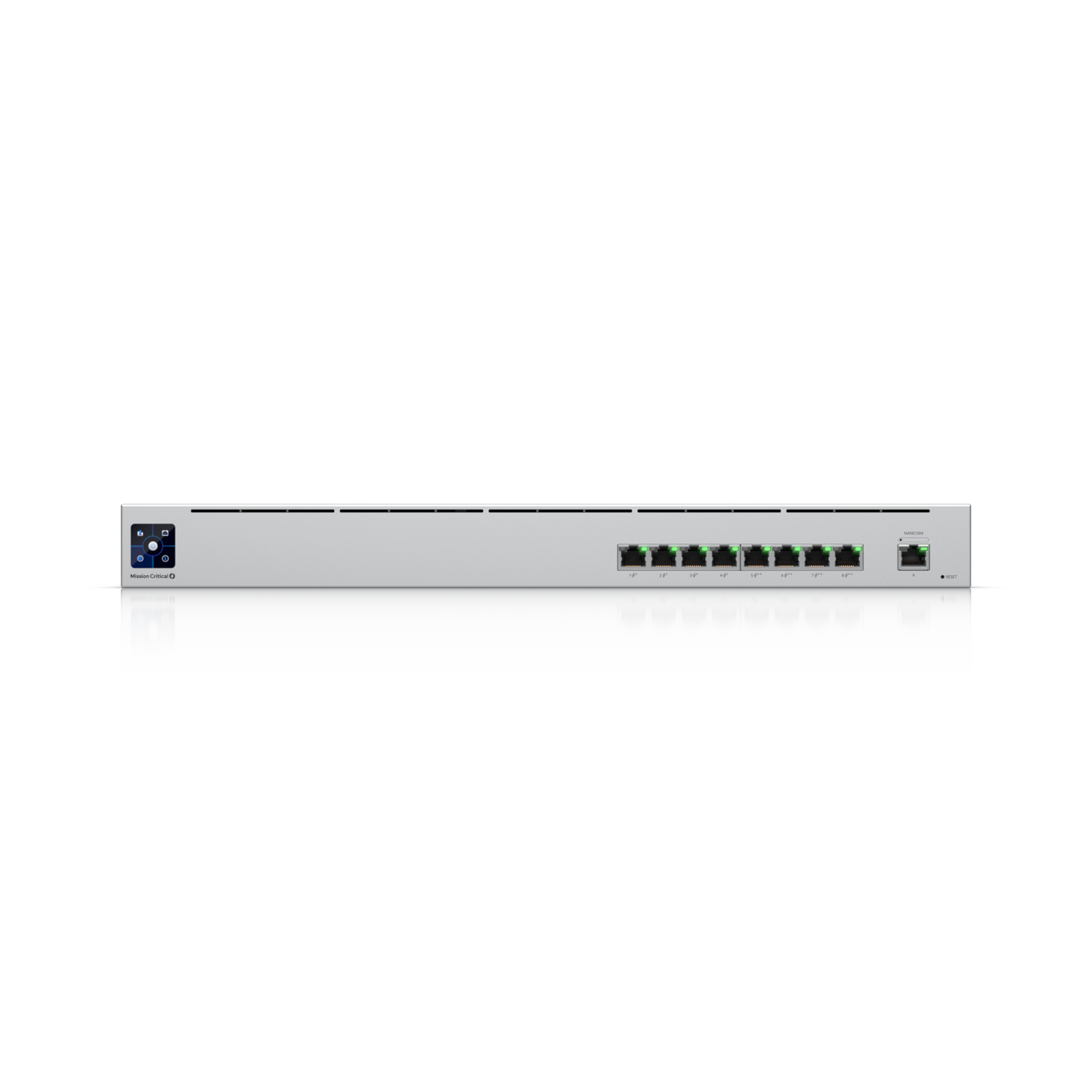

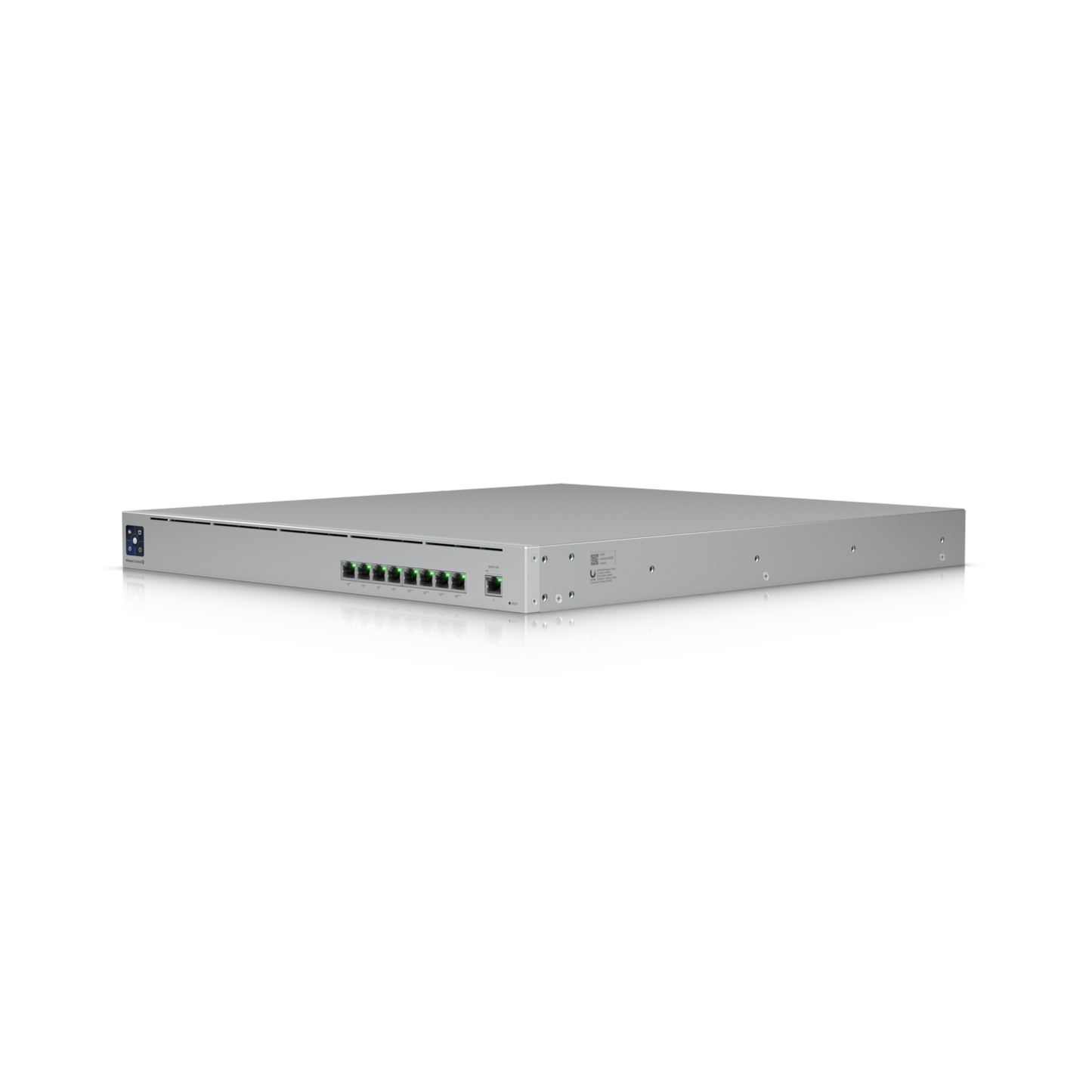

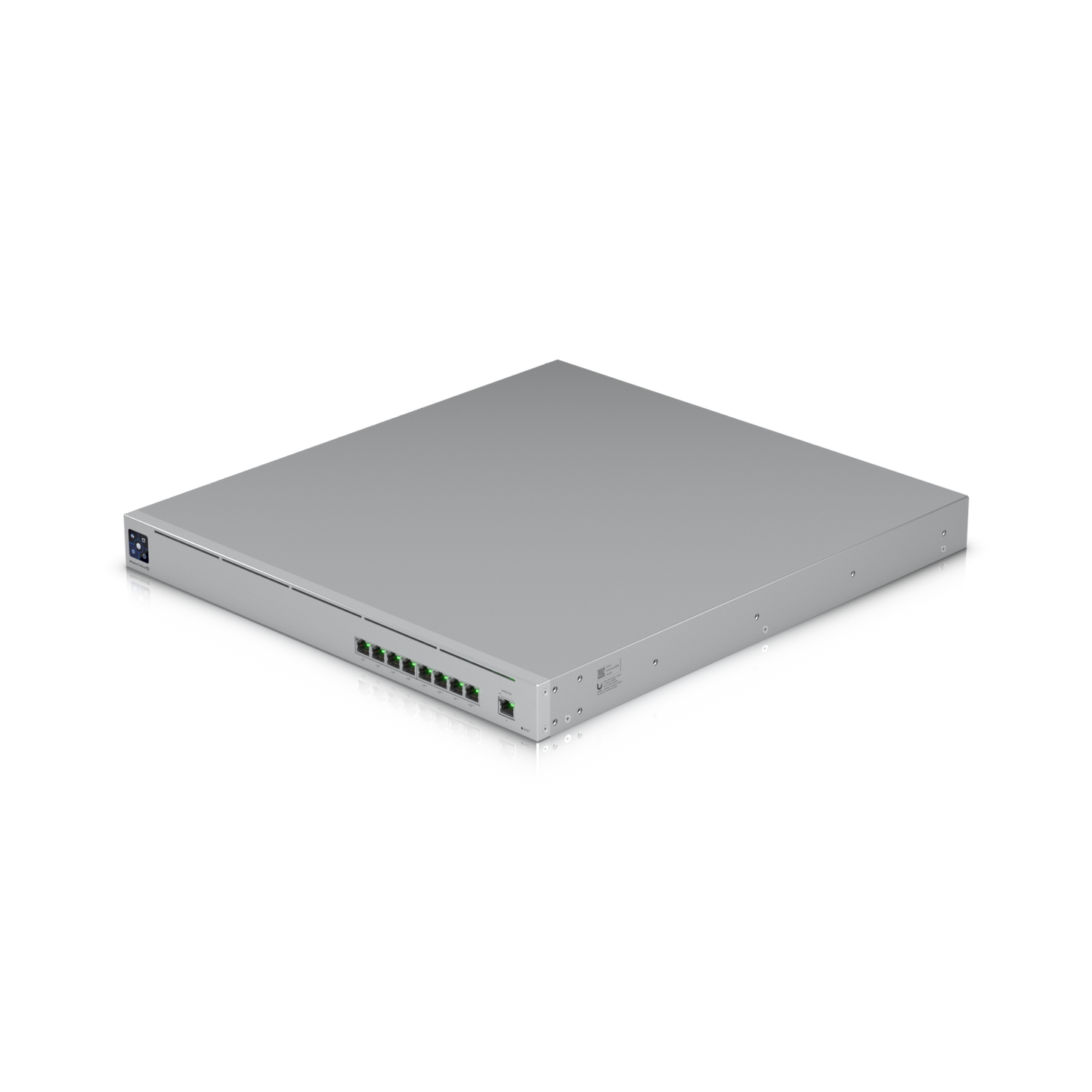

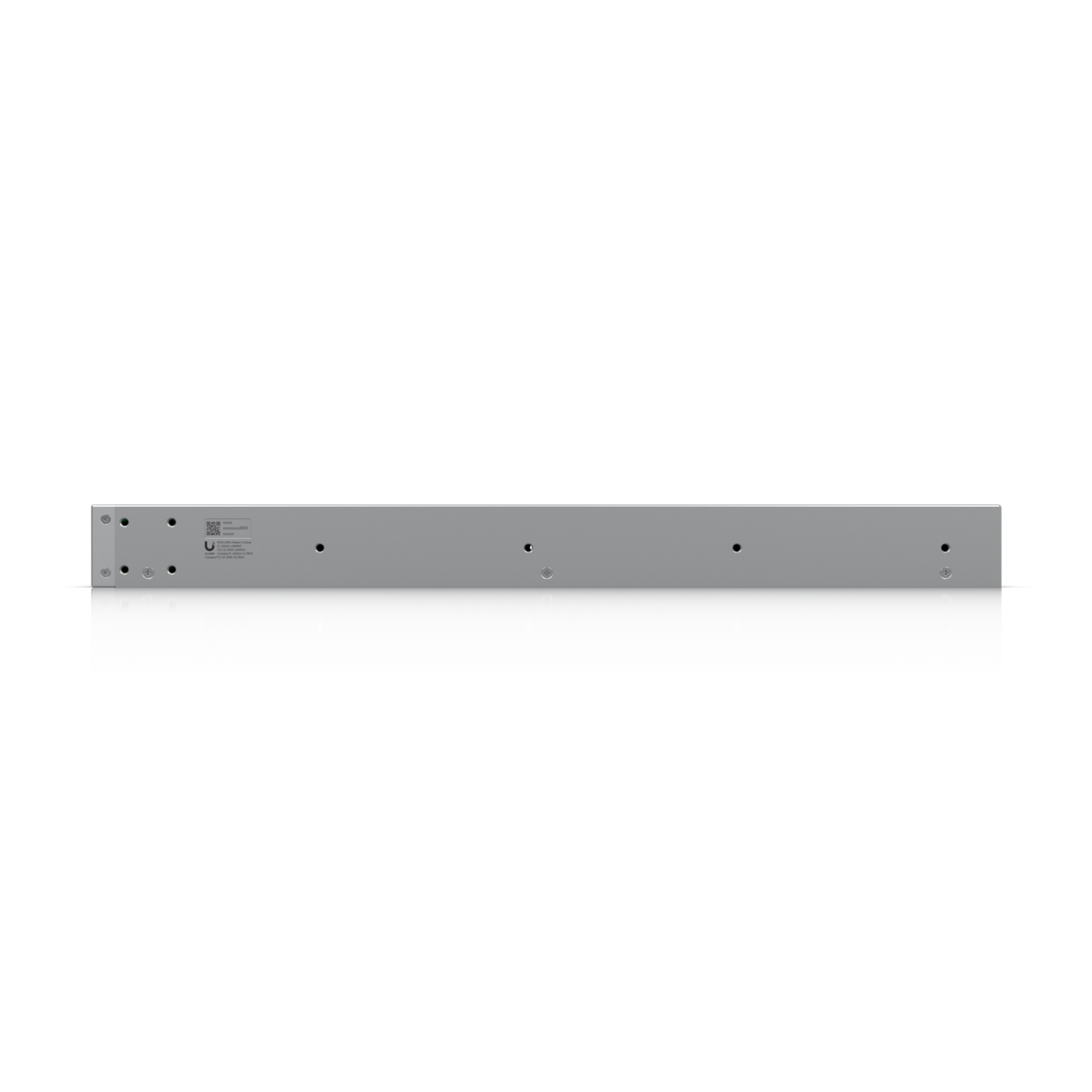

UniFi Mission Critical Switch
Ubiquiti USW-Mission-Critical UniFi Mission Critical Switch
SKU:USW-Mission-Critical
Regular price
$1,896.00
Regular price
$1,999.00
Sale price
$1,896.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
12 in stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty
A switch with an integrated 368Wh lithium-ion battery capable of providing uninterruptible PoE to 8 devices.
- (4) GbE PoE+, (4) GbE PoE++ ports.
- (1) GbE port.
- (2) 110V AC outputs; 120W total PoE available.
- Battery backup power system.
- Internal battery 368Wh.
| Mechanical | |
|---|---|
| Dimensions | 442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
| Weight |
Without mount: 9 kg (19.9 lb) With mount: 9.2 kg (20.3 lb) |
| Enclosure material | SGCC steel |
| Mount material | SGCC steel |
| Supported rack depth | 700 to 1000 mm (27.6 to 39.4") |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (9) GbE RJ45 ports |
| PoE interface |
(4) PoE/PoE+ (Pins 1, 2+; 3, 6-) (4) 60W PoE++ (Pair A 1, 2+; 3, 6-)(Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 9 Gbps |
| Switching capacity | 18 Gbps |
| Forwarding rate | 13.39 Mpps |
| Power method |
(1) Universal input, 100—240V AC, 4.4A Max., 50/60 Hz (1) External battery DC input 48V DC, 6A (1) Internal Lithium-Ion battery, 368Wh |
| Power supply |
Universal AC input: AC/DC, internal, 240W External battery port: DC, external, 240W |
| Max. power consumption |
240W (Including PoE output) 50W (Excluding PoE output) |
| Total available PoE | 120W |
| Power output |

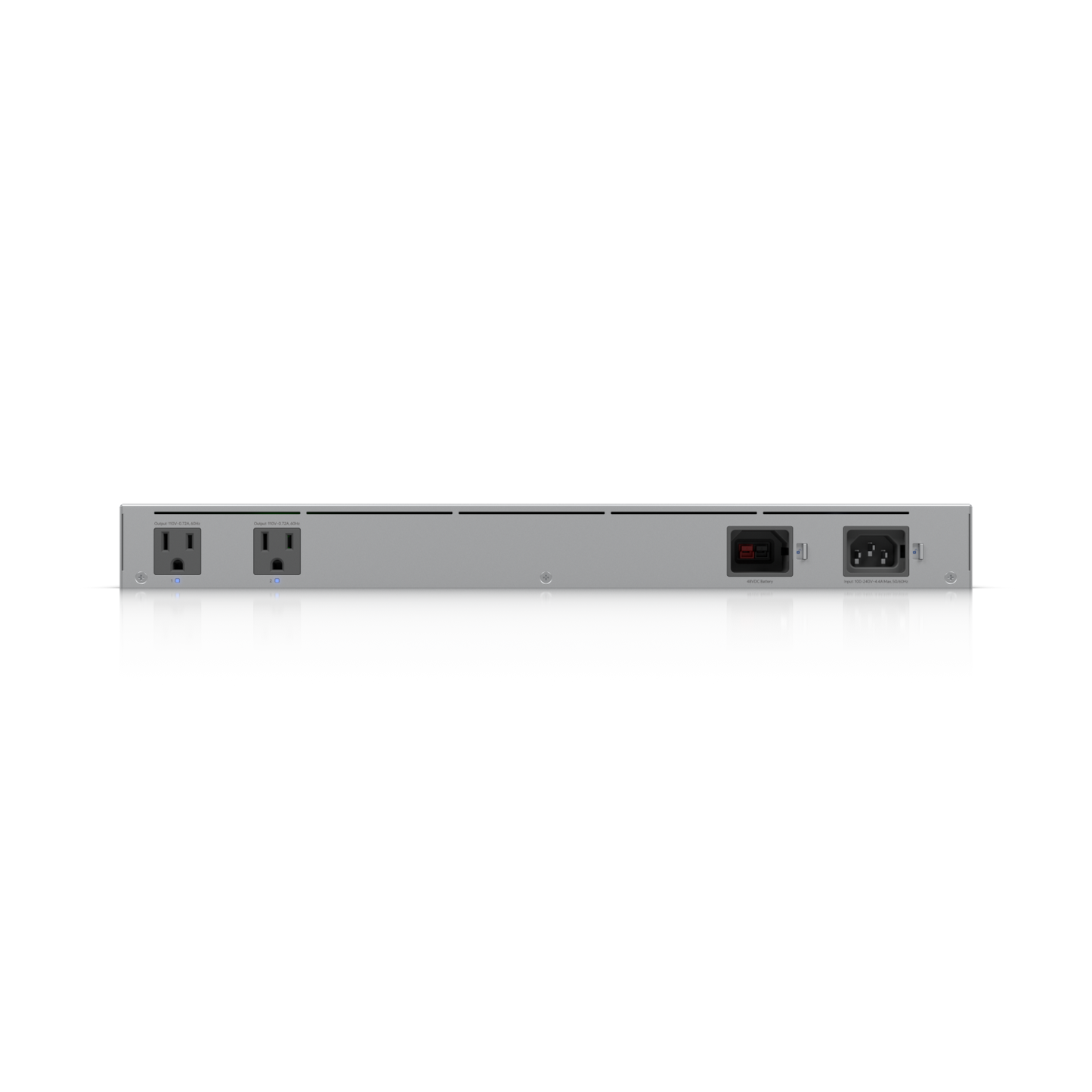

US: (2) Power control outlets, 110V AC, 0.72A Max., 60 Hz EU: (2) Power control outlets, 230V AC, 0.35A Max., 50 Hz |
| Power output budget | 80W |
| Max. PoE wattage per port by PSE |
PoE+: 30W PoE++: 60W |
| Voltage range PoE mode |
PoE: 44—57V PoE+/PoE++: 50—57V |
| ESD/EMP protection | Air/contact: ± 24kV |
| LCM display | (1) 1.3" touchscreen |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features |
IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features | – |
| LEDs | |
| Ethernet |
Green: 1 Gbps Amber: 10/100 Mbps |
| PoE | Amber: PoE/PoE+/PoE++ |
| Power output | Blue: active |
| Application Requirements | |
| UniFi Network | Version 6.2.26 and later |
Visit Ubiquiti for more information.
