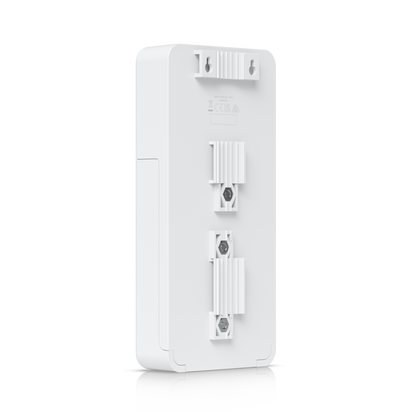

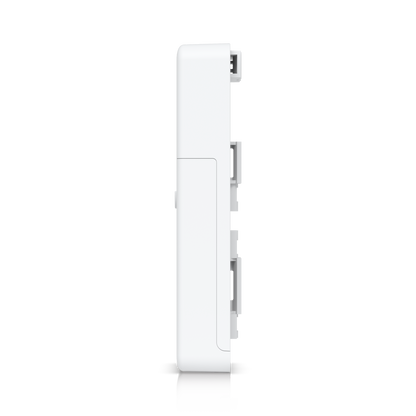

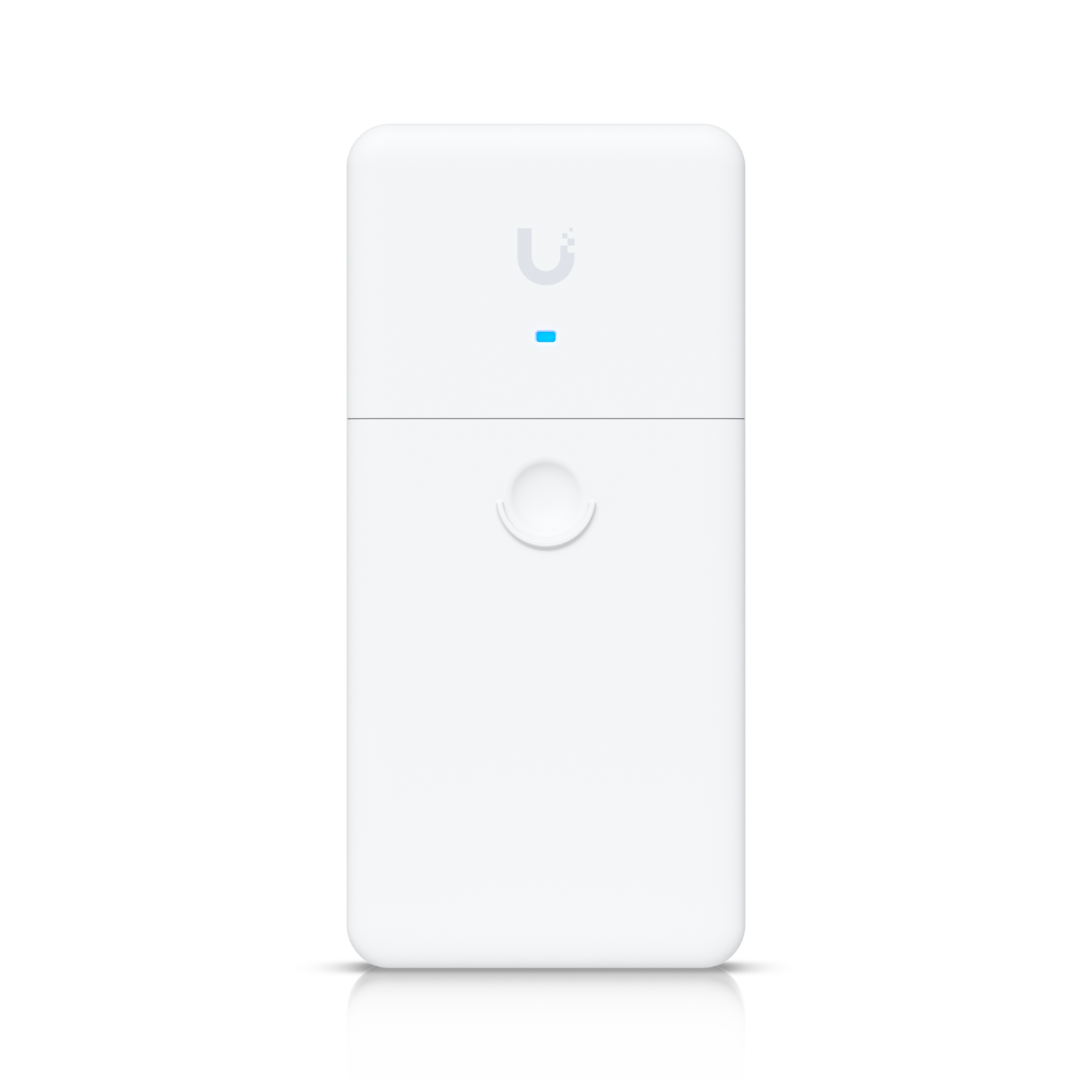

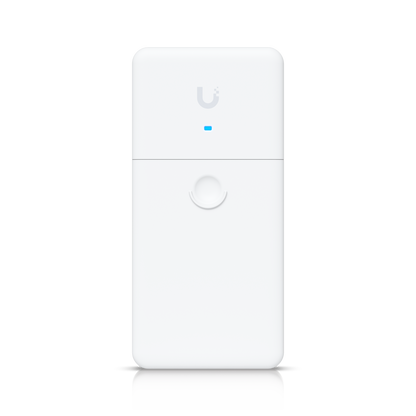

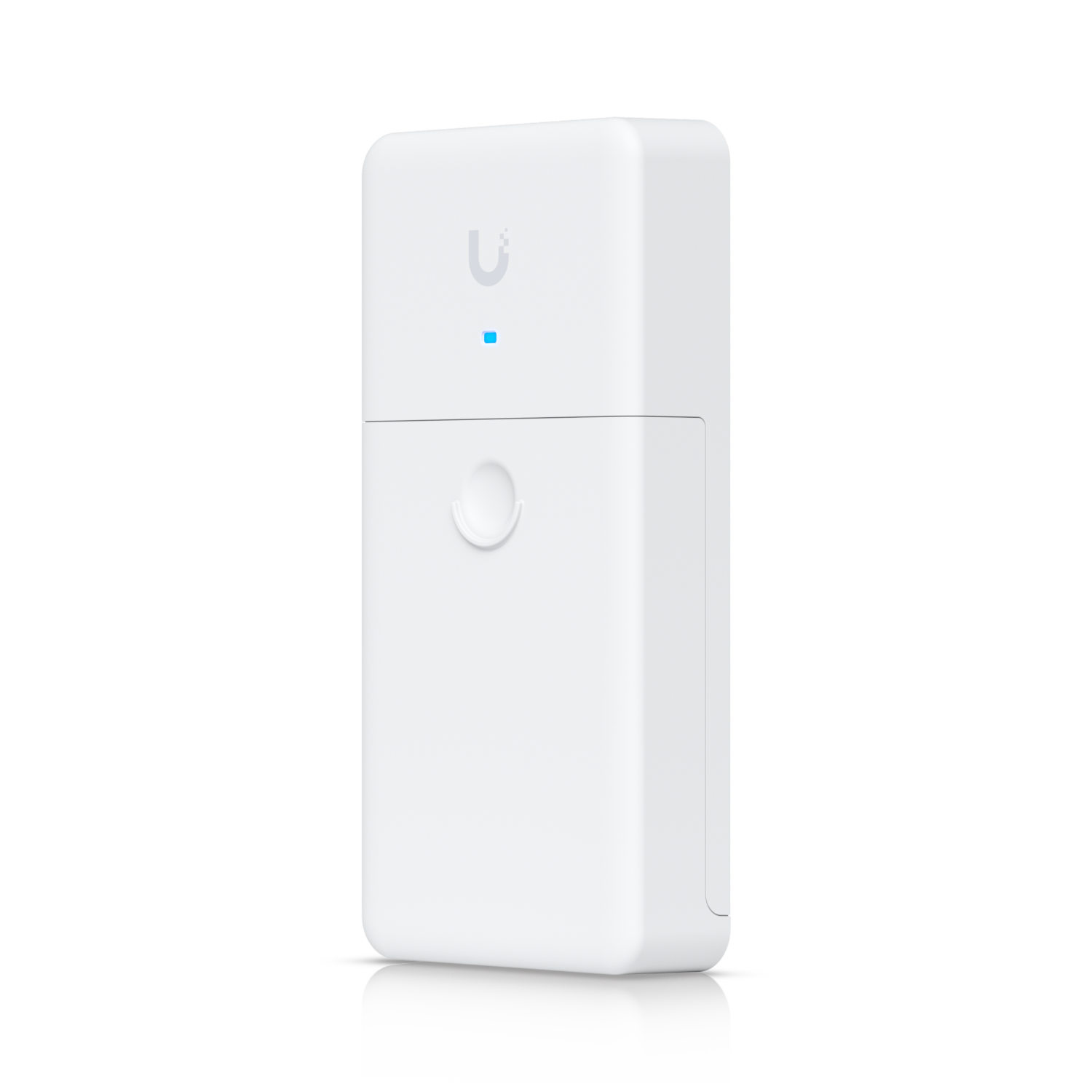

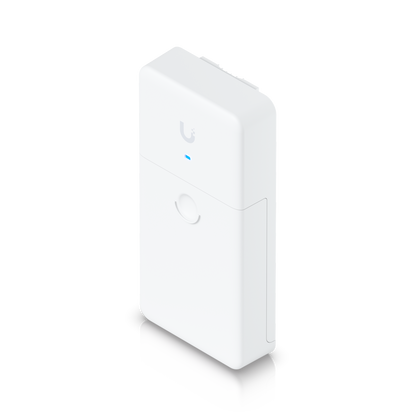

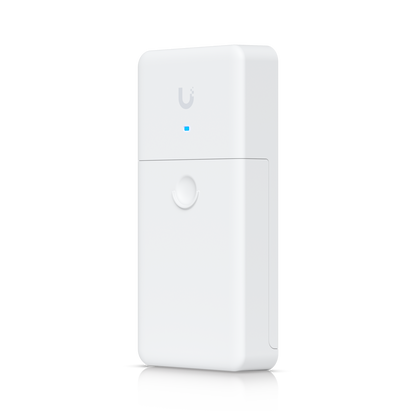

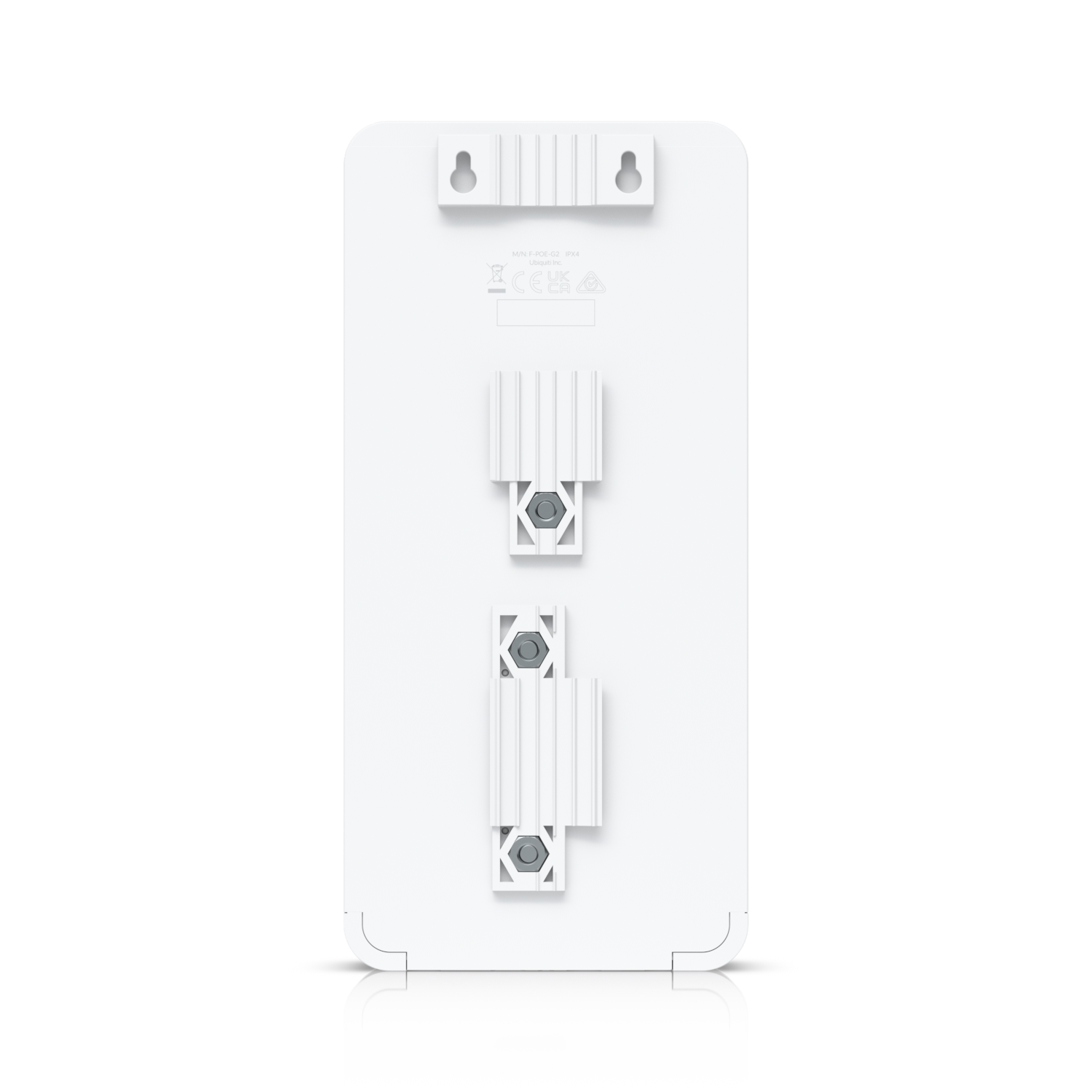

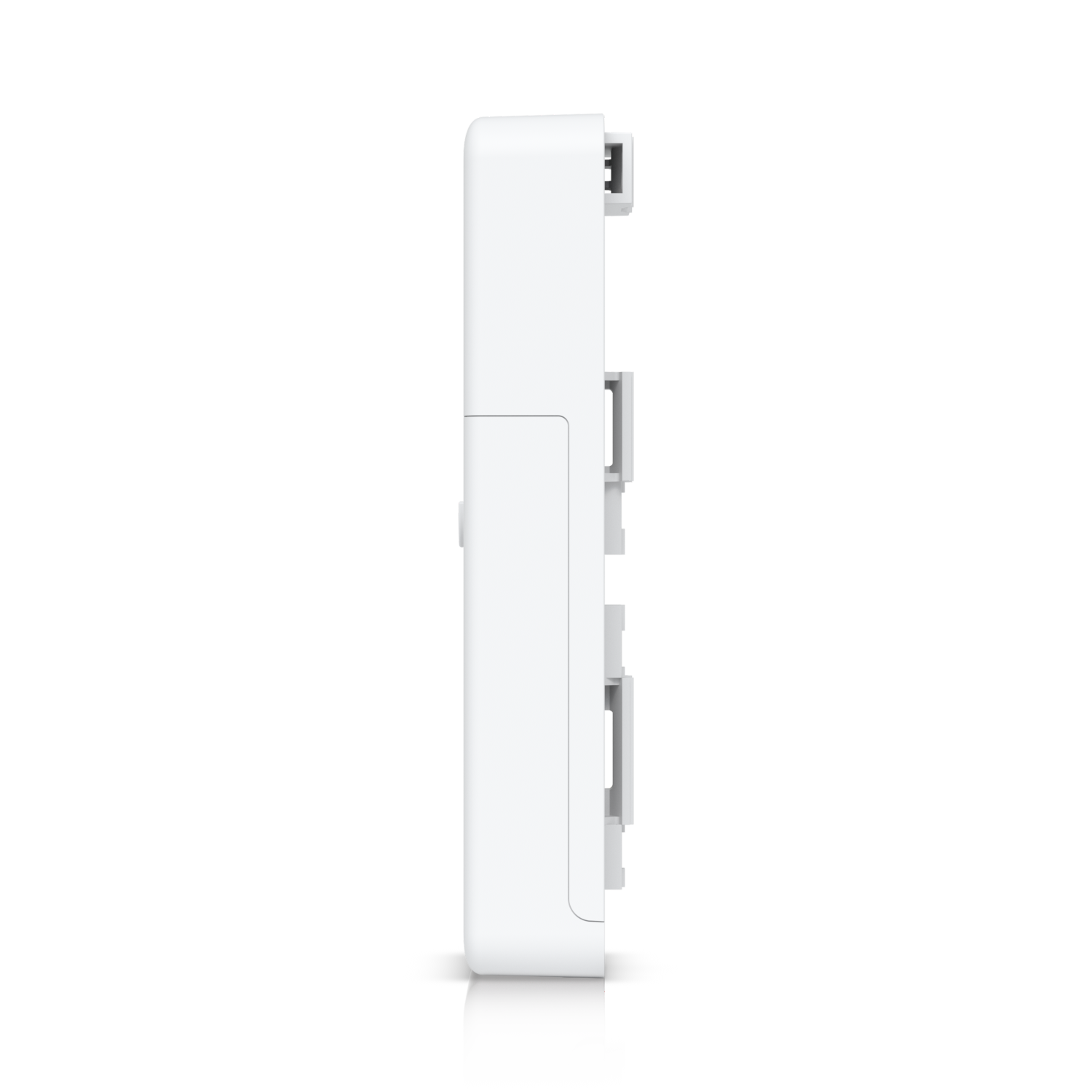

UniFi Optical Data Transport
Ubiquiti F-POE-G2 UniFi Optical Data Transport
SKU:F-POE-G2
Regular price
$58.00
Regular price
$76.00
Sale price
$58.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty
Connects remote PoE devices and provides data and power using fiber and DC cabling.
- Reliable long-distance Gigabit PoE runs.
- Dependable 24V/50V passive PoE transport.
- Enhanced ESD protection and EMI reduction.
- Works reliably in extreme temperatures (-40 to 60° C).
| Specifications | |
|---|---|
| Model | F-POE-G2 |
| Dimensions | 196.4 x 93.5 x 32.4 mm ( 7.73 x 3.68 x 1.28") |
| Weight | 288 g (10.2 oz) |
| Enclosure | White Polycarbonate |

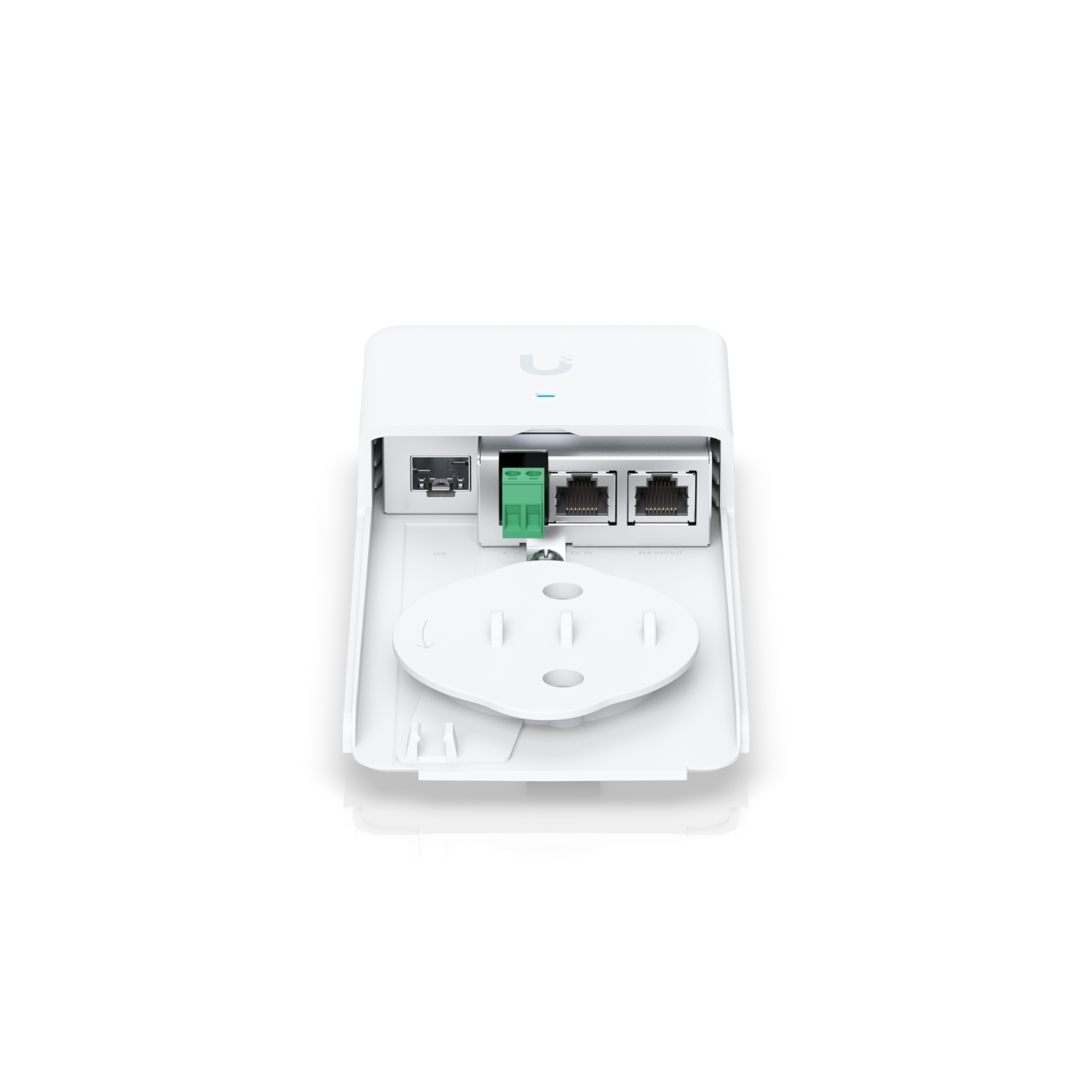

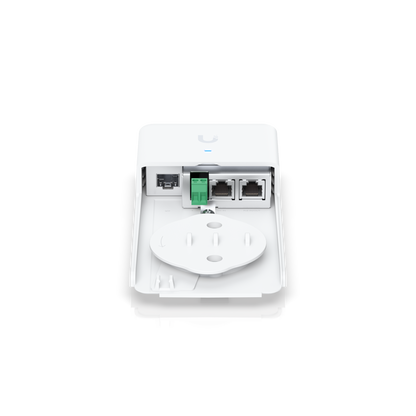

| Interface Connections |
(1) 1 Gbps SFP Port (1) DC Terminal Block (1) DC RJ45 Port DC Injection (1) 1000 Mbps Ethernet PoE Port 10/100 Mbps Ethernet not supported |
| Typical Power Consumption | 1.5W |
| Power Method |
DC Terminal Block, 2-Wire, 24VDC or 50VDC DC In RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input), or 4-Pair (24VDC or 50VDC Input) Passthrough PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input), or 4-Pair (24VDC or 50VDC Input) PoE Passthrough |
| PoE Output | PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC), or 4-Pair (24VDC or 50VDC) PoE |
| DC Output | Terminal Block, 2-Wire (24VDC or 50VDC) |
| Input DC Voltage | 16 to 57V |
| Surge Protection | Built-In High-Current Gas Discharge Tube for DC Terminal Block and PoE Port |
| LED |
White: Power On Blue: Connected Blue (Flashing): Activity |
| Operating Temperature |
-40 to 60° C (-40 to 140° F) May be further restricted by the operating temperature range of the SFP module being used. |
| Operating Humidity | 10 to 95% Noncondensing |
| ESD/EMP Protection | ± 24kV Contact / Air for Ethernet |
| Certifications | CE, FCC, IC |
Visit Ubiquiti for more information.
