UniFi Pro Max 24 PoE Switch

Ubiquiti USW-Pro-Max-24-PoE UniFi Pro Max 24 PoE Switch

SKU:USW-Pro-Max-24-PoE

$1,459.00

~~$1,576.00~~ $1,459.00

7% Off | Save $117.00 Sold out

Taxes included. Shipping calculated at checkout.

Price includes 2-year warranty coverage (12 months extended) Learn more

BLACK FRIDAY SALE. Limited promotional stock available — don’t miss out!

214 in stock and ready to ship today.

Quantity

Australian Reseller | Australian Stock | Australian Warranty

Buying for your business? Earn Store Credits

View full details

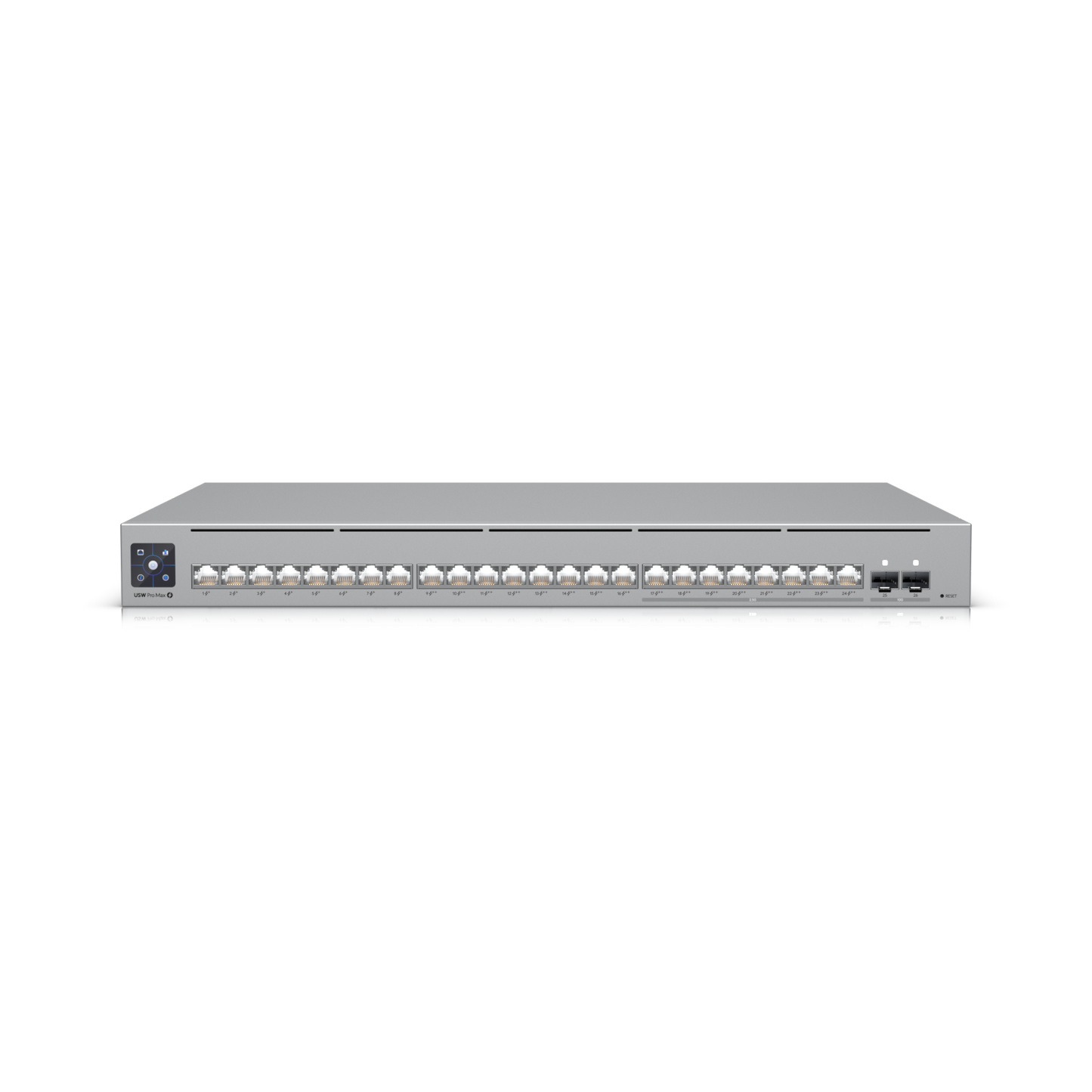

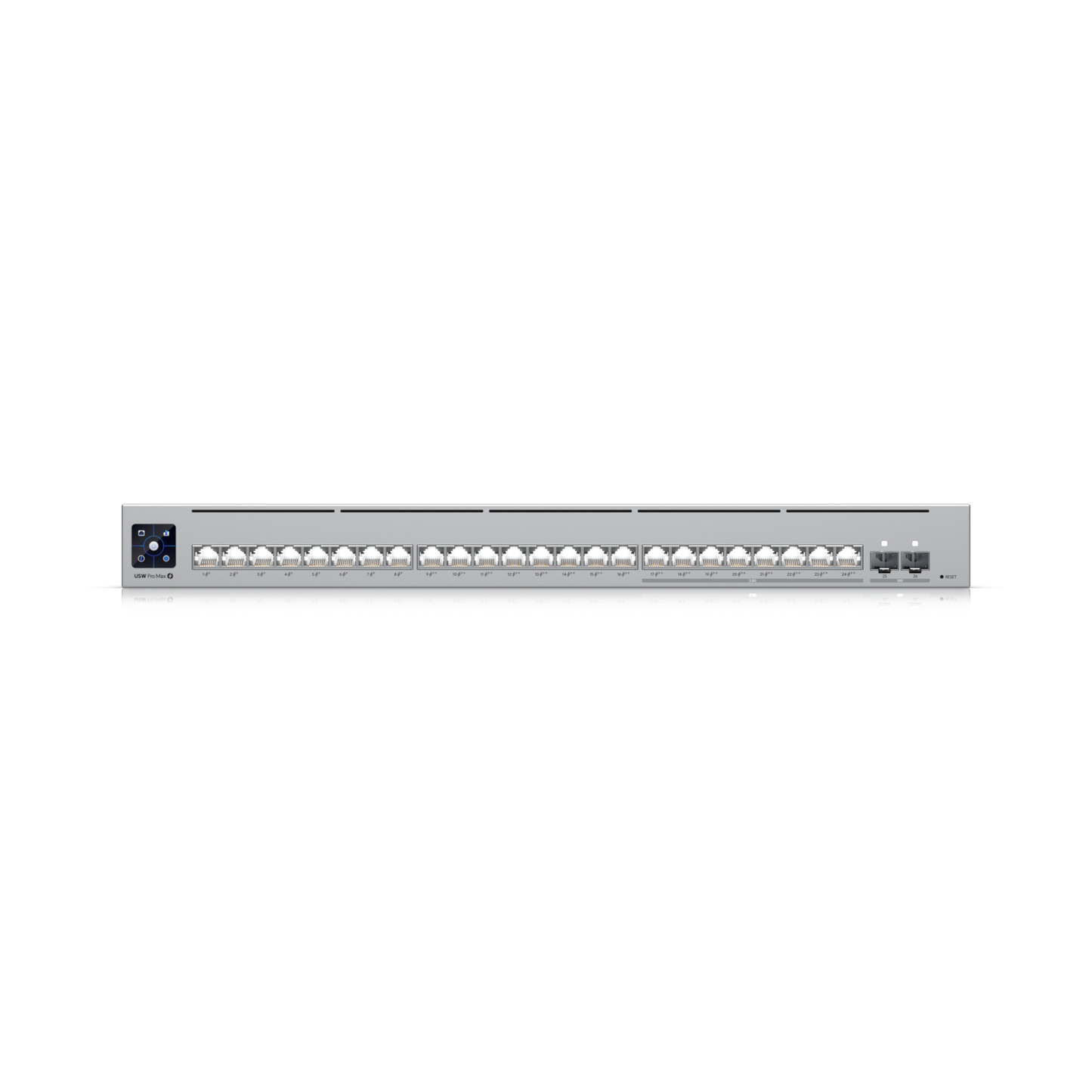

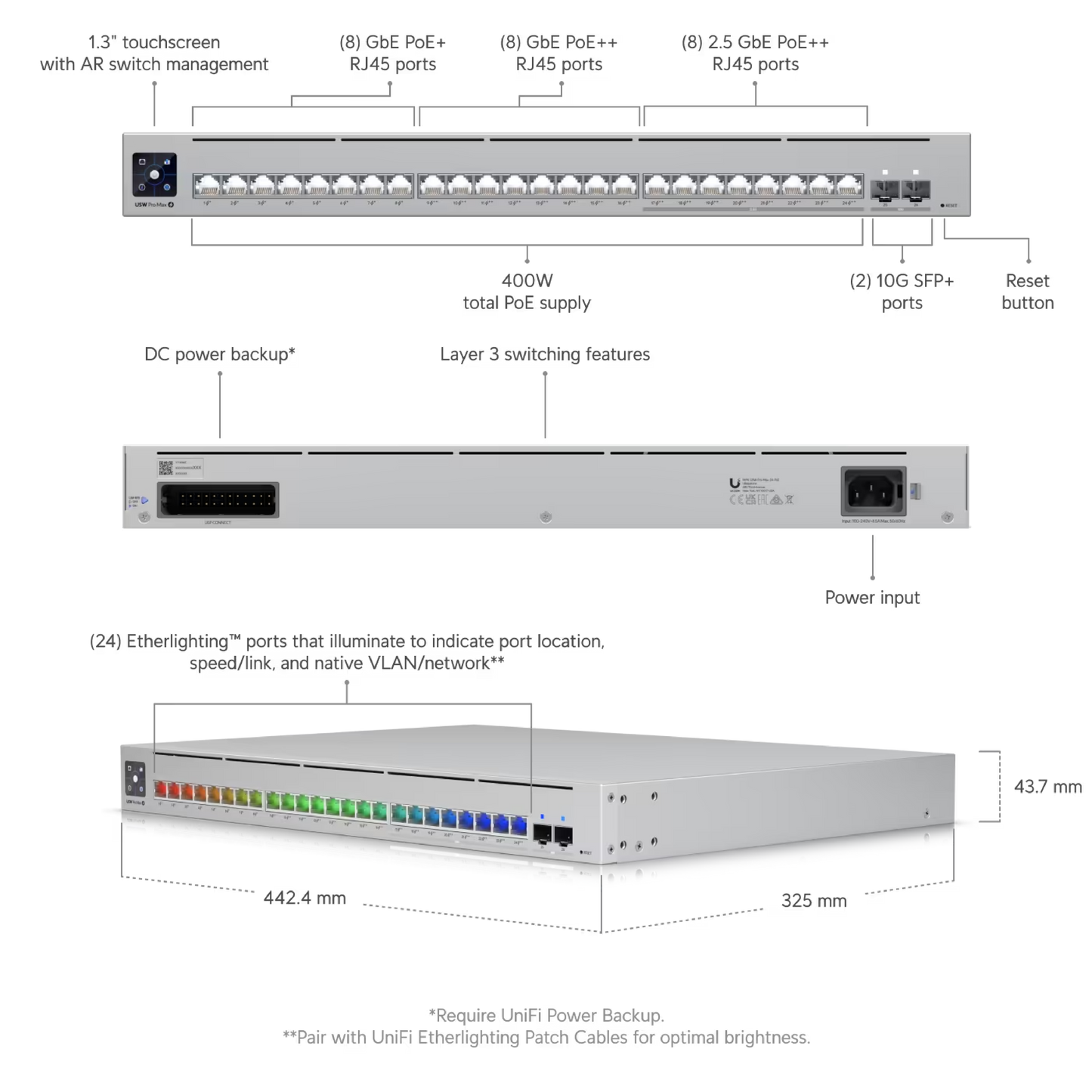

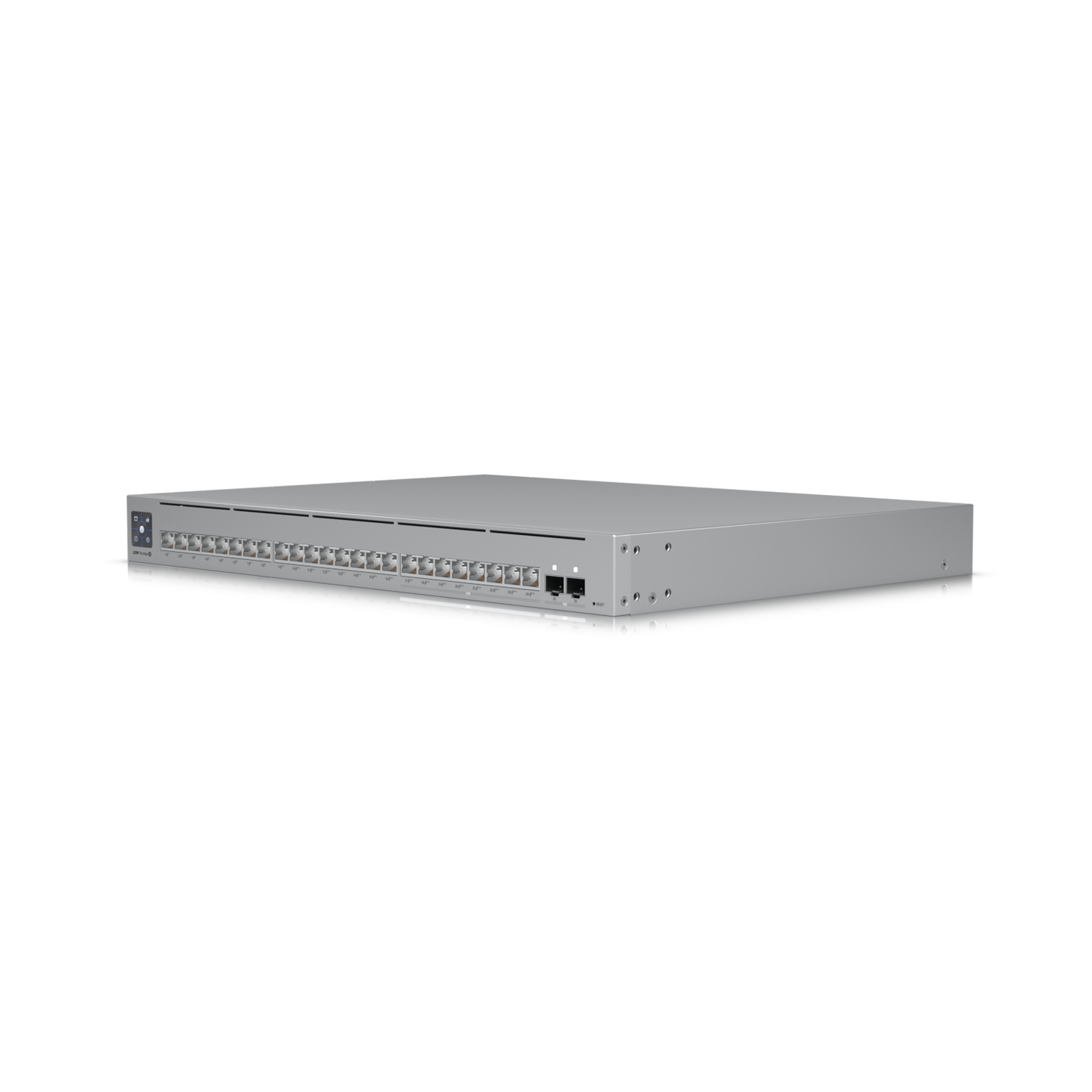

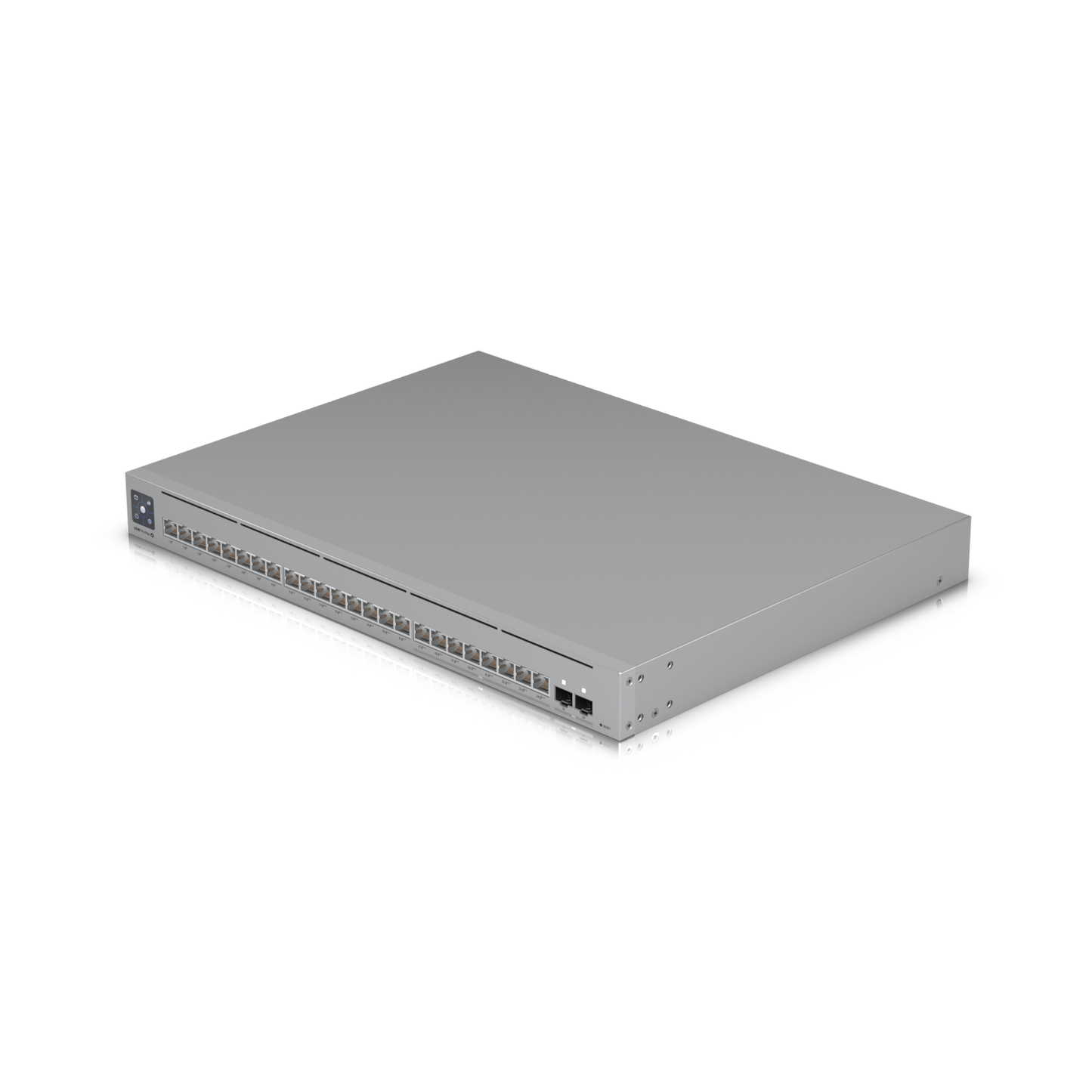

A 24-port, Layer 3 Etherlighting switch with 2.5 GbE and PoE++ output.

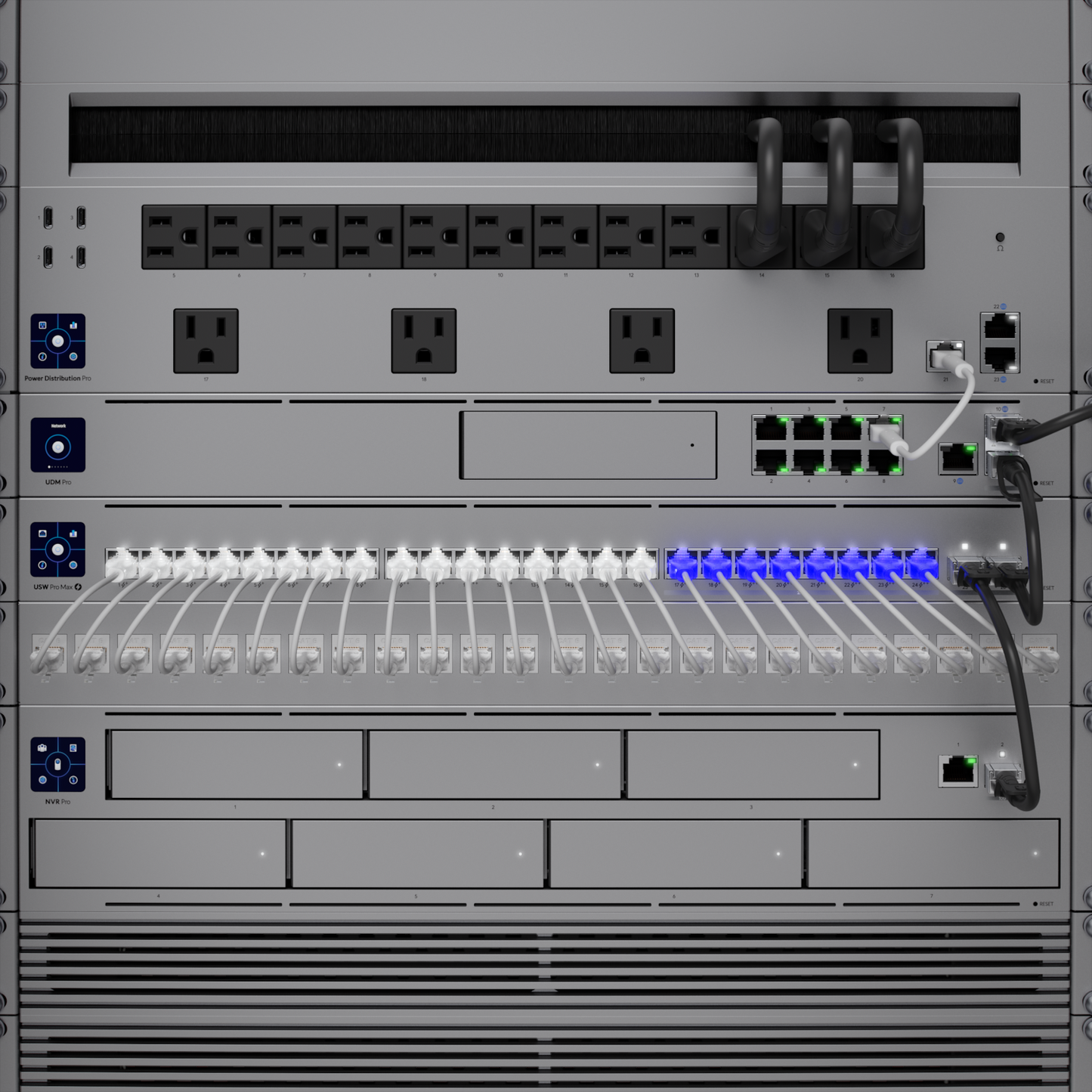

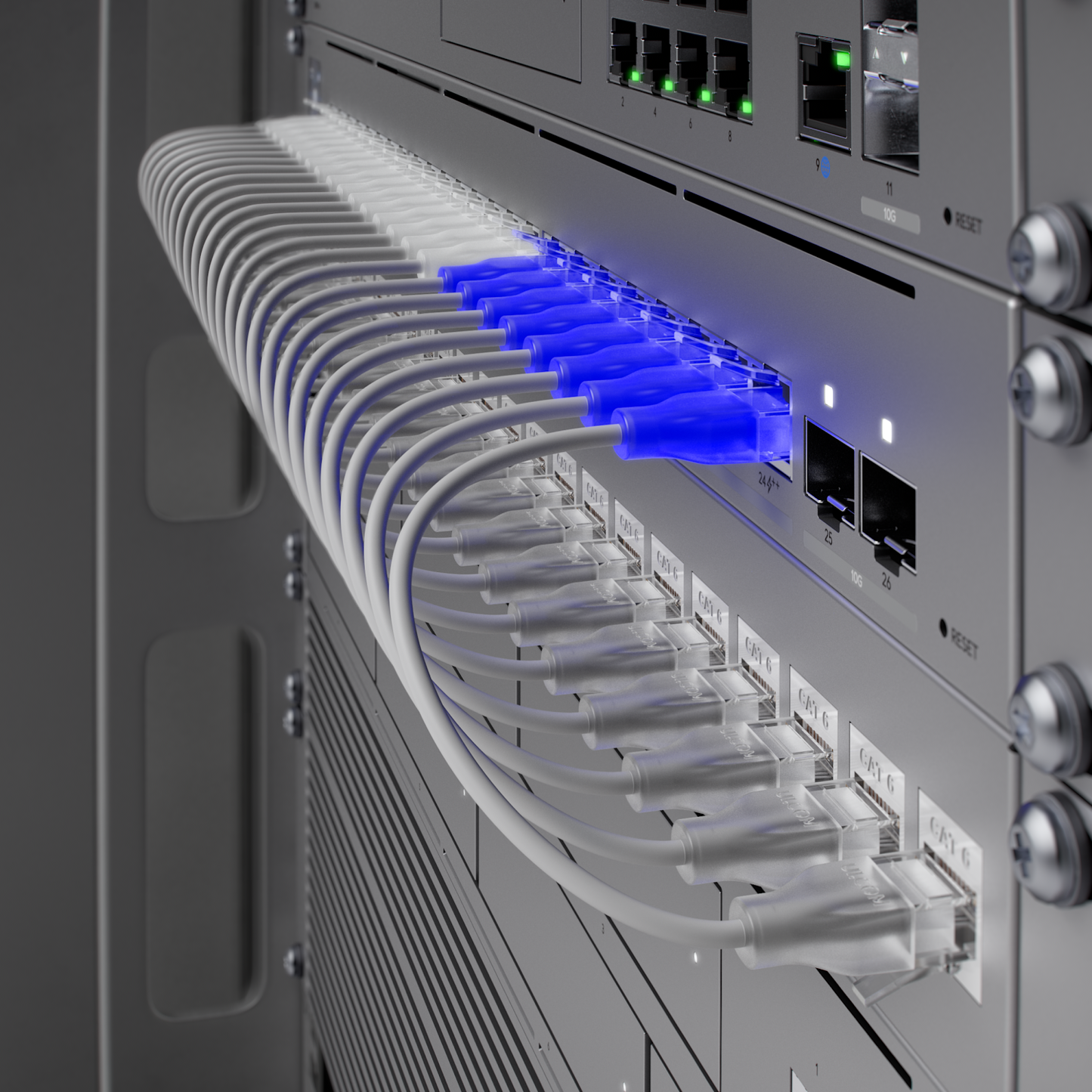

Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network.
(8) 2.5 GbE PoE++ ports.
(16) GbE ports including (8) PoE+ and (8) PoE++.
(2) 10G SFP+ ports.
DC power backup ready.

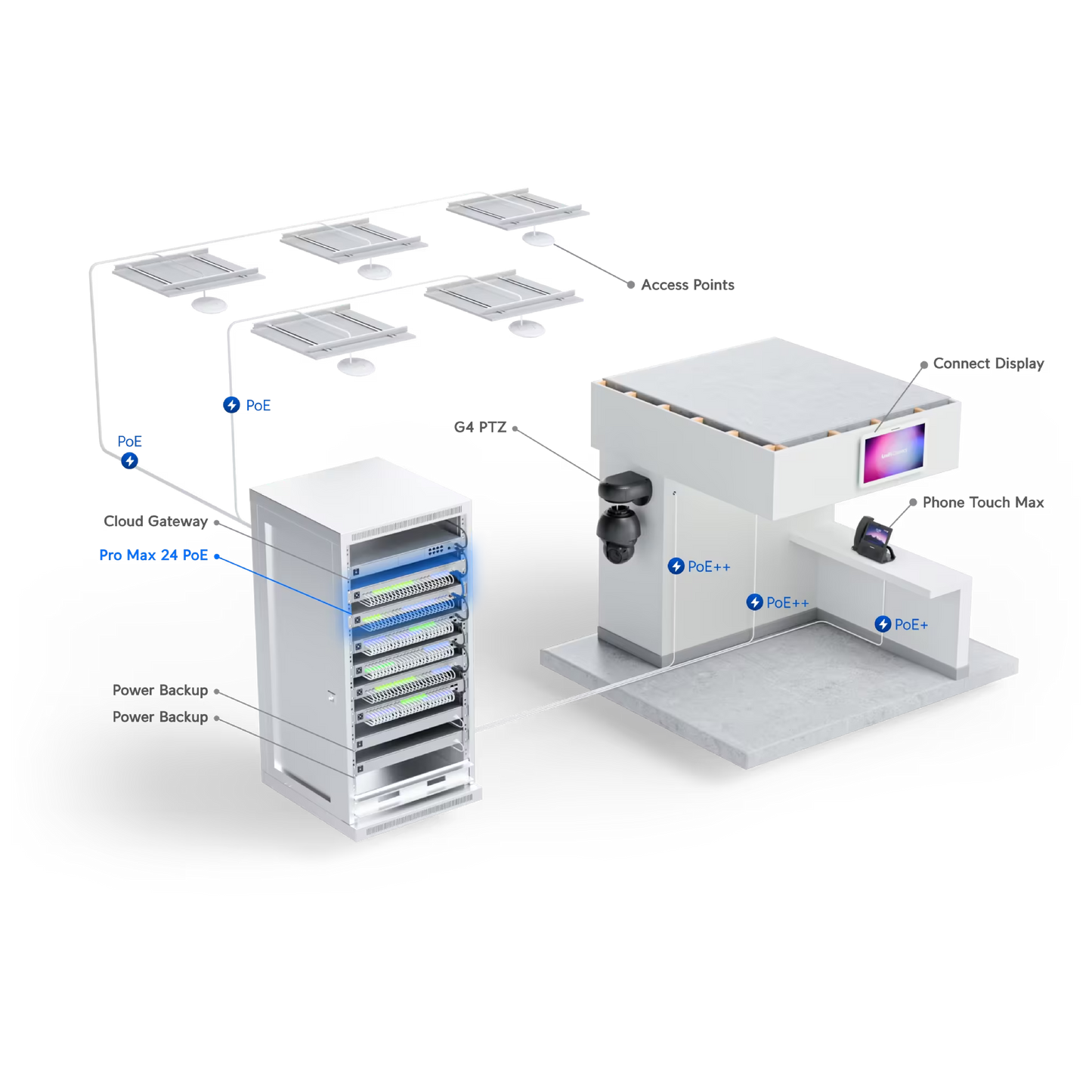

400W total PoE availability.

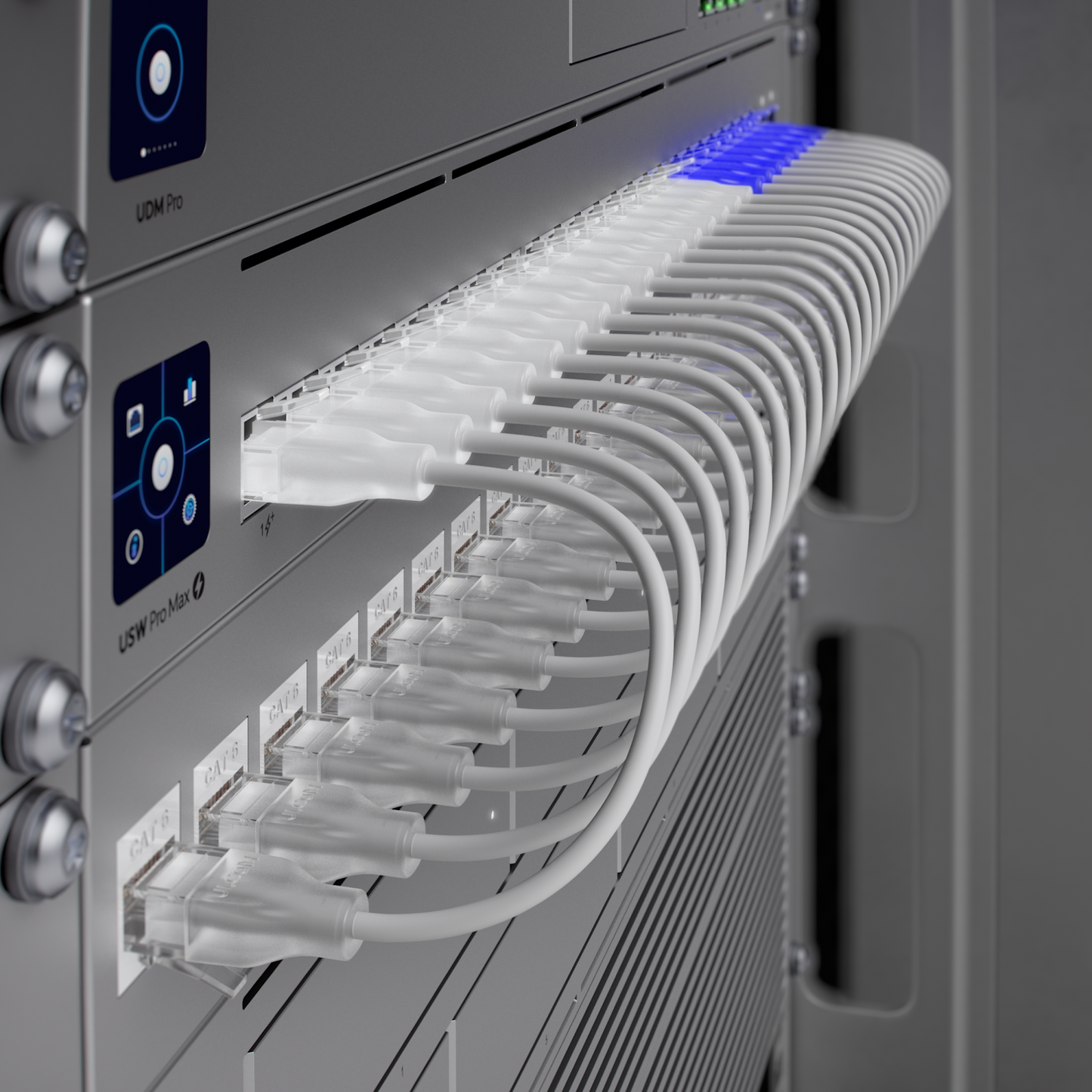

Pair with UniFi Etherlighting Patch Cables for optimal brightness.

Mechanical
Dimensions	442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Weight	Without mounting brackets: 5.1 kg (11.3 lb) With mounting brackets: 5.2 kg (11.5 lb)
Enclosure material	SGCC steel
Hardware
Management interface	Ethernet In-Band
Networking interface	(16) GbE RJ45 ports (8) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports
PoE interface	(8) PoE/PoE+ (Pins 1, 2+; 3, 6-) (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput	56 Gbps
Switching capacity	112 Gbps
Forwarding rate	83.328 Mpps

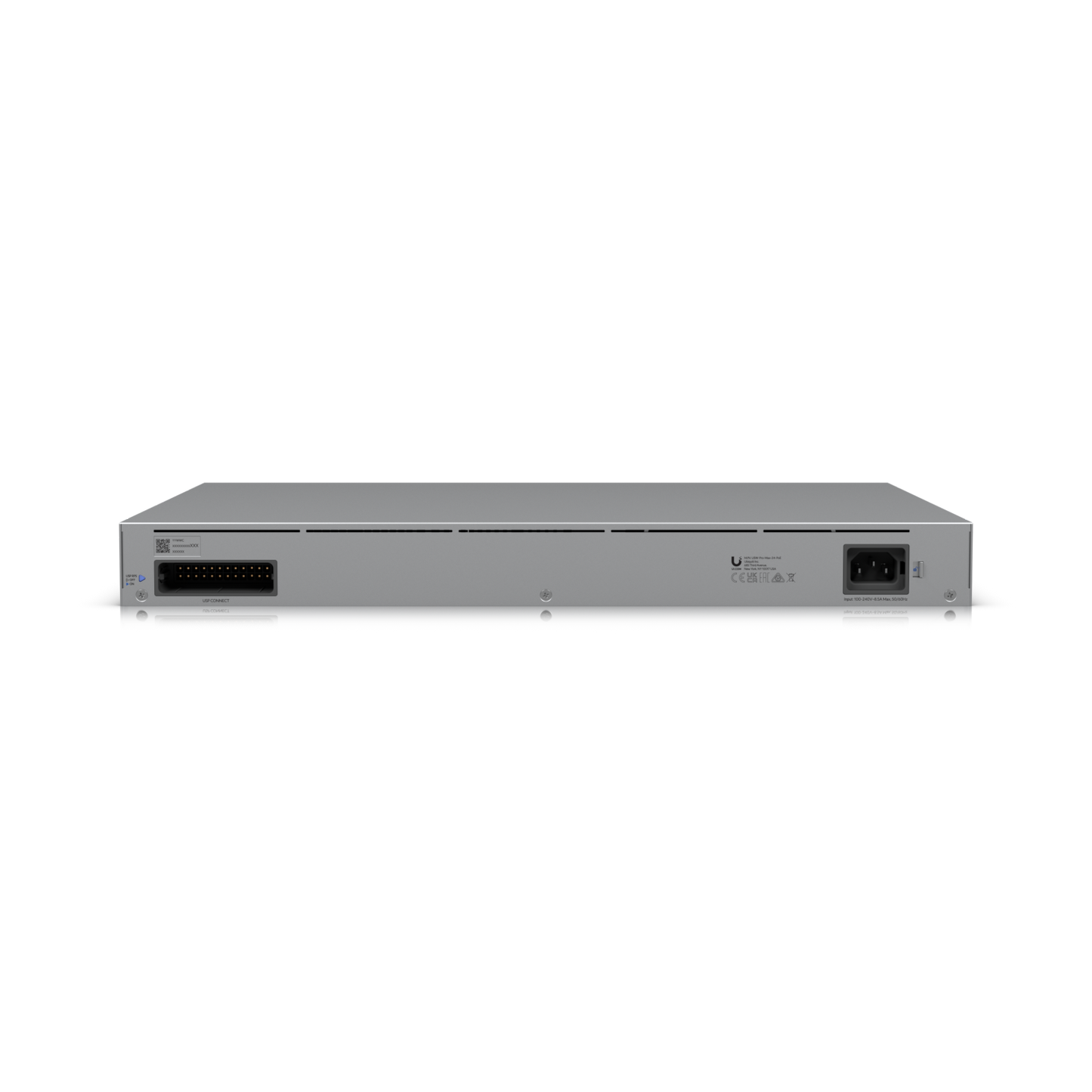

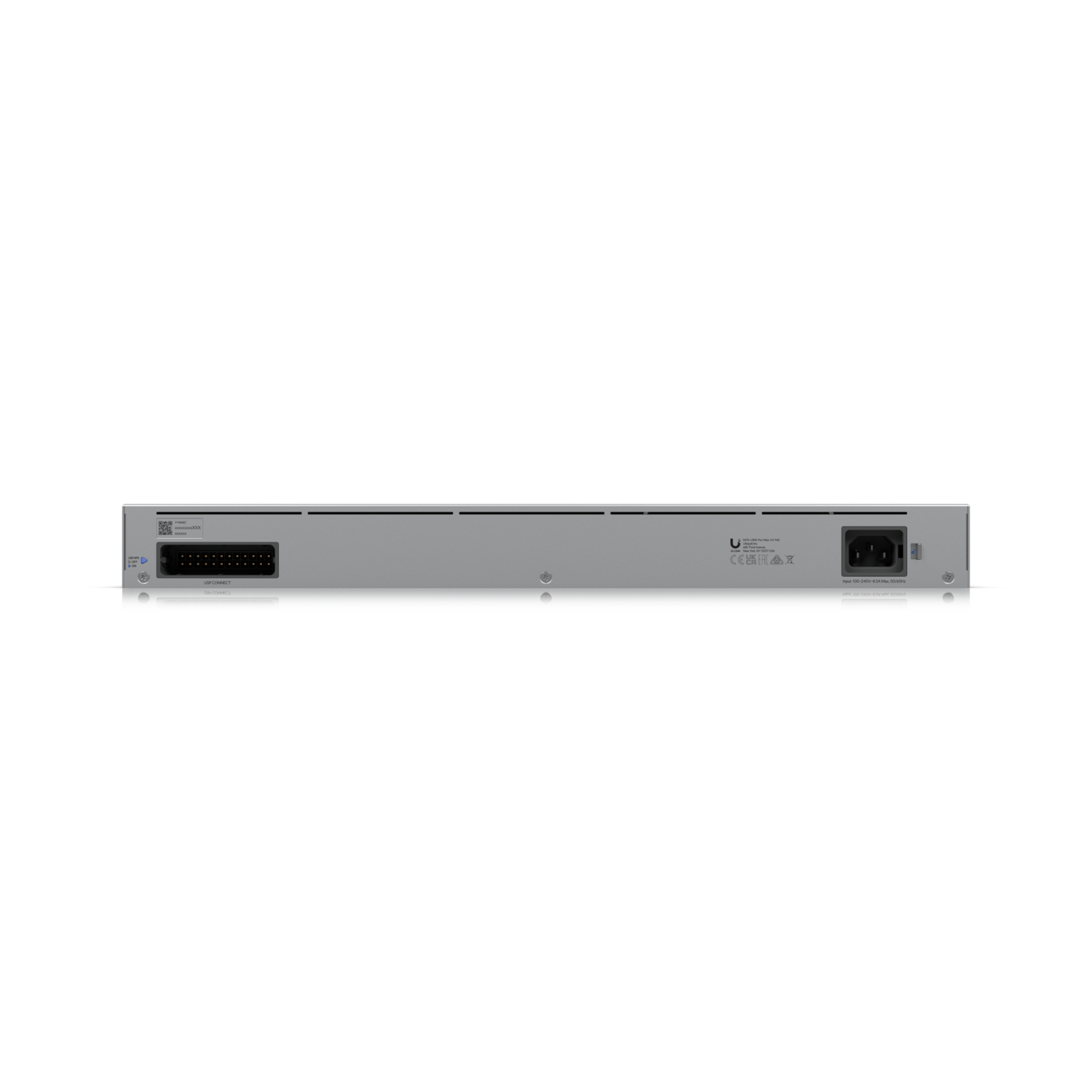

Power method	(1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input
Power supply	AC/DC, internal, 450W
Supported voltage range	100—240V AC
Max. power consumption	50W (Excluding PoE output)
Total available PoE	400W
Max. PoE wattage per port by PSE	PoE: 15.4W PoE+: 30W PoE++: 60W
Voltage range PoE mode	PoE: 44—57V PoE+: 50—57V
LCM display	(1) 1.3" touchscreen
Button	Factory reset
Ambient operating temperature	-5 to 40° C (23 to 104° F)
Ambient operating humidity	10 to 90% noncondensing
Certifications	CE, FCC, IC
Switching Features
Layer 2 features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 features	DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
Etherlighting
Ethernet	Locating Speed/link Native VLAN/network
SFP+	Locating Speed/link Native VLAN/network
LEDs
System	Status
RPS	Status
Application Requirements
UniFi Network	Version 8.0.24 and later

Visit Ubiquiti for more information.
