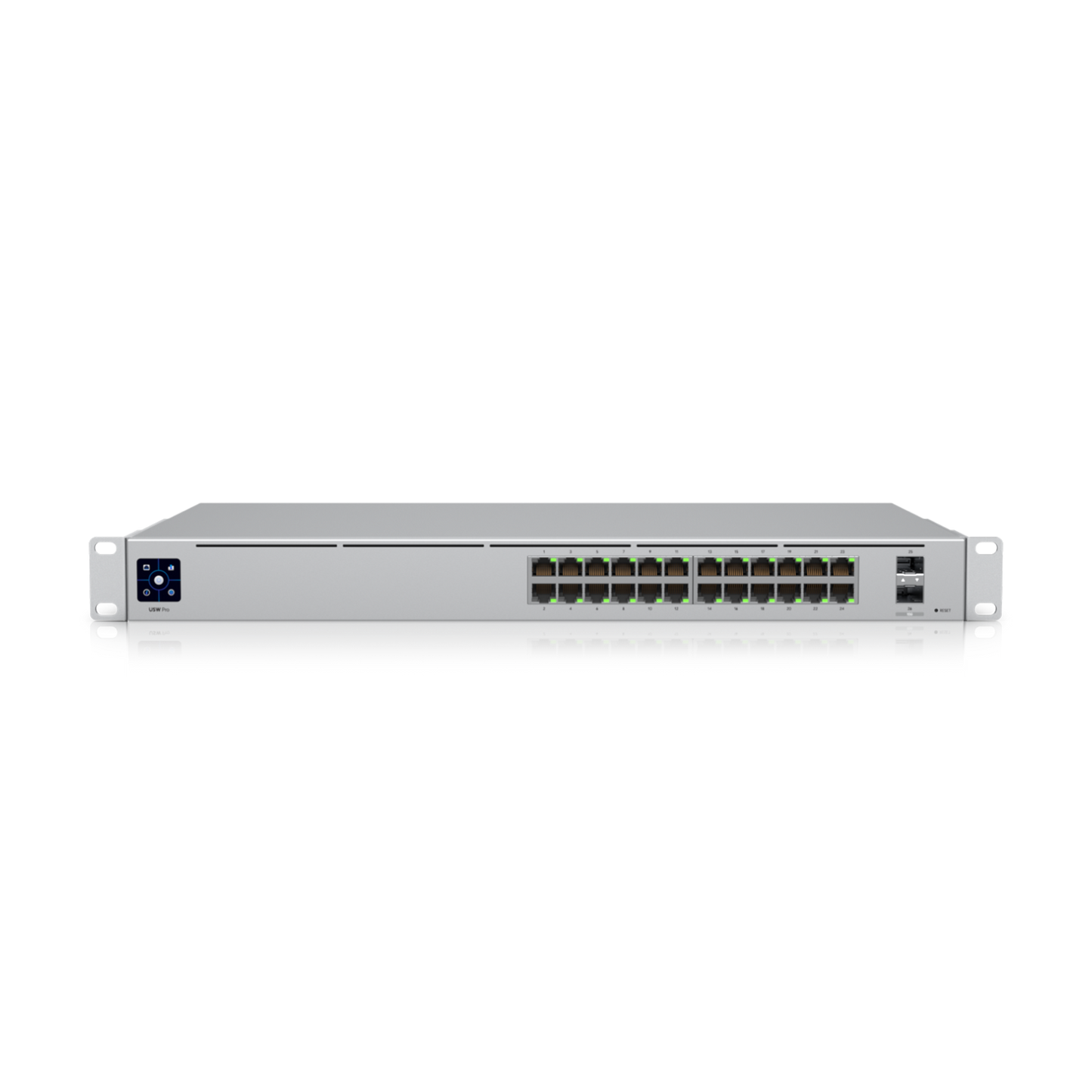

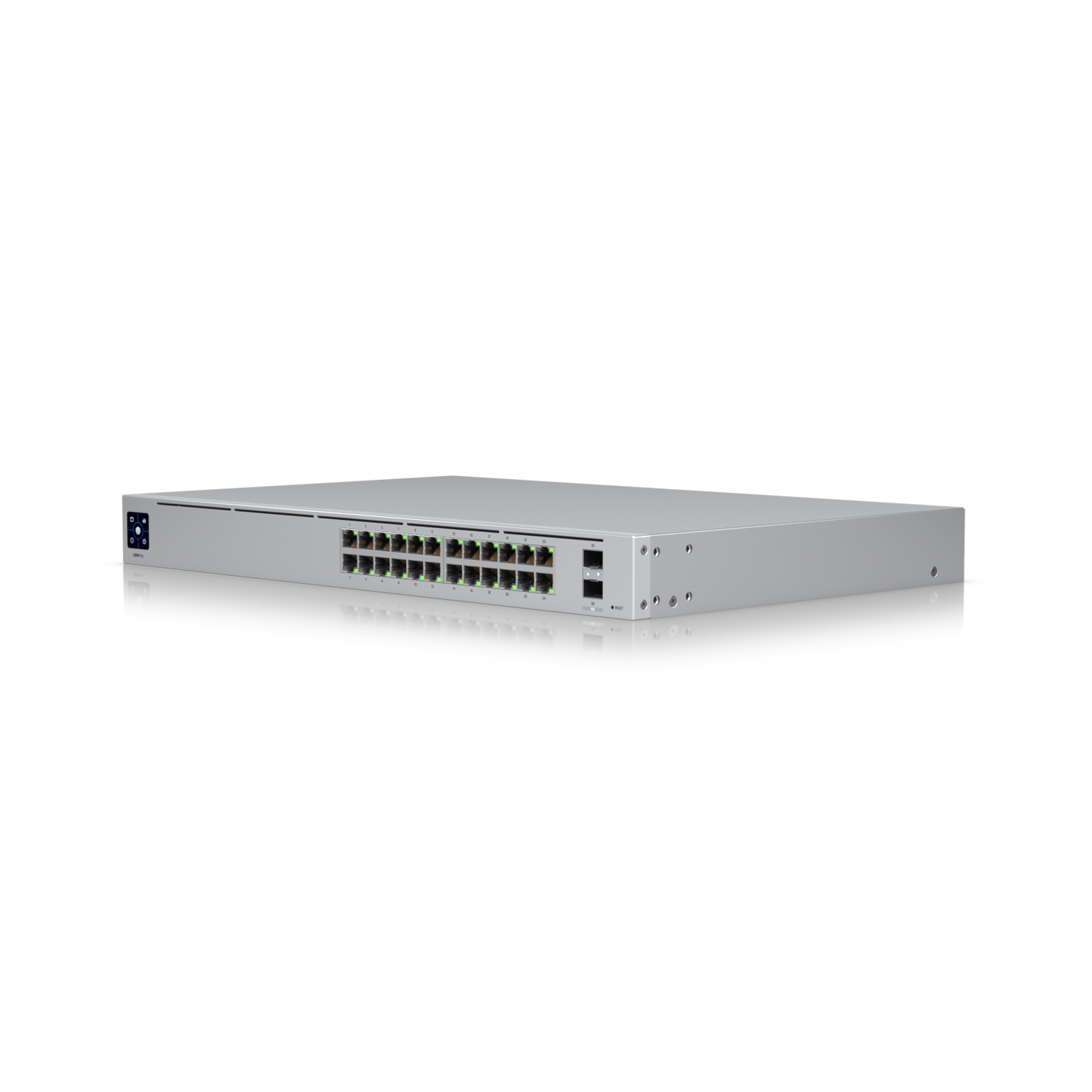

UniFi Professional 24 Layer 3 Switch
Ubiquiti USW-Pro-24 UniFi Professional 24 Layer 3 Switch
SKU:USW-Pro-24
Regular price
$690.00
Regular price
$878.00
Sale price
$690.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
48 in stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty
A 24-port, Layer 3 switch supporting 10G SFP+ connections with fanless cooling.

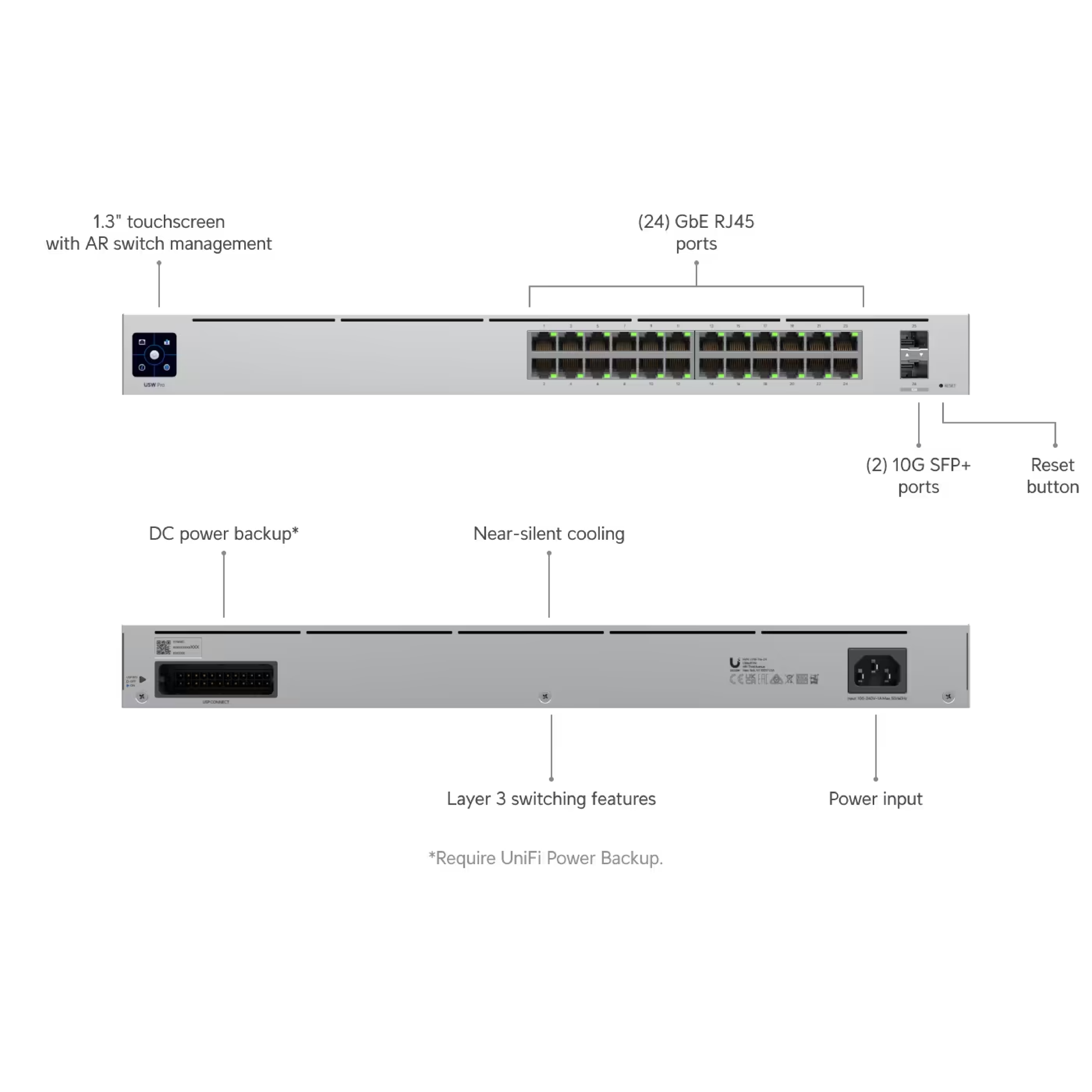

- (24) GbE ports.
- (2) 10G SFP+ ports.
- DC power backup-ready.
- Layer 3 switching.
- Silent cooling.
| Mechanical | |
|---|---|

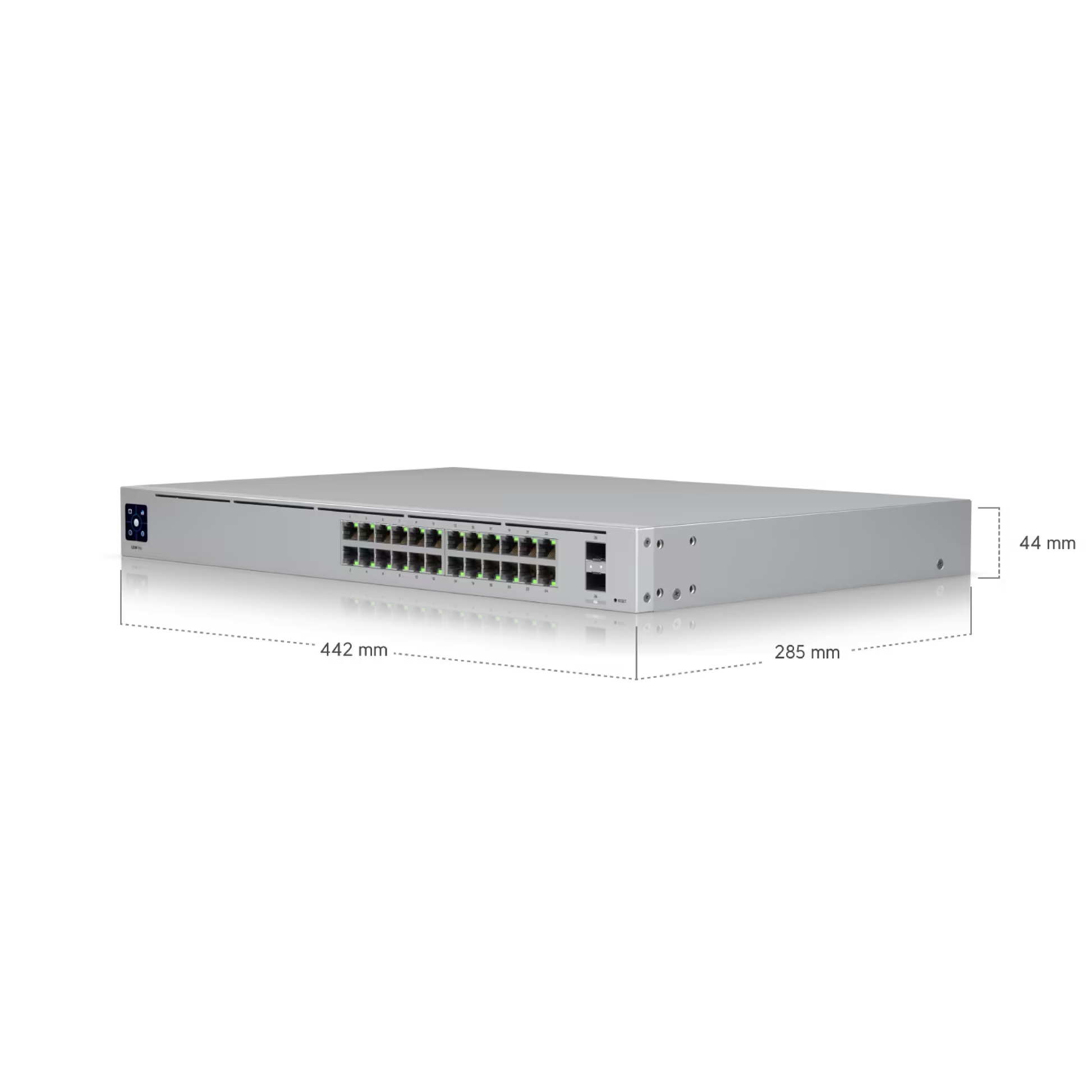

| Dimensions | 442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| Weight |
Without mounting brackets: 3.5 kg (7.7 lb) With mounting brackets: 3.6 kg (7.9 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface |
(24) GbE RJ45 ports (2) 1/10G SFP+ ports |
| Total non-blocking throughput | 44 Gbps |
| Switching capacity | 88 Gbps |
| Forwarding rate | 65.472 Mpps |
| Power method |
(1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input 11.5V DC, 2.61A |
| Power supply | AC/DC, internal, 36W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 30W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Ambient operating temperature | -5 to 45° C (23 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features |
IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features |
DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs |
| LEDs | |
| System | Status |
| Ethernet | Speed/link/activity |
| SFP+ | Speed/link/activity |
| RPS | Status |
| Application Requirements | |
| UniFi Network | Version 5.12.11 and later |
Visit Ubiquiti for more information.
