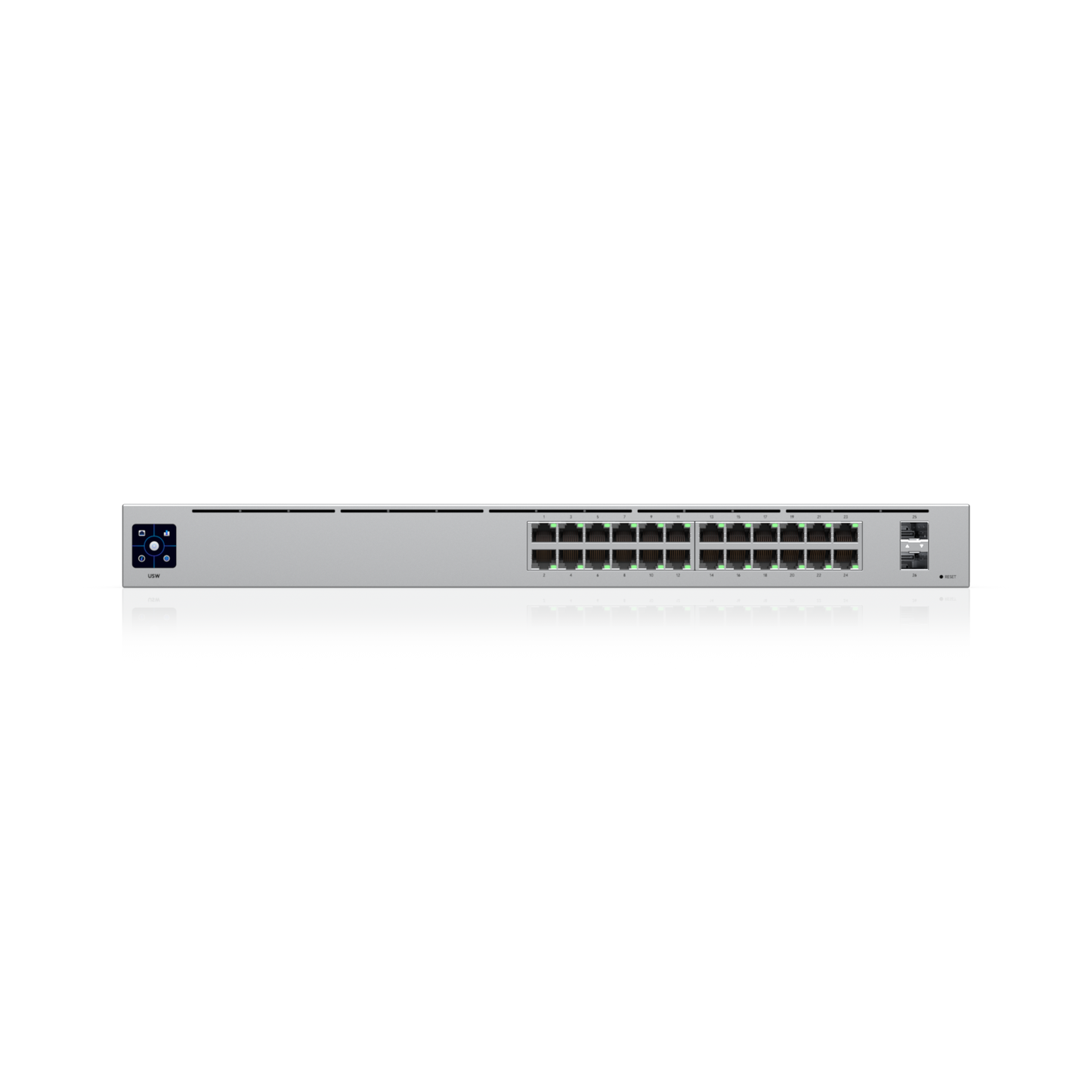

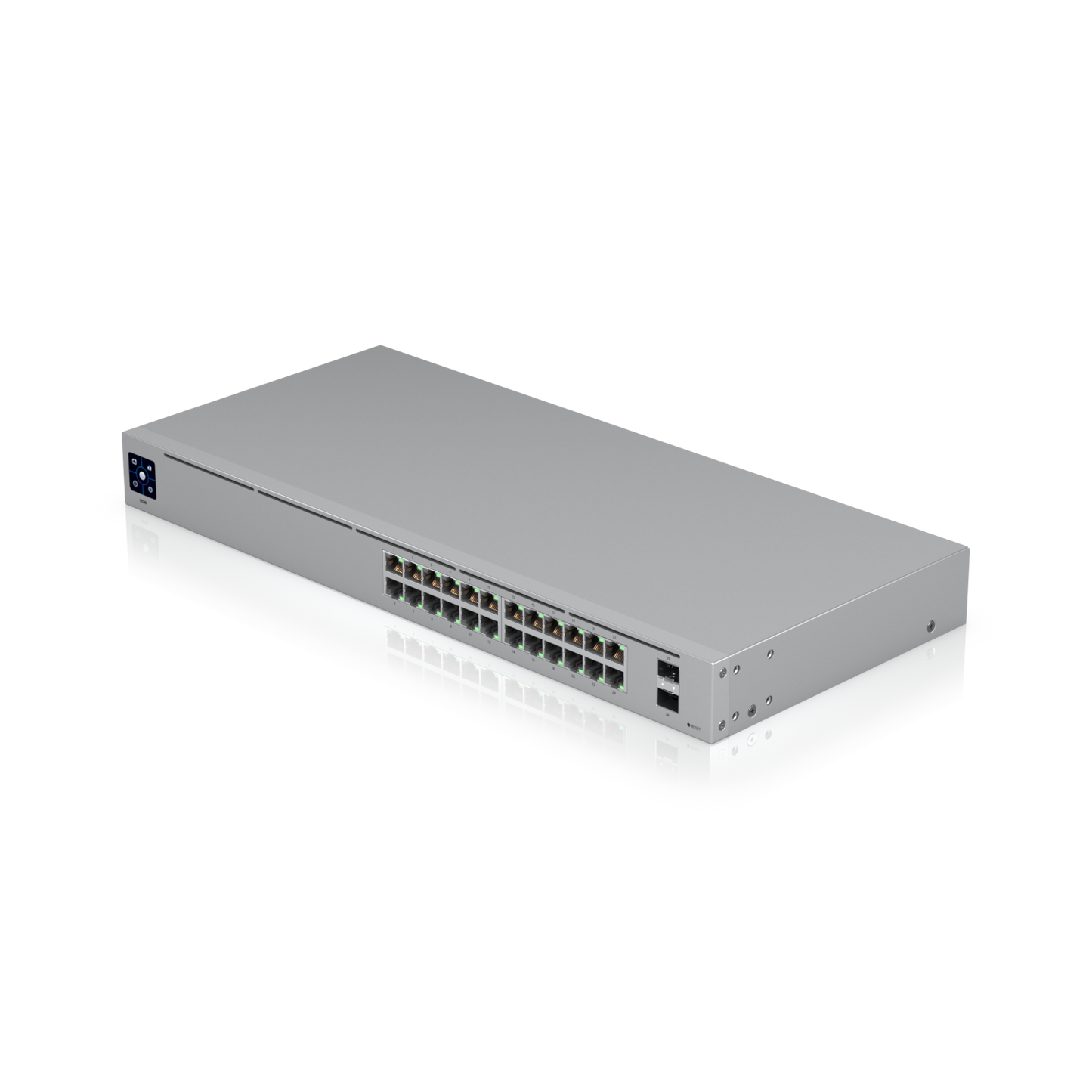

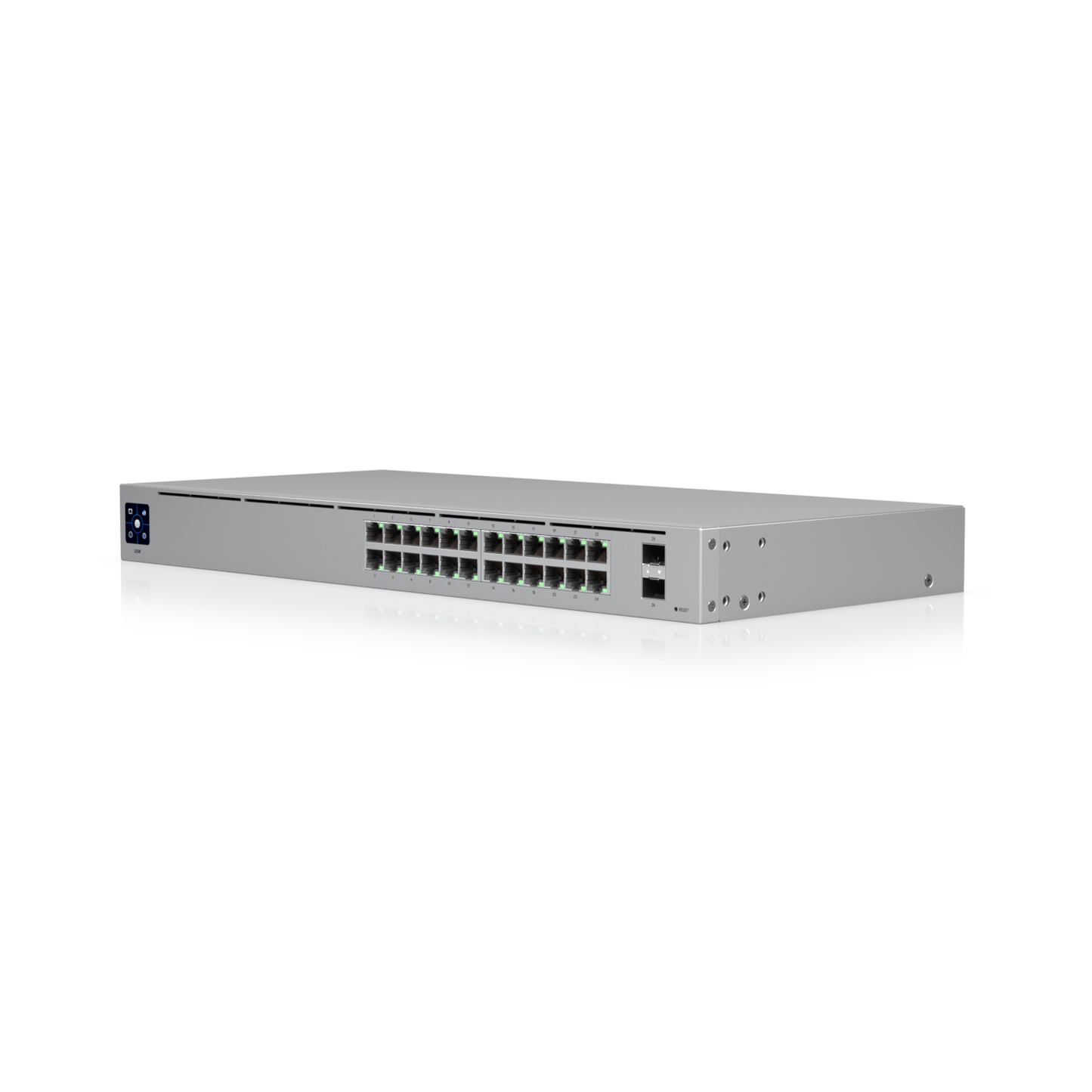

UniFi Standard 24 Layer 2 Switch
Ubiquiti USW-24 UniFi Standard 24 Layer 2 Switch
SKU:USW-24
Regular price
$408.00
Regular price
$504.00
Sale price
$408.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
62 in stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty
A 24-port, Layer 2 switch with a silent, fanless cooling system.
- (24) GbE ports.
- (2) 1G SFP ports.
- Fanless, silent cooling.
| Mechanical | |
|---|---|
| Dimensions | 442 x 200 x 44 mm (17.4 x 7.9 x 1.7") |
| Weight |
Without mounting brackets: 2.7 kg (6 lb) With mounting brackets: 2.8 kg (6.2 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface |
(24) GbE RJ45 ports (2) 1G SFP ports |
| Total non-blocking throughput | 26 Gbps |
| Switching capacity | 52 Gbps |
| Forwarding rate | 38.69 Mpps |
| Power method | Universal input, 100—240V AC, 50/60 Hz |
| Power supply | AC/DC, internal, 36W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 25W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -5 to 45° C (23 to 113° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features |
IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features | – |
| LEDs | |
| System | Status |
| Ethernet | Speed/link/activity |
| SFP | Link/activity |
| Application Requirements | |
| UniFi Network | Version 7.2.94 and later |
Visit Ubiquiti for more information.
