UniFi U6 Long-Range WiFi 6 Access Point
Ubiquiti U6-LR UniFi U6 Long-Range WiFi 6 Access Point
SKU:U6-LR
Regular price
$332.00
Regular price
$416.00
Sale price
$332.00
Unit price
per
457 in stock
Authorised Reseller | Australian Stock | Australian Warranty
Ceiling-mounted WiFi 6 AP with 8 spatial streams and extended signal range.
- WiFi 6.
- 8 spatial streams.
- 185 m² (2,000 ft²) coverage.
- 350+ connected devices.
- Powered using PoE+.
- GbE uplink.
WiFi 6 for 5 GHz. WiFi 4 for 2.4 GHz.

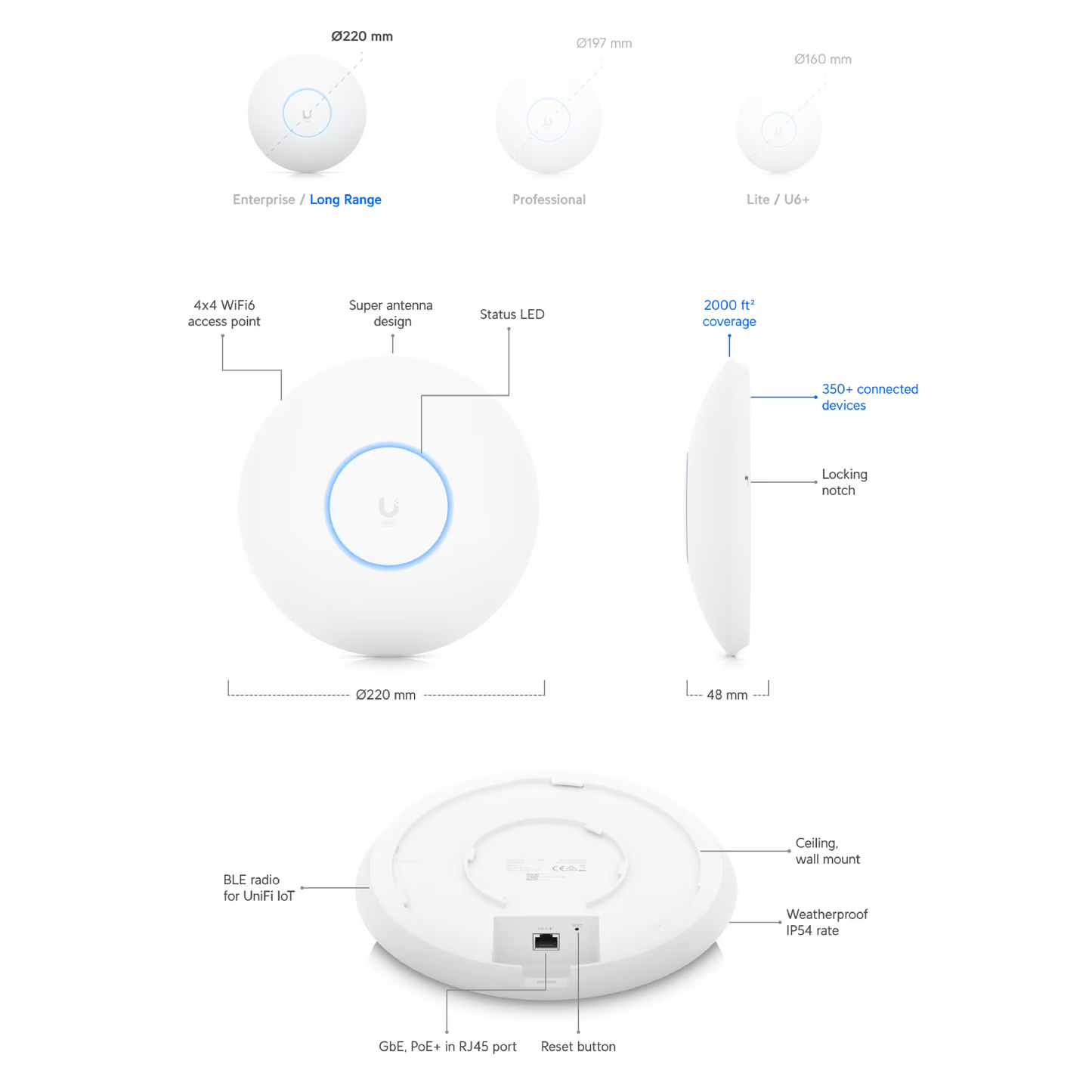

Mechanical | |
---|---|
Dimensions | Ø220 x 48 mm (Ø8.66 x 1.89") |
Weight |
Without mount: 800 g (1.76 lb) With mount: 930 g (2.05 lb) |
Enclosure material | Polycarbonate |
Mount material | Stainless steel (SUS304) |
Weatherproofing | IP54 |
Hardware | |
Networking interface | (1) GbE RJ45 port |
Management interface |
Ethernet Bluetooth |
Power method | PoE+, passive PoE (48V) |
Power supply |
UniFi PoE switch 48V, 0.5A PoE adapter (Not included) |
Supported voltage range | 44—57V DC |
Max. power consumption | 18.5W |
Max. TX power 2.4 GHz 5 GHz |
26 dBm 26 dBm |
MIMO 2.4 GHz 5 GHz |
4 x 4 4 x 4 |
Throughput rate 2.4 GHz 5 GHz |
600 Mbps 2400 Mbps |
Antenna gain 2.4 GHz 5 GHz |
4 dBi 5.5 dBi |
LEDs | White/blue |
Button | Factory reset |
Mounting | Wall/ceiling (Included) |
Operating temperature | -30 to 60° C (-22 to 140° F) |
Operating humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
Software | |
WiFi standards |
802.11a/b/g WiFi 4/WiFi 5/WiFi 6 |
Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3 |
BSSID | 8 per radio |
VLAN | 802.1Q |
Advanced QoS | Per-user rate limiting |
Guest traffic isolation | Supported |
Concurrent clients | 350+ |
Supported Data Rates | |
802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11b | 1, 2, 5.5, 11 Mbps |
802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
802.11n (WiFi 4) | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
Application Requirements | |
UniFi Network | Version 6.0.34 and later |
Visit Ubiquiti for more information.
