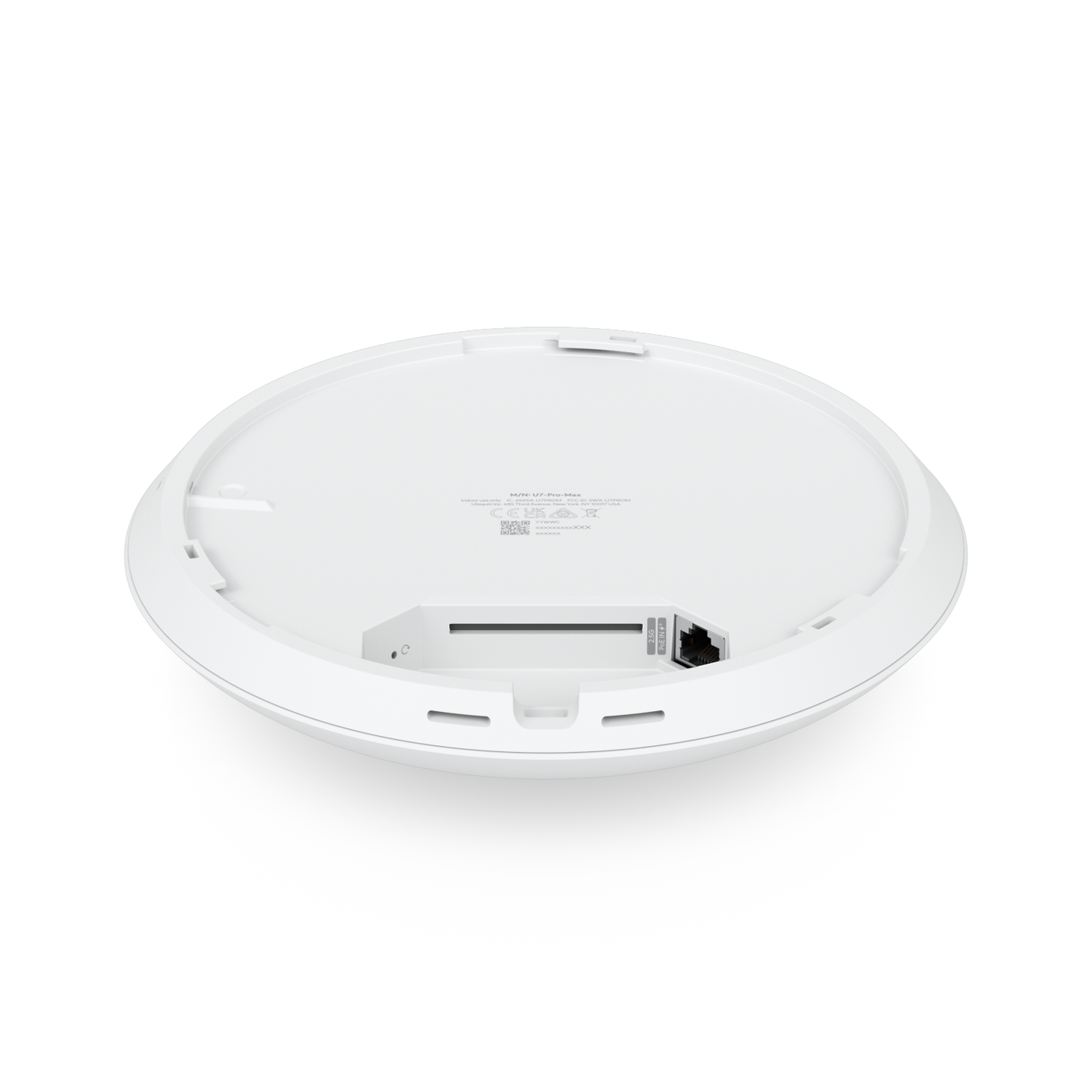

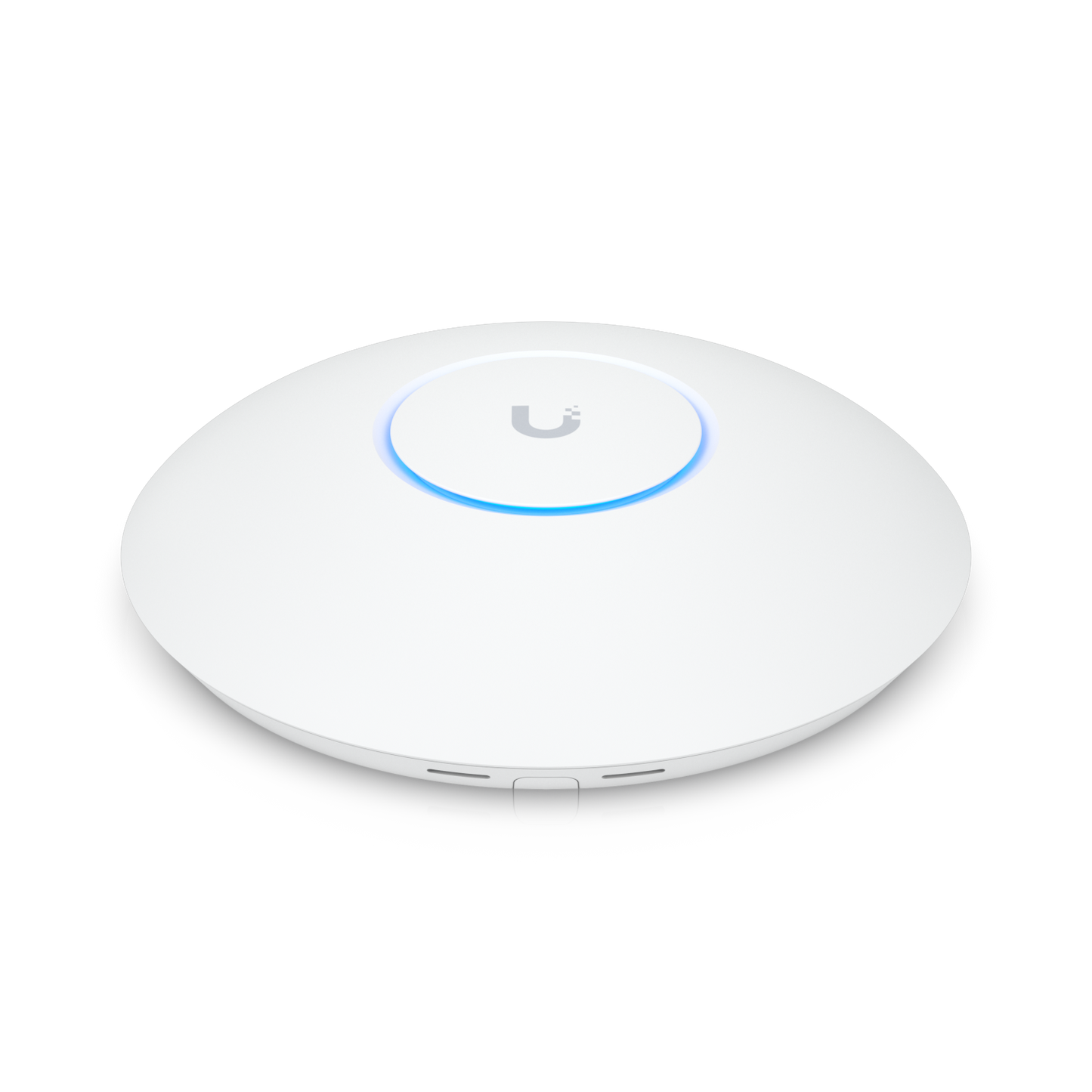

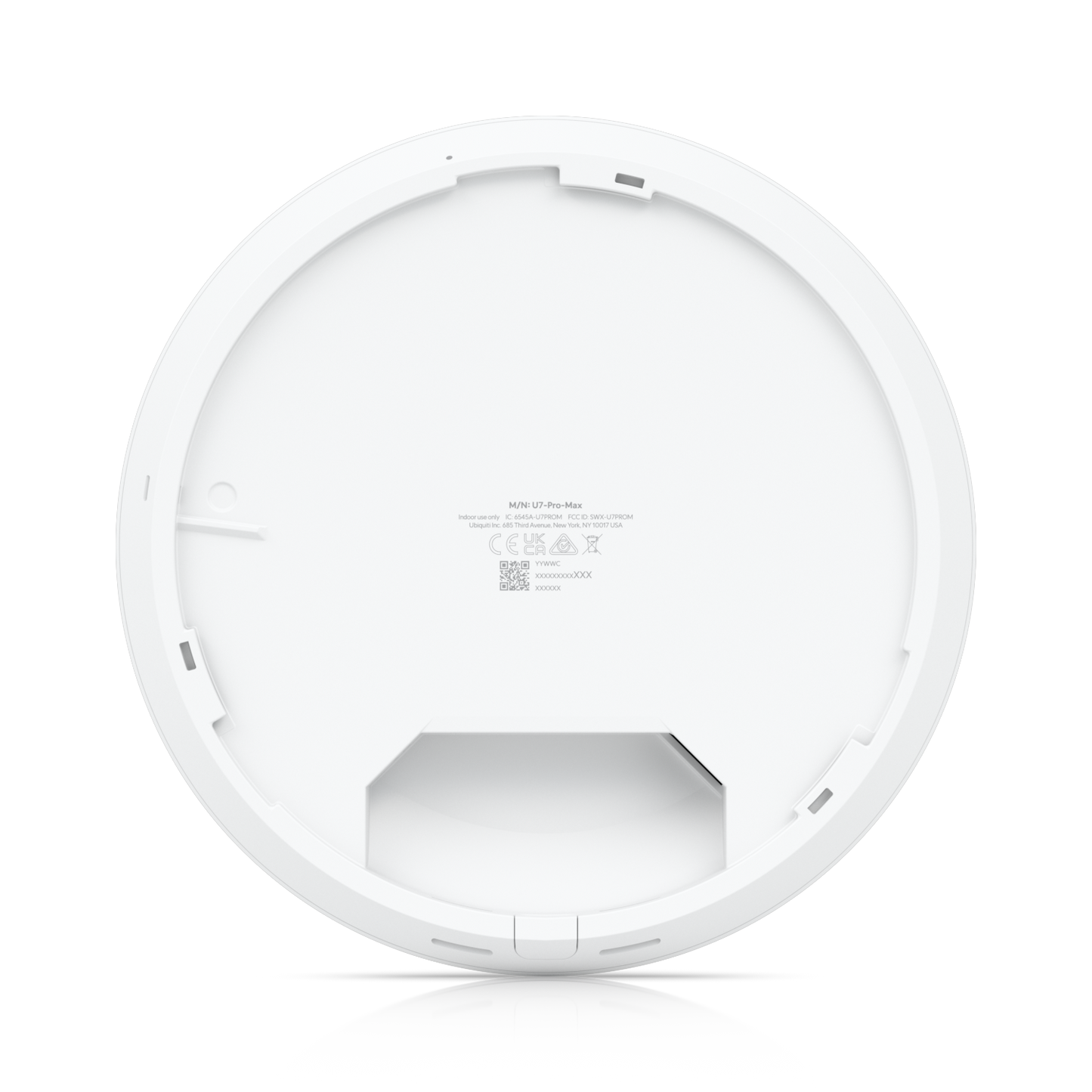

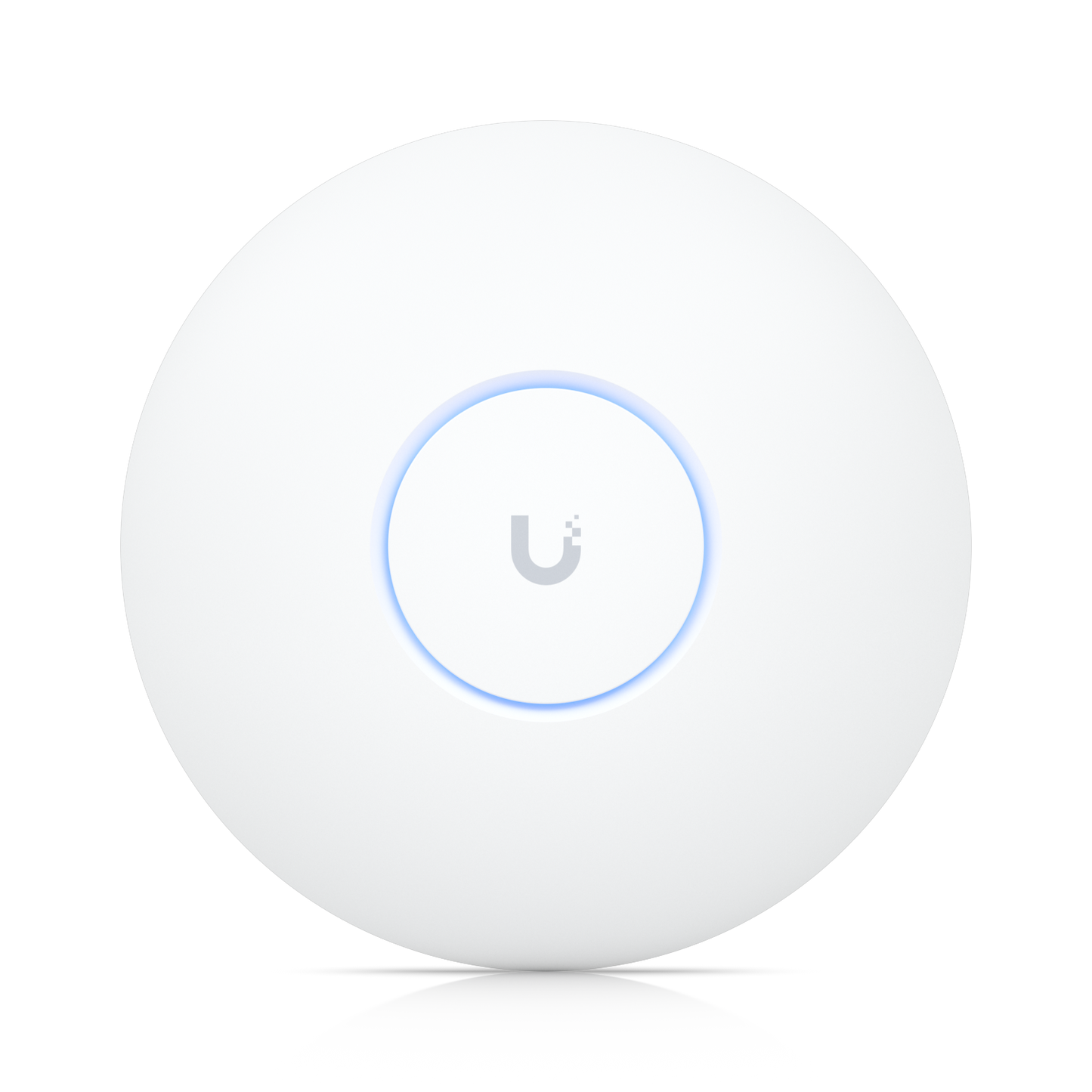

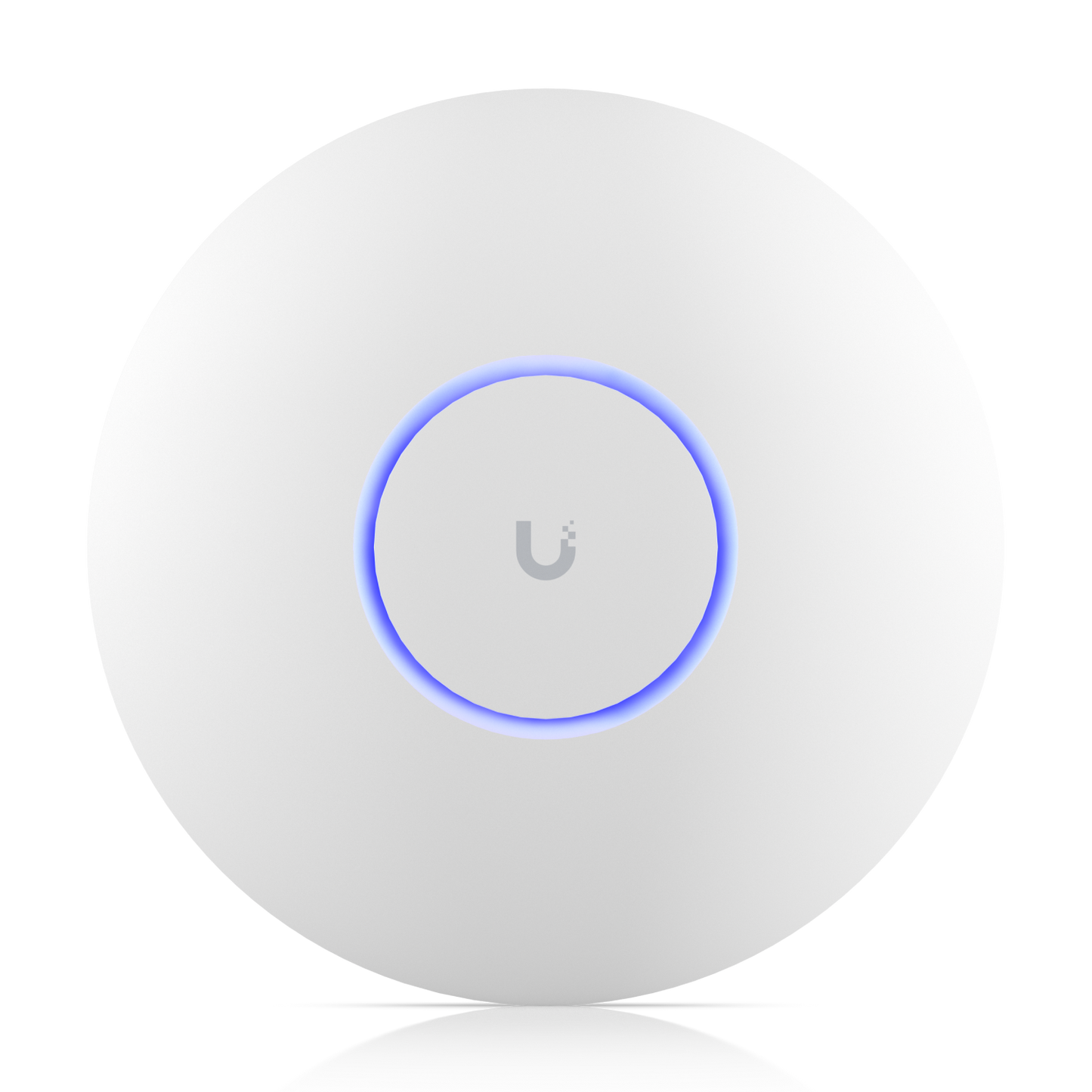

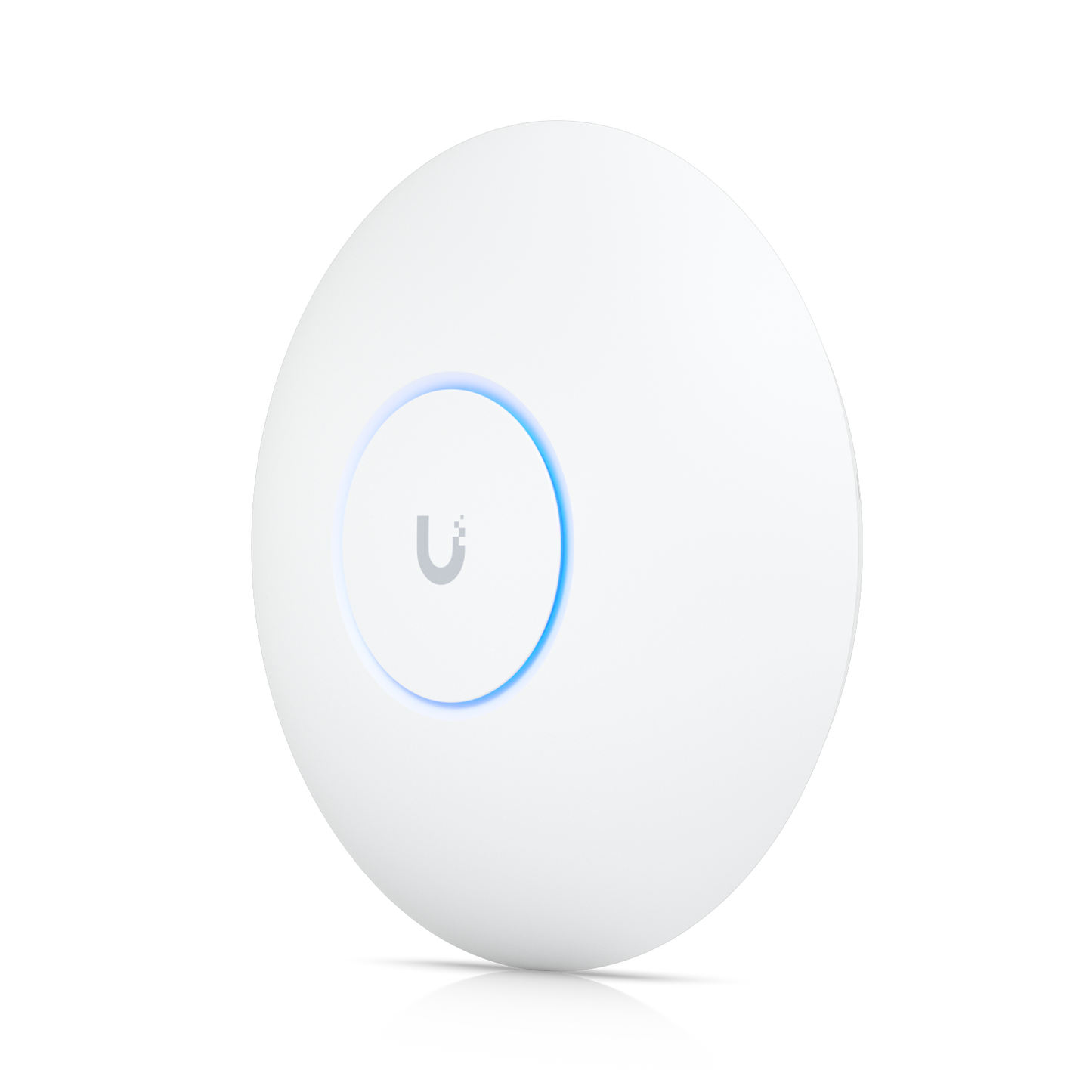

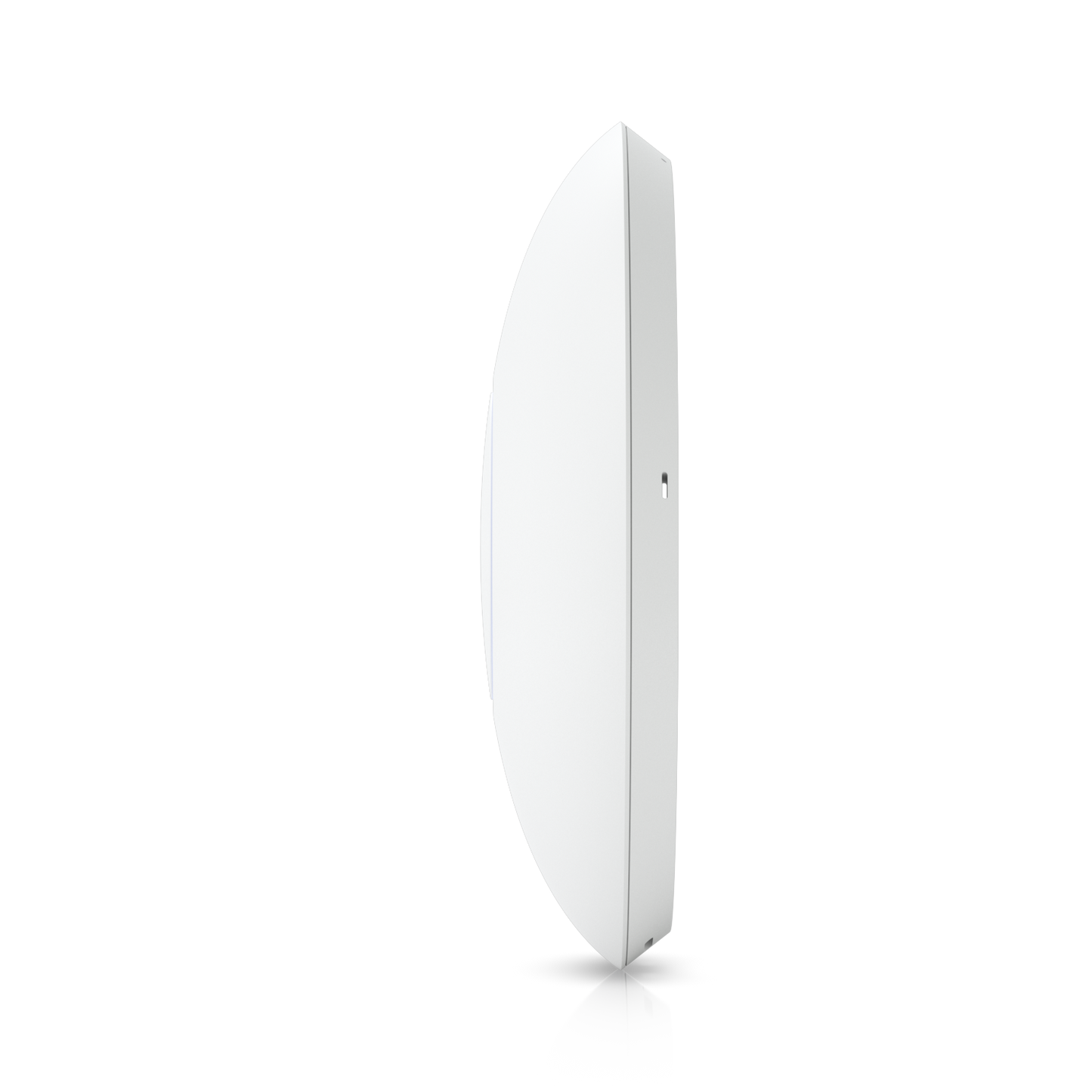

UniFi U7 Pro Max WiFi 7 Access Point
Ubiquiti U7-Pro-Max UniFi U7 Pro Max WiFi 7 Access Point
SKU:U7-Pro-Max
Regular price
$540.00
Regular price
$494.00
Sale price
$540.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
109 in stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty
Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.
- WiFi 7 with 6 GHz support.
- 8 spatial streams.
- Real-time spectral analysis for enhanced channel selection.
- 160 m² (1,750 ft²) coverage.
- 500+ connected devices.
- Powered using PoE+.
- 2.5 GbE uplink.
Multi-Link Operation (MLO) capability is coming soon and will be provided via software update.
| Mechanical | ||
|---|---|---|
| Dimensions | Ø206 x 46 mm (Ø8.1 x 1.8") | |
| Weight | 680 g (1.5 lb) | |
| Enclosure material | Polycarbonate, aluminum | |
| Mount material | Stainless steel (SUS304), galvanized steel (SGCC) | |
| Hardware | ||
| Networking interface | (1) 1/2.5 GbE RJ45 port | |
| Management interface | Ethernet | |
| Power method | PoE+ | |
| Power supply | UniFi PoE switch | |
| Supported voltage range | 44—57V DC | |
| Max. power consumption | 25W | |
|
Max. TX power 2.4 GHz 5 GHz 6 GHz |
23 dBm 29 dBm 23 dBm |
|
|
MIMO 2.4 GHz 5 GHz 6 GHz |
2 x 2 (DL/UL MU-MIMO) 4 x 4 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) |
|
|
Max. data rate 2.4 GHz 5 GHz 6 GHz |
688 Mbps (BW40) 8.6 Gbps (BW240) 5.7 Gbps (BW320) |
|
|
Antenna gain 2.4 GHz 5 GHz 6 GHz |
4 dBi 6 dBi 5.9 dBi |
|
| LEDs | White/blue | |
| Button | Factory reset | |
| Mounting | Wall, ceiling (Included) | |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) | |
| Ambient operating humidity | 5 to 95% noncondensing | |
| Certifications | CE, FCC, IC | |
| Software | ||
| WiFi standards | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) | |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) | |
| BSSID | 8 per radio | |
| VLAN | 802.1Q | |
| Advanced QoS | Per-user rate limiting | |
| Guest traffic isolation | Supported | |
| Concurrent clients | 500+ | |
| Supported Data Rates | ||
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11b | 1, 2, 5.5, 11 Mbps | |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) | |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) | |
|
802.11be (WiFi 7) 5 GHz 6 GHz |
7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
|
| Application Requirements | ||
| UniFi Network | Version 8.2.93 and later | |
Visit Ubiquiti for more information.
