Ubiquiti

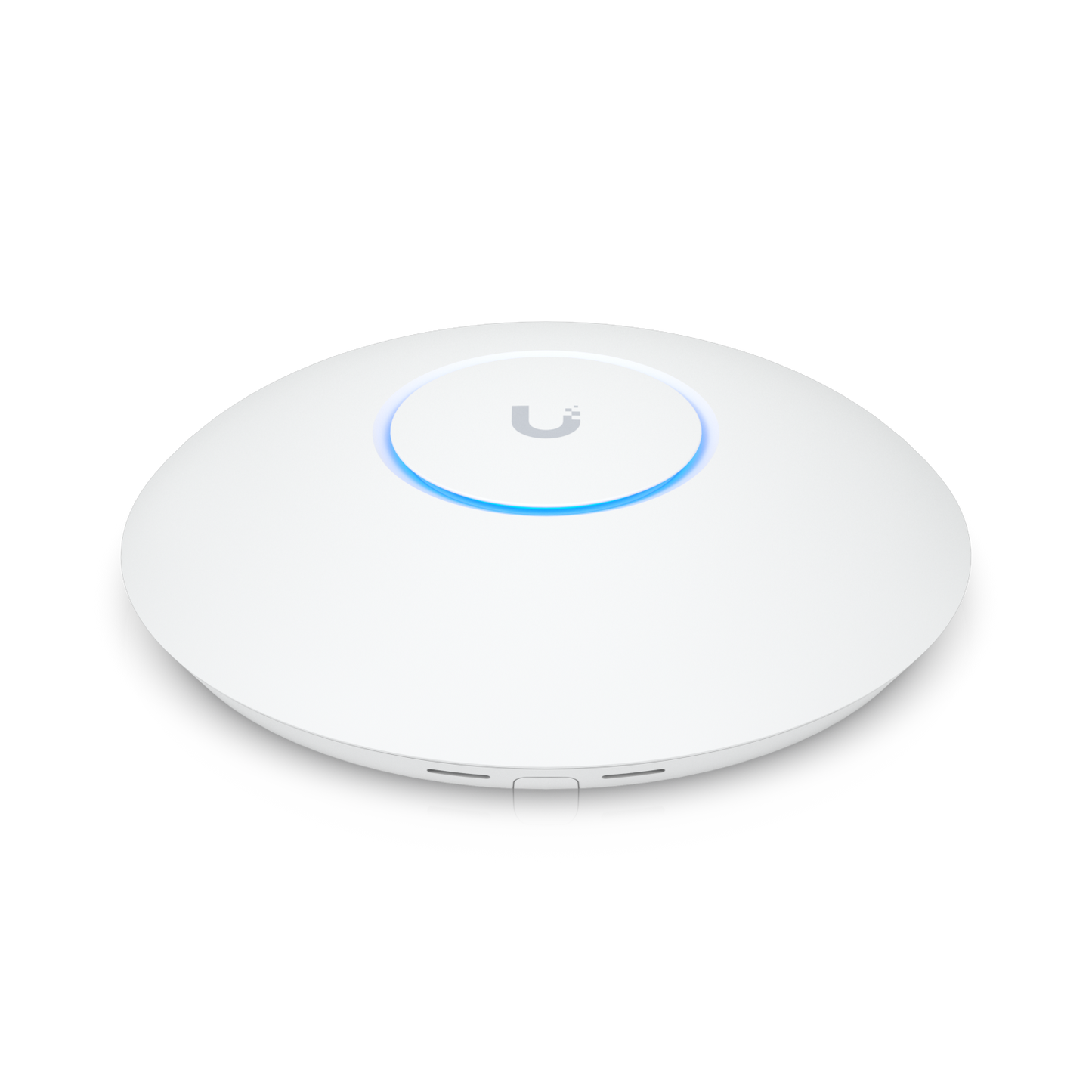

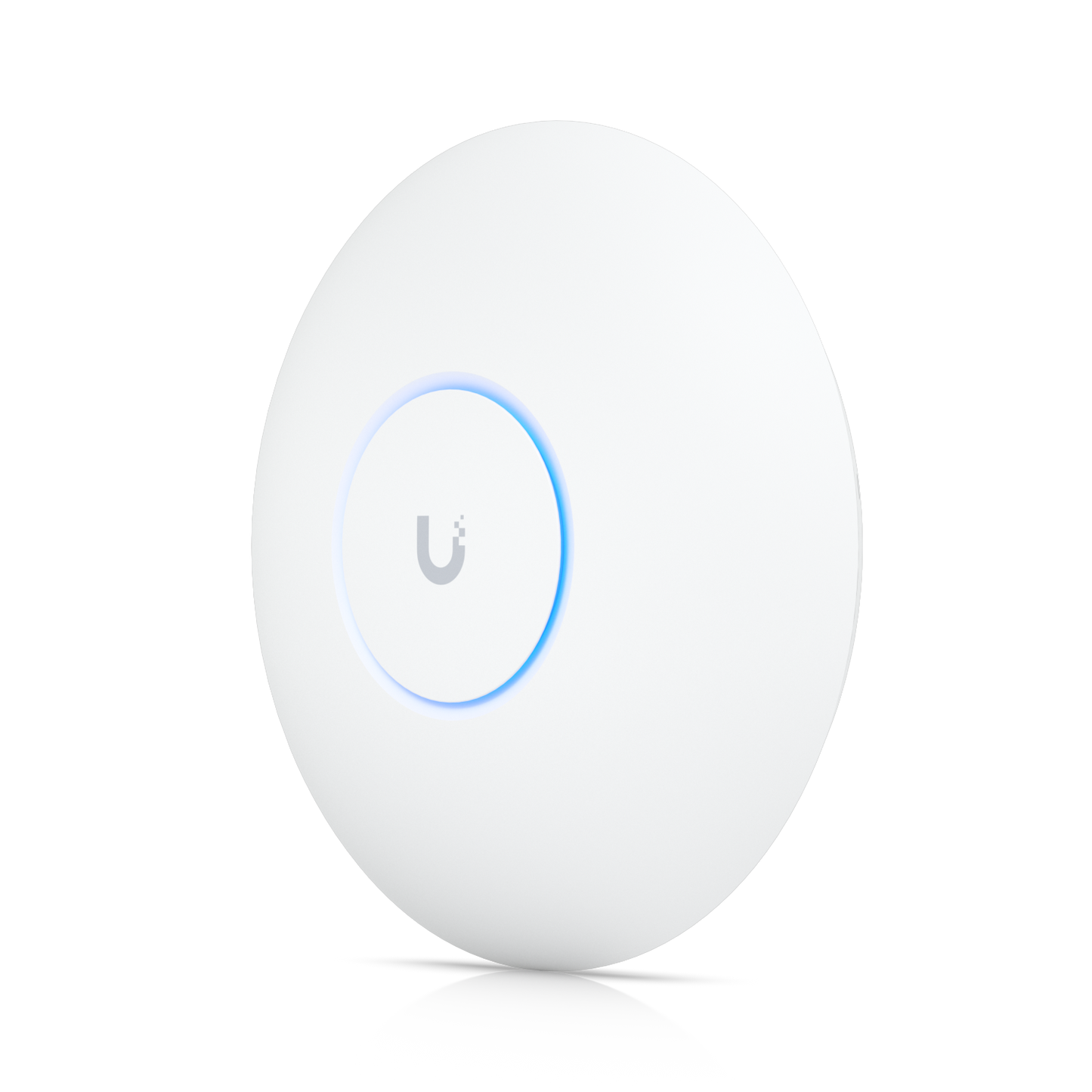

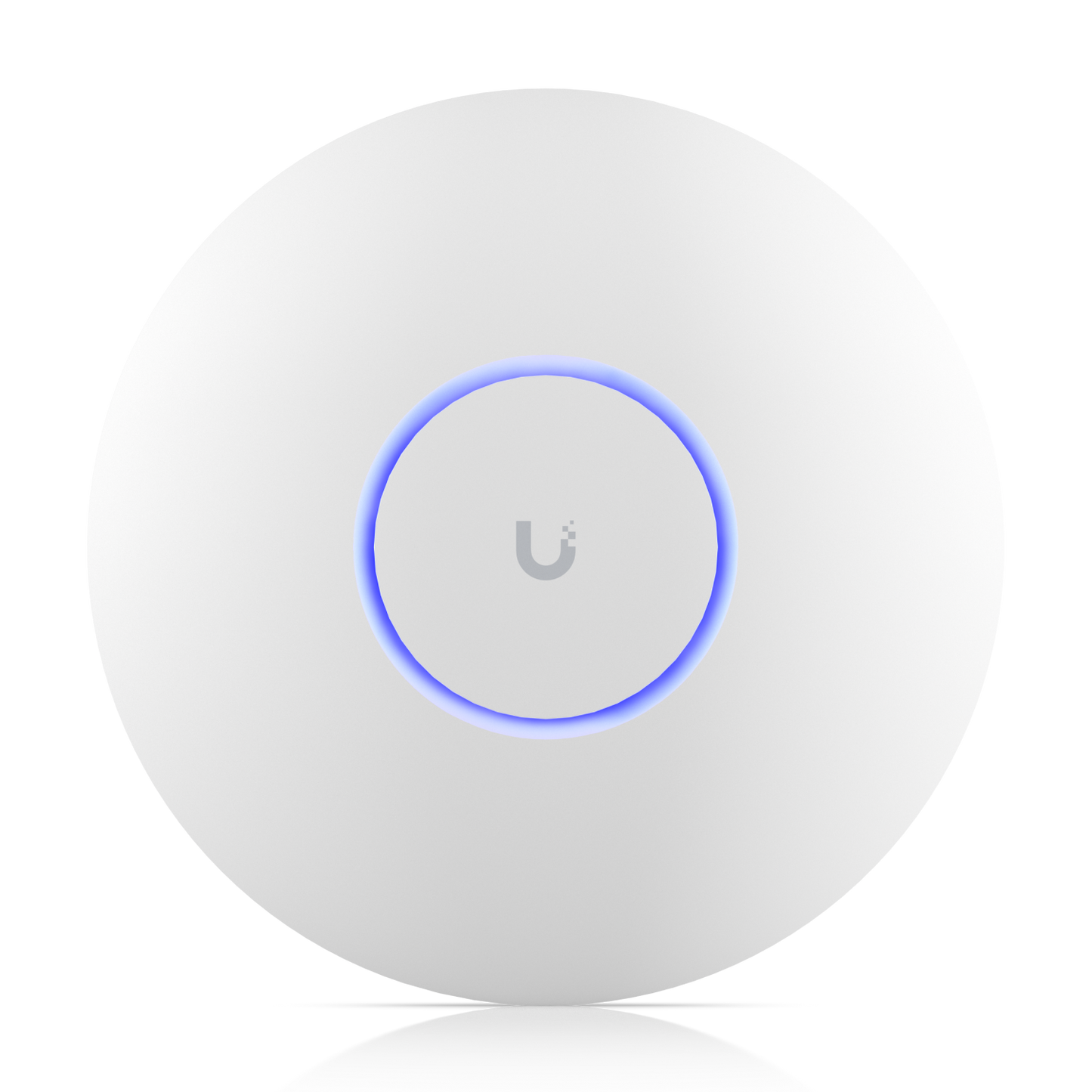

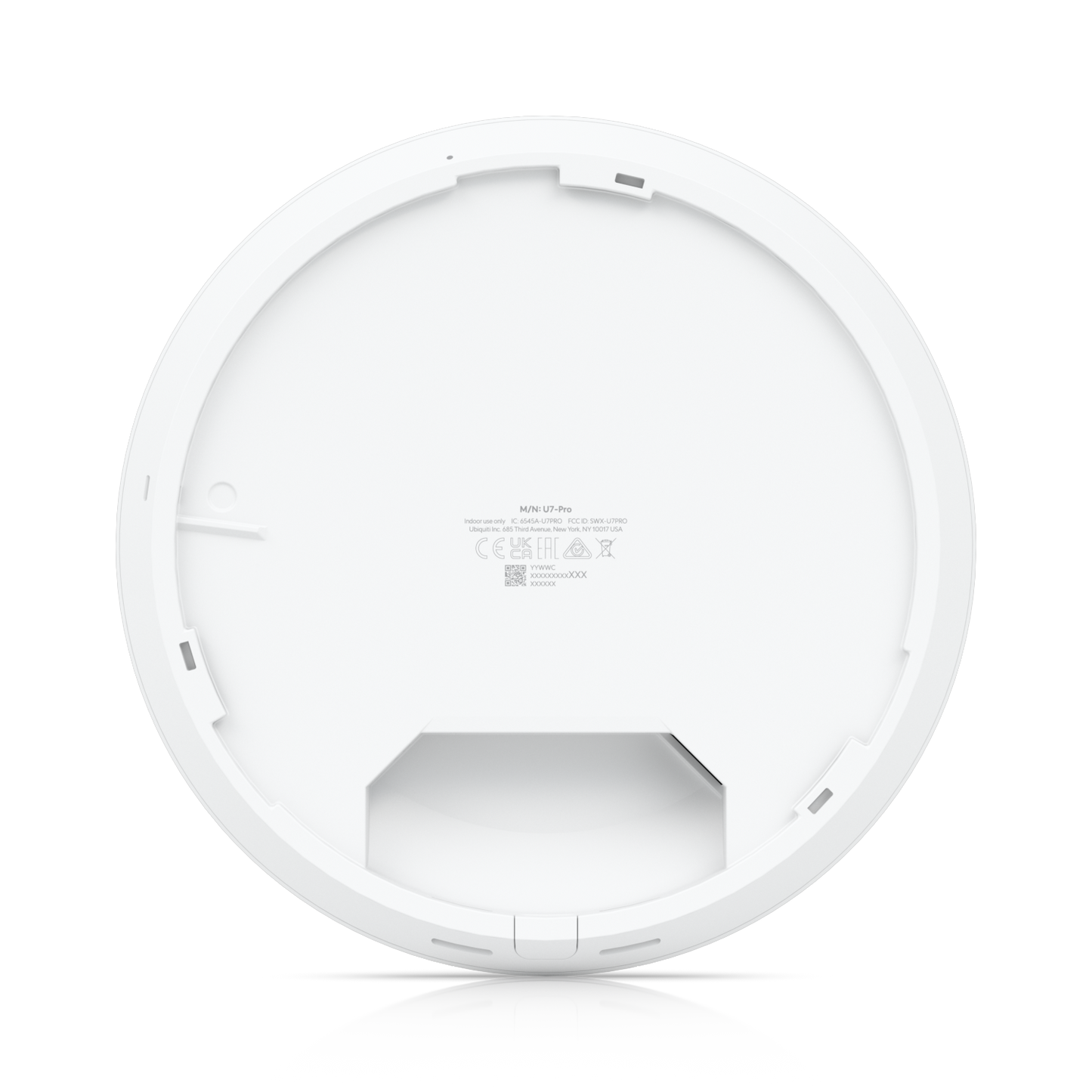

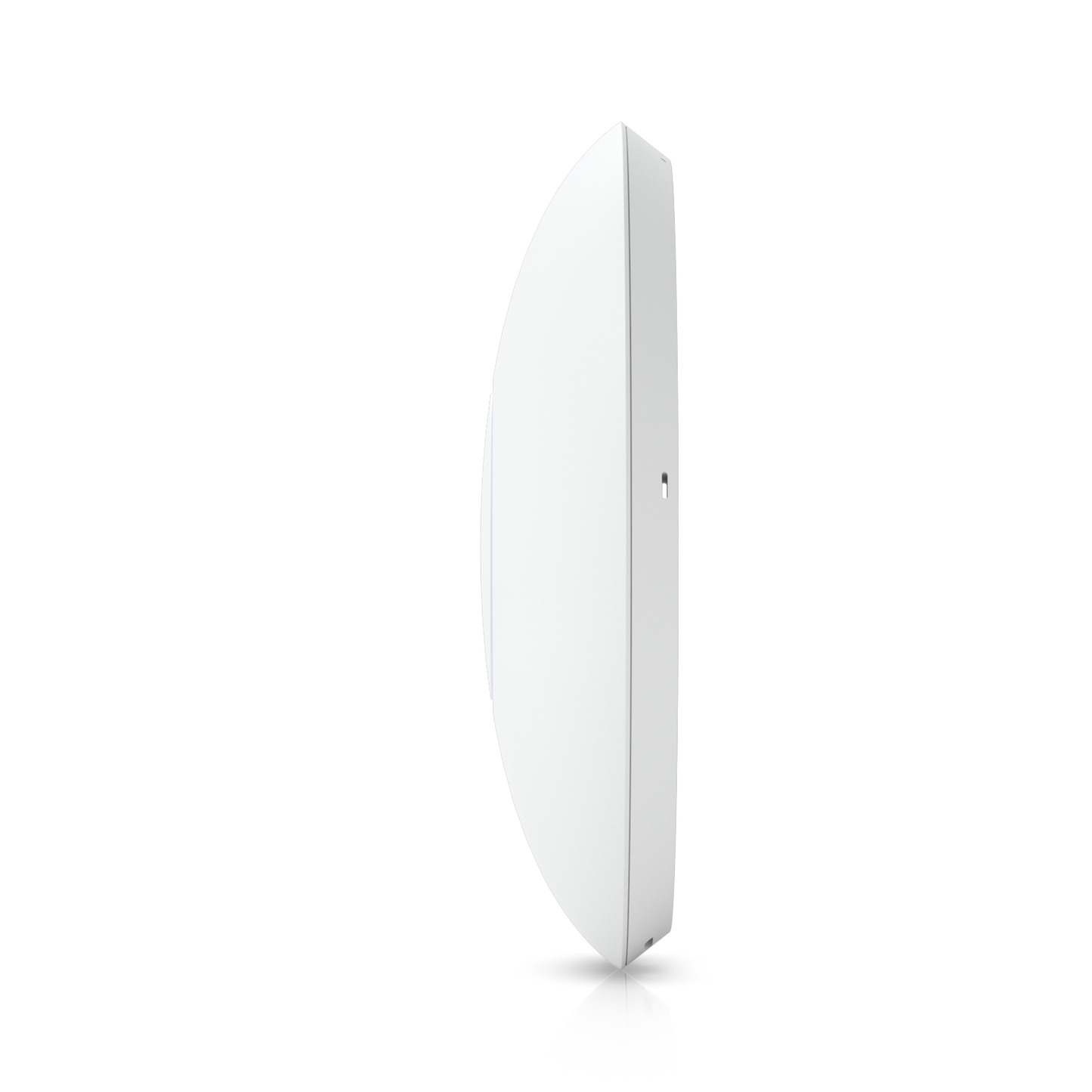

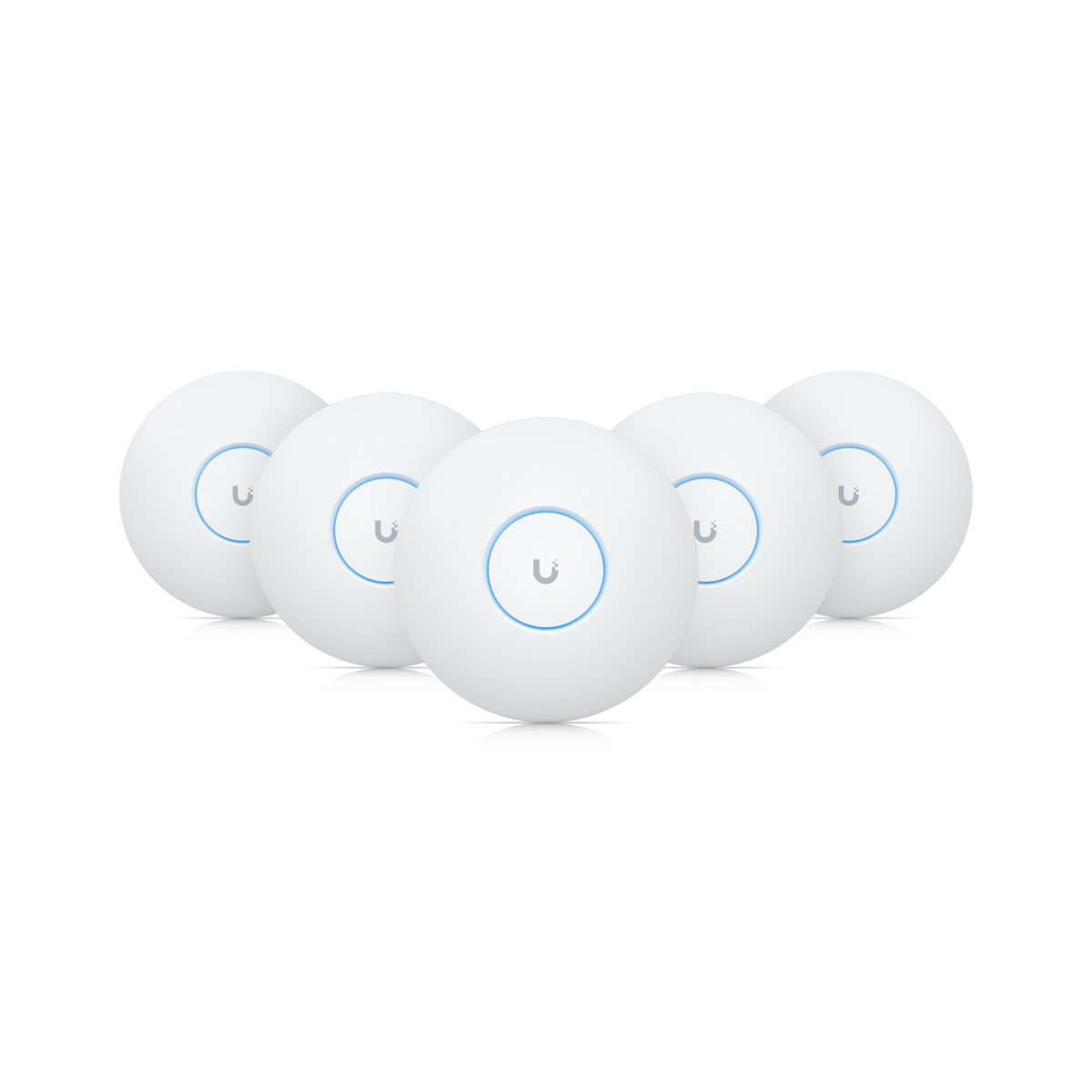

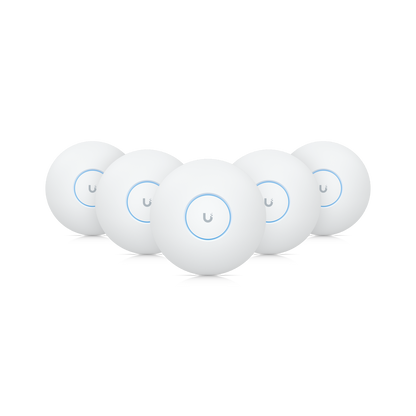

U7 Pro — UniFi WiFi Access Point

U7 Pro — UniFi WiFi Access Point

Regular price $326.00
Regular price $404.00 Sale price $326.00
19% Off | Save $78.00 Sold out
Tax included. Shipping calculated at checkout.

SKU:U7-Pro

In stock

View full details

Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.

  • WiFi 7 with 6 GHz support
  • 6 spatial streams
  • 140 m² (1,500 ft²) coverage
  • 300+ connected devices
  • Powered using PoE+
  • 2.5 GbE uplink

Note

  • Multi-Link Operation (MLO) capability is coming soon and will be provided via software update.

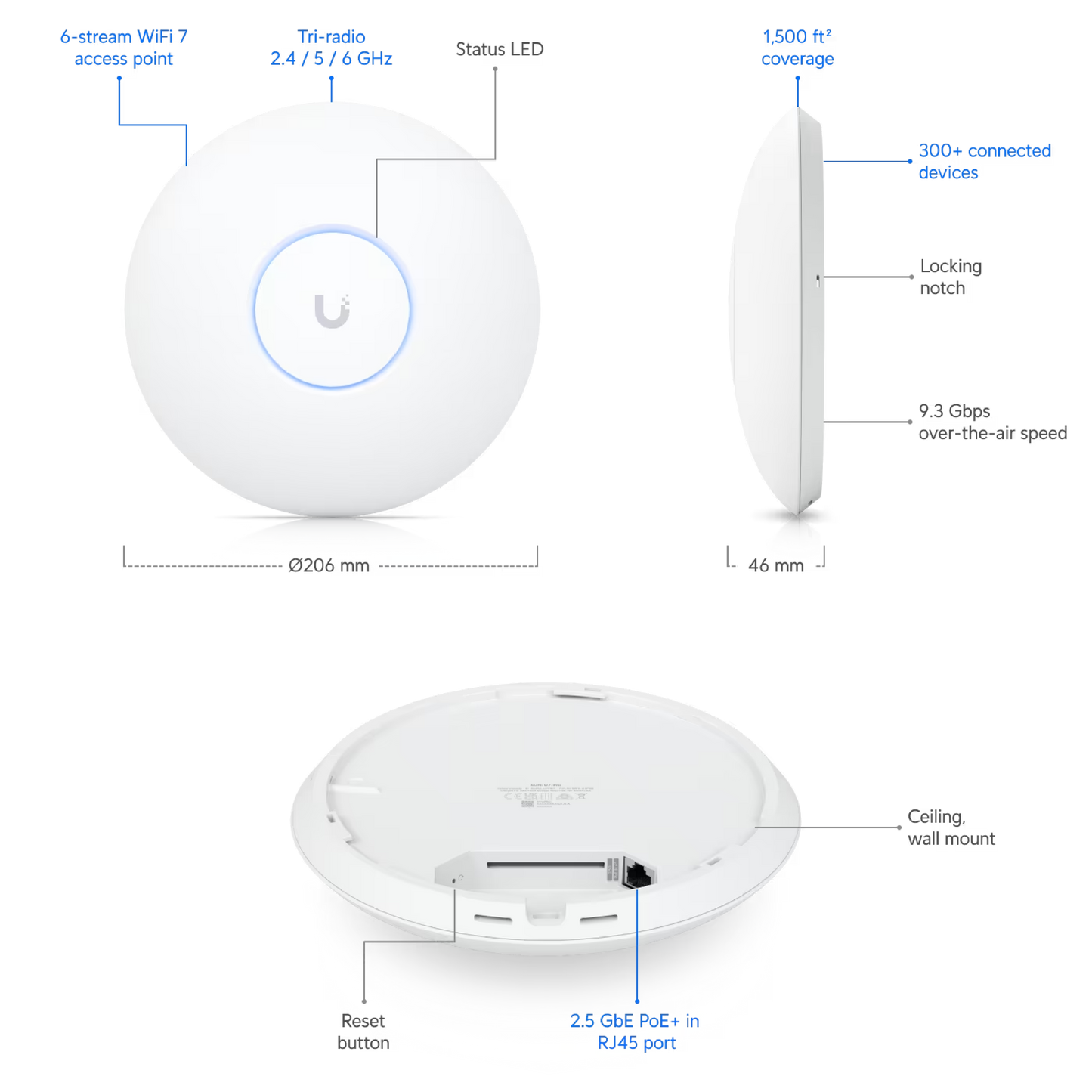

Mechanical
Dimensions Ø206 x 46 mm (Ø8.1 x 1.8")
Weight 680 g (1.5 lb)
Enclosure material Polycarbonate, metal
Mount material Stainless steel (SUS304), galvanized steel (SGCC)
Hardware

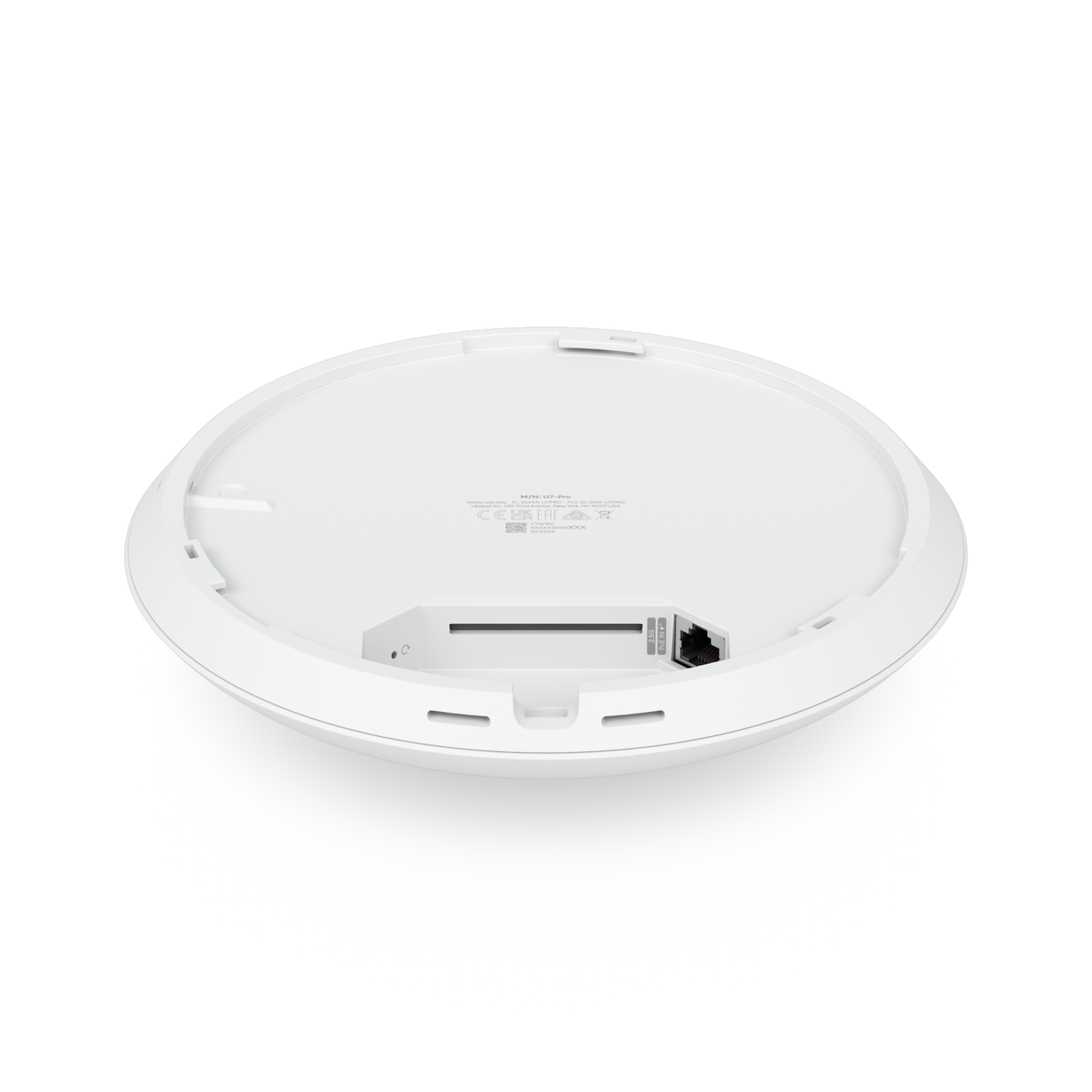

Networking interface (1) 1/2.5 GbE RJ45 port
Management interface Ethernet

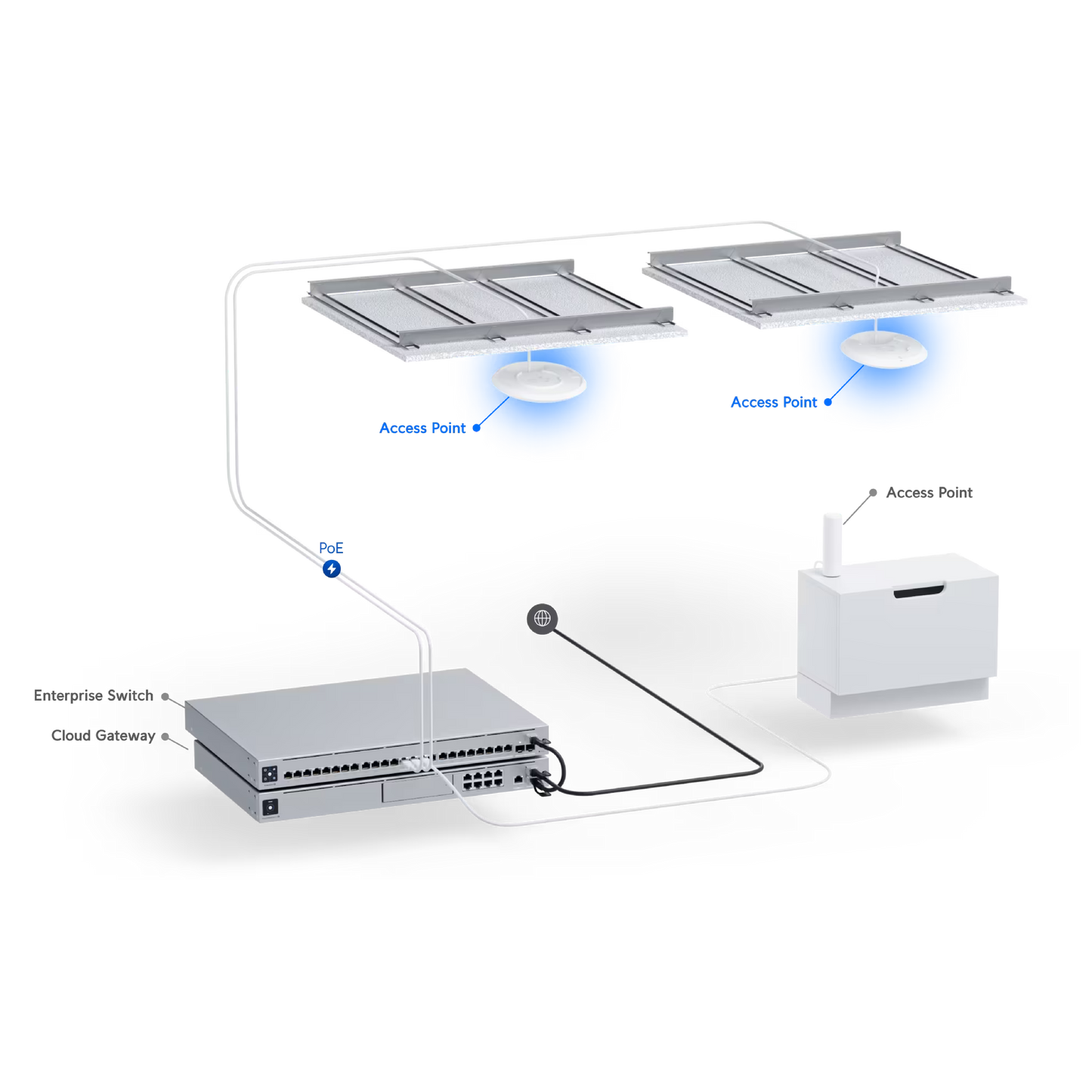

Power method PoE+
Power supply UniFi PoE switch
Supported voltage range 44—57V DC
Max. power consumption 21W
Max. TX power
2.4 GHz
5 GHz
6 GHz

22 dBm
26 dBm
23 dBm
MIMO
2.4 GHz
5 GHz
6 GHz

2 x 2
2 x 2
2 x 2
Throughput rate
2.4 GHz
5 GHz
6 GHz

688 Mbps
2882 Mbps
5765 Mbps
Antenna gain
2.4 GHz
5 GHz
6 GHz

4 dBi
6 dBi
5.8 dBi
LEDs White/blue
Button Factory reset
Mounting Wall/ceiling (Included)
Ambient operating temperature -30 to 60° C (-22 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
WiFi standards 802.11a/b/g/n/ac/ax/be
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Concurrent clients 300+
Supported Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network Version 8.0.26 and later
UniFi OS Version 3.2 and later
