UniFi U7 Pro Wall WiFi 7 Access Point
Ubiquiti U7-Pro-Wall UniFi U7 Pro Wall WiFi 7 Access Point
SKU:U7-Pro-Wall
Regular price
$371.00
Regular price
$389.00
Sale price
$371.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
105 in stock and ready to ship today.
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Lowest Price Guaranteed | Buying for your business?
Wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options.
- WiFi 7 with 6 GHz support.
- 6 spatial streams.
- 140 m² (1,500 ft²) coverage.
- 300+ connected devices.
- Powered using PoE+.
- 2.5 GbE uplink.
- Versatile deployment with optional Flush Mount and Table Stand accessories (Sold separately).
Multi-Link Operation (MLO) capability is coming soon and will be provided via software update.
| Mechanical | ||
|---|---|---|
| Dimensions | 150 x 103 x 36 mm (5.9 x 4.1 x 1.4") | |
| Weight | 580 g (1.3 lb) | |
| Enclosure material | Polycarbonate, aluminum | |
| Mount material | Aluminum | |
| Hardware | ||

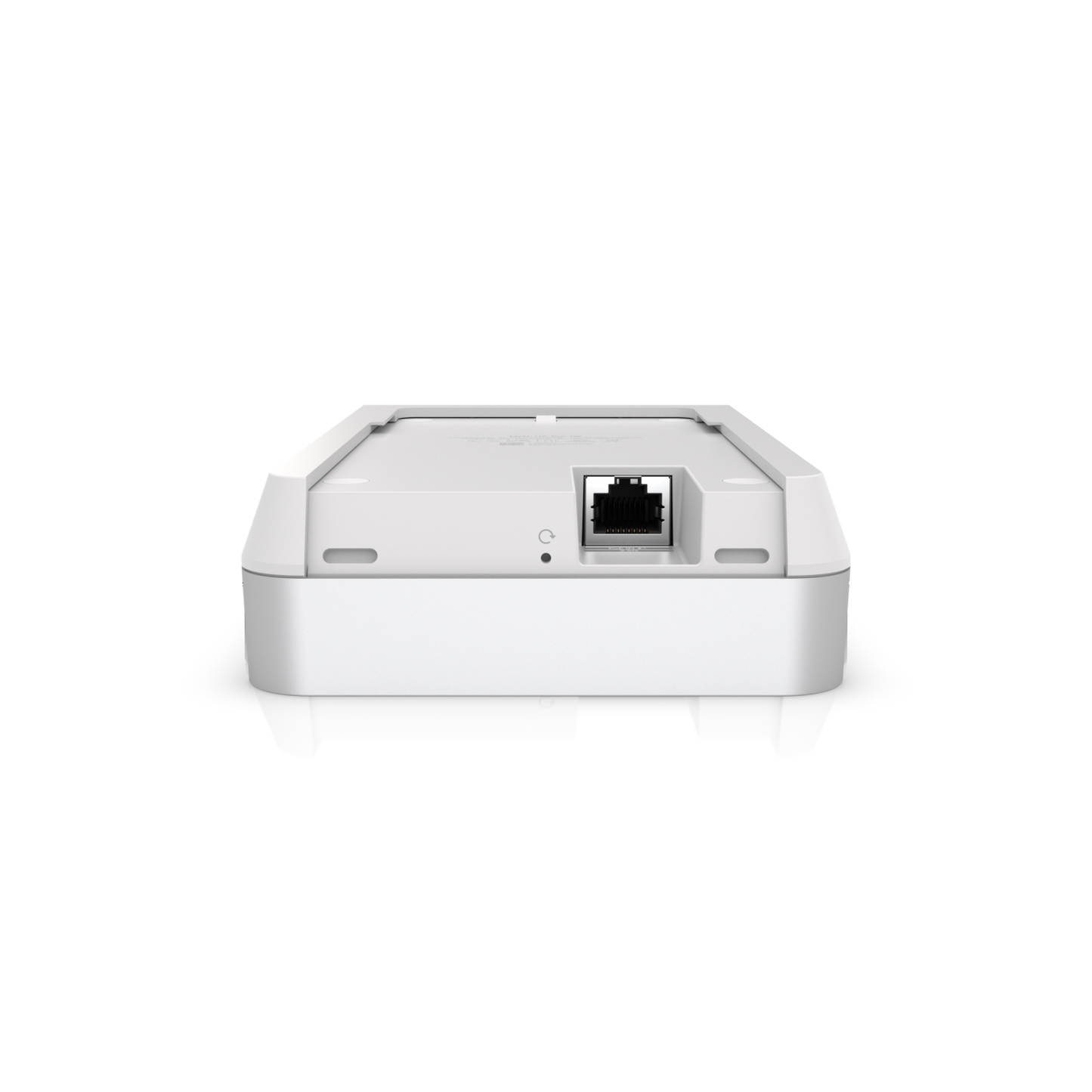

| Networking interface | (1) 1/2.5 GbE RJ45 port | |
| Management interface | Ethernet | |
| Power method | PoE+ | |
| Power supply | UniFi PoE switch | |
| Supported voltage range | 44—57V DC | |
| Max. power consumption | 22W | |
|
Max. TX power 2.4 GHz 5 GHz 6 GHz |
22 dBm 26 dBm 23 dBm |
|
|
MIMO 2.4 GHz 5 GHz 6 GHz |
2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) |
|
|
Max. data rate 2.4 GHz 5 GHz 6 GHz |
688 Mbps (BW40) 4.3 Gbps (BW240) 5.7 Gbps (BW320) |
|
|
Antenna gain 2.4 GHz 5 GHz 6 GHz |
4 dBi 5 dBi 6 dBi |
|
| LEDs | White/blue | |
| Button | Factory reset | |
| Mounting |
Wall (Included) Table stand, flush mount (Optional) |
|
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) | |
| Ambient operating humidity | 5 to 95% noncondensing | |
| Certifications | CE, FCC, IC | |
| Software | ||
| WiFi standards | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) | |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) | |
| BSSID | 8 per radio | |
| VLAN | 802.1Q | |
| Advanced QoS | Per-user rate limiting | |
| Guest traffic isolation | Supported | |
| Concurrent clients | 300+ | |
| Supported Data Rates | ||
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11b | 1, 2, 5.5, 11 Mbps | |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) | |
| 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) | |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) | |
| Application Requirements | ||
| UniFi Network | Version 8.1 and later | |
| UniFi OS | Version 3.2 and later | |
Visit Ubiquiti for more information.
