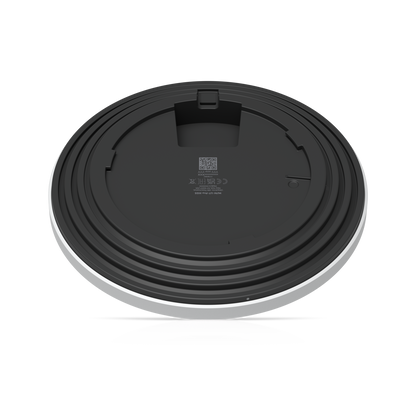

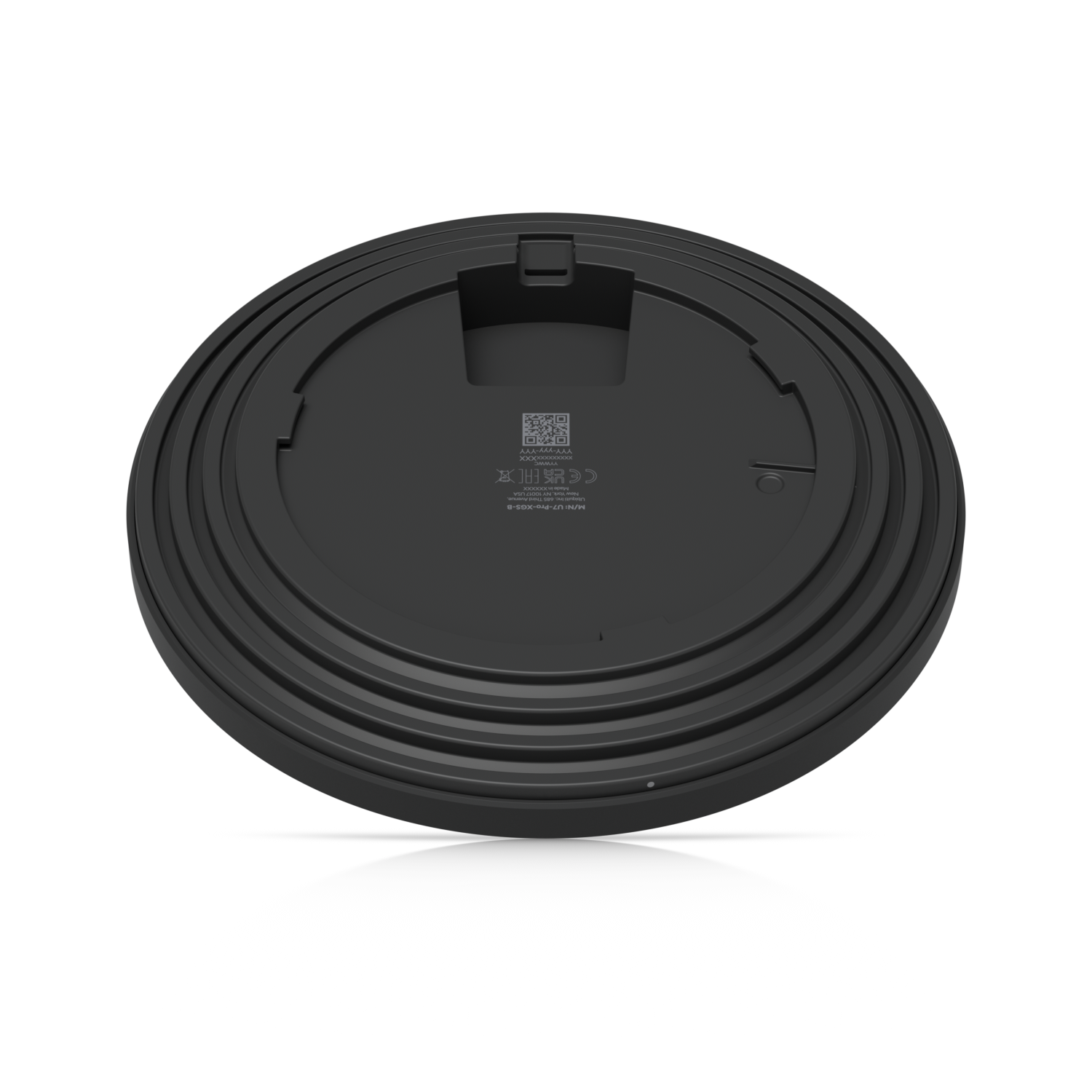

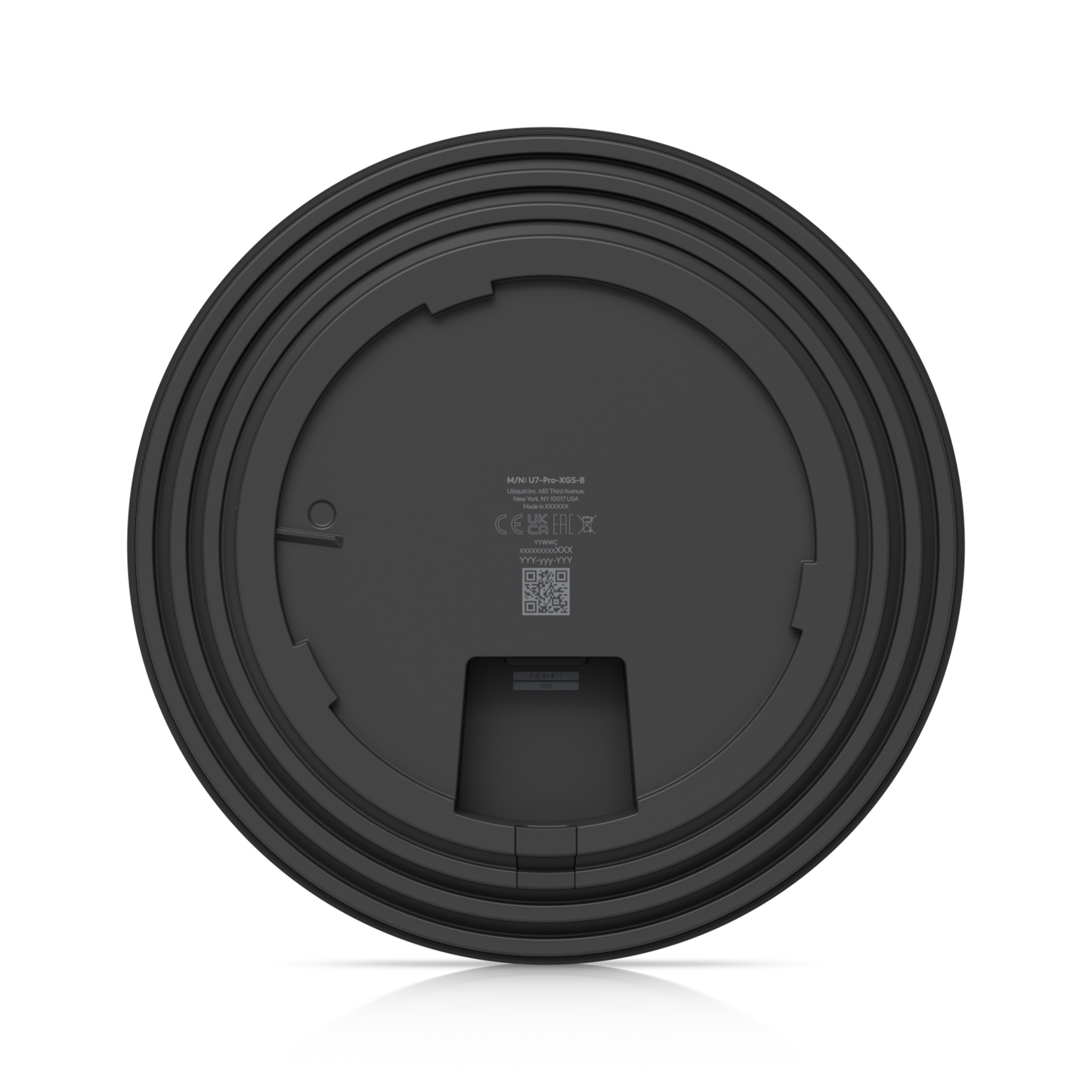

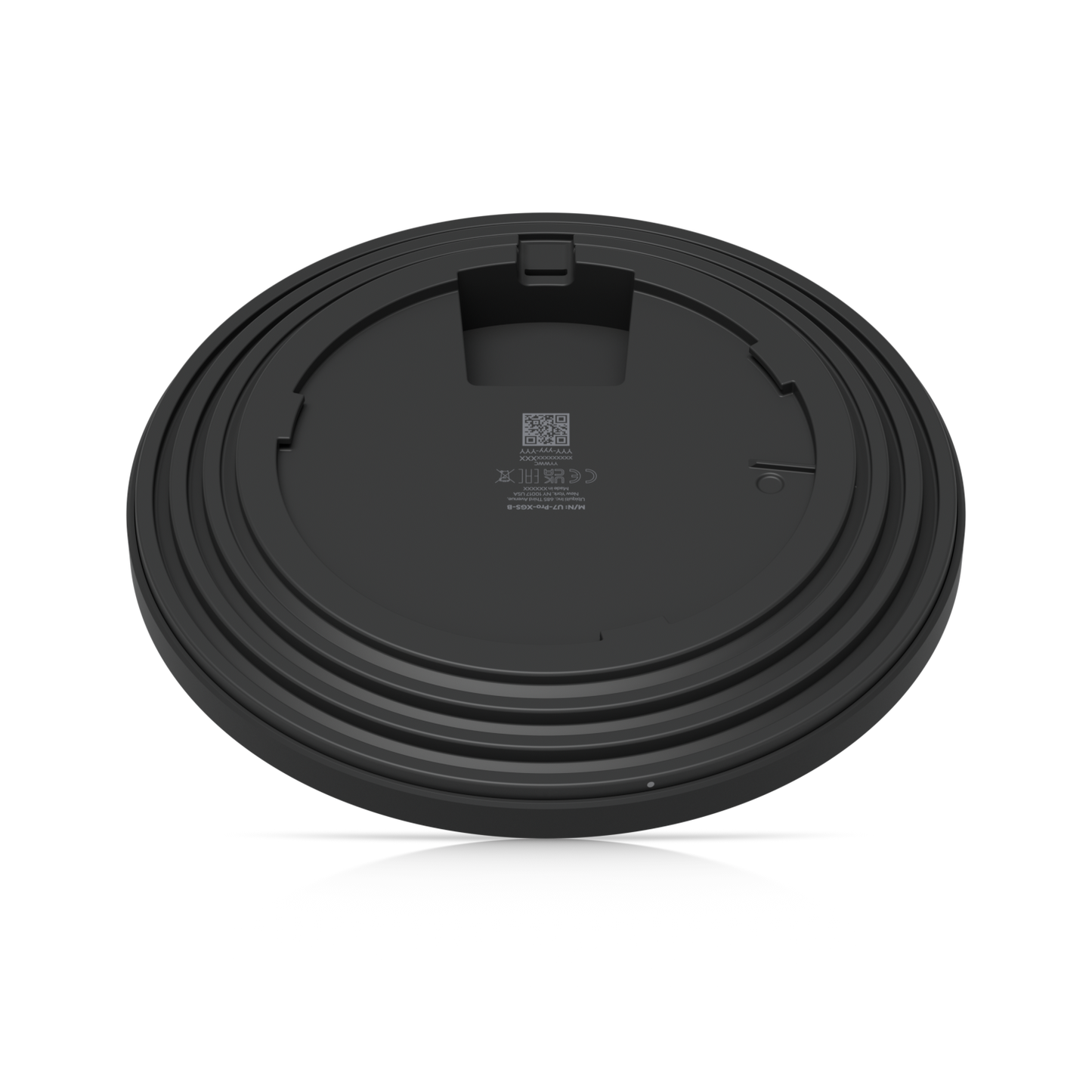

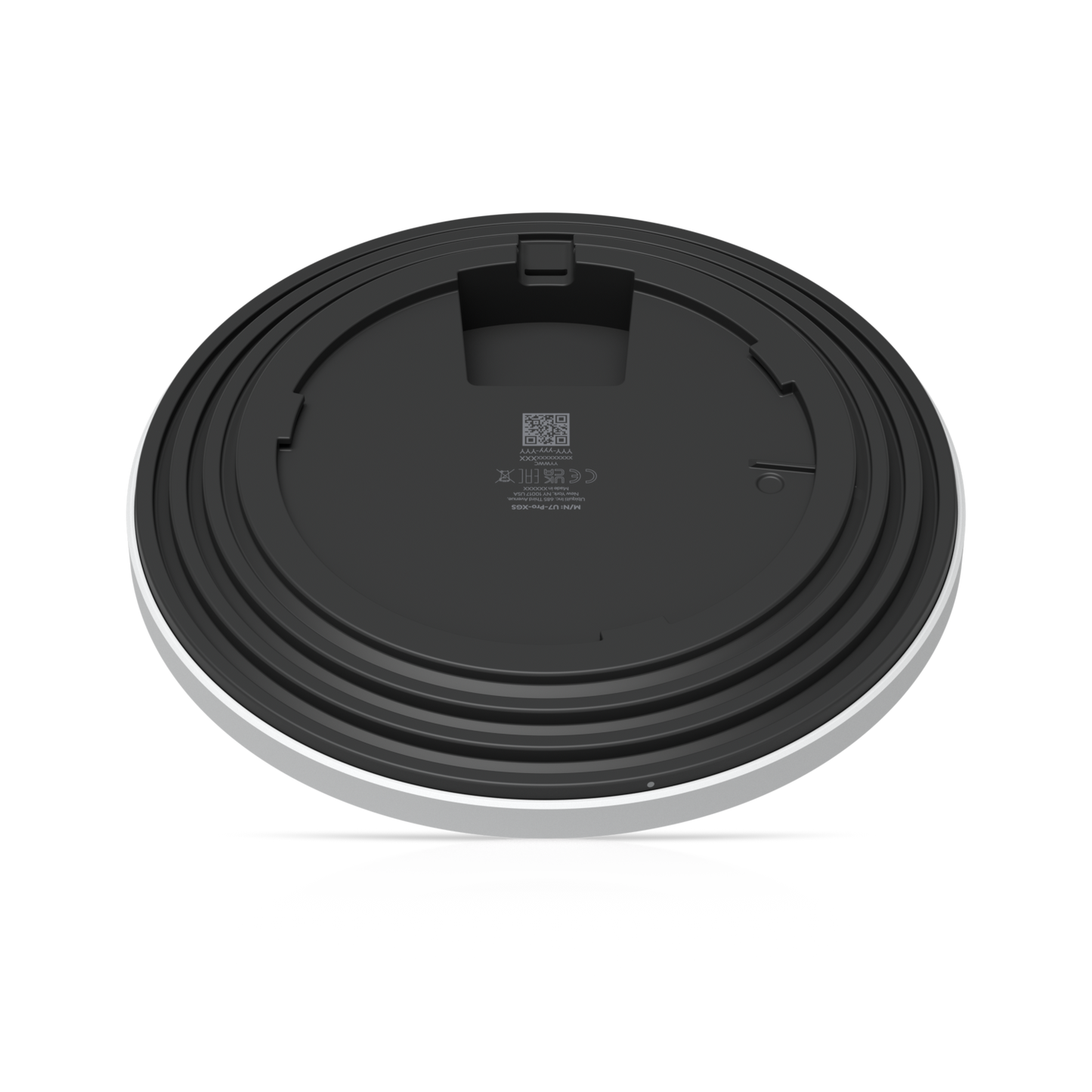

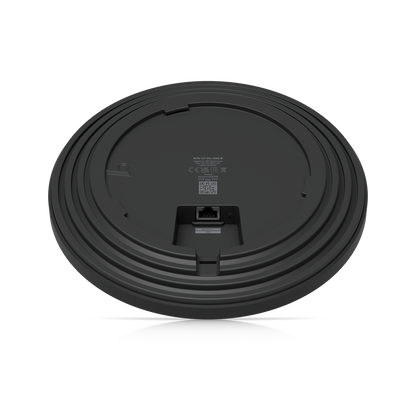

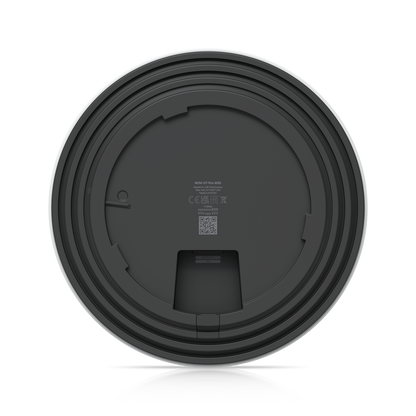

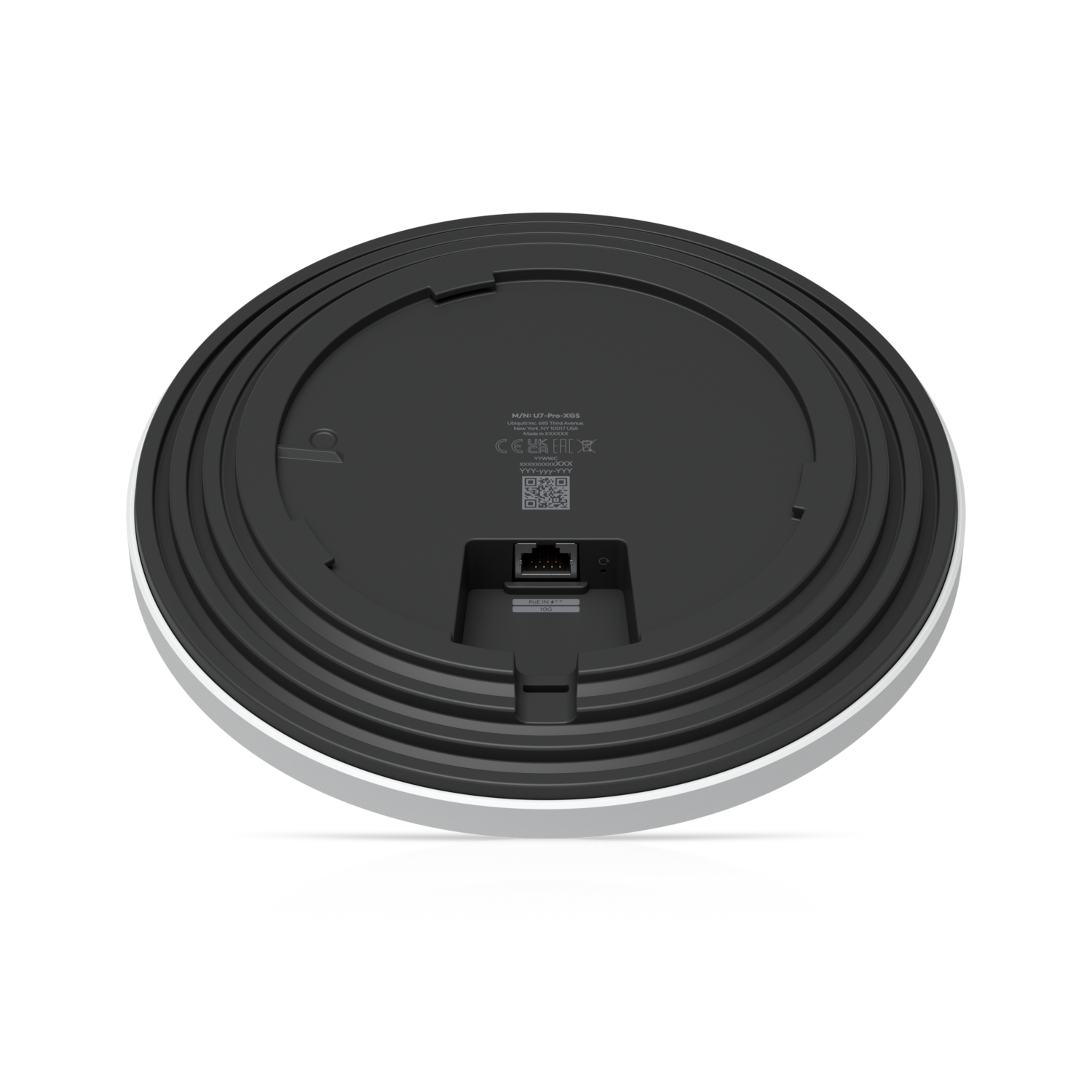

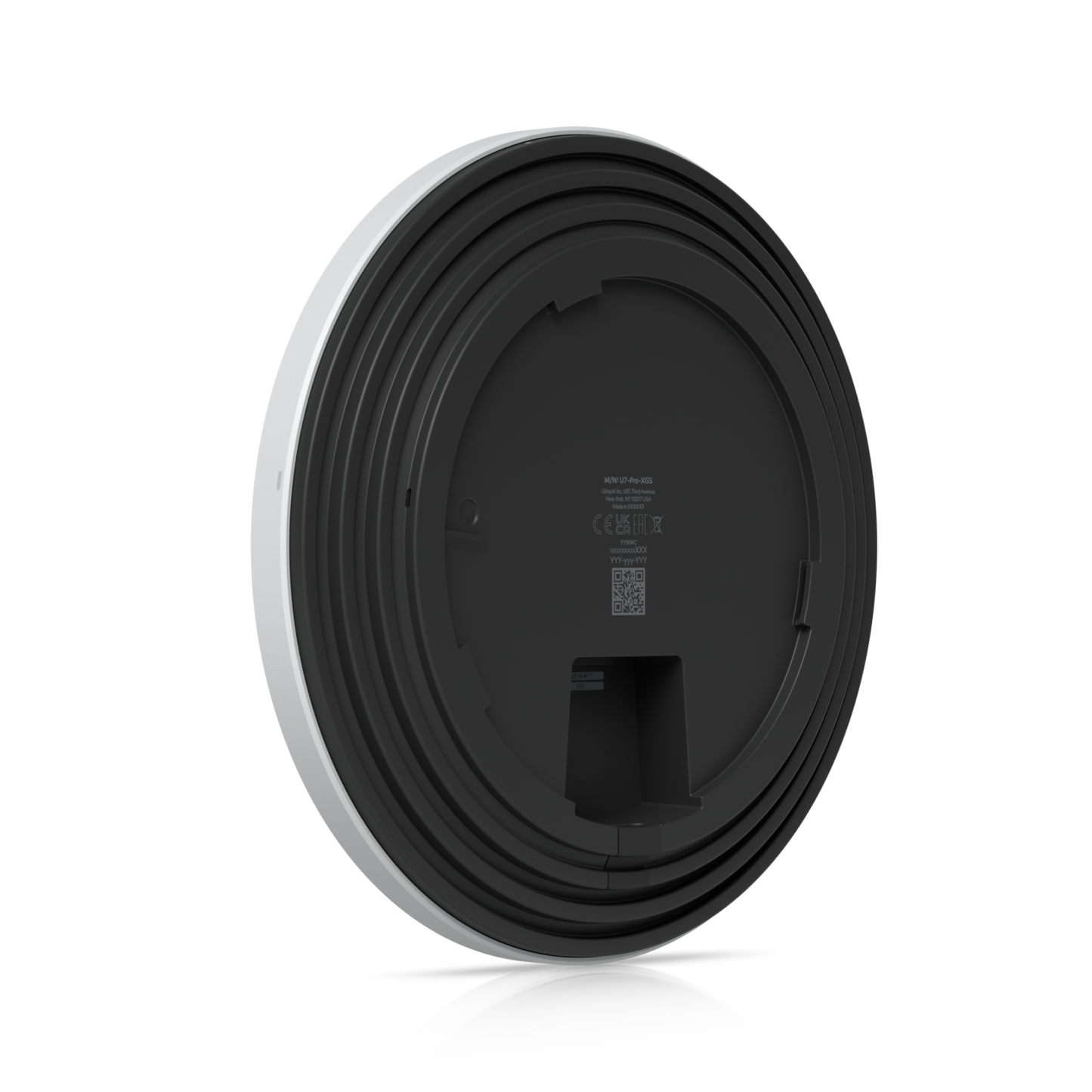

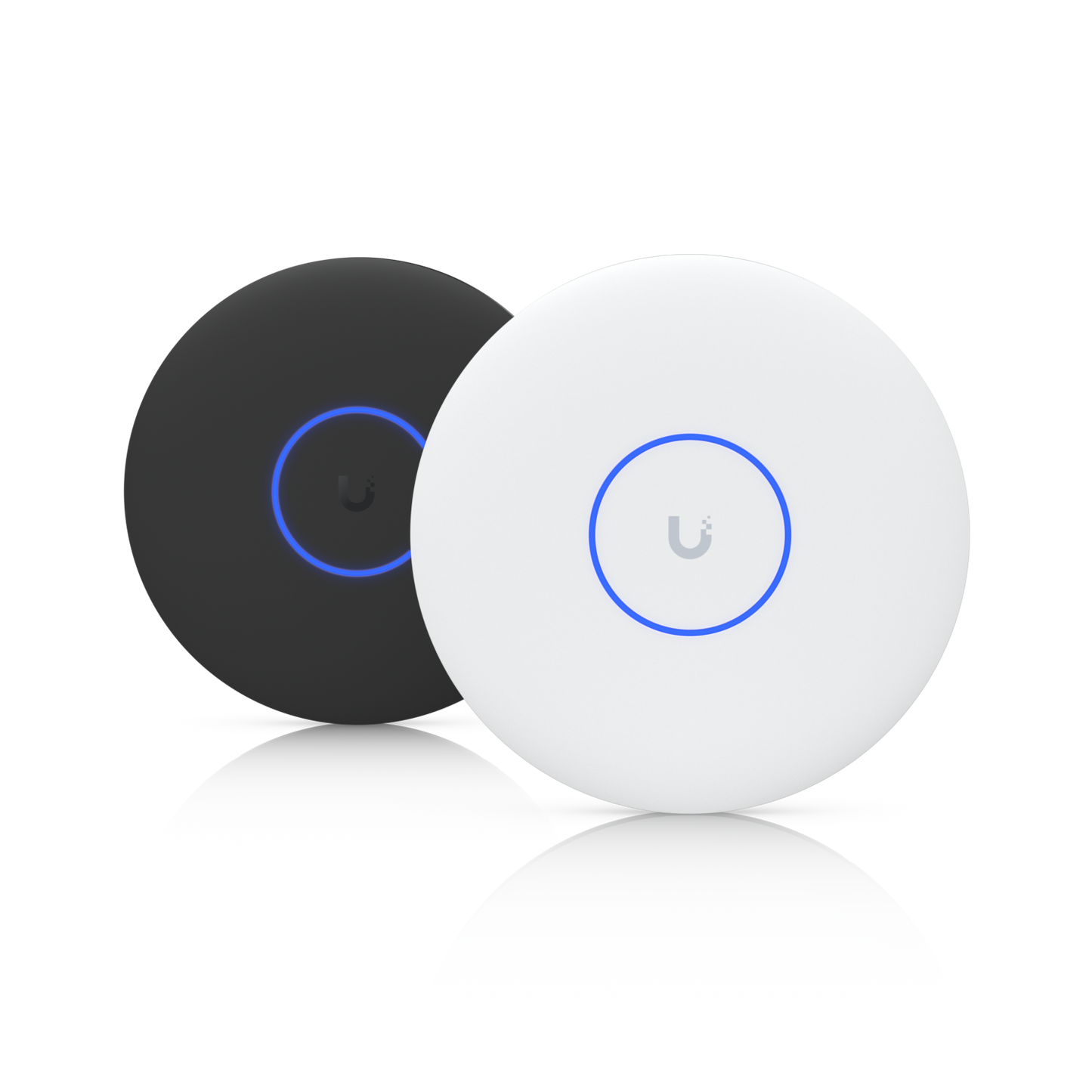

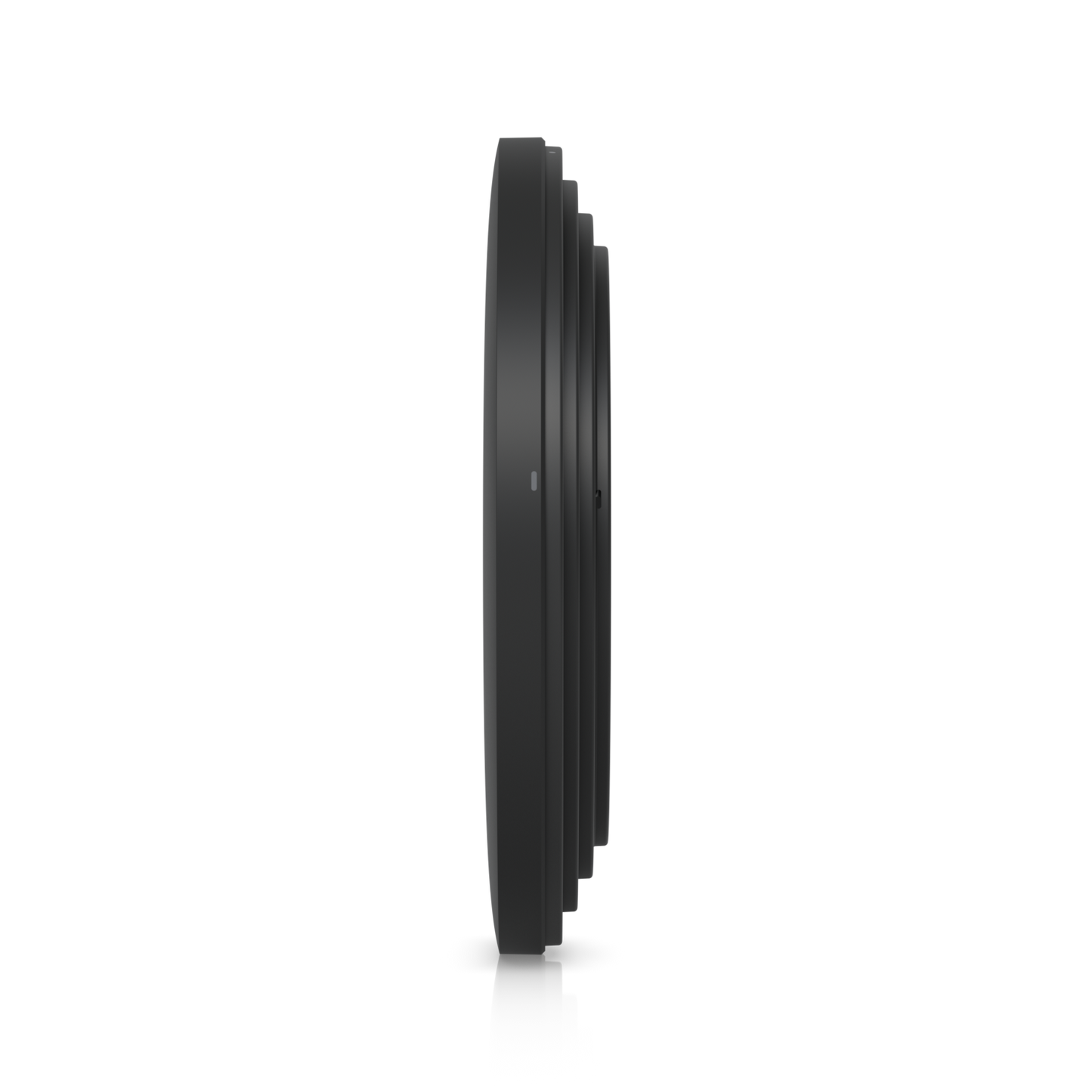

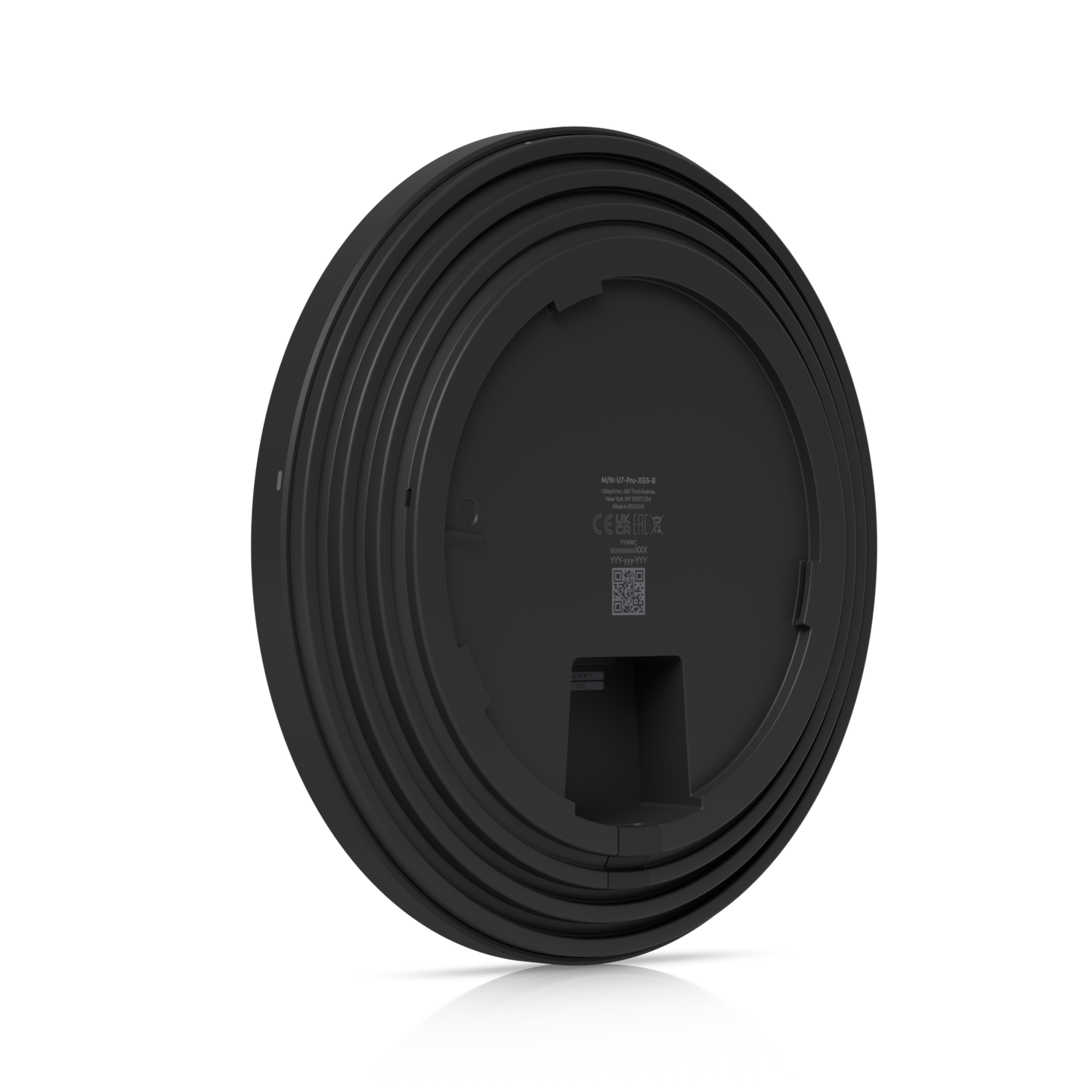

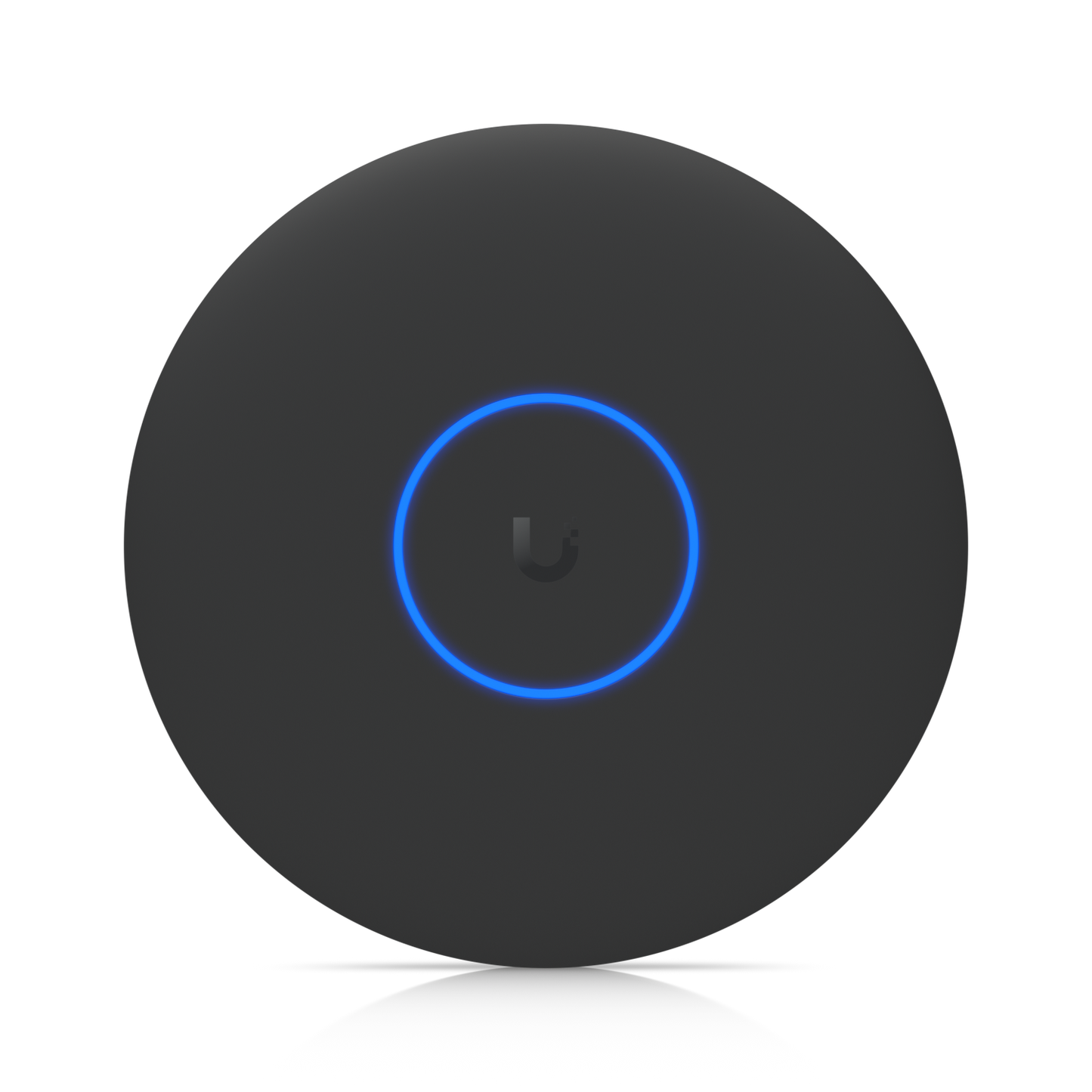

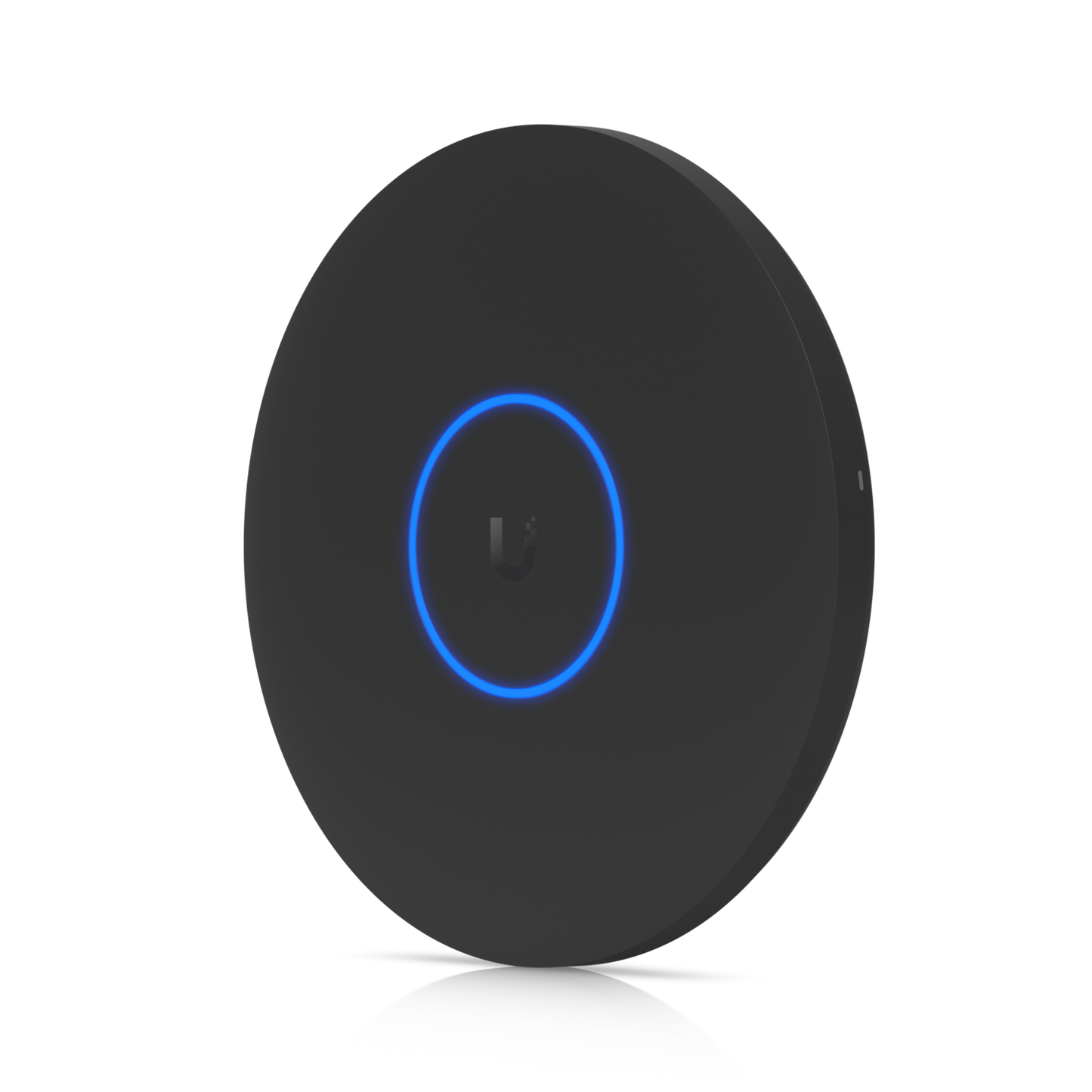

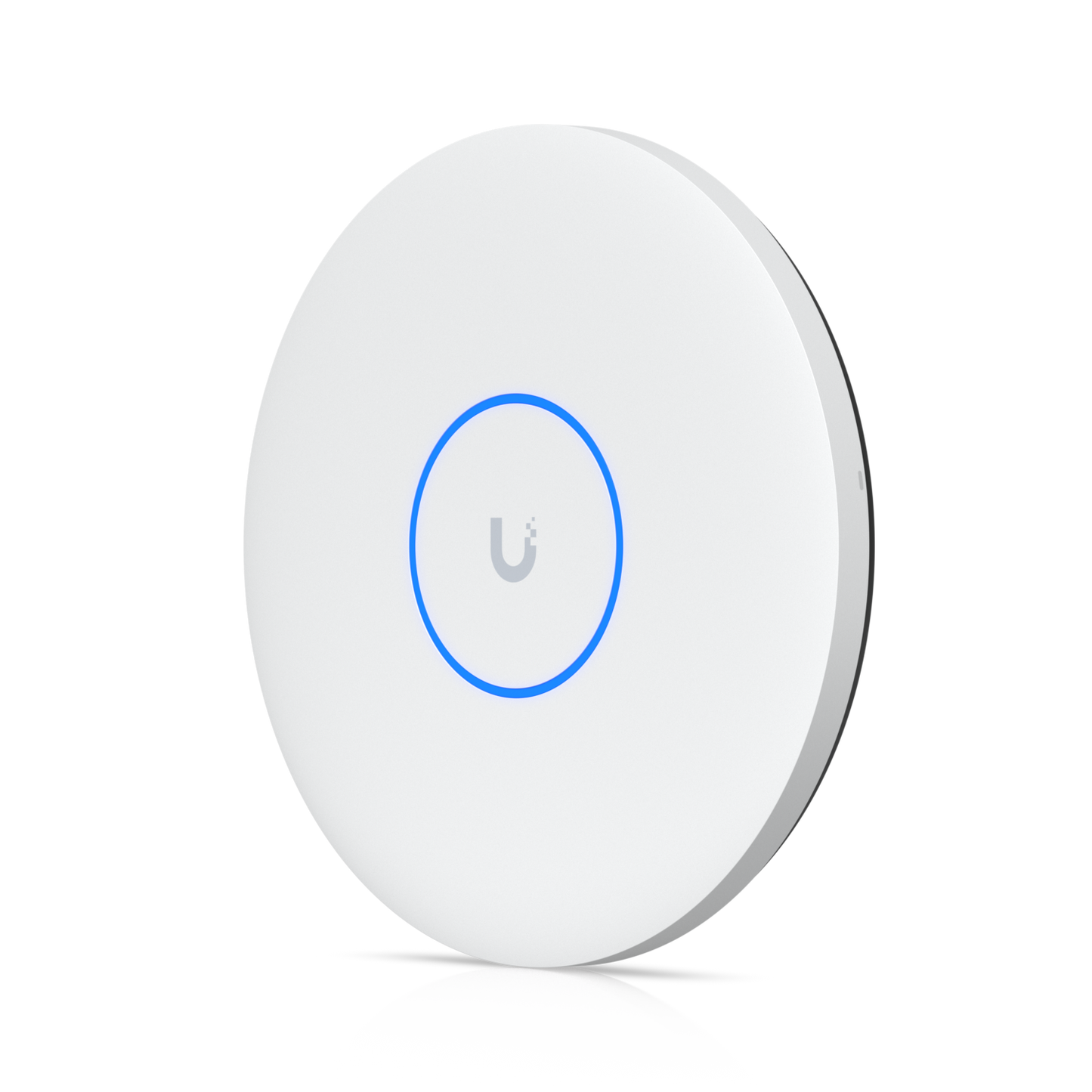

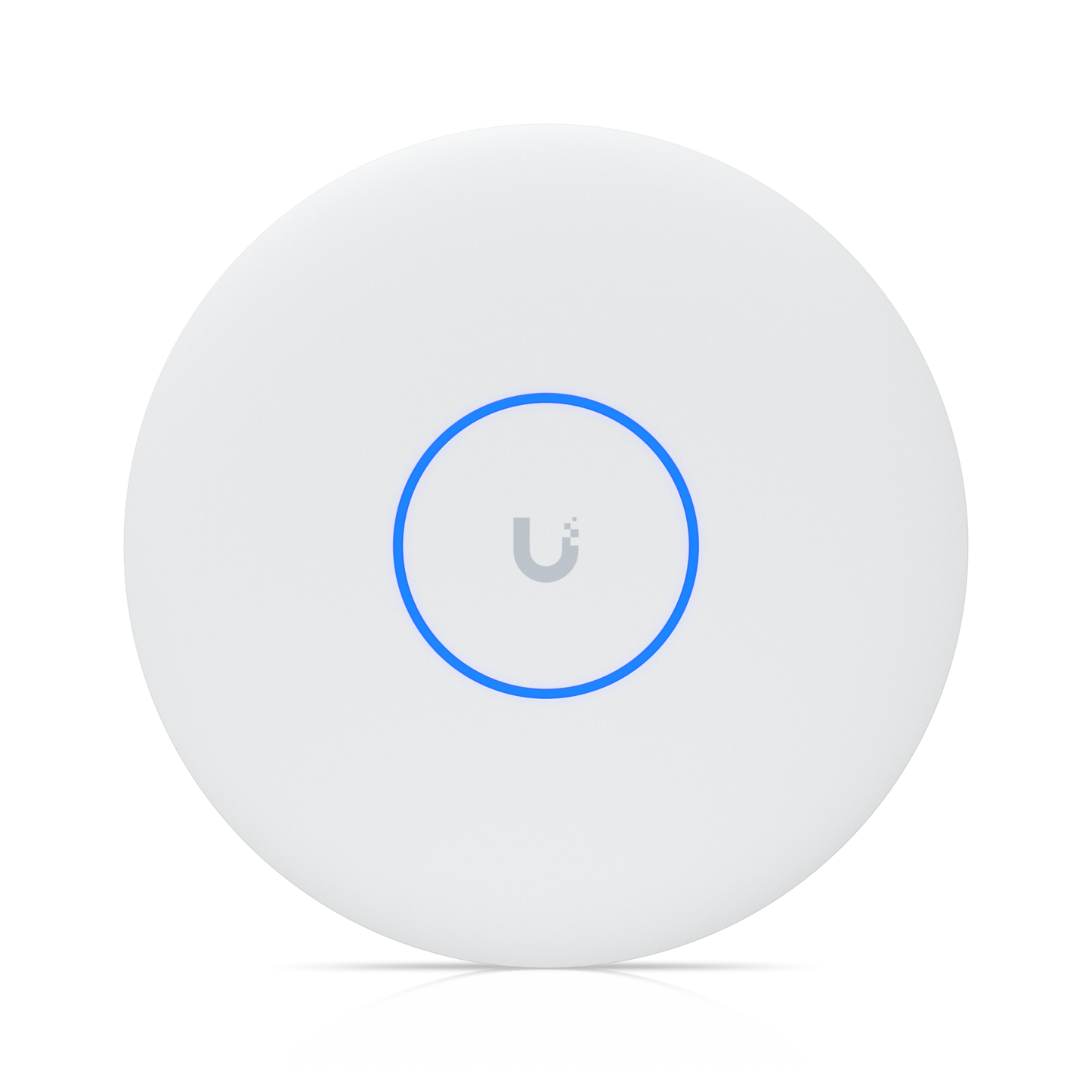

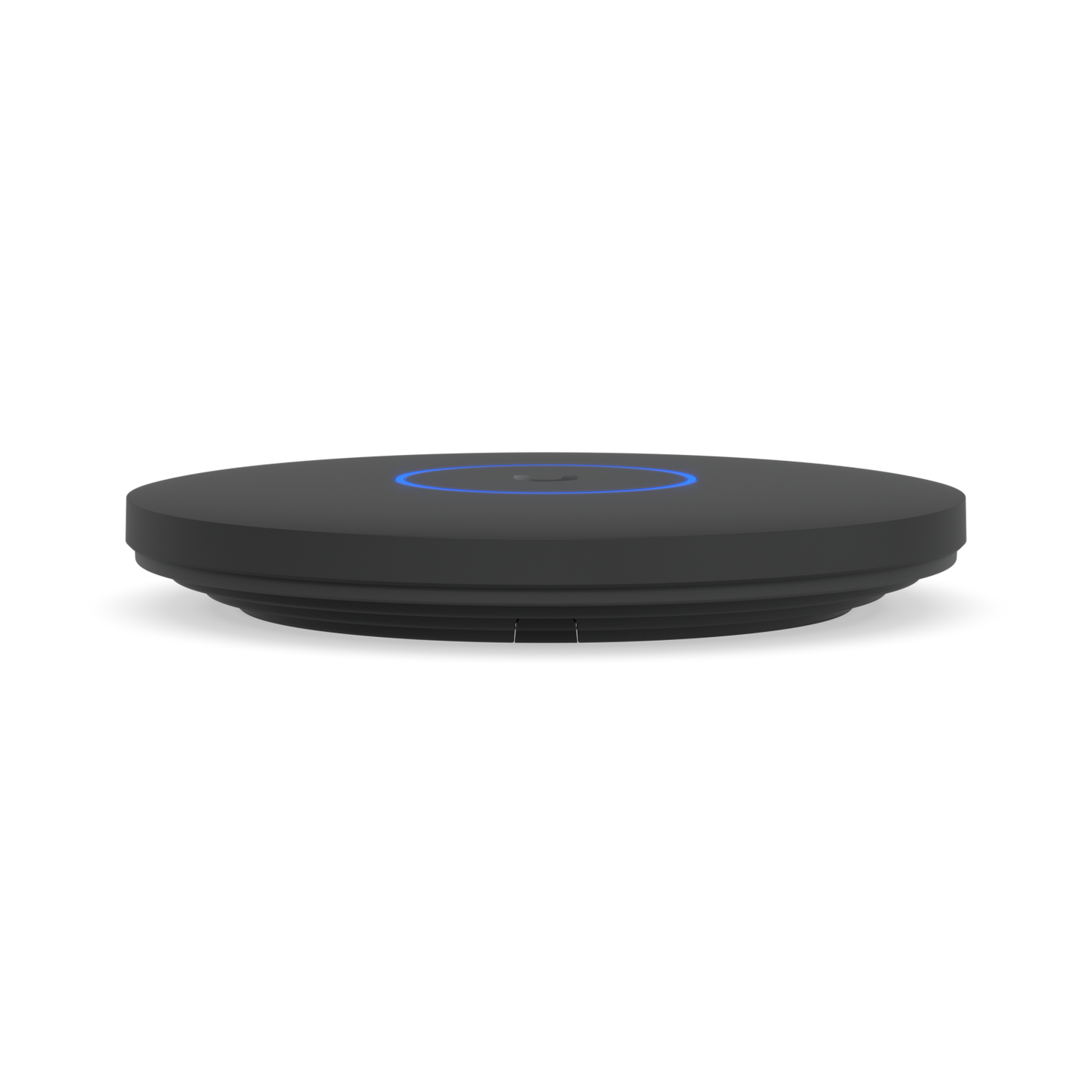

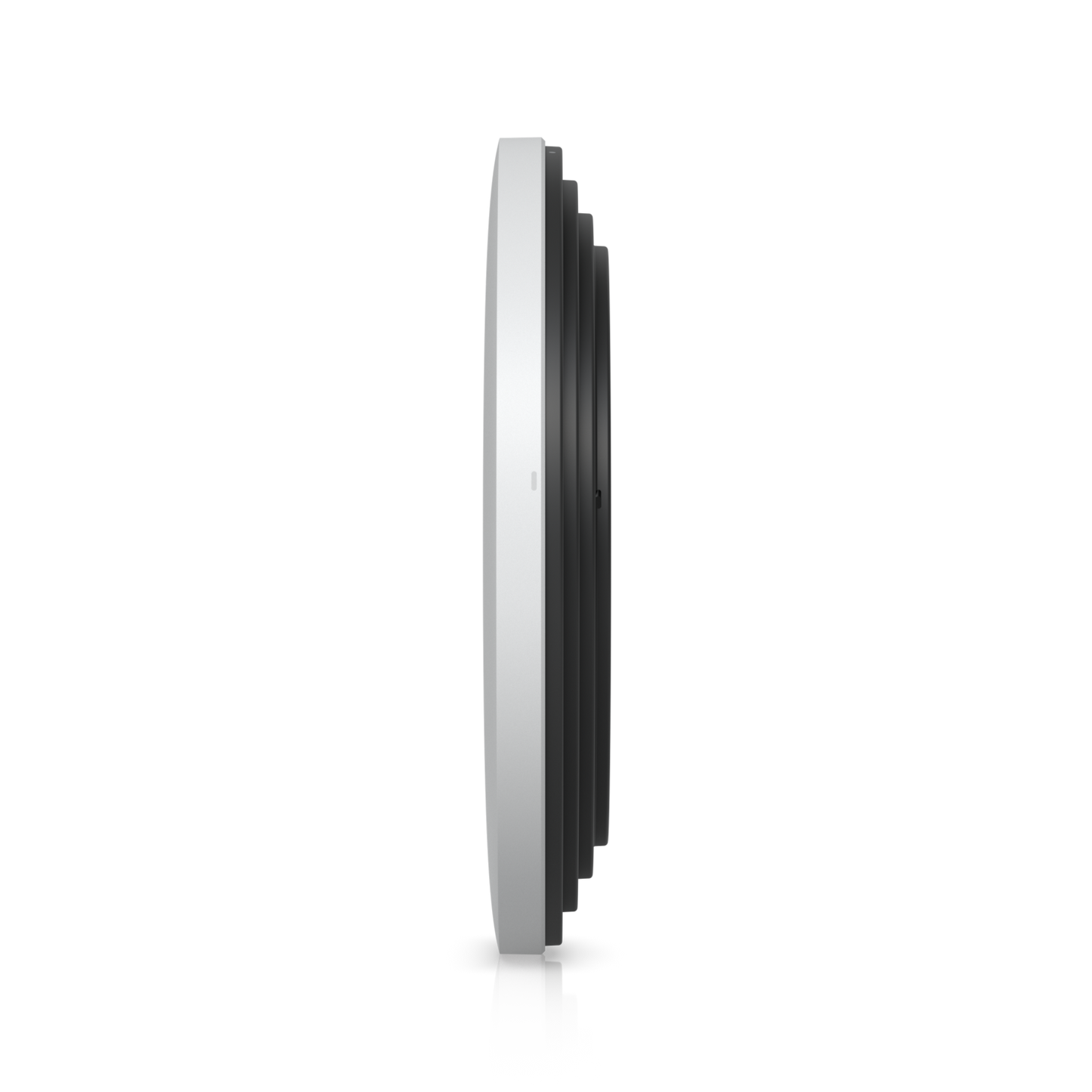

UniFi U7 Pro XGS 8-stream WiFi 7 AP
UniFi U7 Pro XGS 8-stream WiFi 7 AP
SKU:U7-Pro-XGS-B
Regular price
$558.00
Sale price
$558.00
Taxes included.
Sale Live Now. Limited promotional stock available — don’t miss out!
111 in stock and ready to ship
Quantity
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Found it cheaper elsewhere? Let us know
Buying for your business? Earn Store Credits

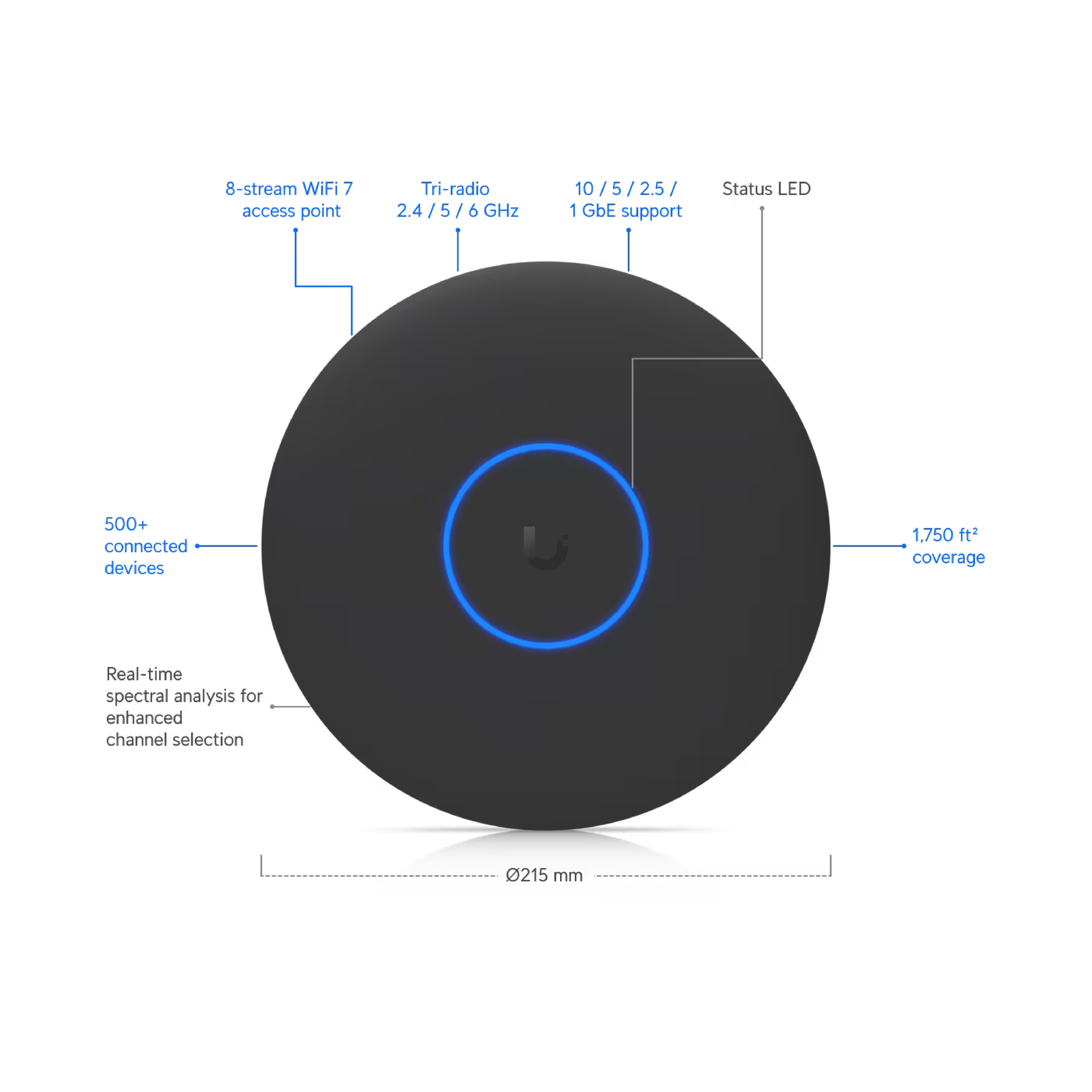

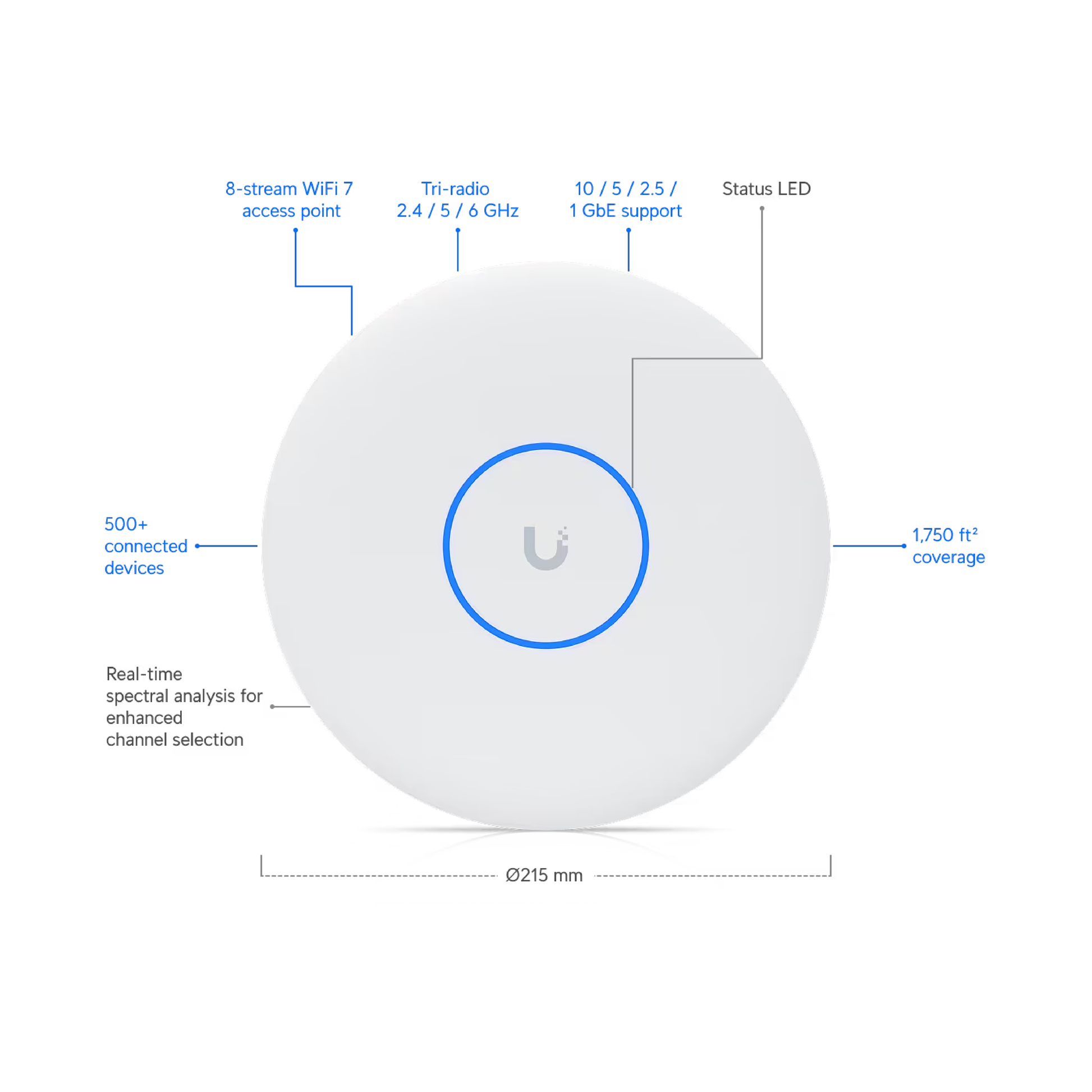

Ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.
- WiFi 7 with 6 GHz support.
- 8 spatial streams.
- Real-time spectral analysis for enhanced channel selection.
- 160 m² (1,750 ft²) coverage.
- 500+ connected devices.
- Powered using PoE++.
Specification
| Overview | |
|---|---|
| Dimensions |

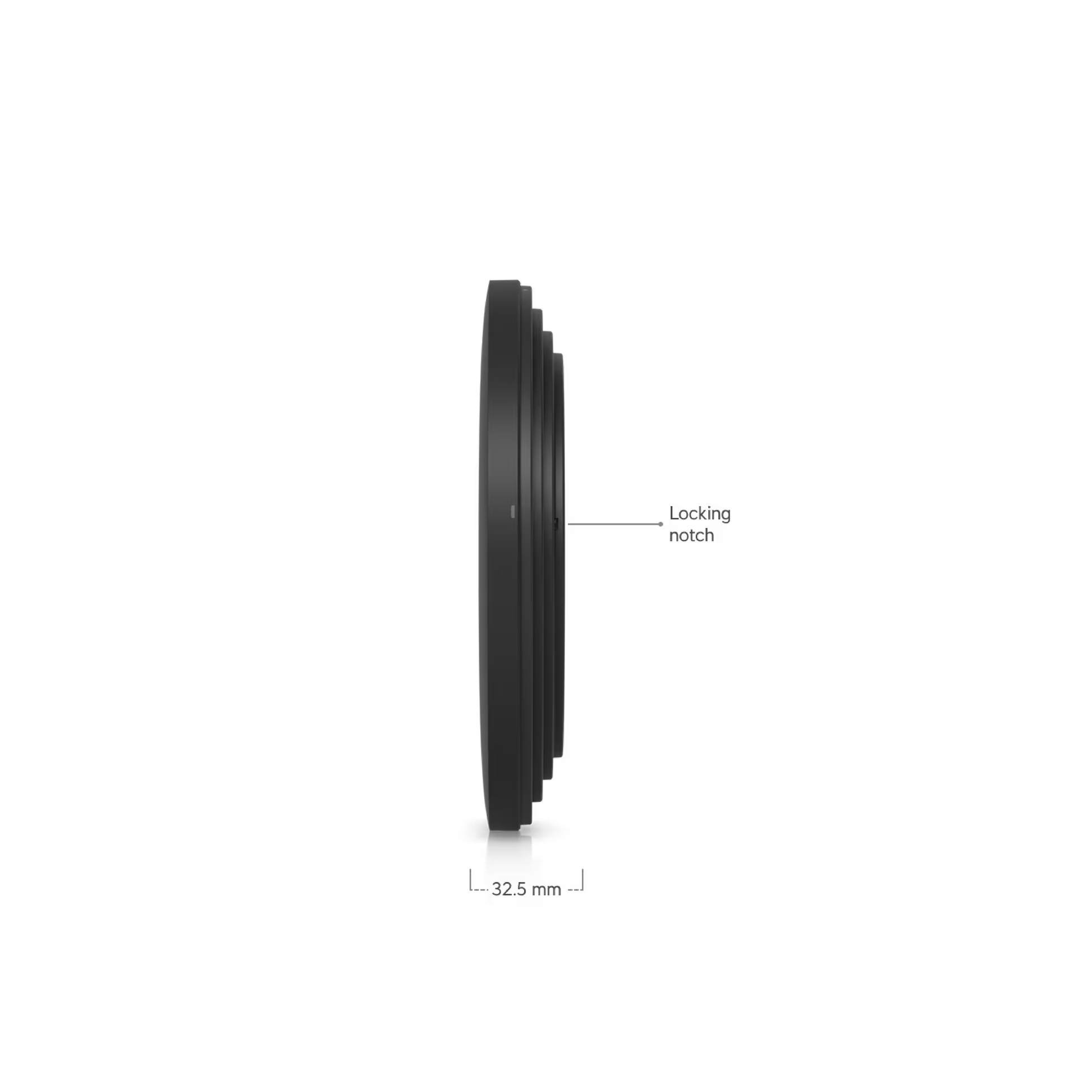

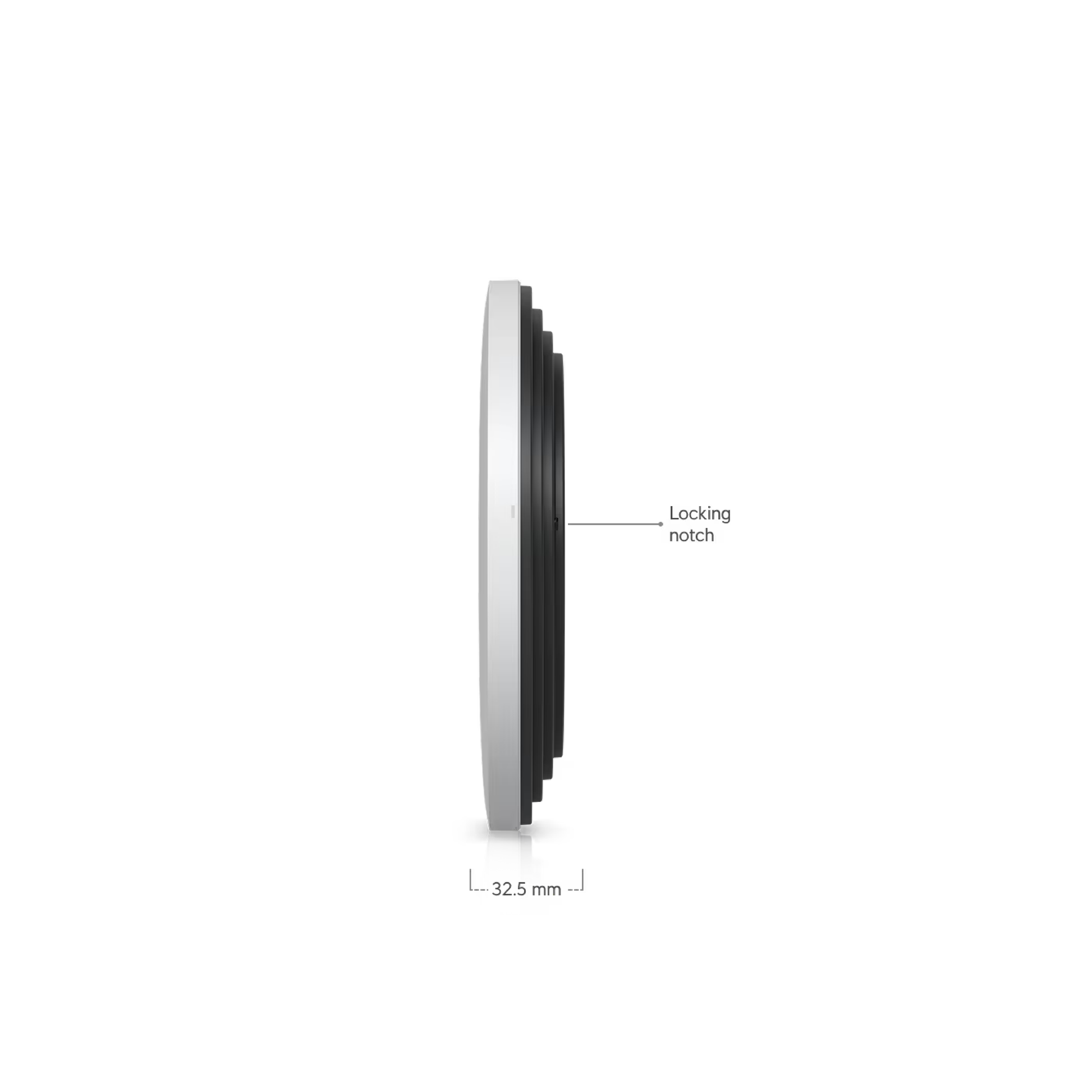

Ø215 x 32.5 mm (Ø8.5 x 1.3") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 8 |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 500+ |
| Uplink | 10 GbE |
| Mounting |

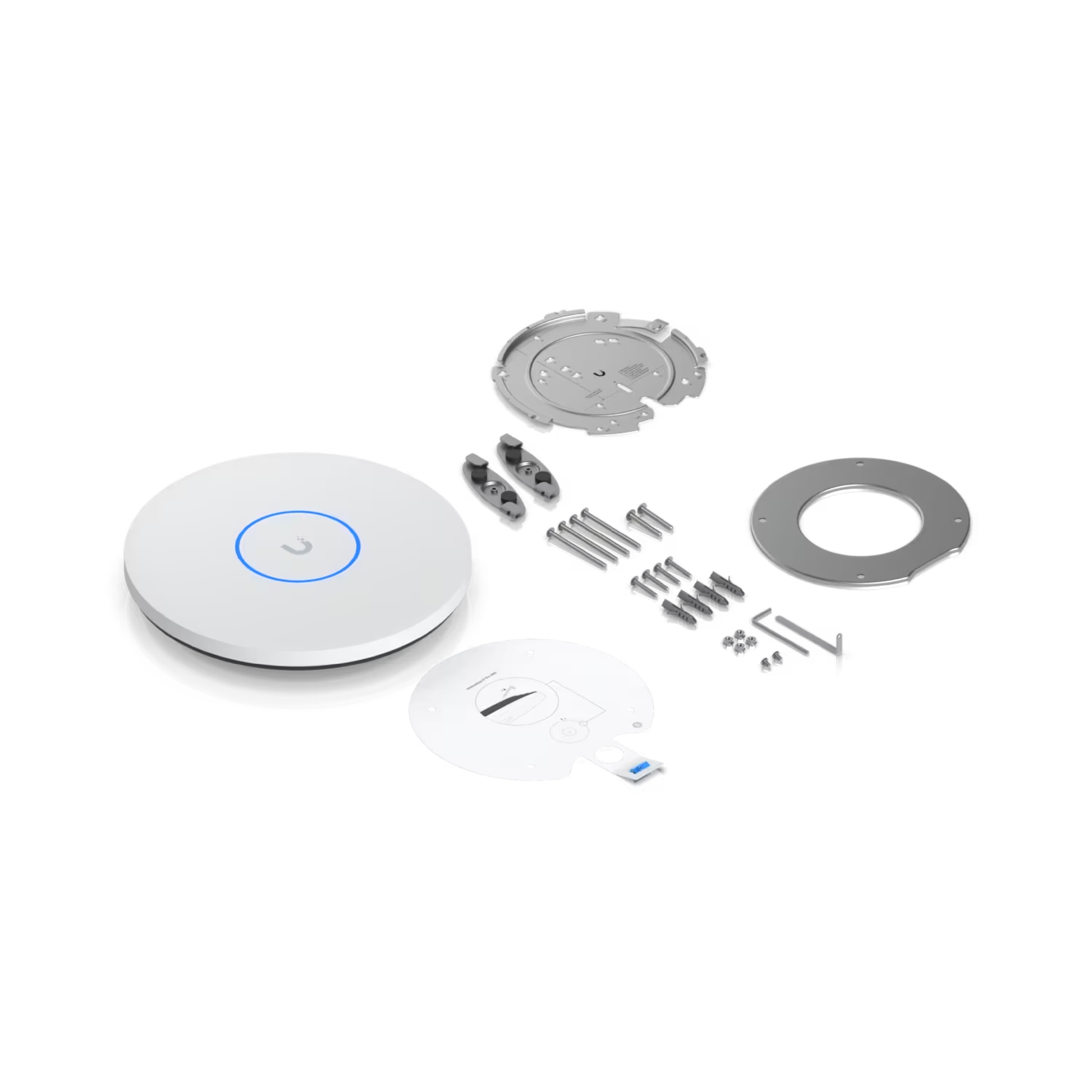

Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE++ |
| Performance | |
| MIMO |
6 GHz: 2 x 2 (DL/UL MU-MIMO) 5 GHz: 4 x 4 (DL/UL MU-MIMO) 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate |
6 GHz: 5.8 Gbps (BW320) 5 GHz: 8.6 Gbps (BW240) 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain |
6 GHz: 6 dBi 5 GHz: 6 dBi 2.4 GHz: 4 dBi |
| Max. TX Power |
6 GHz: 24 dBm 5 GHz: 29 dBm 2.4 GHz: 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates |
802.11be (WiFi 7): 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320). 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) 802.11ac (WiFi 5): 6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| Features | |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11v BSS Transition Management | Yes |
| 802.11r Fast Roaming | Yes |
| 802.11k Radio Resource Management (RRM) | Yes |
| Zero-Wait DFS | Yes |
| Advanced Radio Management | Yes |
| Real-Time Spectral Analysis | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Captive Hotspot Portal |
Custom Branding Landing Page: Yes Voucher Authentication: Yes Payment-Based Authentication: Yes External Portal Server Support: Yes Password Authentication: Yes Guest Network Isolation: Yes |
| Private Pre-Shared Key (PPSK) | Yes |
| WiFi Speed Limiting | Yes |
| Client Device Isolation | Yes |
| WiFi Schedules | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Dynamic RADIUS-assigned VLAN | Yes |
| Hardware | |
| Max. Power Consumption | 29W |
| Supported Voltage Range | 42.5—57V DC |

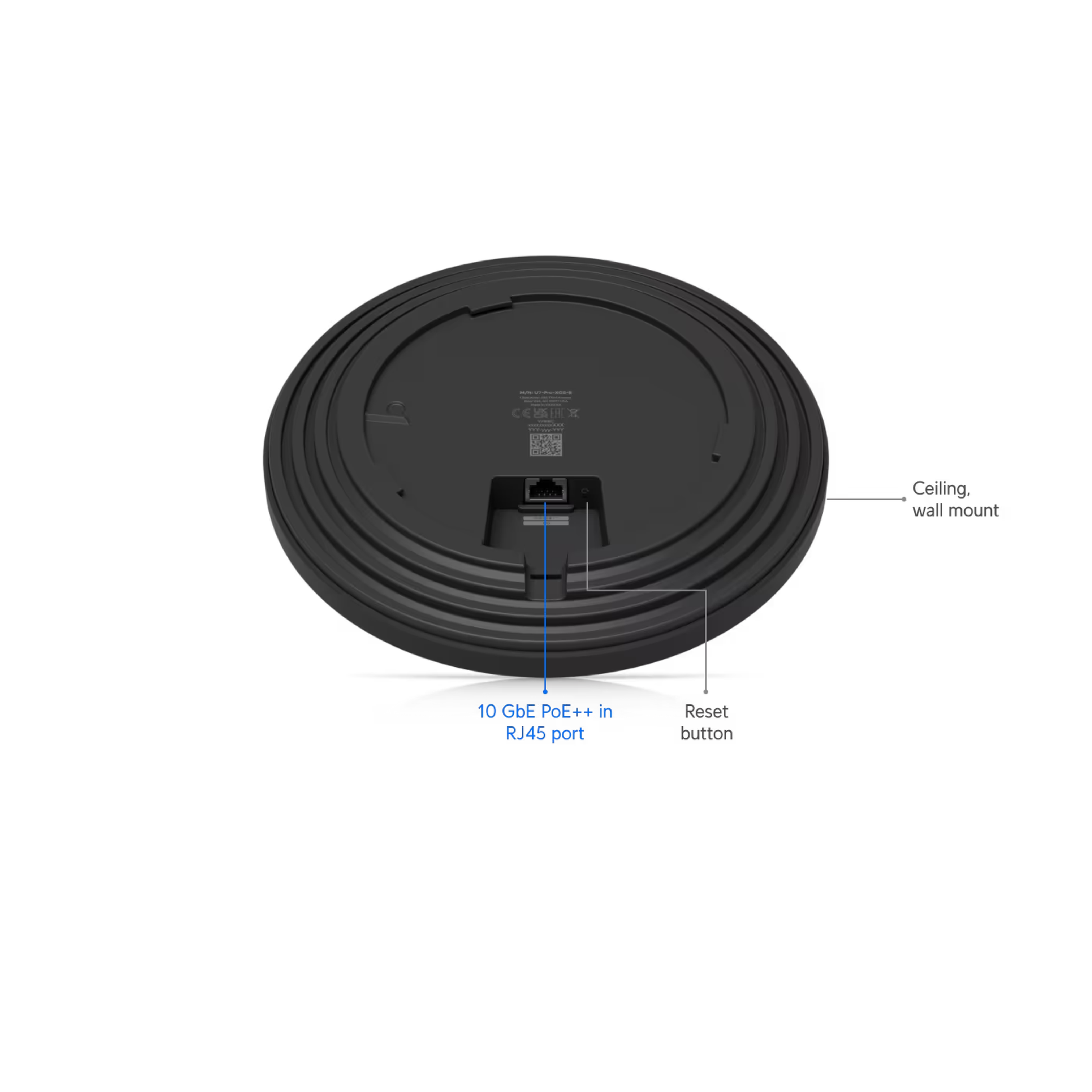

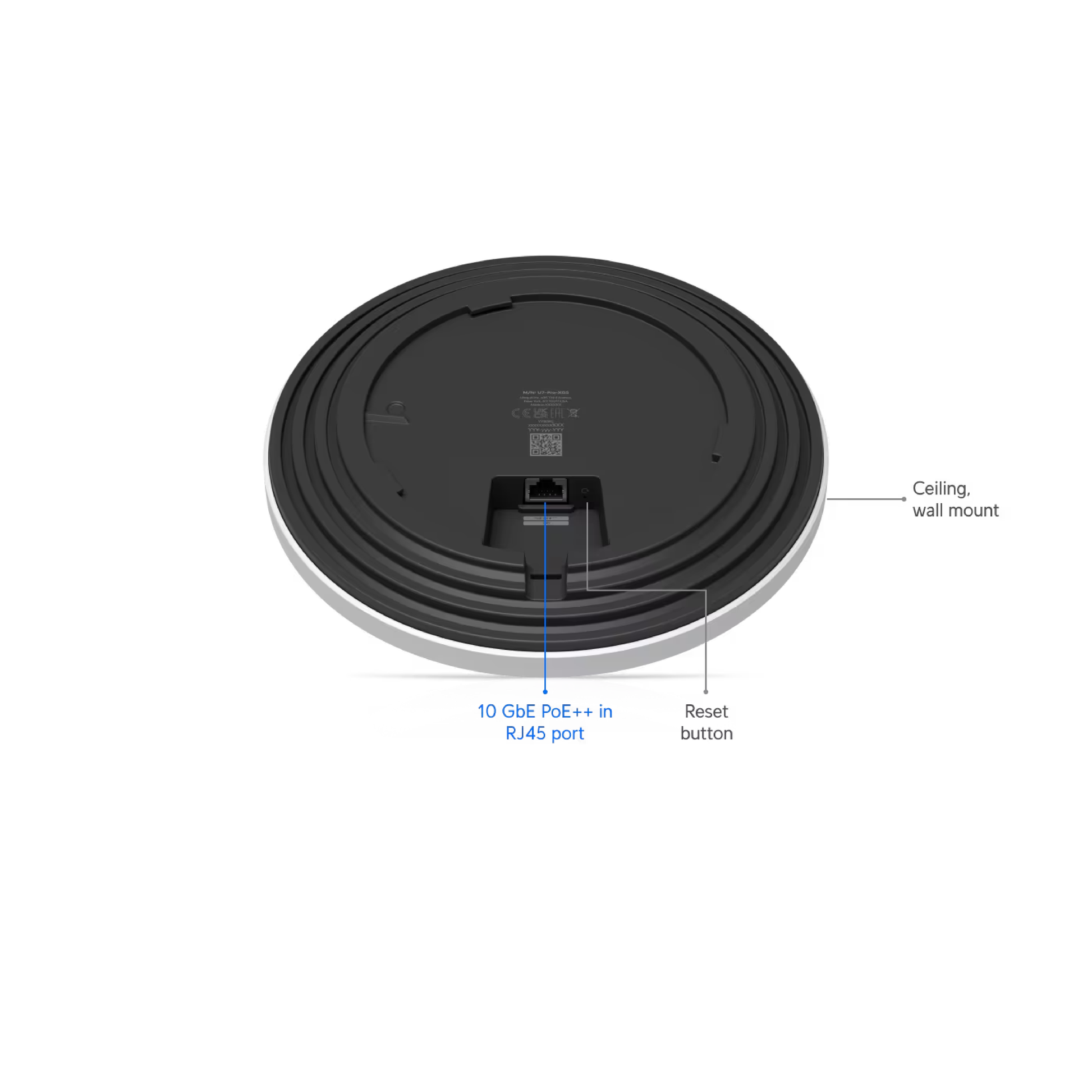

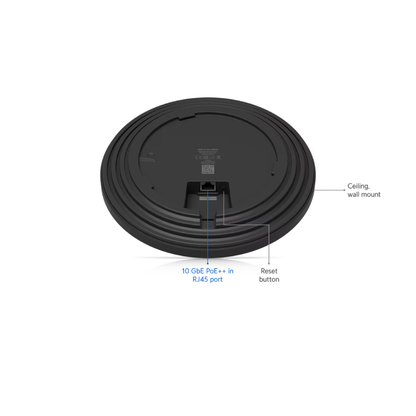

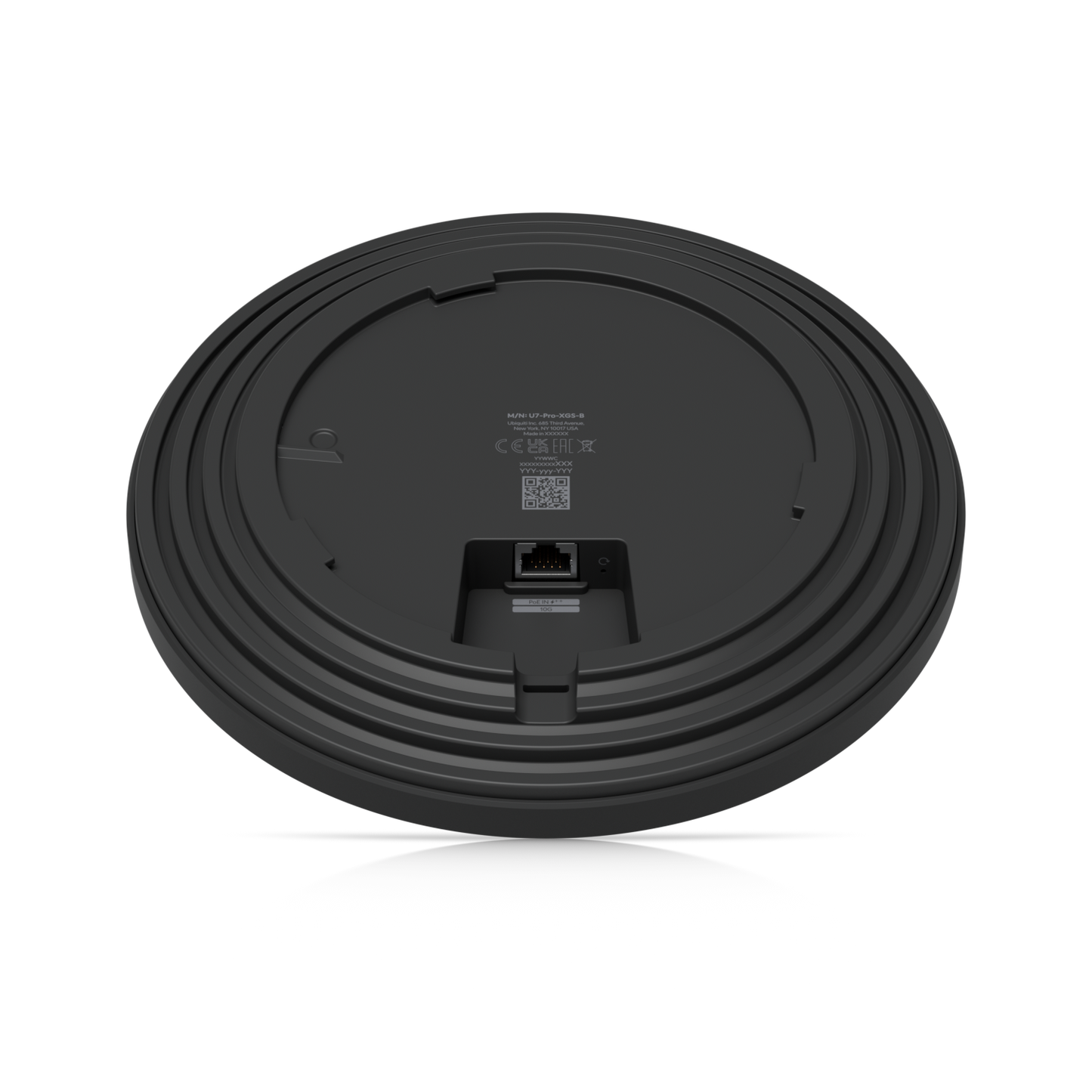

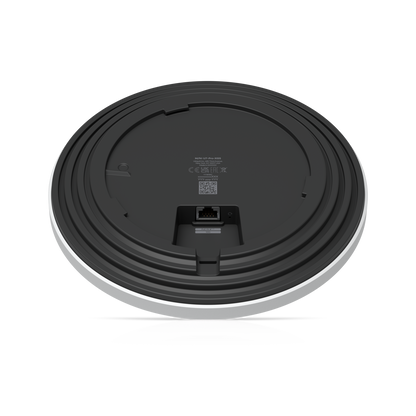

| Networking Interface | (1) 10 GbE RJ45 port |
| Weight | 800 g (1.8 lb) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LEDs System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
