UniFi Intercom Viewer
Ubiquiti UA-Intercom-Viewer UniFi Intercom Viewer
SKU:UA-Intercom-Viewer
Regular price
$262.00
Regular price
$309.00
Sale price
$262.00
Unit price
per
99 in stock
Authorised Reseller | Australian Stock | Australian Warranty

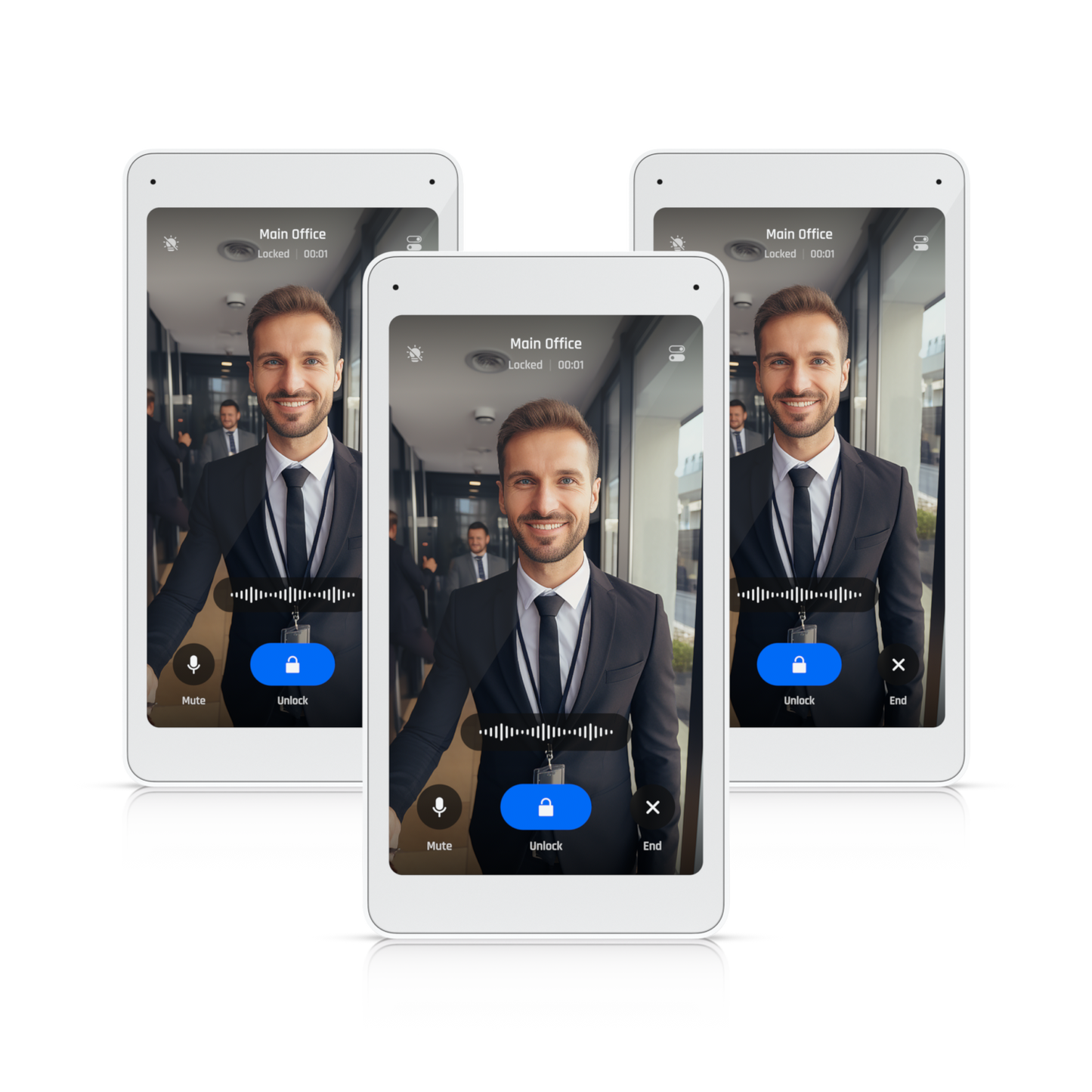

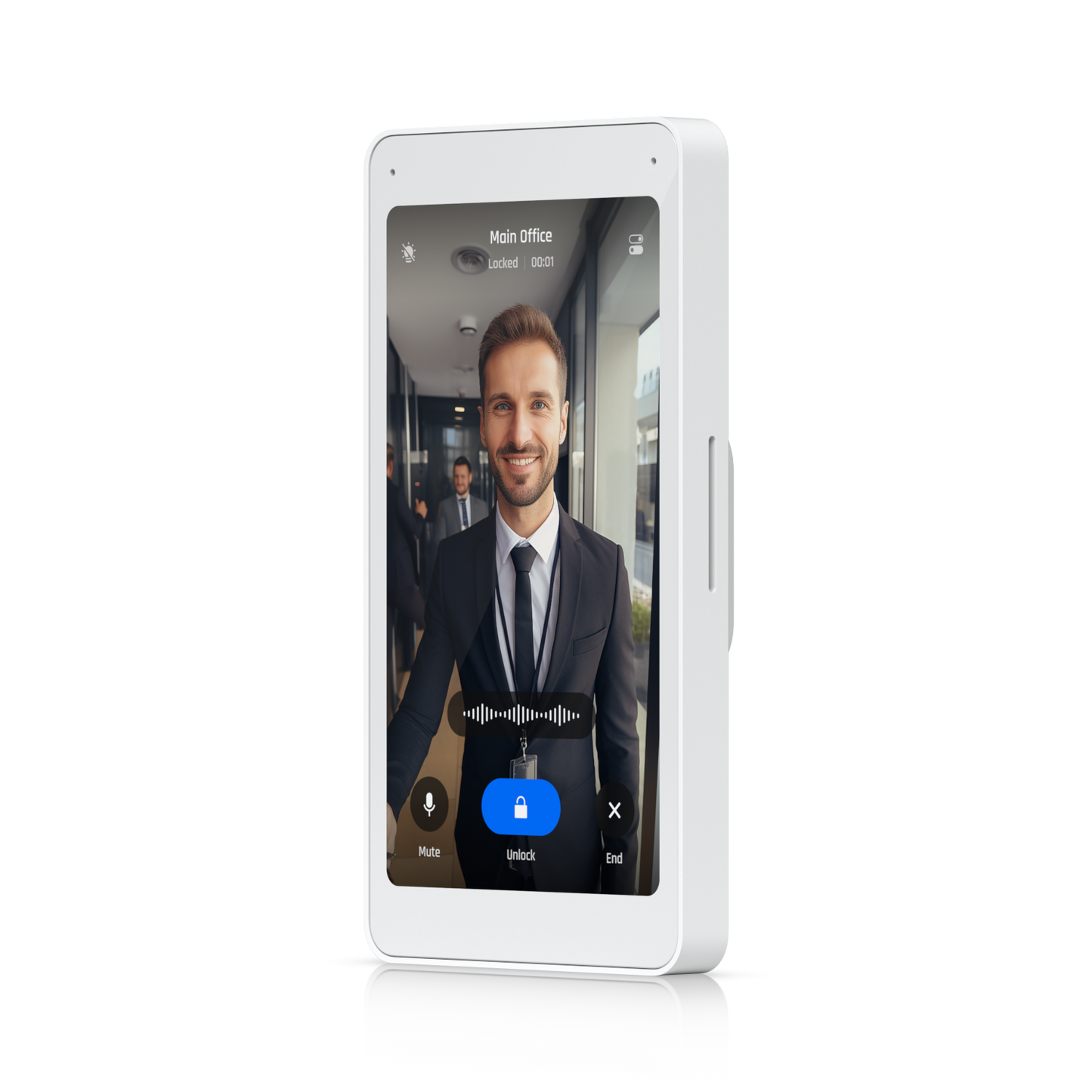

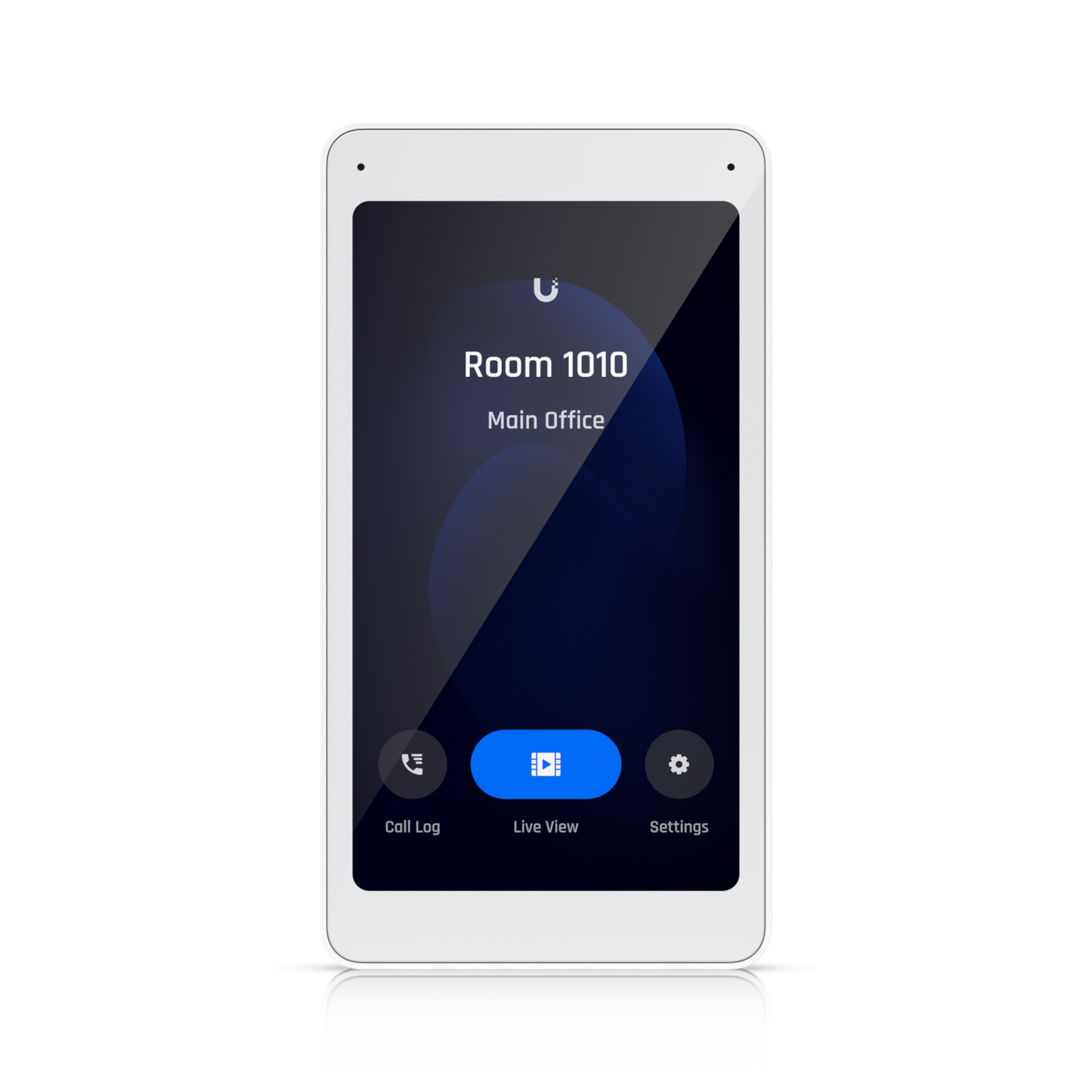

Display that pairs with the Access Intercom for visitor screening and remote access control, to mount in multiple locations throughout your building.
- Receives doorbell calls from one or more locations.
- Two-way audio.

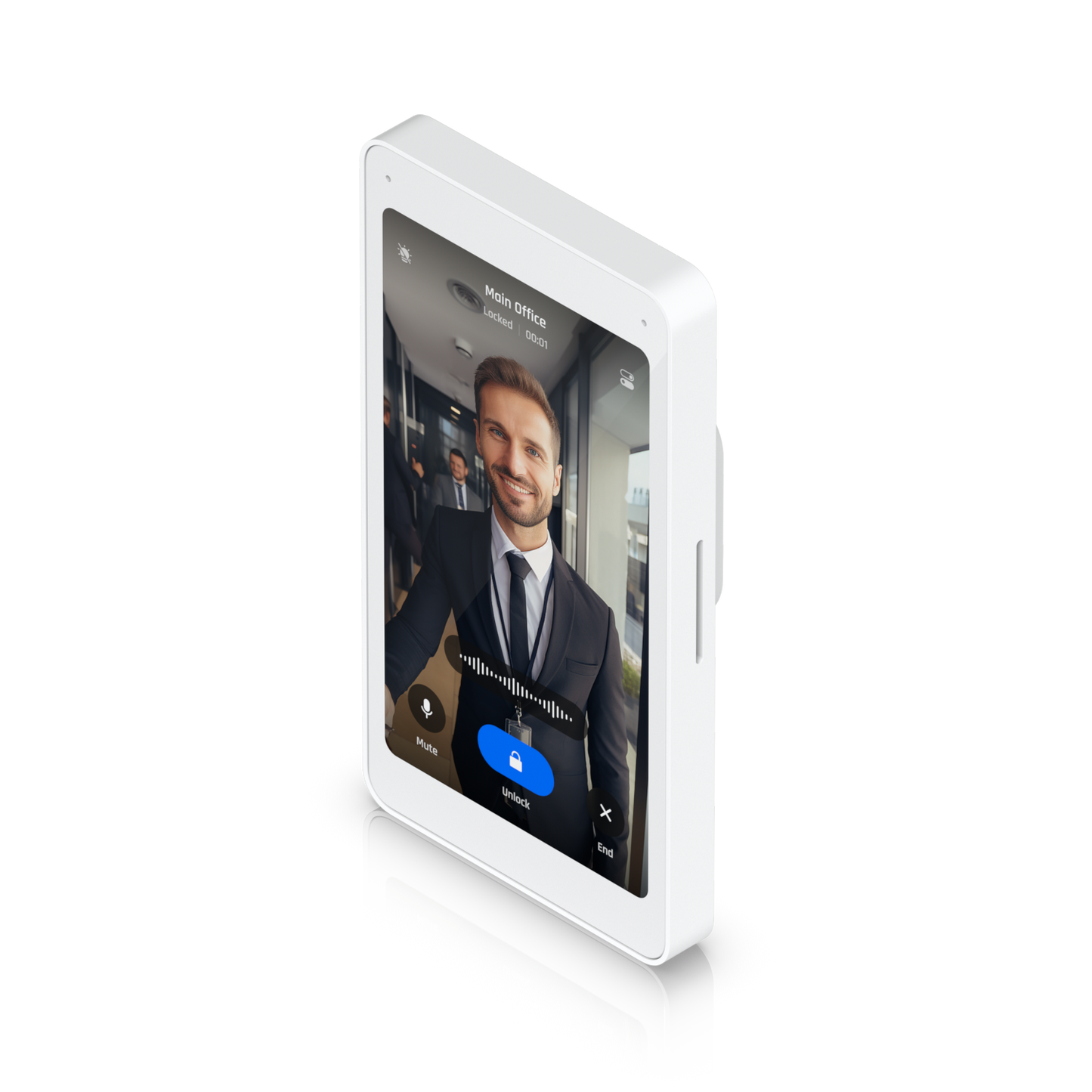

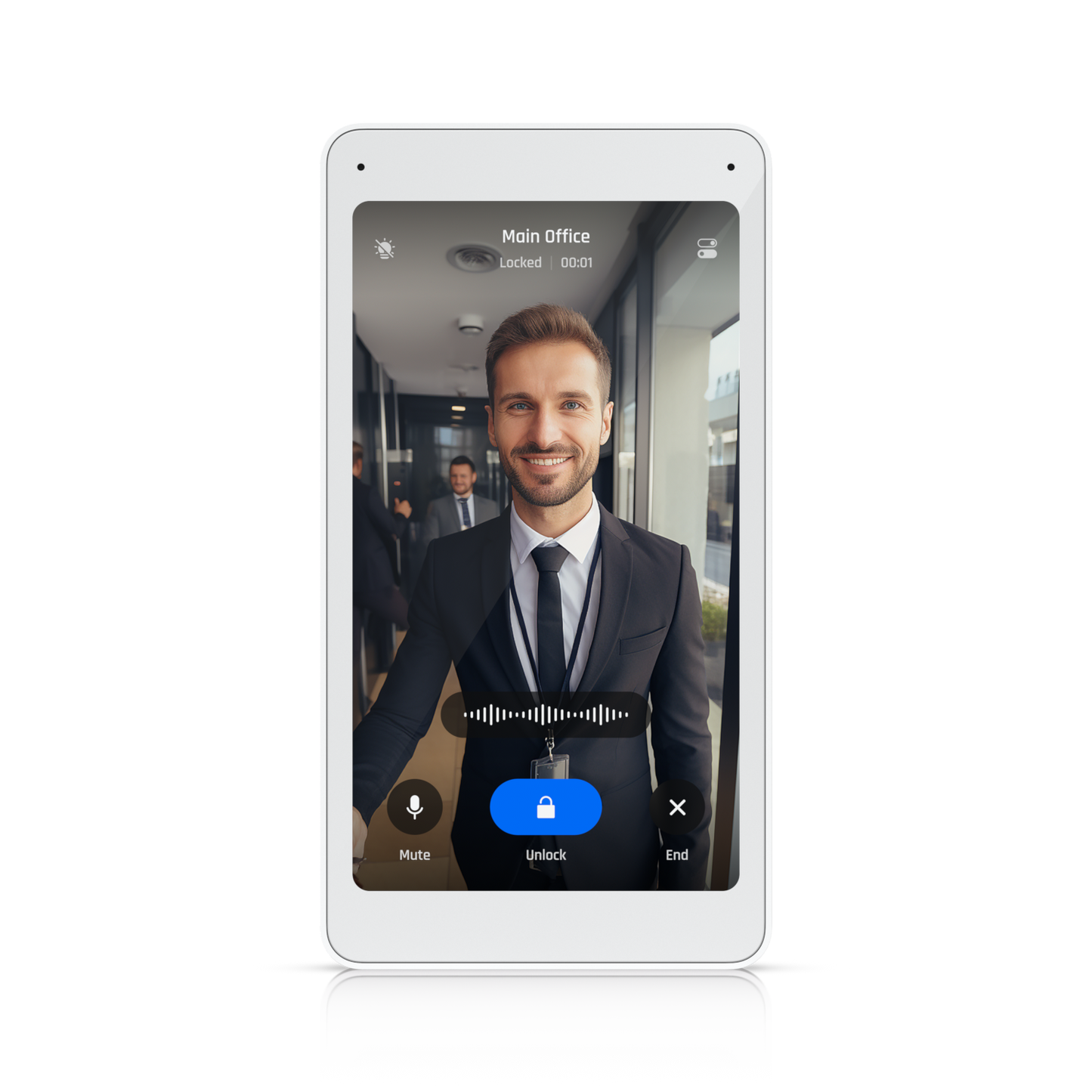

- Instant live view.

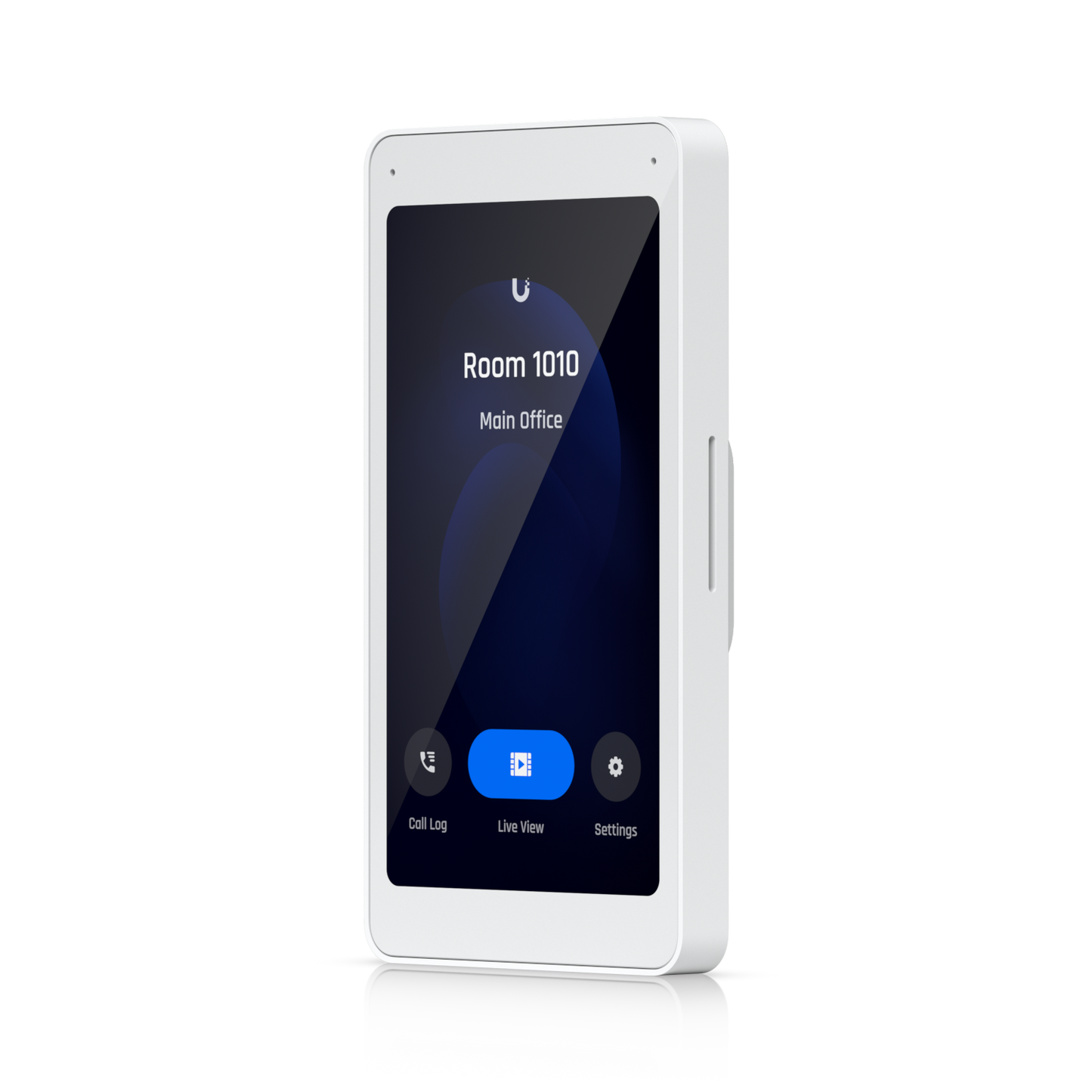

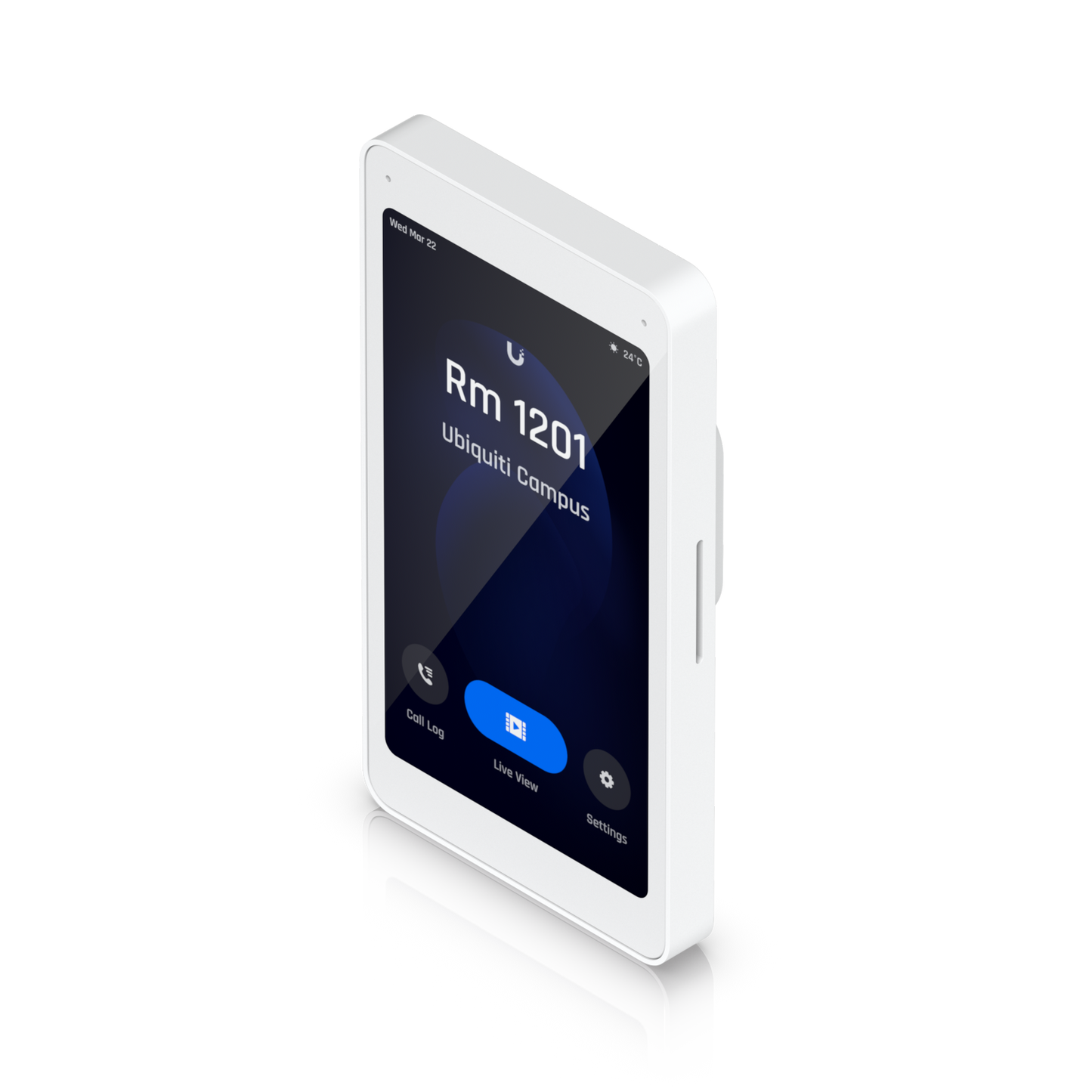

- 5" touch display.
- Connect and power using a PoE switch.
Mechanical | |
---|---|

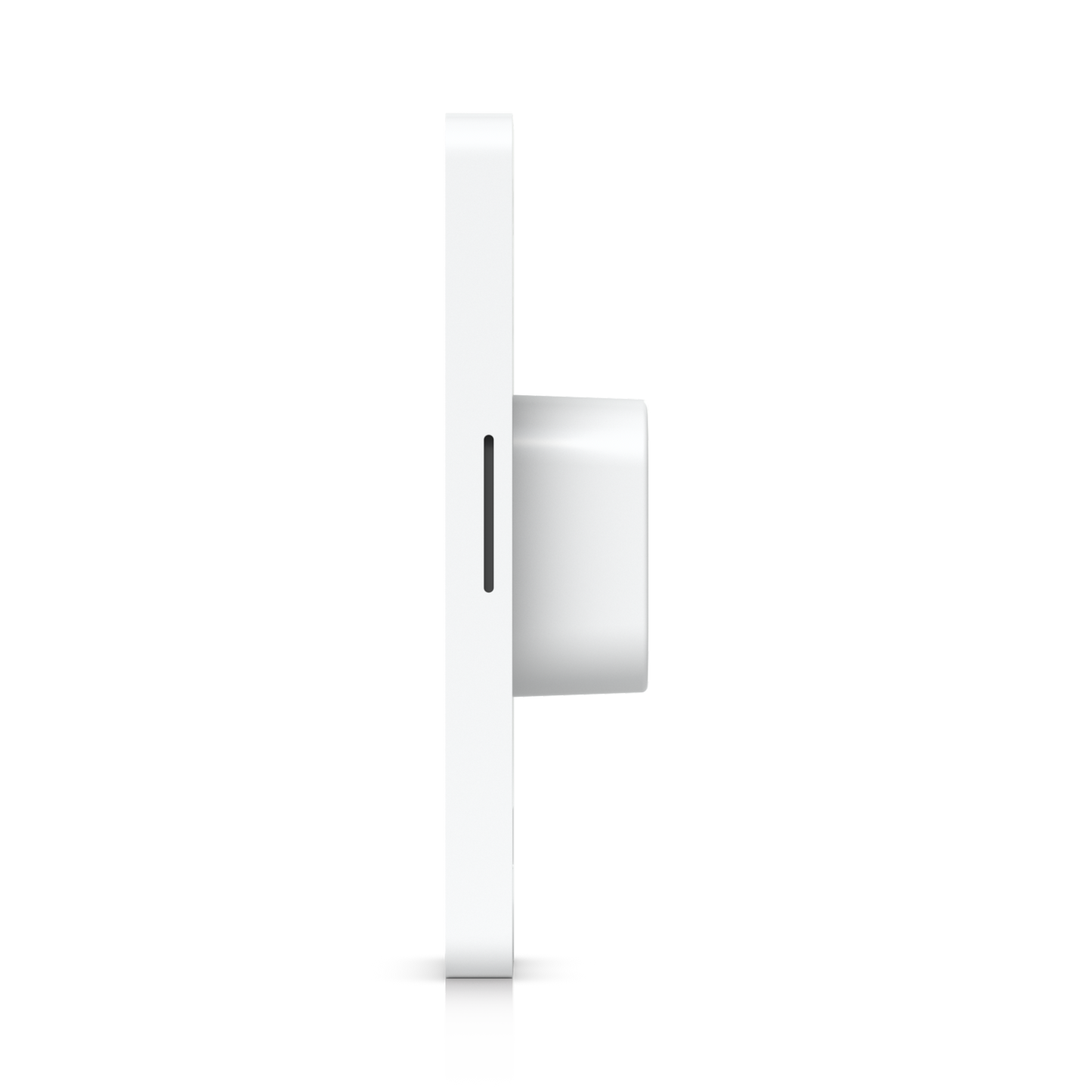

Dimensions | 135 x 72 x 31.8 mm (5.3 x 2.8 x 1.3") |
Weight | 168 g (5.9 oz) |
Enclosure materials | Glass, polycarbonate |
Mount material | Aluminum alloy |
Mounting |
Wall (Included) Gang box mount (Gang box not included) |
Hardware | |

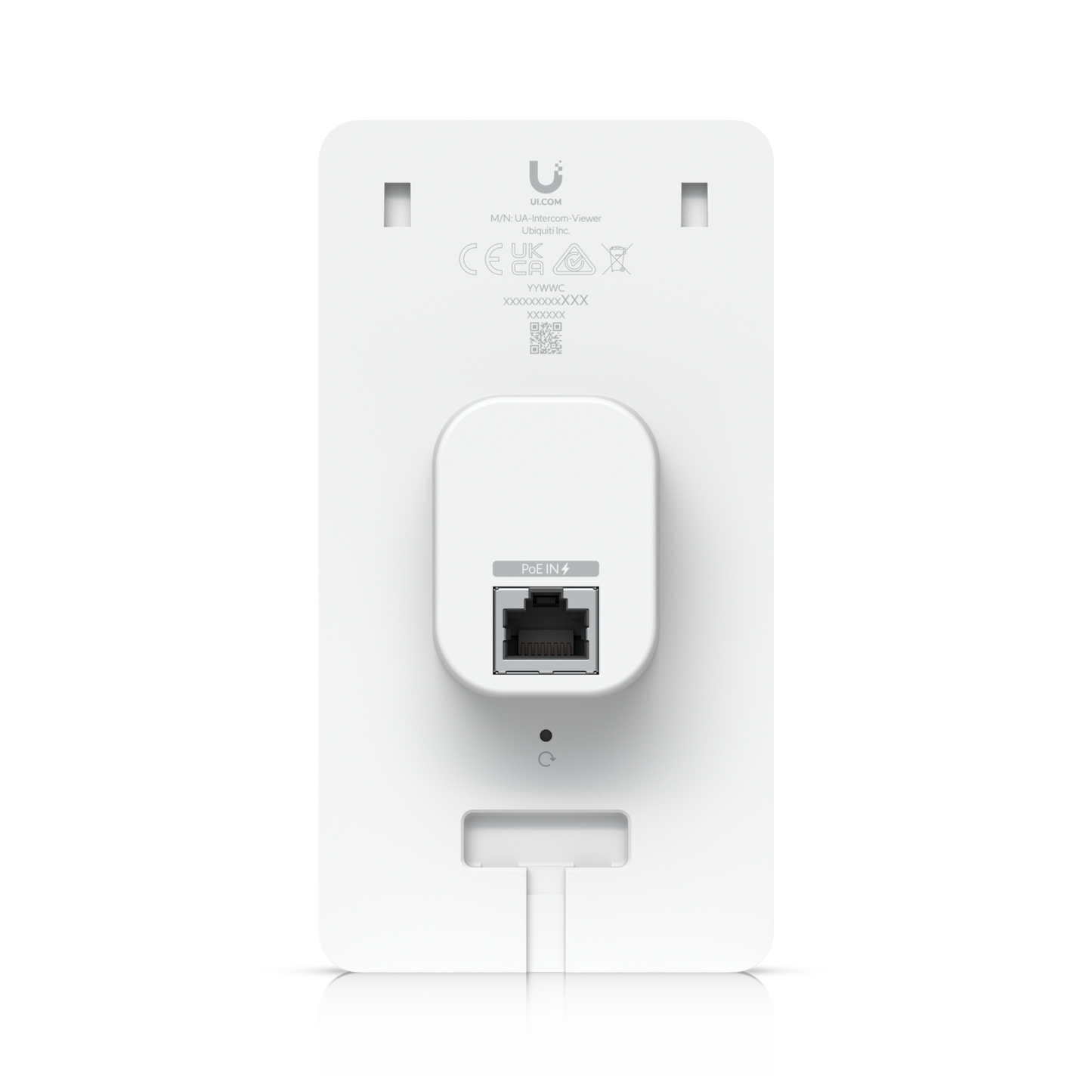

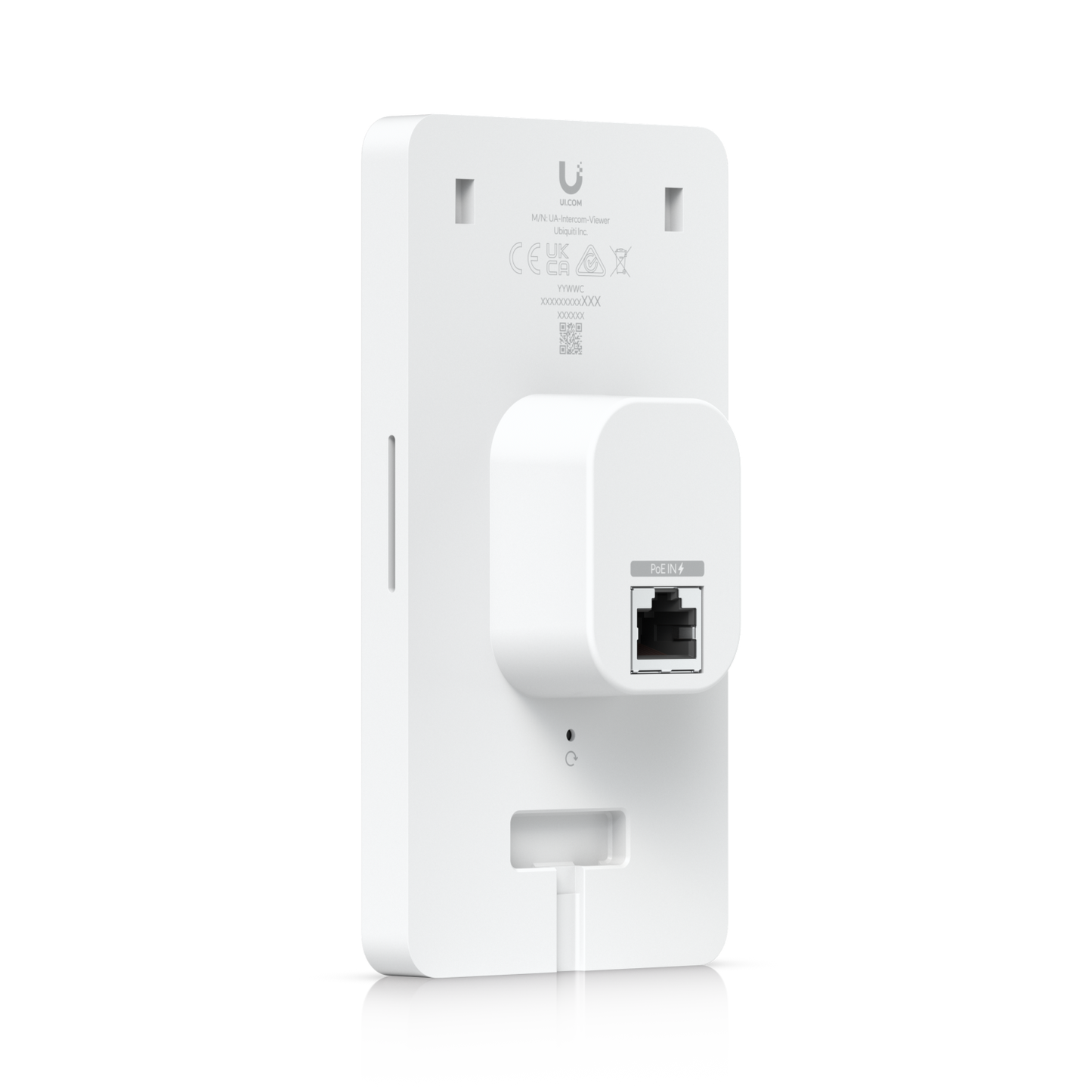

Networking interface | (1) 10/100 Mbps RJ45 port |
Management interface | Ethernet |
Power method |
PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
Supported voltage range | 44–57V DC |
Max. power consumption | 5W |
Display | 127 mm (5") diagonal |
Resolution | 720 x 1280 (9:16) |
Display luminance | 300 nits (typical) |
Touch screen technology | Capacitive multi-touch |
Screen orientation | Portrait |
Microphone | Yes |
Speaker | Yes |
Button | Factory reset |
Ambient operating temperature | 0 to 40° C (32 to 104° F) |
Operating environment | Indoor use only |
Ambient operating humidity | 5 to 95% noncondensing |
Software information | The software version of a product can be checked at https://unifi.ui.com |
UL 294 level |
Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
UL 294 statement |
Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
PoE cabling requirements |
Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable. |
CAN/ULC-60839-11-1 Grade | Grade assignment: I |
Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
Document number, and issue date and/or revision level | UA-Intercom-Viewer, V01 |
Software | |
Management application | UniFi Access: Version 1.22.17 and later |
Visit Ubiquiti for more information.
