UniFi Magnetic Lock
Ubiquiti UA-Lock-Magnetic UniFi Magnetic Lock
SKU:UA-Lock-Magnetic-270kg
Regular price
$284.00
Regular price
$329.00
Sale price
$284.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty

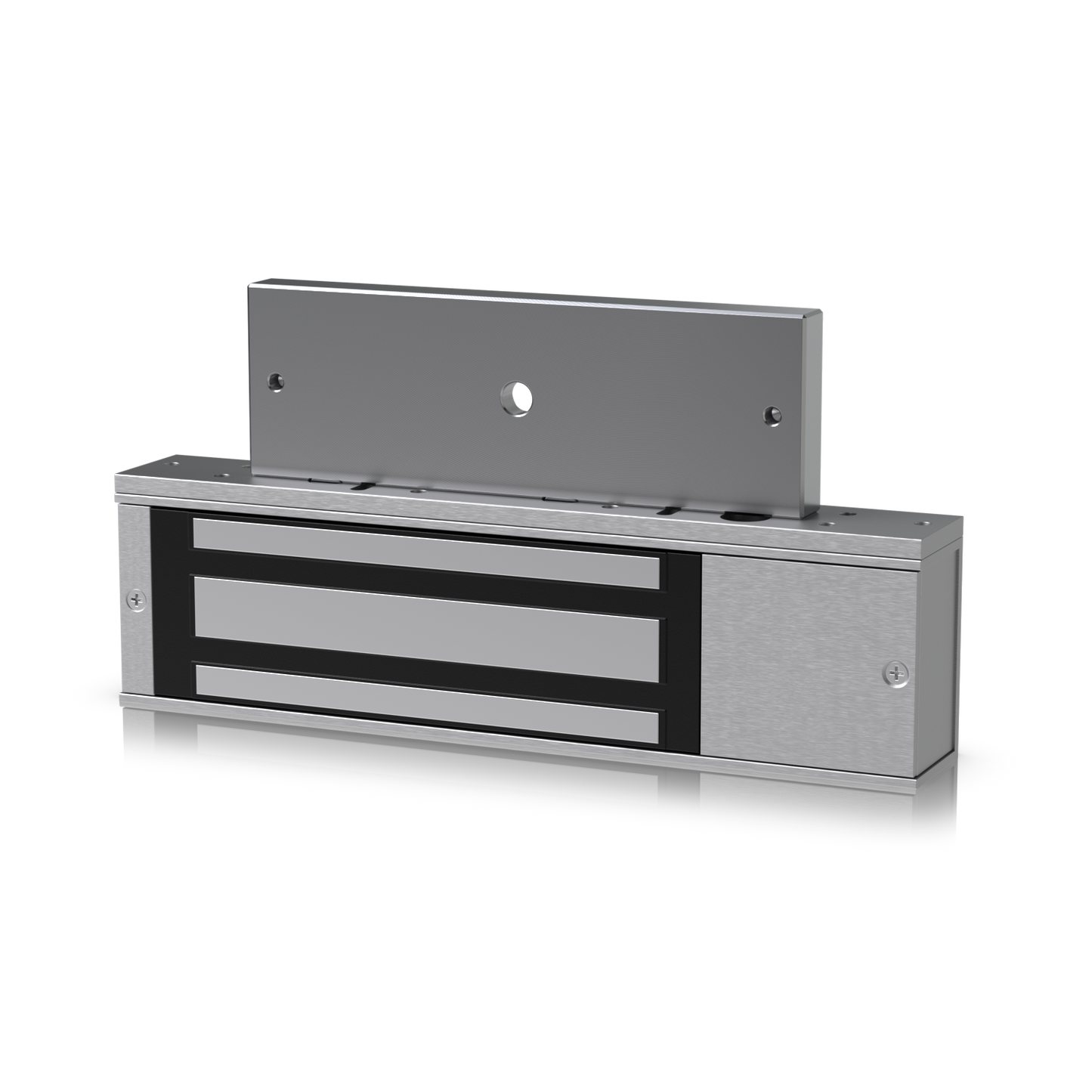

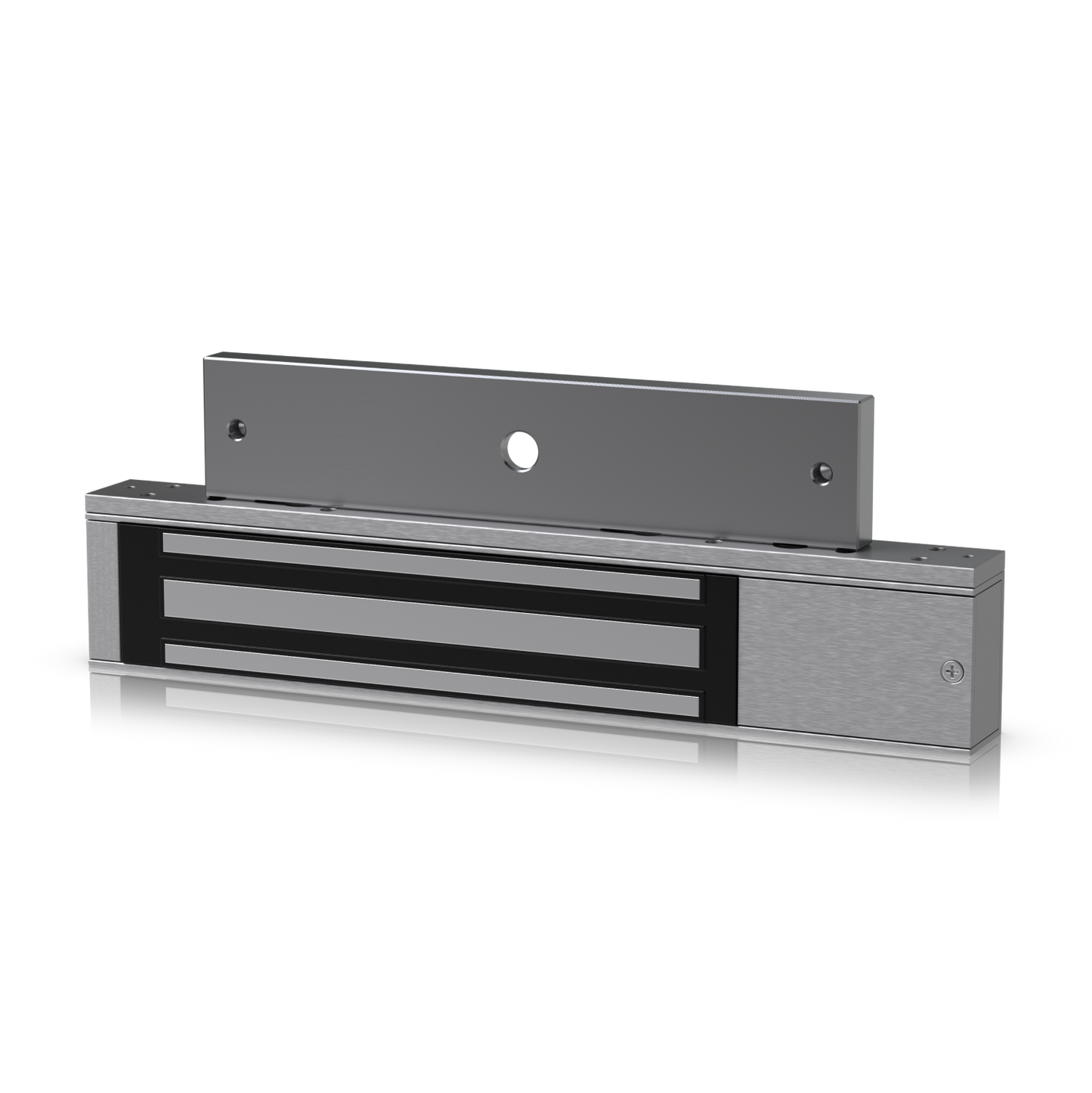

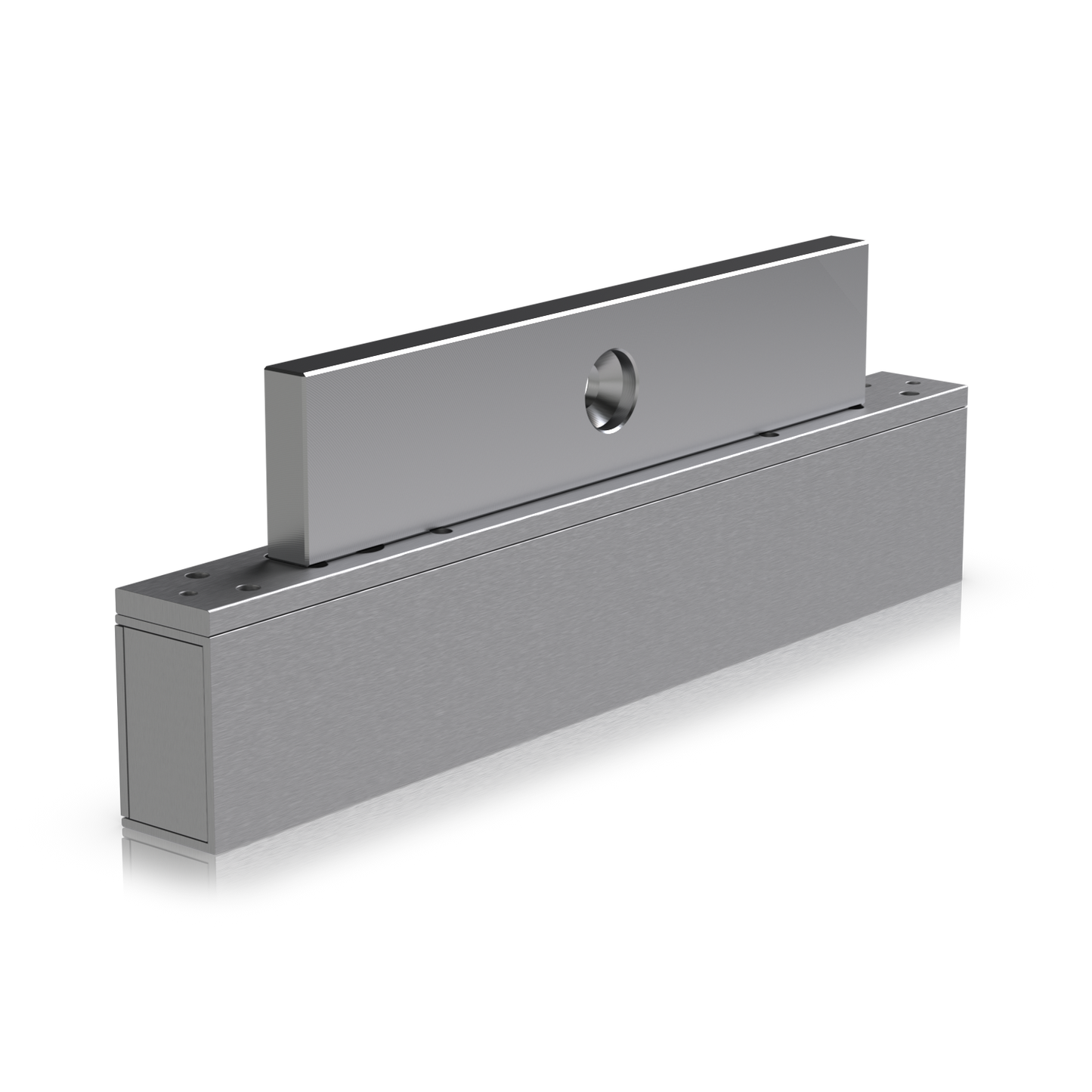

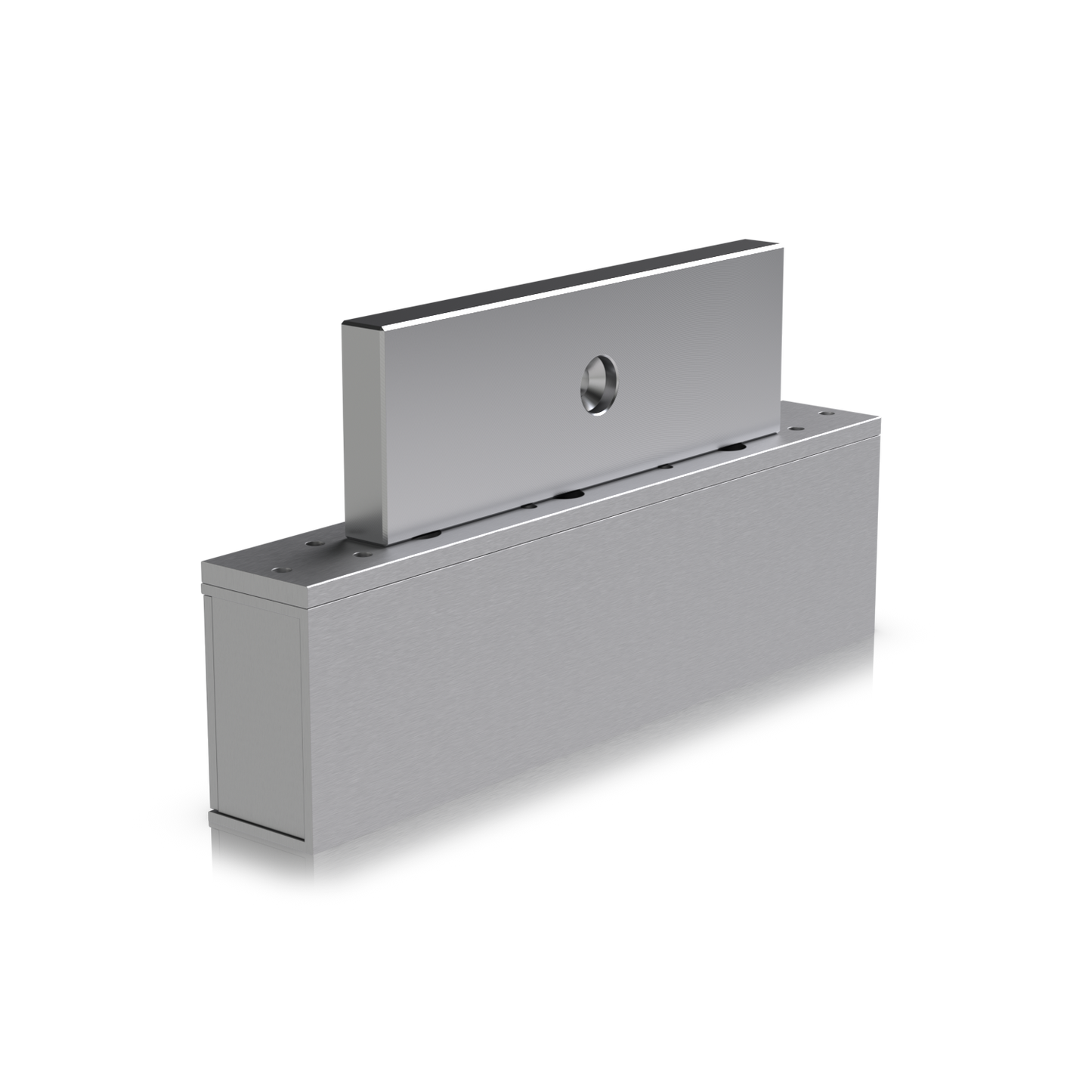

Fail-safe magnetic lock for in-swing and out-swing doors that connects to a UniFi Access Hub.
- Holds up to 270 kg or 540 kg (600-1,200 lb).
- Can be installed on a wide variety of door types*.
Note:
- * All types including full glass.
Compatibility:
- UA-G2-SK-Pro,
- UA-G2-SK,
- UA-Hub-Door,
- EAH-8,
- UA-Ultra.
| Mechanical | |
|---|---|

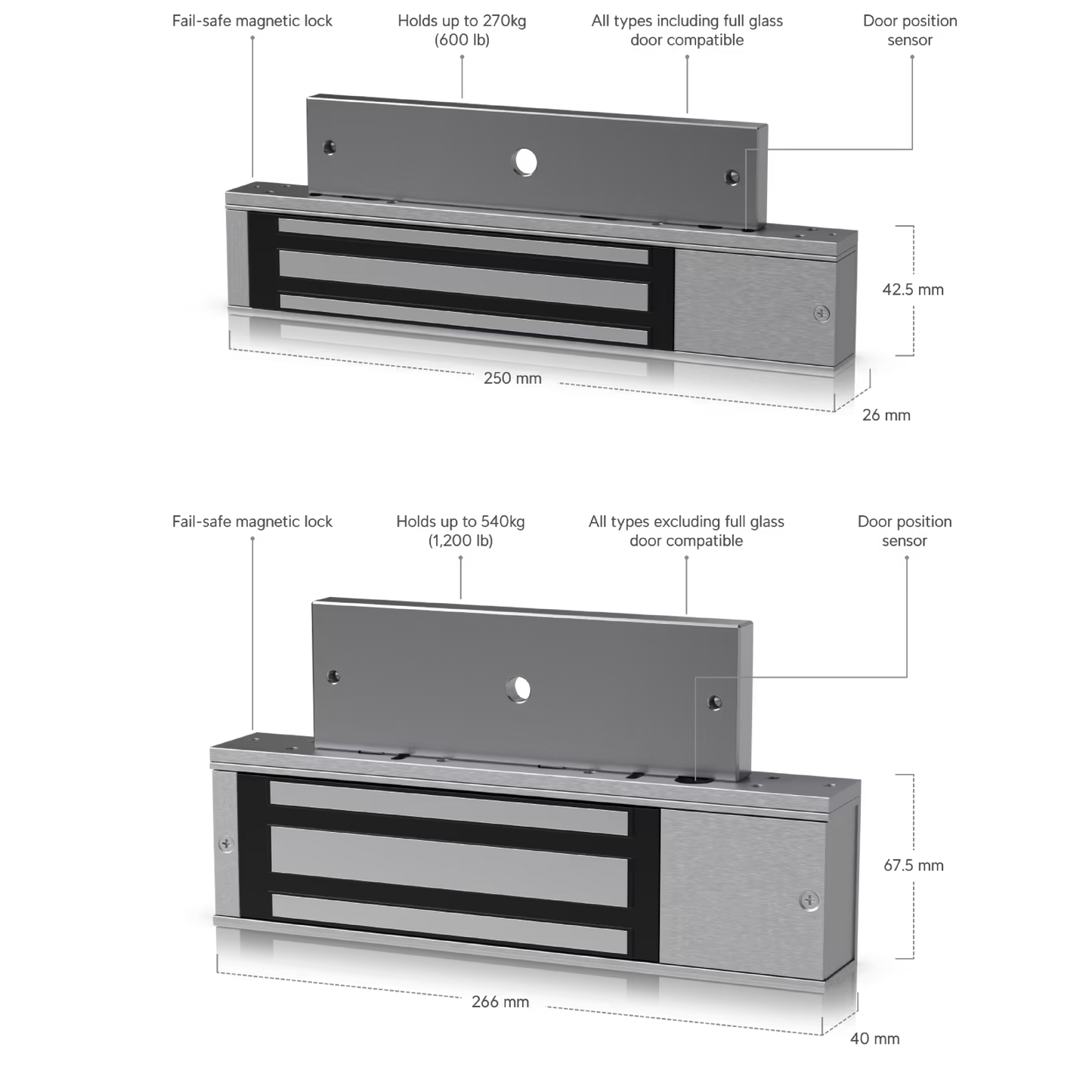

| Dimensions |
UA-Lock-Magnetic-270kg Lock body: 250 x 42.5 x 26 mm(9.8 x 1.7 x 1" ) Install plate: 250 x 25x 5 mm (9.8 x 1 x 0.2" ) Armature: 185.5 x 38.5 x 11 mm (7.3 x 1.5 x 0.4") UA-Lock-Magnetic-540kg Lock body: 266 x 67.5 x 40 mm (10.5 x 2.7 x 1.6") Install plate: 266 x 40 x 6 mm (10.5 x 1.6 x 0.2") Armature: 185 x 61 x 16 mm (7.3 x 2.4 x 0.6") |
| Weight |
UA-Lock-Magnetic-270kg Lock body: 1 kg (2.2 lb) Install plate: 70 g (0.15 lb) Armature: 600 g (1.3 lb) UA-Lock-Magnetic-540kg Lock body: 2.9 kg (6.4 lb) Install plate: 145 g (0.3 lb) Armature: 1.4 kg (3.1 lb) |
| Enclosure material |
Device/brackets: aluminum Armature: steel |
| Hardware | |
| Voltage | 12V DC |
| Current power |
UA-Lock-Magnetic-270kg: 800mA ±10% UA-Lock-Magnetic-540kg: 500mA ±10% |
| Wiring connection |
Connect below terminals to UA-Hub: Lock 12V/NC (connect to Power Lock Relay NC on UA-Hub) Lock 12V/COM (connect to Powered Lock Relay COM on UA-Hub) DPS/+ (DPS+ on UA-Hub) DPS/-(DPS-onUA-Hub) |
| Lock type |
Fail safe lock Single door |
| Holding force |
UA-Lock-Magnetic-270kg: 270 kg (600 lb) UA-Lock-Magnetic-540kg: 540 kg (1,200 lb) |
| LED |
Green: unlocked Red: locked |
| Suitability |
UA-Lock-Magnetic-270kg: wooden/metal/glass door UA-Lock-Magnetic-540kg: wood/metal door |

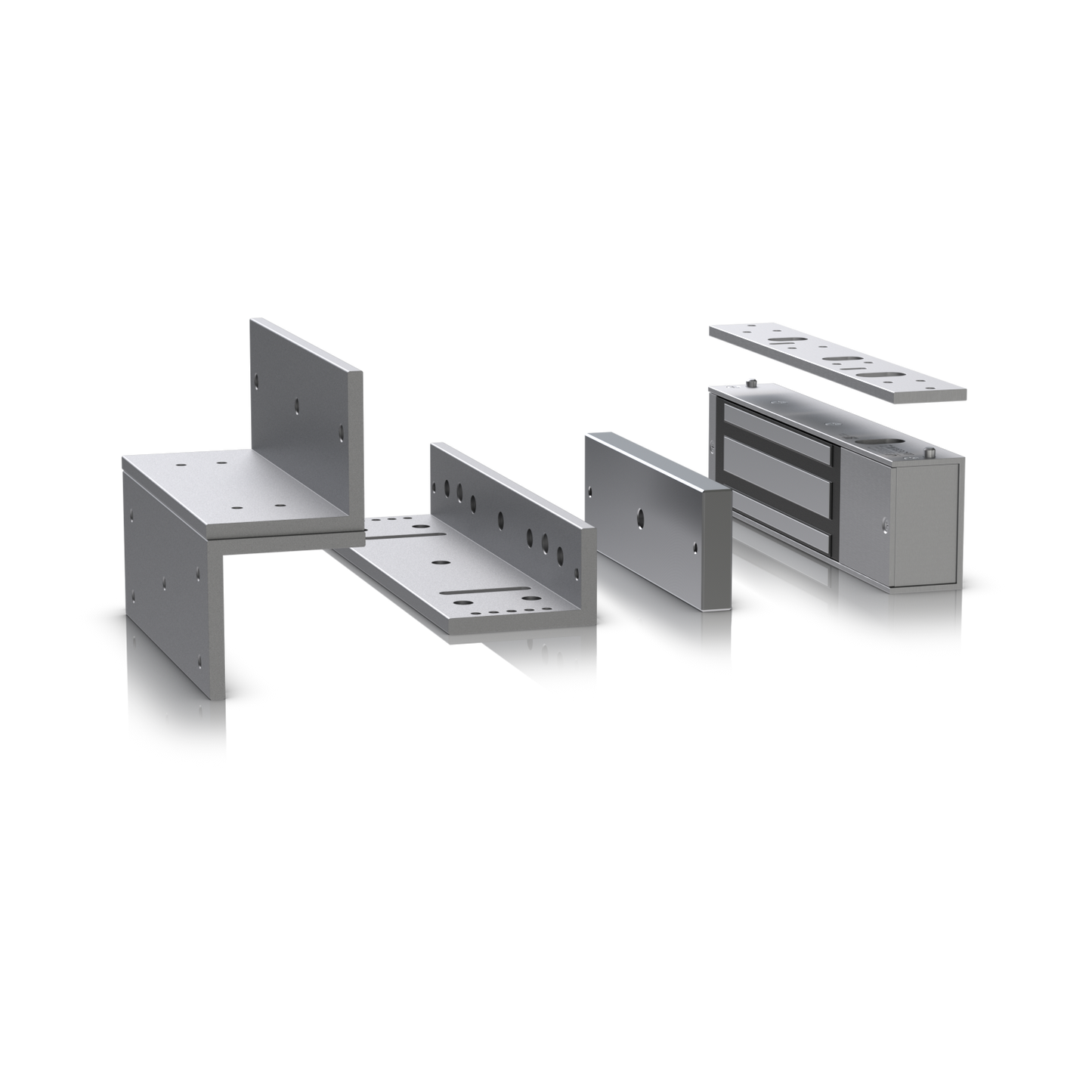

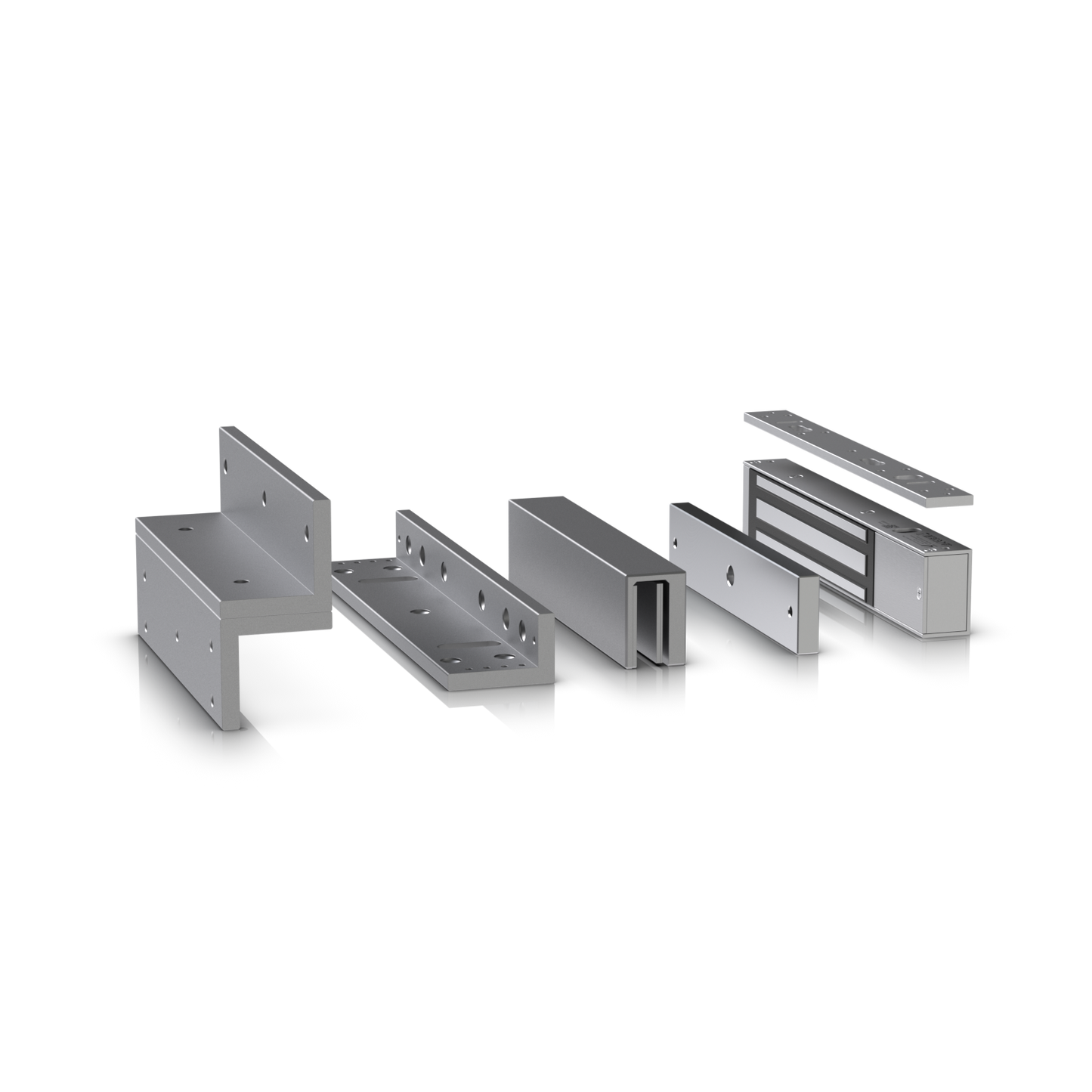

| Mounting accessories |
UA-Lock-Magnetic-270kg L bracket : door thickness < 42 mm (< 1.7"), outward opening door Z bracket: used with L bracket for inward opening door U bracket: used with glass door UA-Lock-Magnetic-540kg L bracket: door thickness < 42 mm (< 1.7"), outward opening door Z bracket: used with L bracket for inward opening door |
| Ambient operating temperature | -10 to 50° C (14 to 122° F) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Certifications | FCC, IC, CE |
Visit Ubiquiti for more information.
