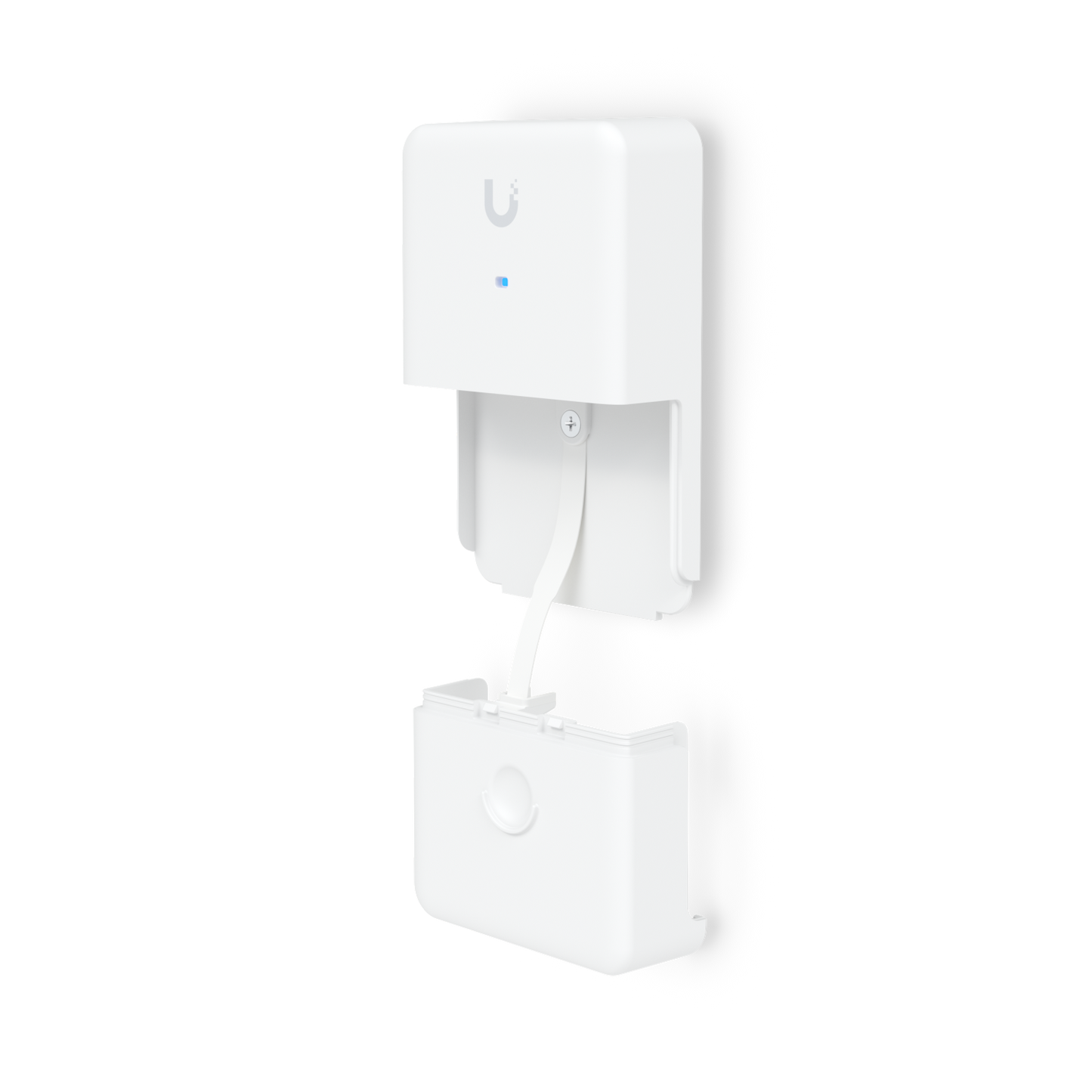

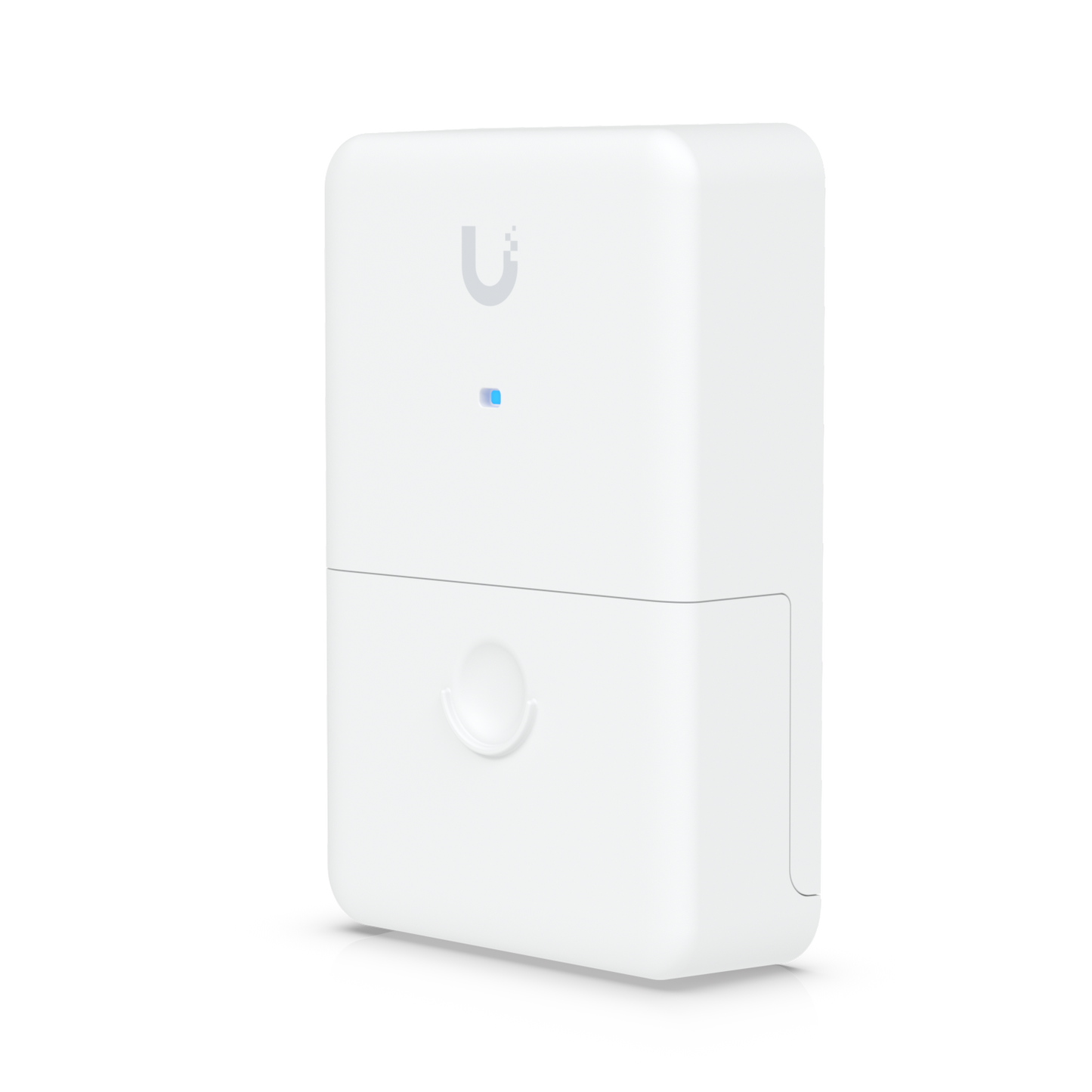

UISP Dual-Power Injector
Ubiquiti UACC-Dual-Power-Injector UISP Dual-Power Injector
SKU:UACC-Dual-Power-Injector
Out of stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty






Versatile PoE adapter that delivers up to 100W to power any two Wave models and provides 2.5 GbE connectivity.

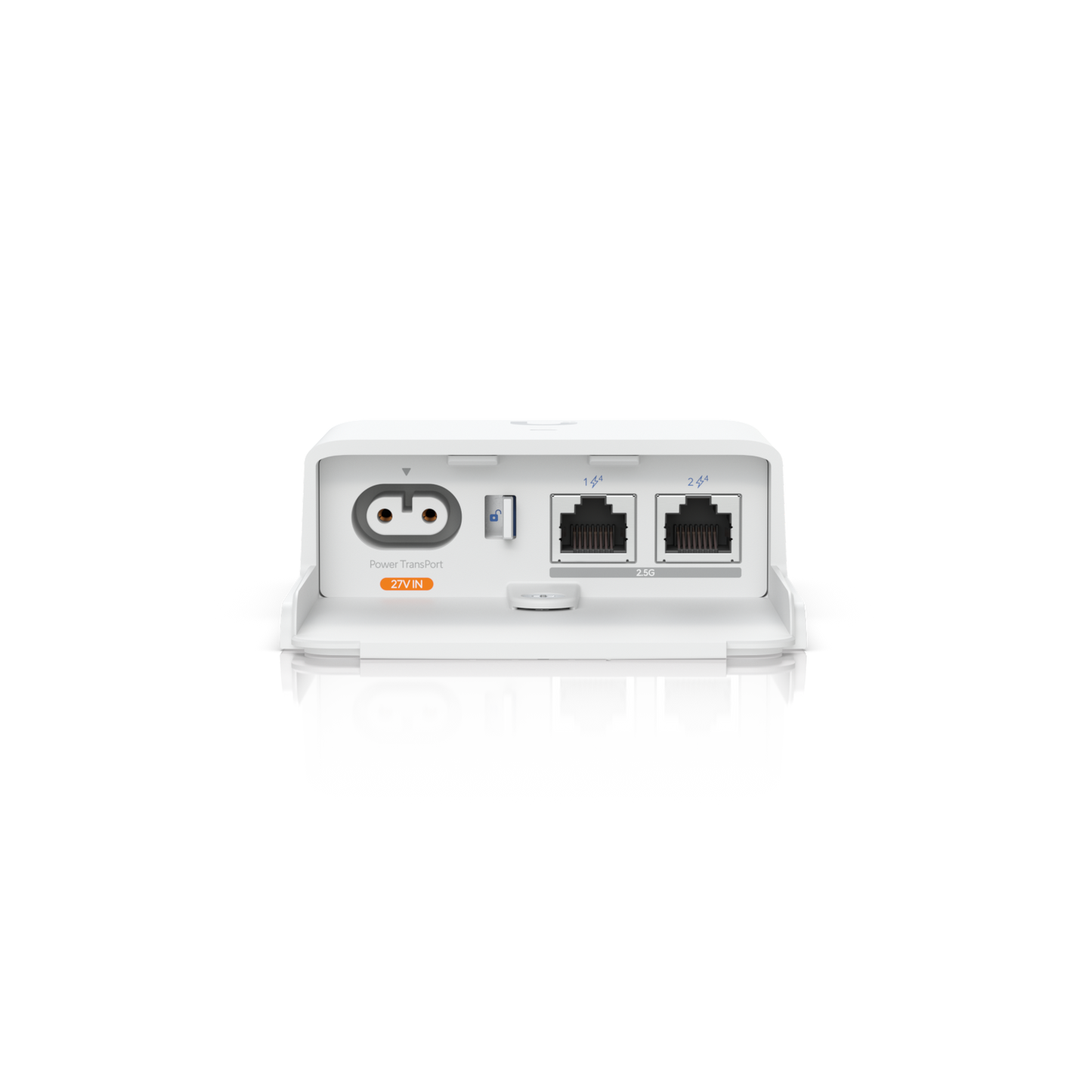

- (2) 2.5G GbE RJ45 ports with 48V passive PoE.
- Weatherproof enclosure.

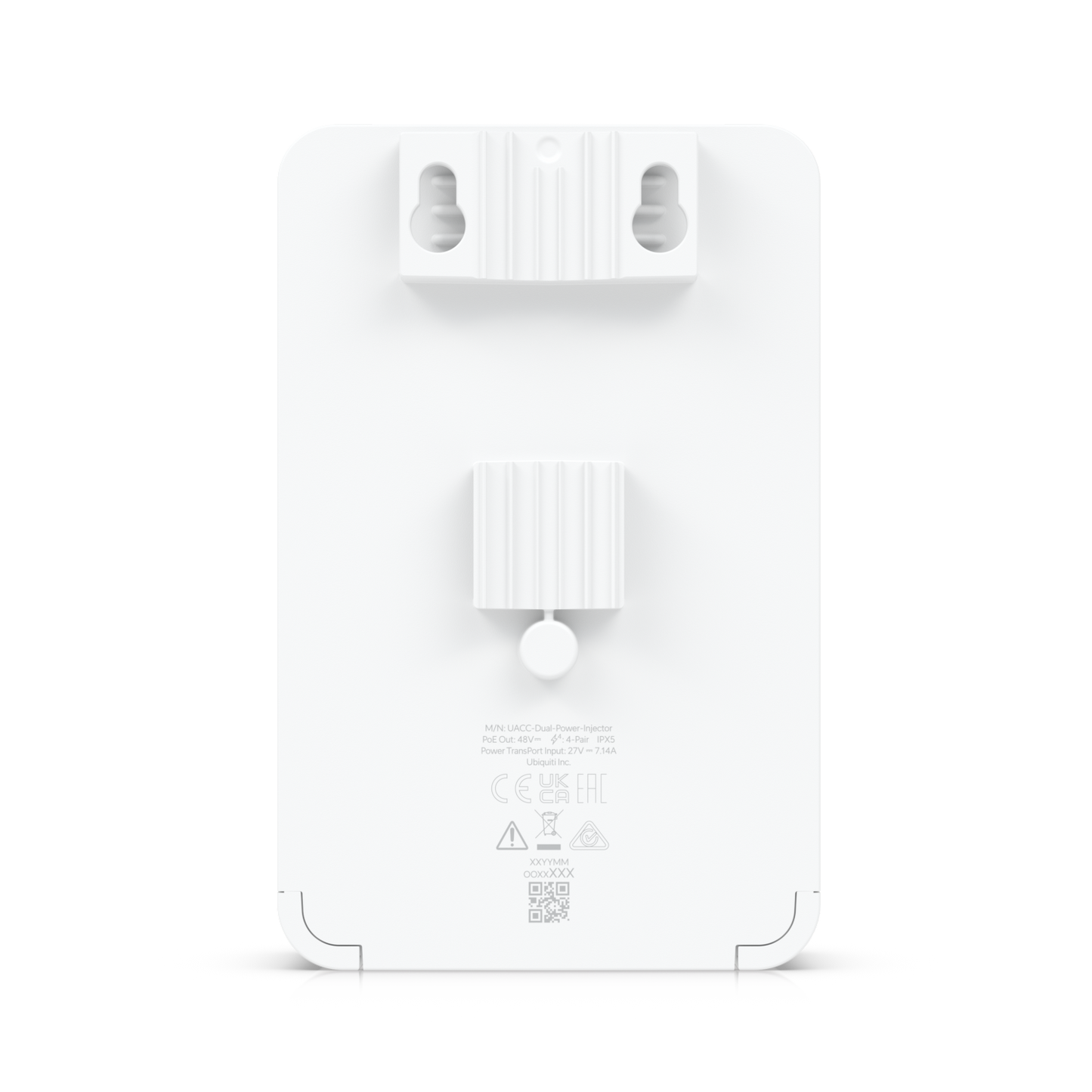

- Pole or wall-mountable (kit included).
- Supports all Wave models.
Compatibility:
- Wave-AP,
- Wave-AP-Micro,
- Wave-Pico,
- Wave-Pro,
- Wave-LR,
- Wave-Nano.
Mechanical | |
---|---|

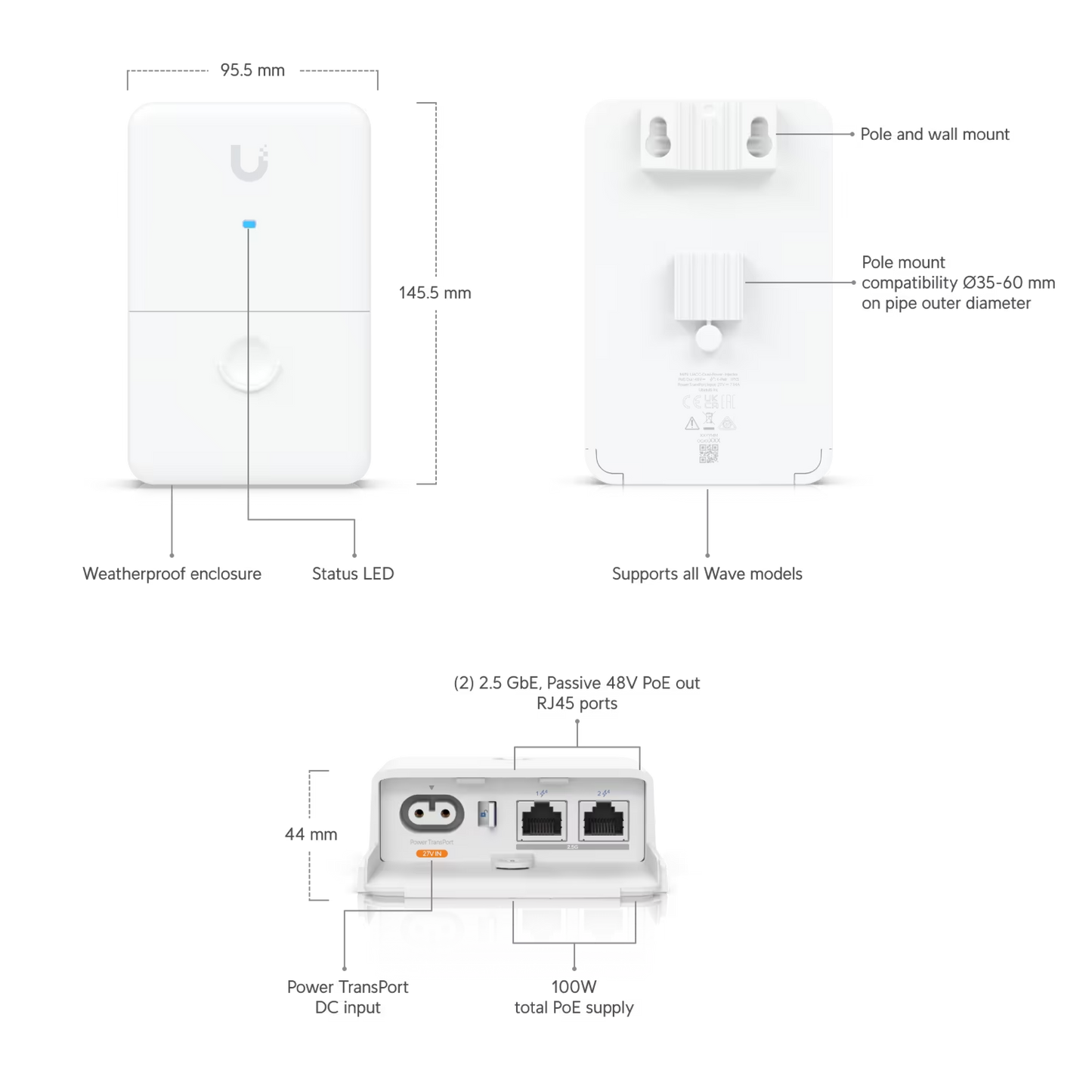

Dimensions | 145.5 x 95.5 x 44 mm (5.7 x 3.8 x 1.7") |
Weight | 280 g (9.9 oz) |
Enclosure material | UV-stabilized polycarbonate |
Wind survivability | Up to 200 km/h (125 mph) |
Wind loading | 10.5 N at 200 km/h (2.4 lbf at 125 mph) |
Mounting |
Pole mount: 35 to 60 mm (1.37 to 2.36") on pipe outer diameter Wall mount |
Weatherproofing | IPX5 |
Hardware | |
Networking interface | (2) 2.5 GbE RJ45 ports |
Power method | (1) Power TransPort DC input 27V DC, 4.44A |
Power supply |
120W Power TransPort Adapter (not included) UISP Power UISP Power Pro |
Output voltage | 48V DC |
Max. output | Total 100W |
LEDs | Blue: power On |
Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
Ambient operating humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
Compatibility | |
Supported models |
Wave AP Wave AP Micro Wave Long-Range Wave Nano Wave Pro Wave Pico |
Visit Ubiquiti for more information.
