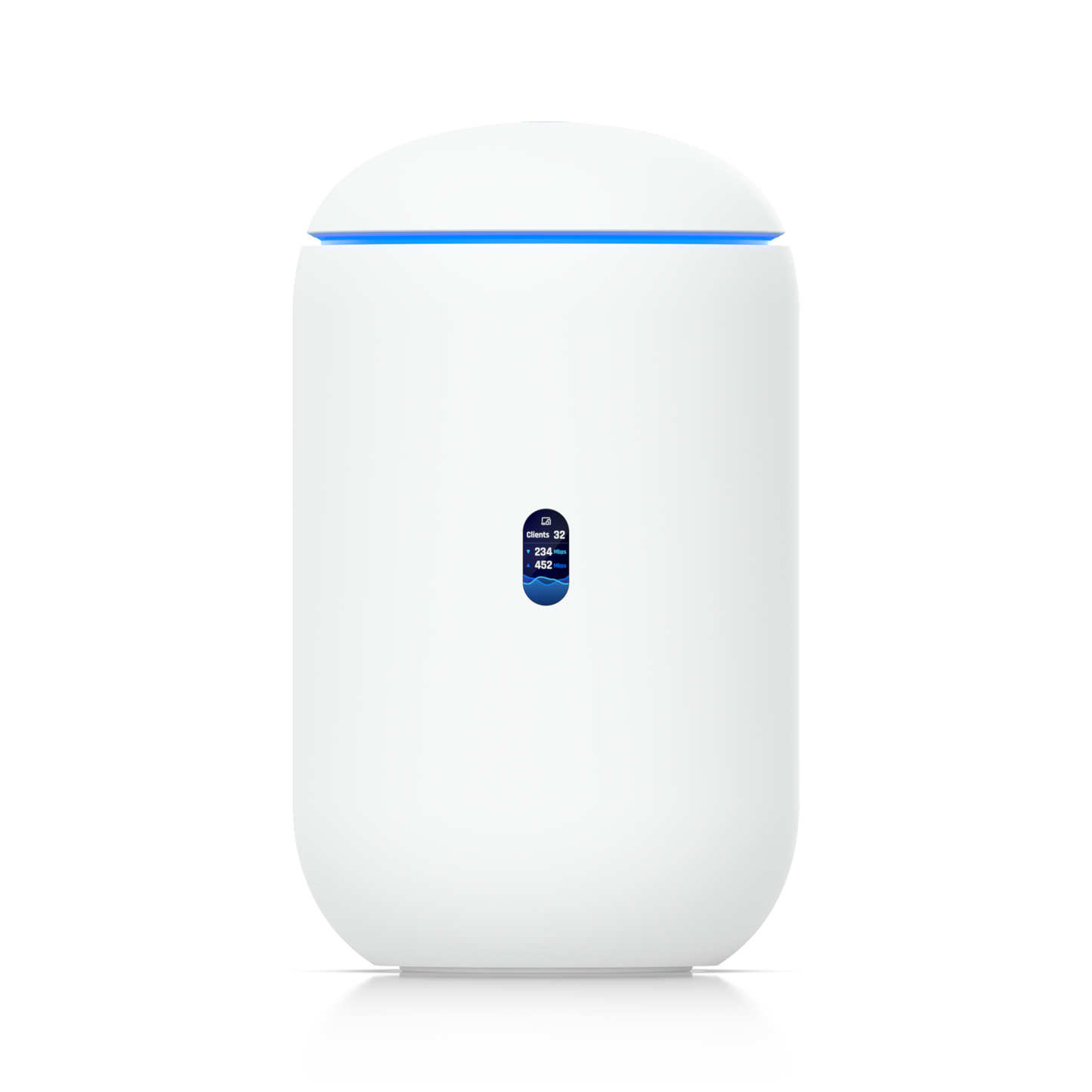

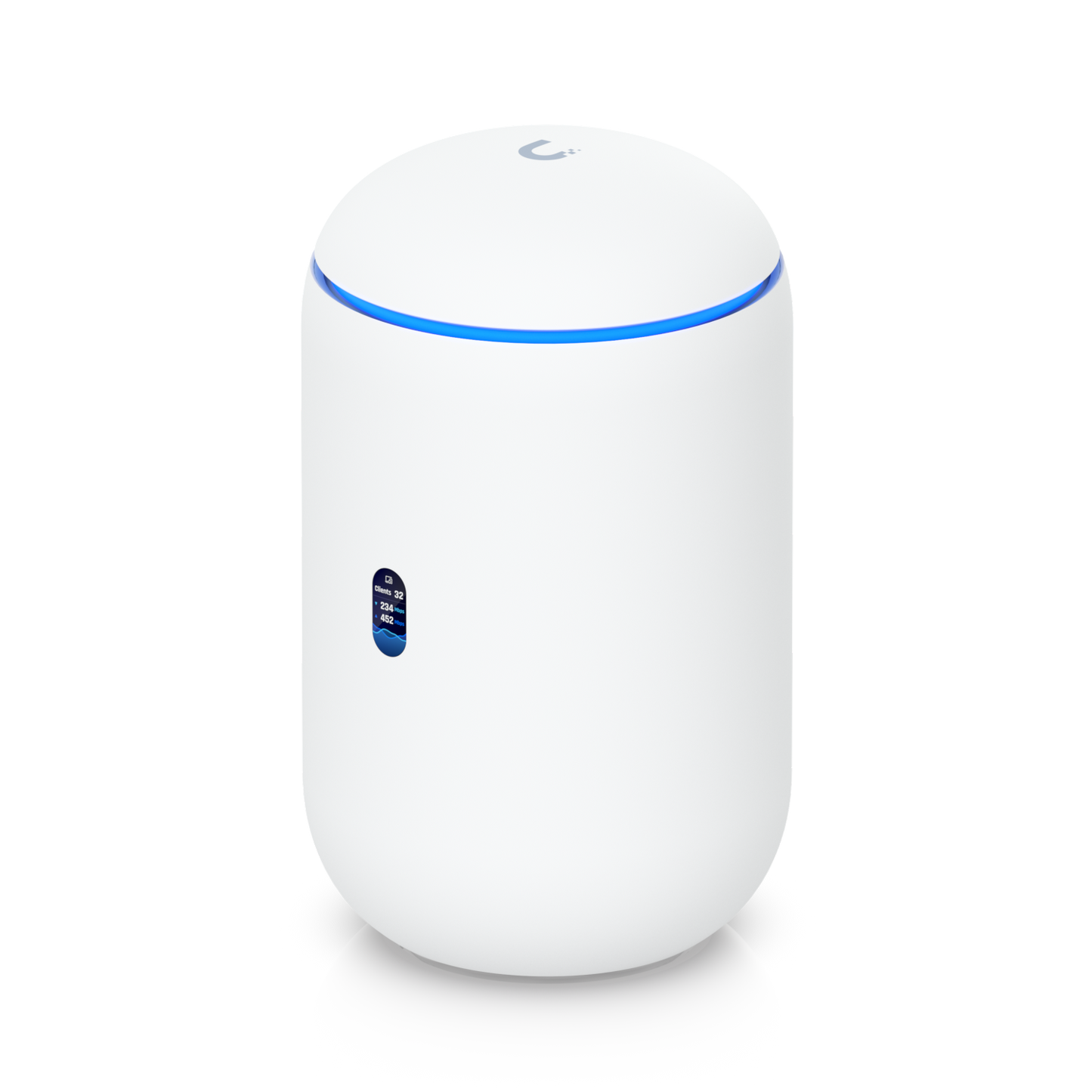

UniFi Dream Router 7
Ubiquiti UDR7 UniFi Dream Router 7
SKU:UDR7
Regular price
$512.00
Regular price
$589.00
Sale price
$512.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Extended Warranty • Price Match
Sale ending soon! Limited promotional stock available — don’t miss out!
654 in stock and ready to ship today.
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Found it cheaper elsewhere? Let us know
Buying for your business? Earn Store Credits

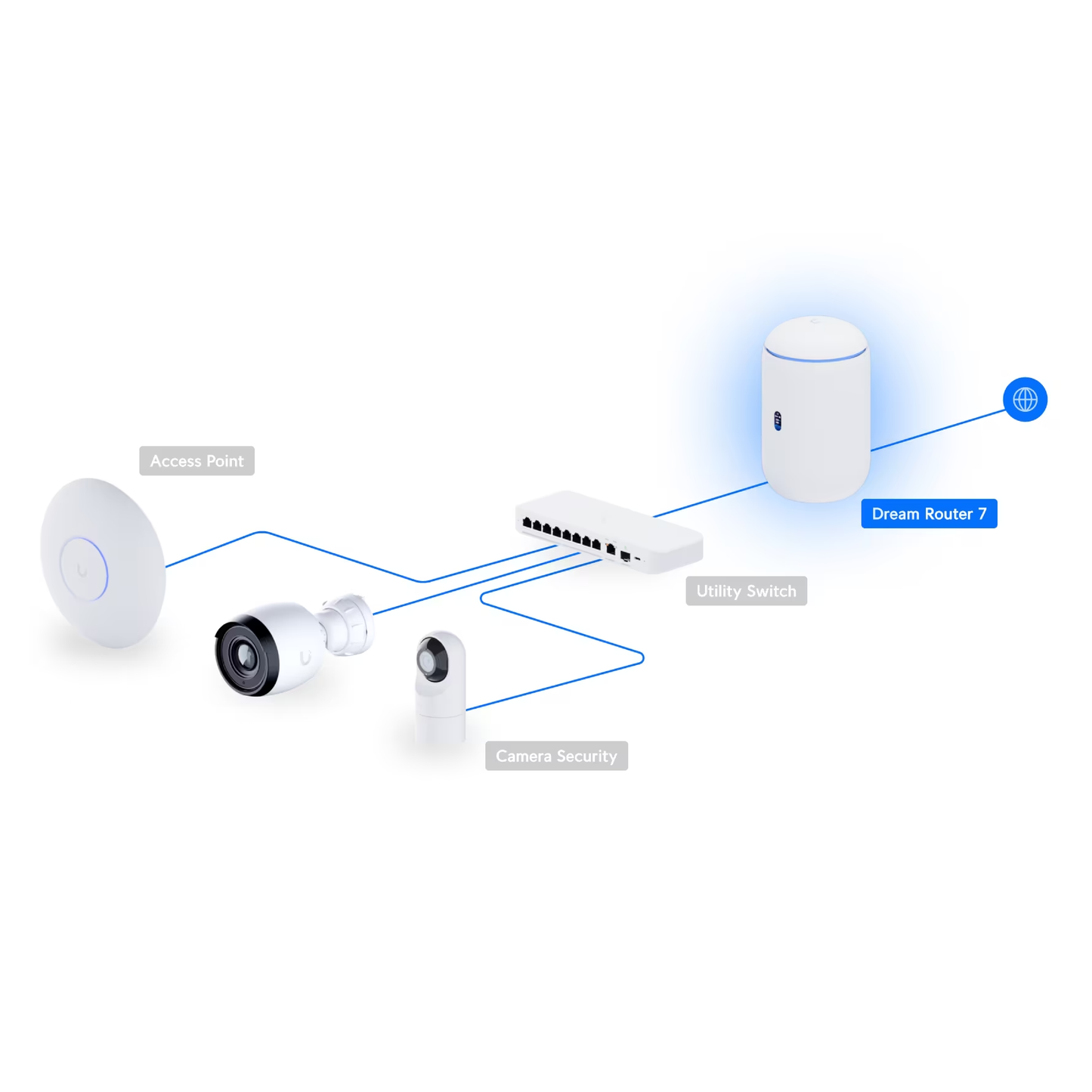

Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
- Integrated 6-stream WiFi 7 AP with 6 GHz support.
- Includes full UniFi application suite for device management.
- Manages 30+ UniFi devices and 300+ clients.

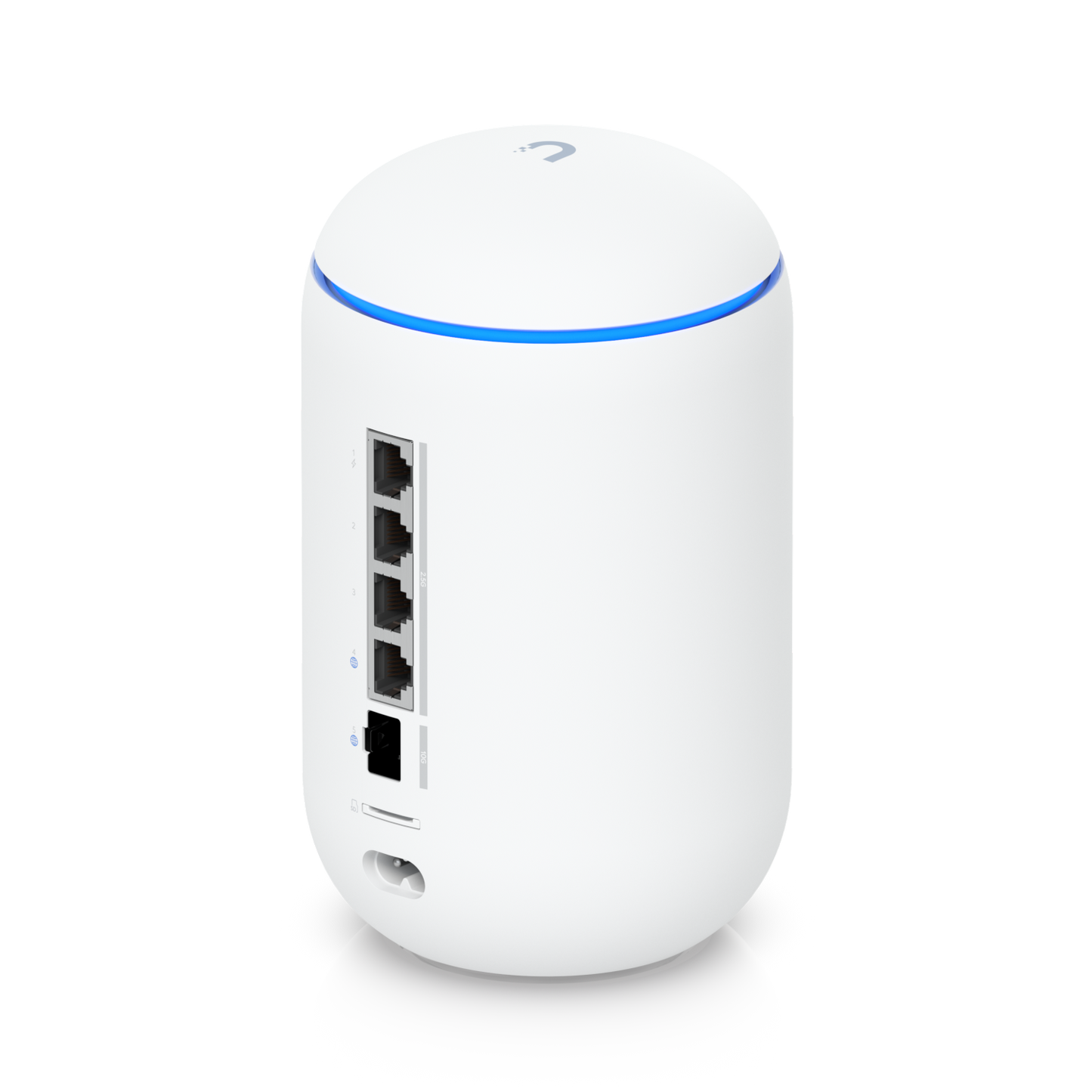

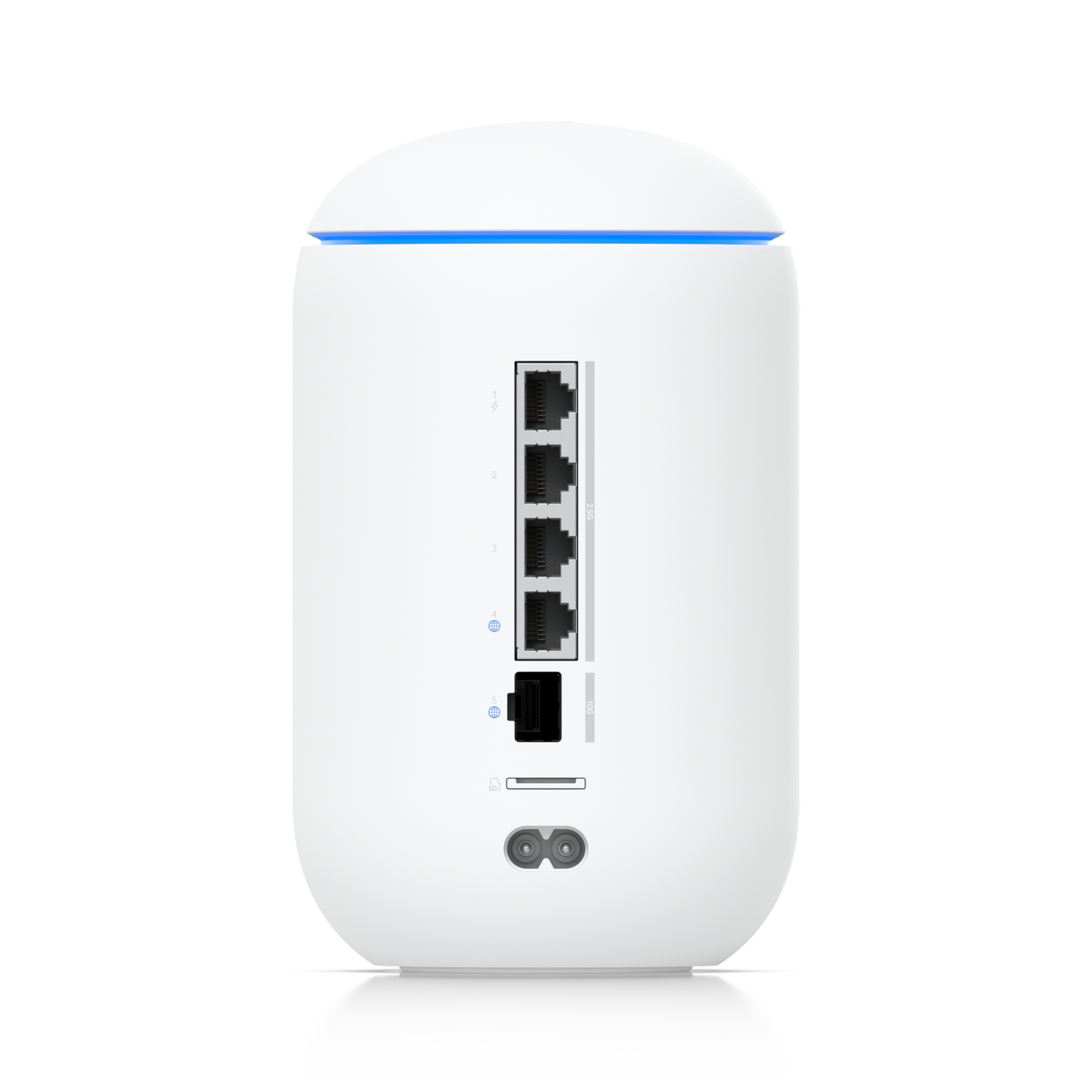

- Integrated 4-port switch with (1) PoE port.
- (1) 10G SFP+ and (1) 2.5 GbE RJ45 WAN port.
- 64 GB microSD storage pre-installed (upgradable).
| Overview | |
|---|---|

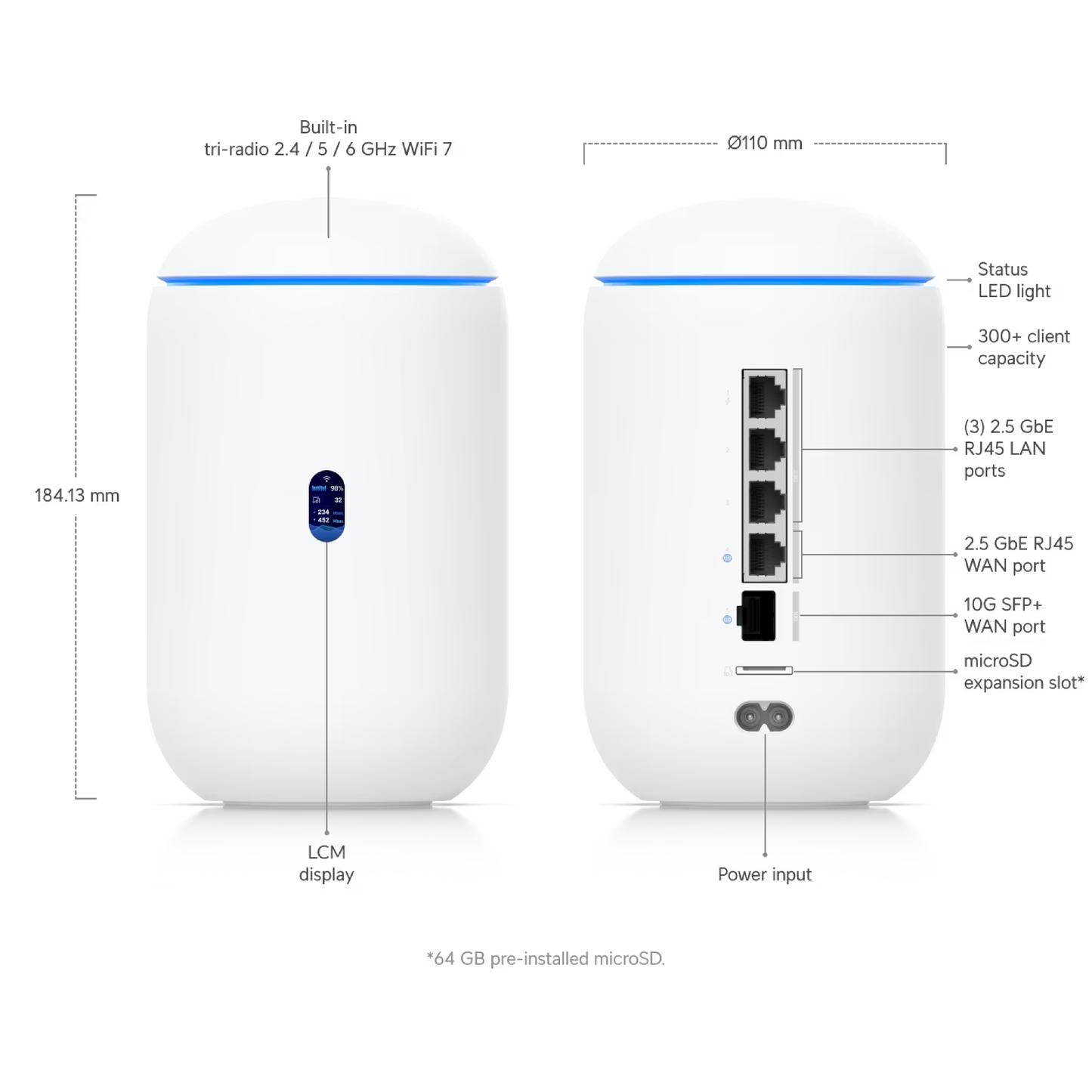

| Dimensions | Ø110 x 184.1 mm (Ø4.3 x 7.3") |
| UniFi Application Suite Network Protect Access Talk Connect |
Yes Yes Yes Yes Yes |
| Managed UniFi Devices | 30+ |
| Managed Cameras | (5) HD (2) 2K (1) 4K |
| Simultaneous Users Connected | 300+ |
| Default WAN Ports | (1) 10G SFP+ (1) 2.5 GbE RJ45 |
| LAN Ports | (3) 2.5 GbE RJ45 including (1) PoE |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
| Security | |
| Stateful Firewall | Yes |
| Application-Aware Layer 7 Firewall | Yes |
| DPI & Traffic Identification | Yes |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | Yes |
| Content Filtering | Yes |
| Intrusion Prevention (IPS/IDS) | Yes |
| Ad Blocking | Yes |
| IDS/IPS Signatures | 20,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation | Yes |
| VPN & SD-WAN | |
| License-Free SD-WAN | Yes |
| Site-to-Site VPN Site Magic IPsec OpenVPN |
Yes Yes Yes |
| VPN Server Identity Endpoint One-Click VPN Teleport Zero-Configuration VPN WireGuard OpenVPN L2TP |
Yes Yes Yes Yes Yes |
| VPN Client OpenVPN WireGuard |
Yes Yes |
| Networking | |
| Multi-WAN Load Balancing | Yes |
| Dynamic Routing OSPF |
Yes |
| Advanced QoS | Yes |
| Multicast DNS (mDNS) | Yes |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | Yes |
| Integrated RADIUS Server | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Additional Internet Failover with UniFi LTE Backup | Yes |
| Internet Quality and Outage Reporting | Yes |
| MAC Address Table Size | 2,000 |
| Policy-based WAN and VPN Routing | Yes |
| Customizable DHCP Server | Yes |
| IPv6 ISP Support | Yes |
| IGMP Proxy | Yes |
| Integrated WiFi | |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| Throughput 6 GHz 5 GHz 2.4 GHz |
5.7 Gbps 4.3 Gbps 688 Mbps |
| MIMO 6 GHz 5 GHz 2.4 GHz |
2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) |
| Antenna Gain 6 GHz 5 GHz 2.4 GHz |
6 dBi 7 dBi 5 dBi |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 4 per Radio |
| Supported Data Rates 802.11a 802.11b 802.11g 802.11n 802.11ac (WiFi 5) 802.11ax (WiFi 6/6E) 802.11be (WiFi 7) |
6, 9, 12, 18, 24, 36, 48, 54 Mbps 1, 2, 5.5, 11 Mbps 6, 9, 12, 18, 24, 36, 48, 54 Mbps 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| Hardware | |
| NVR Storage | Pre-installed 64GB microSD for NVR |
| Expansion Slot | MicroSD Card |
| PoE Budget | 15.4W |
| Max. PoE Wattage per Port by PSE PoE |
15.4W |
| Voltage Range PoE Mode | 44-57V |
| Max. Power Consumption | 26W (Excluding PoE output) |
| Power Method | Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz |
| Power Supply | AC/DC, Internal, 50W |
| Max. TX Power 6 GHz 5 GHz 2.4 GHz |
24 dBm 26 dBm 23 dBm |
| Supported Voltage Range | 100-240V AC |
| Processor | Quad-core ARM® Cortex-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | 1.1 kg (2.4 lb) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet Bluetooth |
| LEDs System |
Yes |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Button | (1) Factory-reset |
| Software | |
| VLAN | 802.1Q |
| Guest Traffic Isolation | Yes |
| Application Requirements UniFi Network |
Version 9.0.108 and later |
Visit Ubiquiti for more information.
