Ubiquiti
Ubiquiti

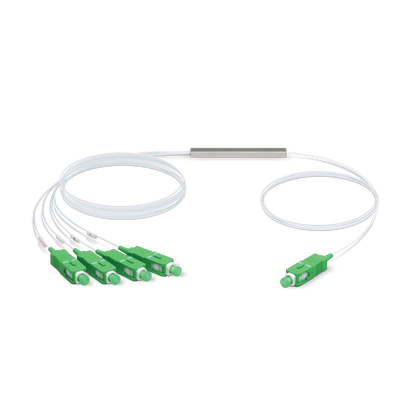

UFiber Splitter — UISP Cabling Accessory

UFiber Splitter — UISP Cabling Accessory

SKU:UF-SPLITTER-4

Regular price $18.00
Regular price $24.00 Sale price $18.00
25% Off | Save $6.00 Sold out
Taxes included. Shipping calculated at checkout.

Outputs

In stock and ready to ship

Business purchase? Contact us below for bulk discounts!

Authorised Reseller | Australian Stock | Australian Warranty

View full details

Ubiquiti's UFiber splitter facilitates the distribution of data from a single UFiber Optical Line Terminal’s (OLT) extensive cable network to multiple UFiber Optical Network Units (ONUs) across Australia.

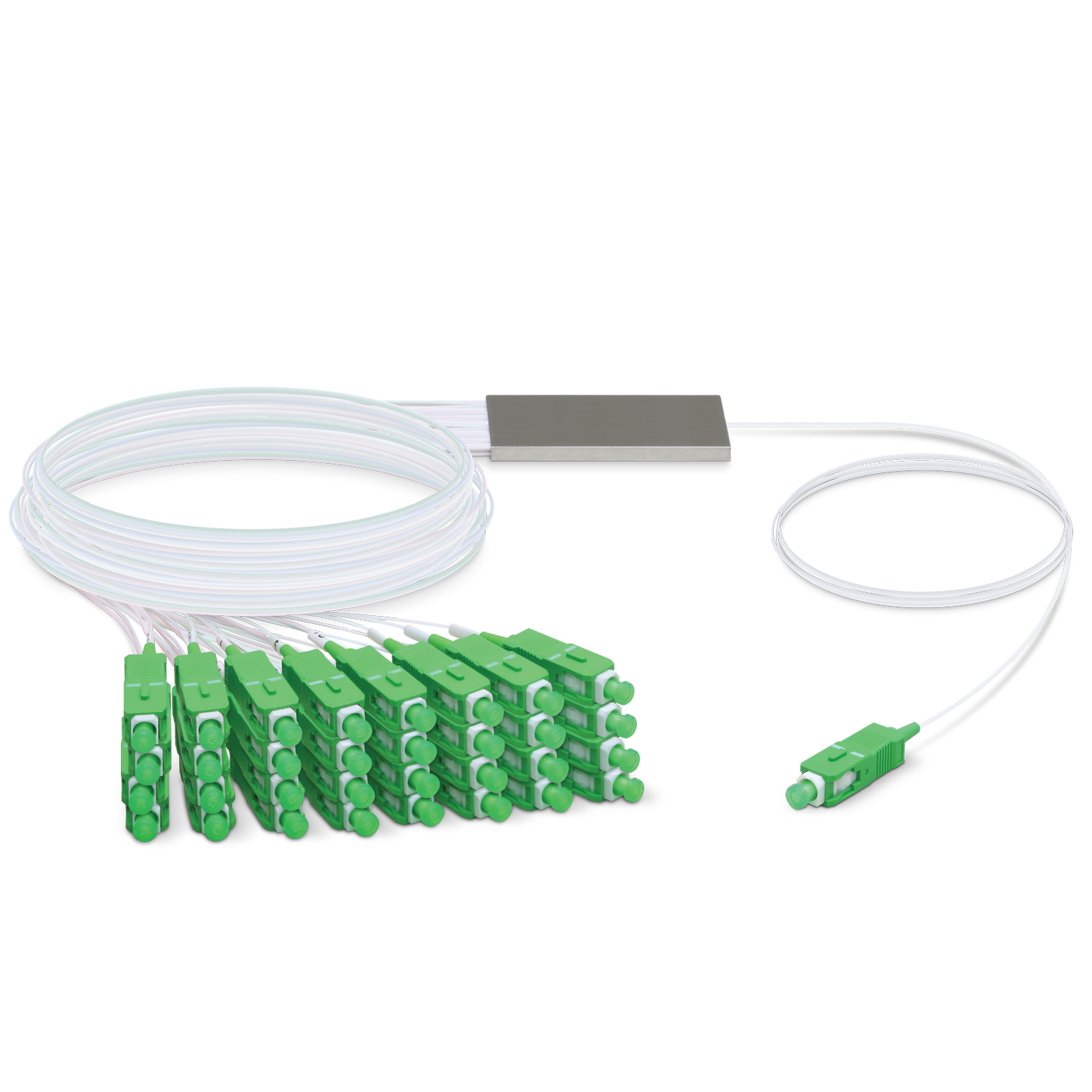

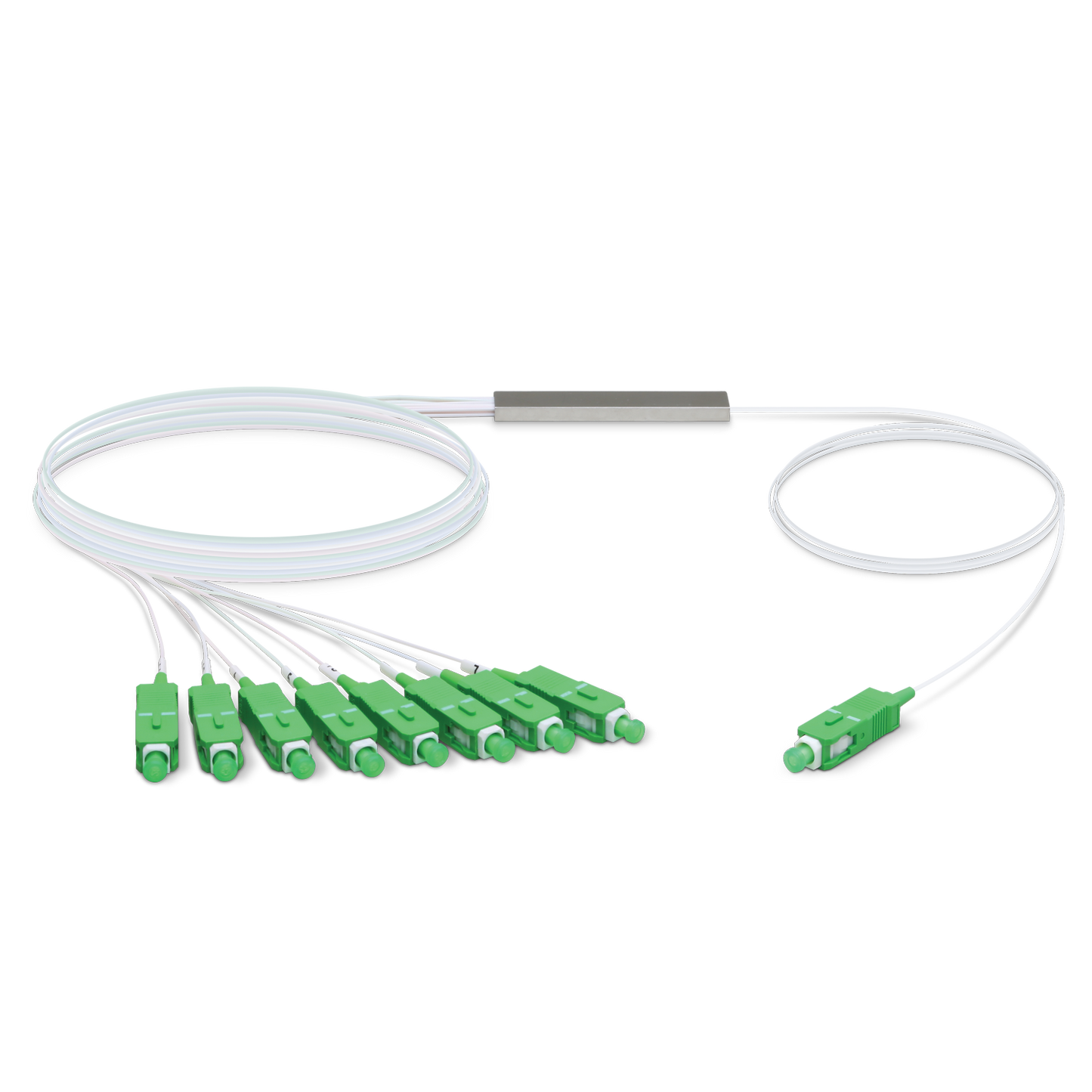

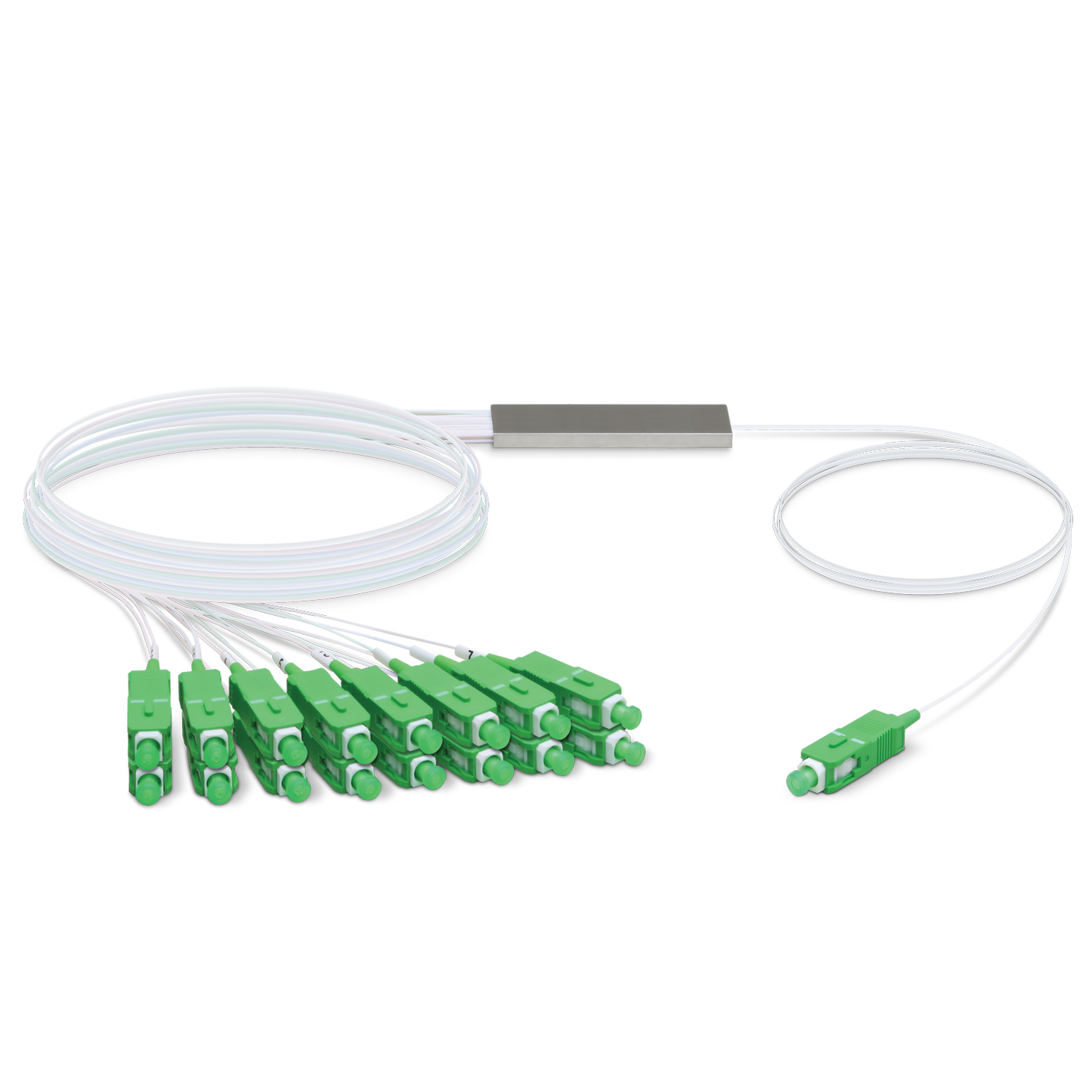

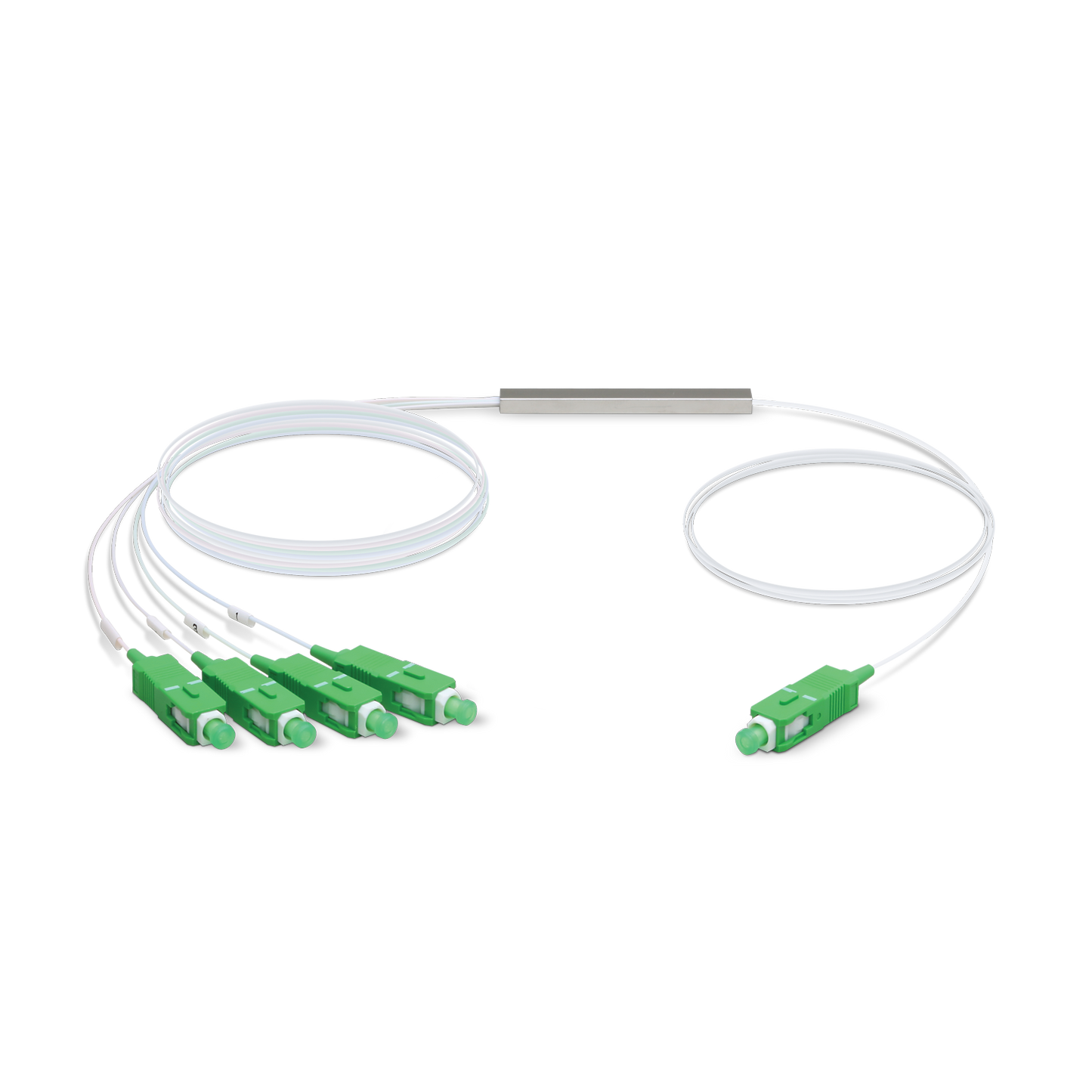

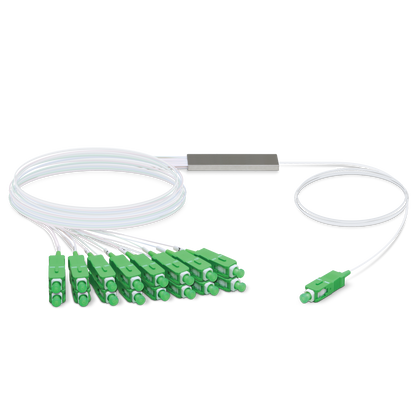

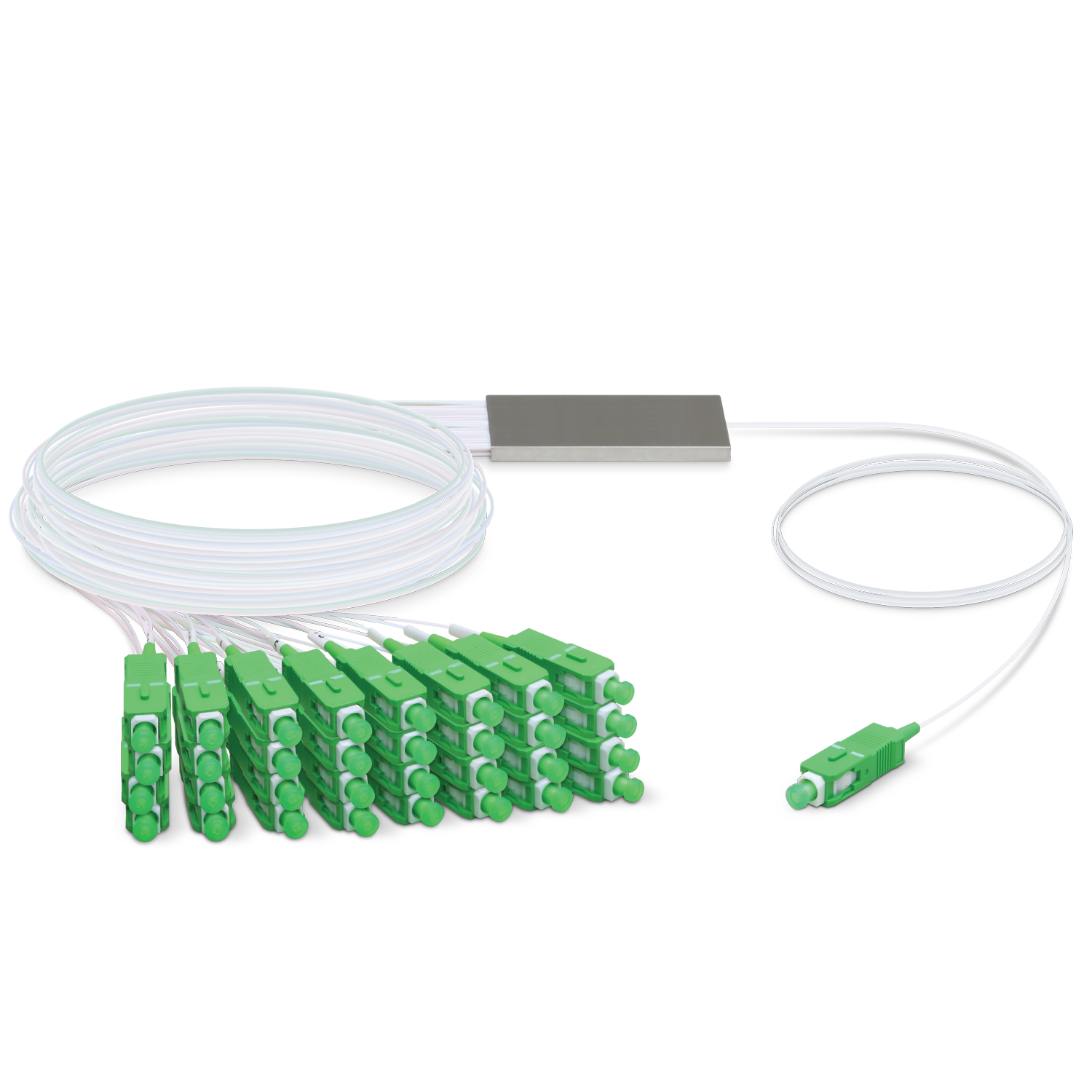

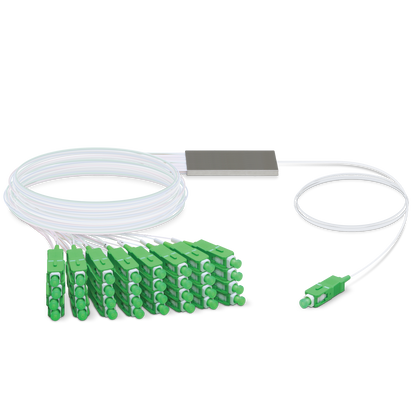

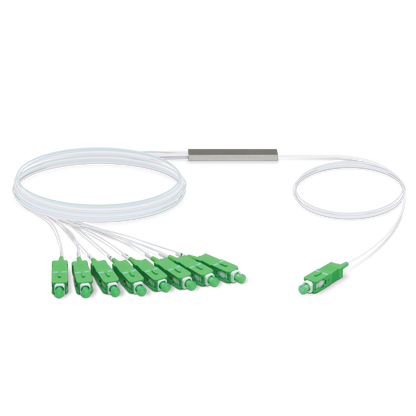

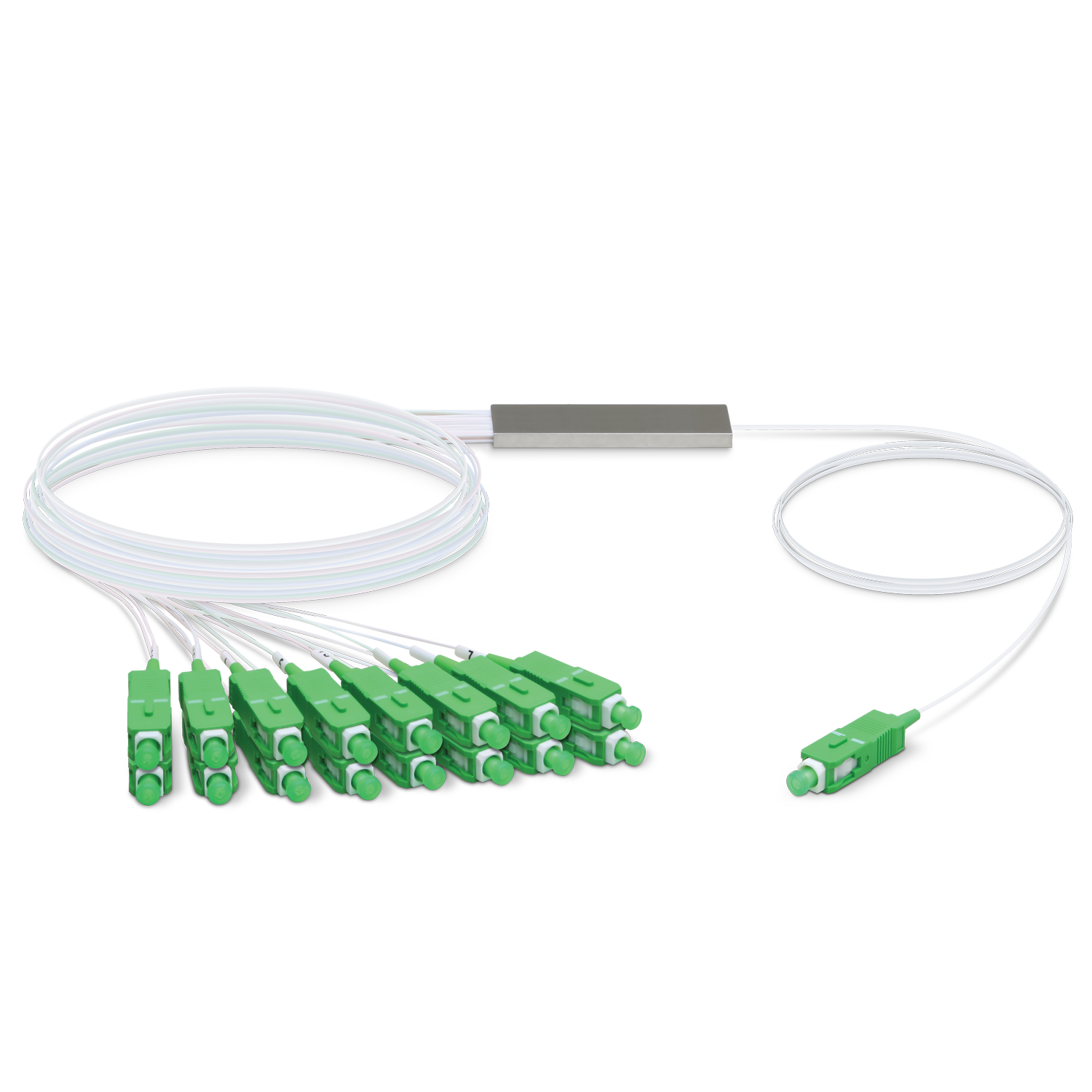

  • Variants available with 4, 8, 16, or 32 outputs to suit diverse network sizes and requirements
  • Each unit comes terminated with an SC/APC connector, ensuring high-quality, reliable connections
  • Standard cable length of 1.5 metres, optimised for easy installation and flexibility in configuration

This cutting-edge technology is designed to enhance the efficiency and reliability of fibre optic networks, providing Australian businesses and homes with faster, more reliable internet access. The UFiber splitter is an essential component for any fibre-optic network, offering scalability and performance.

UF-SPLITTER-4 UF-SPLITTER-8 UF-SPLITTER-16 UF-SPLITTER-32
Input (1) SC/APC (1) SC/APC (1) SC/APC (1) SC/APC
Outputs (4) SC/APC (8) SC/APC (16) SC/APC (32) SC/APC
Insertion loss with connectors 7.4 dB 10.5 dB 13.7 dB 17.0 dB
Uniformity loss 0.6 dB 0.8 dB 1.2 dB 1.5 dB
Polarization dependent loss 0.3 dB 0.3 dB 0.3 dB 0.3 dB
Wavelength bandwidth 1260-1650 nm 1260-1650 nm 1260-1650 nm 1260-1650 nm
Return loss (All ports) 50 dB 50 dB 50 dB 50 dB
Directivity 55 dB 55 dB 55 dB 55 dB
Fiber type G657A1 G657A1 G657A1 G657A1
Ambient operating temperature -40 to 85° C (-40 to 185° F) -40 to 85° C (-40 to 185° F) -40 to 85° C (-40 to 185° F) -40 to 85° C (-40 to 185° F)
Total length 4.06 m (13.32') 4.06 m (13.32') 4.06 m (13.32') 4.08 m (13.39')
Weight 58 g (2.0 oz) 62 g (2.2 oz 110 g (3.9 oz) 160 g (5.6 oz)
