UISP Console — Wired

UISP Console — Wired

Regular price $640.00
Regular price $694.00 Sale price $640.00
8% Off | Save $54.00 Sold out
Taxes included. Shipping calculated at checkout.


Low stock

View full details

The UISP host console features an integrated switch and a multi-gigabit Ethernet gateway, designed for robust networking performance.

  • Nine GbE RJ45 ports for comprehensive connectivity options
  • Two 10G SFP+ ports to support high-speed network connections
  • Maximum 8,500 Mbps NAT throughput* for superior data transfer speeds
  • Included external AC/DC adapter ensures reliable power supply
  • Additional Power TransPort input for enhanced DC redundancy
  • Flexible installation options with 1U rack or wall-mountable kits provided

*Up to 2,250 Mbps with QoS enabled; up to 7,500 Mbps with IP Accounting enabled.

Dimensions 210.4 x 140.2 x 43.7 mm (8.3 x 5.5 x 1.7")
Weight 1.5 kg (3.2 lb)
Enclosure materials SGCC steel, polycarbonate
Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz
Memory 4 GB DDR4
Onboard flash storage 16 GB eMMC
Onboard storage 128 GB SSD
Card slot (1) microSD
Networking interface (8) LAN: GbE RJ45 ports
(1) LAN: 1/10G SFP+ port

(1) WAN: GbE RJ45 port
(1) WAN: 1/10G SFP+ port
Management interface Ethernet In-band

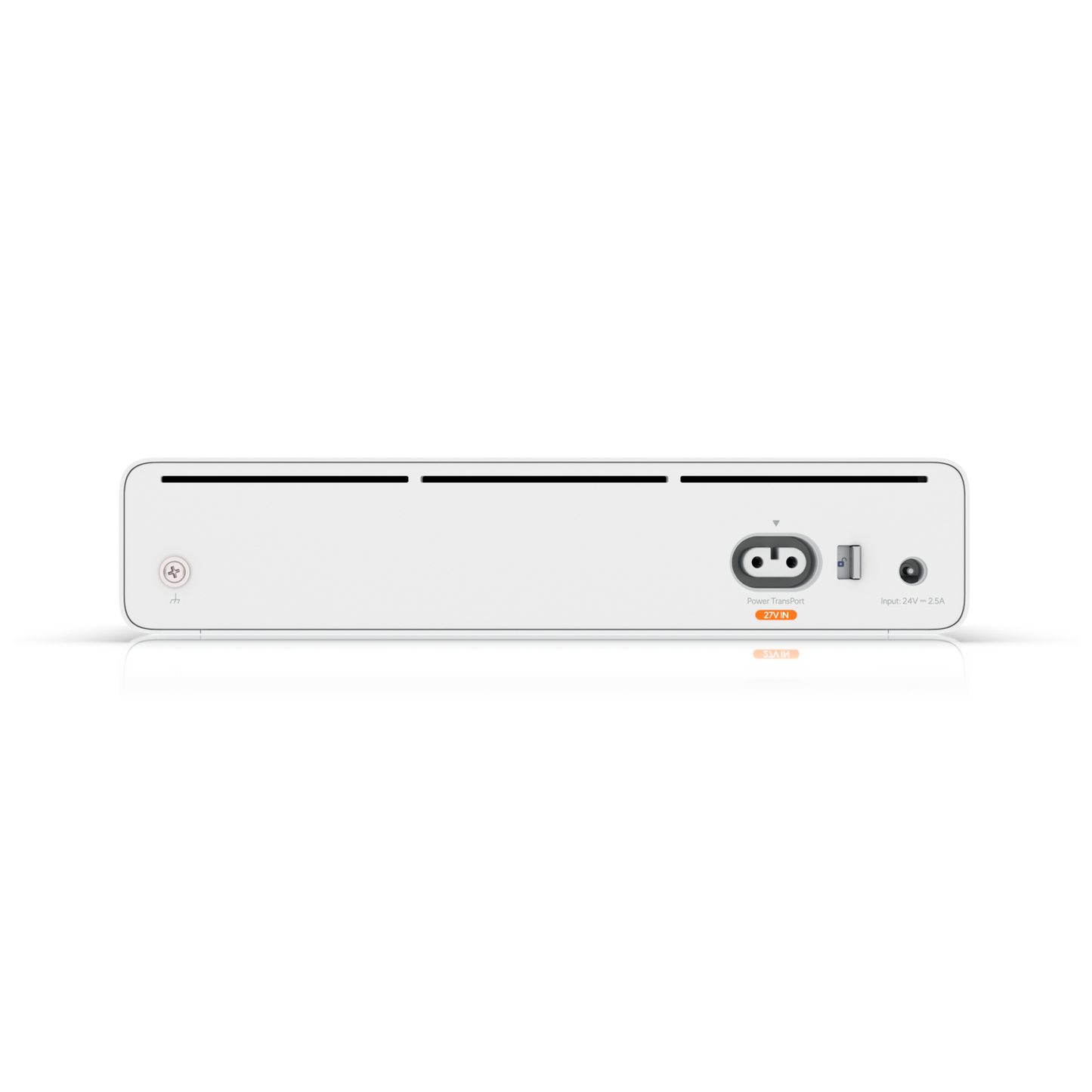

Power method (1) External AC/DC adapter
(1) Power TransPort DC input 27V DC, 1.5A
Power supply 24V DC, 2.5A power adapter (included)
Supported voltage range 24—28V DC
Max. power consumption 30W
ESD/EMP protection Air: ± 15kV, contact: ± 8kV
Ambient operating temperature -10 to 50° C (14 to 122° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
System Status
RJ45 data ports Speed/link/activity
SFP+ data ports Speed/link/activity
