UISP Fiber OLT XGS — UISP XGS-PON

UISP Fiber OLT XGS — UISP XGS-PON

Regular price $5,610.00
Regular price $7,034.00 Sale price $5,610.00
20% Off | Save $1,424.00 Sold out
Taxes included. Shipping calculated at checkout.

SKU:UISP-FIBER-OLT-XGS

In stock

View full details

Introducing the eight-port Ubiquiti UISP Fiber OLT XGS, engineered to provide exceptional 10 Gbps uplink and downlink speeds to more than 2,000 subscribers.

  • XGS-PON technology enables 10 Gbps bi-directional capacity
  • Supports up to 2048 clients across 8 ports
  • Equipped with four 25G SFP28 uplink ports
  • Compact 1U rack-mount design
  • Dual AC/DC power modules for enhanced redundancy
Mechanical
Dimensions 442.4 x 285.6 x 43.7 mm (17.4 x 11.2 x 1.7")
Weight 5.29 kg (11.7 lb)
Enclosure material SGCC steel
Hardware

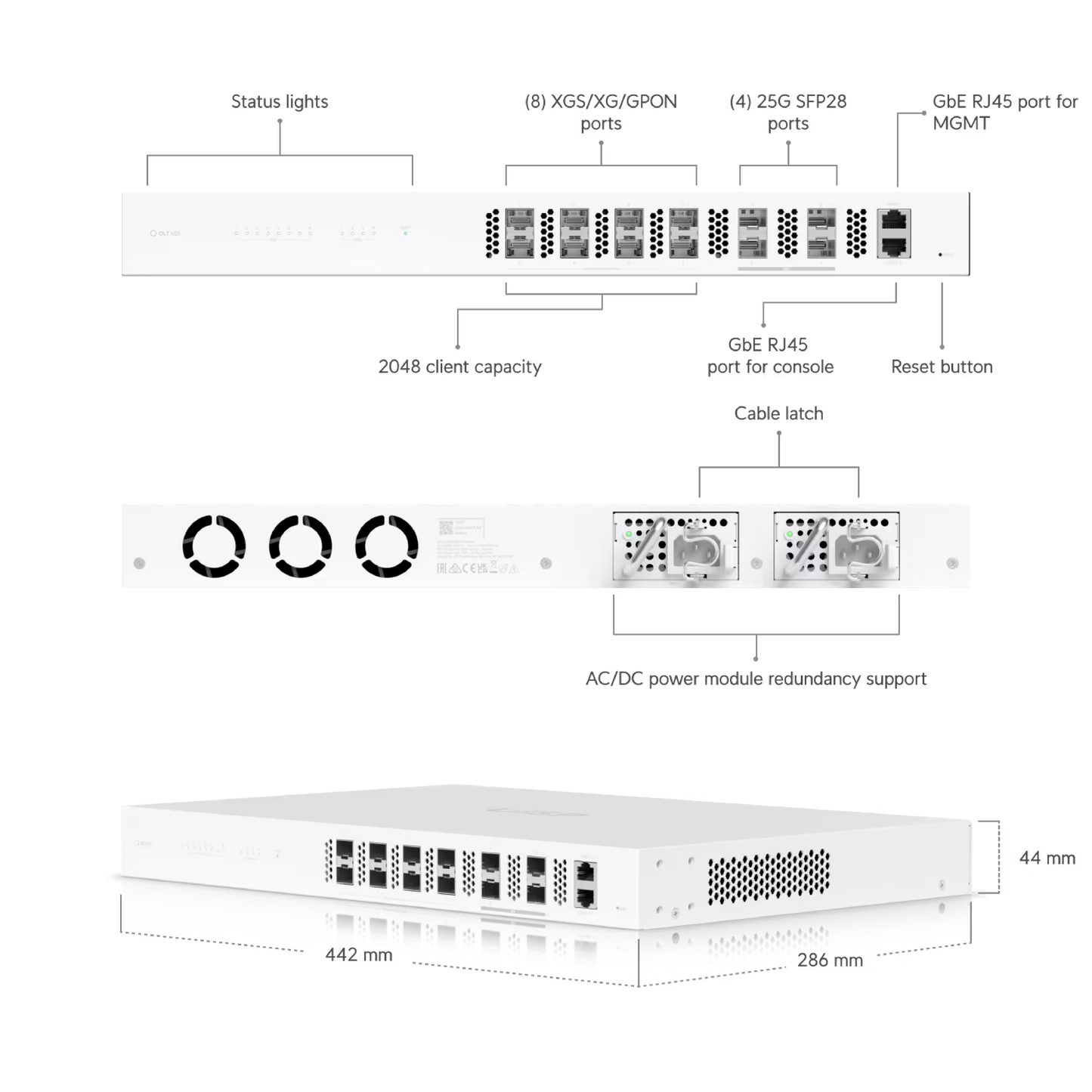

Networking interface (8) XGS/XG/GPON ports
(4) 1/10/25G SFP28 ports*
*The four SFP28 ports don't support mixed speed at 25 Gbps mode. Once one of the SFP28 ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. The SFP28 ports only support mixed speed when all ports are at 1 Gbps or 10 Gbps.
Management interface Ethernet out-of-band
Ethernet in-band
RJ45 serial console port
Bluetooth
Memory 512 MB DDR3
Onboard flash storage 64 MB NOR + 512 MB NAND
Power method (1) Universal AC input, 100-240V AC, 50/60 Hz
Power supply (2) Hotswap AC/DC PSU
Supported voltage range 100–240V AC
Max. power consumption 70W
Button (1) Factory reset
Ambient operating temperature -10 to 45° C (14 to 113° F)
Ambient operating humidity 10 to 95% non-condensing
Certifications CE, FCC, IC
LEDs
System Slow blinking white: system is booting
Fast blinking white: reset to default
Blinking white/blue: system is upgrading
Slow blinking blue: system is connecting to UISP
Fast blinking blue: locate system
Steady white: system is ready
Steady blue: system is ready and connected to UISP
MGMT port (1) White, steady on after link is up
PON ports (8) Steady white: PON link
SFP28 ports (4) White, steady on after link is up
