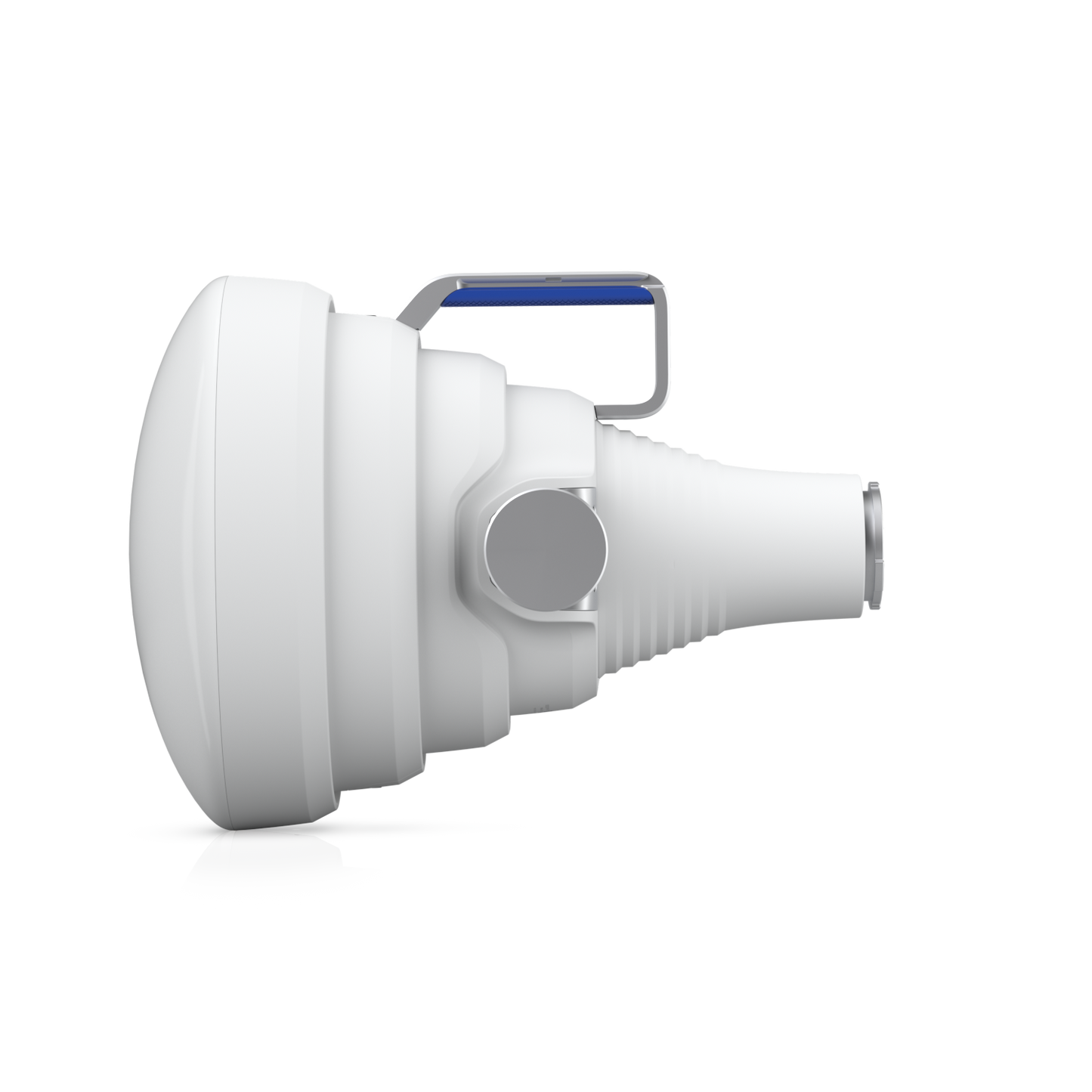

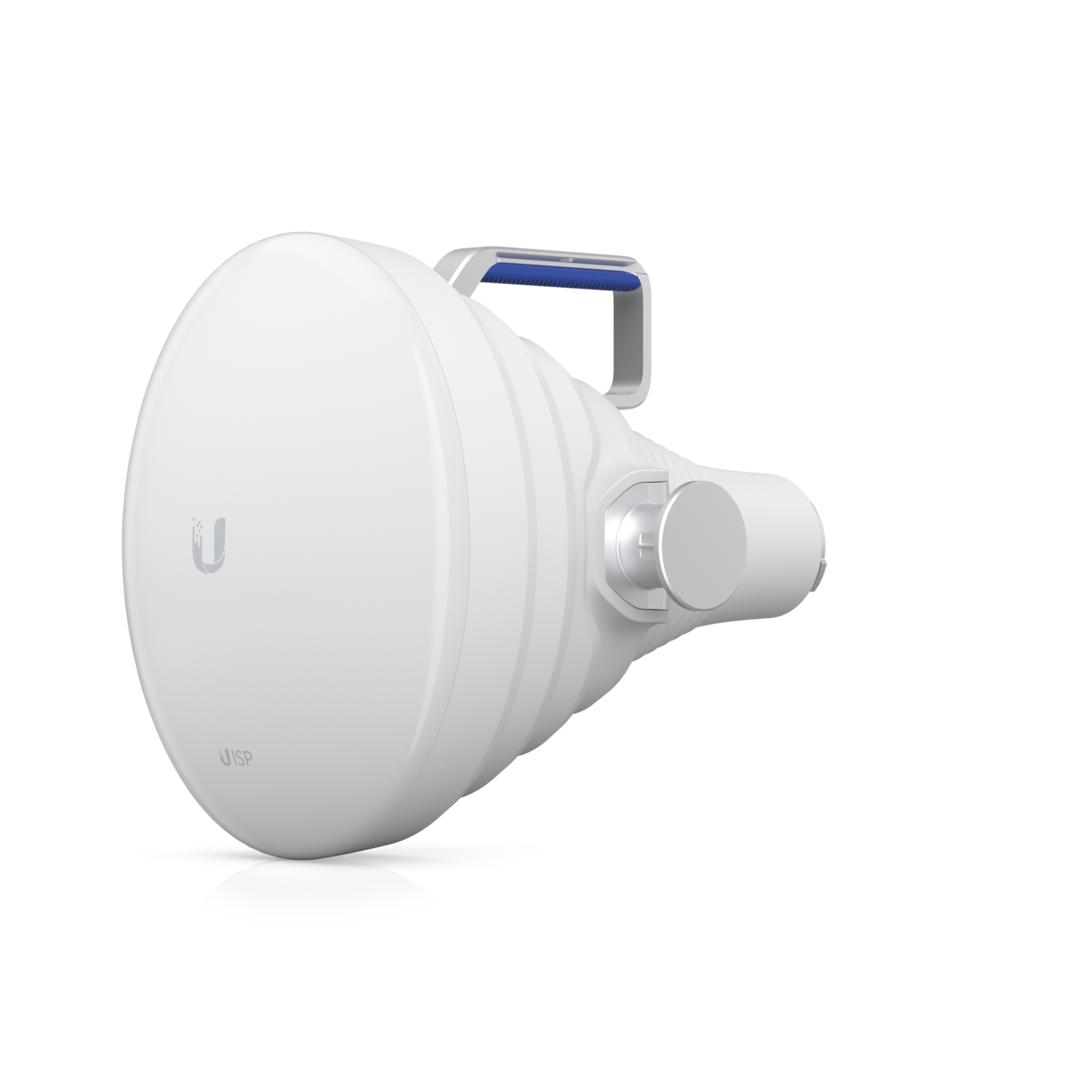

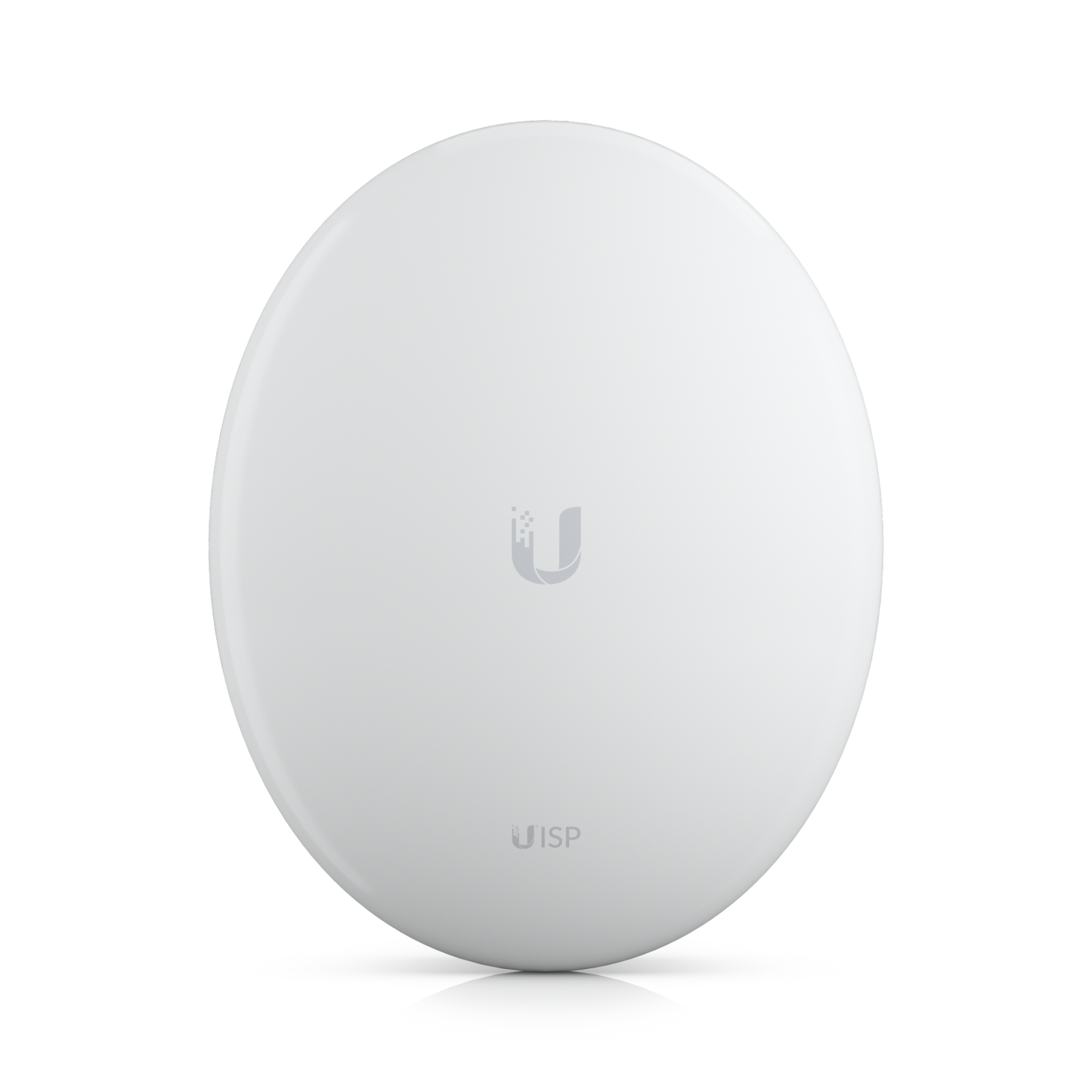

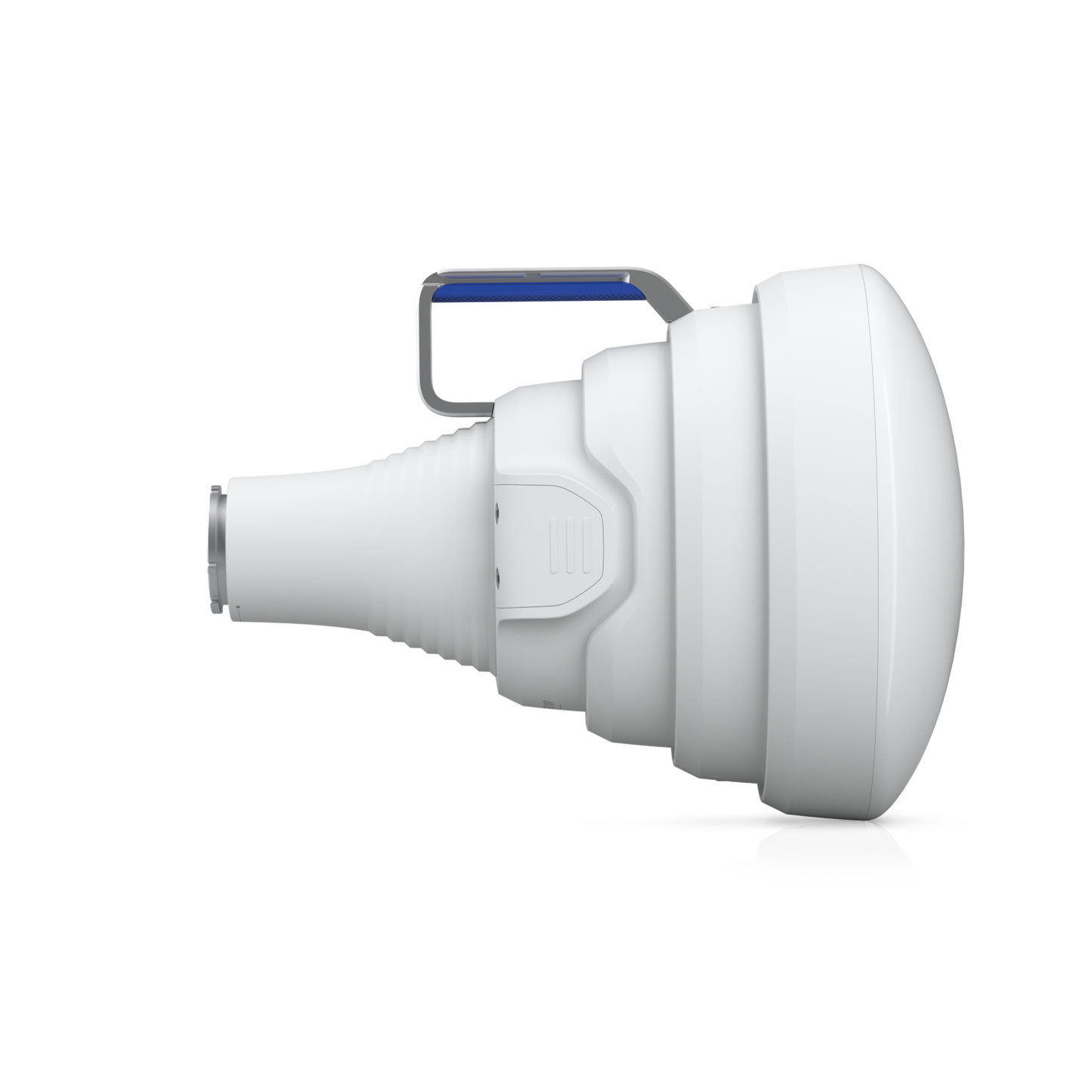

High-isolation, point-to-multipoint (PtMP) horn antenna covering a broad operating frequency range (5.15 - 6.875 GHz).

  • High-isolation 30° horn antenna with an extensive operating frequency range (5.15 - 6.875 GHz).
  • 15+ km PtMP link range.
  • Die-cast, UV-stabilised polycarbonate enclosure for superior durability and weather resistance.

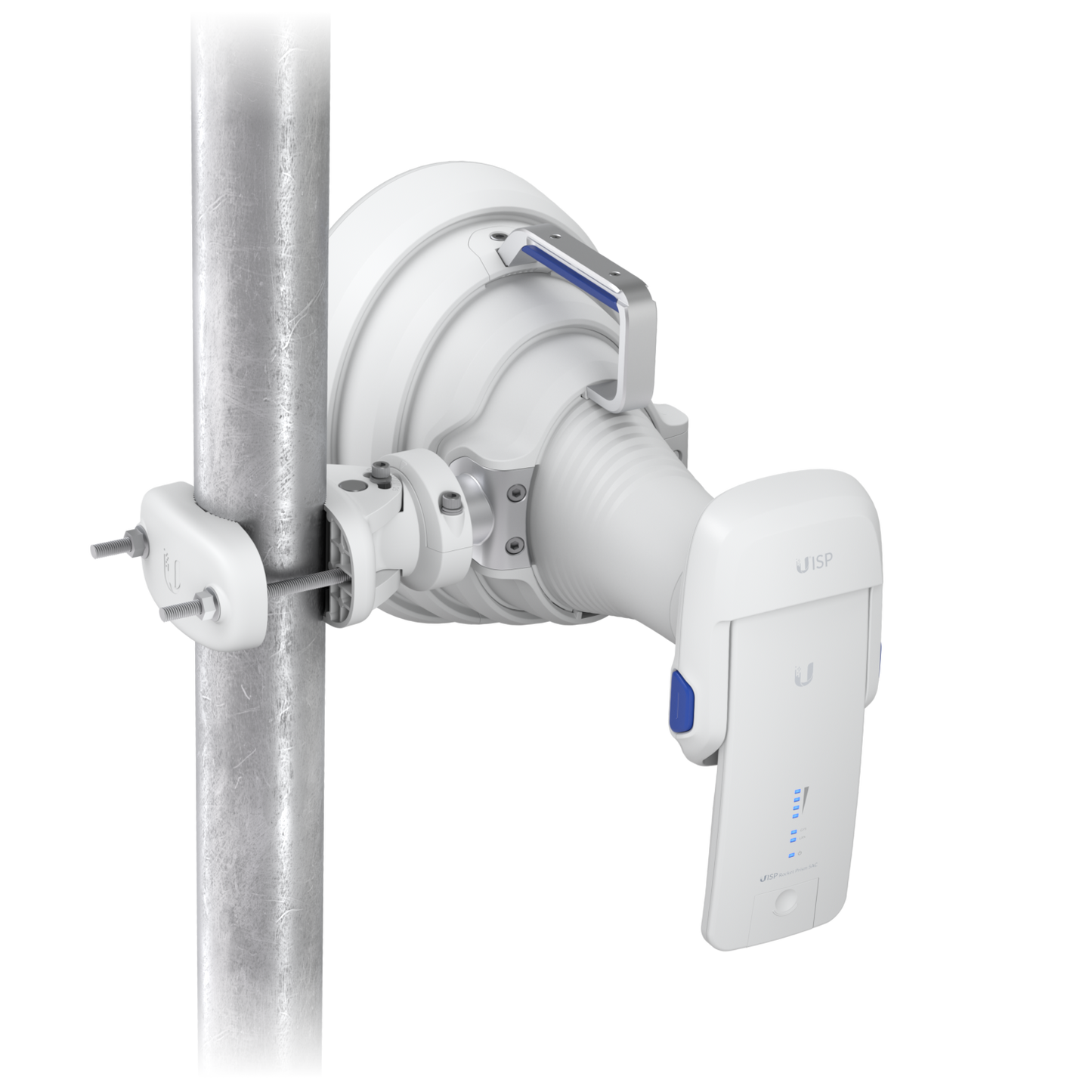

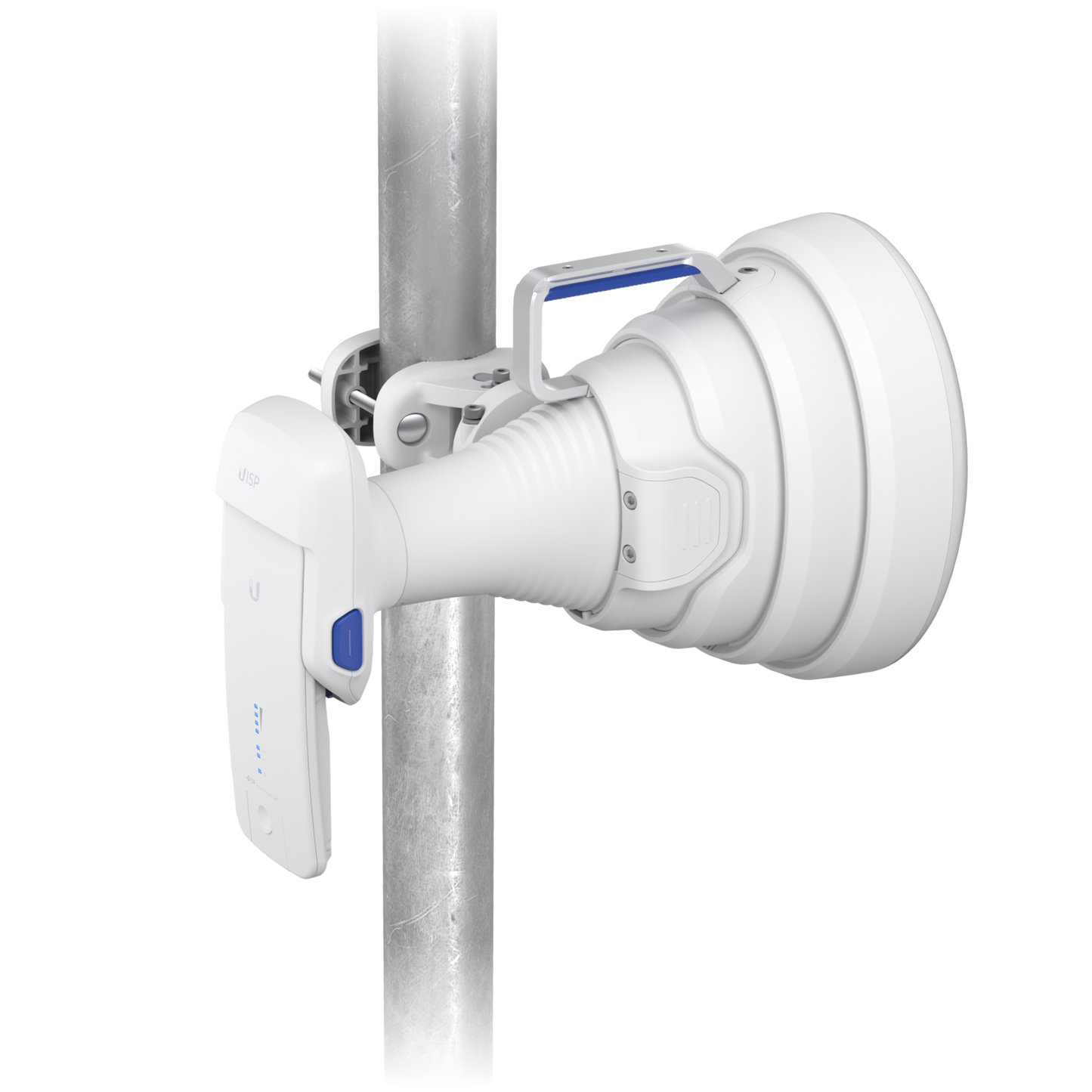

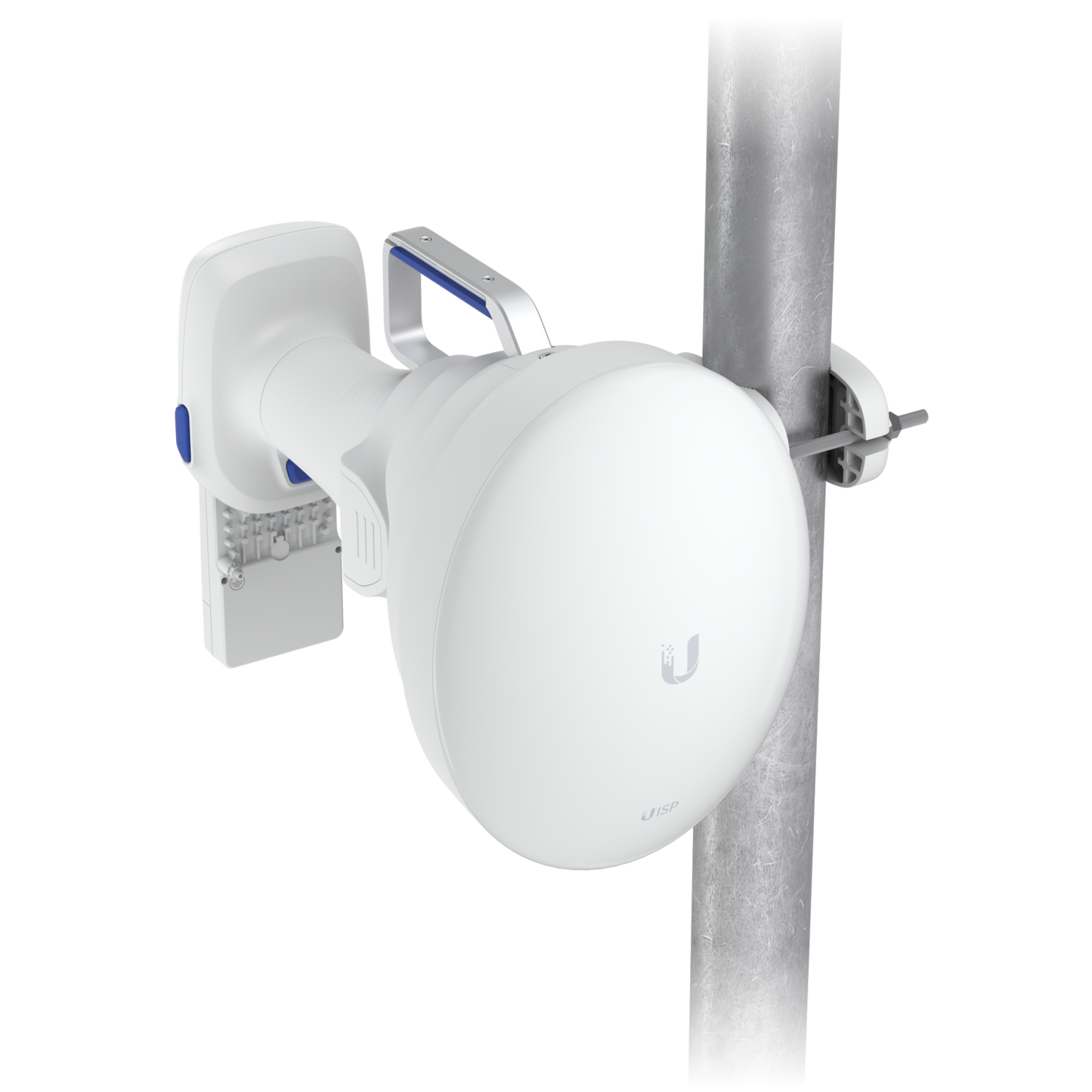

  • Pole-mountable antenna featuring a metal carrying handle.

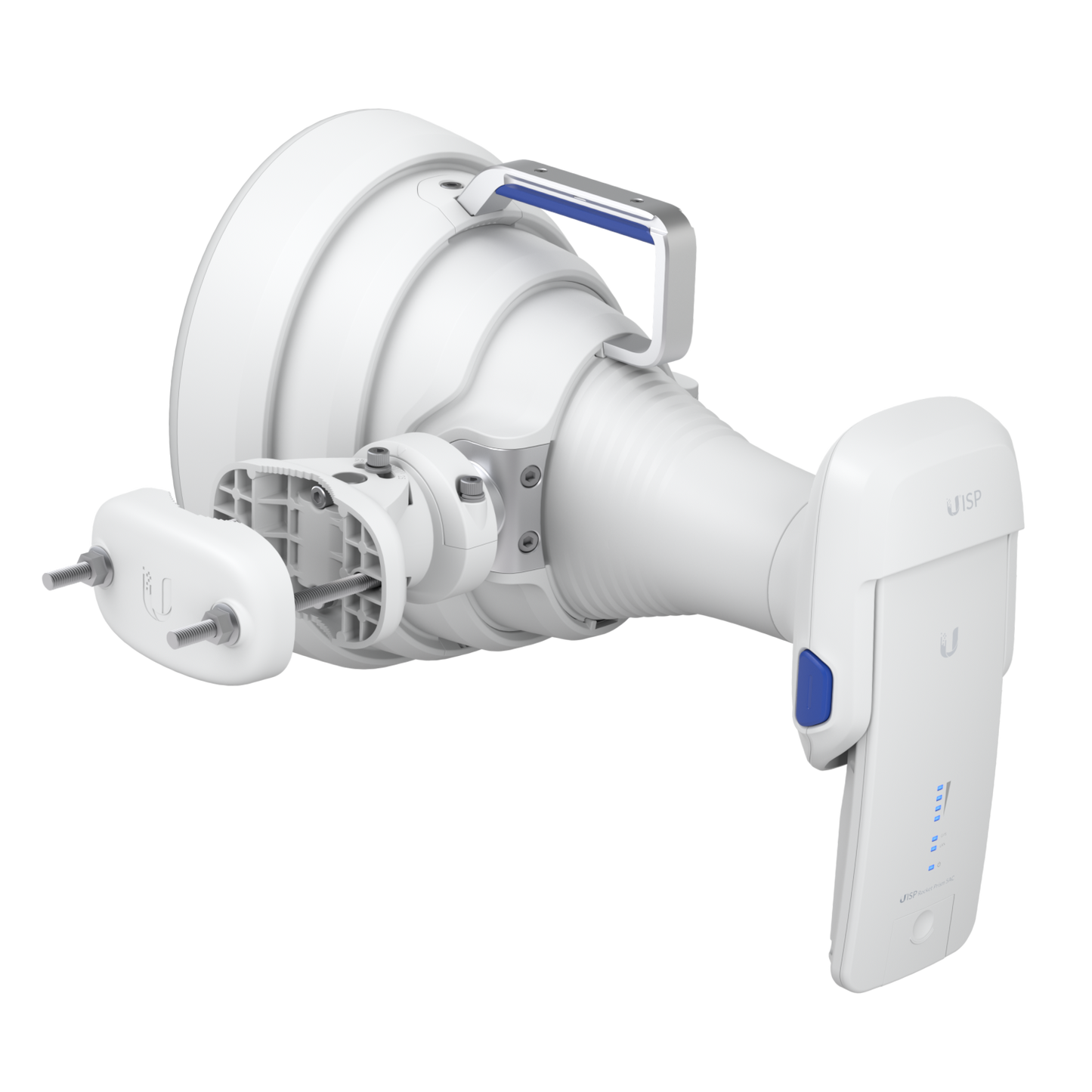

Compatible with AF 5XHD, RP 5AC, LTU Rocket.

Mechanical

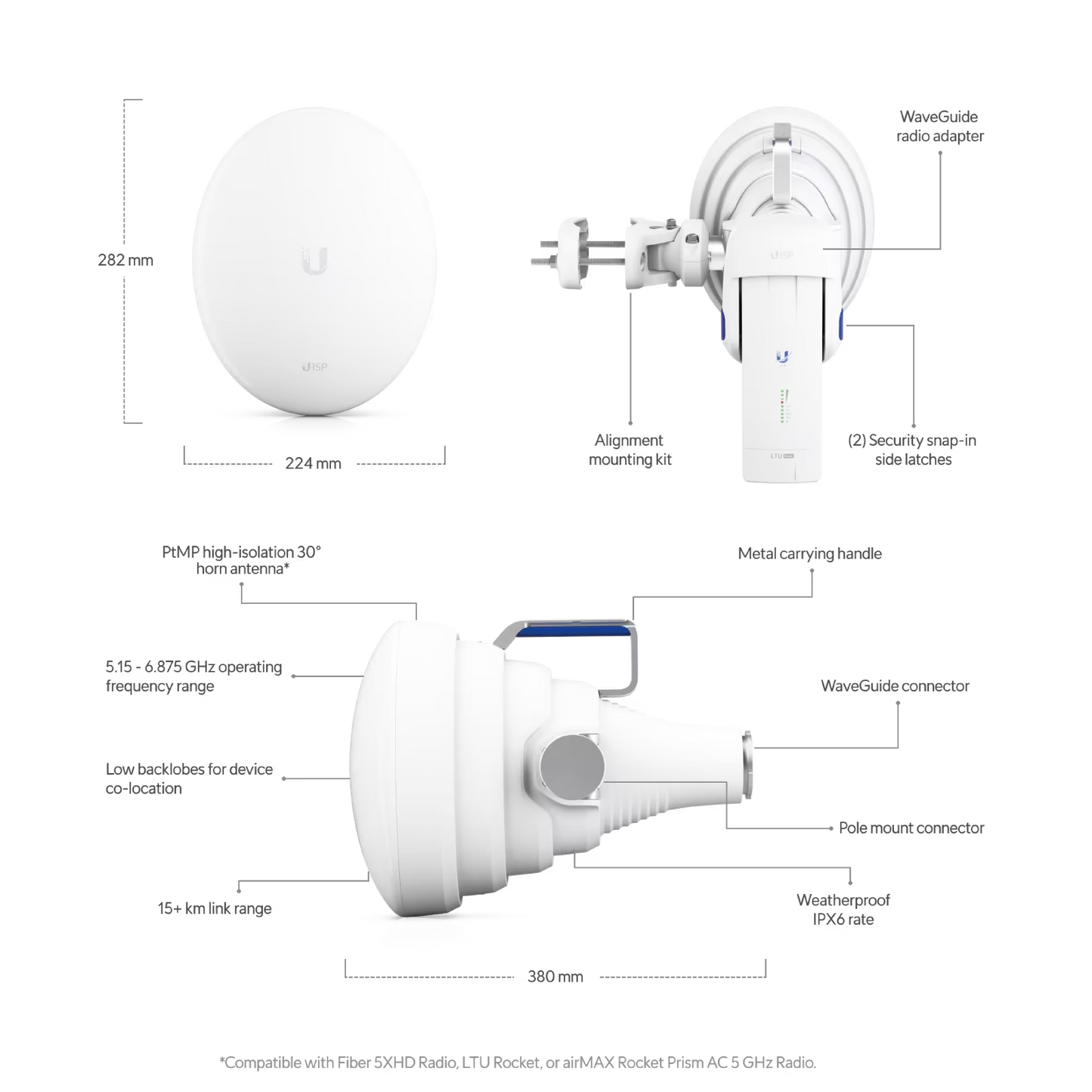

Dimensions 282 x 224 x 380 mm (11.1 x 8.8 x 15")
Weight Device: 3.06 kg (6.75 lb)
Mount: 925 g (2.04 lb)
Enclosure materials UV stabilized polycarbonate, aluminum alloy
Wind survivability Up to 200 km/h (124 mph)
Wind loading 90 N at 200 km/h
Mounting Alignment mounting kit (included)
Mechanical adjustment: ±20° elevation, ±25° azimuth
Pole compatibility: Ø25 to 70 mm (Ø1 to 3")
Weatherproofing IPX6
Hardware
Frequency range 5.15 to 6.875 GHz
Gain 19.5 dBi
Beamwidth Azimuth: 30° (6 dB)
Elevation: 25° (6 dB)
Electrical downtilt
Maximum VSWR 2:1
Polarization Dual-linear
Cross-pol isolation 20 dB
Front-to-back ratio Typical: 45 to 50 dB
Min.: 40 dB

Visit Ubiquiti for more information.
