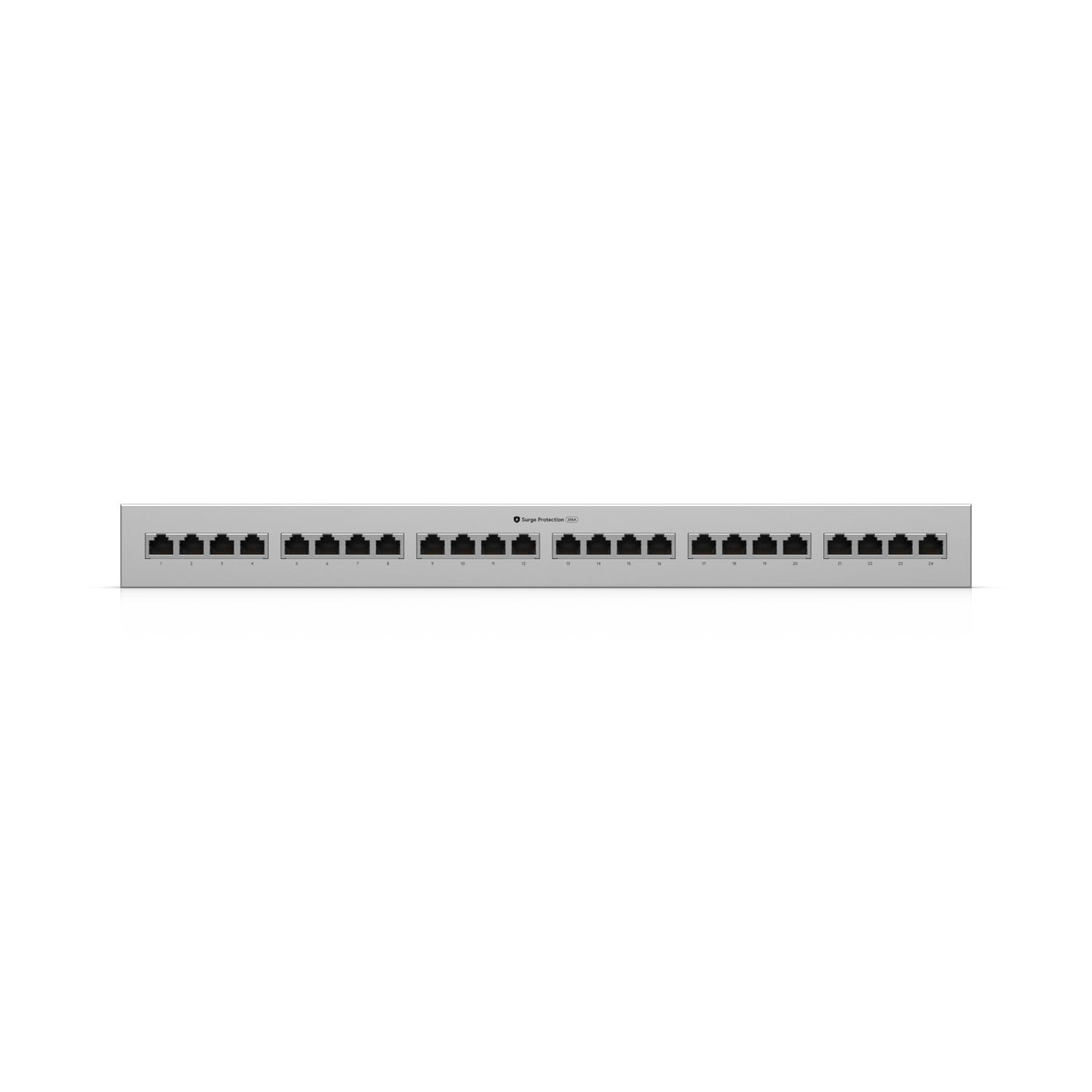

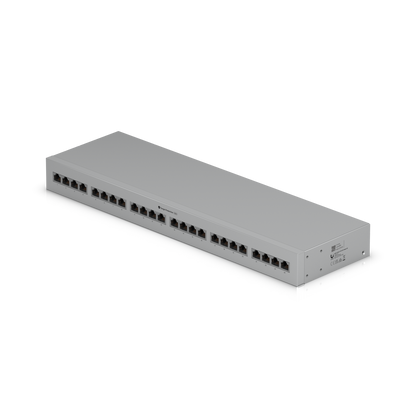

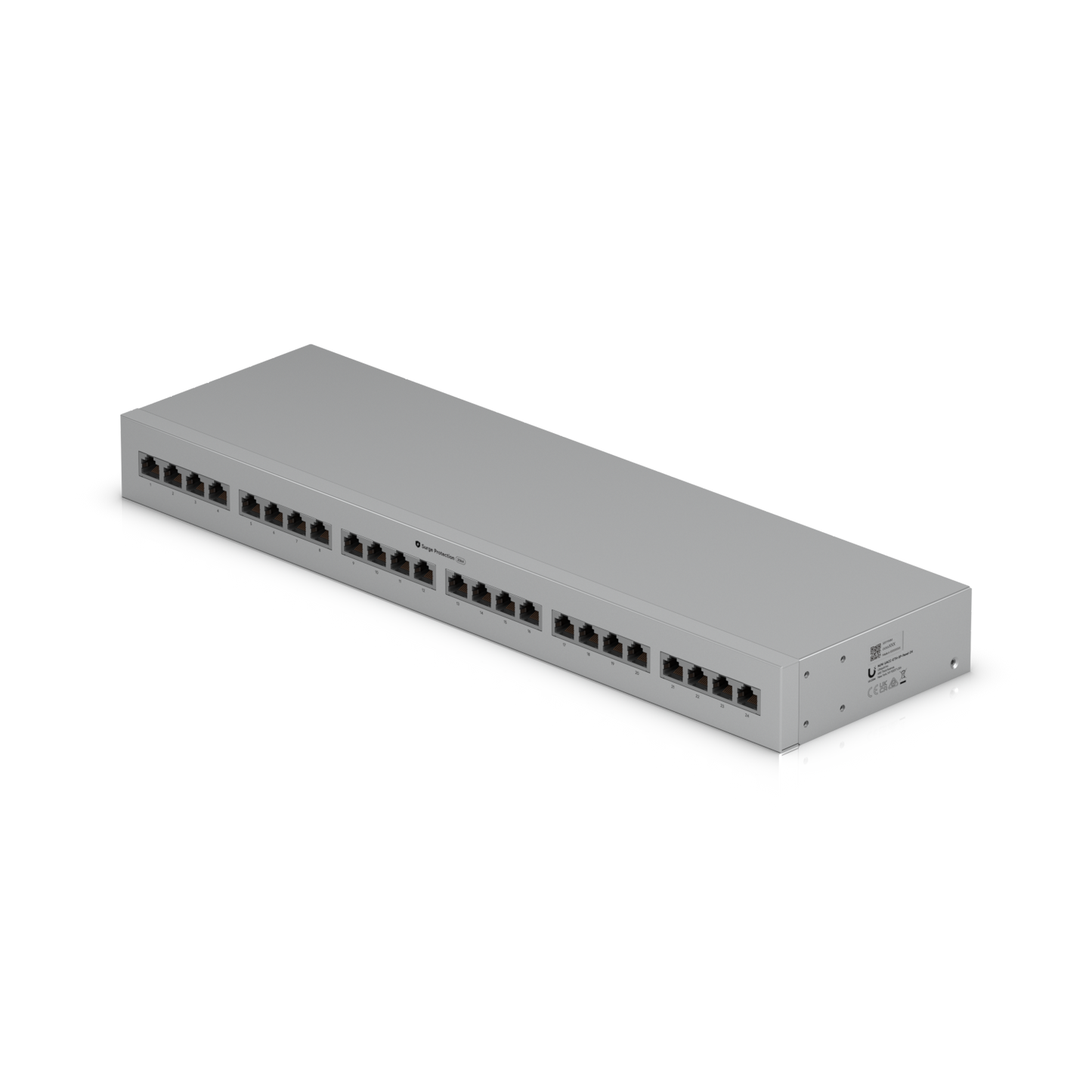

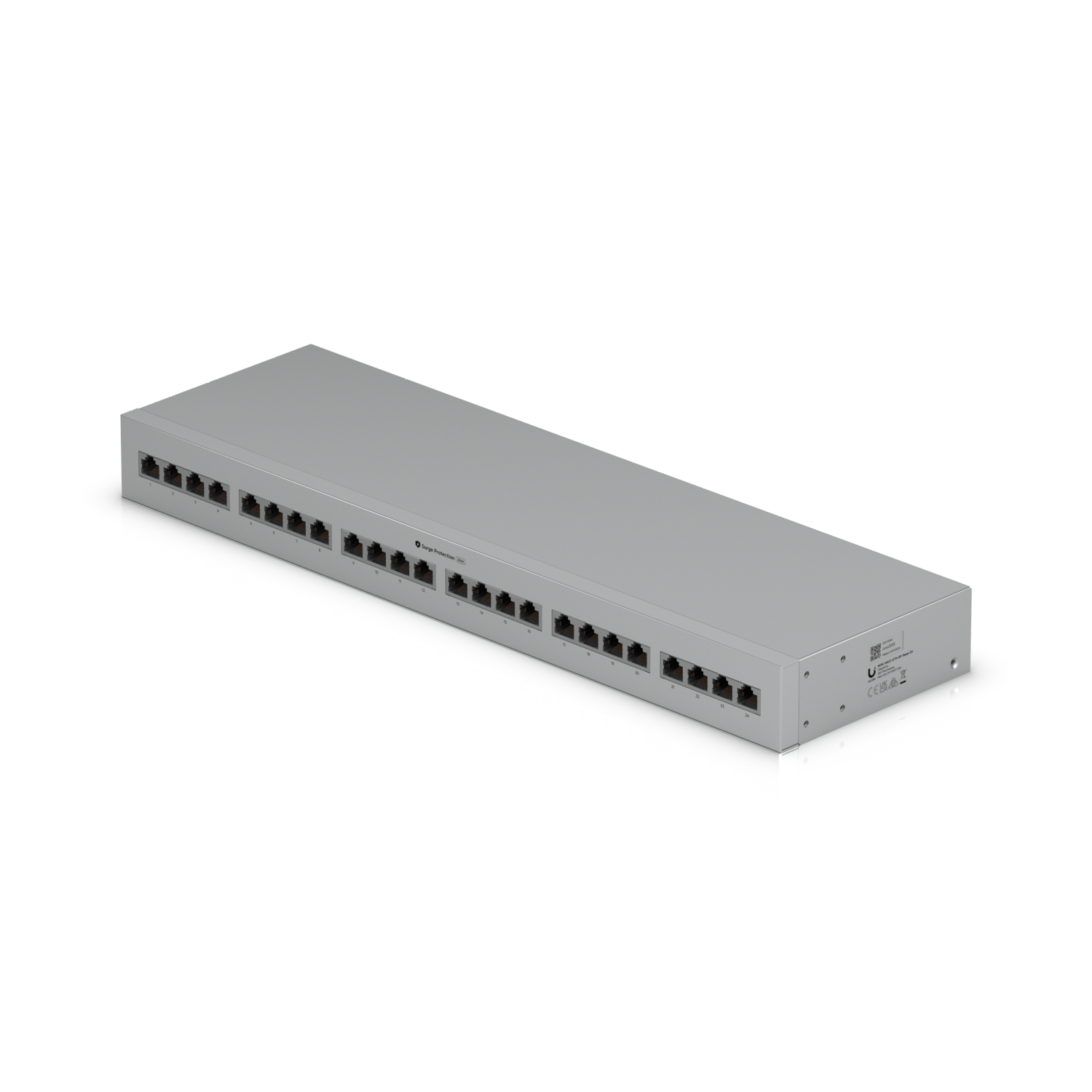

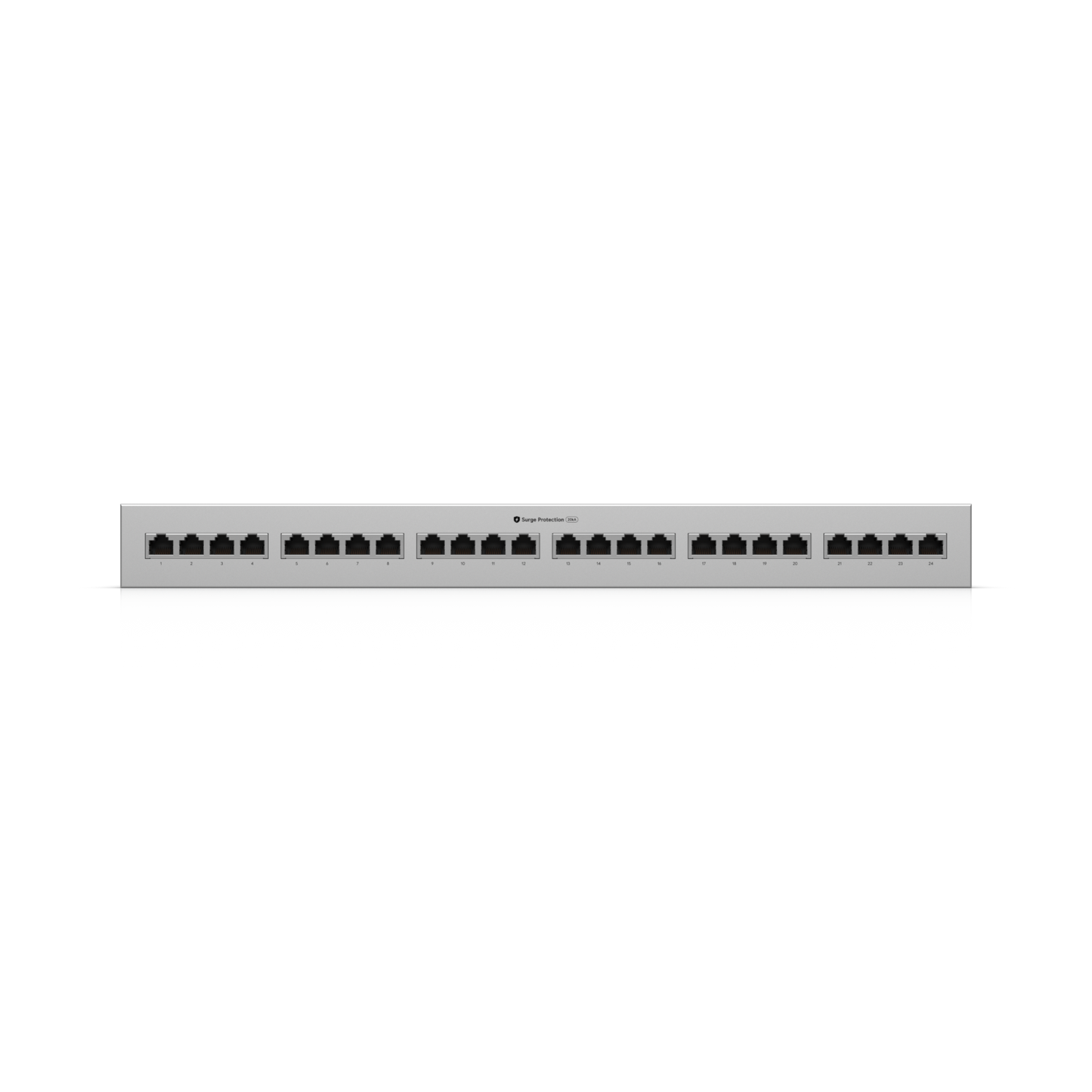

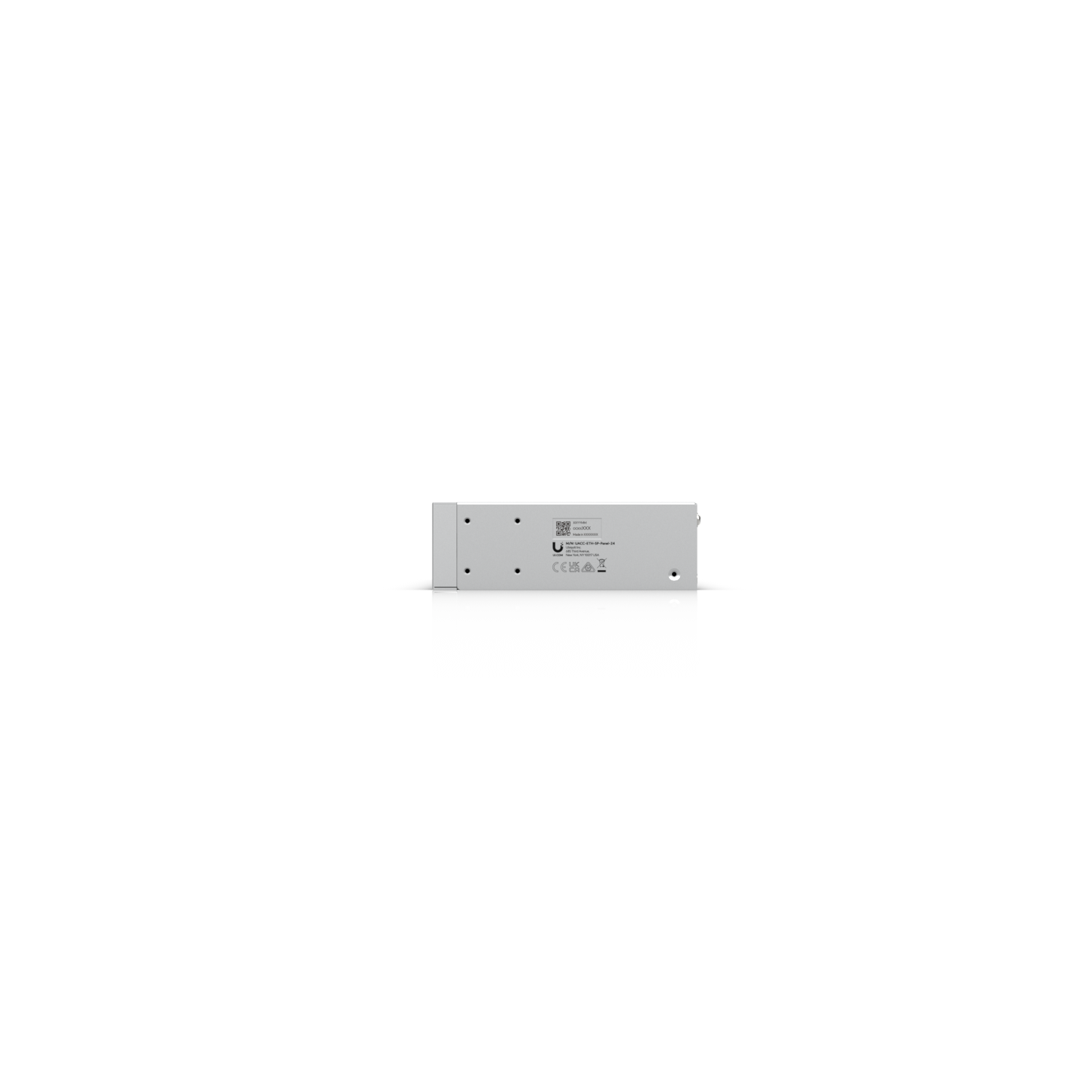

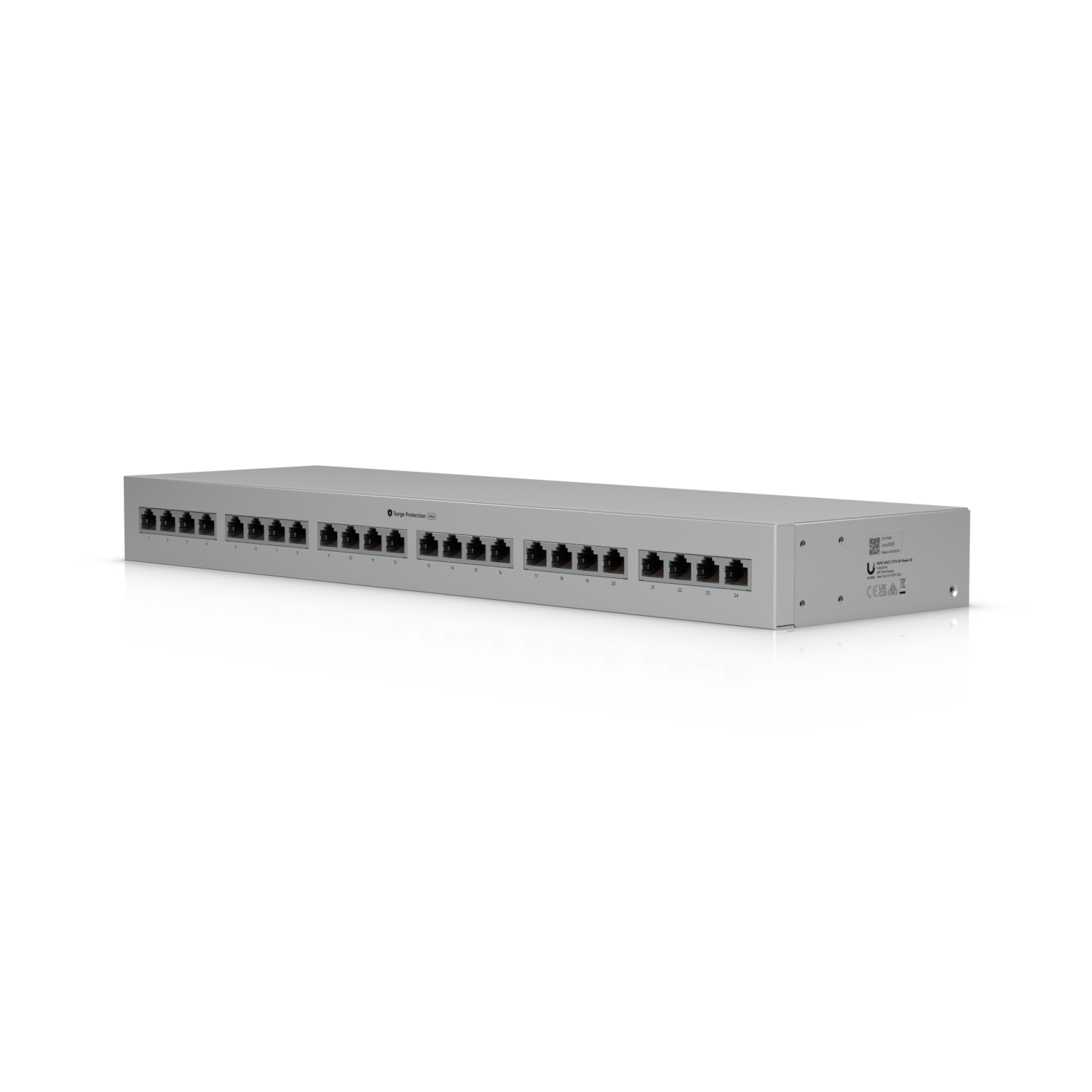

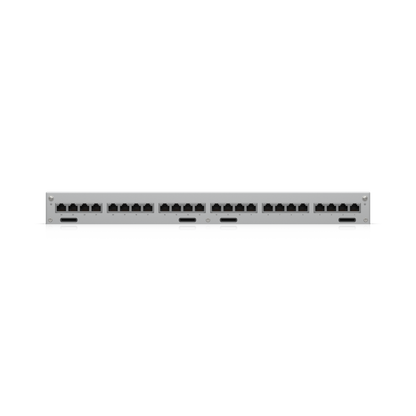

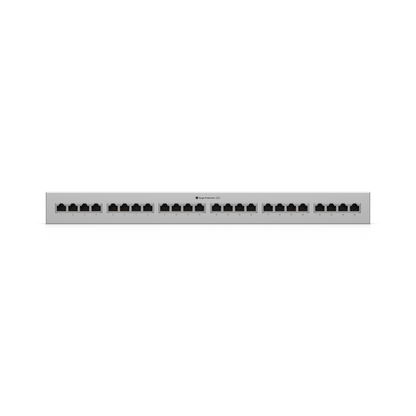

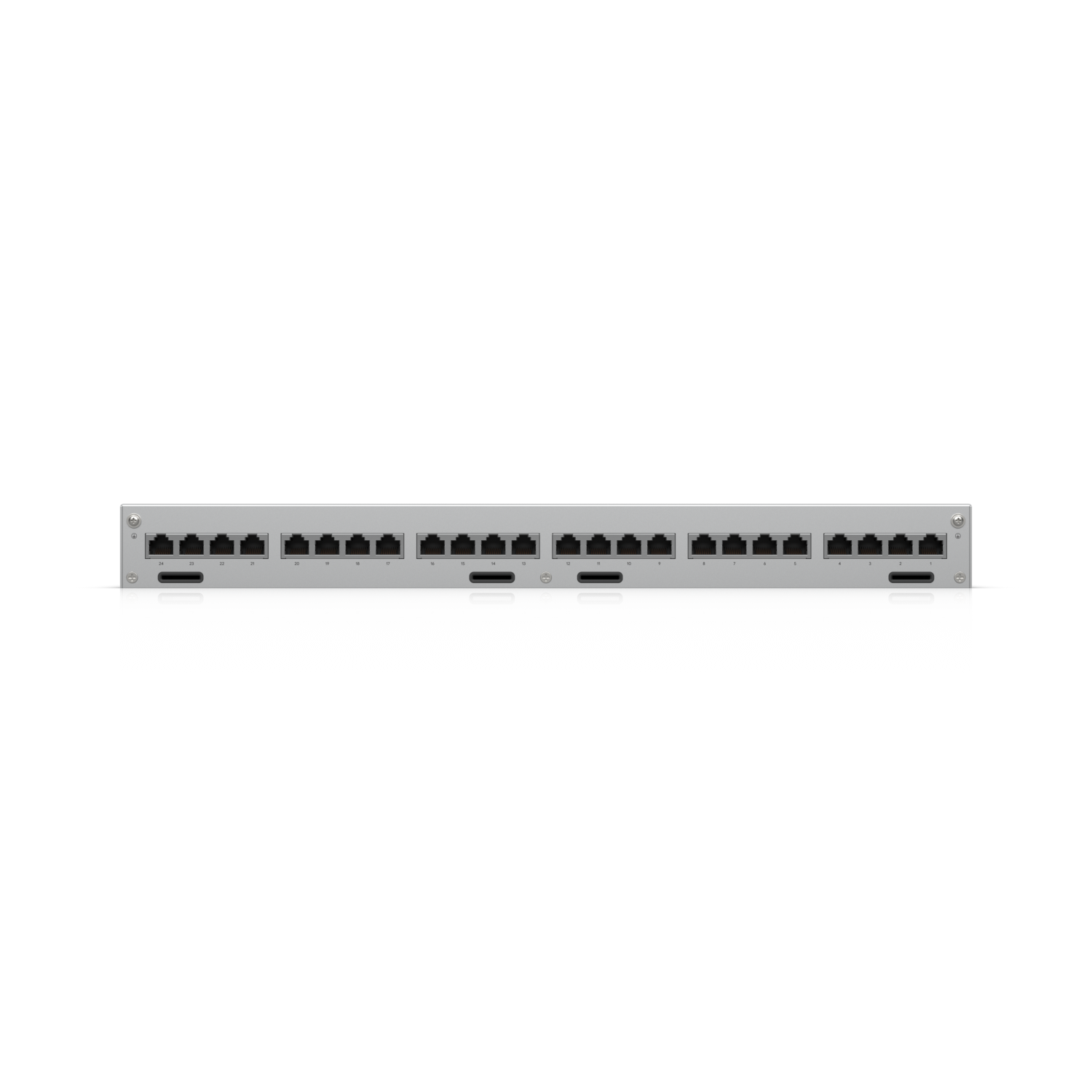

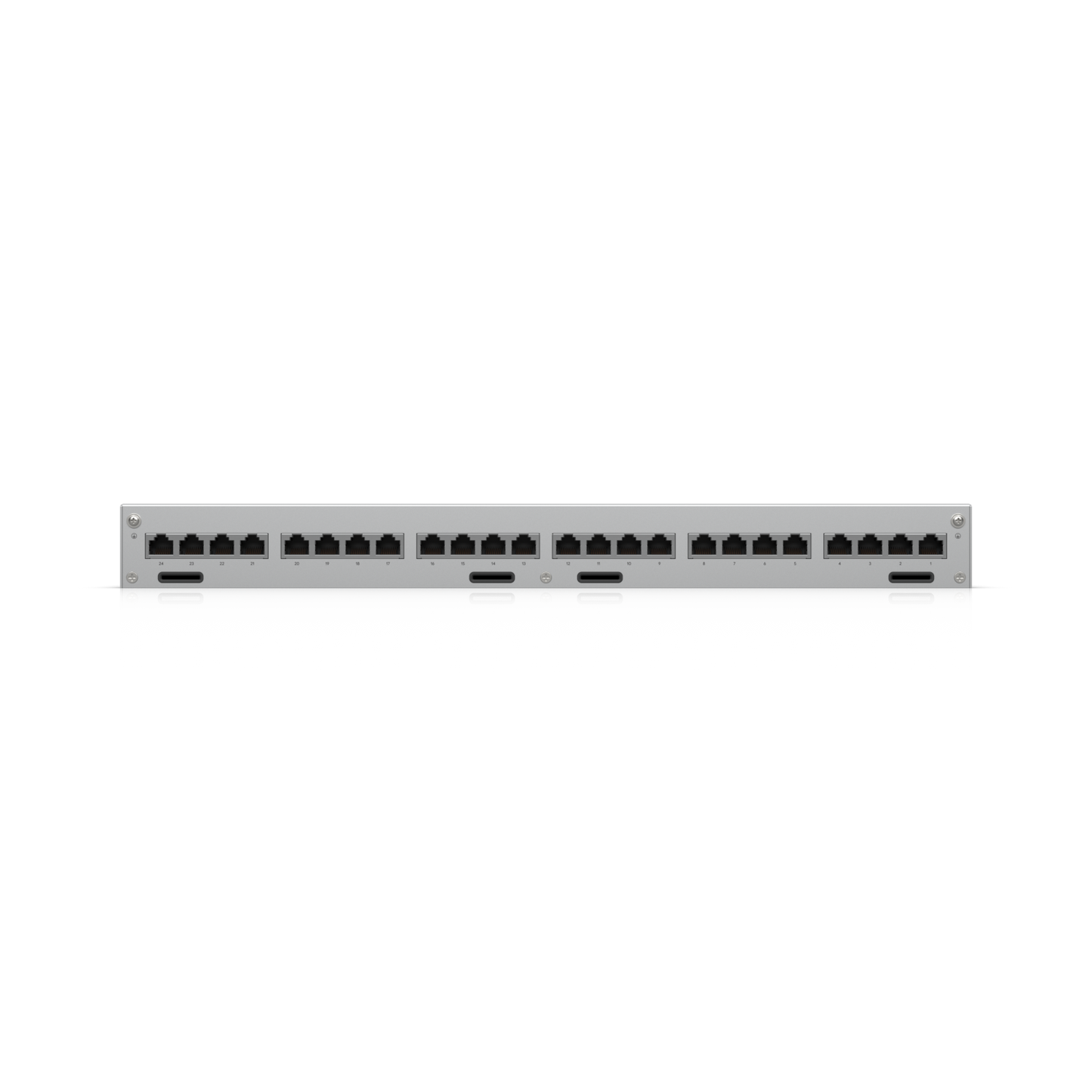

UniFi 24-Port Ethernet Surge Protection
UniFi 24-Port Ethernet Surge Protection
SKU:UACC-ETH-SP-Panel-24
Regular price
$761.00
Regular price
$809.00
Sale price
$761.00
Taxes included.
Sale Live Now. Limited promotional stock available — don’t miss out!
50 in stock and ready to ship
Quantity
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Found it cheaper elsewhere? Let us know
Buying for your business? Earn Store Credits
Rack-mount indoor panel supports up to 10 GbE, PoE++, and 20kA surge discharge per port.
- 24-port integrated.
- 1U rack-mount design.
Customer Satisfaction
Check out some recent reviews and customer experiences shared on Trustpilot
Specification
| Mechanical | |
|---|---|
| Dimensions | 442.4 x 134 x 43.7 mm (17.4 x 5.3 x 1.7″) |
| Weight | 2 kg (4.4 lb) |
| Enclosure Material | SGCC steel |
| Hardware | |
| Networking Interface | (48) RJ45 female connectors |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max. Impulse Spark-Over Voltage | 600V @ 1kV/µs |
| Discharge Current | 20kA |
| Insulation | Max. Resistance: 1G ohm @ 50V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | Up to 10 Gbps |
| PoE Support | ✓ |
| ESD/EMP Protection | Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs |
| Ambient Operating Temperature | -40° to +80° C (-40° to 176° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
