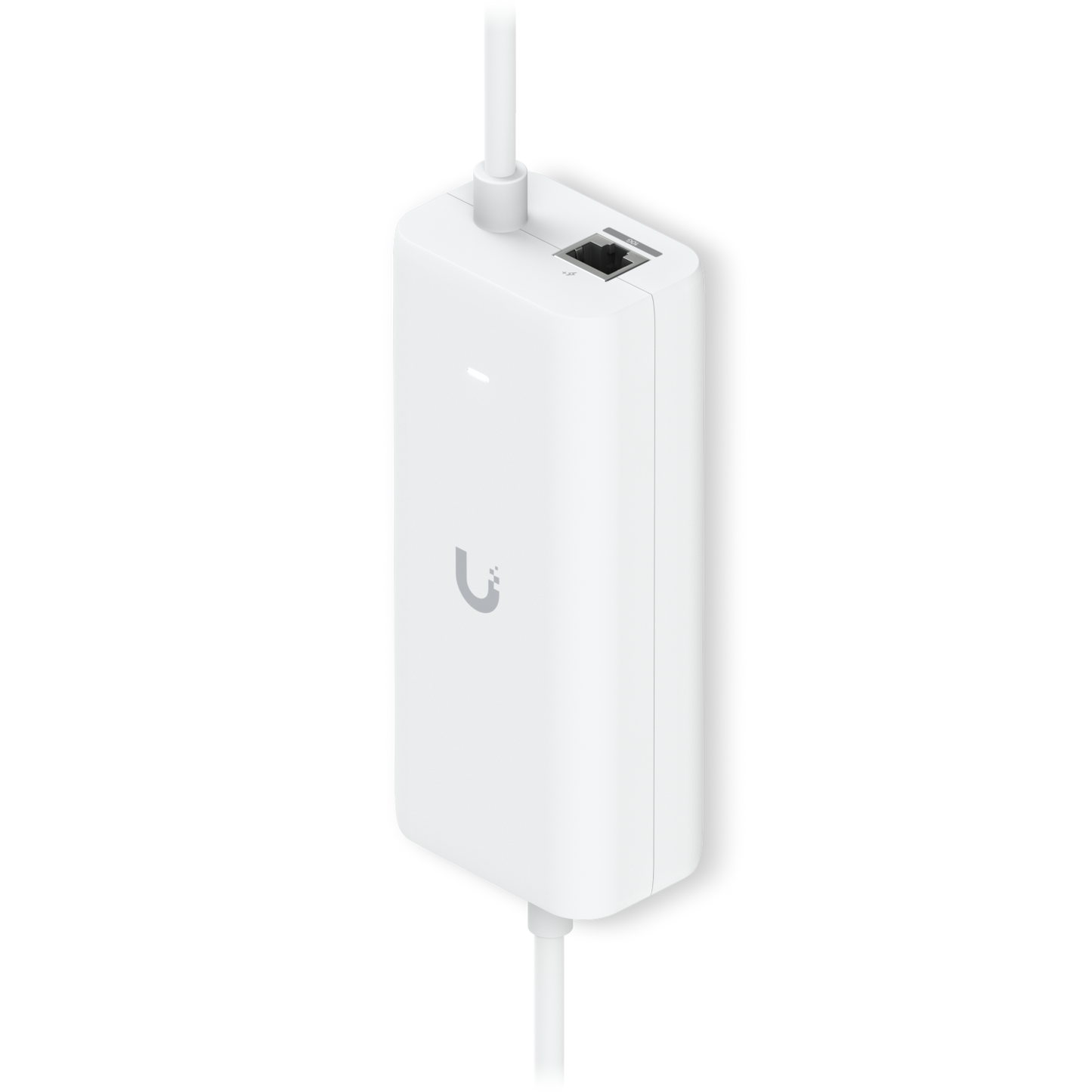

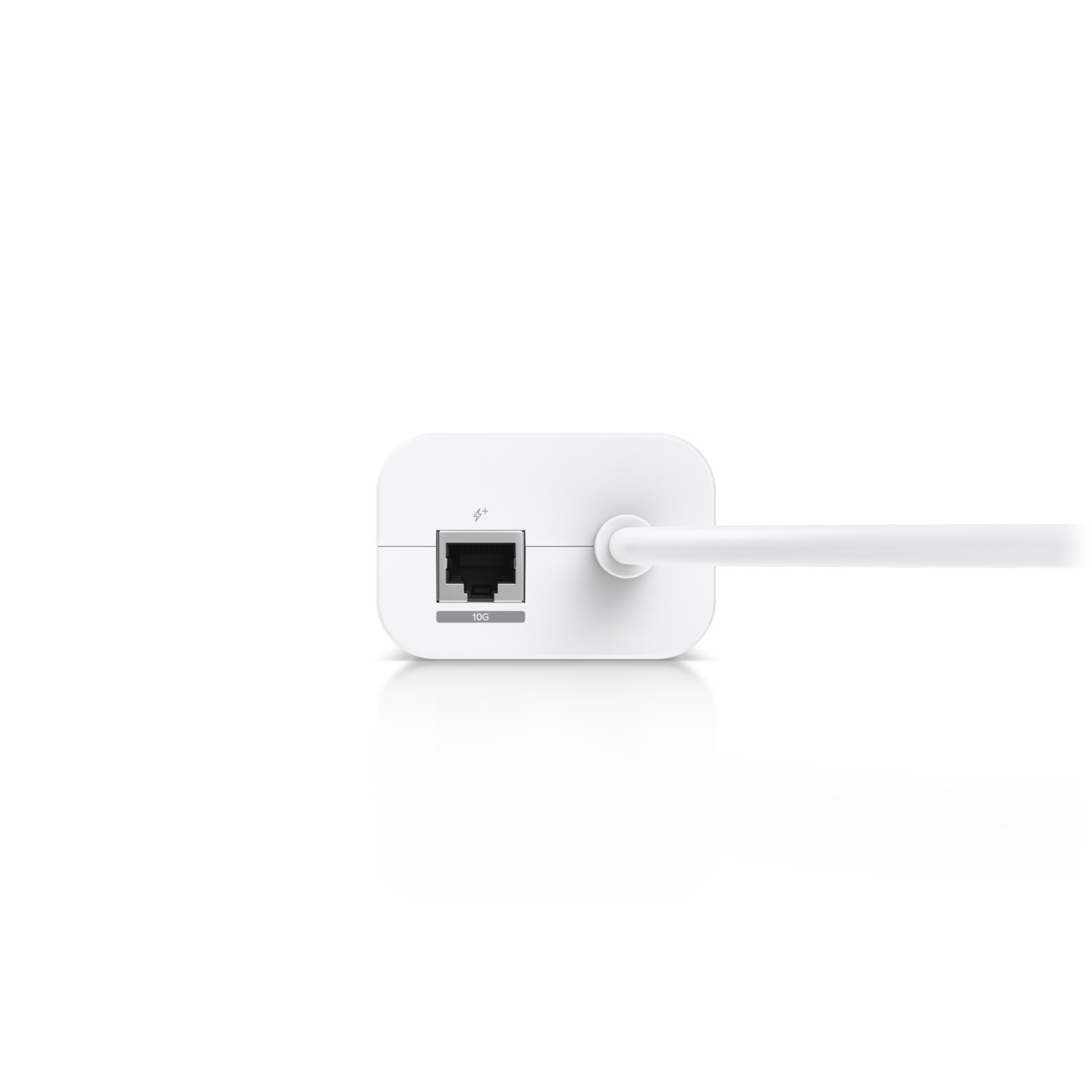

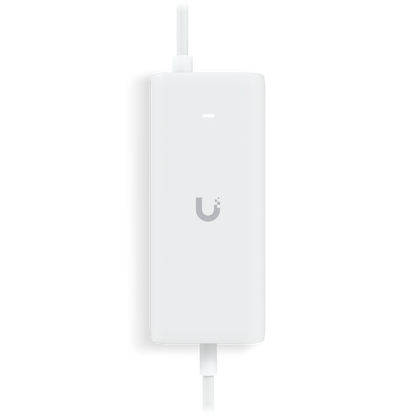

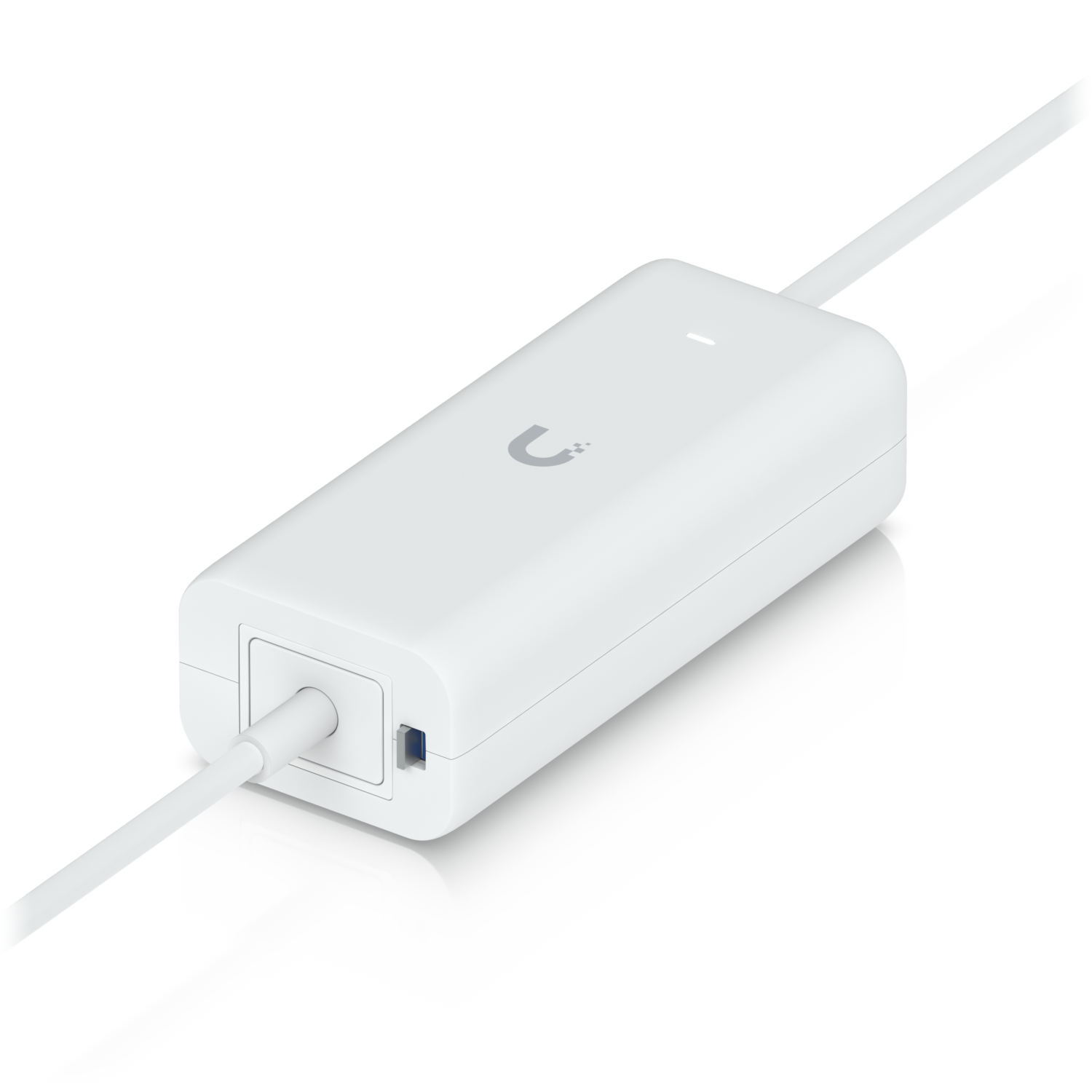

UniFi PoE Integrated AC Adapter
Ubiquiti UACC-PoE+-USBC UniFi PoE Integrated AC Adapter
SKU:UACC-PoE+-USBC
Regular price
$92.00
Regular price
$99.00
Sale price
$92.00
Unit price
per
Taxes included.
EOFY Sale. Limited promotional stock available — don’t miss out!
49 in stock and ready to ship today.
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Found it cheaper elsewhere? Let us know
Buying for your business? Earn Store Credits

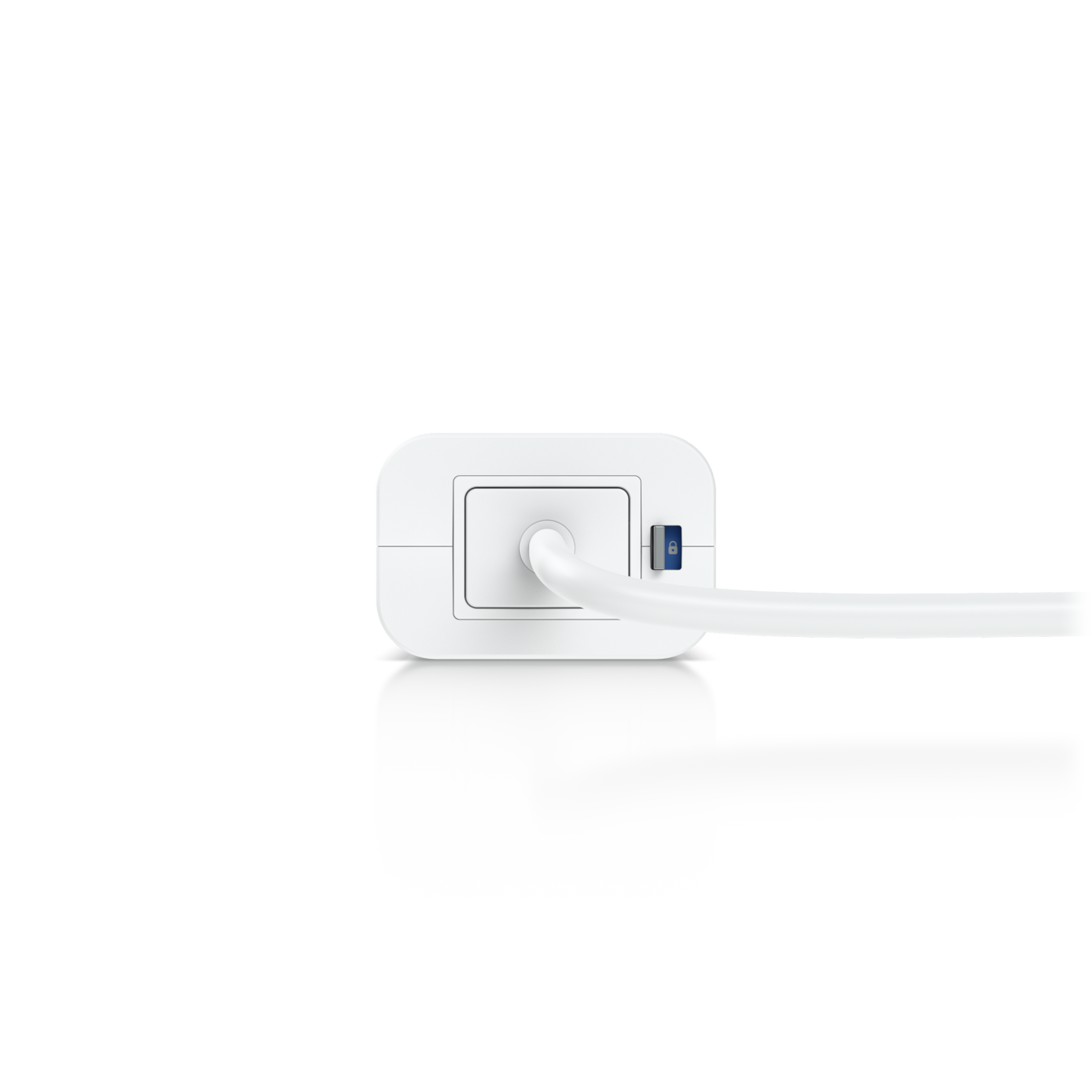

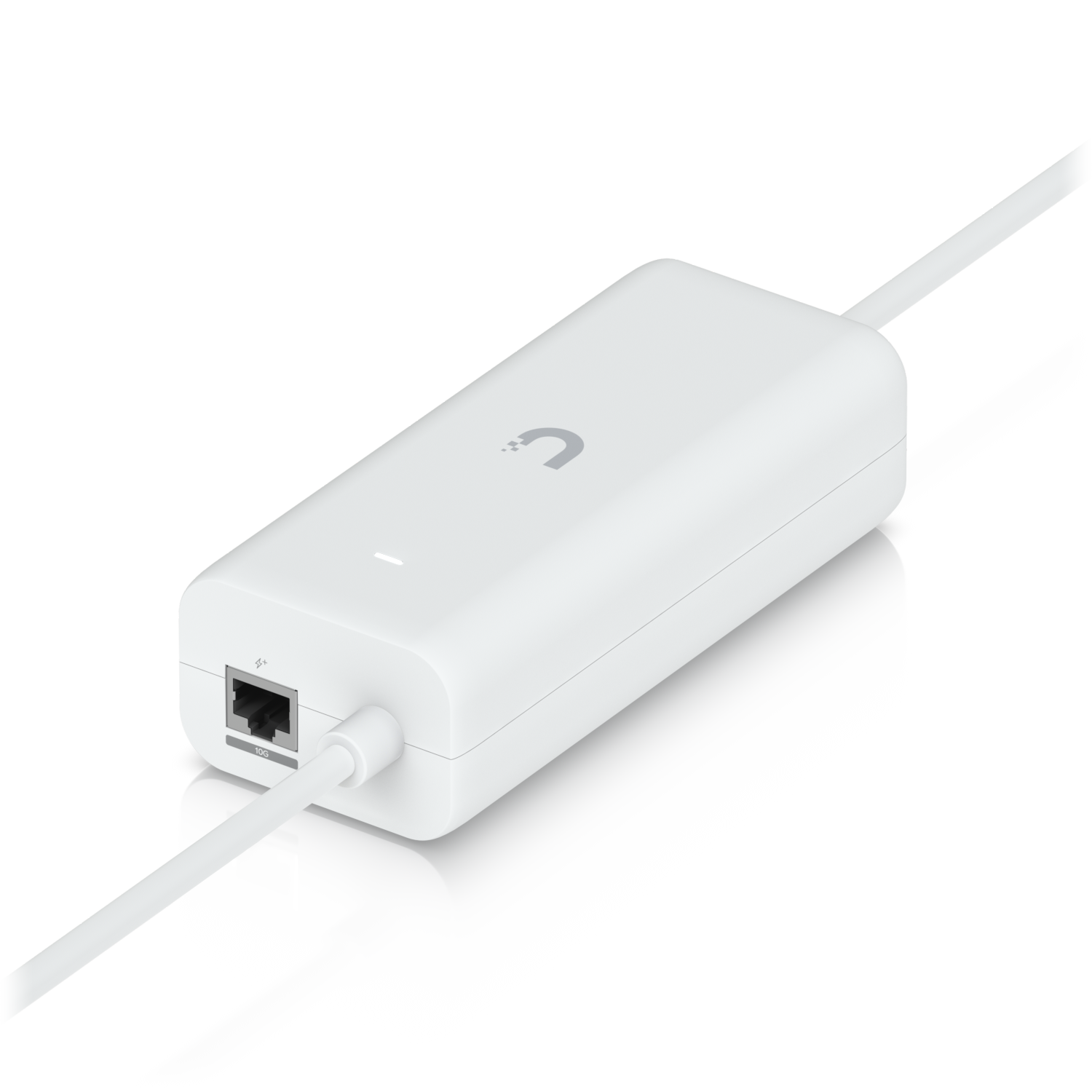

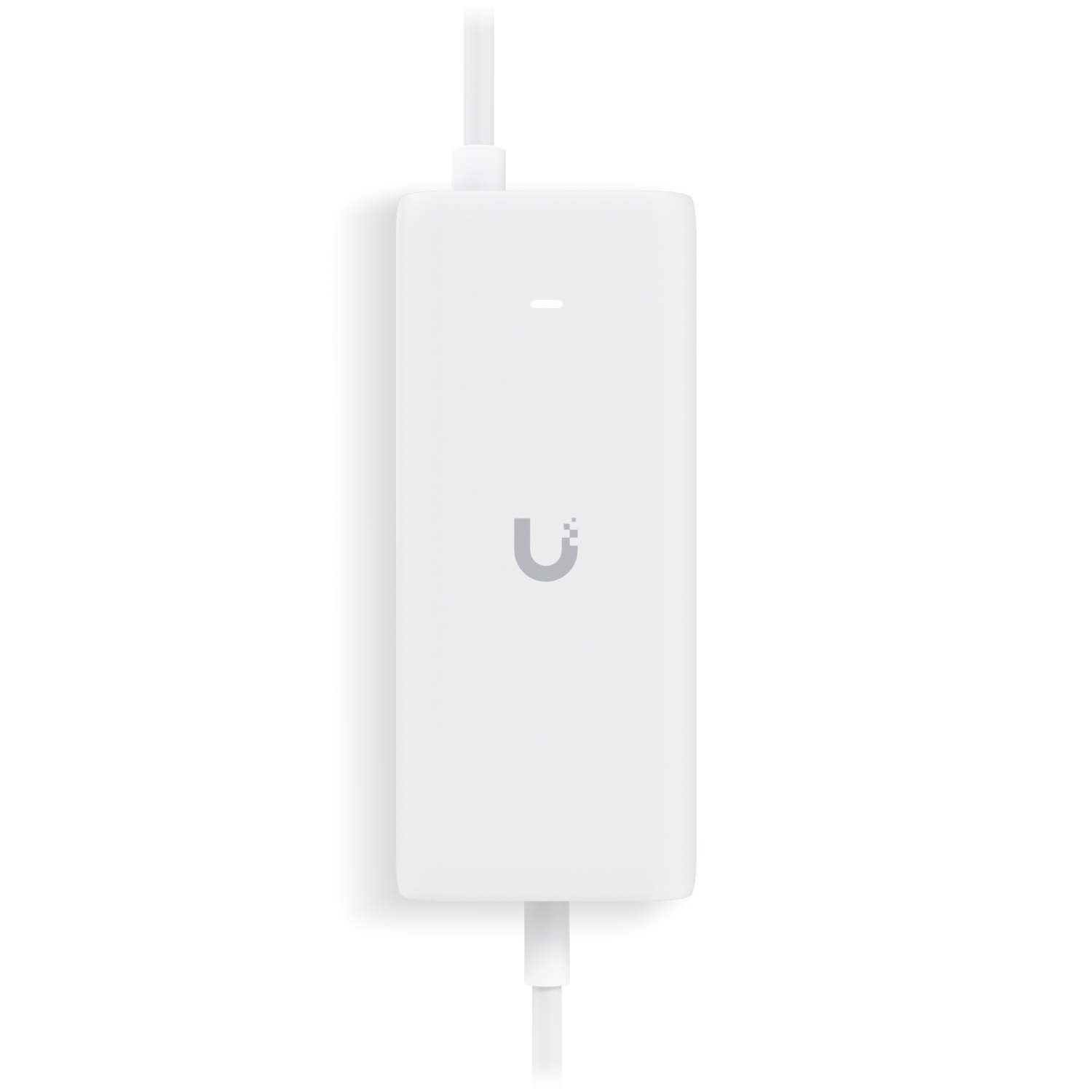

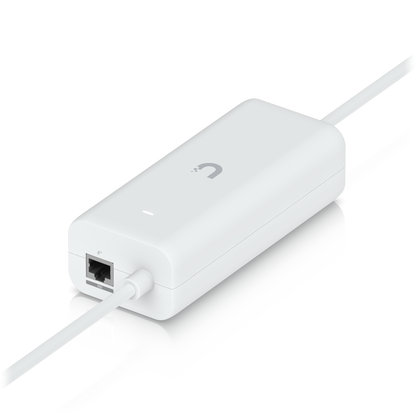

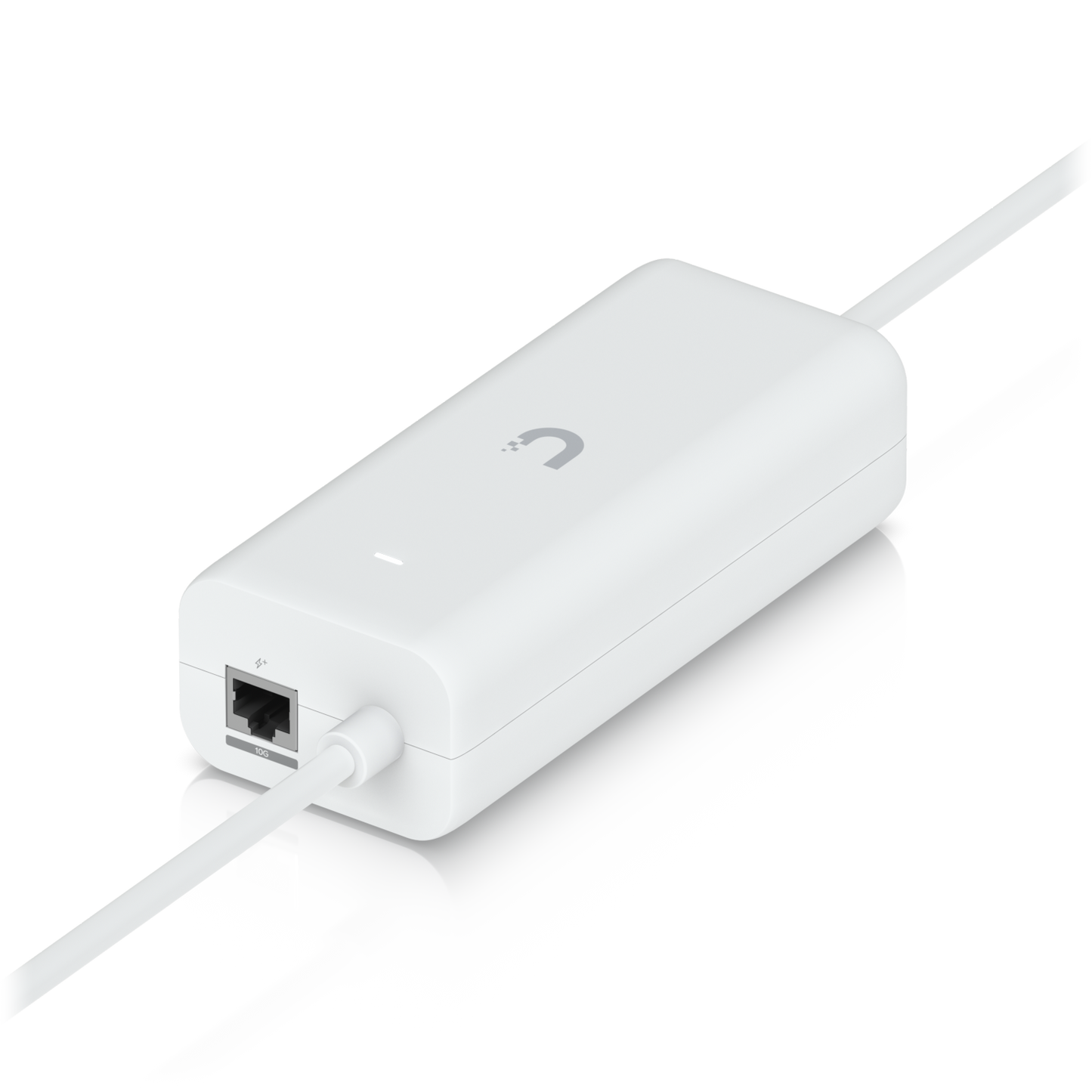

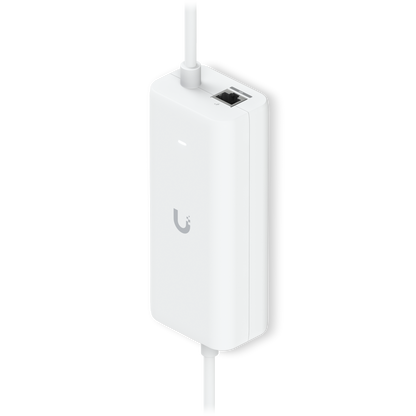

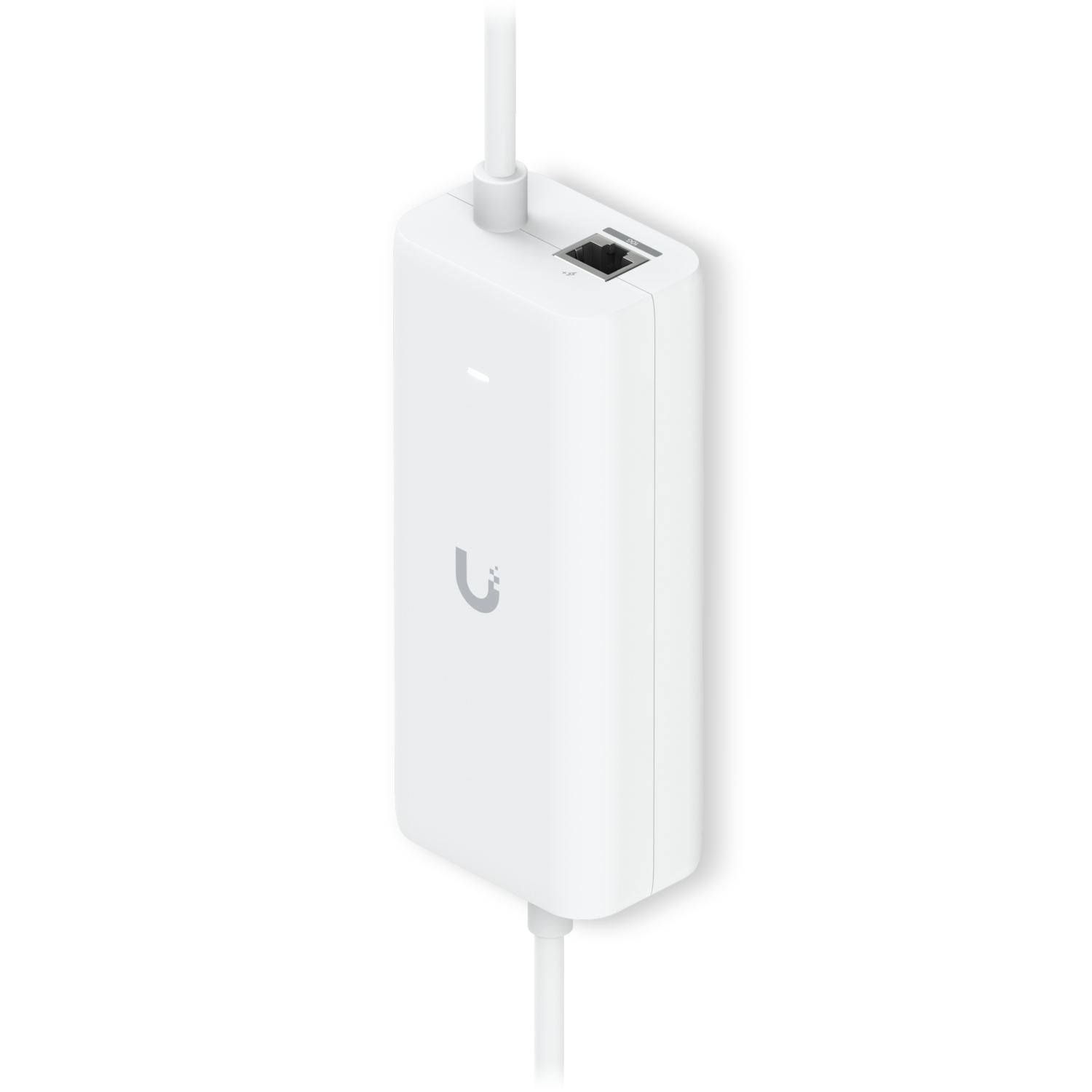

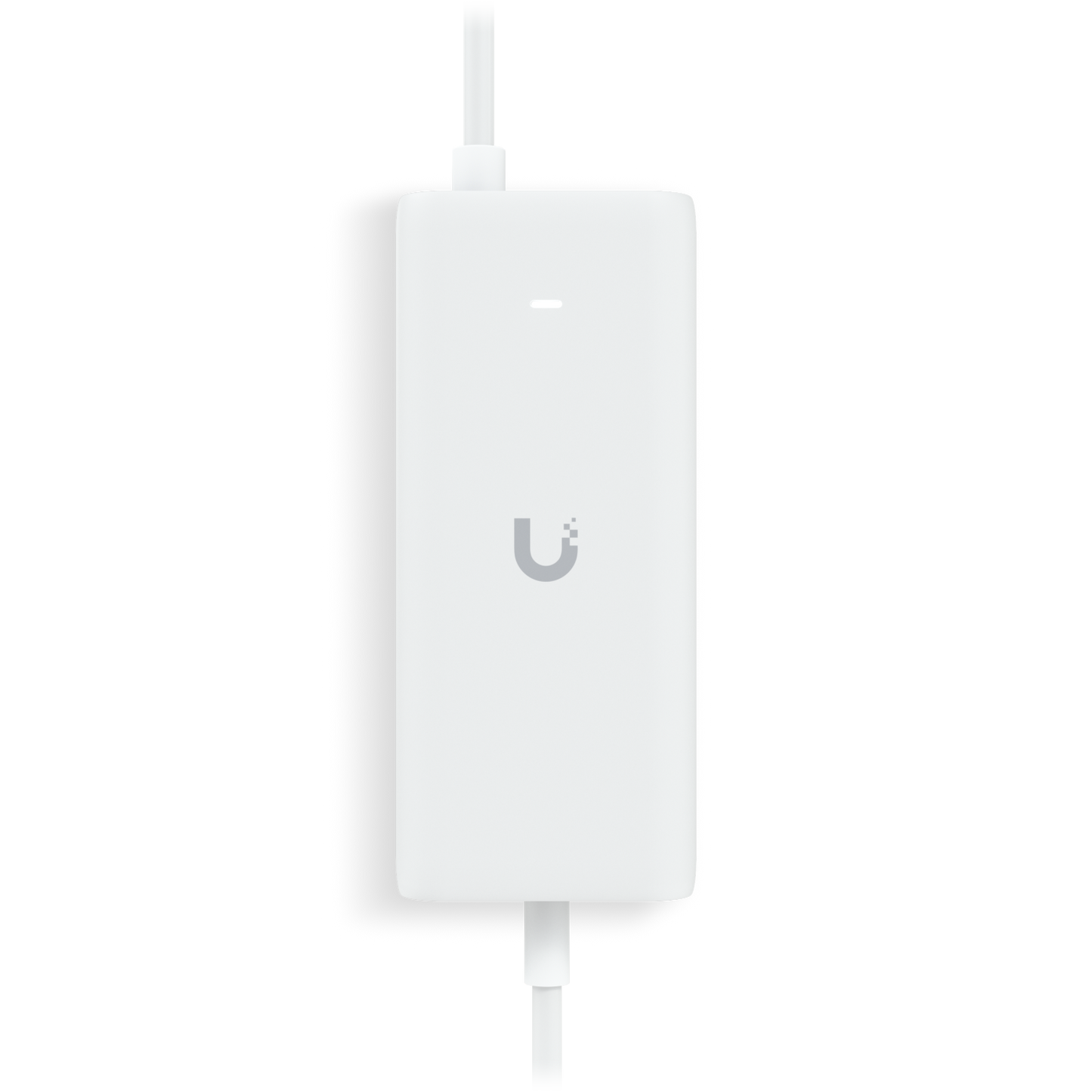

An AC adapter with integrated PoE, enabling the UniFi Cloud Gateway device to support PoE output on a single port.
- Delivers up to 30W of PoE+.

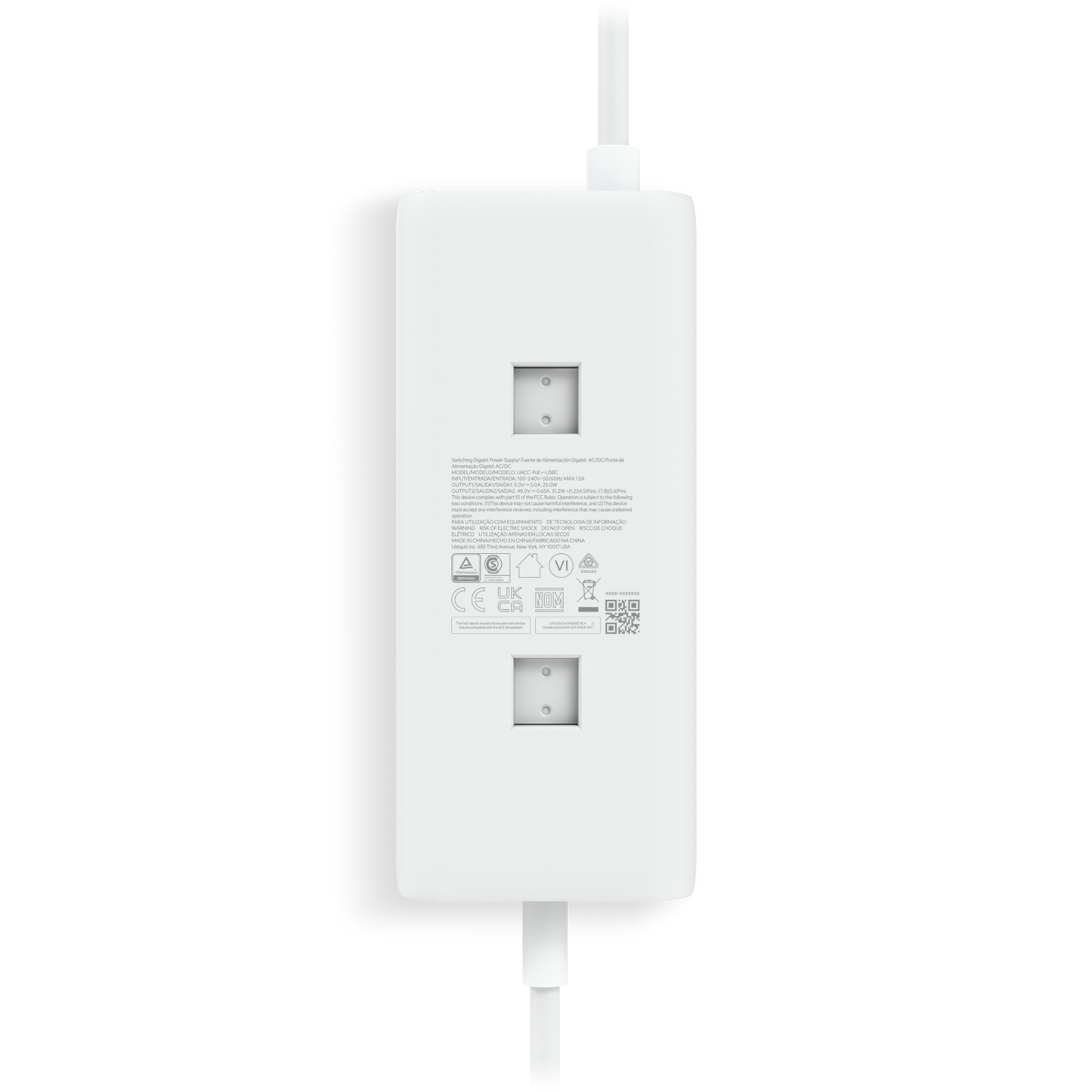

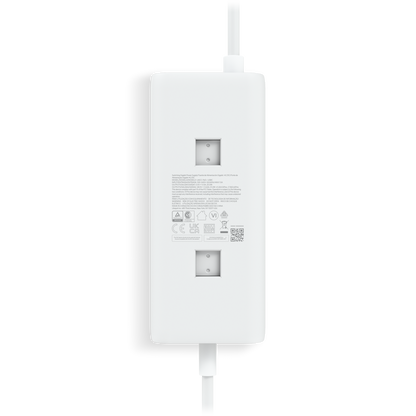

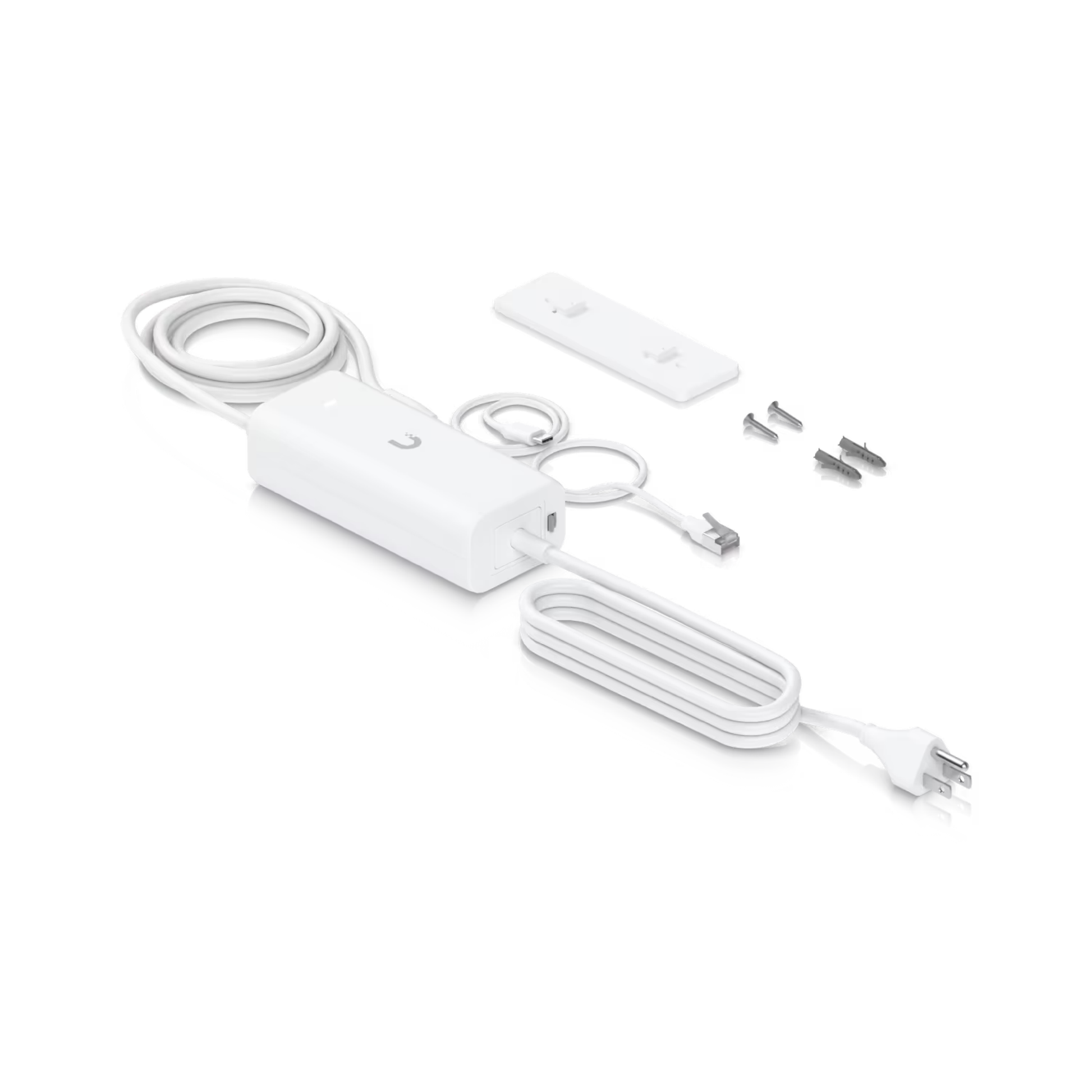

- Supports wall mount, DIN rail and floating mount*.

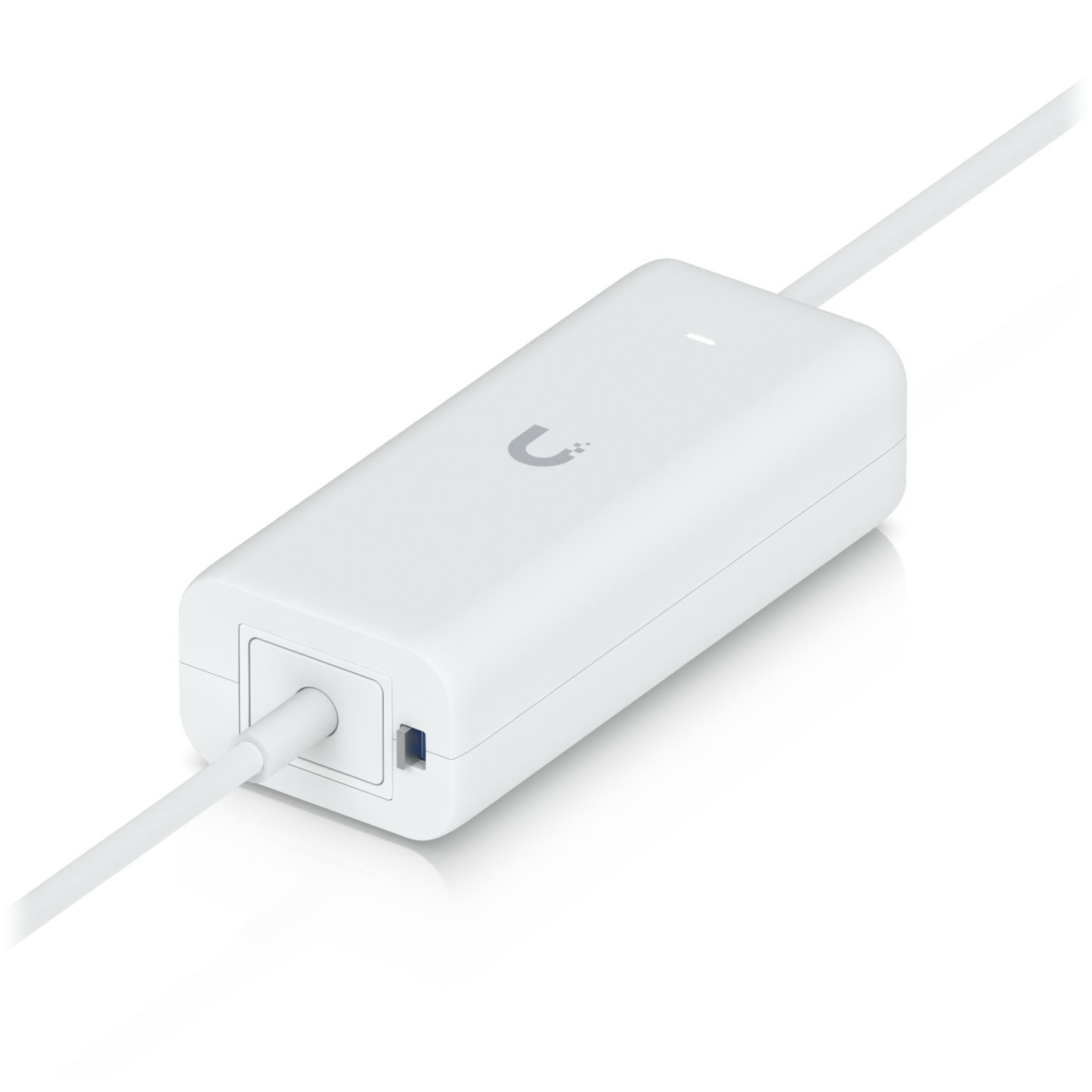

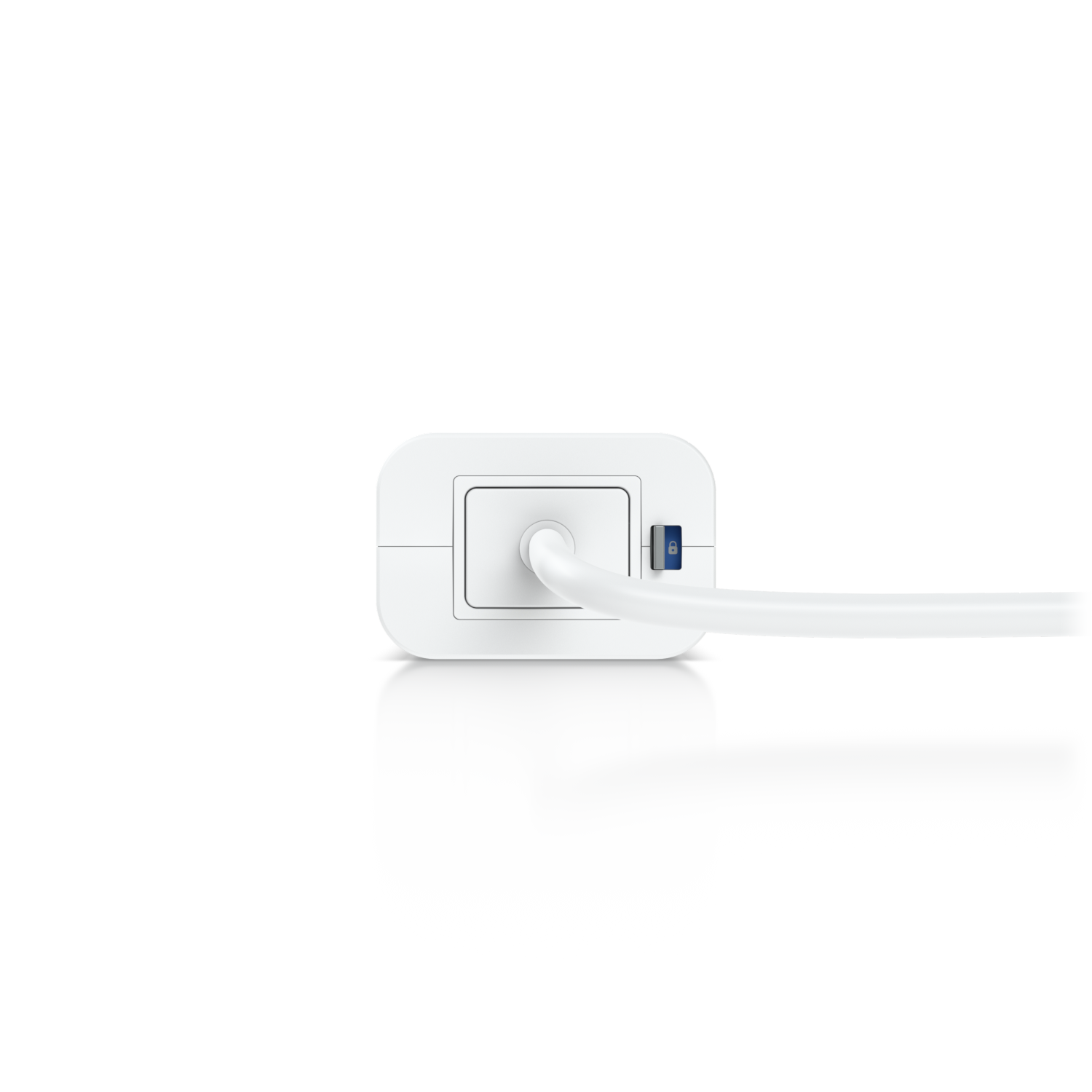

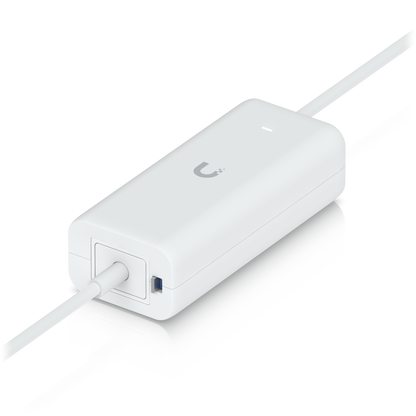

- Lockable latch designed for power cord security.
Compatibility: UCG-Ultra, UCG-Max, UXG-Lite, UXG-Max, UX, UX7.
* DIN rail and floating mount sold separately
| Overview | |
|---|---|
| Dimensions | 46 x 62 x 42 mm (5.7 x 2.4 x 1.7") |
| Weight | 358 g (12.6 oz) |
| Length |
Cable: 150 cm (4.9 ft) total, including 30 cm split Type-C/Ethernet ends Power cord: 180 cm (5.9 ft) |
| Output Voltage |
Type-C: 5V@ 5A PoE+: 48V@ 0.65A |
| Rated Voltage | 100—240V AC @ 50/60Hz |
| LAN Activity Indicator | — |
| Gigabit LAN Port | ✓ |
| Remote Reset Capability | — |
| Reset Button | — |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| Clamping Protection | 11V data, 60V power |

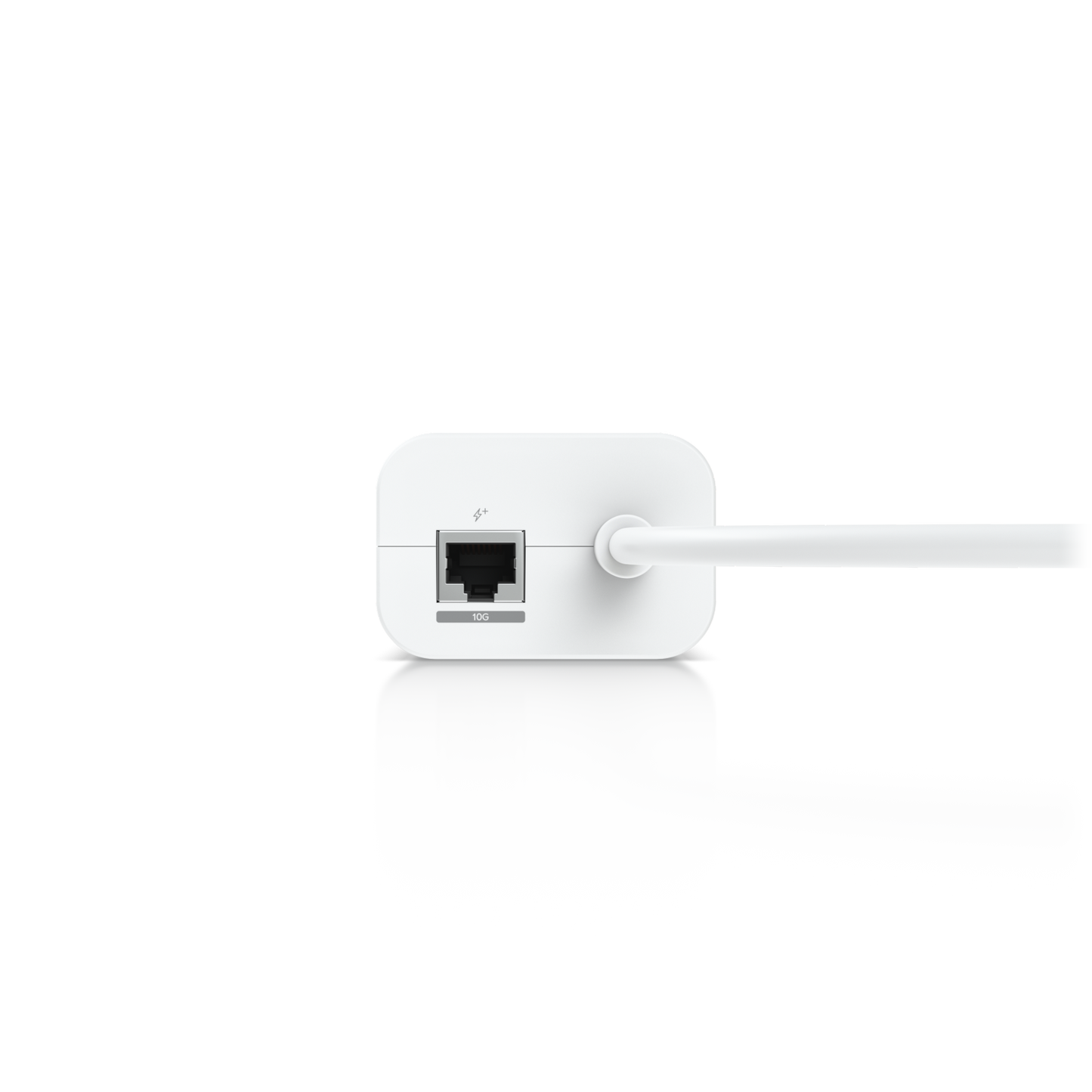

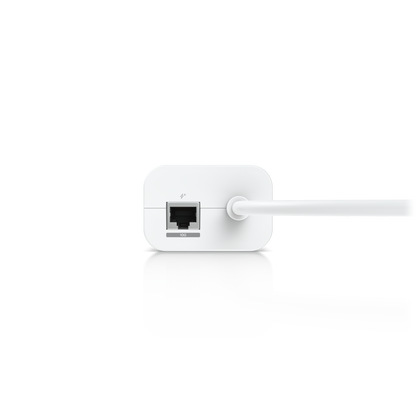

| Data In / PoE | RJ45 shielded socket |
| Input Current | 1.5A max. |
| Inrush Current | 120A |
| Efficiency | 82% |
| Switching Frequency | 65 kHz |
| Output Ripple | 1% max. |
| Line Regulation | ≤ 5% |
| Load Regulation | ≤ 5% |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Surge Protection | Difference and common mode |
| Ambient Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, UL, UKCA, CCC, KC, RoHS |
Visit Ubiquiti for more information.
