UniFi PoE Over 2-Wire Retrofit Extender
UniFi PoE Over 2-Wire Retrofit Extender
SKU:UACC-Retrofit-PoE-2Wire
Regular price
$186.00
Regular price
$230.00
Sale price
$186.00
Taxes included.
Sale Live Now. Limited promotional stock available — don’t miss out!
45 in stock and ready to ship
Quantity
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Found it cheaper elsewhere? Let us know
Buying for your business? Earn Store Credits

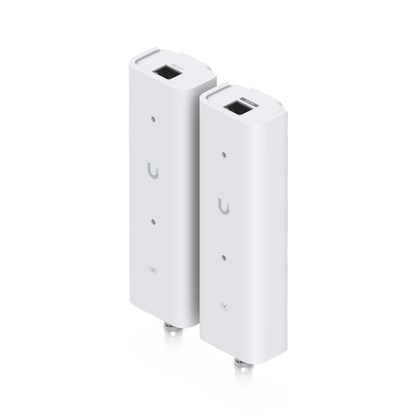

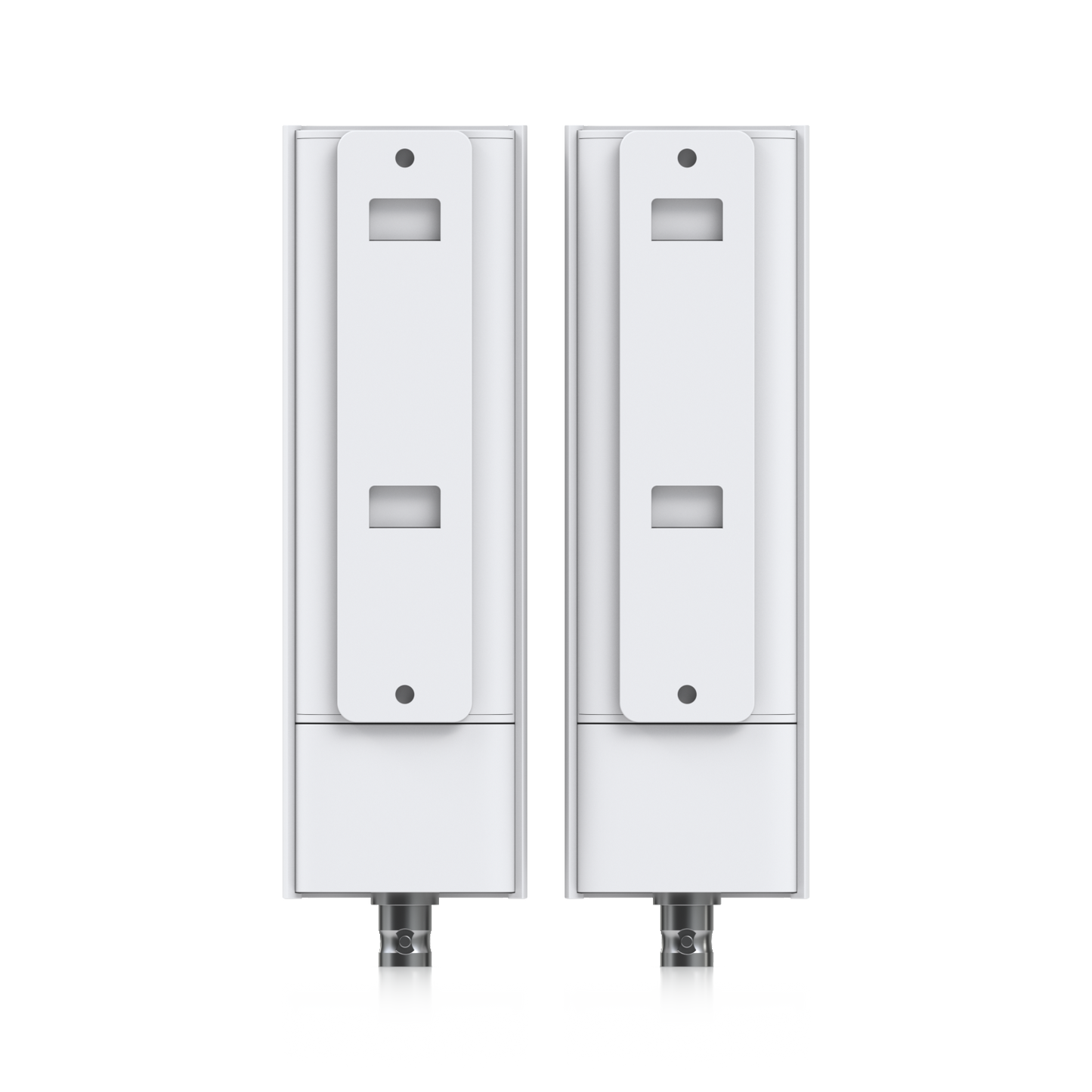

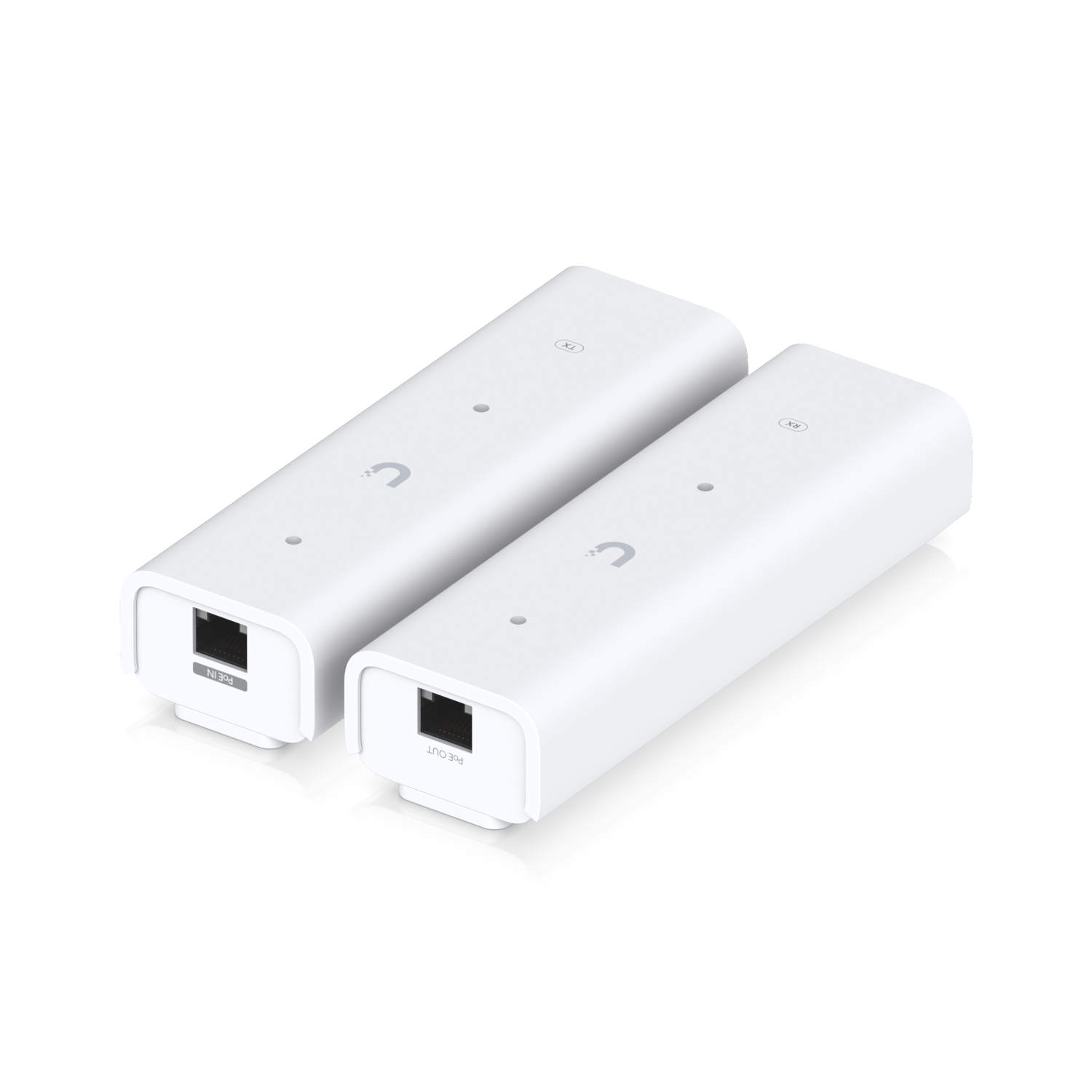

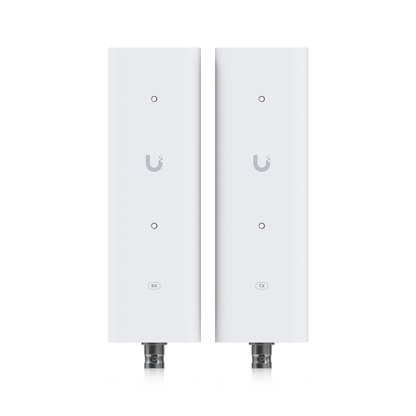

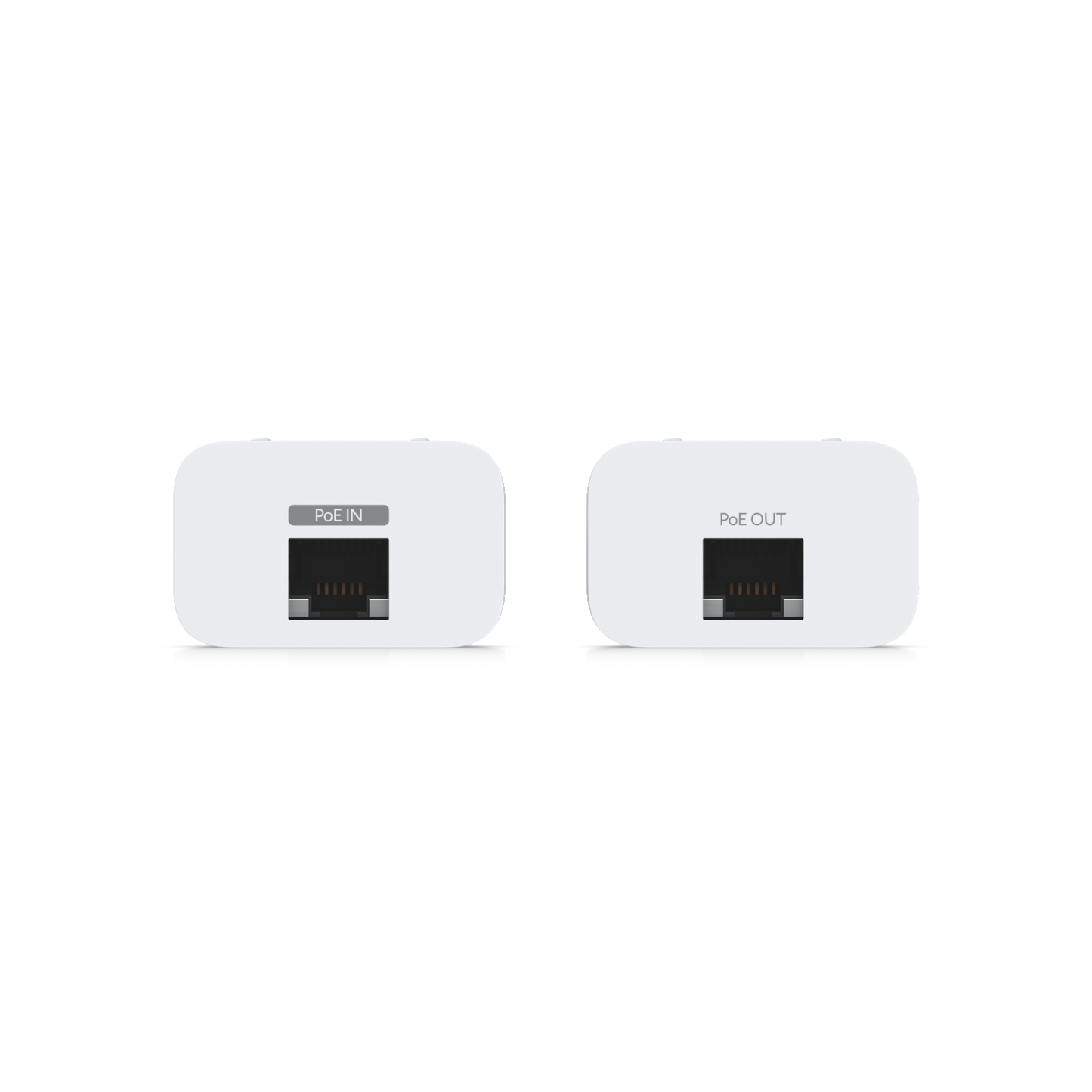

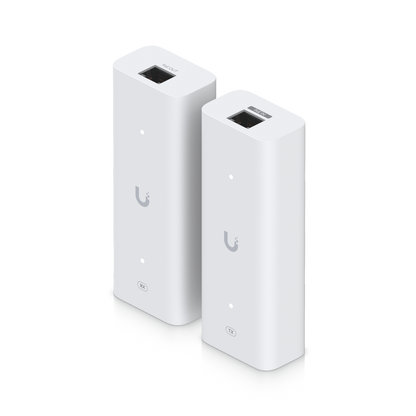

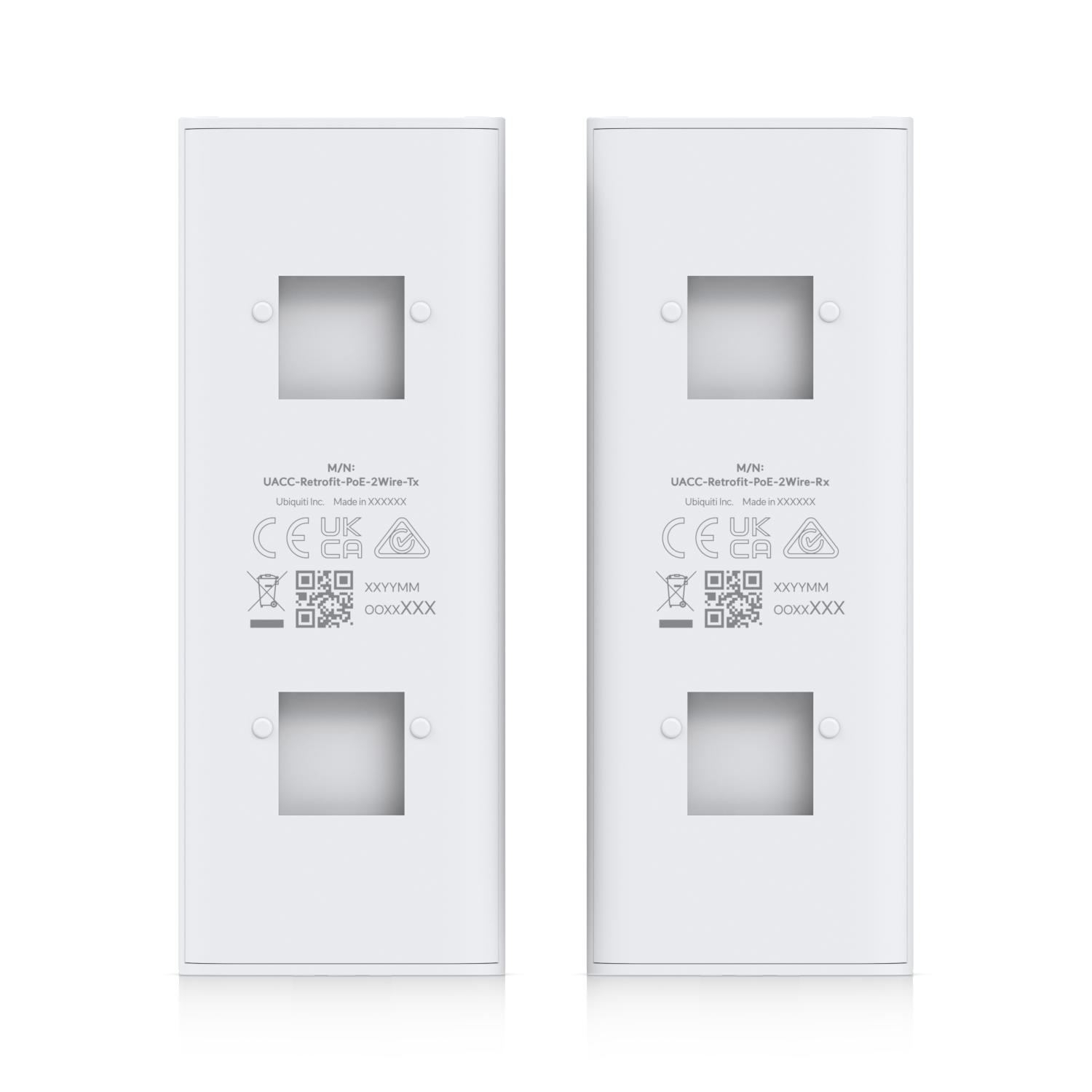

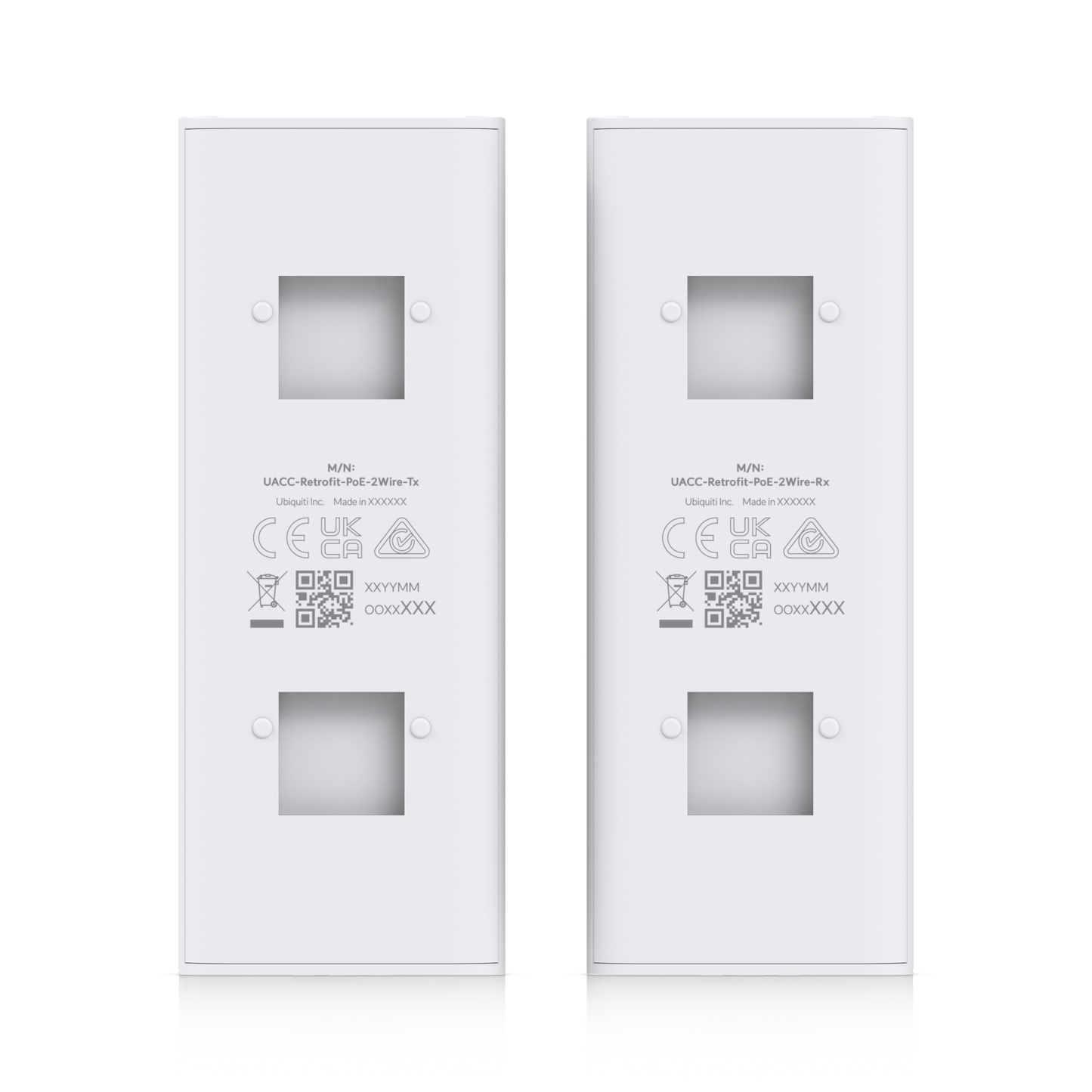

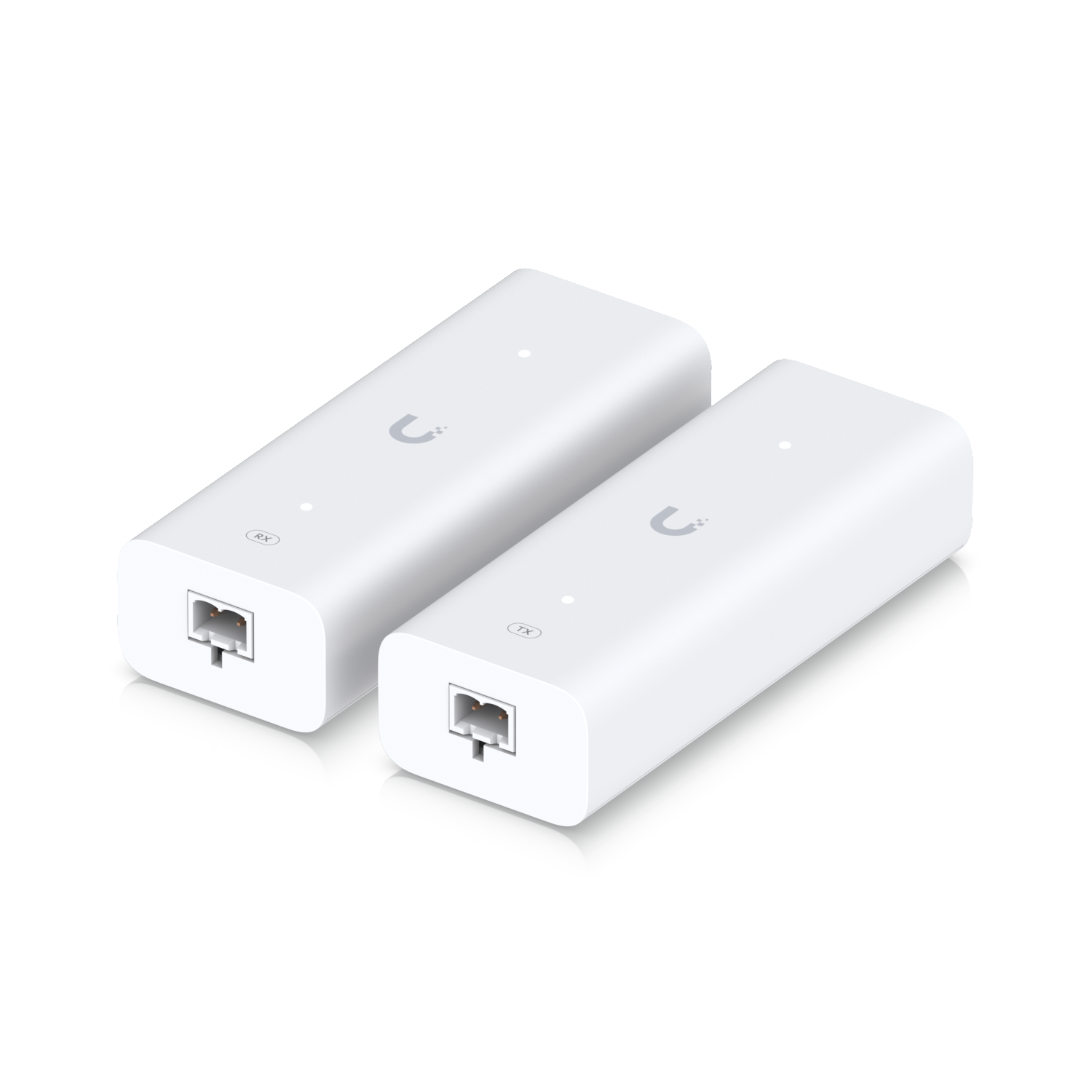

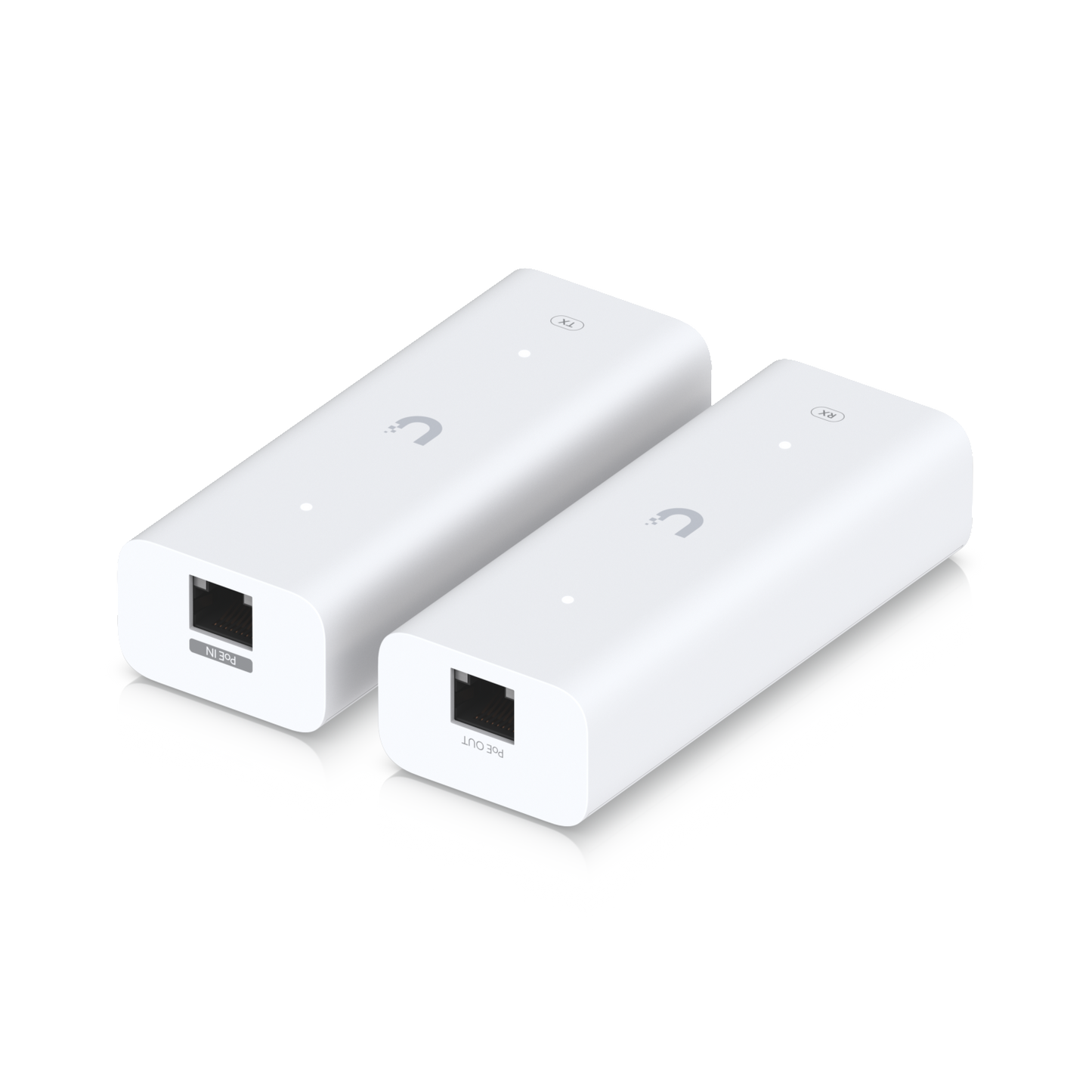

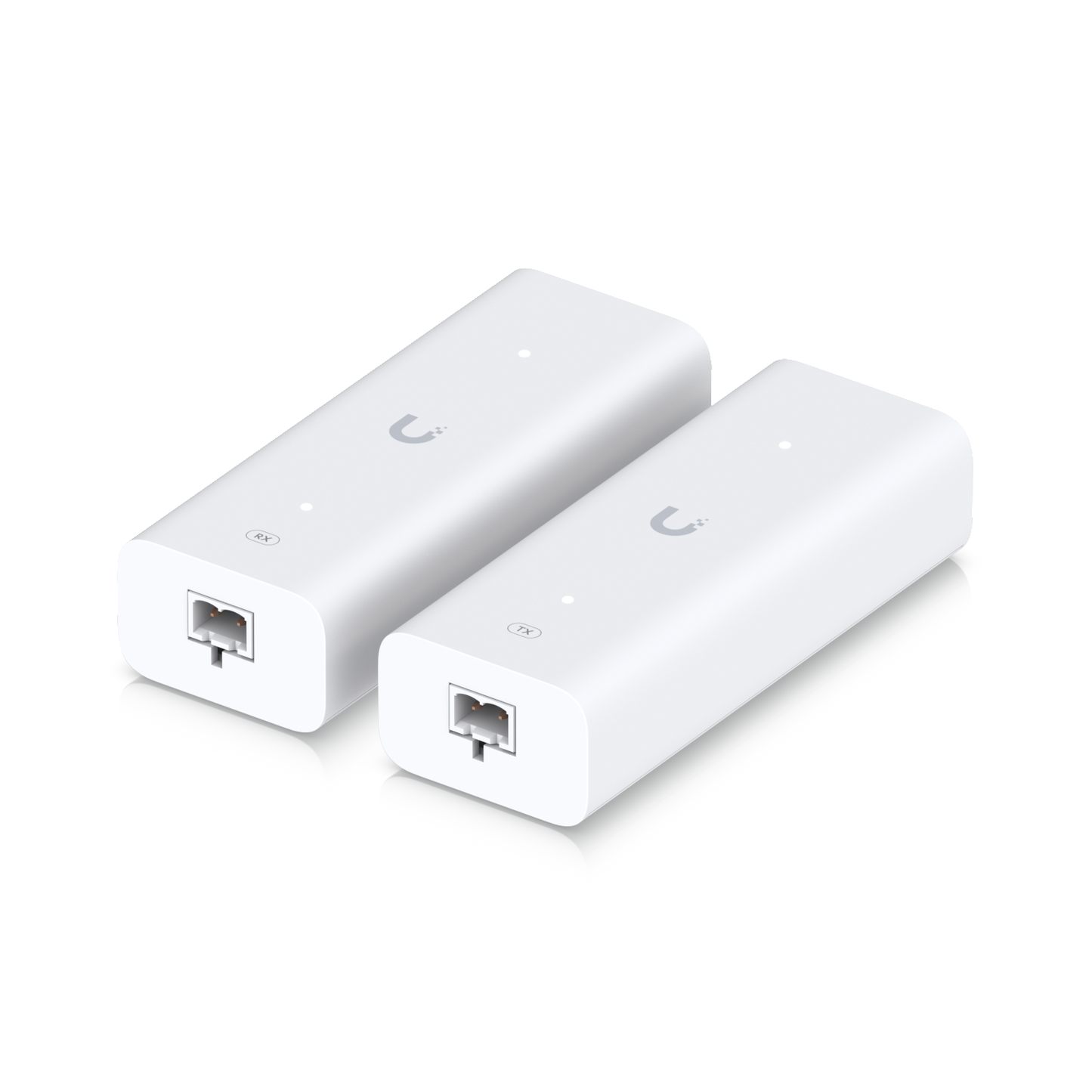

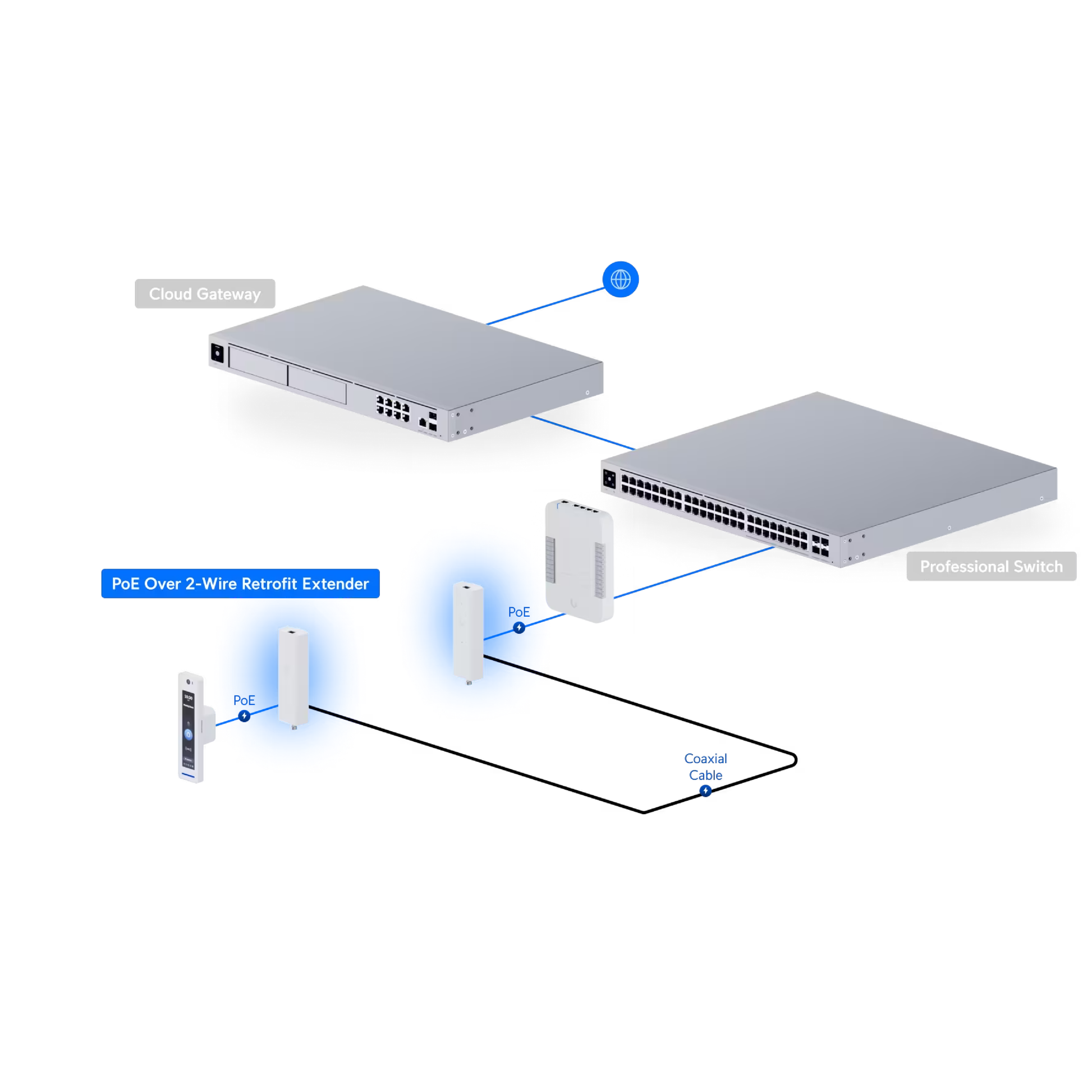

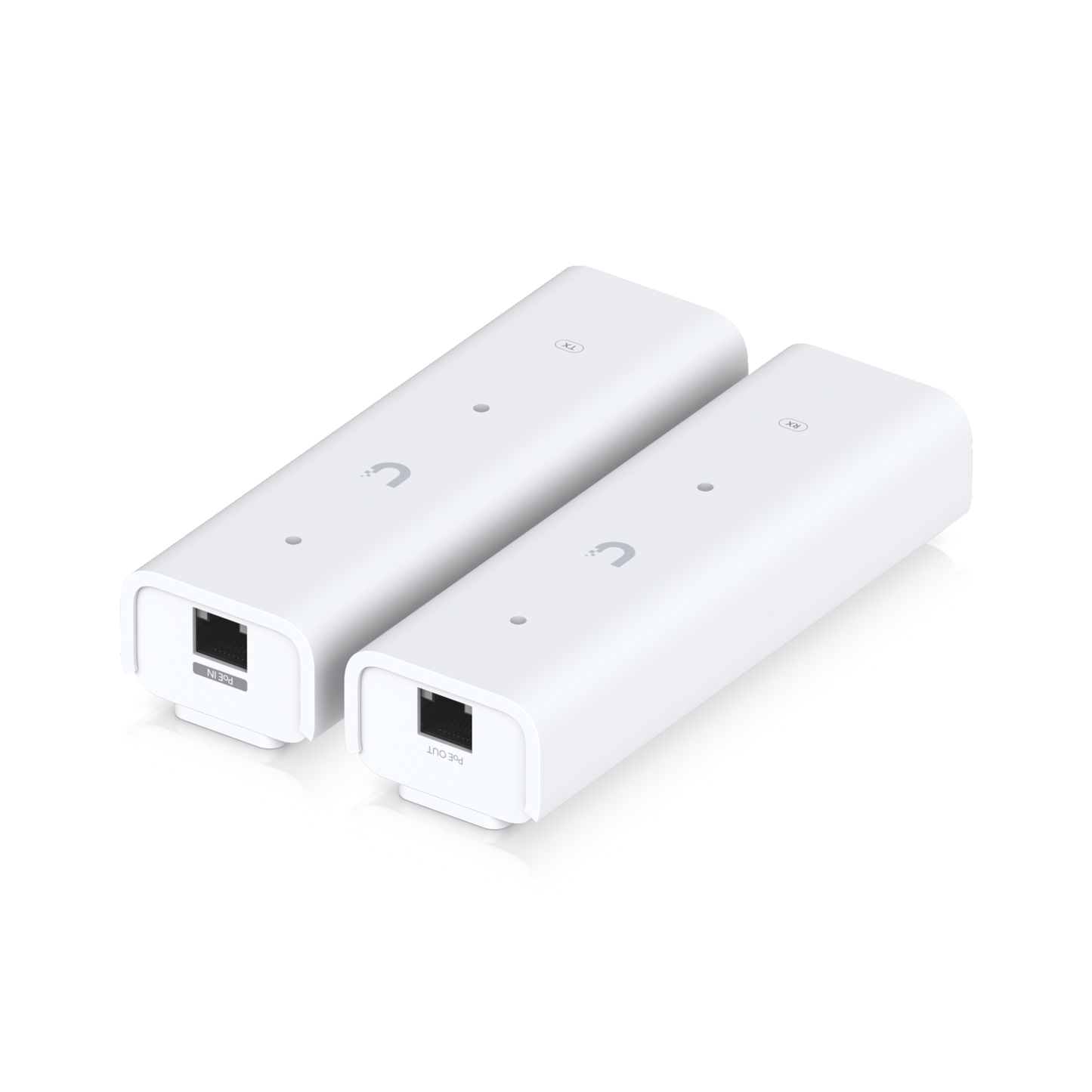

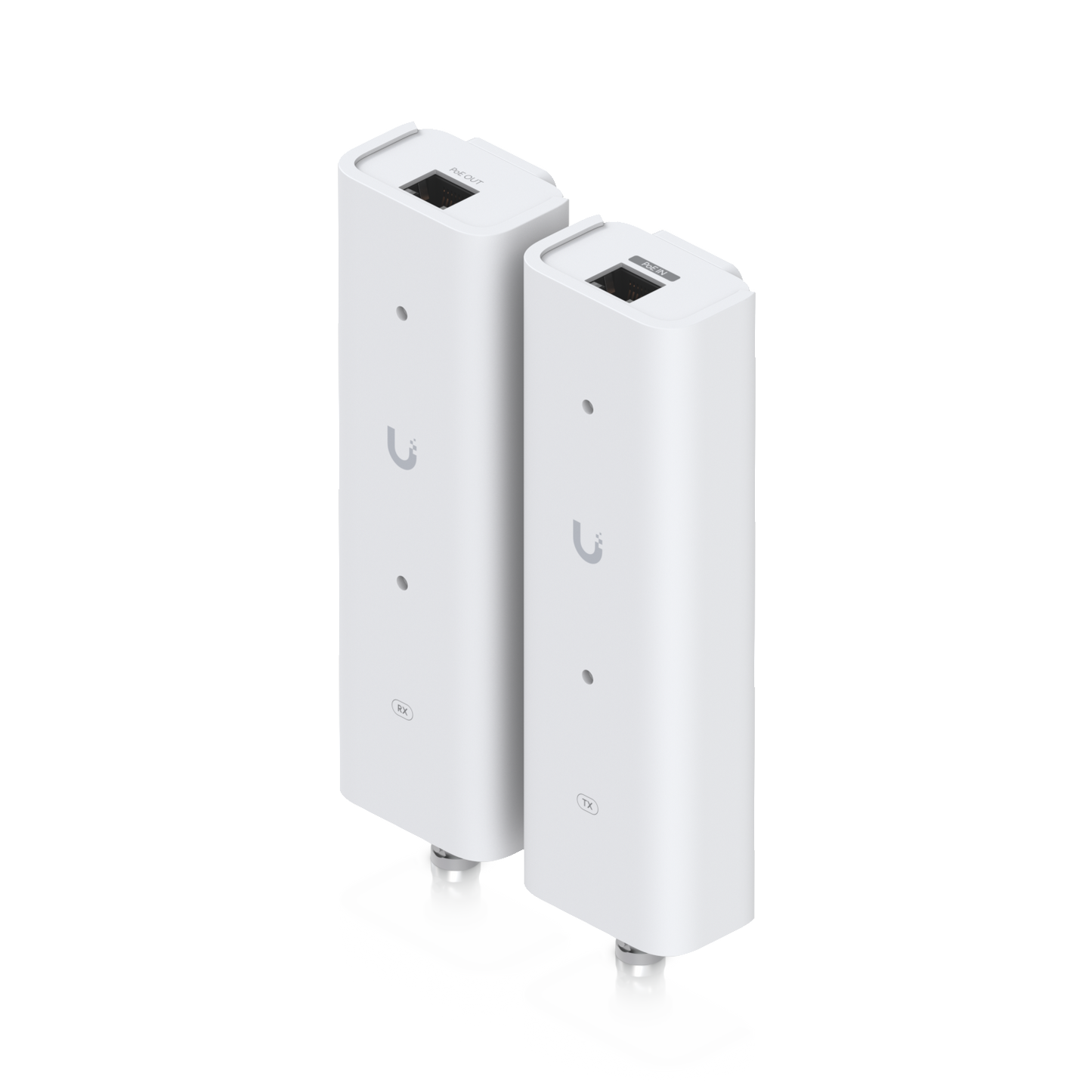

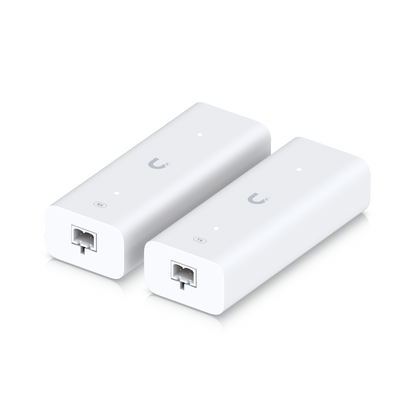

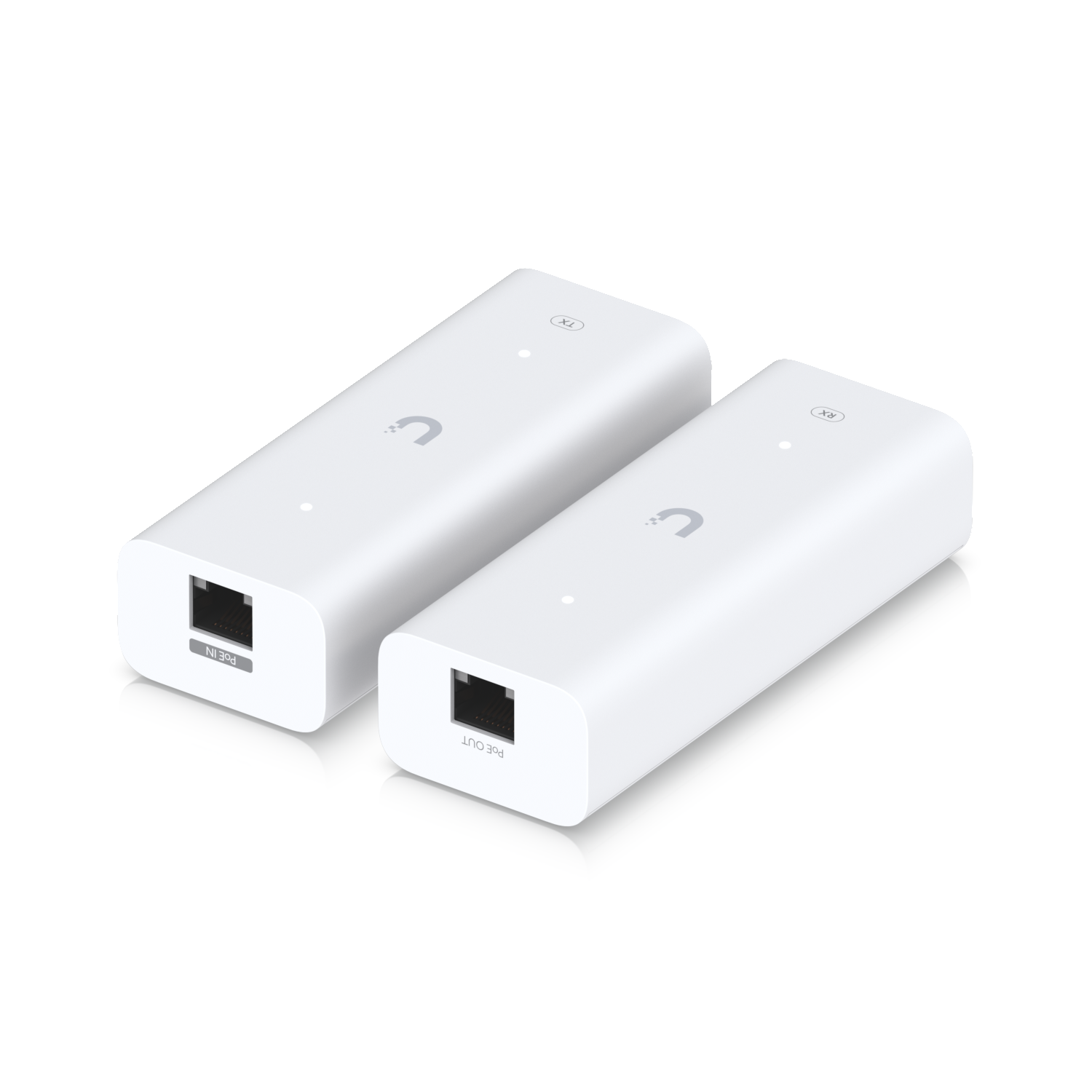

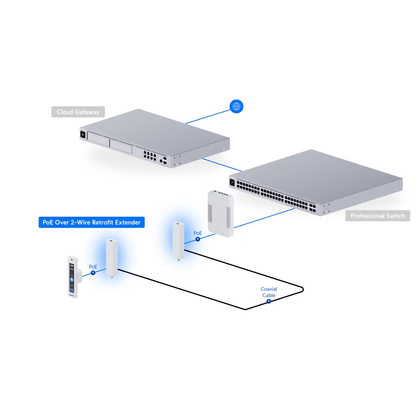

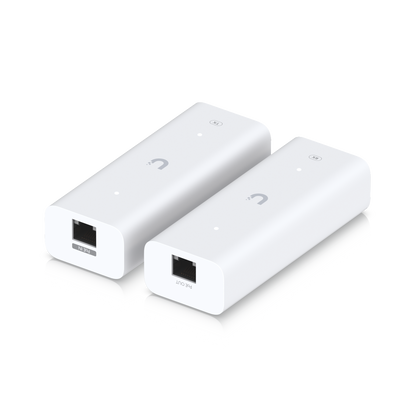

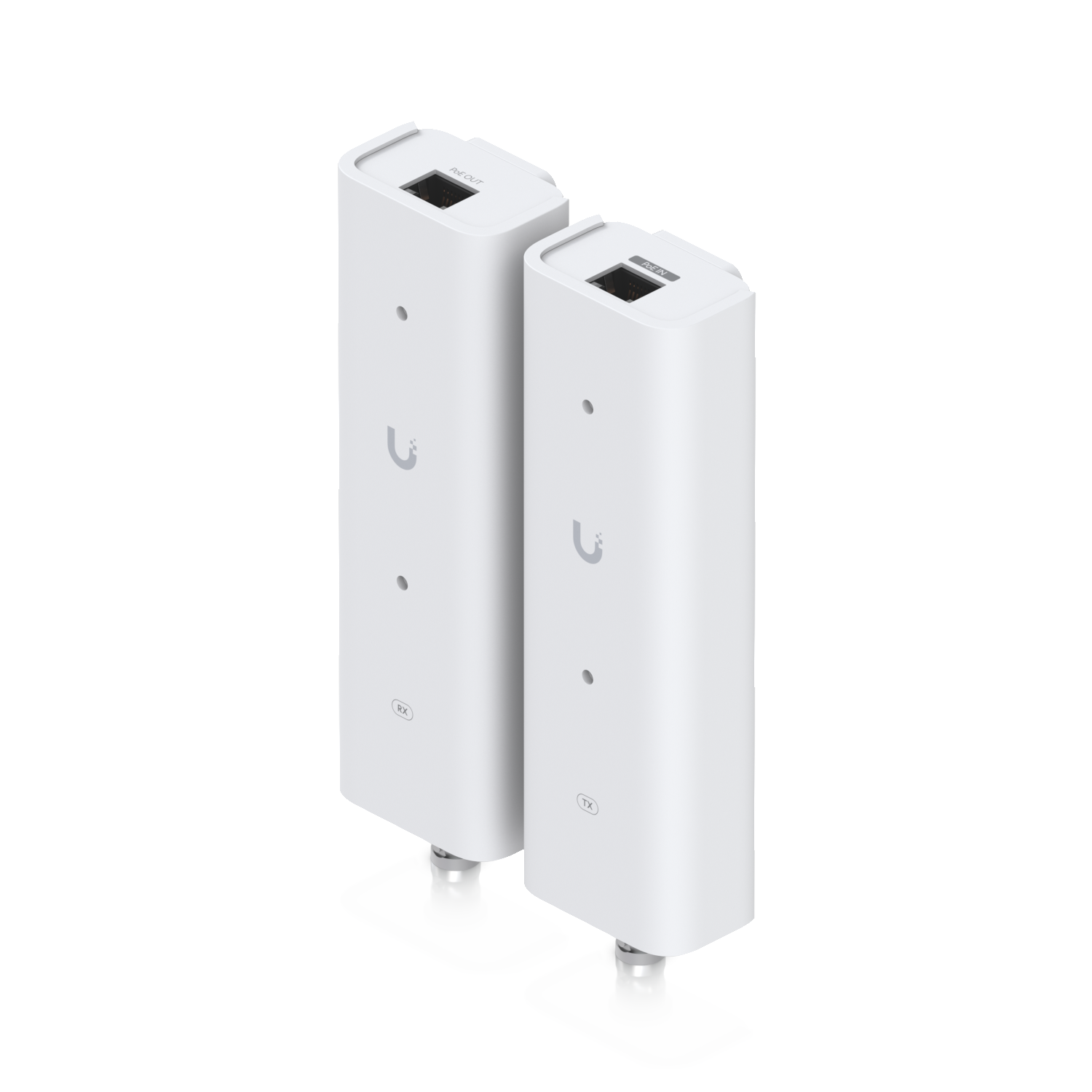

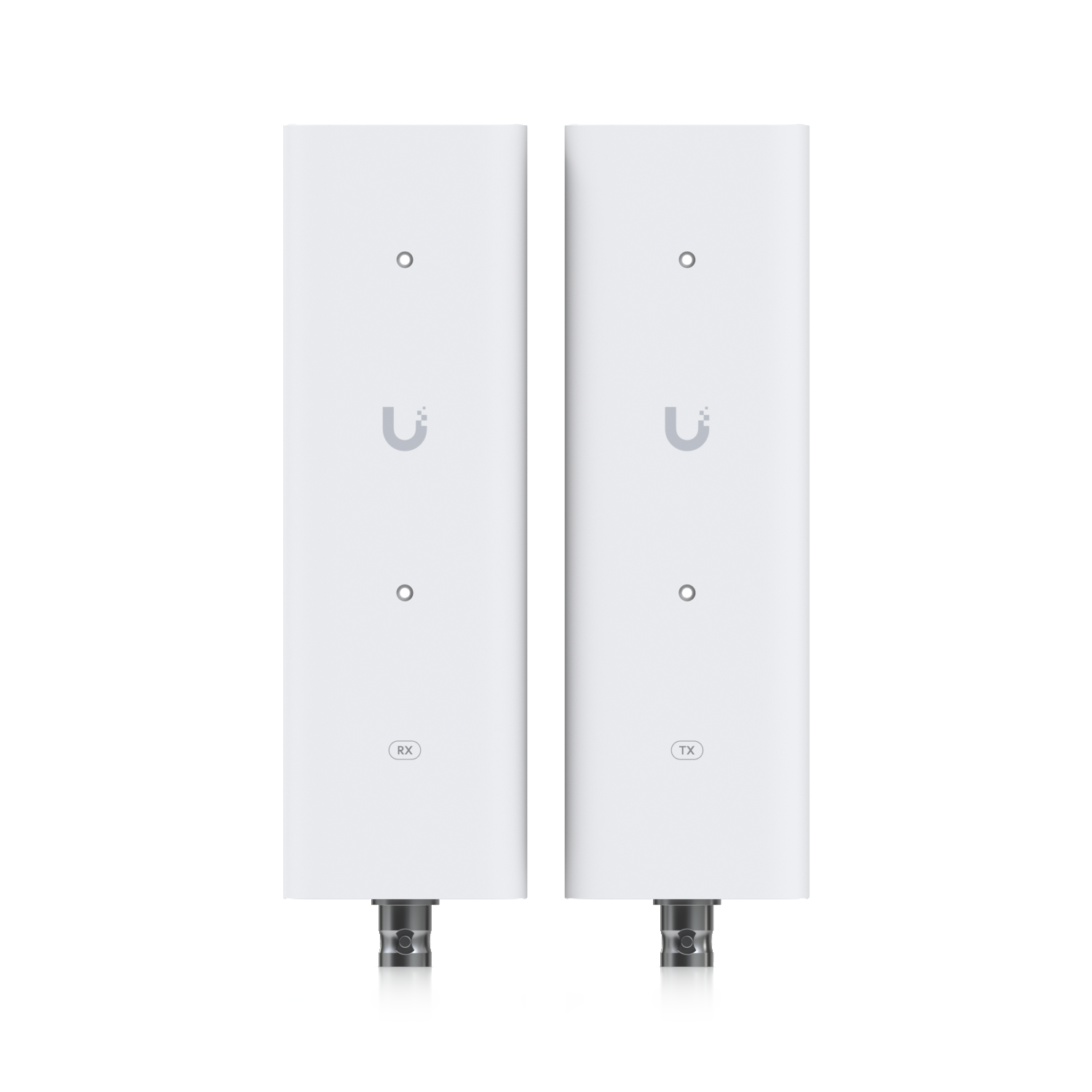

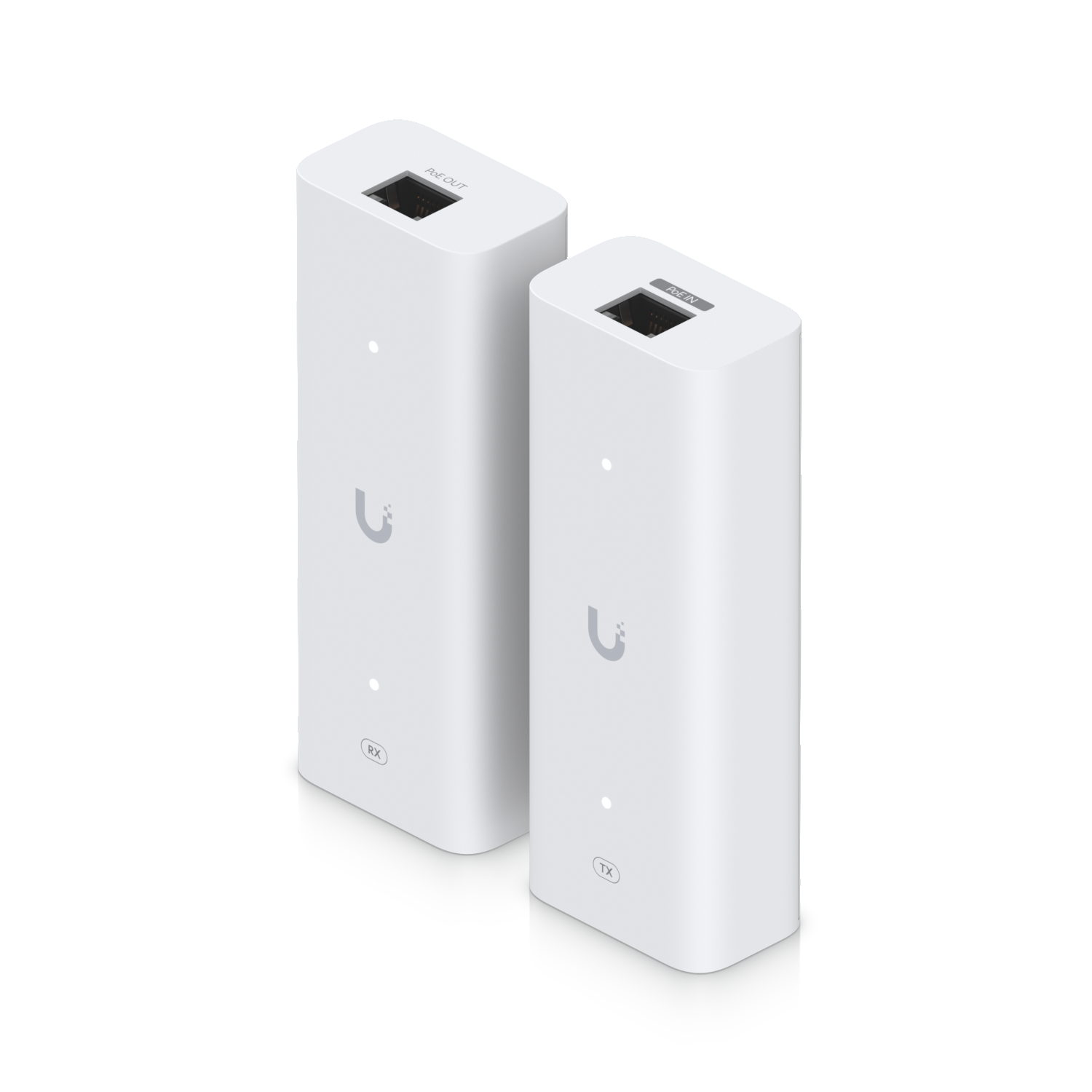

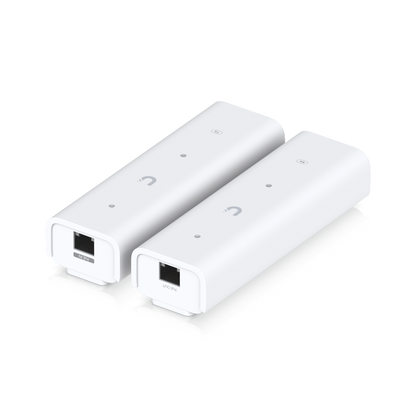

A pair of extenders that extends PoE over twisted-pair or coaxial cables, ideal for retrofit scenarios.

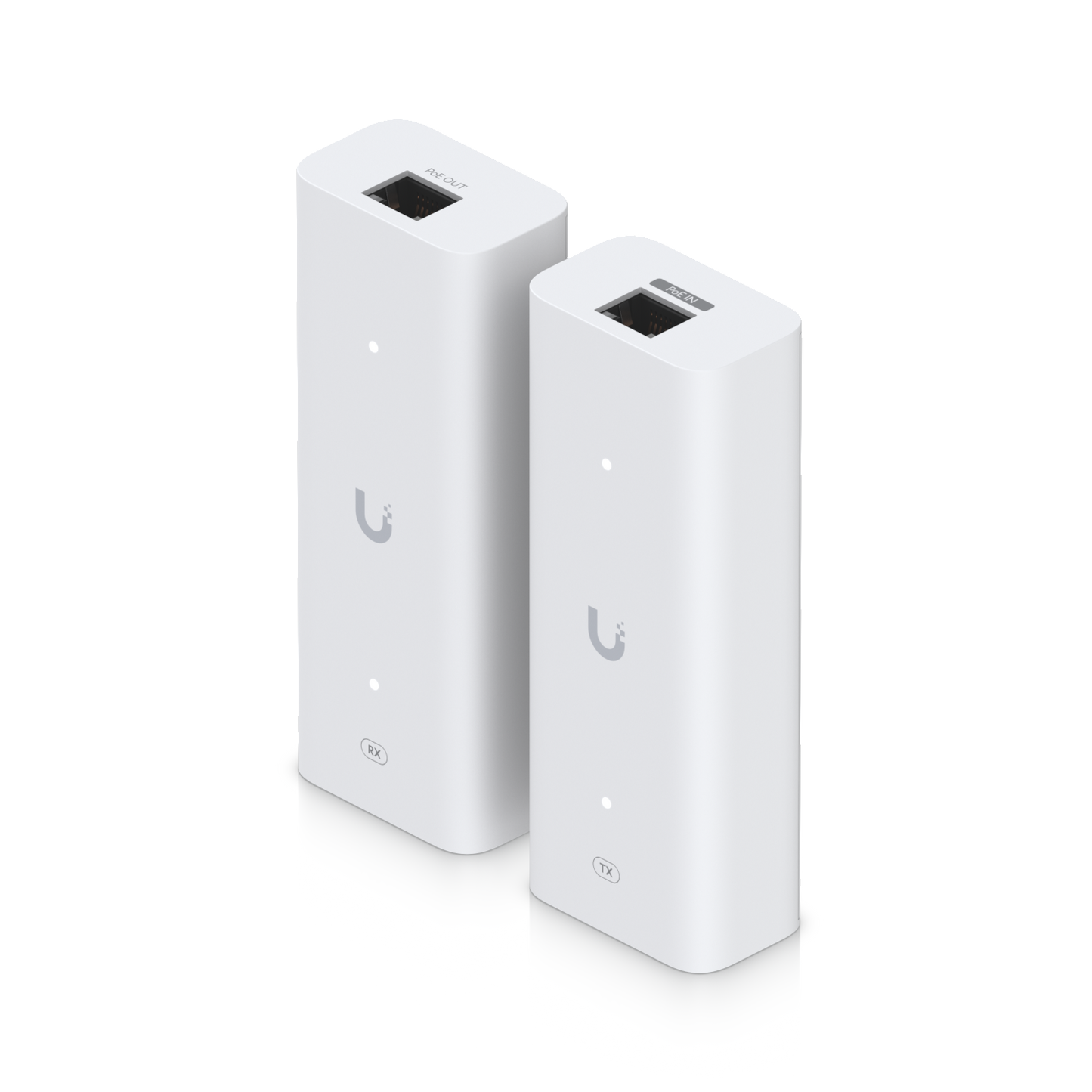

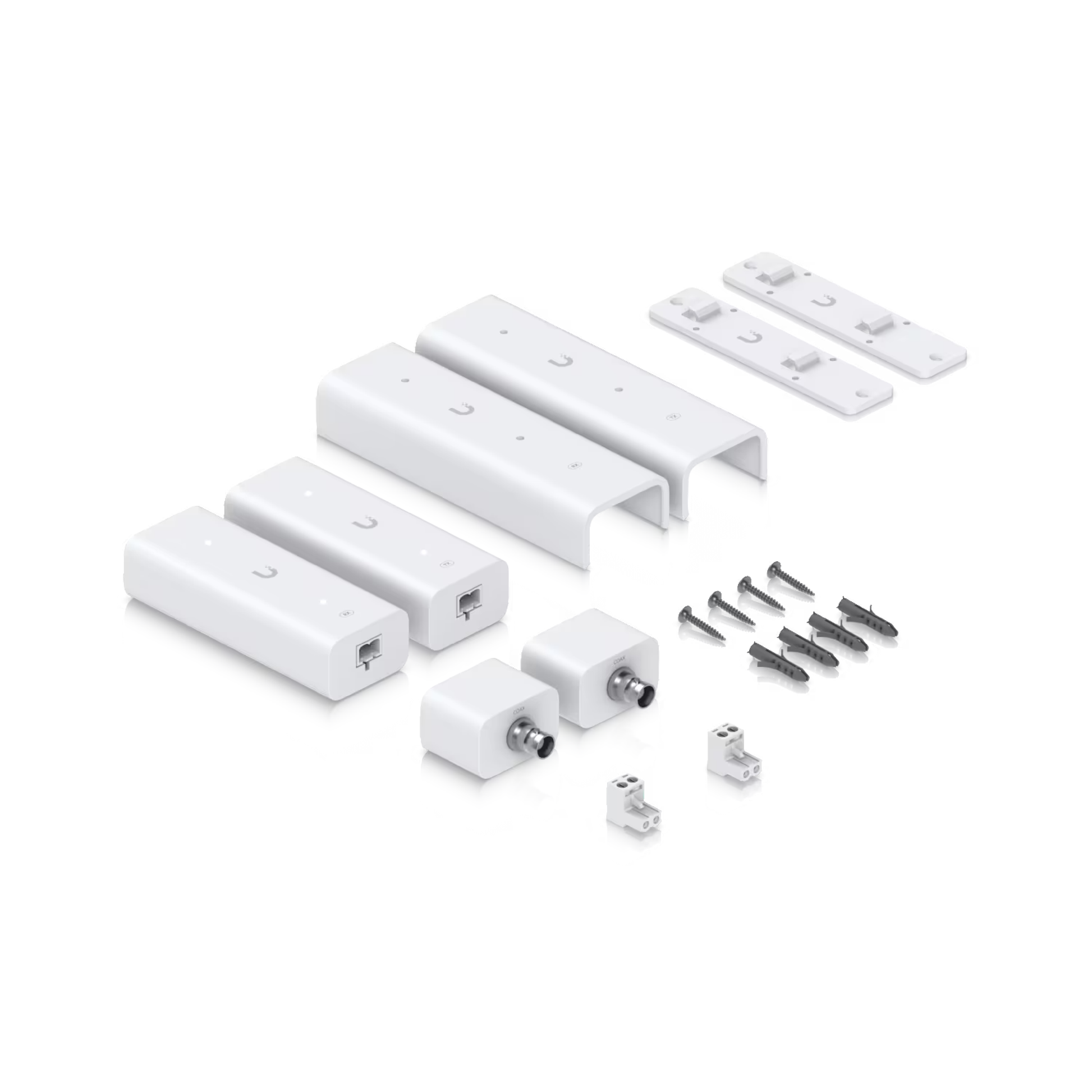

Transmitter

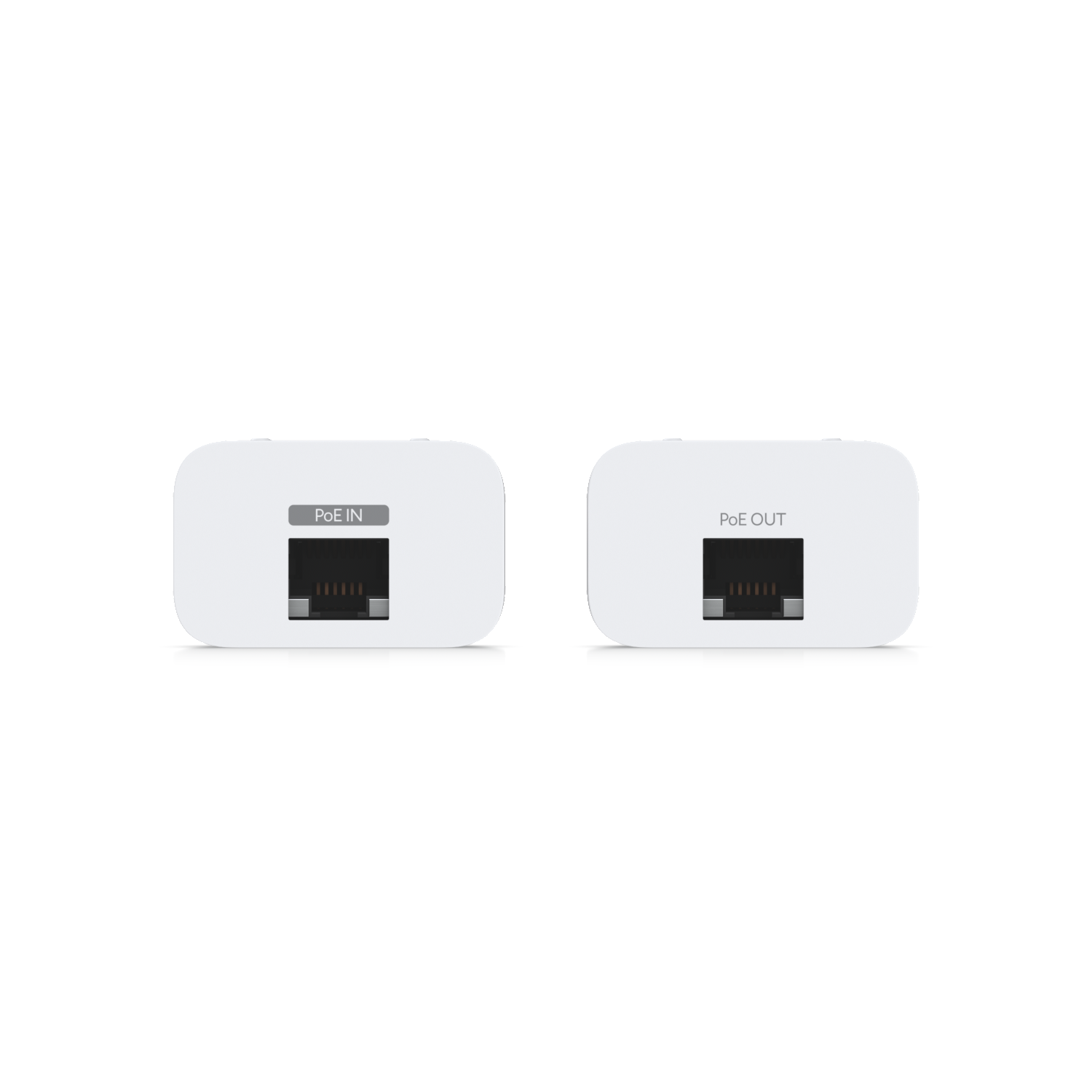

- (1) PoE++ input.

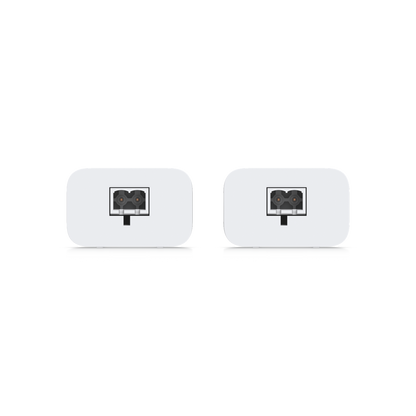

- (1) 2-wire output.

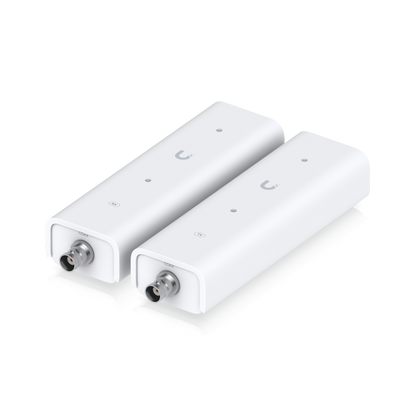

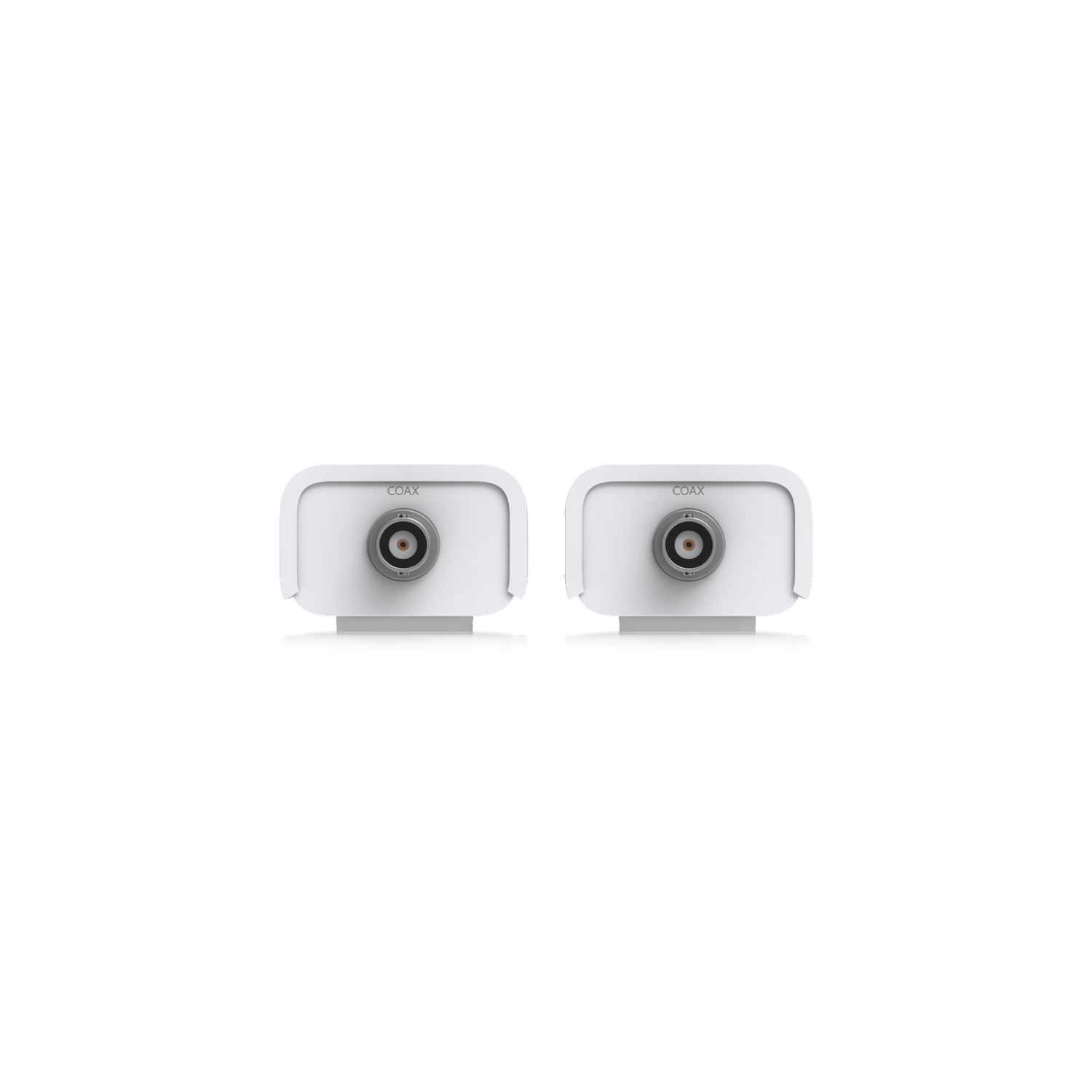

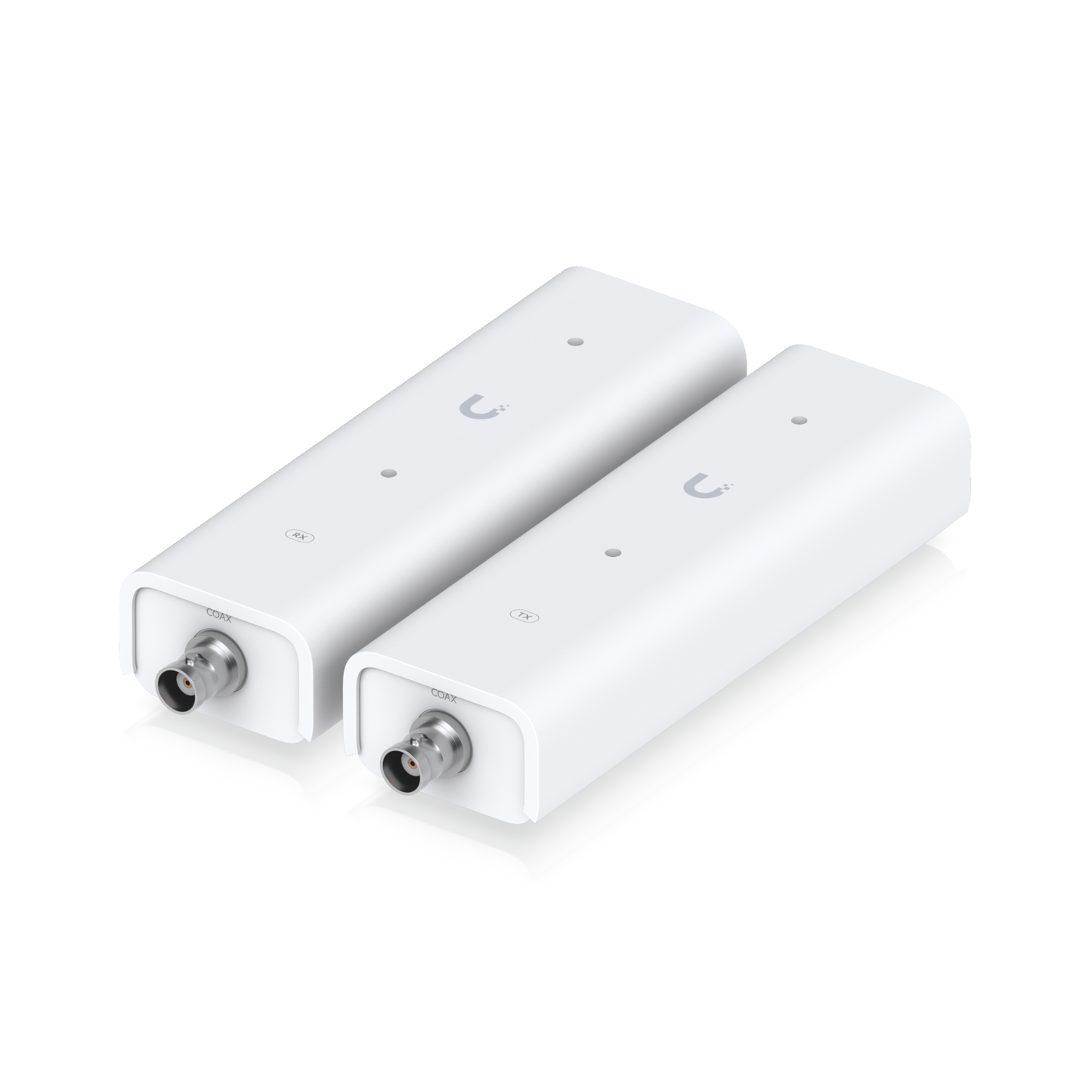

- (1) 2-wire to BNC adapter.
Receiver
- (1) PoE/PoE+ output.
- (1) 2-wire input.
- (1) 2-wire to BNC adapter.
Customer Satisfaction
Check out some recent reviews and customer experiences shared on Trustpilot
Specification
| Mechanical | |
|---|---|
| Dimensions |
PoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1") Adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2") |
| Weight |
PoE in: 77 g (2.7 oz) PoE out: 79 g (2.8 oz) Adapter: 140 g (4.9 oz) |
| Enclosure material | Polycarbonate |

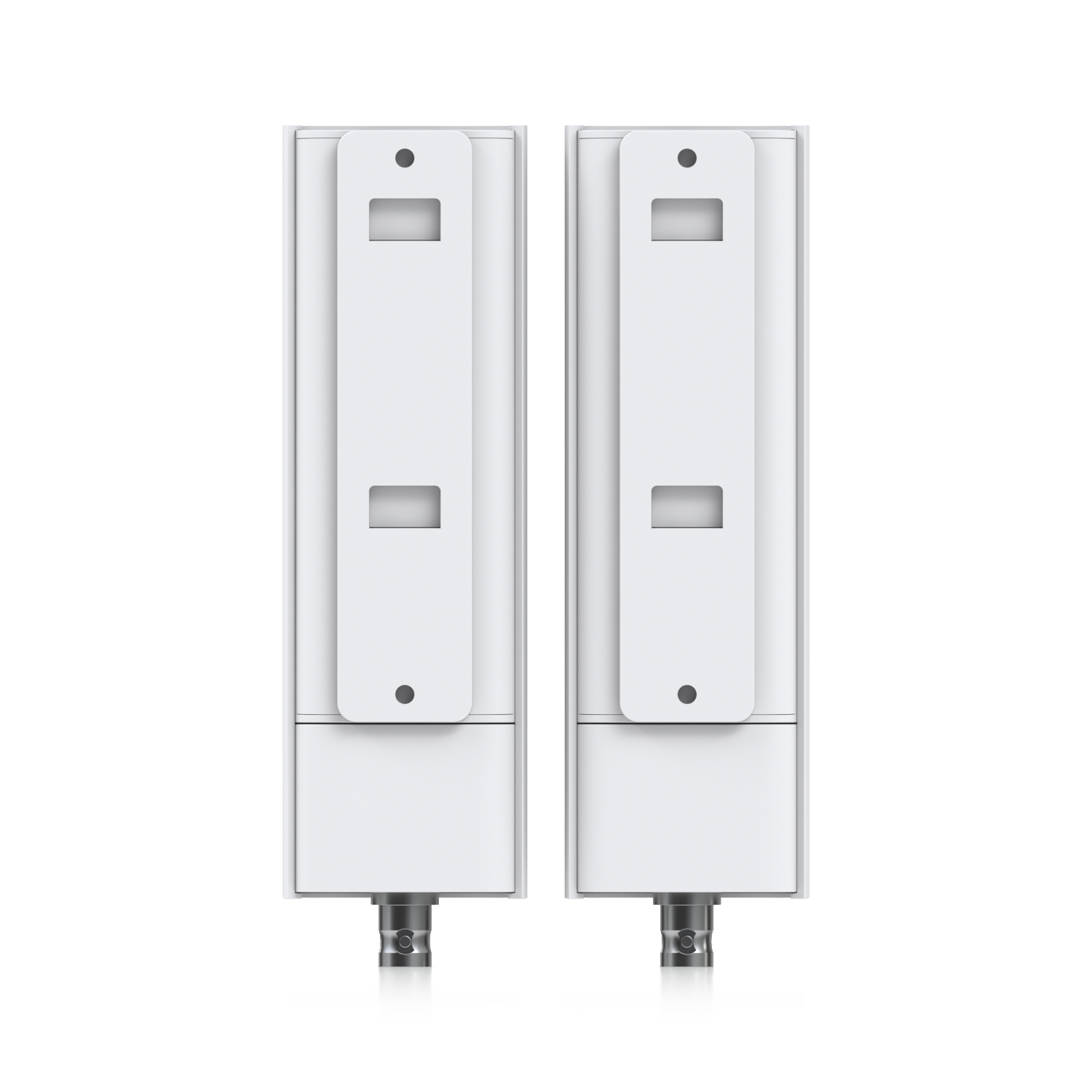

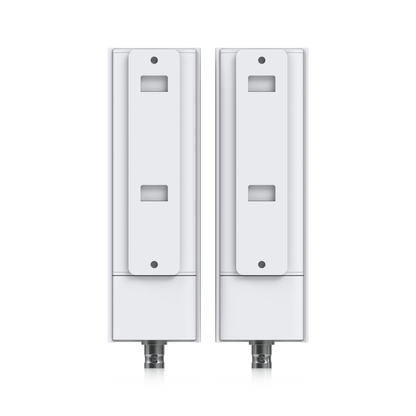

| Mounting material | Polycarbonate |
| Coaxial connector | BNC female |
| Hardware | |
| Networking interface |
(1) 10/100 MbE (1) Homeplug AV |
| Power method | PoE++ |
| PoE input | (1) PoE++, 50V DC, 1.2A |
| PoE output | (1) PoE+, 48V DC, 0.6A |
| Max. power consumption | 3W (Without PoE output) |
| ESD/EMP protection | Air: ±8kV, contact: ±4kV |
| LED | White |
| Ambient operating temperature | -10 to 40° C (14 to 104° F) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Recommend max. cable length
| UTP 24AWG 0.18ohm/meter | RG-6, 0.14ohm/meter | |||
|---|---|---|---|---|
|
Cable length |
Bandwidth (Mbps) |
Max output (W) |
Bandwidth (Mbps) |
Max output (W) |
| 50 m | 85 | 25 | 85 | 25 |
| 100 m | 85 | 13 | 85 | 20 |
| 150 m | 85 | 9 | 85 | 13 |
| 200 m | 85 | 6 | 85 | 9 |
| 250 m | 80 | 4 | 85 | 7 |
| 300 m | 75 | 3 | 85 | 6 |
| 350 m | 70 | 0 | 85 | 4 |
| 400 m | 65 | 0 | 82 | 3 |
| 450 m | 60 | 0 | 80 | 0 |
| 500 m | 55 | 0 | 75 | 0 |
| 550 m | 50 | 0 | 70 | 0 |
| 600 m | — | — | 65 | 0 |
| 650 m | — | — | 60 | 0 |
| 700 m | — | — | 55 | 0 |
| 750 m | — | — | 50 | 0 |
