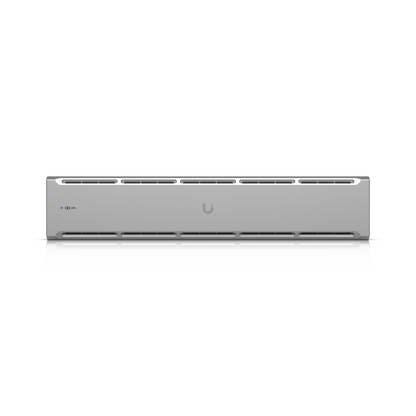

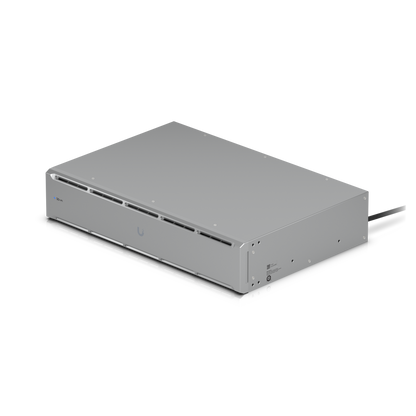

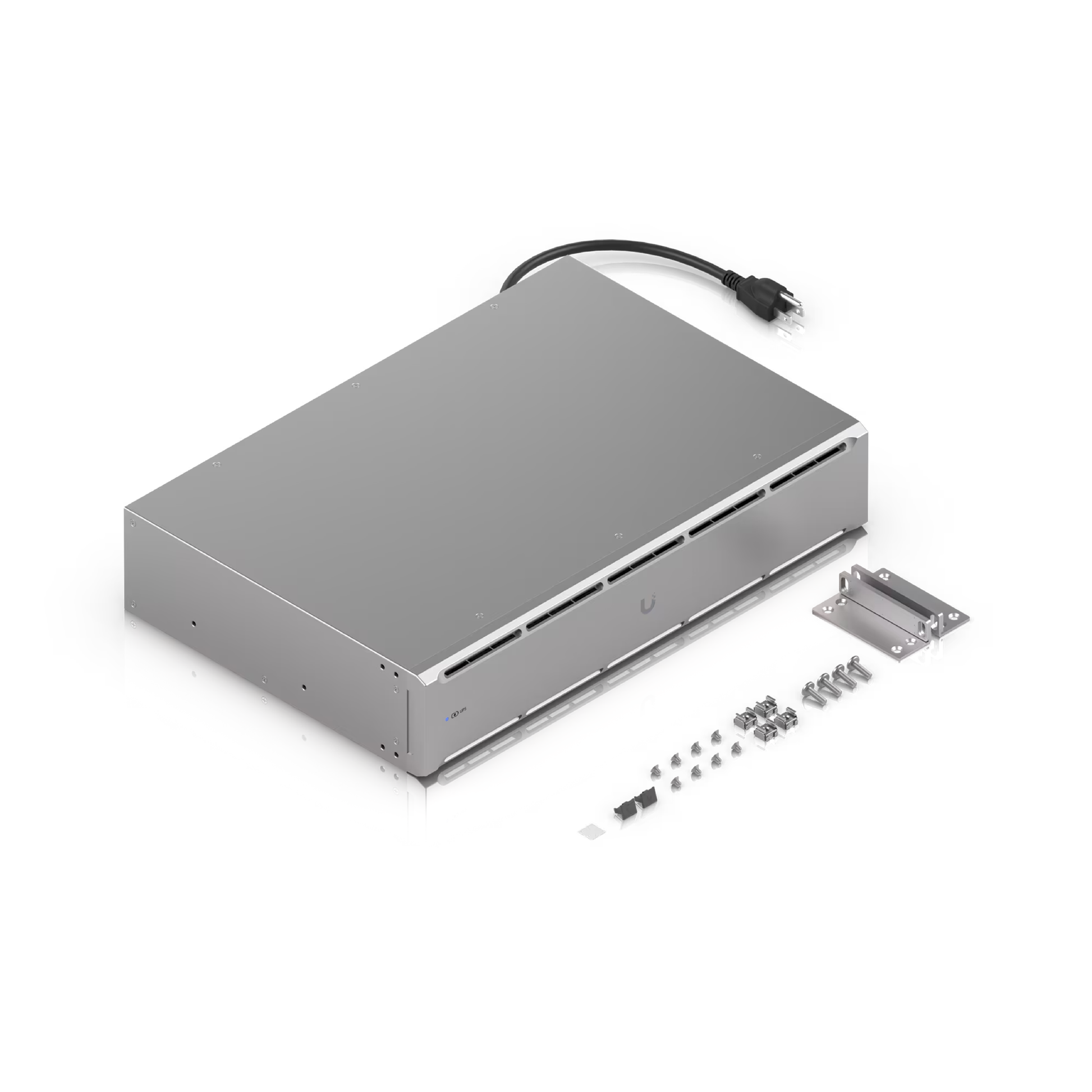

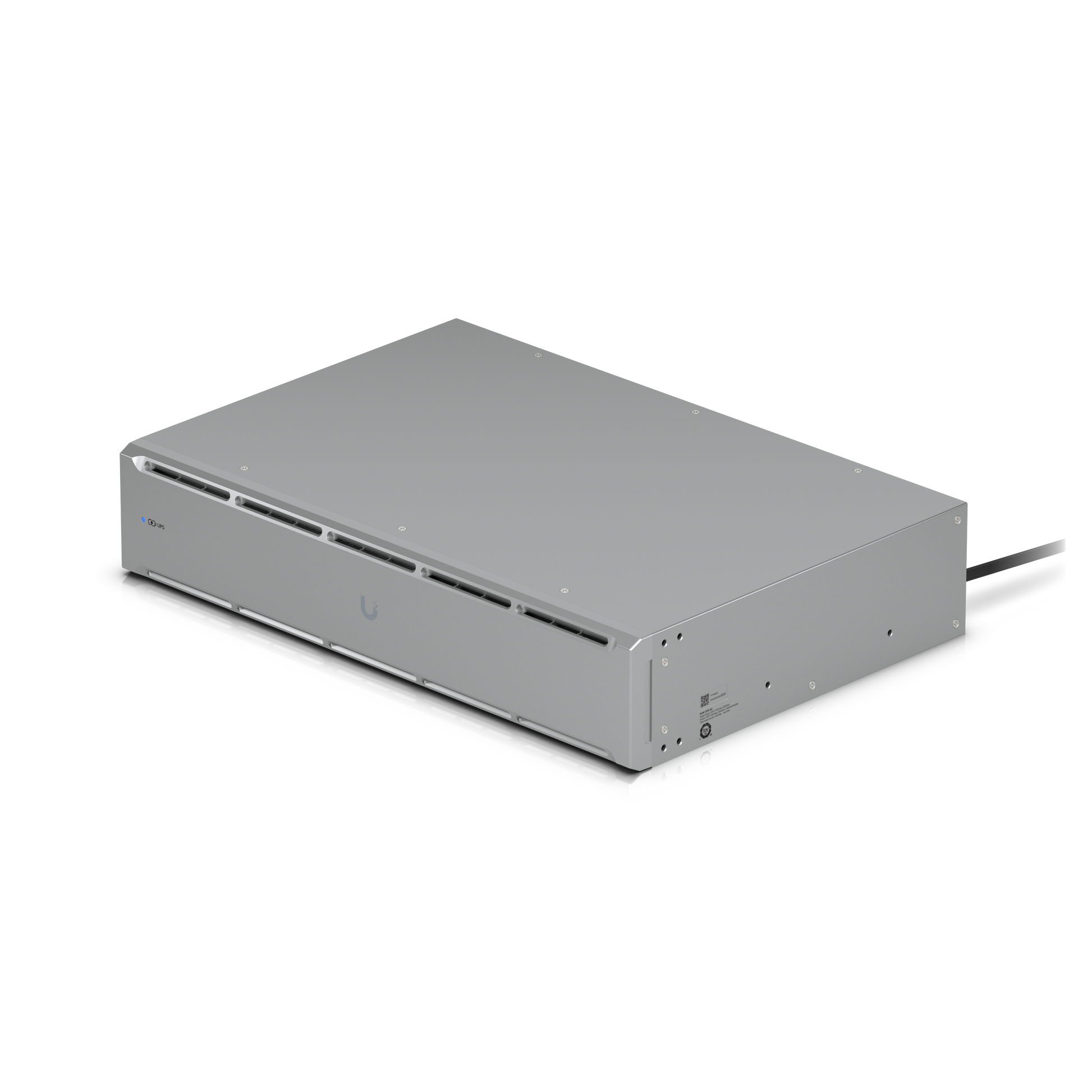

UniFi UPS 2U Managed Rackmount Uninterruptible Power Supply

Ubiquiti UPS-2U UniFi UPS 2U Managed Rackmount Uninterruptible Power Supply

SKU:UPS-2U

$599.00

~~$599.00~~ $599.00

0% Off | Save $0.00 Sold out

Taxes included. Shipping calculated at checkout.

Price includes 2-year warranty coverage (12 months extended) Learn more

Out of stock

Quantity

Australian Reseller | Australian Stock | Australian Warranty

Found it cheaper elsewhere? Let us know

Buying for your business? Earn Store Credits

View full details

UniFi managed 1.44kVA rackmount uninterruptible power supply with 4 backup outlets, 4 surge outlets, and a field replaceable battery, 216Wh, half load (500W) runtime of 8 minutes. Supports Graceful Shutdown for UNVR and UNAS, and includes NUT compatibility for third-party devices.

(2) GbE ports for Surge In/Out.
(1) 100/10 MbE port for network connection.

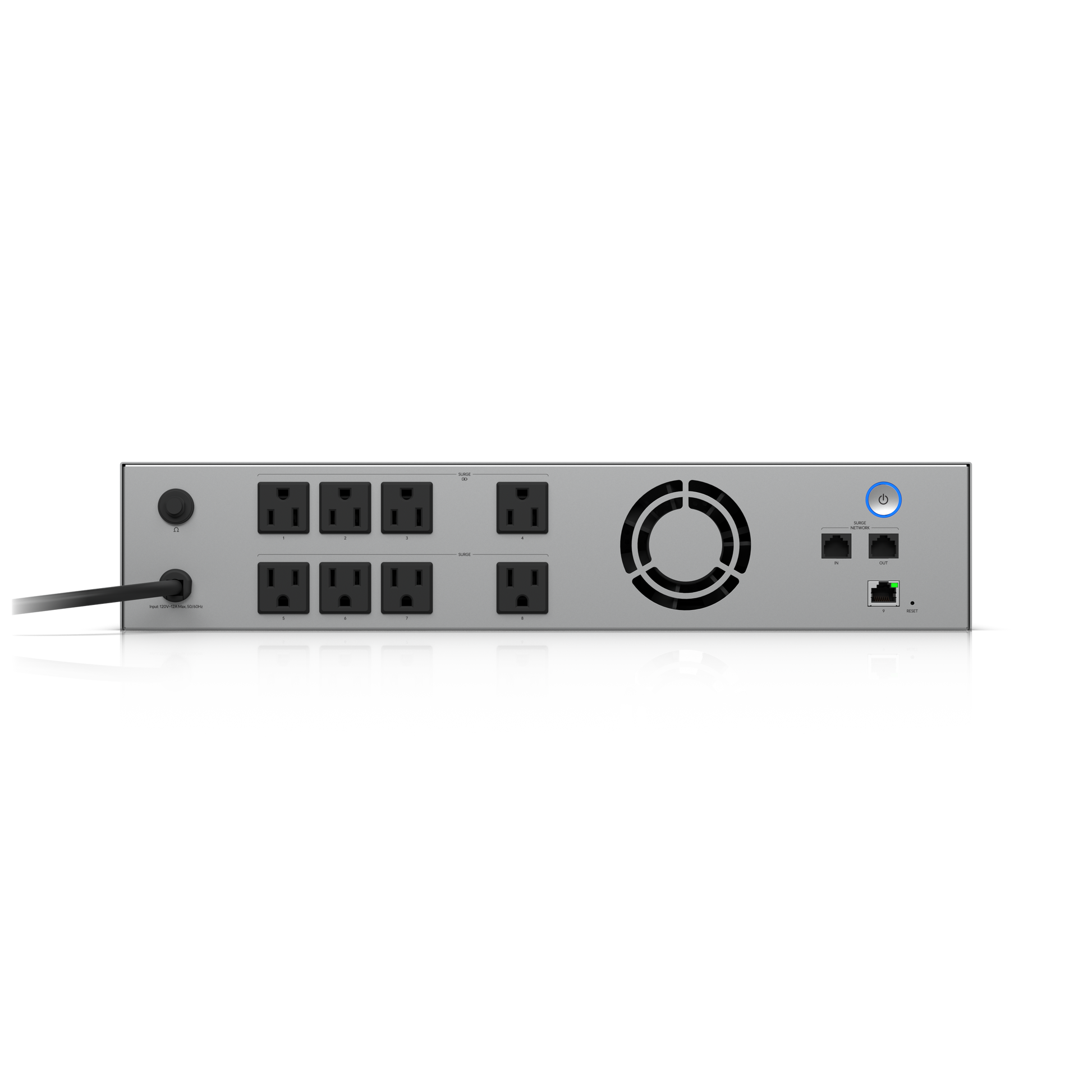

(8) 240V AC outputs; 1000W.
- (4) Battery backup/surge protection: C13
- (4) Surge protection: C13
Battery backup power system (UPS).
Internal battery 216Wh.

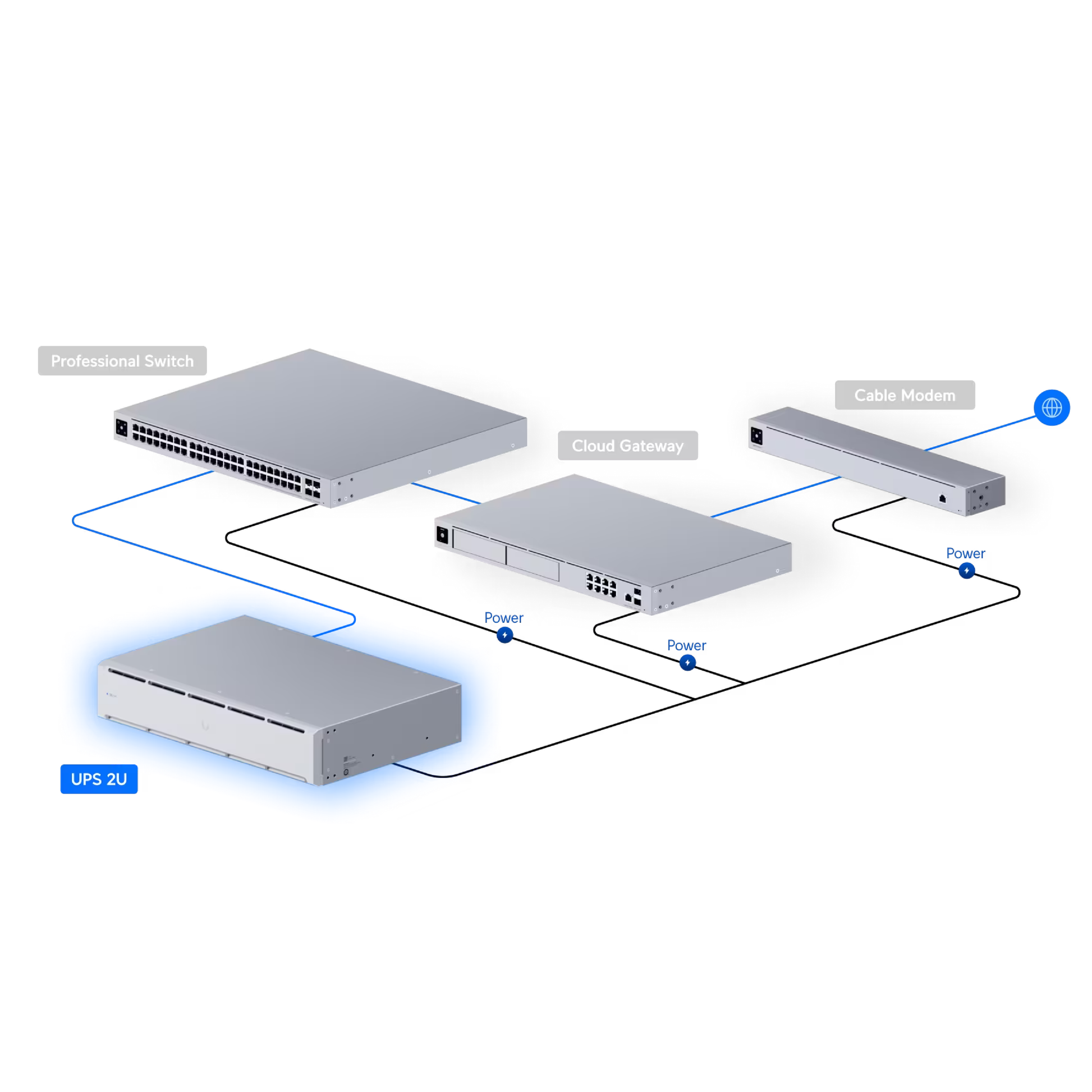

Backup Power Compatible Devices:

UCG-Fiber,
UCG-Max,
UCG-Ultra,
UDM-Pro,
UDM-Pro-Max,
UDM-SE,
UDM,
UDR,
UDR7,
UX,
UX7,
USW-16-POE,
USW-24,
USW-24-POE,
USW-48,
USW-48-POE,
USW-Aggregation,
USW-Enterprise-8-PoE,
USW-Enterprise-24-PoE,
USW-EnterpriseXG-24,
USW-Flex,
USW-Flex-2.5G-5,
USW-Flex-2.5G-8,
USW-Flex-2.5G-8-PoE,
USW-Flex-Mini,
USW-Flex-Utility,
USW-Flex-XG,
USW-Lite-8-PoE,
USW-Lite-16-PoE,
USW-Pro-8-PoE,
USW-Pro-24,
USW-Pro-24-POE,
USW-Pro-48,
USW-Pro-48-POE,
USW-Pro-Aggregation,
USW-Pro-HD-24,
USW-Pro-HD-24-PoE,
USW-Pro-Max-16,
USW-Pro-Max-16-PoE,
USW-Pro-Max-24-PoE,
USW-Pro-Max-48,
USW-Pro-Max-48-PoE,
USW-Pro-XG-8-PoE,
USW-Pro-XG-10-PoE,
USW-Pro-XG-24,
USW-Pro-XG-24-PoE,
USW-Pro-XG-48,
USW-Pro-XG-48-PoE,
USW-Ultra,
USW-Ultra-60W,
USW-Ultra-210W,
USW-WAN,
USW-WAN-RJ45,
UNAS-2,
UNAS-Pro,
UNVR,
UNVR-Pro,
USP-PDU-Pro.

Note. For Graceful Shutdown functionality, UniFi OS version 4.4.3 or higher is required.

Mechanical

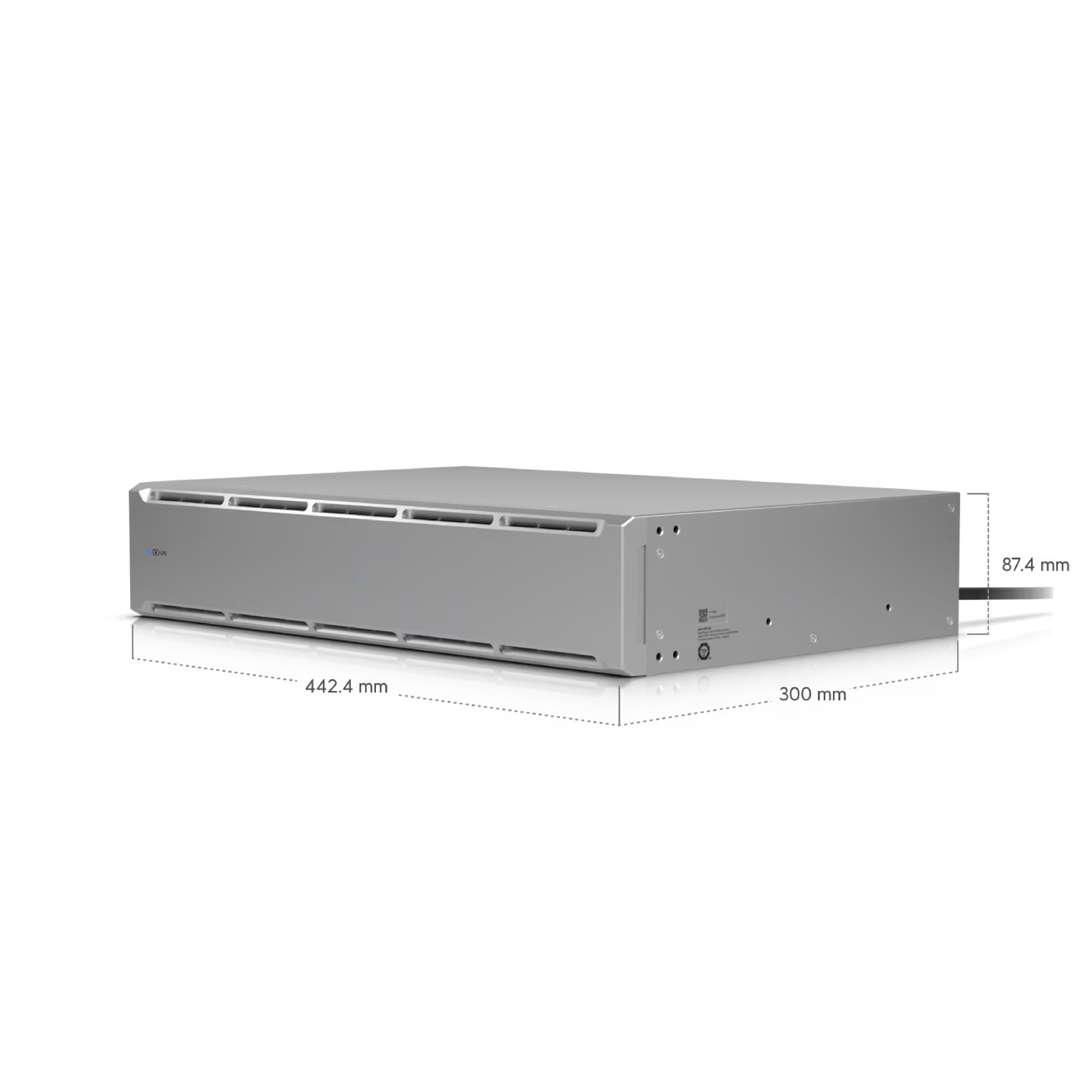

Dimensions	442.4 x 300 x 87.4 mm (17.4 x 11.8 x 3.4")
Weight	13.7 kg (30.2 lb)
Enclosure Material	Galvanized steel
Form Factor	Rack mount (2U)
Weatherproofing	IP20
Hardware
Management	Ethernet

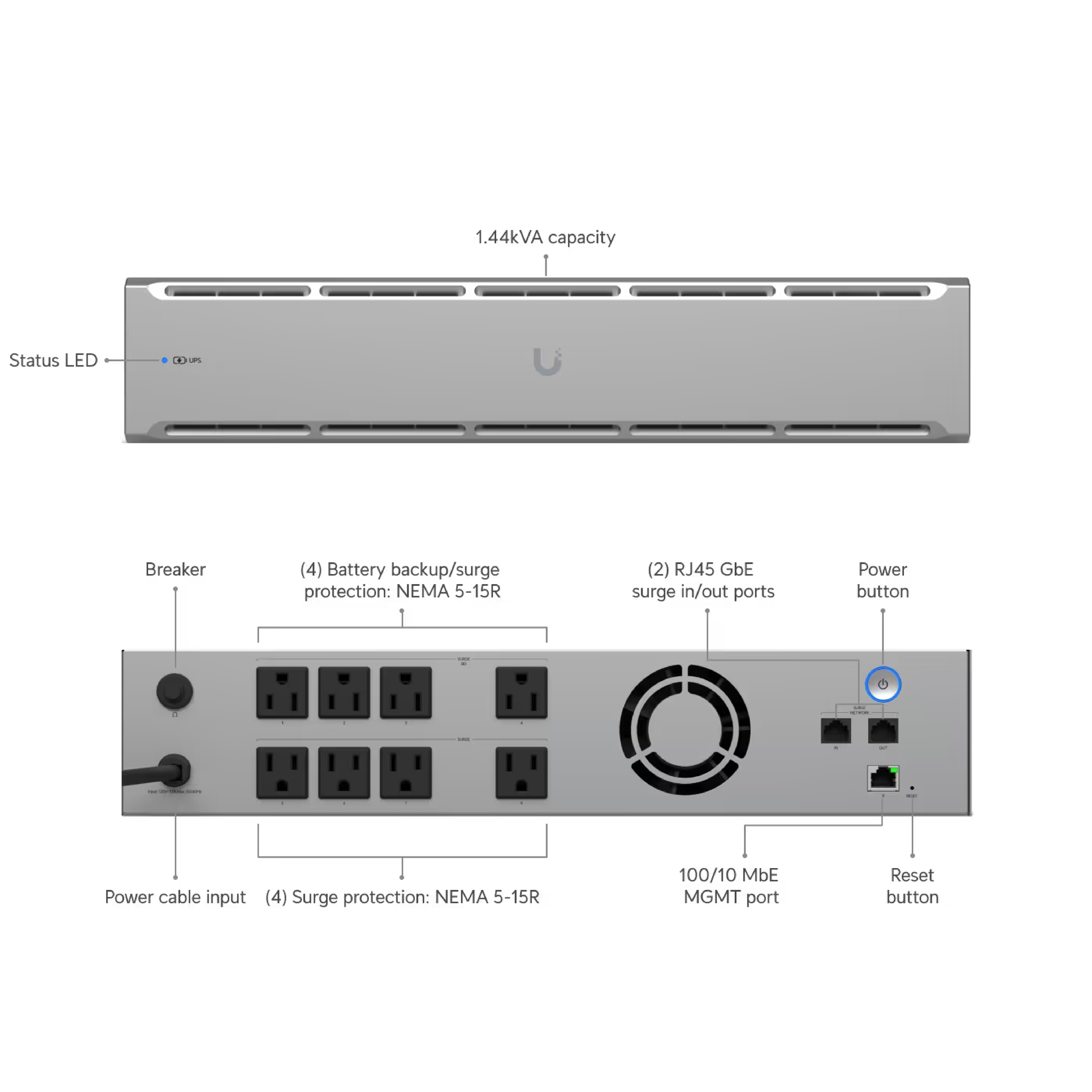

Networking Interface	(1) 100/10 MbE port for network connection (2) GbE ports for surge in/out

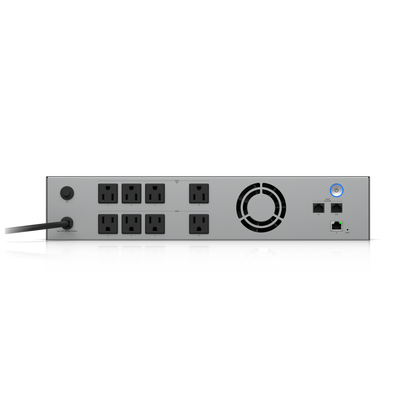

Power	(1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord (4) Battery backup/surge protection: C13 (4) Surge protection: C13
Capacity	1,500VA/1,000W
Type	Line interactive
Input Voltage Range	170—280V AC
Power Method	(1) TN system, 220—240V AC, 10A Max., 50/60 Hz
Nominal Input Voltage	230V AC
Output Voltage	220—240V AC
Nominal Output Voltage	230V AC
Frequency Range	AC mode: 50/60 Hz ±5 Hz (Auto sensing) Battery mode: 50 Hz ±1 Hz
AC Voltage Regulation	±10% (Battery mode)
Transfer Time	6 ms typical; 10 ms max. (Battery mode)
Wave Form	Simulated sine wave (Battery mode)
Battery Type	(2) Lead Acid 12V, 9Ah
Runtime	Full load: 2.3 min Half load: 8 min
Battery Charging Time	6-8 hours recovery to 90% capacity
Overload at On-Line Mode	110% 5 min go to fault 120% go to fault immediately
Overload at Battery Mode	110% shutdown in 5 sec 120% shutdown immediately
Short Circuit Protection at On-Line Mode	Breaker, 250V AC, 10A
Output Short-Circuit Current	Ipeak 444.0A Irms 223.1A
Buttons	(1) Power (1) Factory reset
LEDs	Status: Off: device not turned on Flashing white: initializing / factory default Steady white: waiting for adoption Steady blue: device adoption and working Flashing blue: battery mode Alternating white/blue: firmware upgrading Rapid flashing blue: locate Steady red: warning Flashing red: low battery
Operating Altitude	3,000 m (1.9 mi)
Operating Environment	Pollution Degree 2
Ambient Storage Temperature	-20 to 50° C (-4 to 122° F)
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
Ambient Operating Humidity	0 to 95% noncondensing
Certifications	CE, IEC 62040-1

Visit Ubiquiti for more information.

Ubiquiti UPS-2U UniFi UPS 2U Managed Rackmount Uninterruptible Power Supply

Frequently Asked Questions

Is the battery hot-swappable?

Yes. The UniFi UPS 2U supports hot-swappable battery replacement via the front panel, making the process quick and hassle-free.

What devices should not be plugged into the UniFi UPS 2U?

Avoid connecting the following types of devices to the UniFi UPS 2U:

High-power appliances - e.g., laser printers, vacuum cleaners, hair dryers, microwaves, air conditioners, refrigerators.
Motor- or compressor-driven equipment - e.g., power tools, drills, air pumps.
Devices with high inrush current - e.g., large servo motors, induction cooktops.
Any device that exceeds the UPS's rated wattage.

These devices can draw excessive or sudden inrush current, which may overload the UPS, trigger protection shutdown, or shorten the battery lifespan.

Why does the UniFi UPS 2U report overload?

The UniFi UPS 2U reports an overload when the total connected load exceeds its 1000 W rating, or when a device draws a high inrush current during startup.
