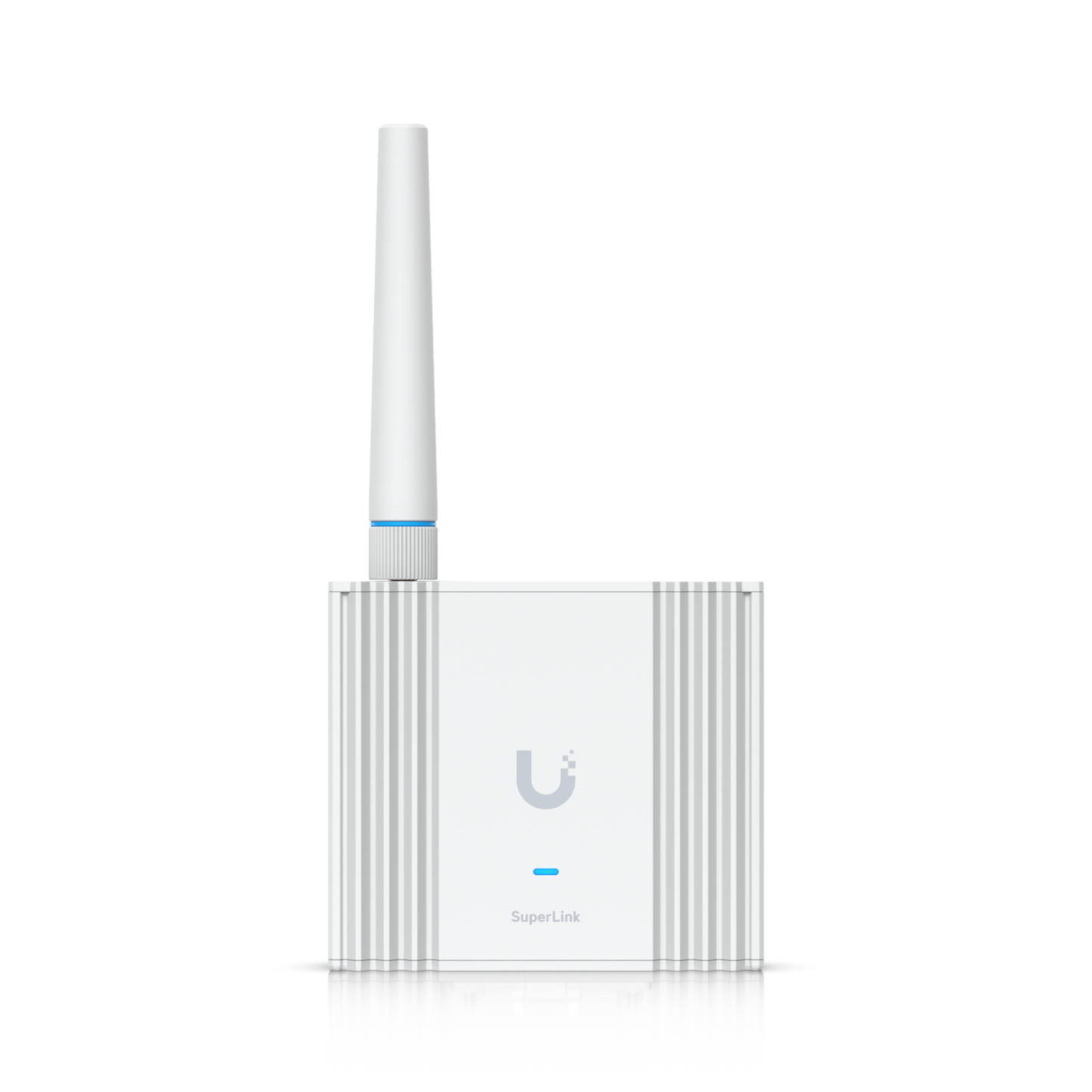

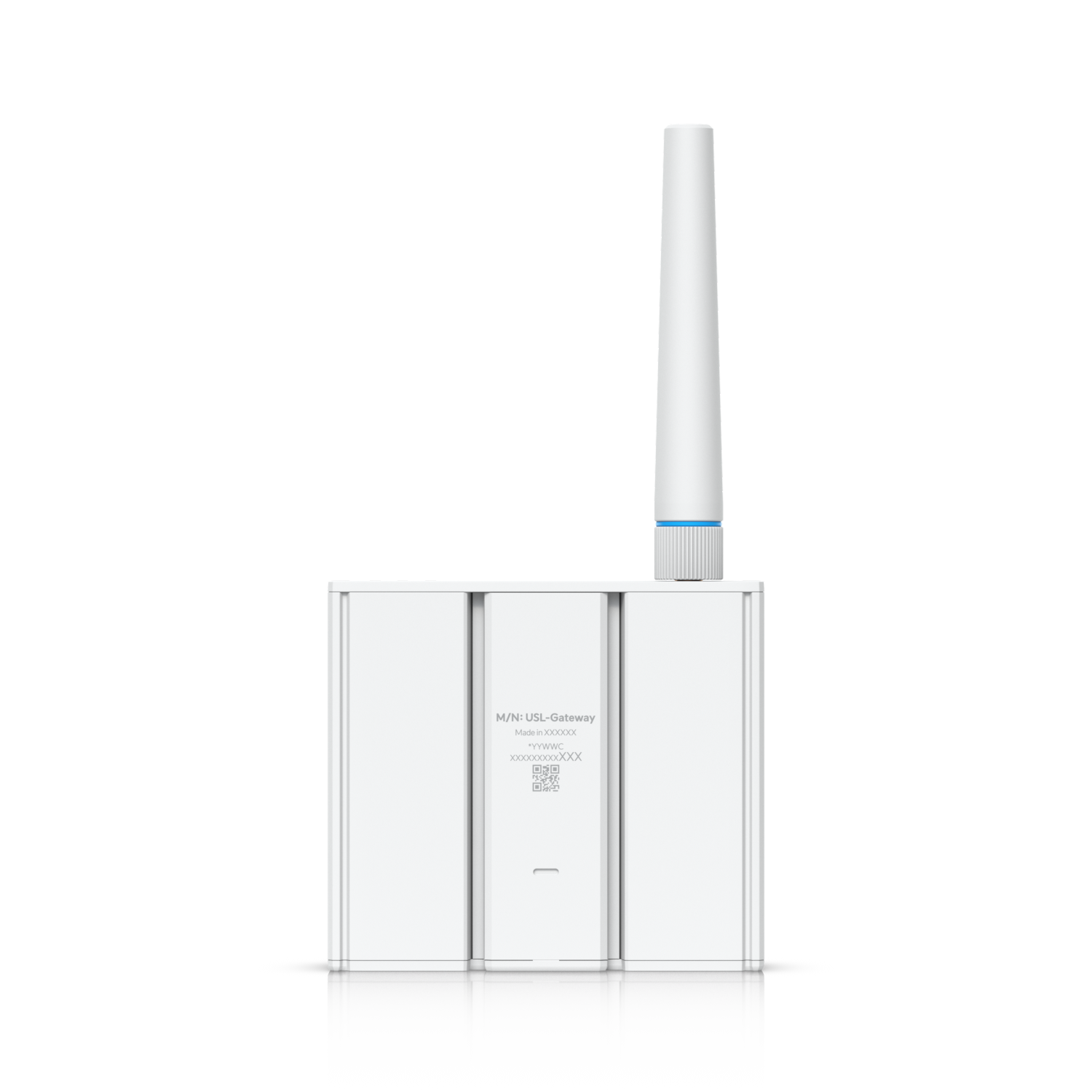

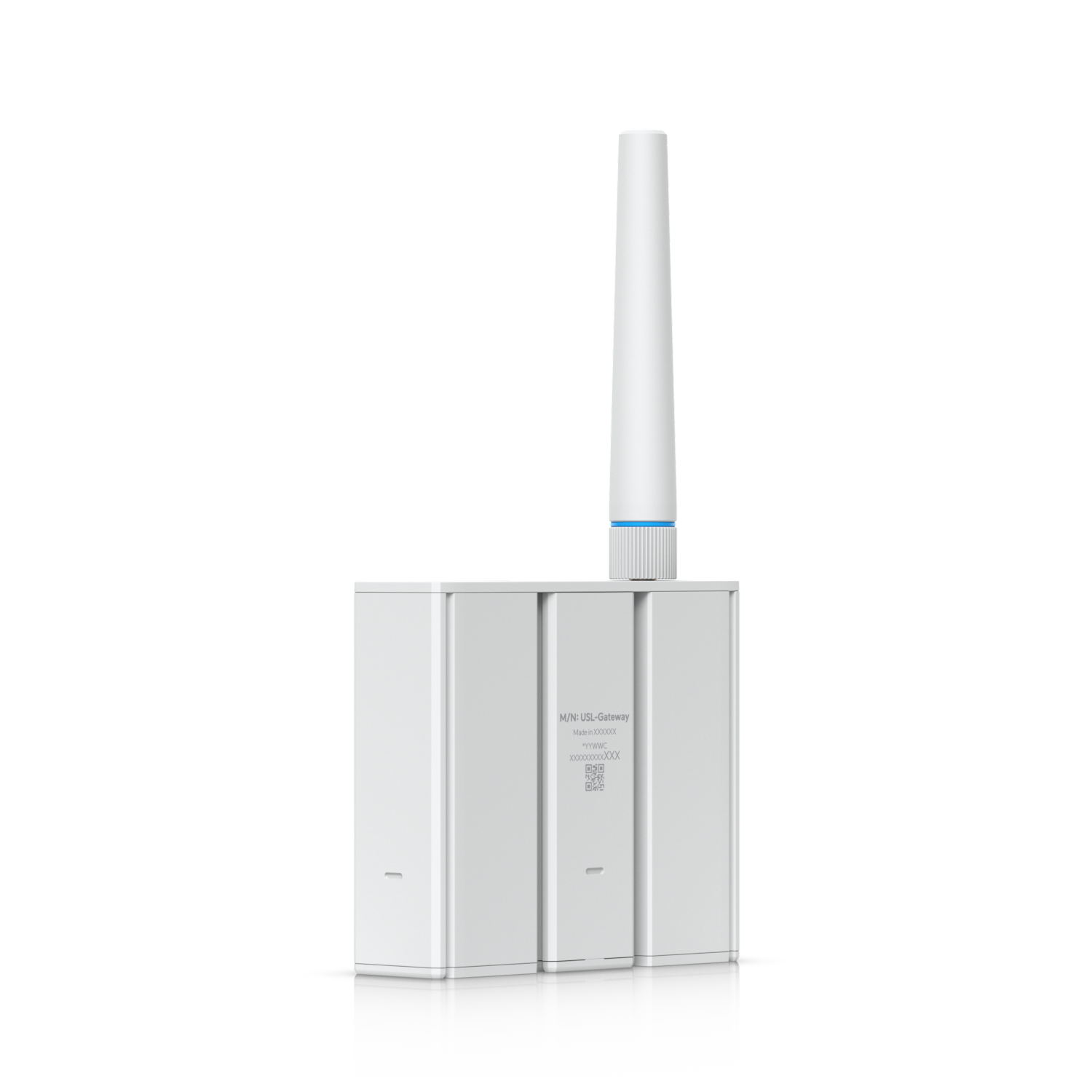

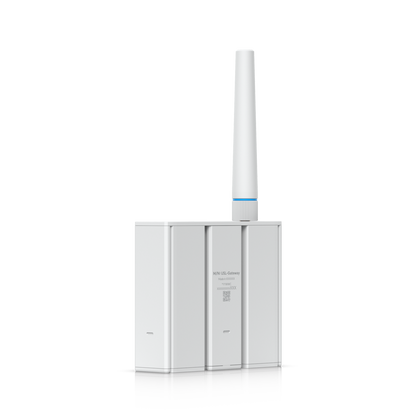

UniFi SuperLink Gateway for Protect Sensors
Ubiquiti USL-Gateway UniFi SuperLink Gateway for Protect Sensors
SKU:USL-Gateway
EOFY Sale. Limited promotional stock available — don’t miss out!
20 in stock and ready to ship today.
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Found it cheaper elsewhere? Let us know
Buying for your business? Earn Store Credits
Proprietary super long-range, low-latency wireless gateway for UniFi Protect Sensors.

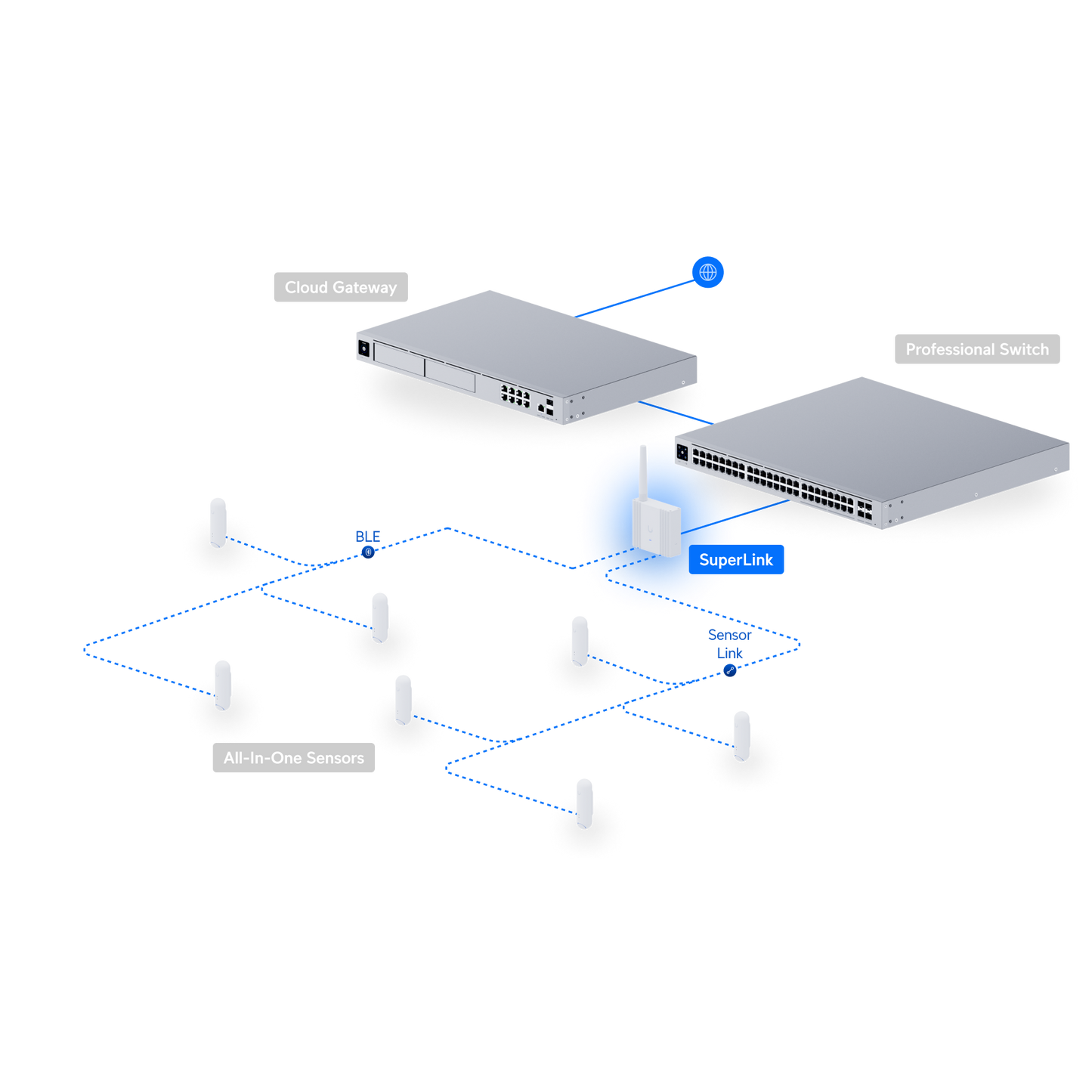

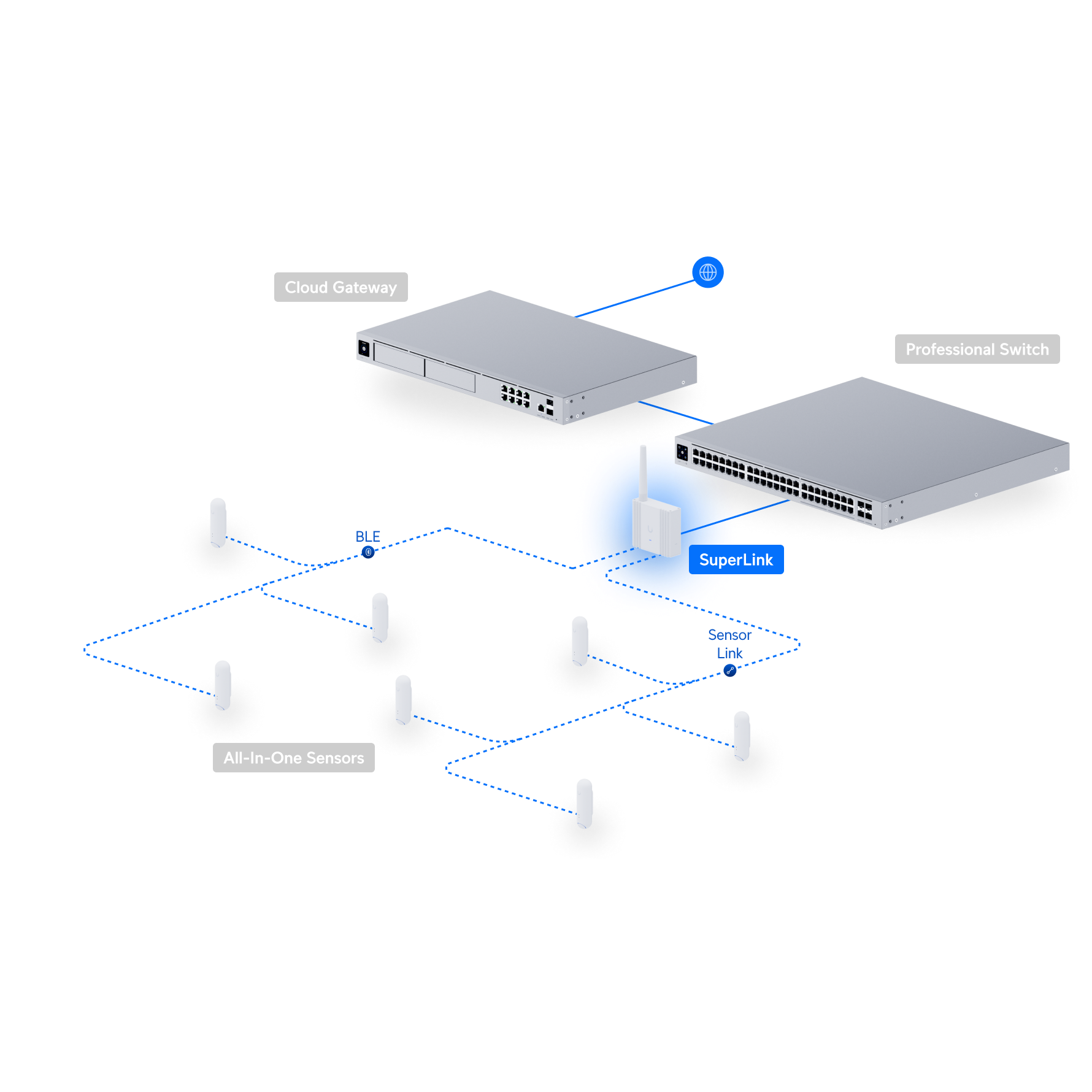

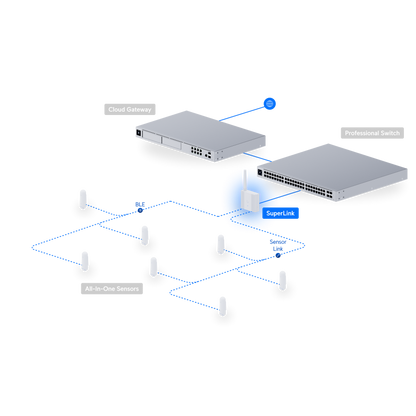

The SuperLink Gateway is a long-range UniFi Protect gateway that connects sensors via Bluetooth and SuperLink for extended wireless coverage. Designed to support sensors with up to a 2 km line-of-sight range and extended battery life, SuperLink enhances the flexibility and reliability of UniFi Protect deployments, making sensor monitoring easier and more versatile than ever.
Key Features:
- Dual Radios: Bluetooth for short-range connectivity and proprietary SuperLink for ultra-long-range connectivity (up to 2 km).
- High Capacity: Supports up to 96 SuperLink (USL) sensors and up to 7 legacy UP-Sense (BLE) devices via Bluetooth.
- Flexible Power Options: Powered via PoE or USB-C, offering multiple deployment options.

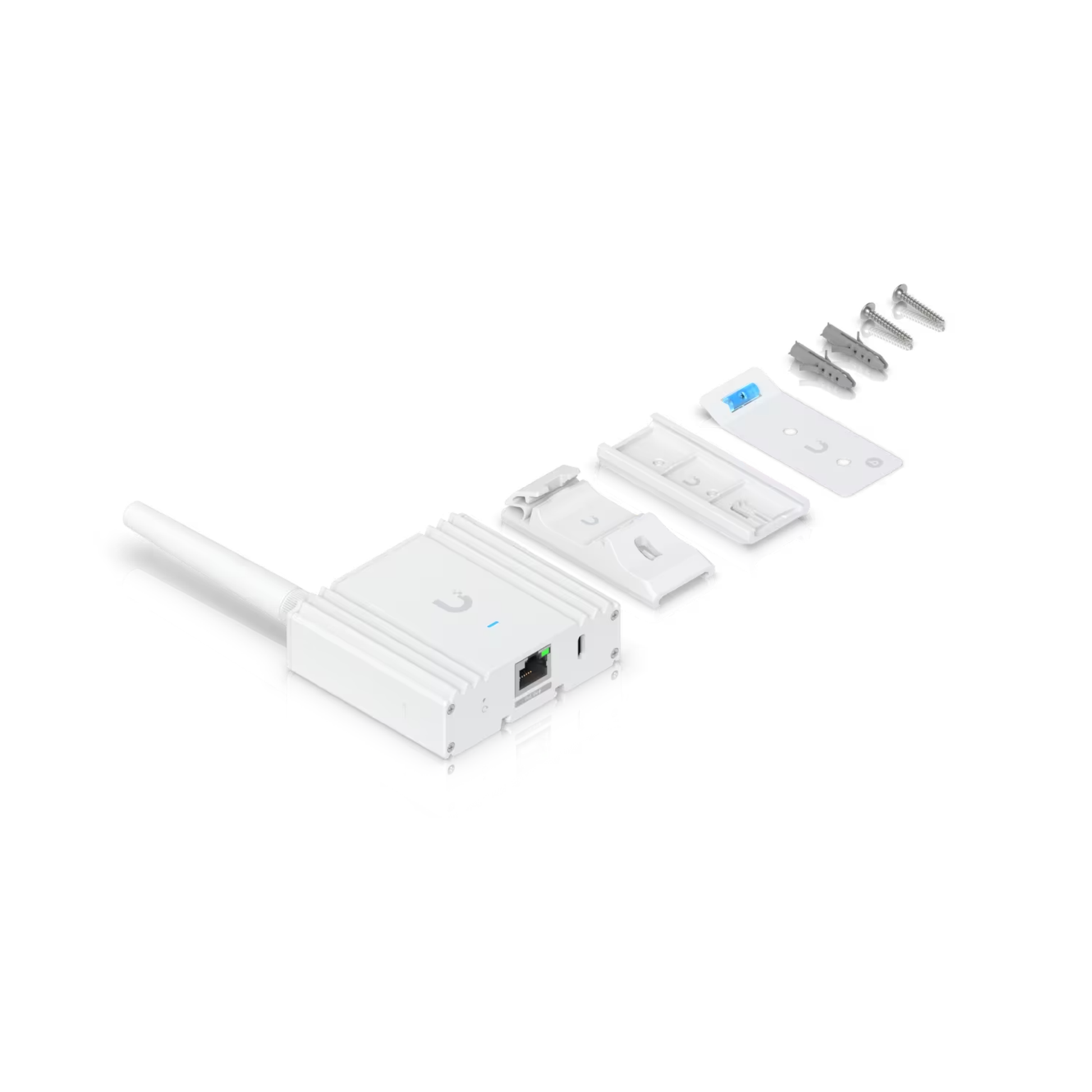

- Mounting Options: Wall or DIN rail mount options make installation fast and easy.
Please Note: This is the US version which supports sensors that operate on frequencies 915.6 to 927.6 MHz. The sensor Model/SKU should end with -US or -EU. Please make sure your sensor is a -US before purchasing to prevent incompatibility. The UP-Sense should work with any version because it uses Bluetooth.
View Installation Guide| Overview | |
| Dimensions |

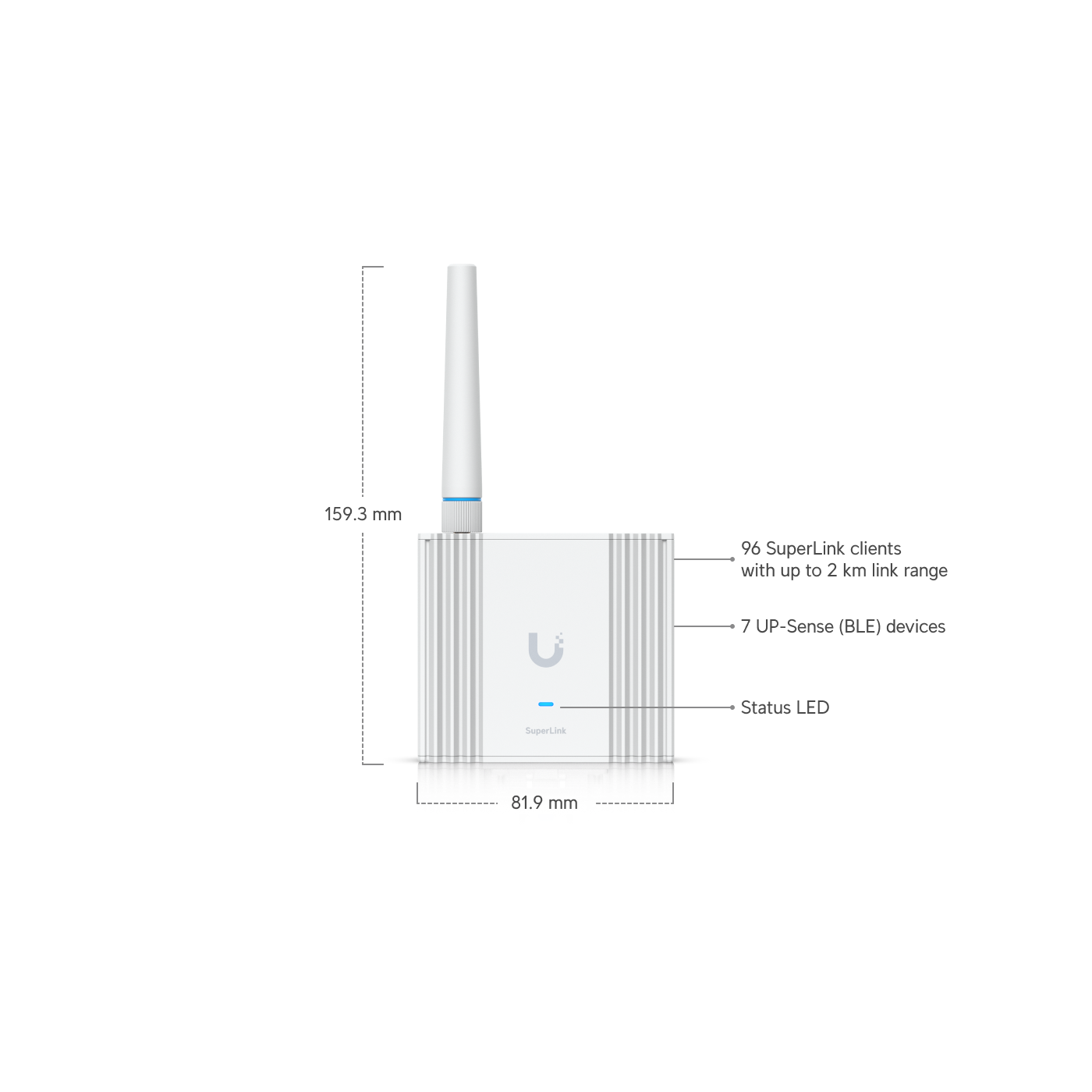

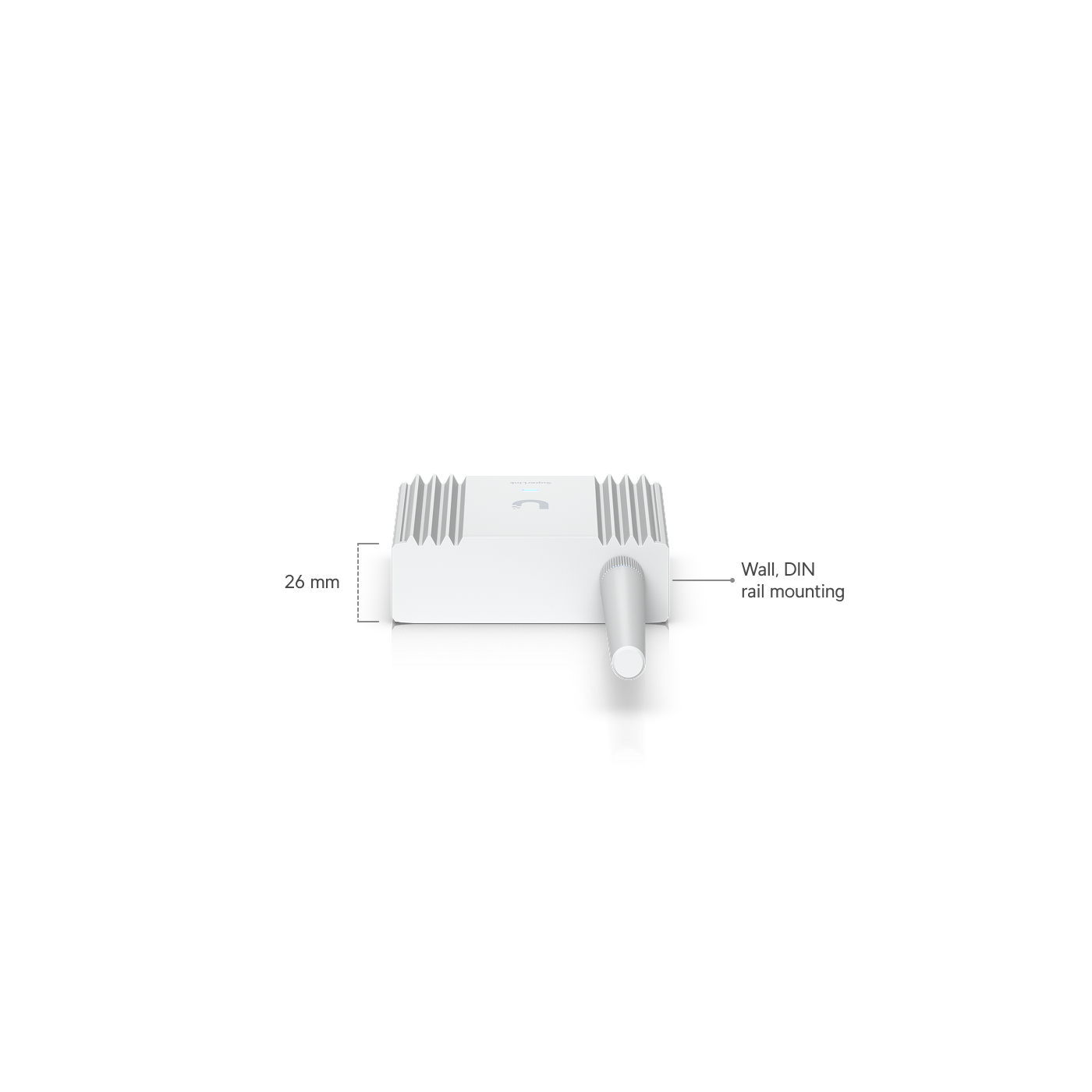

With antenna: 159.3 x 81.9 x 26 mm (6.3 x 3.2 x 1") With DIN rail mount: 159.3 x 81.9 x 38.5 mm (6.3 x 3.2 x 1.5") With wall mount: 159.3 x 81.9 x 30.5 mm (6.3 x 3.2 x 1.2") |
| Mounting | Wall and DIN rail mount |
| UniFi Application Suite | Protect |
| Performance | |

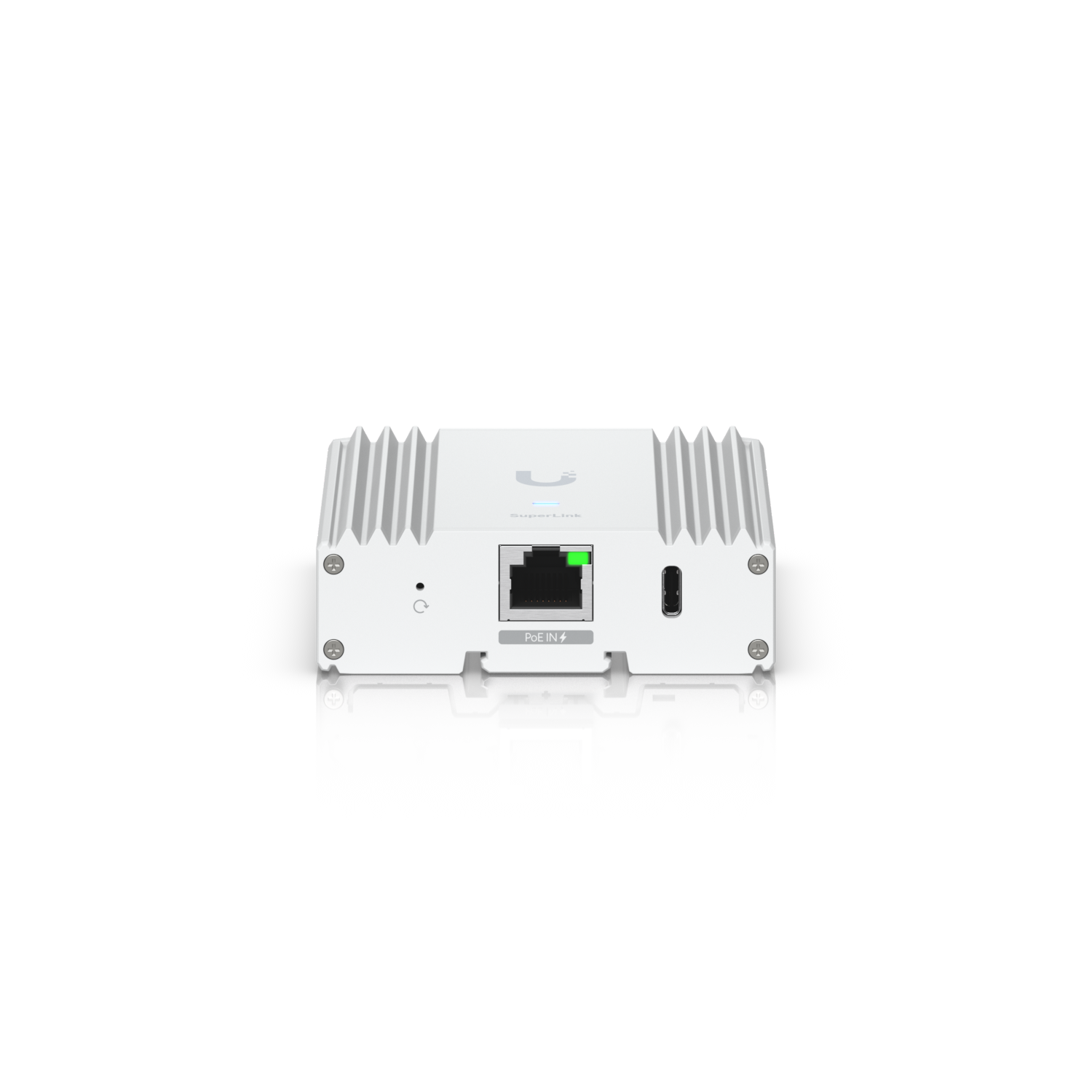

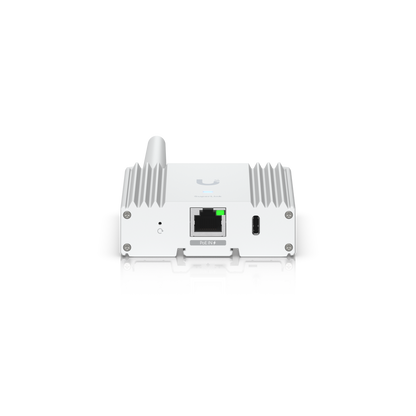

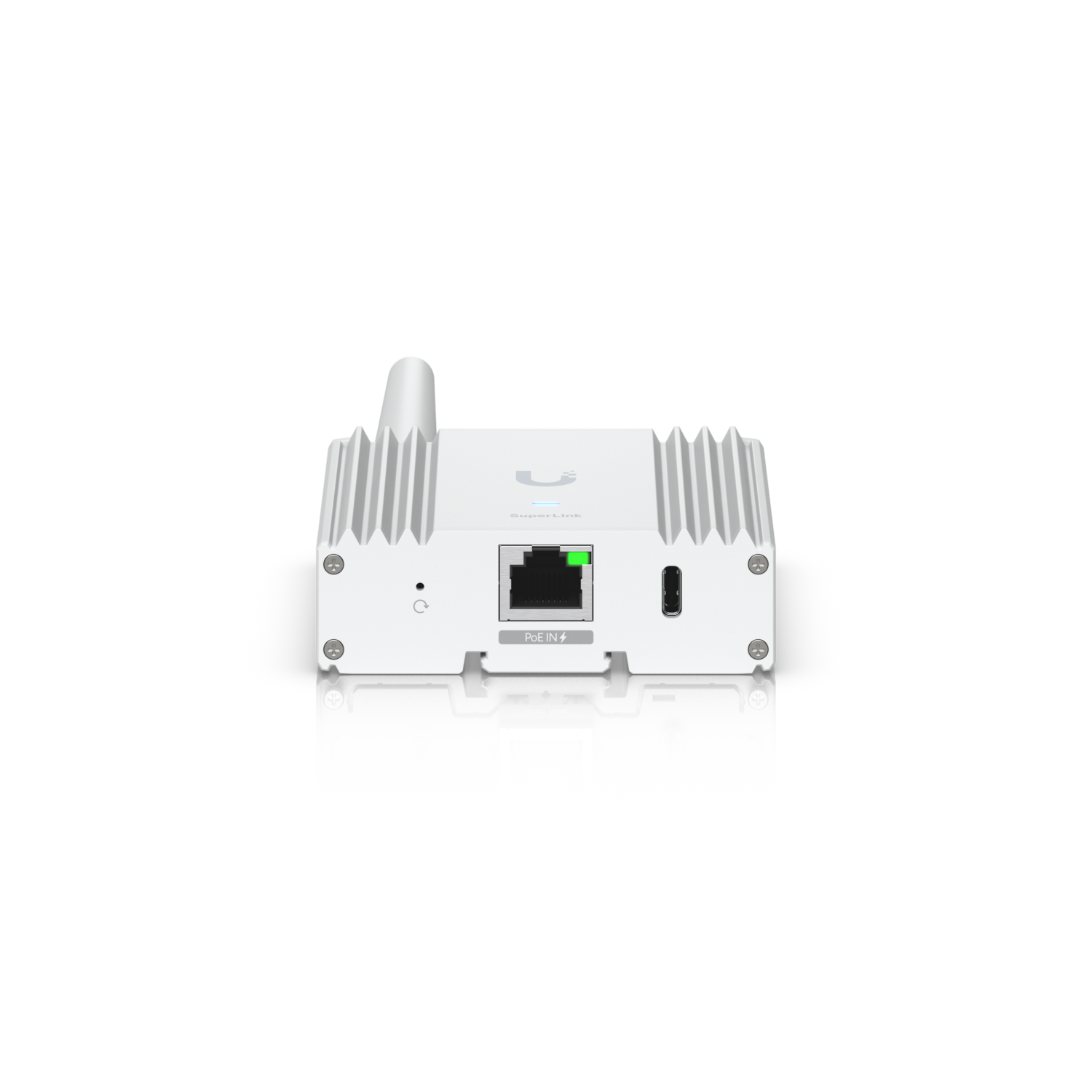

| Networking Interface | (1) 10/100 MbE RJ45 port |
| Connectivity | Bluetooth® 5.2, SuperLink (Proprietary) |
| Operating Frequency | |
| Bluetooth | 2400–2480 MHz |
| SuperLink | US: 915.6–927.6 MHz / EU: 865.1–869.5 MHz |

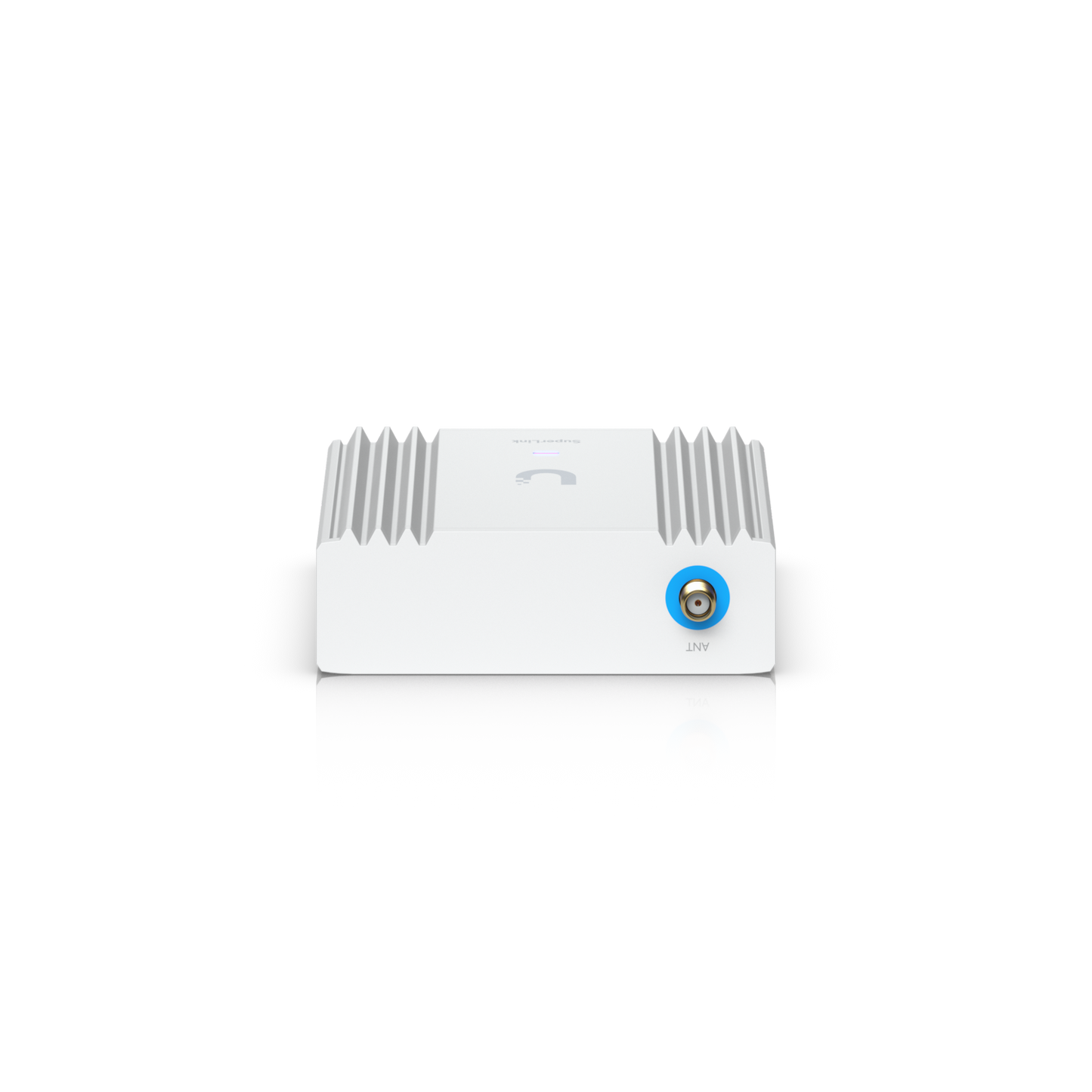

| Antenna Gain | |
| Bluetooth | 3 dBi |
| SuperLink | 2 dBi |
| Max. TX Power | |
| Bluetooth | 10 dBm |
| SuperLink | 27 dBm |
| Max. Range | |
| Bluetooth | Up to 100 m (328 ft) |
| SuperLink | 2 km (1.2 mi) |
| Max. Client Count | |
| Bluetooth | 7 |
| SuperLink | 96 |
| Hardware | |
| Max. Power Consumption | 3.4W |

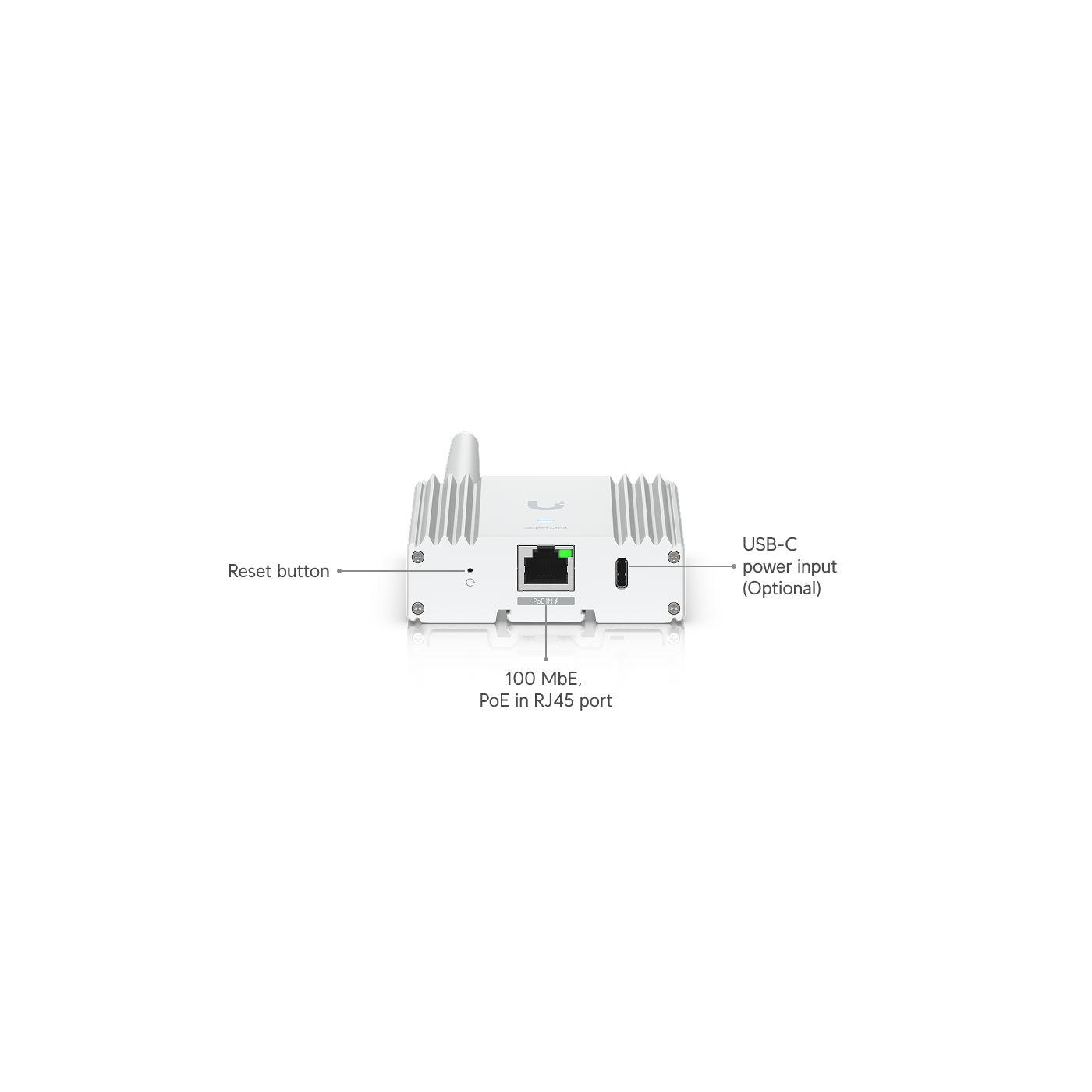

| Power Method | PoE; USB Type-C, 5V, 1A (Optional) |
| Weight | 179 g (6.3 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate |
| Buttons | (1) Factory reset |
| LEDs | (1) Status: B/W |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
| Software | |
| Application Requirements | |
| Web Application | UniFi Protect |
| Mobile App | UniFi Protect iOS™ and Android™ |
Visit Ubiquiti for more information.
Customer Satisfaction
Check out some recent reviews and customer experiences shared on Trustpilot
Frequently Asked Questions
What is SuperLink and how does it compare to the existing BLE interface?
SuperLink is an optimised wireless protocol designed for low-latency, long-range communication with software update management enhancements. Unlike the existing BLE devices, SuperLink endpoint devices offer superior range and power efficiency while minimising delays, making it ideal for security, automation, and industrial applications.
How many SuperLink Gateways can be connected to one console?
There is no limit to the number of SuperLink Gateways used in a deployment. Sensors will automatically connect to the gateway with the best signal quality.
What is the range of SuperLink’s SubG connectivity?
SuperLink can communicate with SuperLink sensors up to 2 km line of sight. Actual performance may vary based on environmental factors such as obstacles and local RF conditions.
Is SuperLink secure?
SuperLink implements end-to-end encryption, authentication, and secure OTA updates. It benefits from the robust security infrastructure of UniFi OS, ensuring robust protection for all deployments.
Where can I install SuperLink for the best coverage?
For optimal range, mount SuperLink high on a wall or on a DIN rail in a central location, minimising obstructions between the gateway and your sensors.
Will SuperLink require a UniFi OS Console to operate?
Yes, SuperLink is managed through UniFi OS, ensuring tight integration with UniFi Protect and future IoT applications.
What is the range of SuperLink’s Bluetooth Radio?
SuperLink has a long-range BLE radio for connecting to UP-Sense units. The range is improved compared to the Bluetooth radio on U6 Access Points.
Can I use SuperLink alongside existing Bluetooth-enabled U6 Access Points?
Yes, UP-Sense (BLE) units will automatically connect to the Bluetooth gateway with the strongest signal. Sensors can also be locked to a specific gateway in UniFi Devices > UP-Sense (BLE) > Connection Settings.
