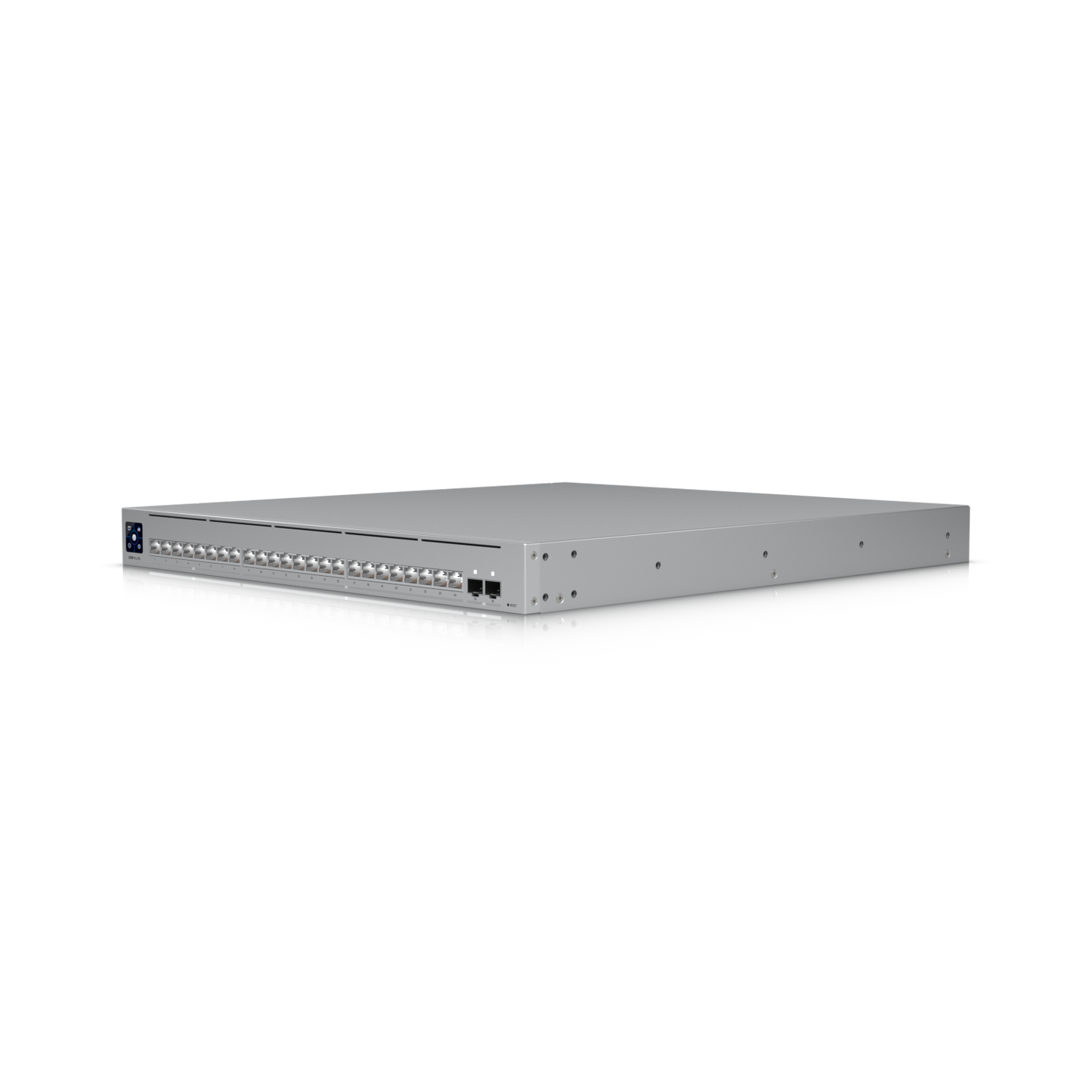

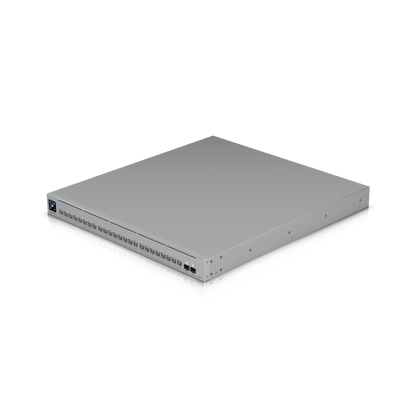

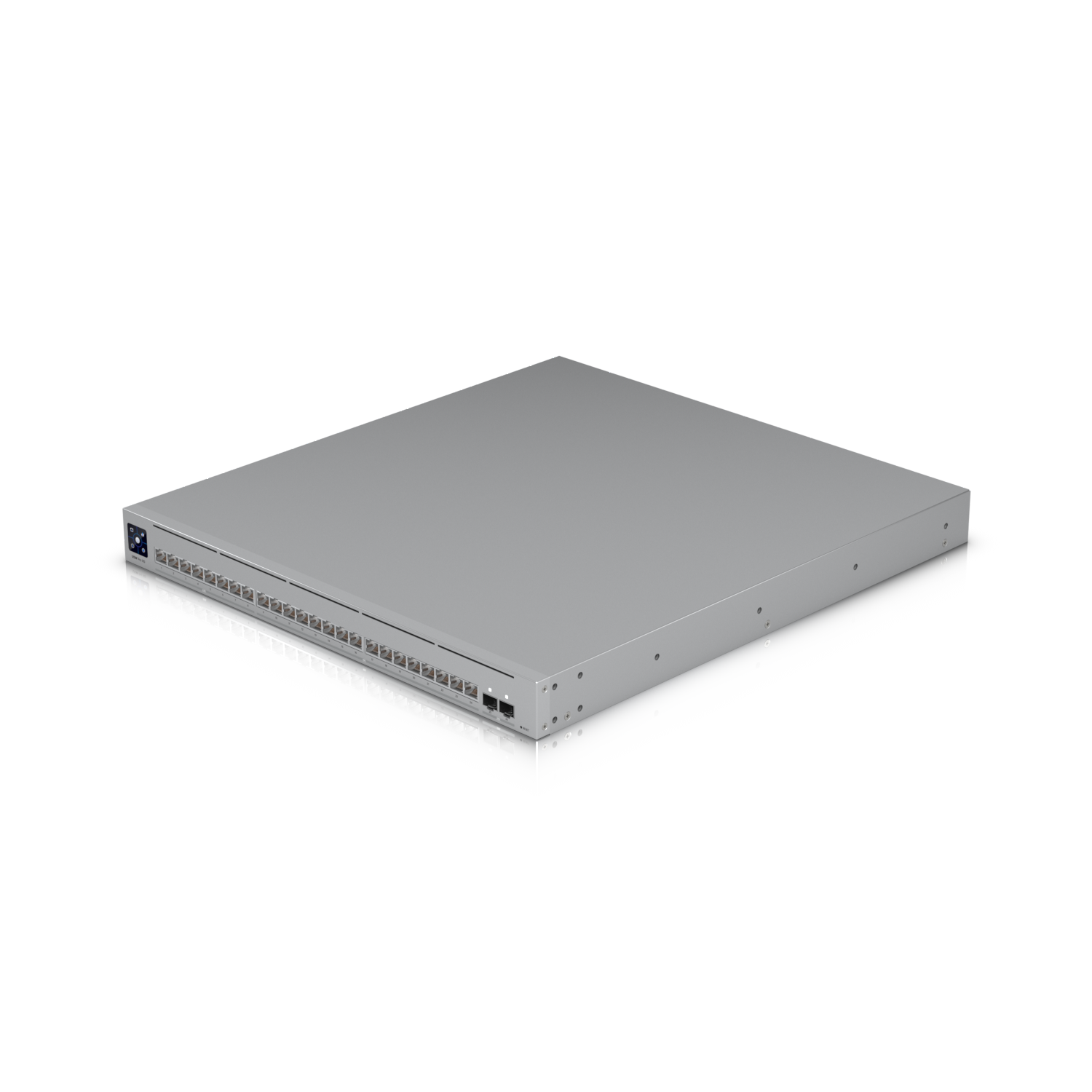

UniFi Pro XG 24 Layer 3 Etherlighting Switch
Ubiquiti USW-Pro-XG-24 UniFi Pro XG 24 Layer 3 Etherlighting Switch
SKU:USW-Pro-XG-24
Out of stock
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty












Professional-grade, 24-port Layer 3 Etherlighting switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.

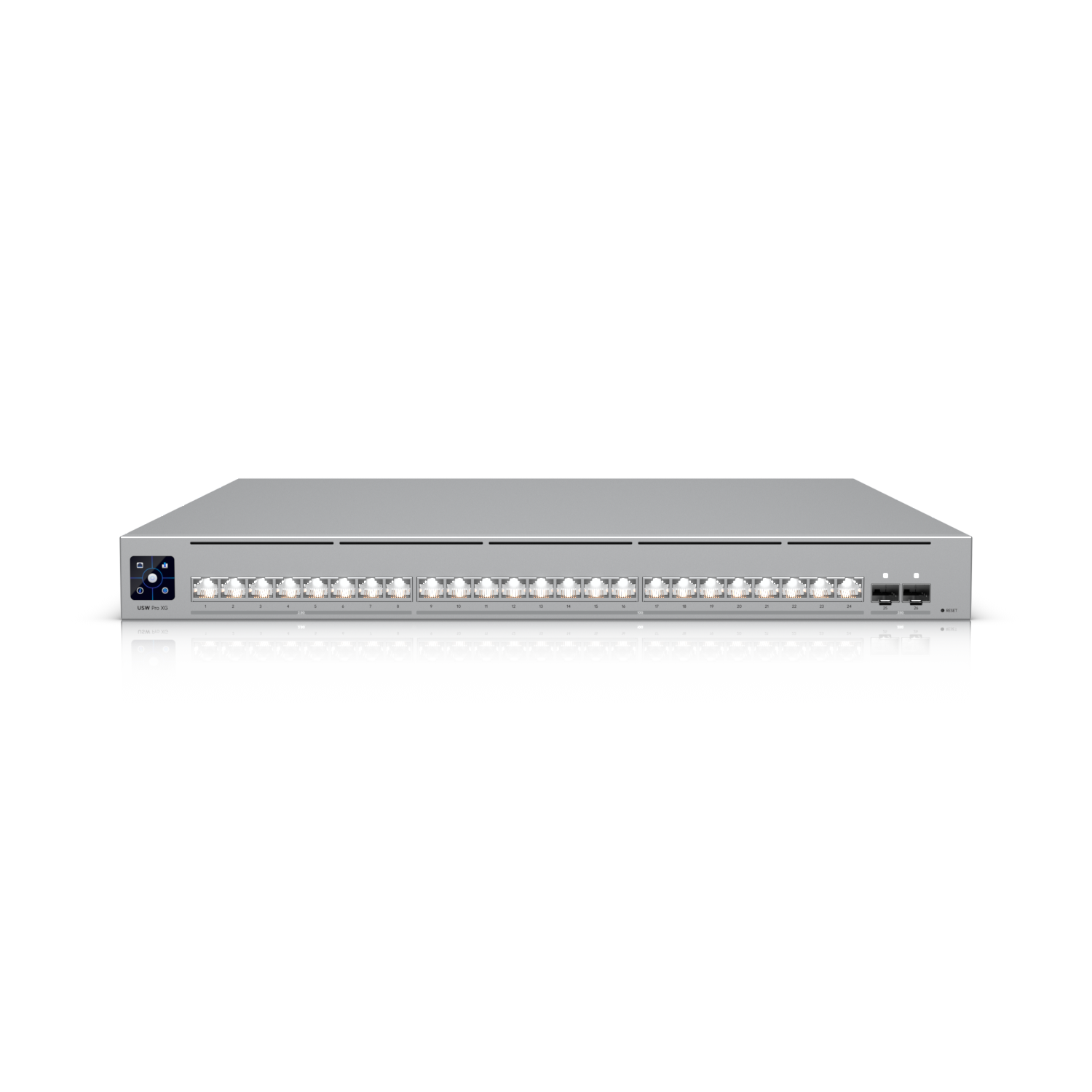

- Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network*.
- (16) 10 GbE, (8) 2.5 GbE ports.
- (2) 25G SFP28 ports.
- DC power backup ready.
* Pair with UniFi Etherlighting Patch Cables for optimal brightness.
Overview | |
---|---|

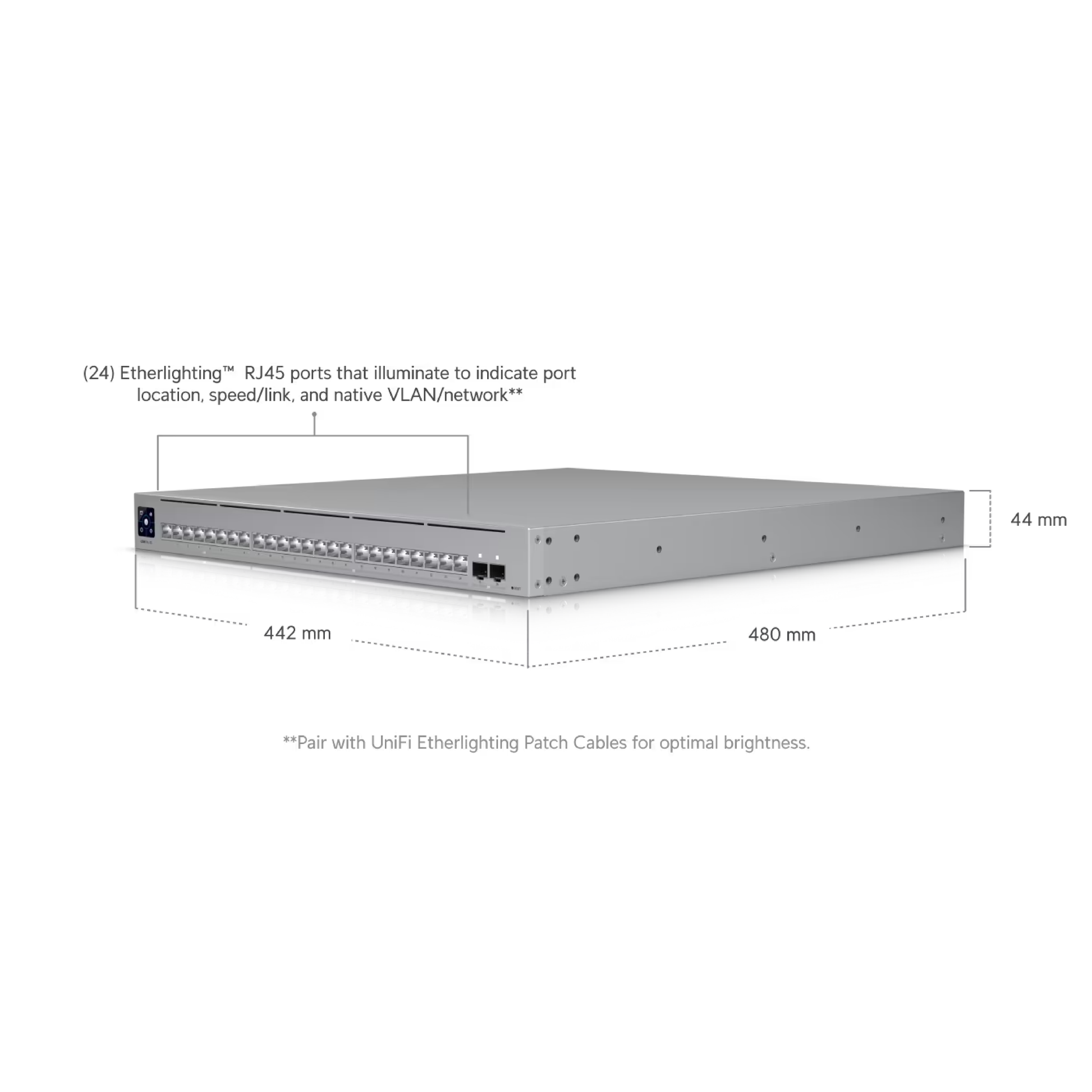

Dimensions |

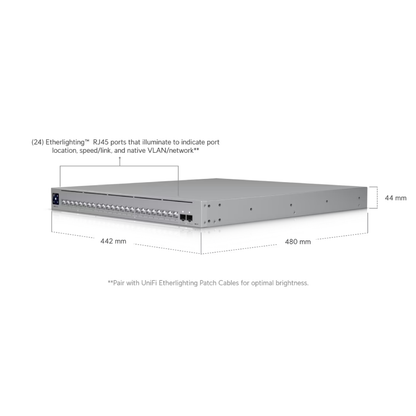

442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
Port Layout |

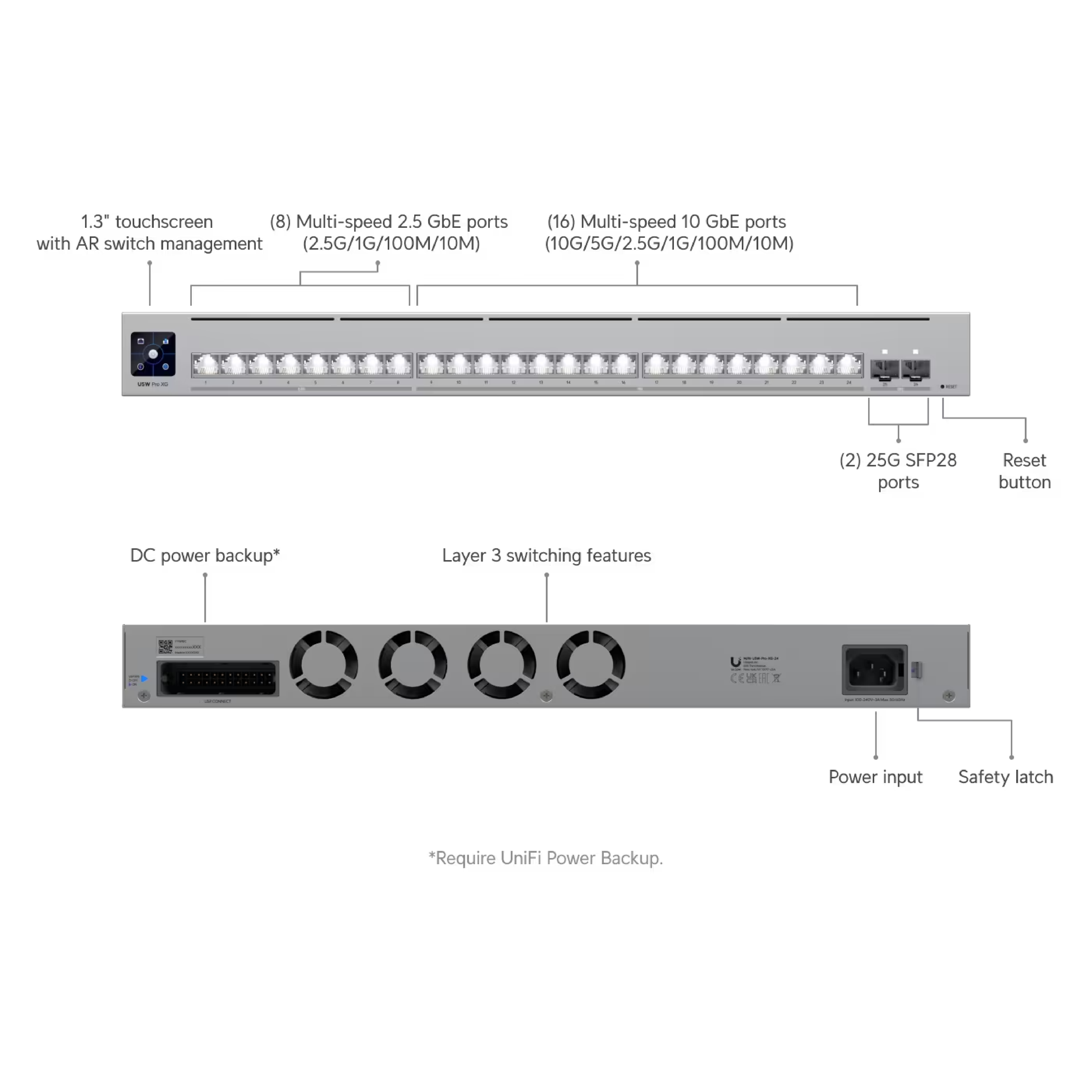

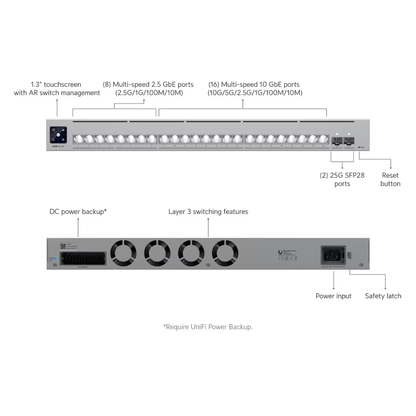

2.5 GbE RJ45: 8 (2.5G/1G/100M/10M) 10 GbE RJ45: 16 (10G/5G/2.5G/1G/100M/10M) 25G SFP28: 2 (25G/10G/1G) |
Redundancy | DC Power Backup |
Layer 3 | ✓ |
Form Factor | Rack mount (1U) |
Etherlighting | ✓ |
Performance | |
Switching Capacity | 460 Gbps |
Total Non-Blocking Throughput | 230 Gbps |
Forwarding Rate | 342 Mpps |
Supported VLANs | 1,000 |
MAC Address Table Size | 128,000 |
L3 Table Size |
ARP Entries: 128,000 IPv4 Routes: 256,000 |
Packet Buffer Size | 8 MB |
Access Lists |
IPv4: 256 MAC: 256 |
Layer 3 Features | |
DHCP Server (Local Networks) | ✓ |
DHCP Relay | ✓ |
Inter-VLAN Routing (Local Networks) | ✓ |
Static Routing (Local Networks) | ✓ |
Layer 2 Features | |
LACP Port Aggregation | ✓ |
STP & RSTP | ✓ |
IGMP Snooping | ✓ |
802.1X Control | ✓ |
MAC-Based ACLs & Device Isolation | ✓ |
DHCP Snooping & Guarding | ✓ |
Egress Rate Limit | ✓ |
Flow Control | ✓ |
Storm Control | ✓ |
Multicast & Broadcast Rate Limiting | ✓ |
MAC Address Blocking | ✓ |
IP-Based ACLs & Network Isolation | ✓ |
MAC-Based Port Restriction | ✓ |
Port Isolation | ✓ |
Port Mirroring | ✓ |
Jumbo Frames | ✓ |
LLDP-MED | ✓ |
Voice VLAN | ✓ |
Loop Protection | ✓ |
Hardware | |
Max. Power Consumption | 150W |
Power Method |

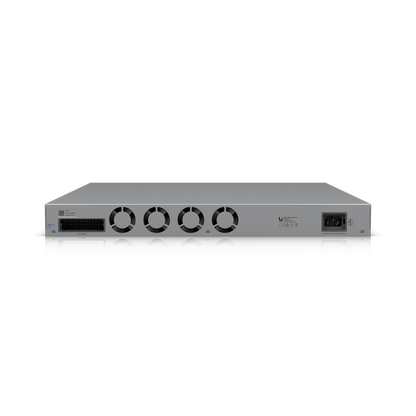

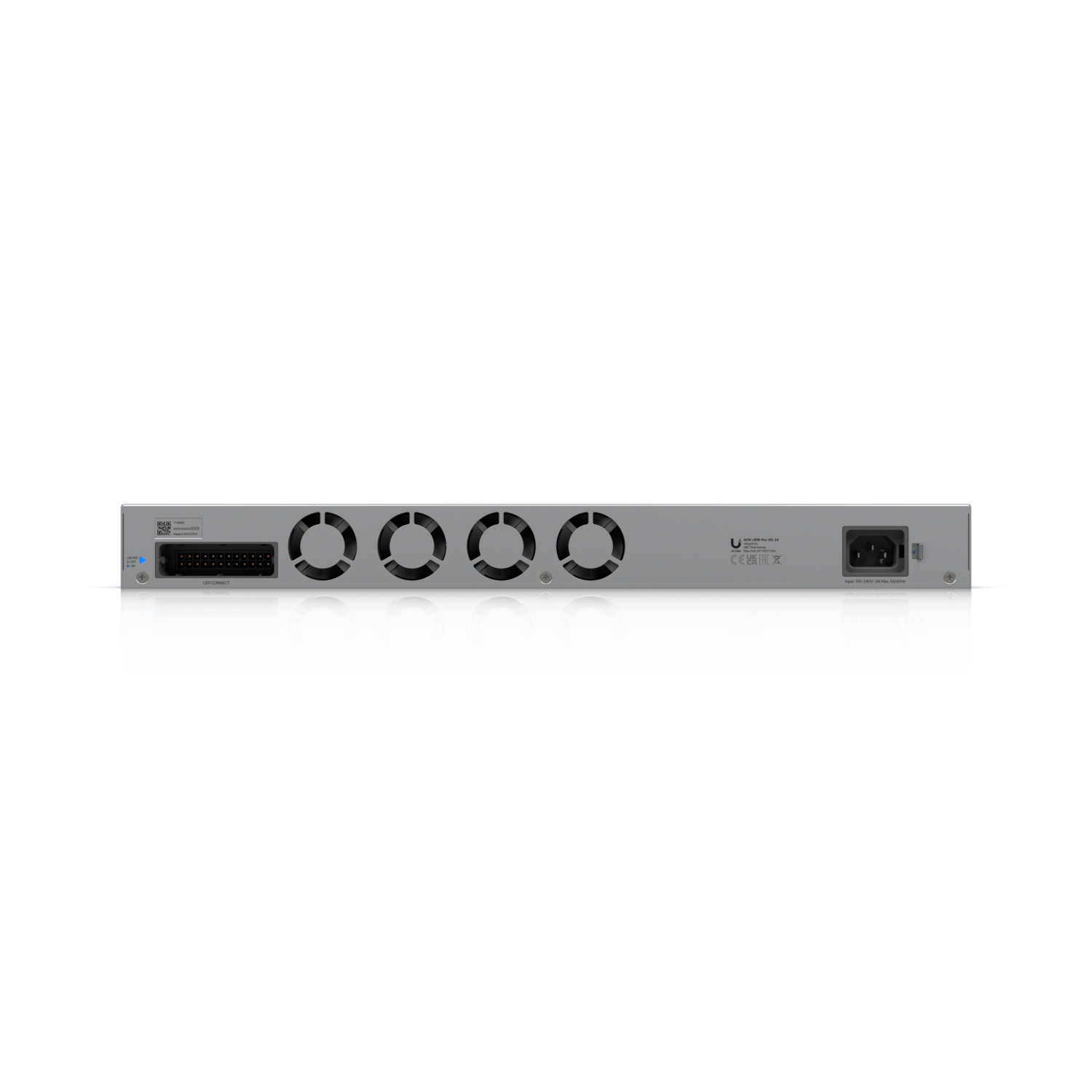

(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input |
Power Input Method | AC input |
Power Supply | AC/DC, internal, 200W |
Supported Voltage Range | 100—240V AC |
Management |
Ethernet AR |
Weight |
Without mounting brackets: 7.2 kg (15.9 lb) With mounting brackets: 7.3 kg (16.1 lb) |
Enclosure Material | SGCC steel |
Mount Material | SGCC steel |

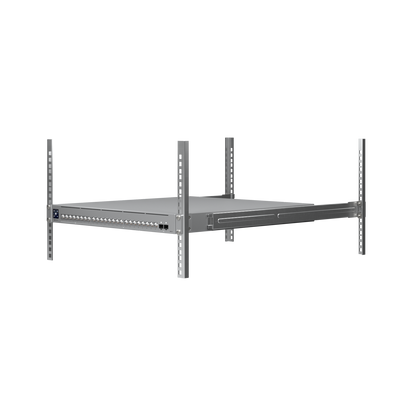

Supported Rack Depth |

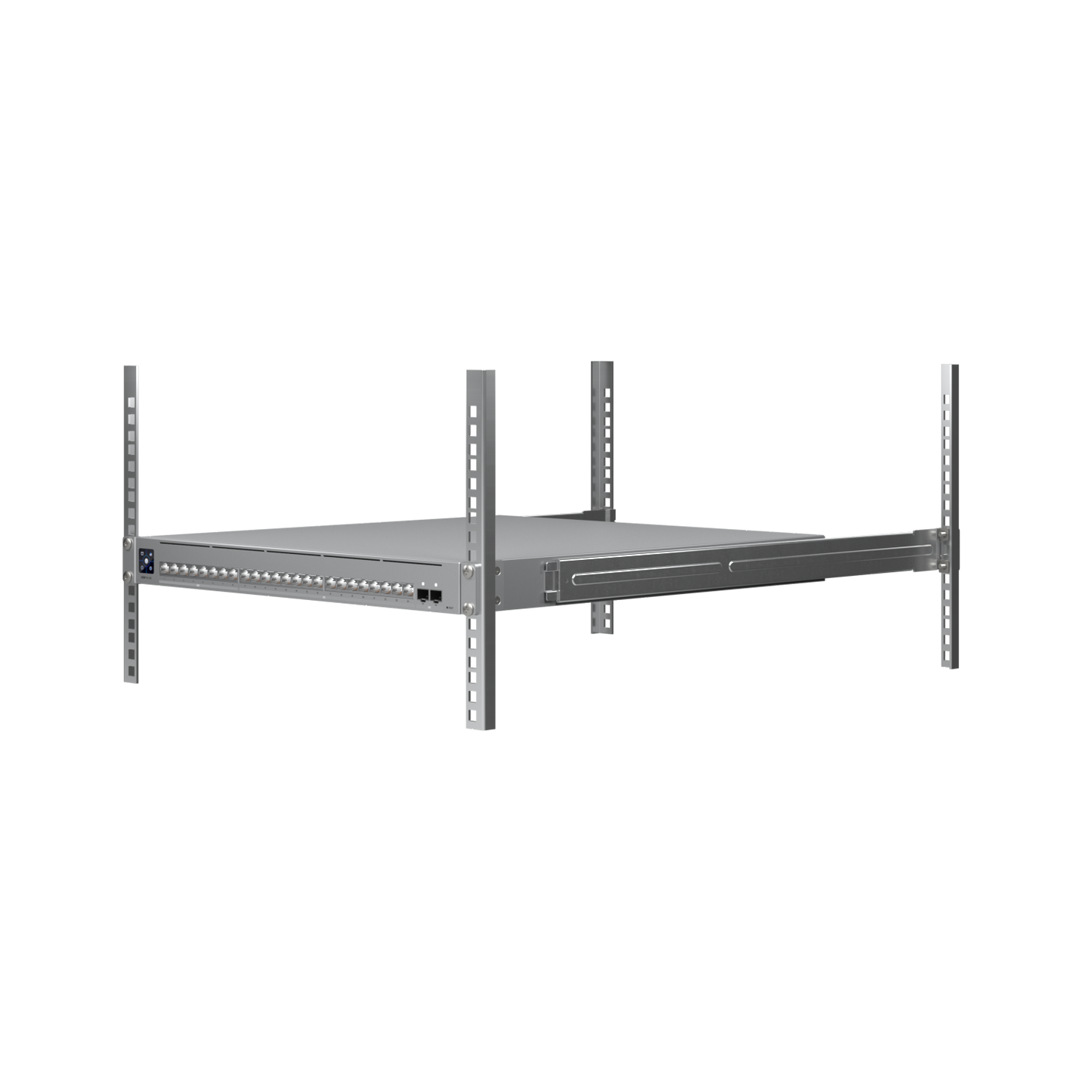

482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42") |
LCM Display | 1.3" touchscreen |
ESD Protection | Air: ± 30kV, contact: ± 20kV |
Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
Ambient Operating Humidity | 10 to 90% noncondensing |
Etherlighting |
Ethernet: ✓ SFP28: ✓ |
LEDs | RPS: ✓ |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC |
Software | |
Application Requirements | UniFi Network: Version 9.0.114 and later |
Visit Ubiquiti for more information.
