UniFi Pro XG 48 Layer 3 Etherlighting Switch
Ubiquiti USW-Pro-XG-48 UniFi Pro XG 48 Layer 3 Etherlighting Switch
SKU:USW-Pro-XG-48
Regular price
$4,019.00
Regular price
$4,019.00
Sale price
$4,019.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Price includes 2-Year Warranty.
Learn more.
Out of stock
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty

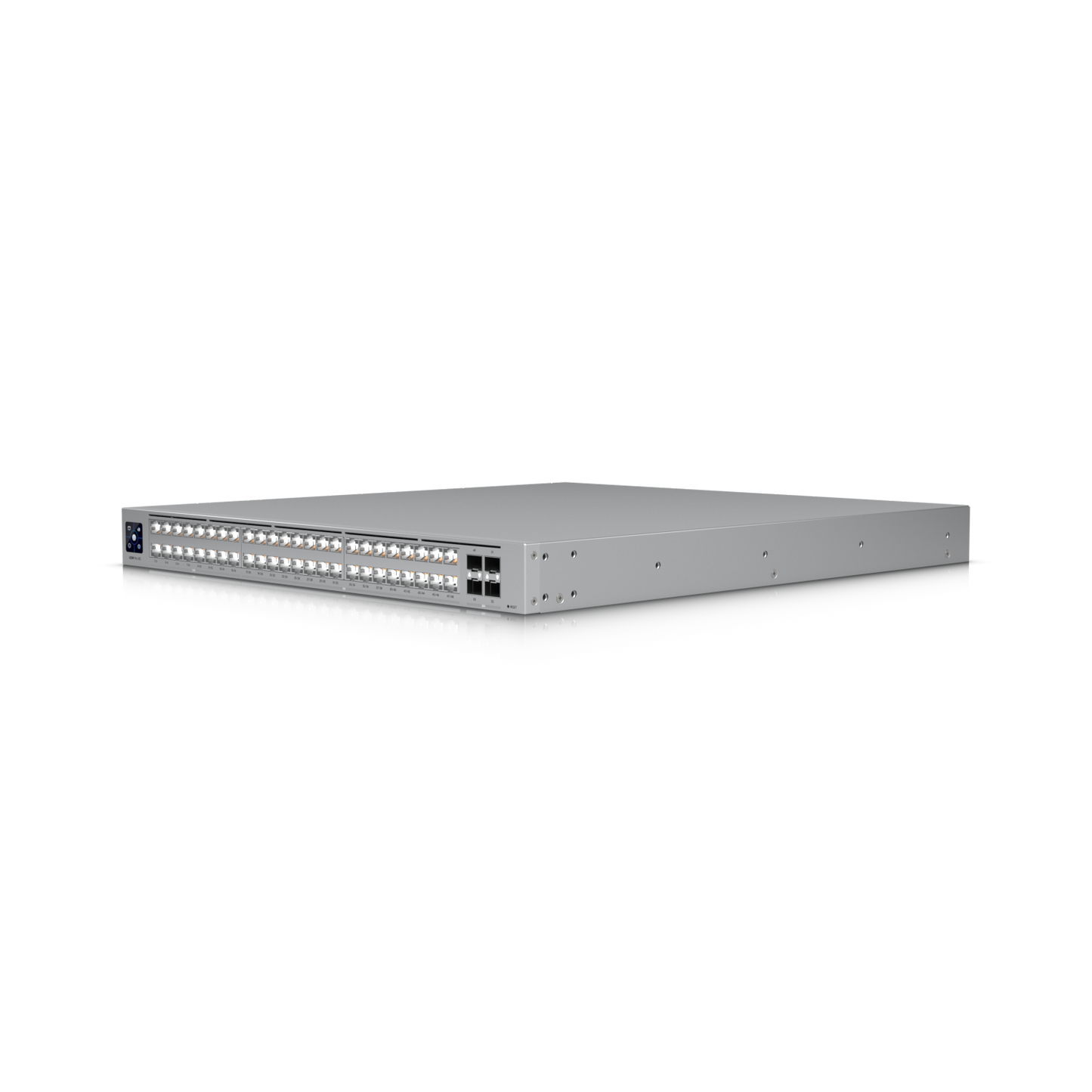

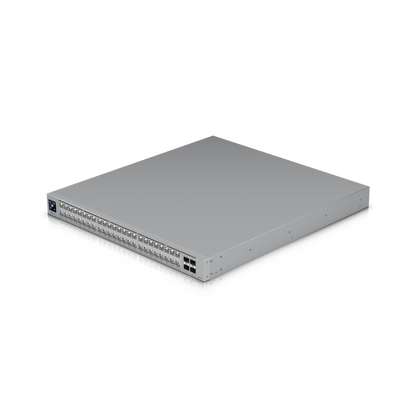

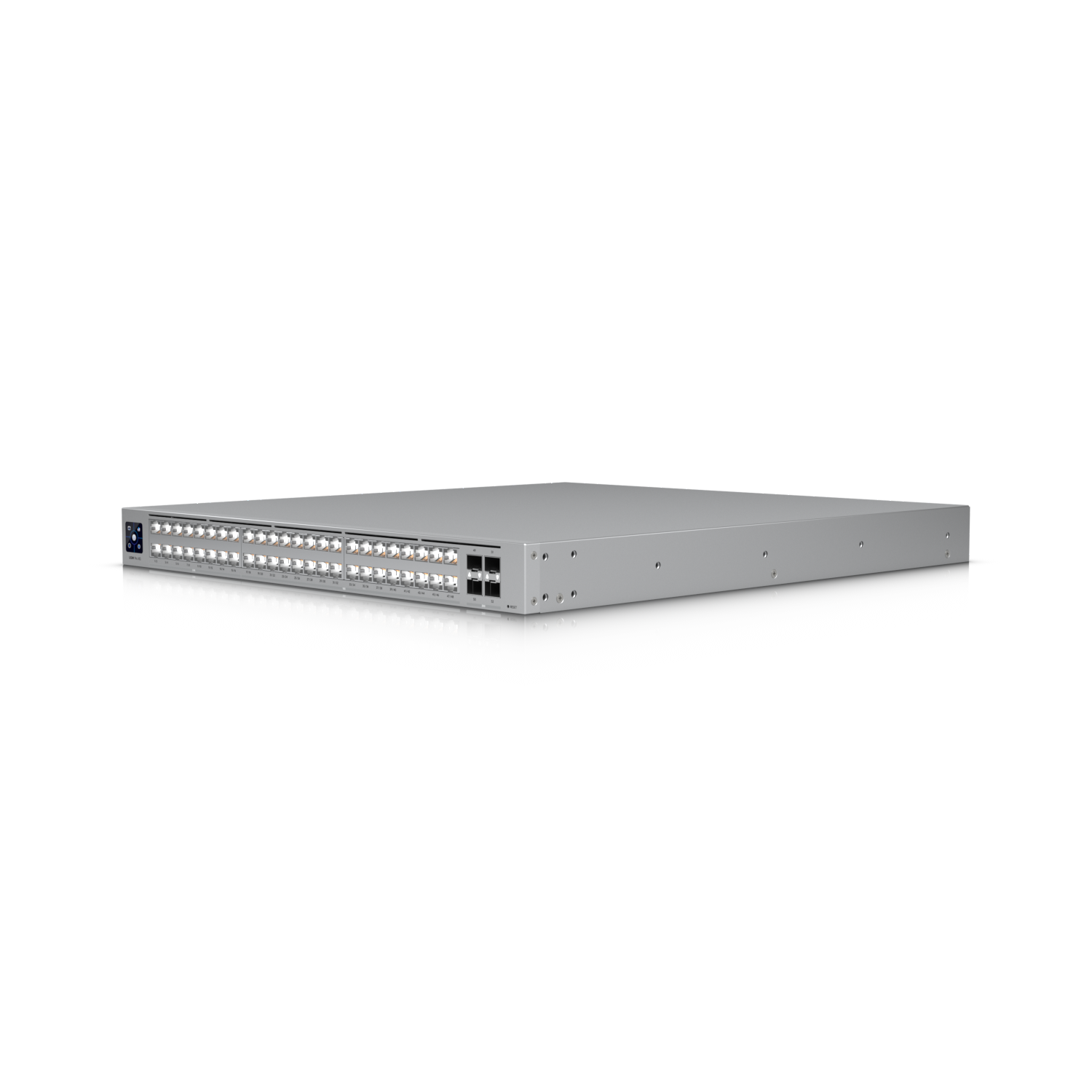

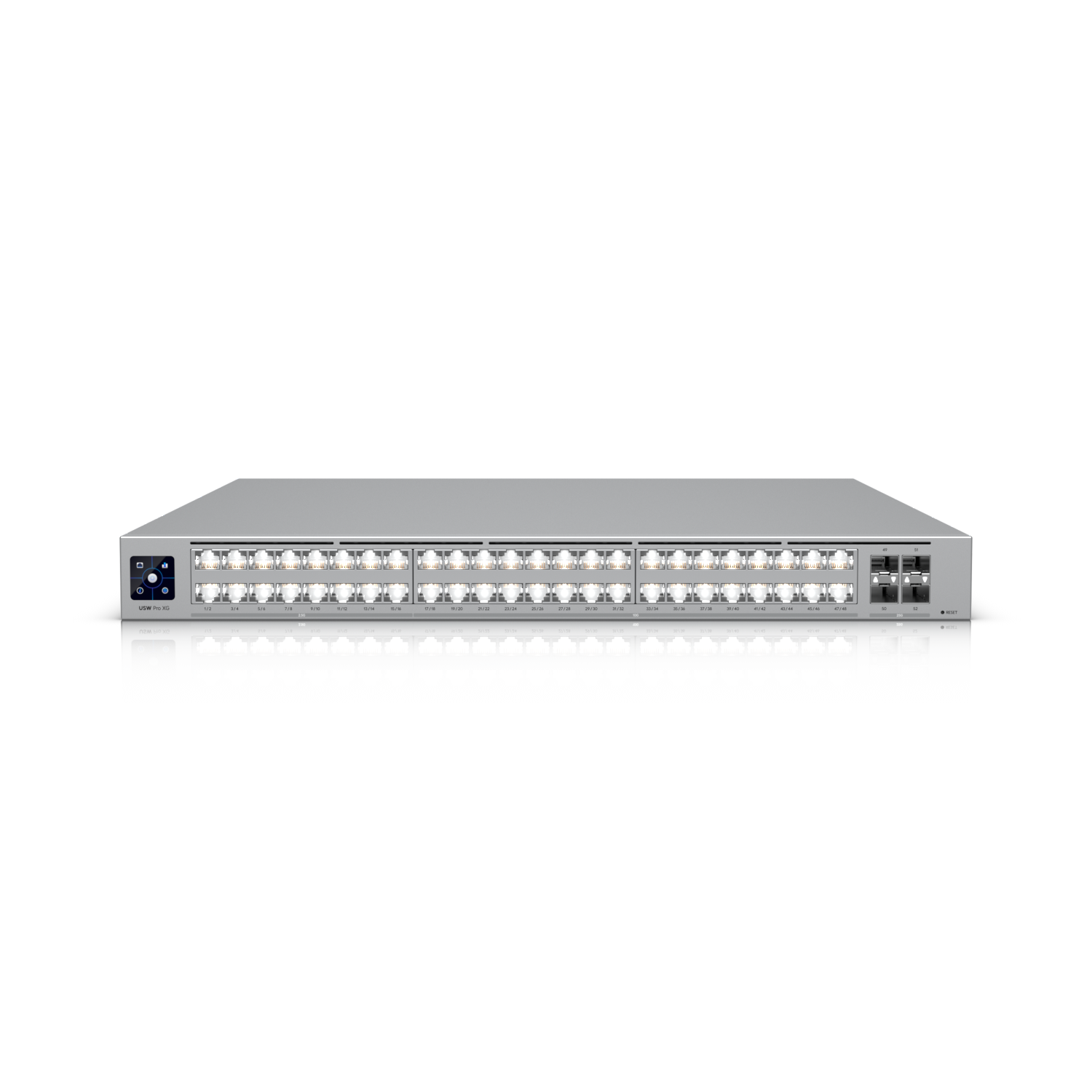

Professional-grade, 48-port Layer 3 Etherlighting switch with (32) 10 GbE, (16) 2.5 GbE, and (4) 25G SFP28 ports.

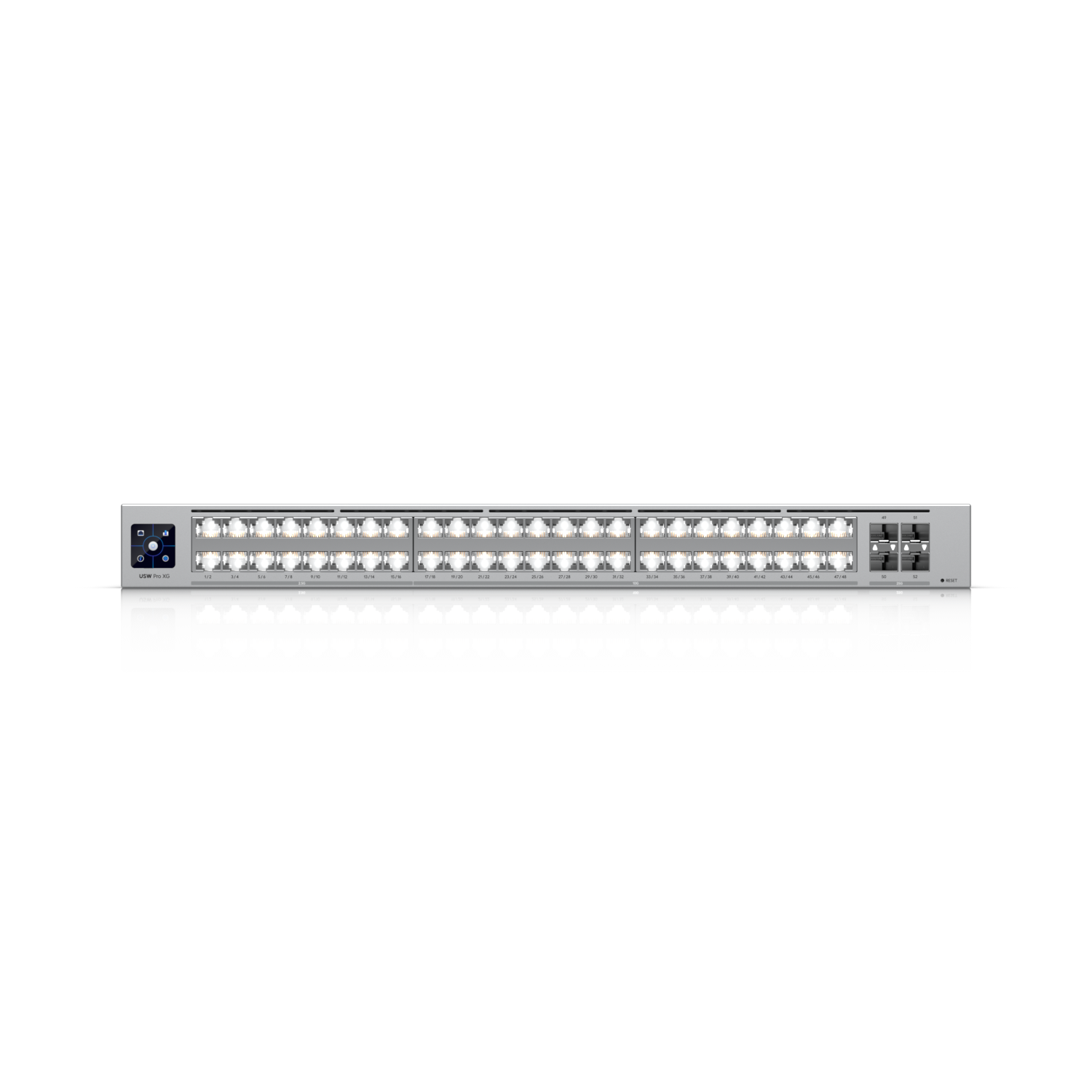

- Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network*.
- (32) 10 GbE, (16) 2.5 GbE ports.
- (4) 25G SFP28 ports.
- DC power backup ready.
| Overview | |
|---|---|
| Dimensions |

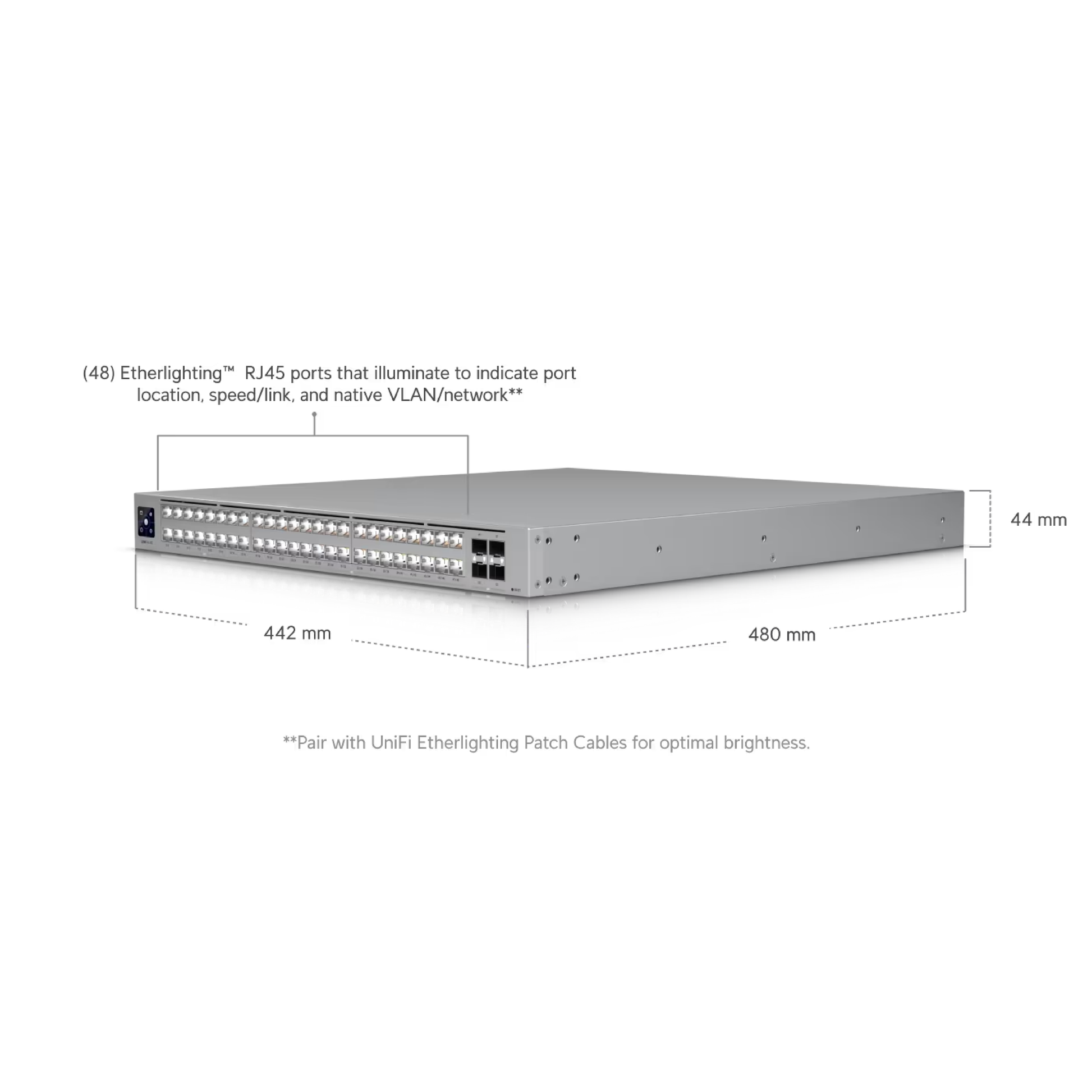

442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |

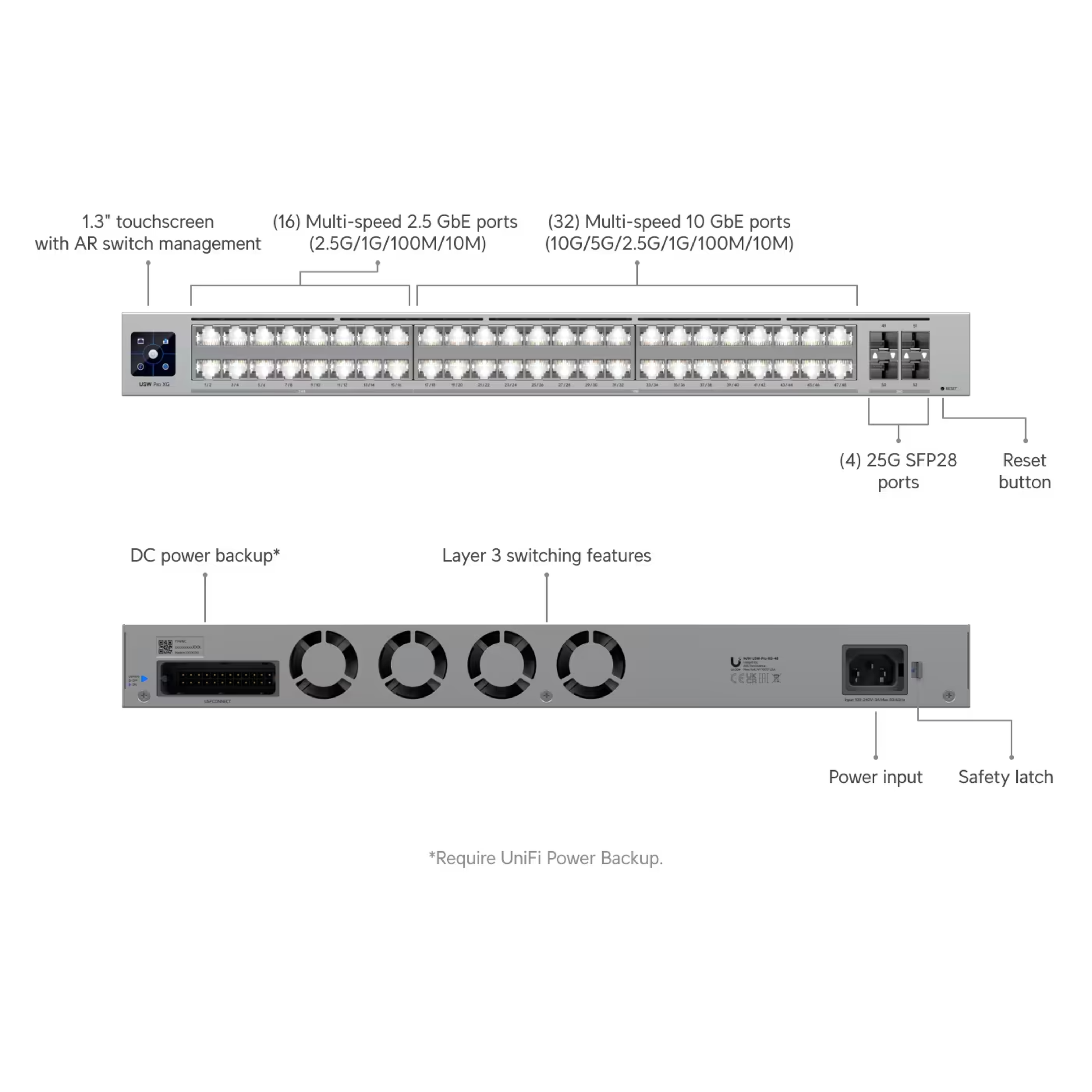

| Port Layout |

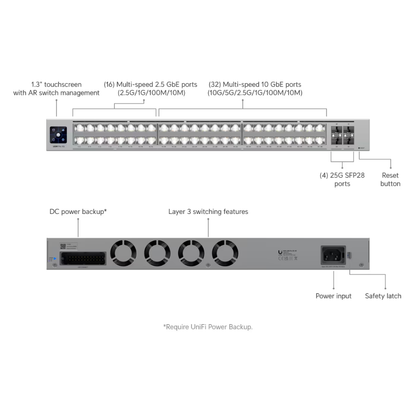

2.5 GbE RJ45: 16 (2.5G/1G/100M/10M) 10 GbE RJ45: 32 (10G/5G/2.5G/1G/100M/10M) 25G SFP28: 4 (25G/10G/1G) |
| Redundancy | DC Power Backup |
| Layer 3 | ✓ |
| Form Factor | Rack mount (1U) |
| Etherlighting | ✓ |
| Performance | |
| Switching Capacity | 920 Gbps |
| Total Non-Blocking Throughput | 460 Gbps |
| Forwarding Rate | 684 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
| L3 Table Size |
ARP Entries: 128,000 IPv4 Routes: 256,000 |
| Packet Buffer Size | 8 MB |
| Access Lists |
IPv4: 256 MAC: 256 |
| Layer 3 Features | |
| DHCP Server (Local Networks) | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing (Local Networks) | ✓ |
| Static Routing (Local Networks) | ✓ |
| Layer 2 Features | |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | ✓ |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC-Based ACLs & Device Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| IP-Based ACLs & Network Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Hardware | |
| Max. Power Consumption | 250W |
| Power Method |

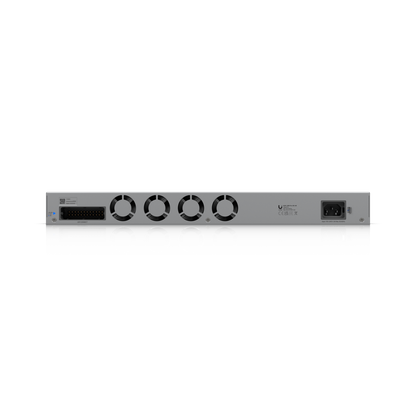

(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 300W |
| Supported Voltage Range | 100—240V AC |
| Management |
Ethernet AR |
| Weight |
Without mounting brackets: 7.5 kg (16.5 lb) With mounting brackets: 7.6 kg (16.8 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth |

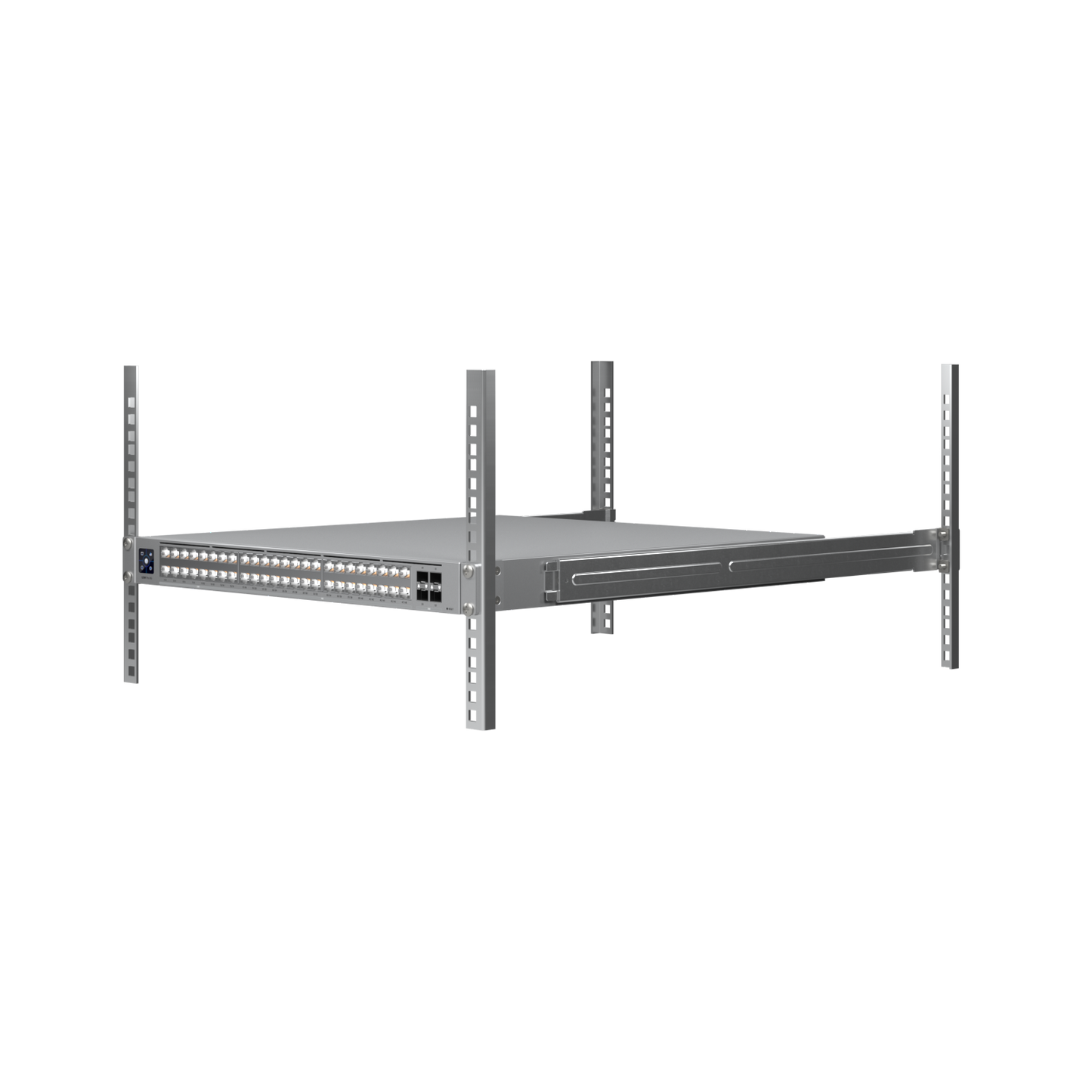

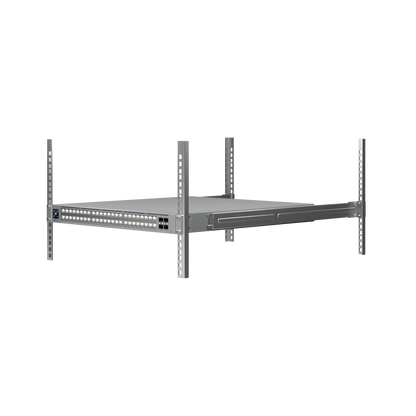

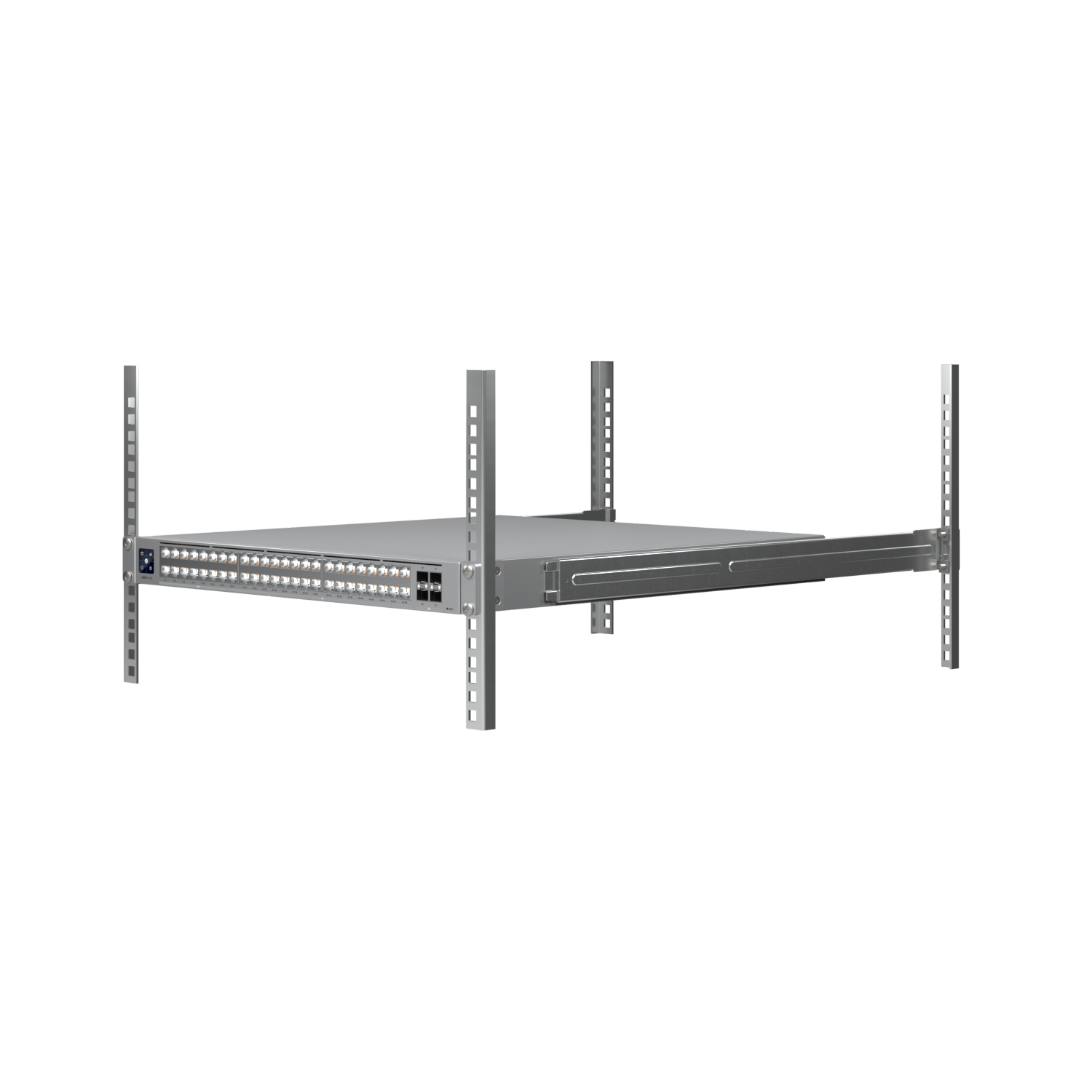

482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42") |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 30kV, contact: ± 14kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Etherlighting |
SFP+: ✓ QSFP28: ✓ |
| LEDs | RPS: ✓ |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Software | |
| Application Requirements | UniFi Network: Version 9.0.114 and later |
Visit Ubiquiti for more information.
