UniFi Pro XG 48 PoE Layer 3 Switch
UniFi Pro XG 48 PoE Layer 3 Switch
SKU:USW-Pro-XG-48-PoE
Regular price
$4,650.00
Regular price
$5,109.00
Sale price
$4,650.00
Taxes included.
Sale Live Now. Limited promotional stock available — don’t miss out!
23 in stock and ready to ship
Quantity
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Found it cheaper elsewhere? Let us know
Buying for your business? Earn Store Credits

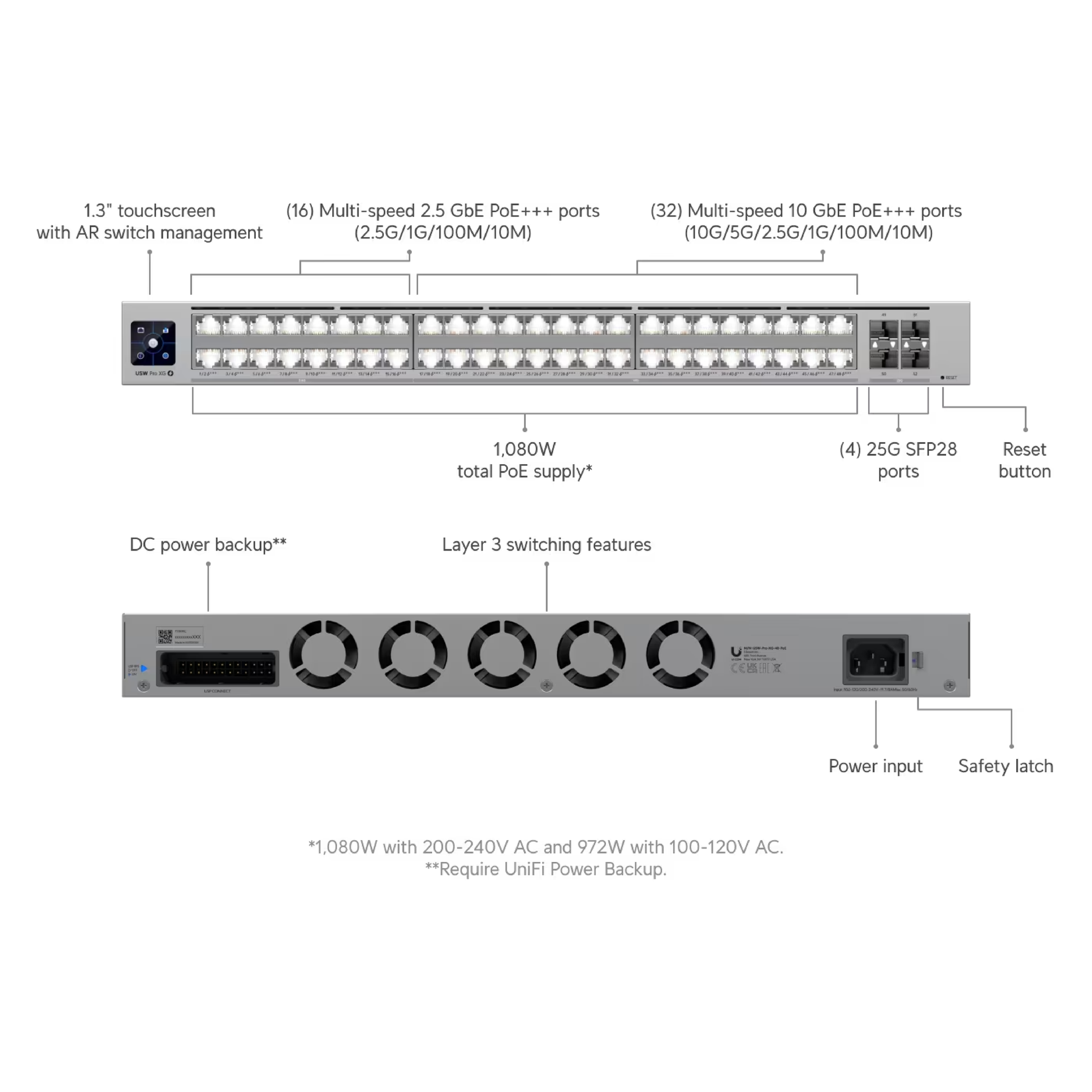

Professional-grade, 48-port Layer 3 Etherlighting PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE, and (4) 25G SFP28 ports.

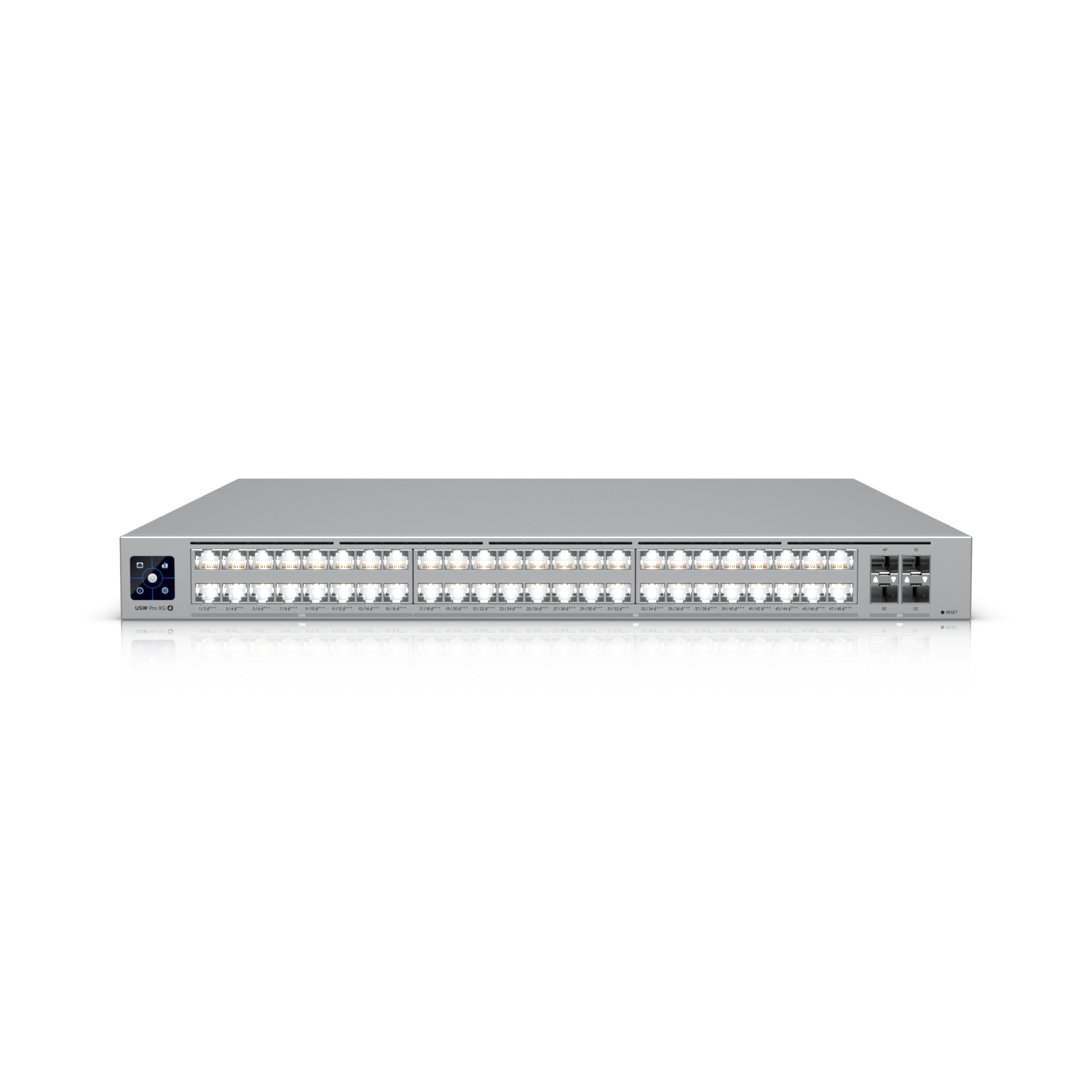

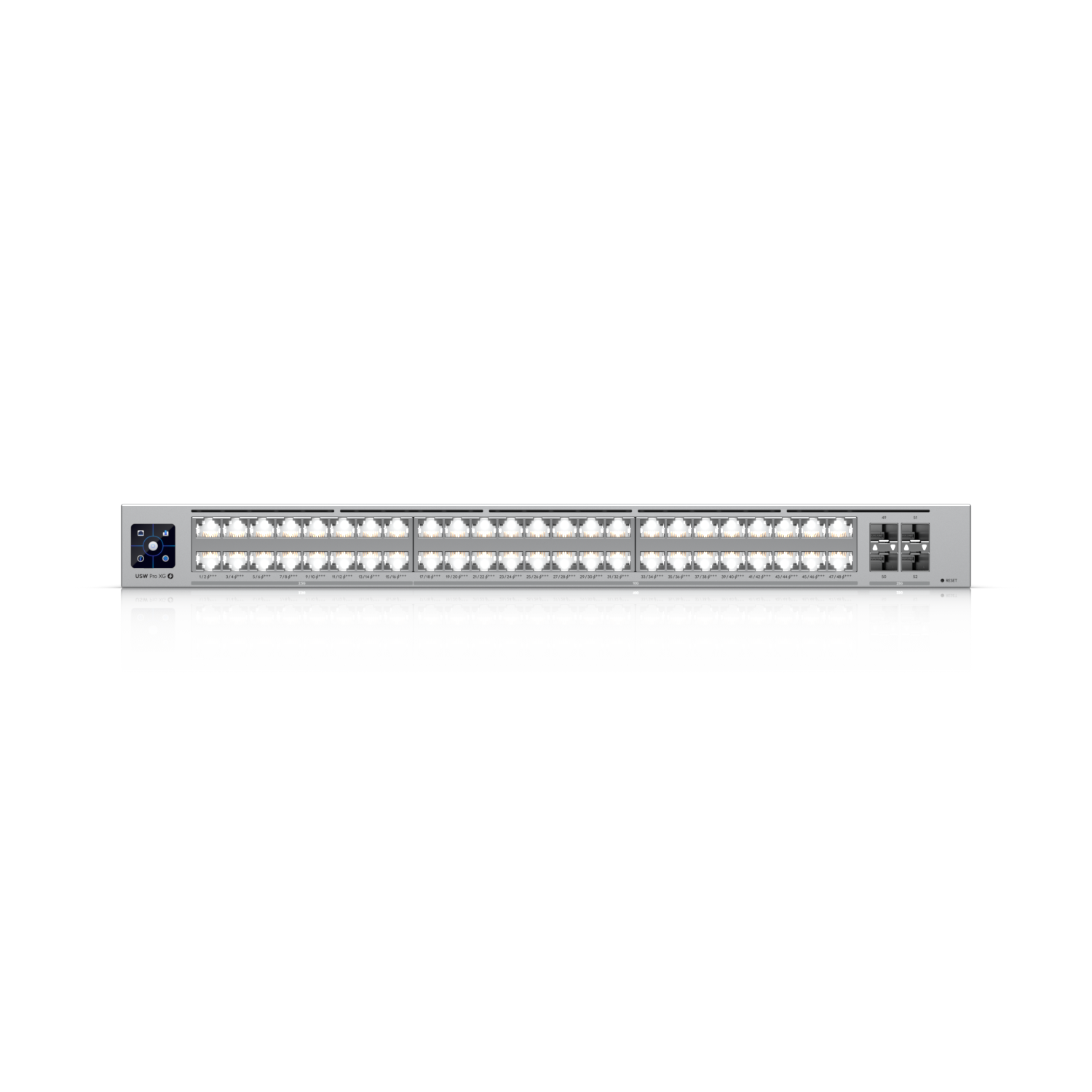

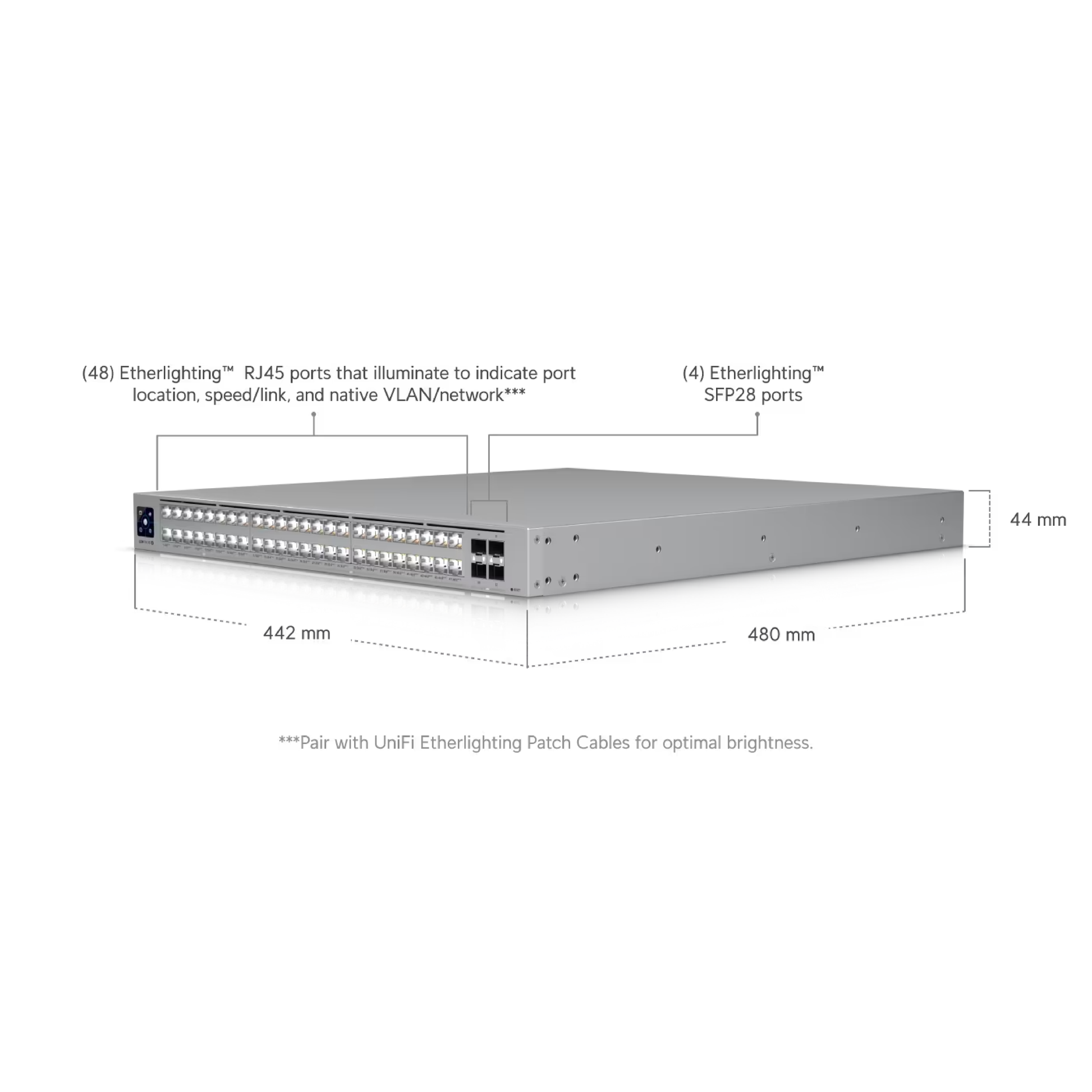

- Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network.
- (32) 10 GbE, (16) 2.5 GbE ports, all PoE+++ (90W capable).
- (4) 25G SFP28 ports.
- DC power backup ready.
- 1,080W total PoE availability.
Specification
| Overview | |
|---|---|
| Dimensions |
442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
| Port Layout |
2.5 GbE RJ45: 16 (All PoE+++) (2.5G/1G/100M/10M) 10 GbE RJ45: 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) 25G SFP28: 4 (25G/10G/1G) |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability |
200-240V AC: 1080W 100-120V AC: 972W |
| Redundancy | DC Power Backup |
| Layer 3 | ✓ |
| Form Factor | Rack mount (1U) |
| Etherlighting | ✓ |
| Performance | |
| Switching Capacity | 920 Gbps |
| Total Non-Blocking Throughput | 460 Gbps |
| Forwarding Rate | 684 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
| L3 Table Size |
ARP Entries:
128,000 IPv4 Routes: 256,000 |
| Packet Buffer Size | 8 MB |
| Access Lists |
IPv4:
256 MAC: 256 |
| Layer 3 Features | |
| DHCP Server (Local Networks) | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing (Local Networks) | ✓ |
| Static Routing (Local Networks) | ✓ |
| Layer 2 Features | |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| QoS (DSCP) | ✓ |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | ✓ |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | ✓ |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC-Based ACLs & Device Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| IP-Based ACLs & Network Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Hardware | |
| PoE Ports | PoE+++: 48 |
| Max. PoE Wattage per Port by PSE |
PoE:
15.4W PoE+: 30W PoE++: 60W PoE+++: 90W |
| Max. Power Consumption |
200W (Excluding PoE Output) 200-240V: 1,280W / 100-120V AC: 1,172W (Including PoE Output) |
| Power Method |
(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 1,350W |
| Supported Voltage Range | 100-240V AC |
| Management |
Ethernet AR |
| Weight |
Without mounting brackets: 8.7 kg (15.4 lb) With mounting brackets: 8.8 kg (15.7 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

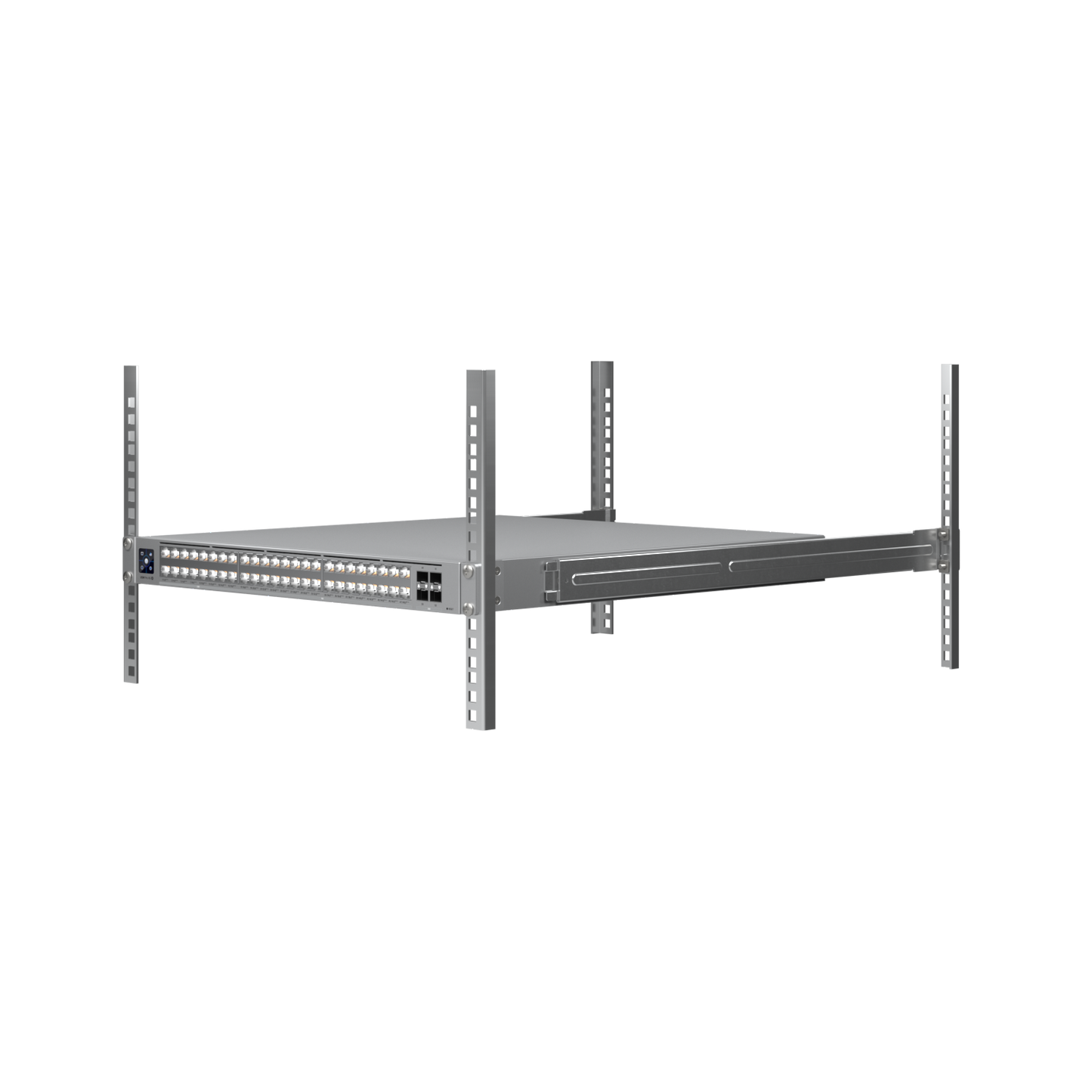

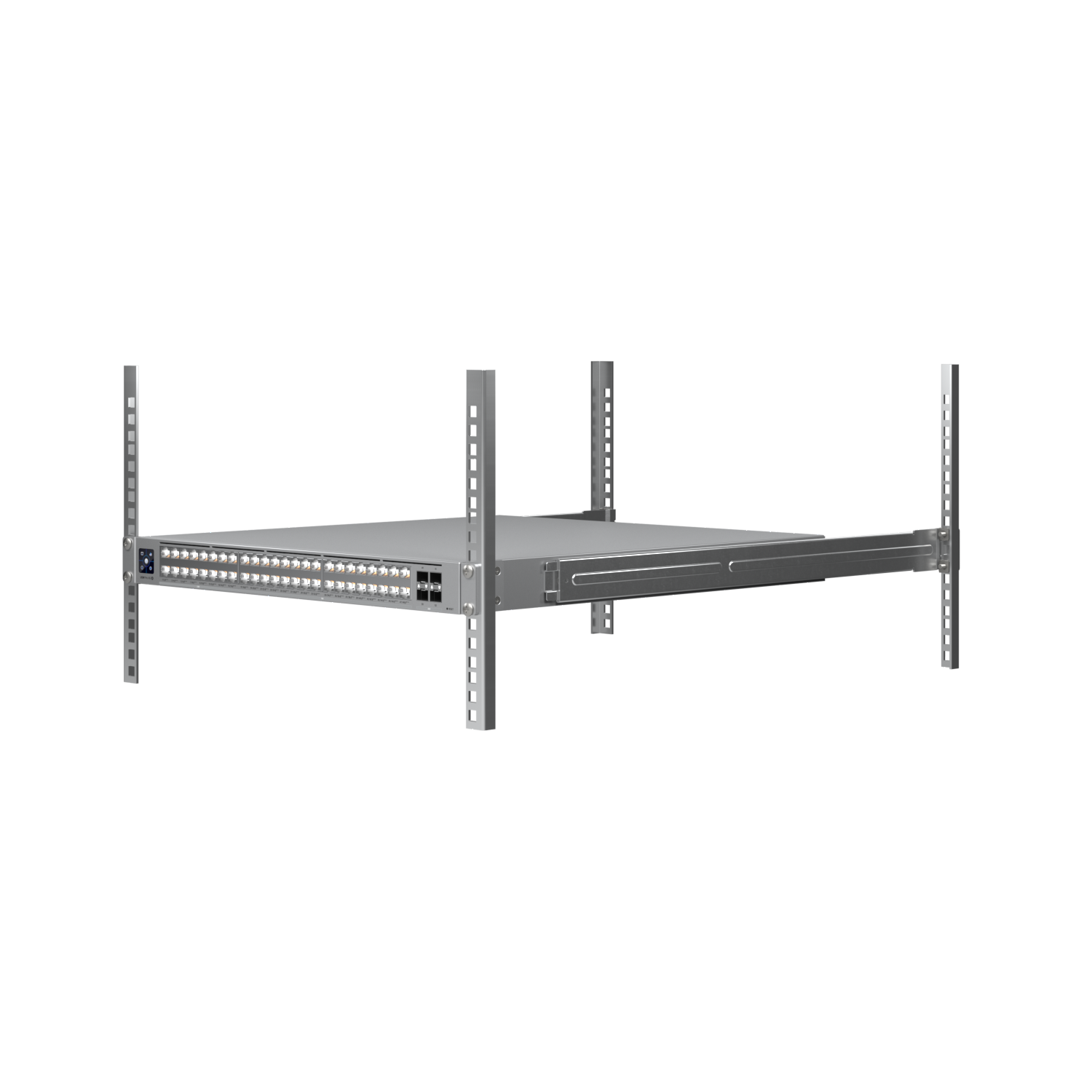

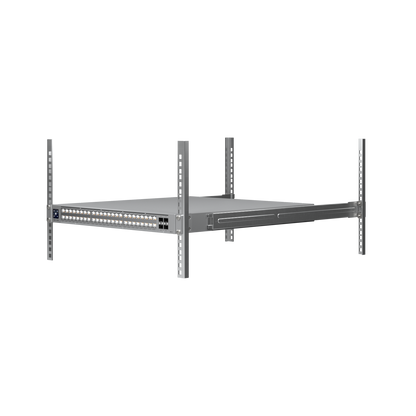

| Supported Rack Depth |
482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”) |
| LCM Display | 1.3" touchscreen |
| ESD/EMP Protection | Air: ± 30kV, contact: ± 20kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Etherlighting |
Ethernet: ✓ SFP28: ✓ |
| LEDs | RPS: ✓ |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Software | |
| Application Requirements | UniFi Network: Version 9.1.120 and later |
