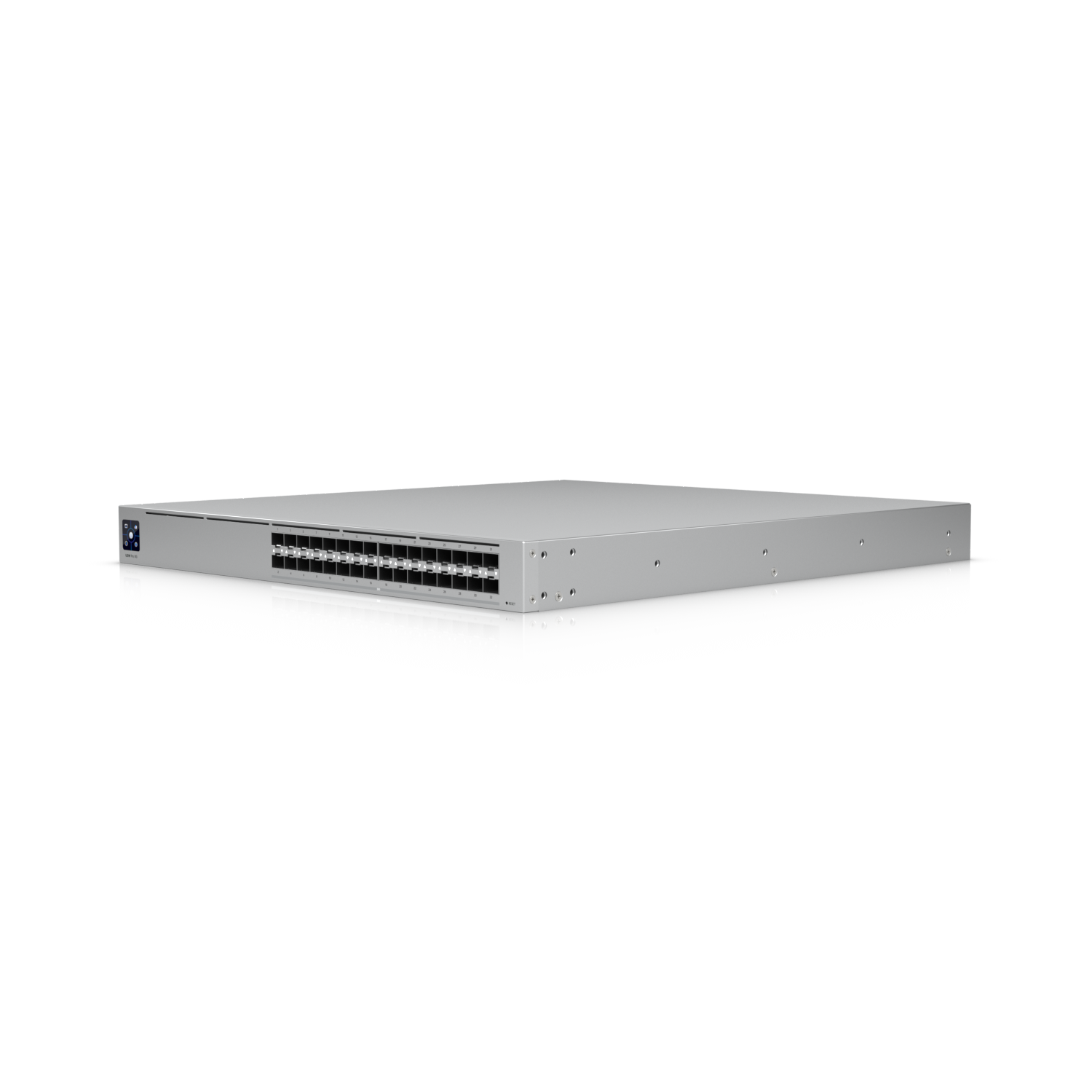

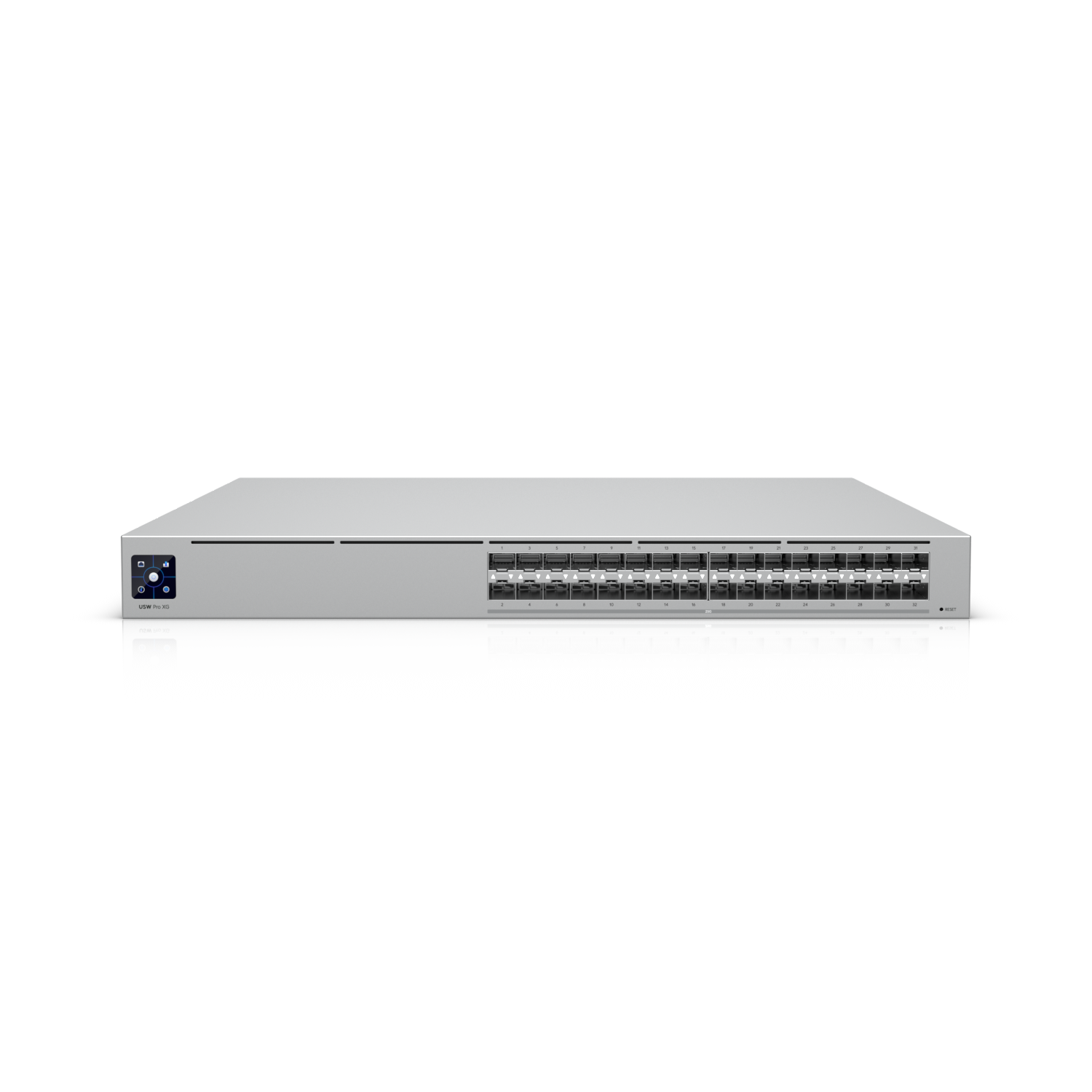

UniFi Pro XG Aggregation 32-port Layer 3 Switch
Ubiquiti USW-Pro-XG-Aggregation UniFi Pro XG Aggregation 32-port Layer 3 Switch
SKU:USW-Pro-XG-Aggregation
Out of stock
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty

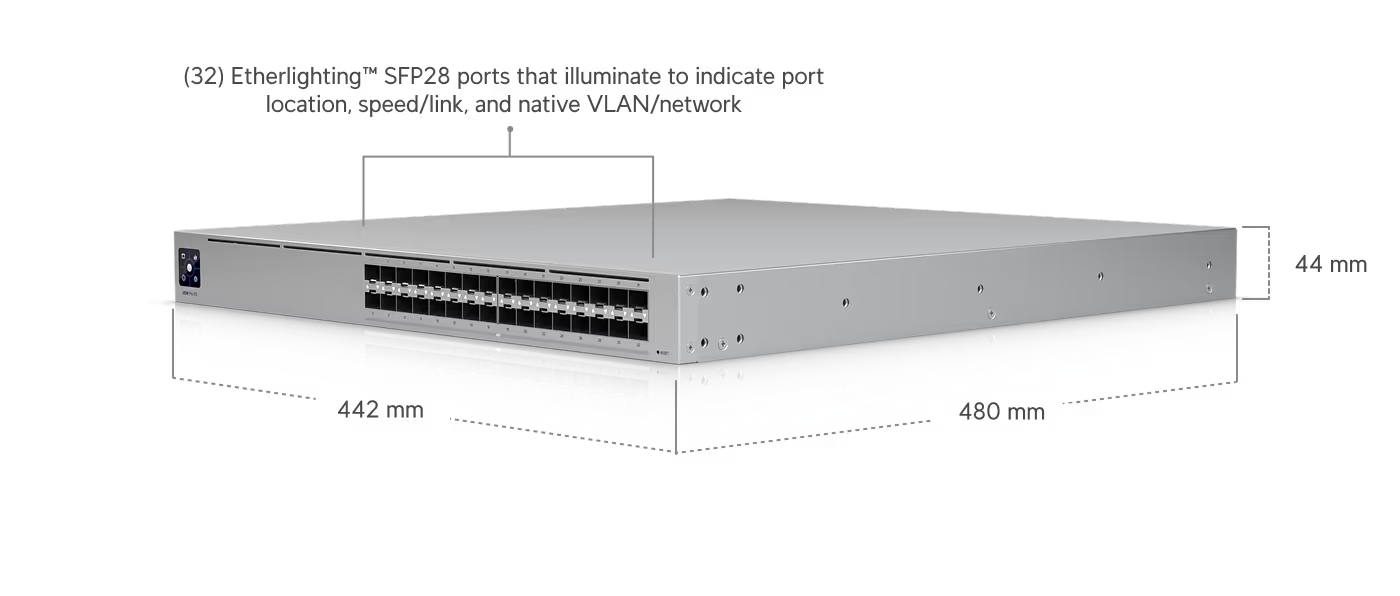

Professional-grade 32-port, Layer 3 Etherlighting switch for high-capacity 25G SFP28 connections.
Overview | |
---|---|
Dimensions |
442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9") |

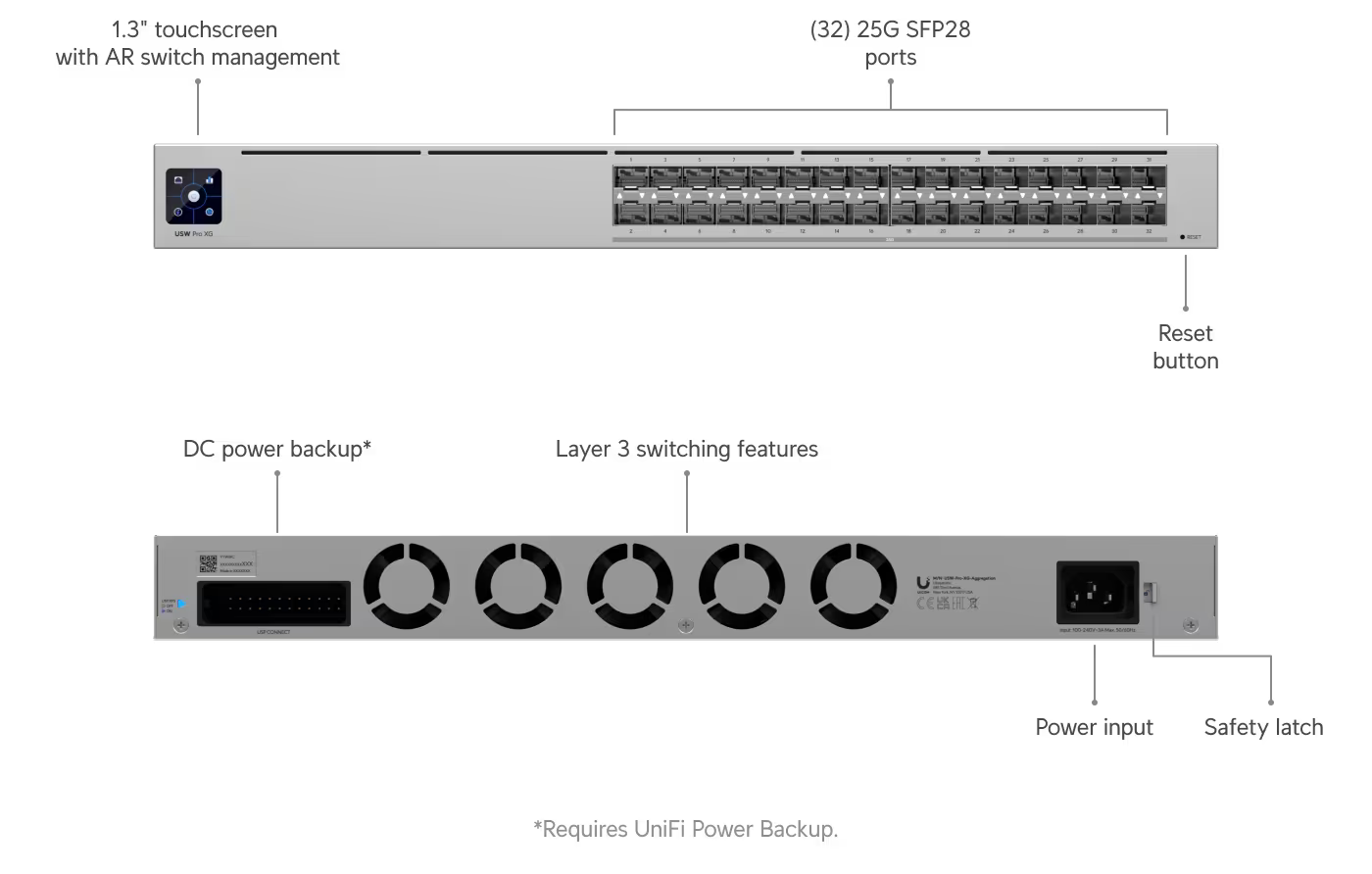

Port Layout | 25G SFP28: 32 (25G/10G/1G) |
Redundancy | DC Power Backup |
Layer 3 | ✓ |
Form Factor | Rack mount (1U) |
Etherlighting | ✓ |
Performance | |
Switching Capacity | 1.6 Tbps |
Total Non-Blocking Throughput | 800 Gbps |
Forwarding Rate | 1.2 Bpps |
Supported VLANs | 1,000 |
MAC Address Table Size | 32,000 |
L3 Table Size |
ARP Entries: 128,000 IPv4 Routes: 256,000 |
Packet Buffer Size | 8 MB |
Access Lists |
IPv4: 256 MAC: 256 |
Layer 3 Features | |
DHCP Server (Local Networks) | ✓ |
DHCP Relay | ✓ |
Inter-VLAN Routing (Local Networks) | ✓ |
Static Routing (Local Networks) | ✓ |
Layer 2 Features | |
LACP Port Aggregation | ✓ |
STP & RSTP | ✓ |
Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | ✓ |
IGMP Snooping | ✓ |
802.1X Control | ✓ |
MAC-Based ACLs & Device Isolation | ✓ |
DHCP Snooping & Guarding | ✓ |
Egress Rate Limit | ✓ |
Flow Control | ✓ |
Storm Control | ✓ |
Multicast & Broadcast Rate Limiting | ✓ |
MAC Address Blocking | ✓ |
IP-Based ACLs & Network Isolation | ✓ |
MAC-Based Port Restriction | ✓ |
Port Isolation | ✓ |
Port Mirroring | ✓ |
Jumbo Frames | ✓ |
LLDP-MED | ✓ |
Voice VLAN | ✓ |
Loop Protection | ✓ |
Hardware | |
Max. Power Consumption | 200W |

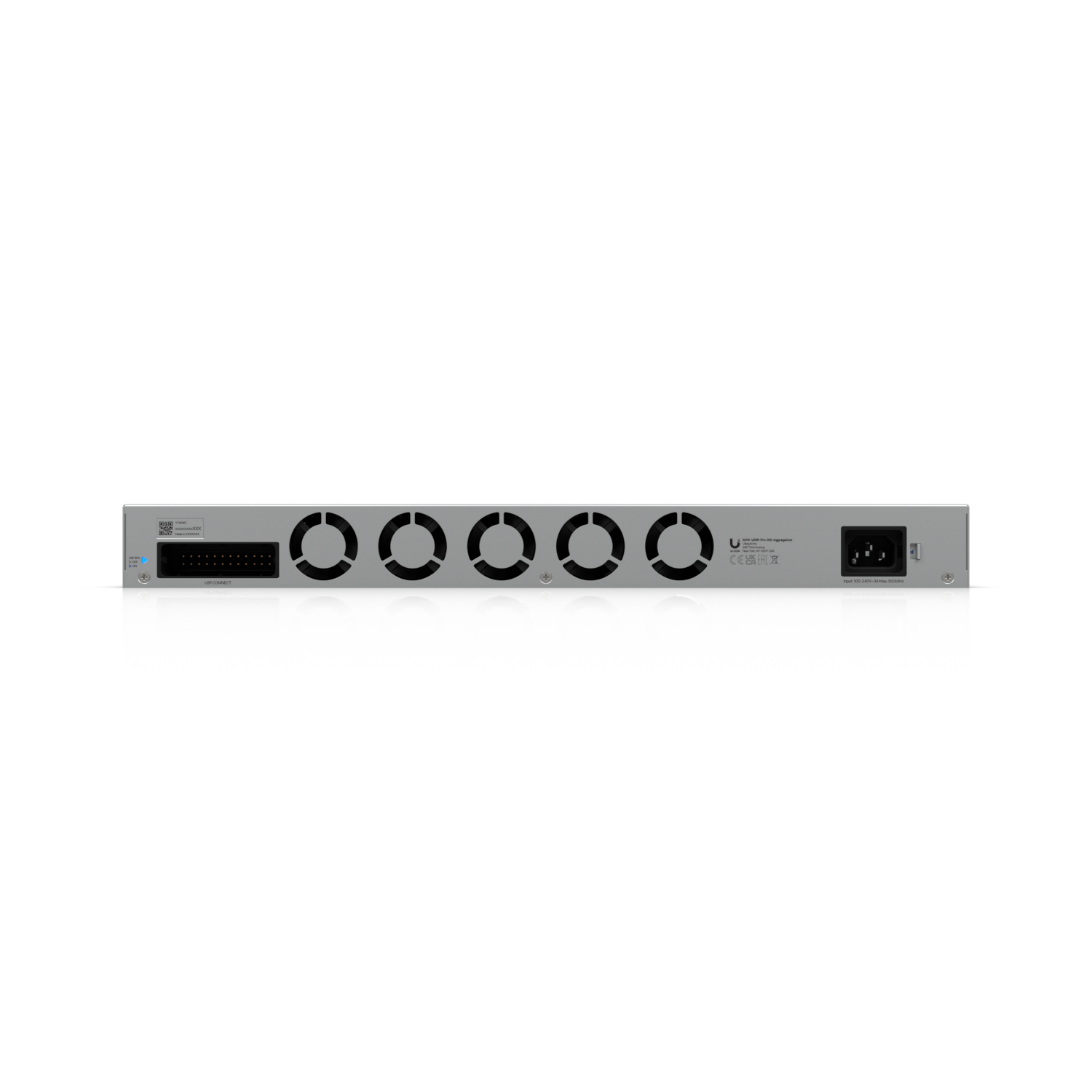

Power Method |
(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input |
Power Input Method | AC input |
Power Supply | AC/DC, internal, 200W |
Supported Voltage Range | 100—240V AC |
Management |
Ethernet AR |
Heat Dissipation (Excluding PoE Output) | 457 BTU/hr |
Weight | 7 kg (19.8 lb) |
Enclosure Material | SGCC steel |
Mount Material | SGCC steel |
Supported Rack Depth |
482.6 mm (19") four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42") |
LCM Display | 1.3" touchscreen |
ESD Protection | Air: ± 12kV, contact: ± 8kV |
Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
Ambient Operating Humidity | 10 to 90% noncondensing |
Etherlighting | SFP28: ✓ |
LEDs | RPS: ✓ |
NDAA Compliant | ✓ |
Certifications | CE, FCC, IC |
Visit Ubiquiti for more information.
