UniFi Network Video Recorder Instant Kit
Ubiquiti UNVR-Instant-Kit UniFi Network Video Recorder Instant Kit
SKU:UNVR-Instant-Kit
Regular price
$1,367.00
Regular price
$1,387.00
Sale price
$1,367.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Price includes 2-year warranty coverage (12 months extended)
Learn more
BLACK FRIDAY SALE. Limited promotional stock available — don’t miss out!
70 in stock and ready to ship today.
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Buying for your business? Earn Store Credits

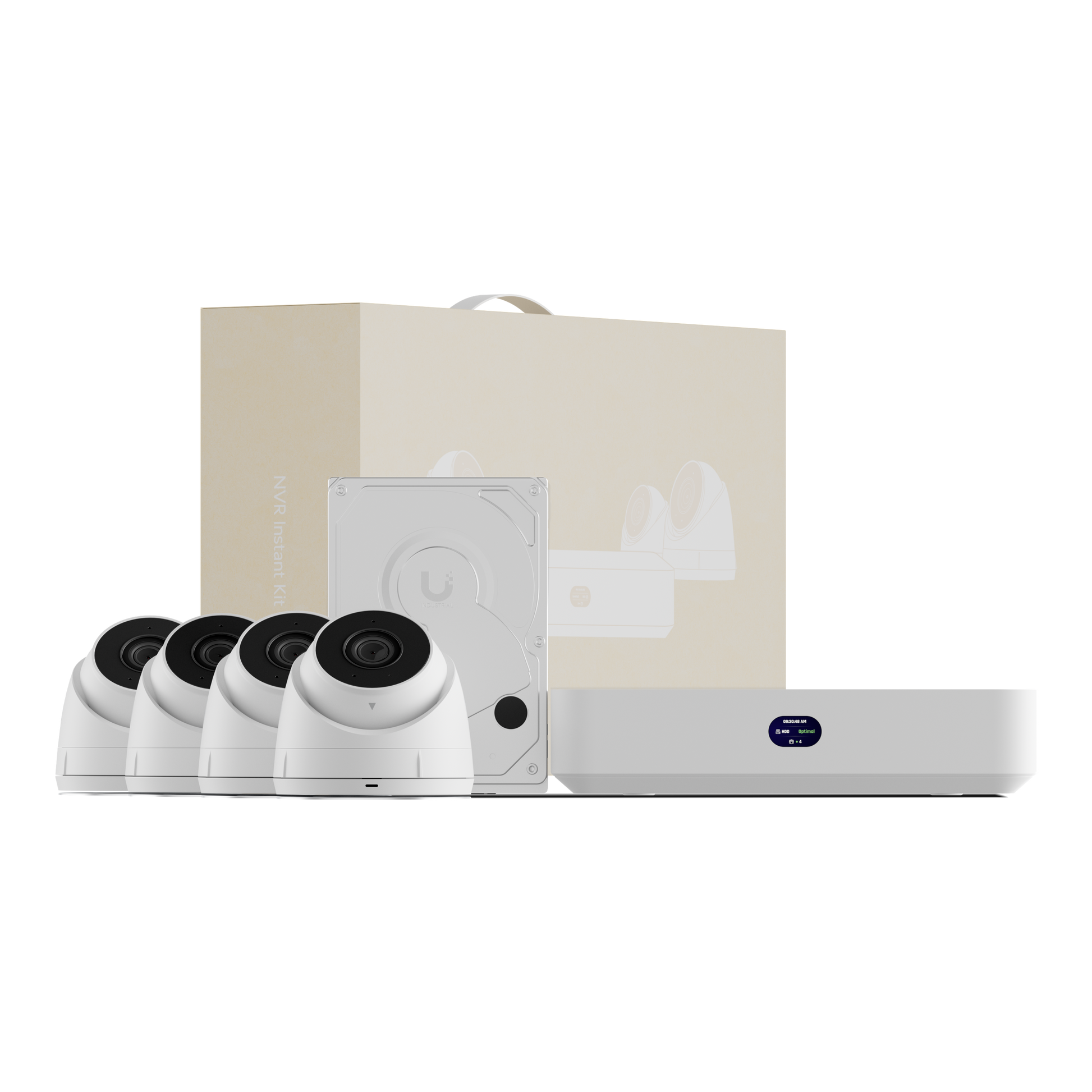

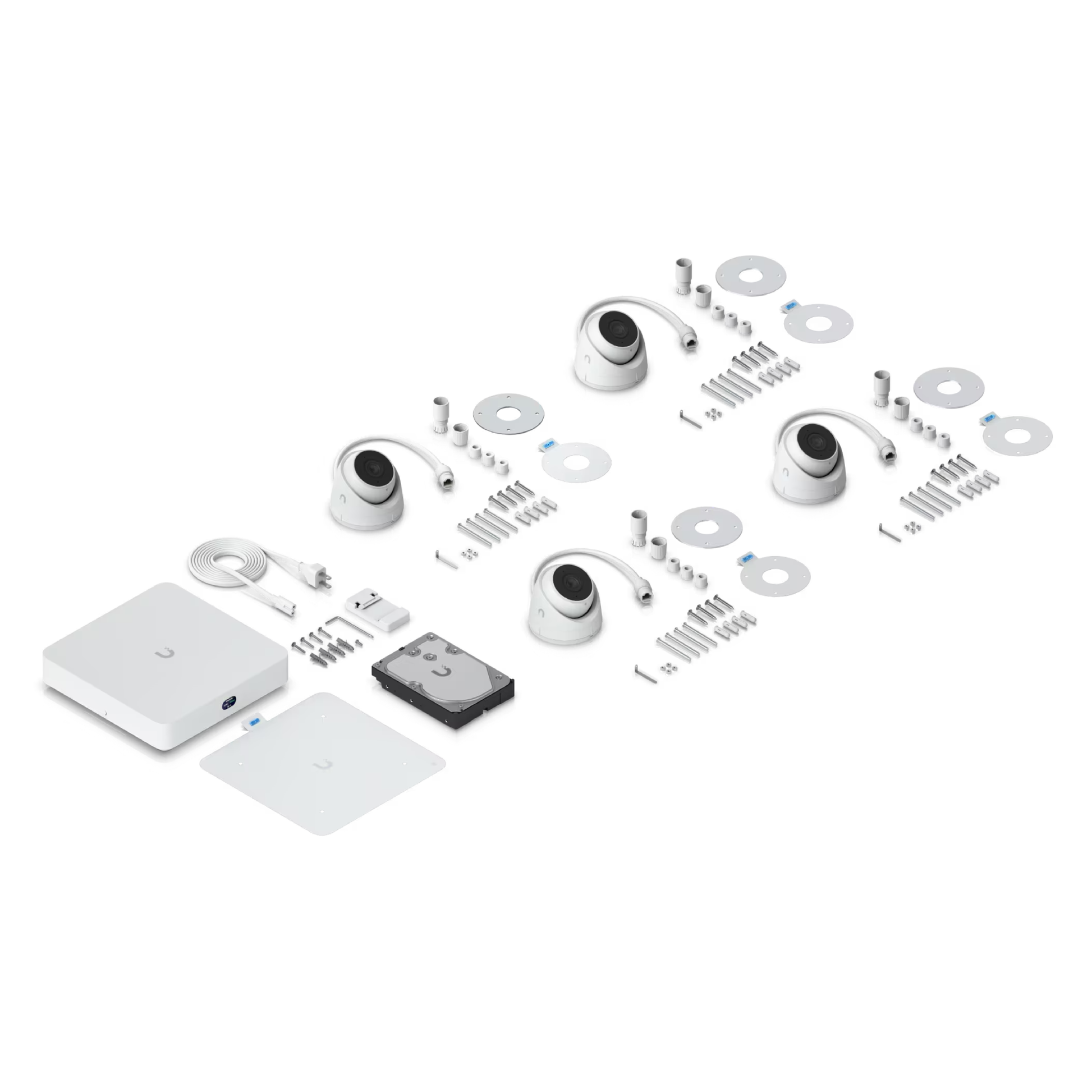

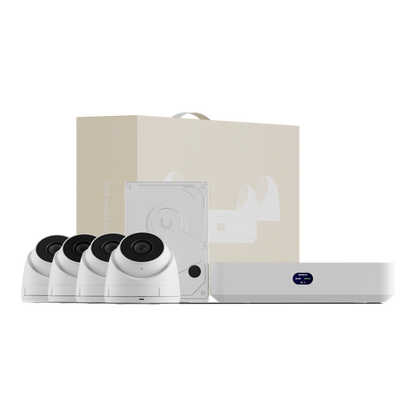

Compact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.
Note. Requires connection to a Gateway or Layer 3 switch.

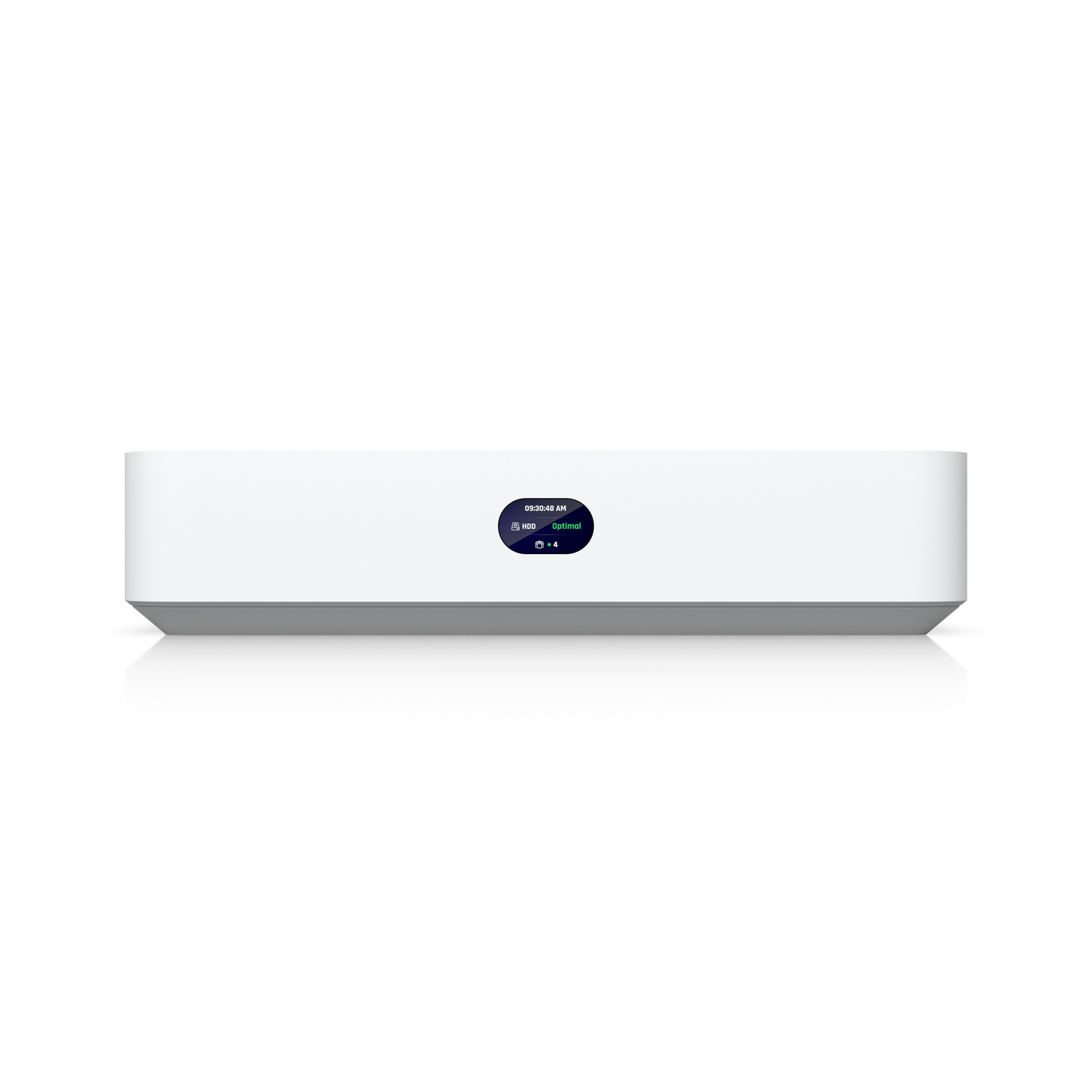

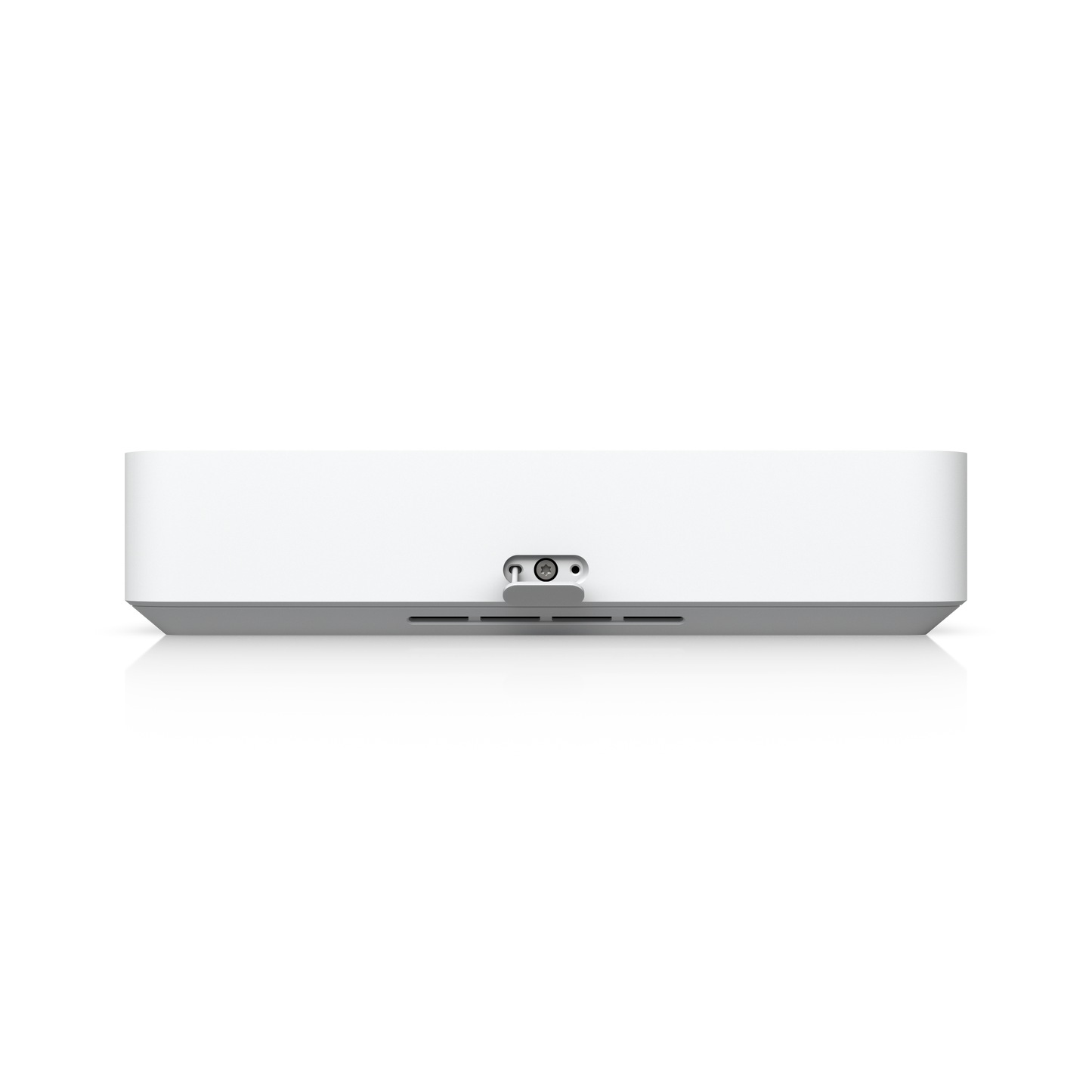

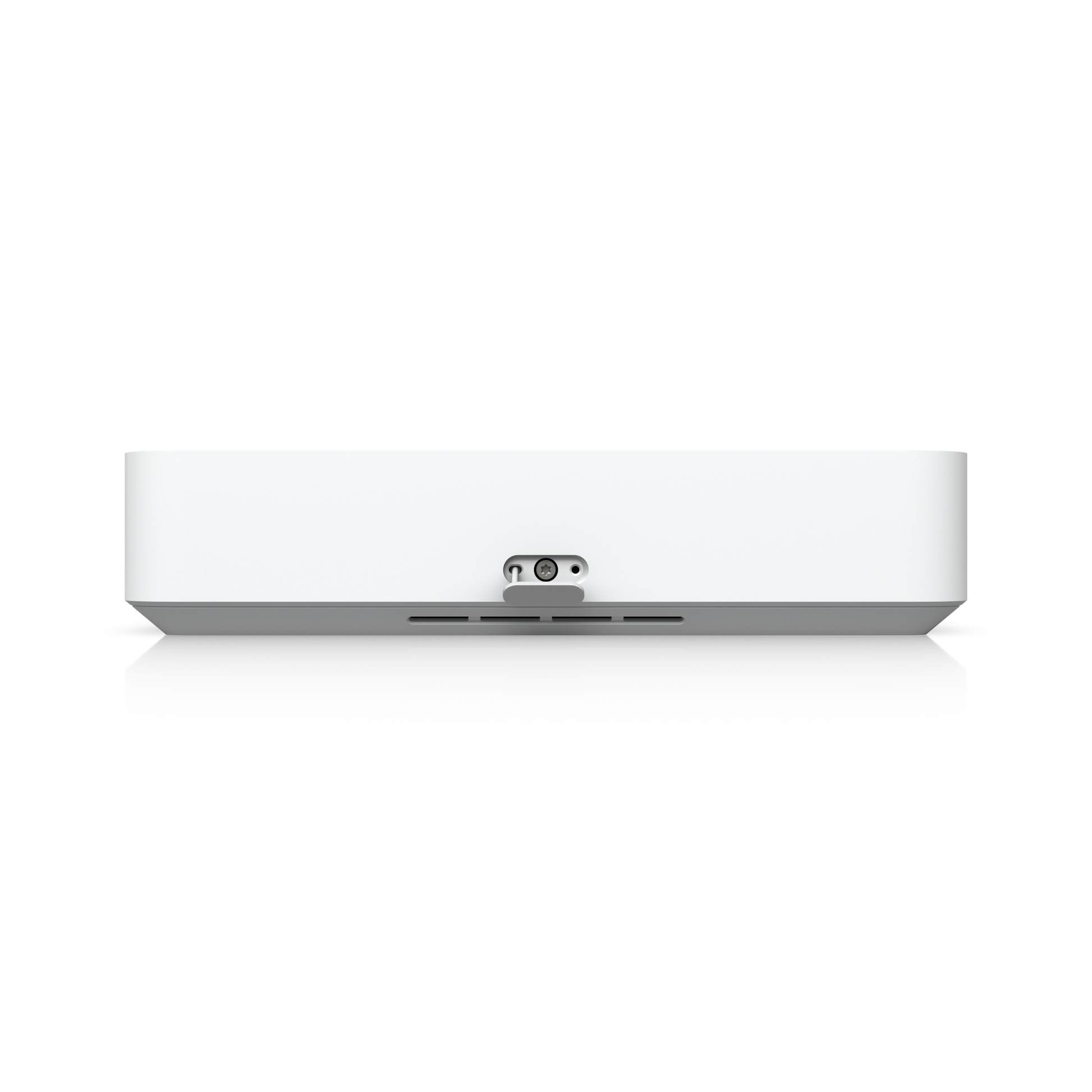

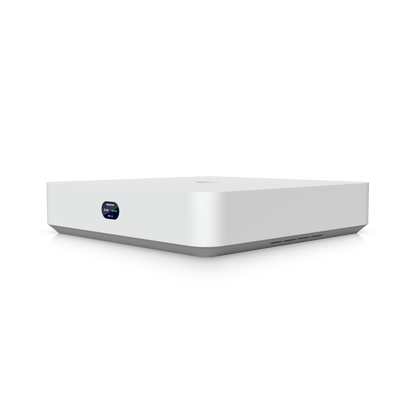

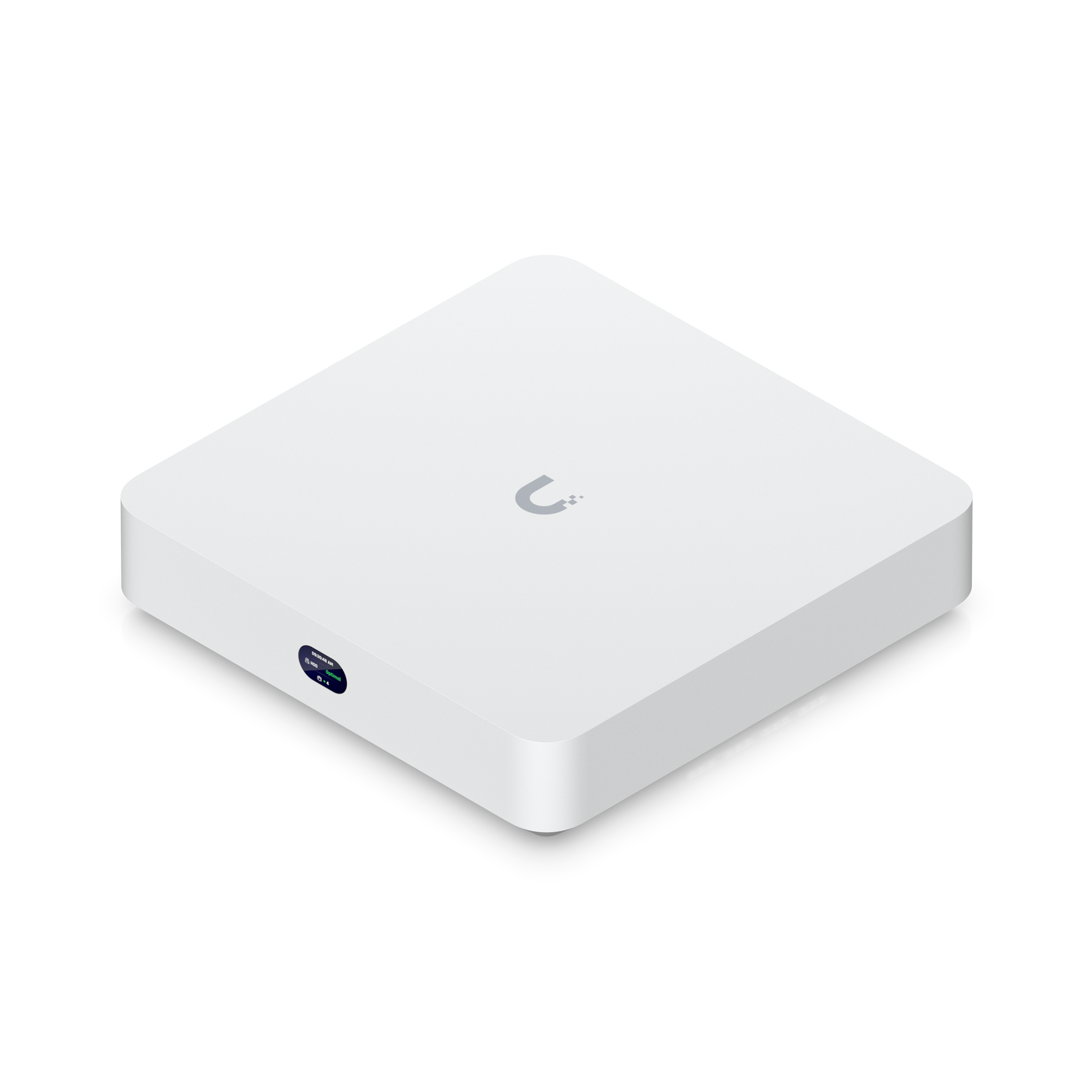

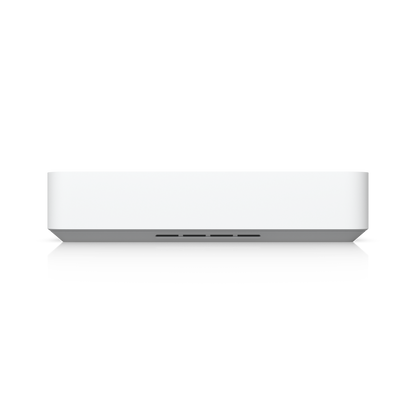

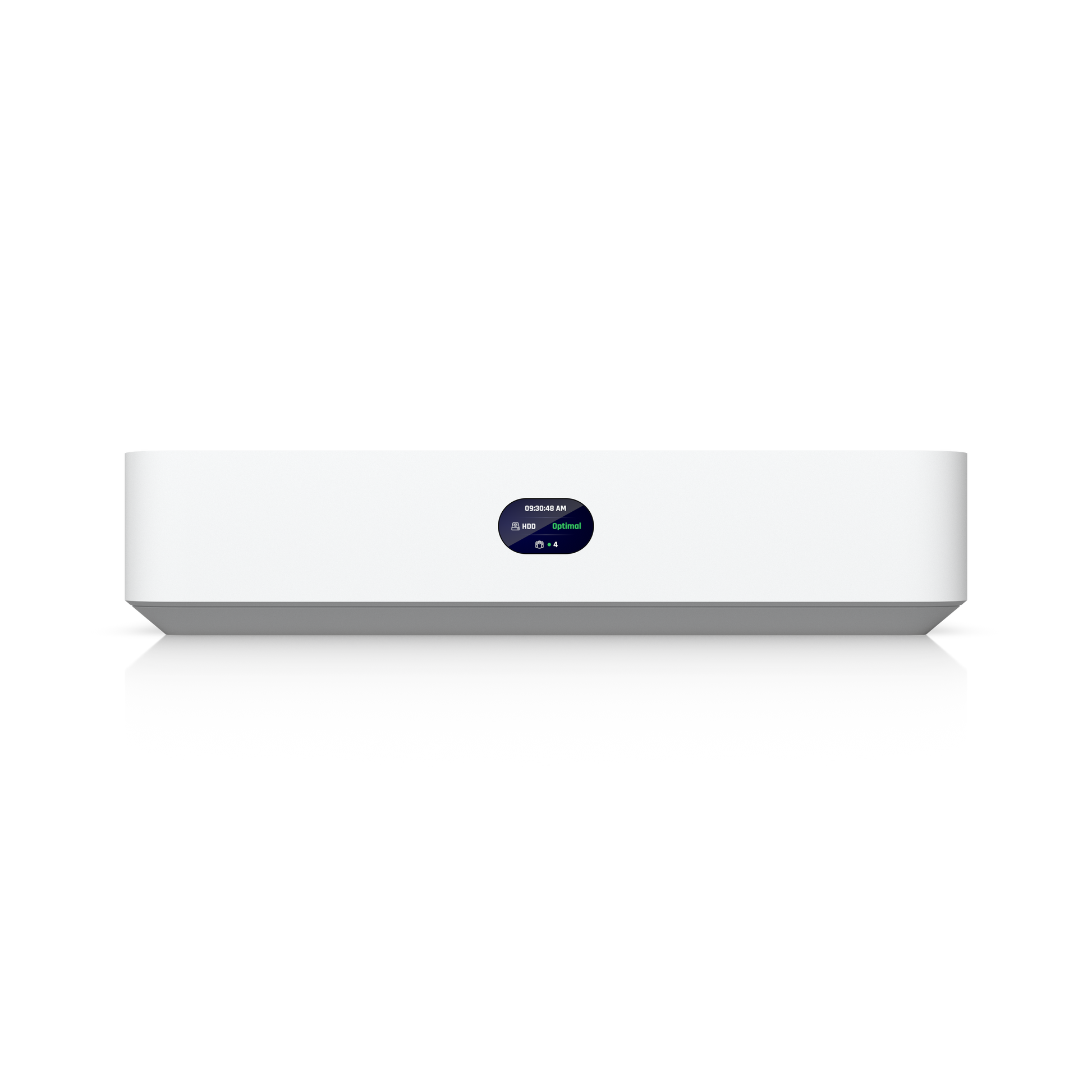

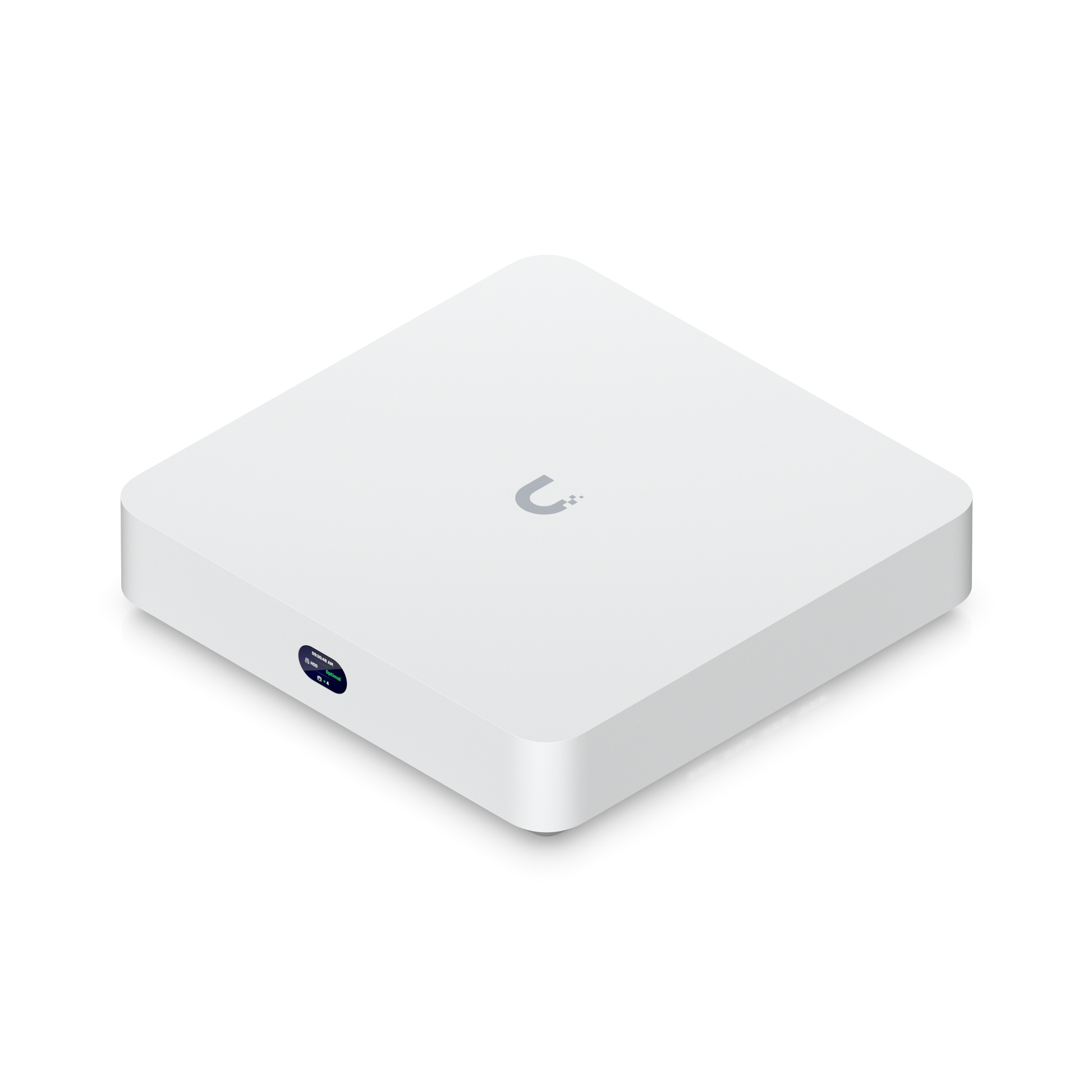

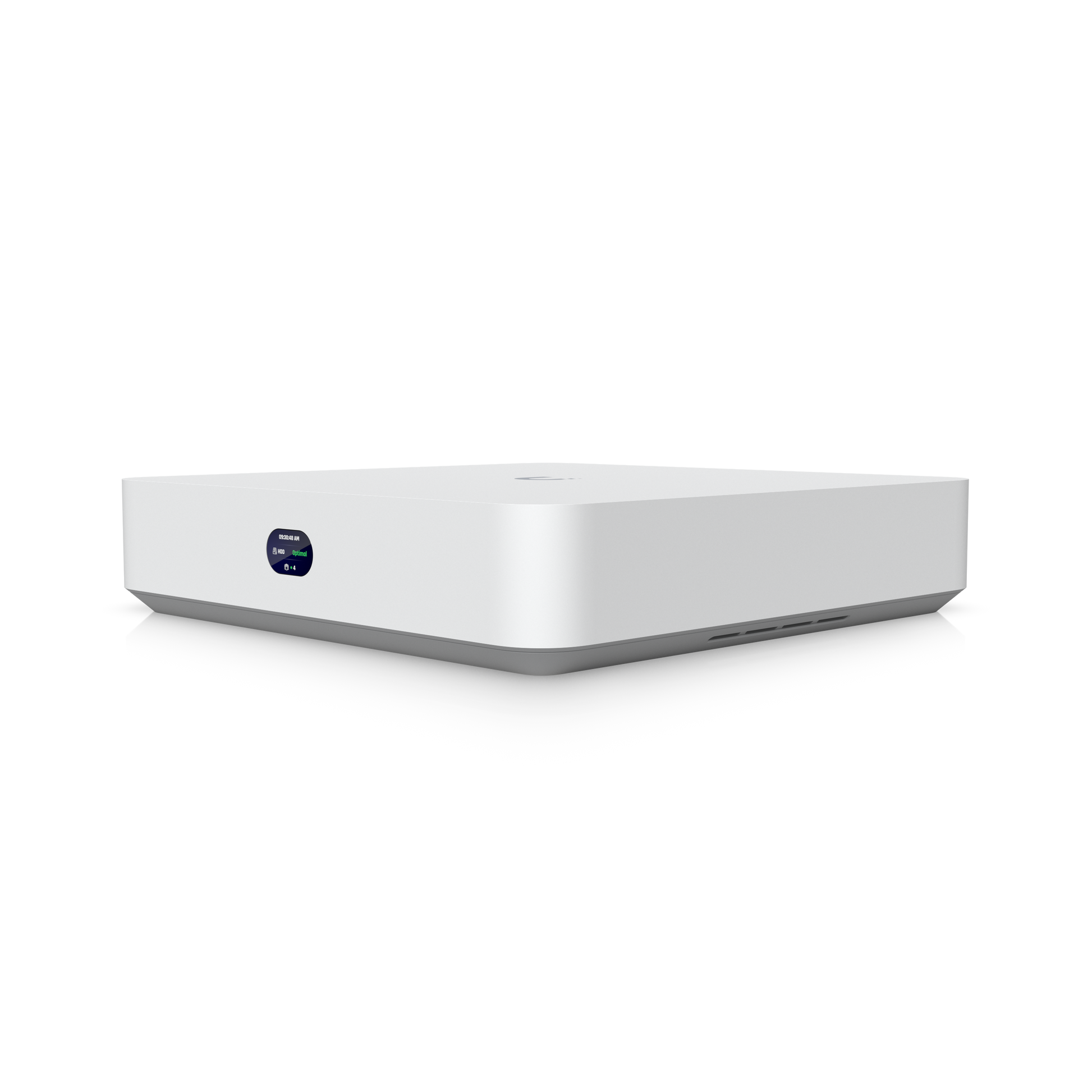

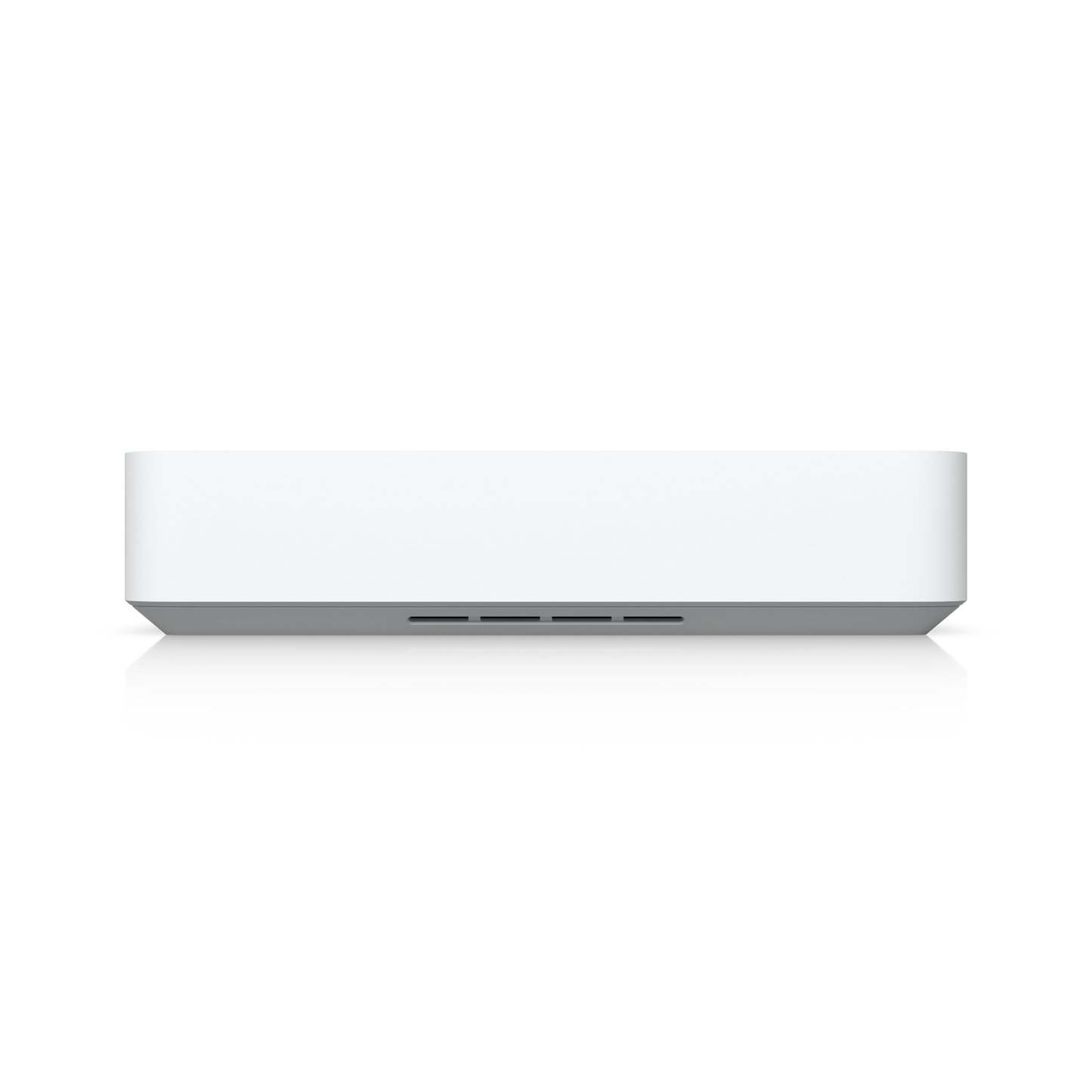

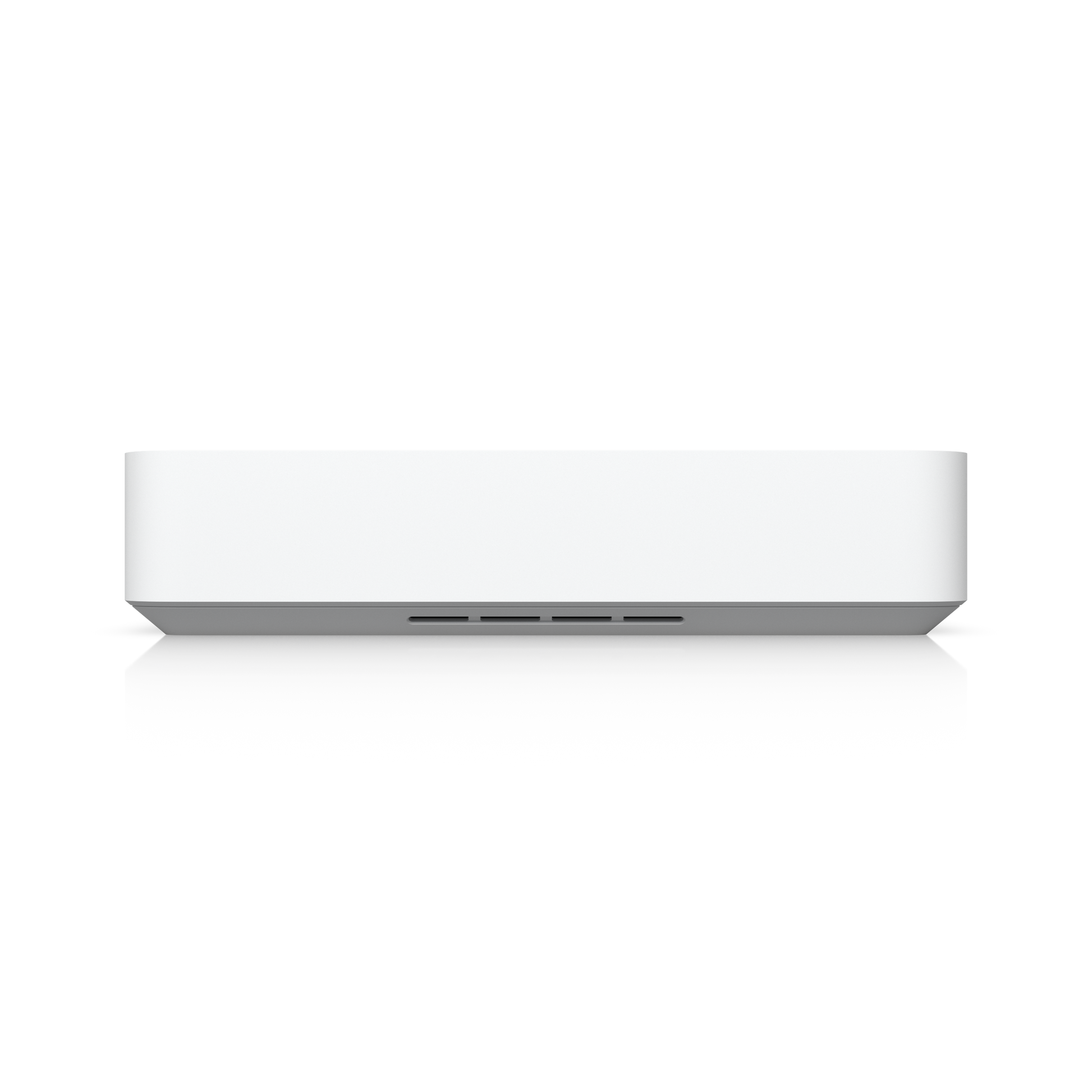

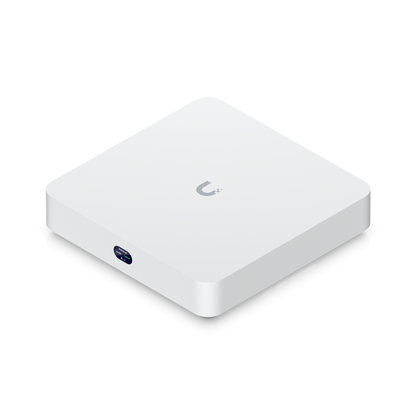

| Network Video Recorder Instant | |
|---|---|
| Dimensions |

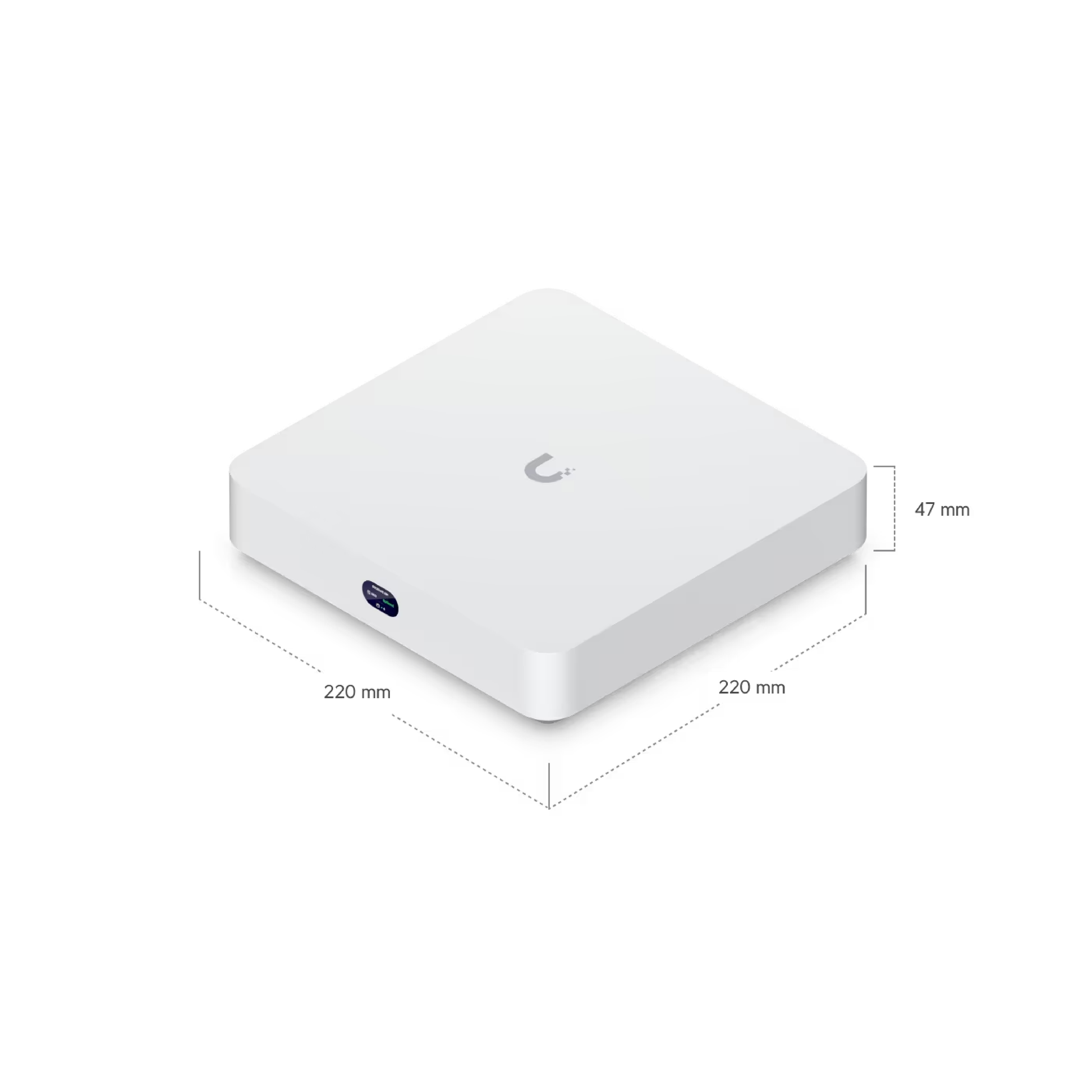

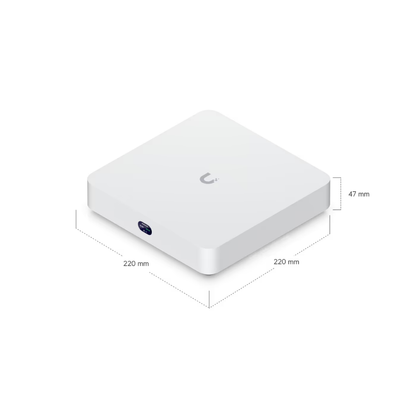

220 x 220 x 47 mm (8.7 x 8.7 x 1.9") |
| UniFi Application Suite |
Protect: ✓ Access: ✓ |
| Managed Cameras |
(15) HD (8) 2K (6) 4K |
| Managed Access Hubs | 50 |

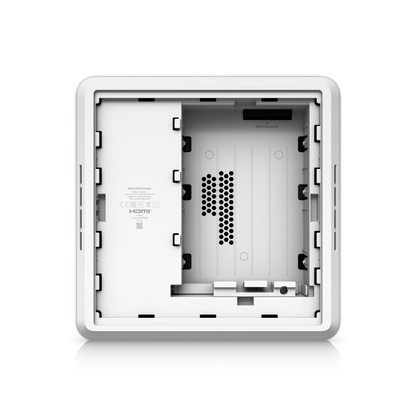

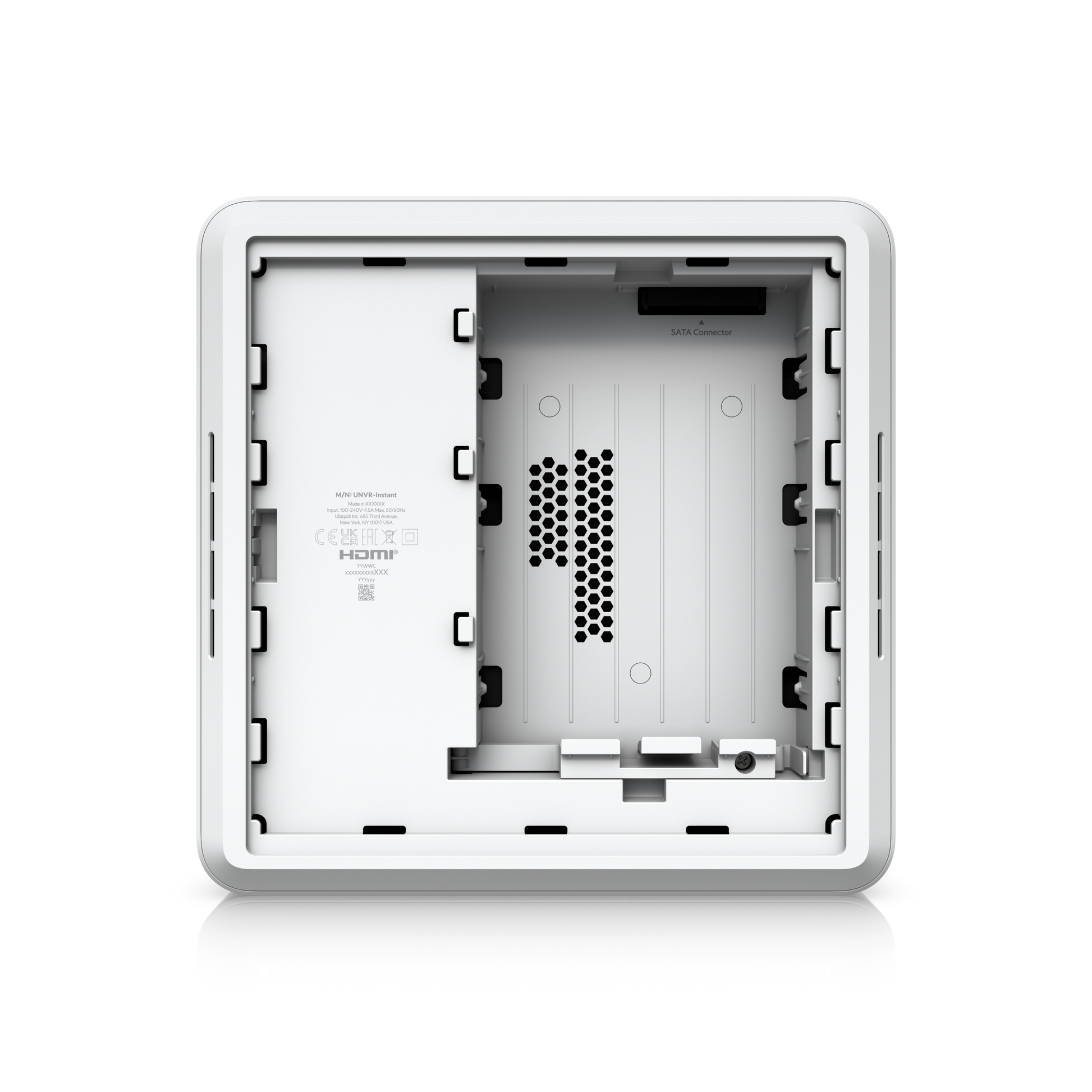

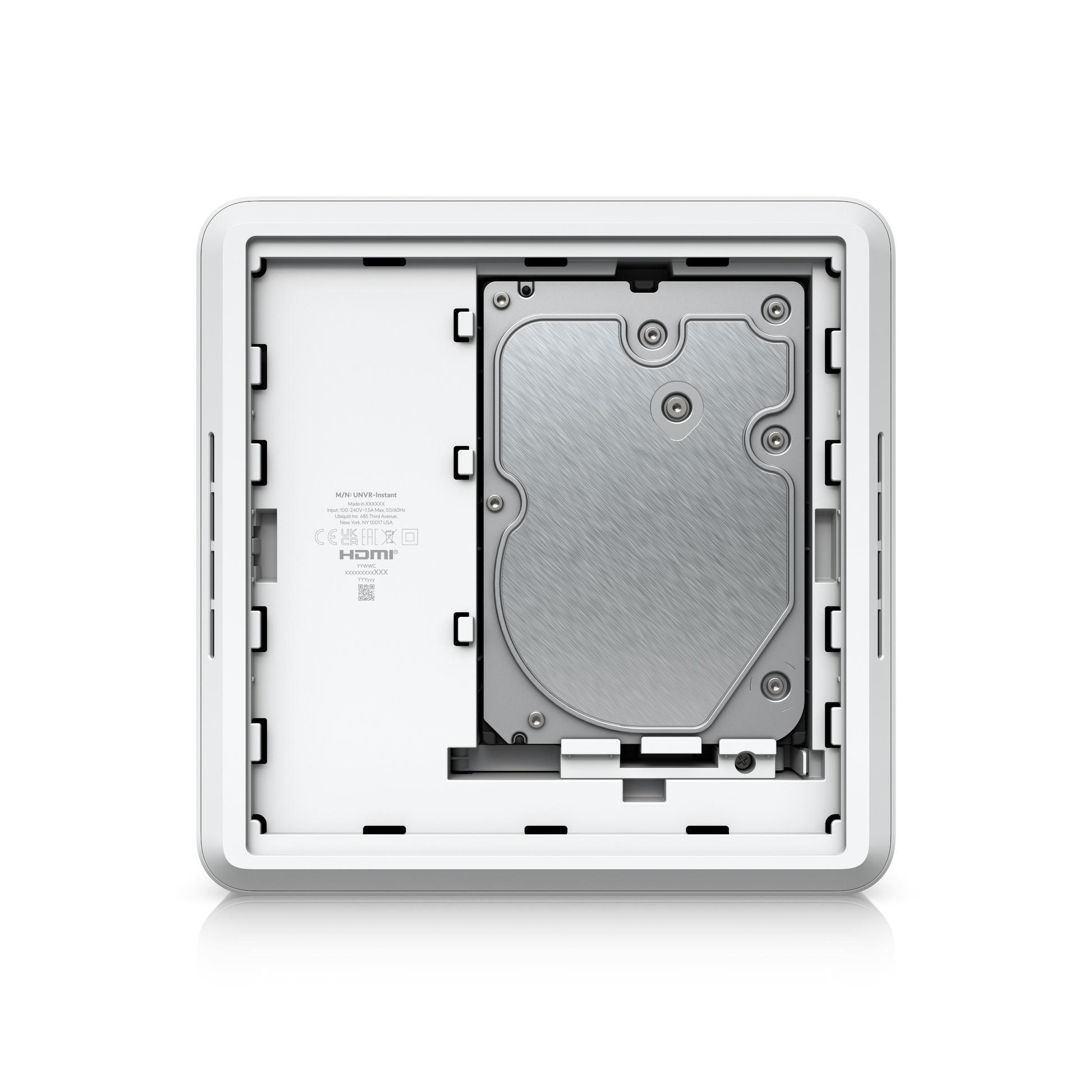

| Storage Capacity | (1) 3.5" drive bay |
| Data Protection | ✓ |
| Vantage Point | ✓ |

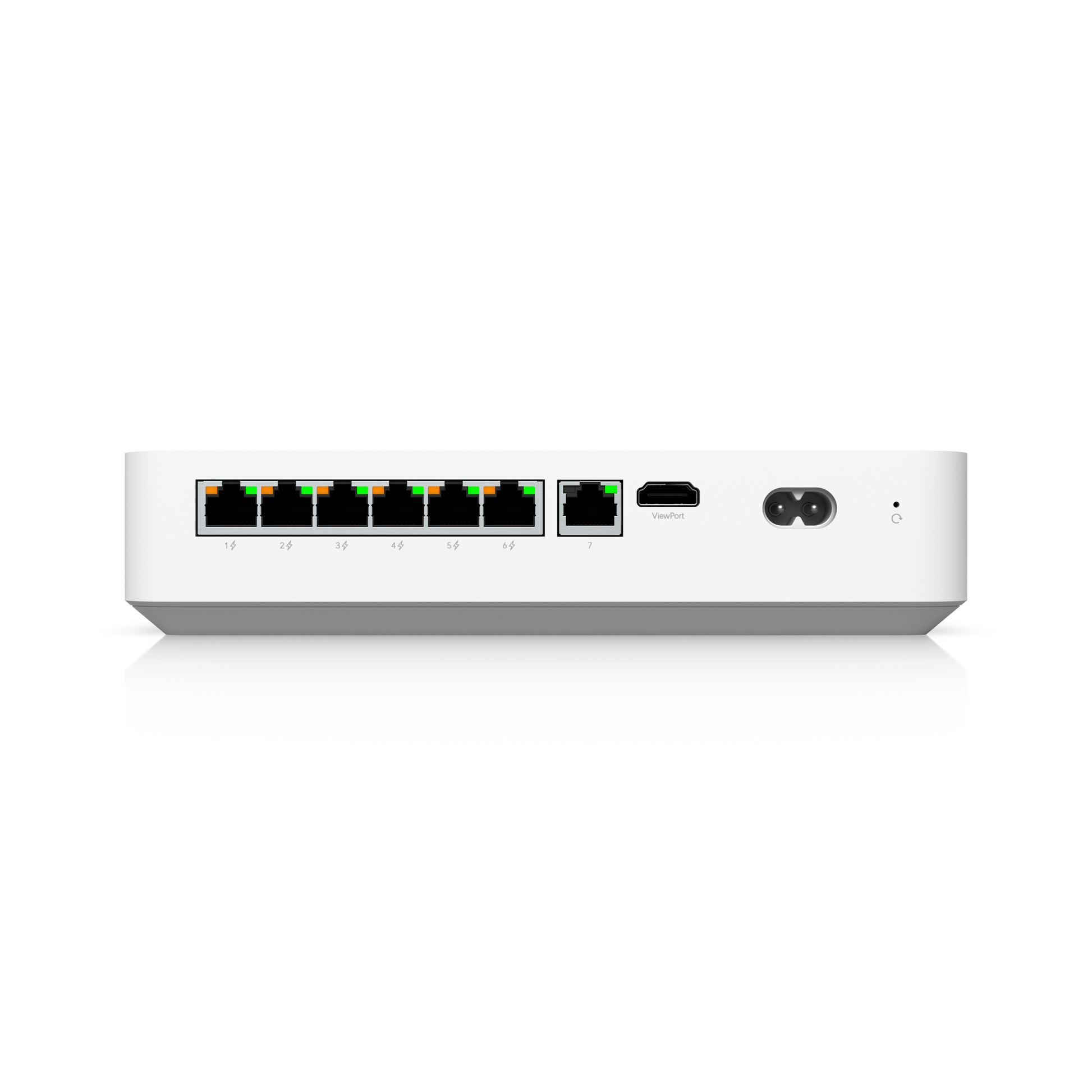

| Networking Interface |

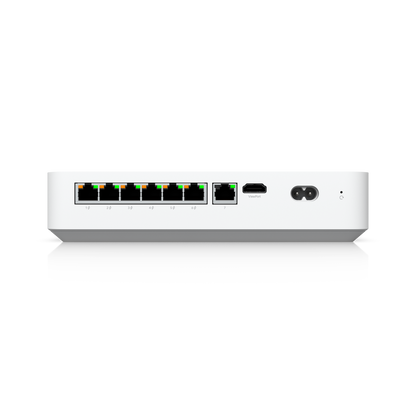

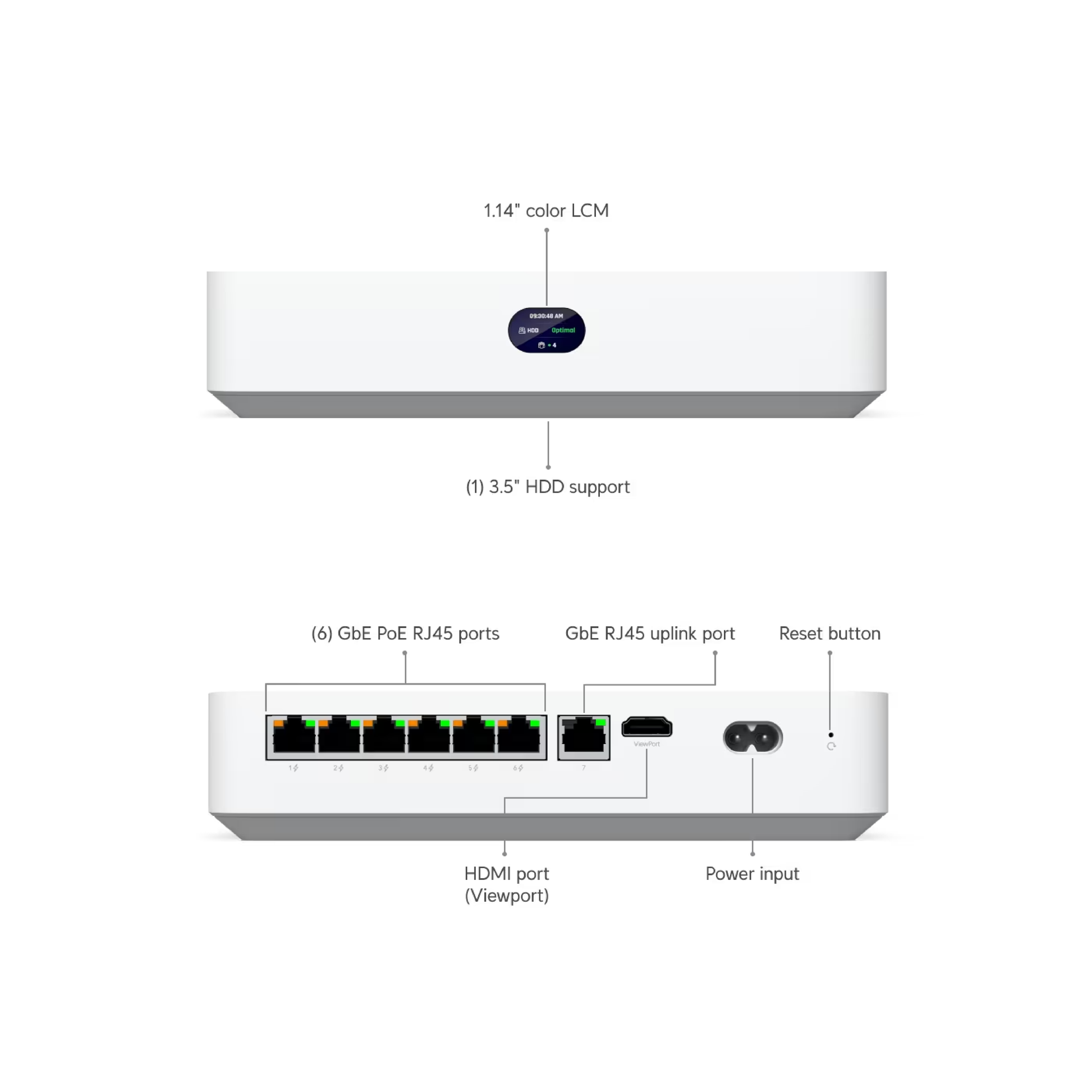

(1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport) |
| Form Factor | Compact Desktop |
| Mounting | Wall, Din rail mount (Included) |
| Door Access Support | ✓ |

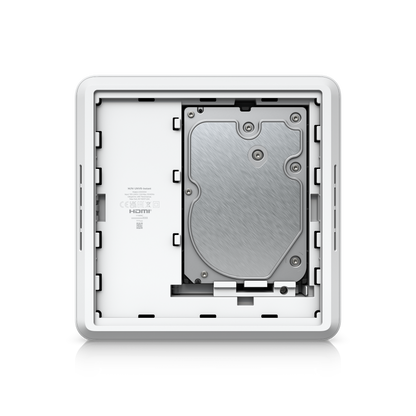

| Hard Drive Capacity | (1) 3.5" HDD support |
| Max. Power Budget for Drives | 11W |
| Max. Power Consumption | 9W |
| Power Method | Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz |
| Power Supply | AC/DC, Internal, 60W |
| PoE Budget | 40W |
| Max. PoE Wattage per Port by PSE | PoE: 15.4W |
| Voltage Range PoE Mode | 44–57V |
| Processor | Quad-core ARM Cortex-A55 at 1.7 GHz |
| Memory | 4 GB |
| Management |
Ethernet Bluetooth |

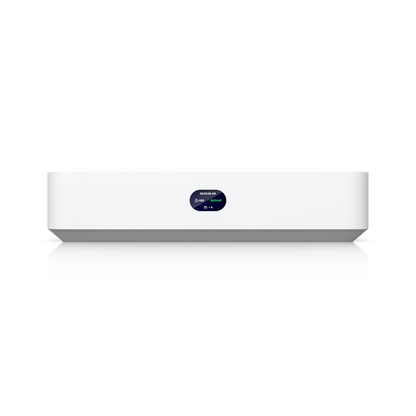

| Display | 1.14" screen |
| Weight | 1.04 kg (2.3 lb) |
| Enclosure Materials | Polycarbonate |
| Mount Material | Polycarbonate |
| LEDs |
Ethernet: ✓ PoE: ✓ |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE, Electrical Safety |

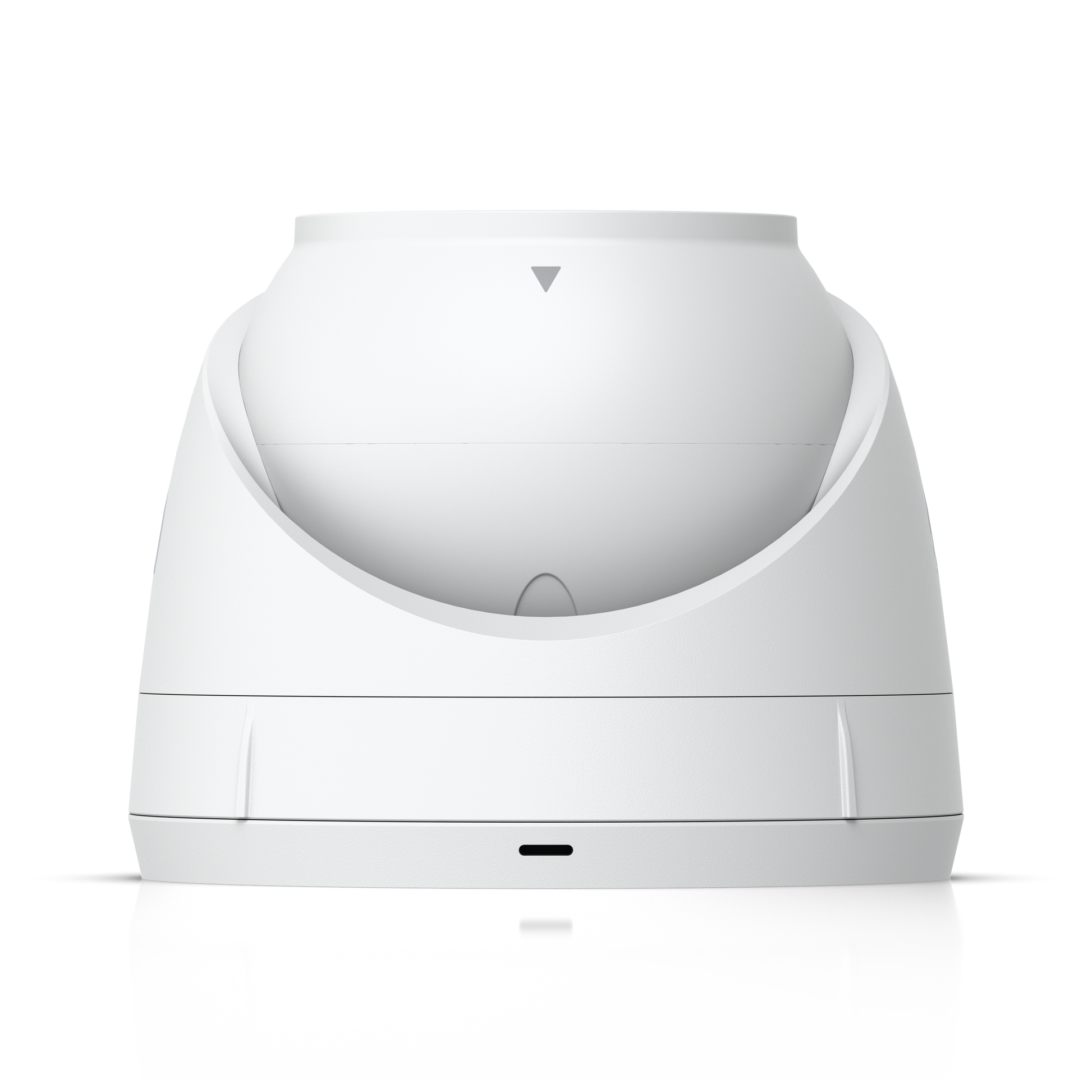

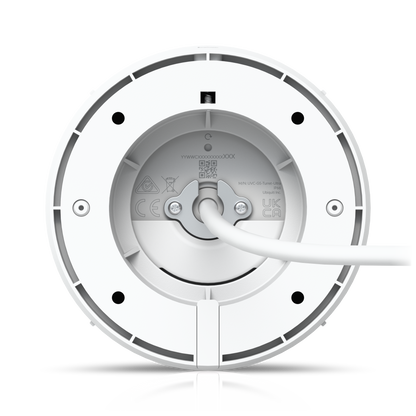

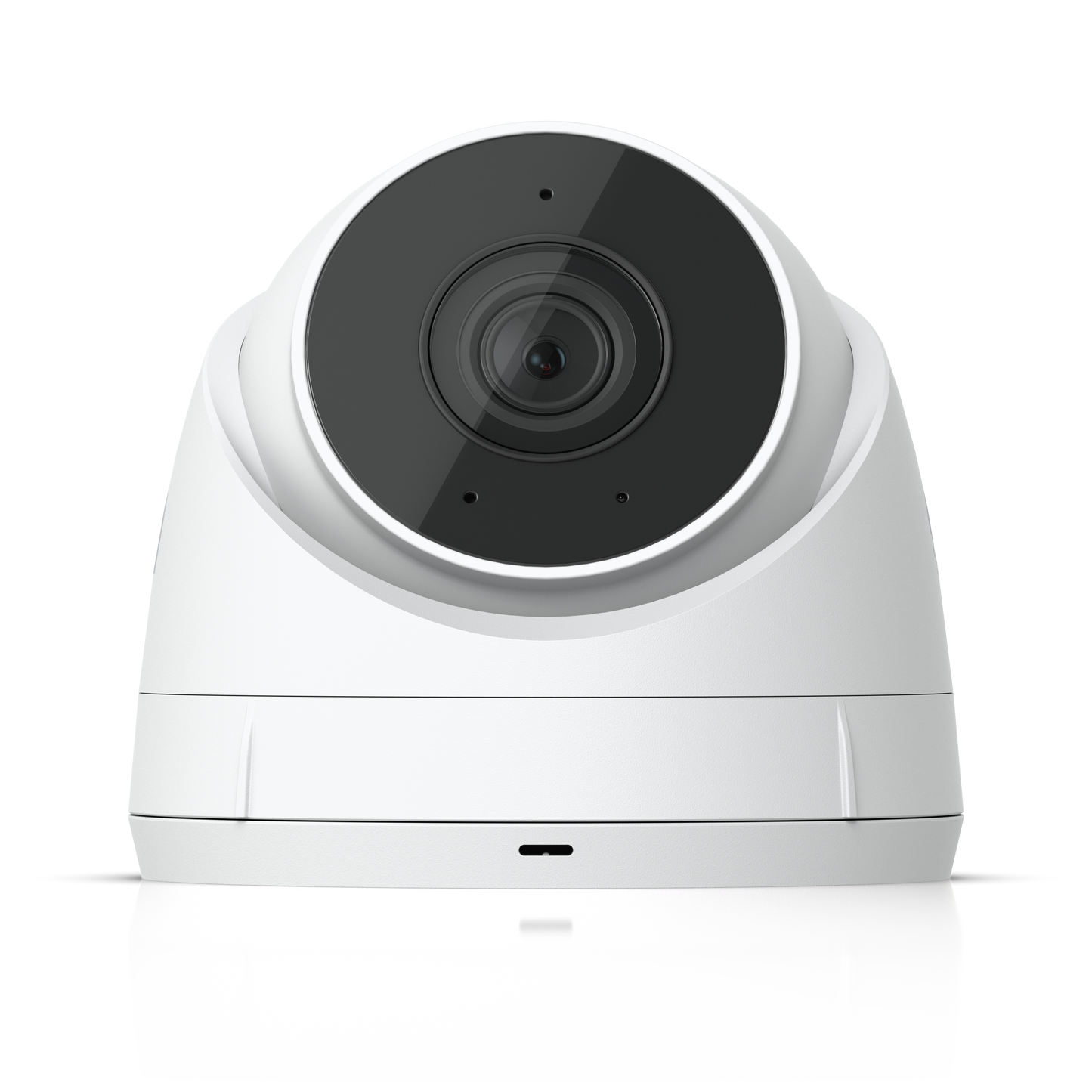

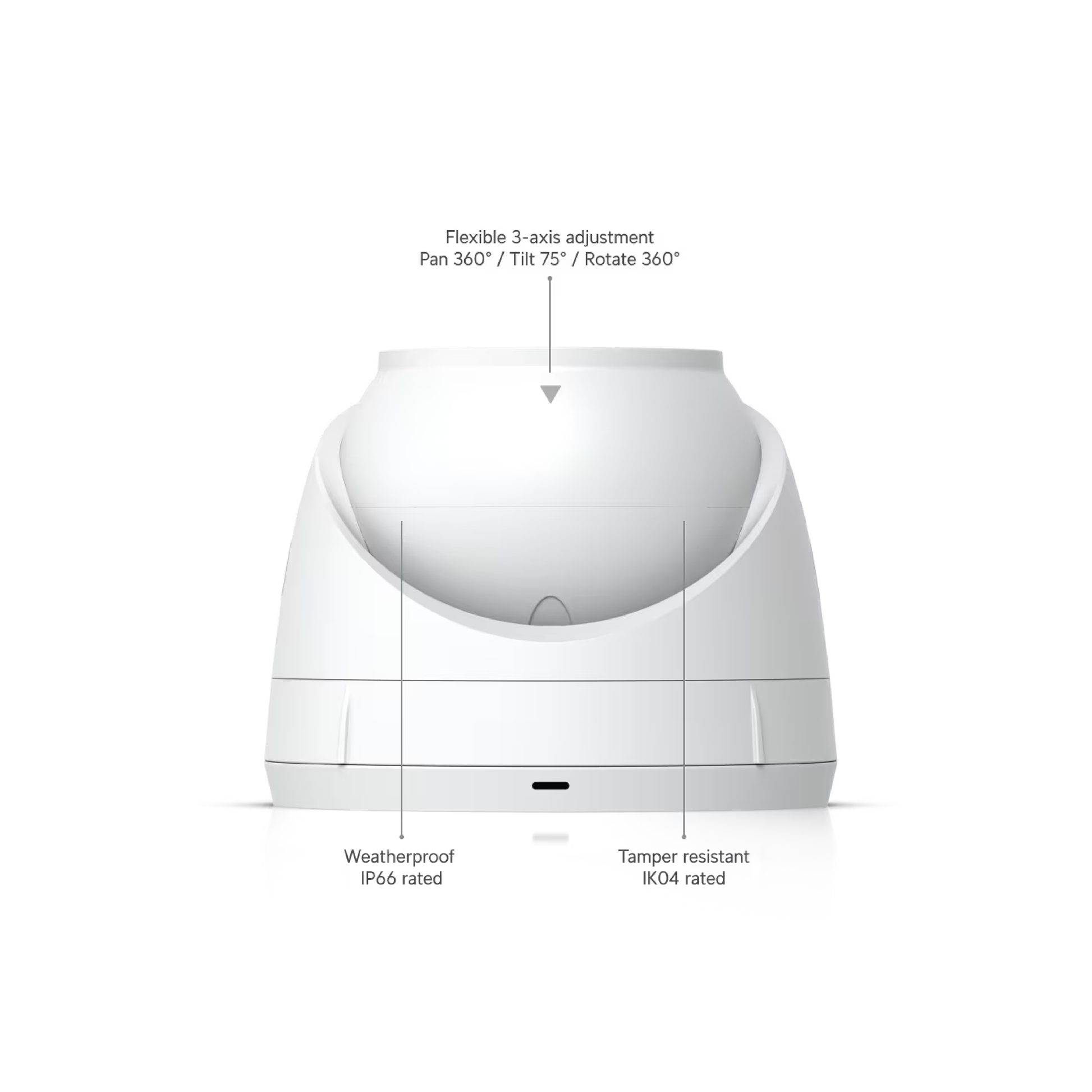

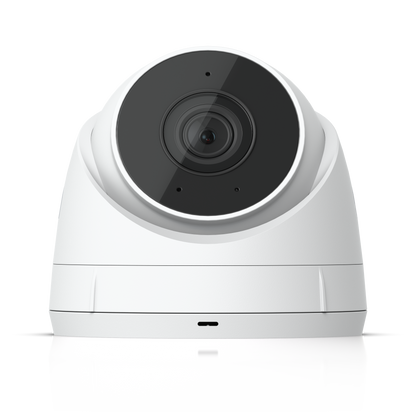

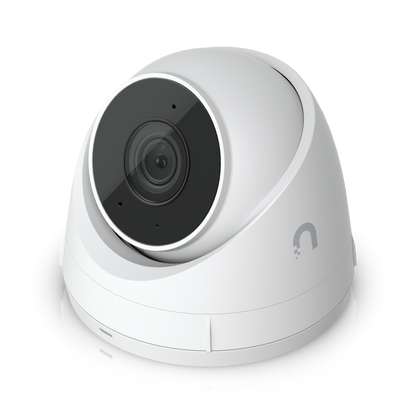

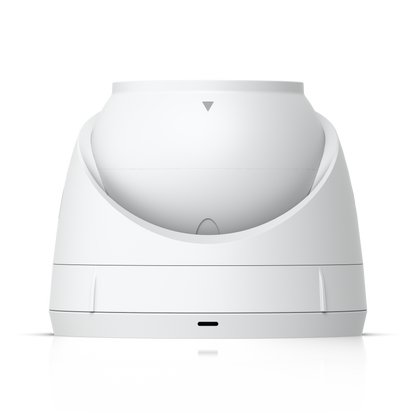

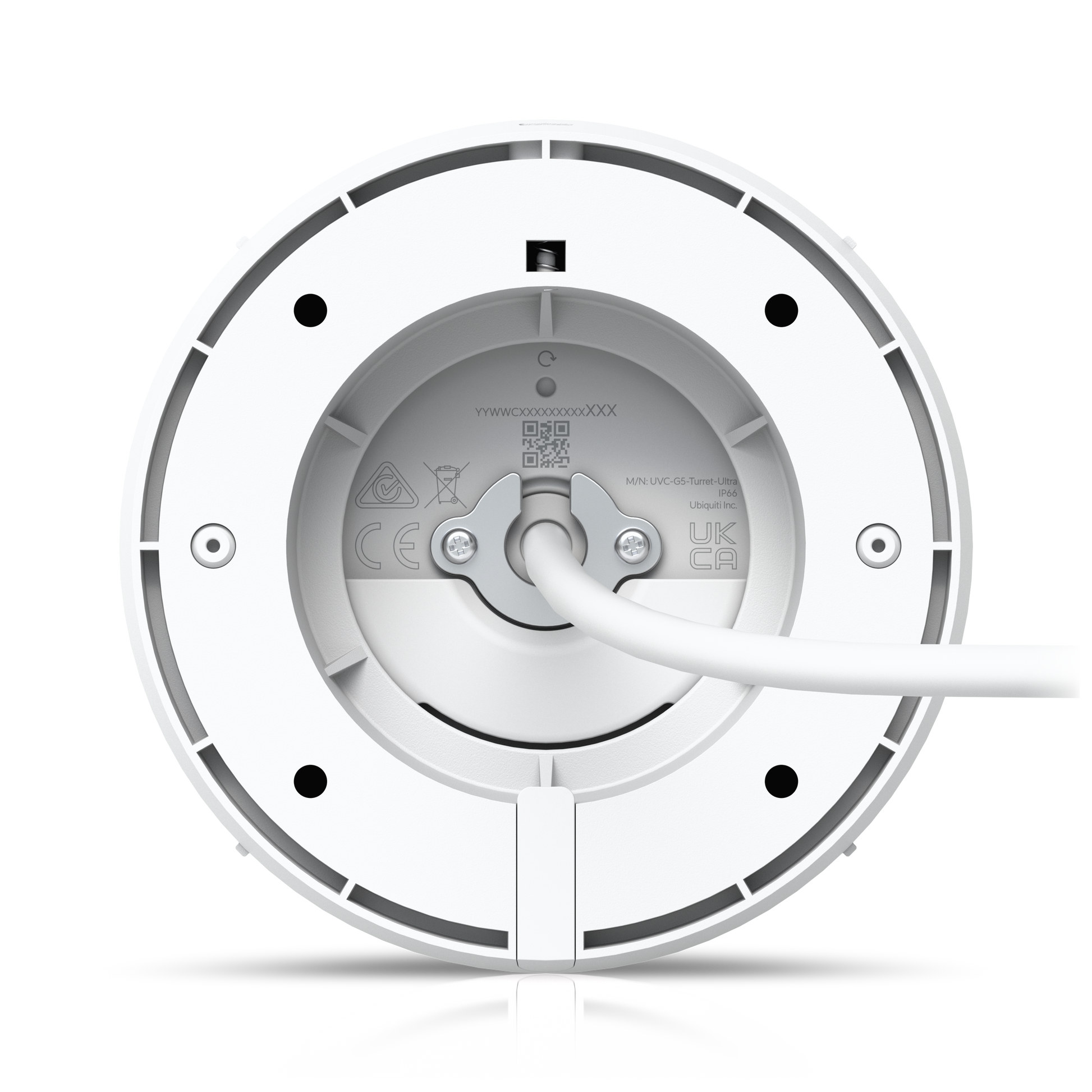

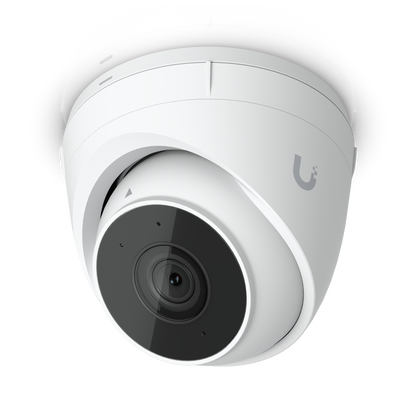

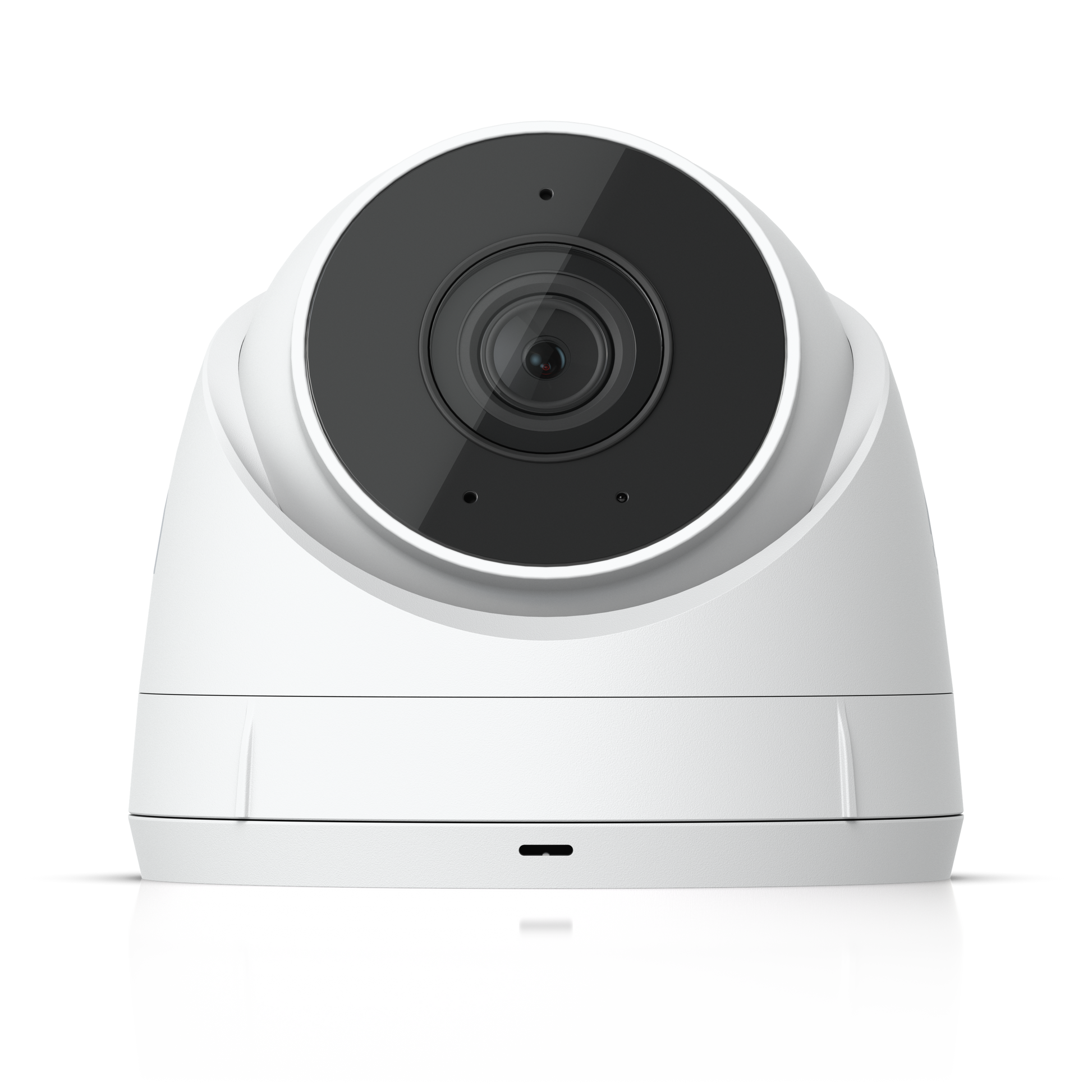

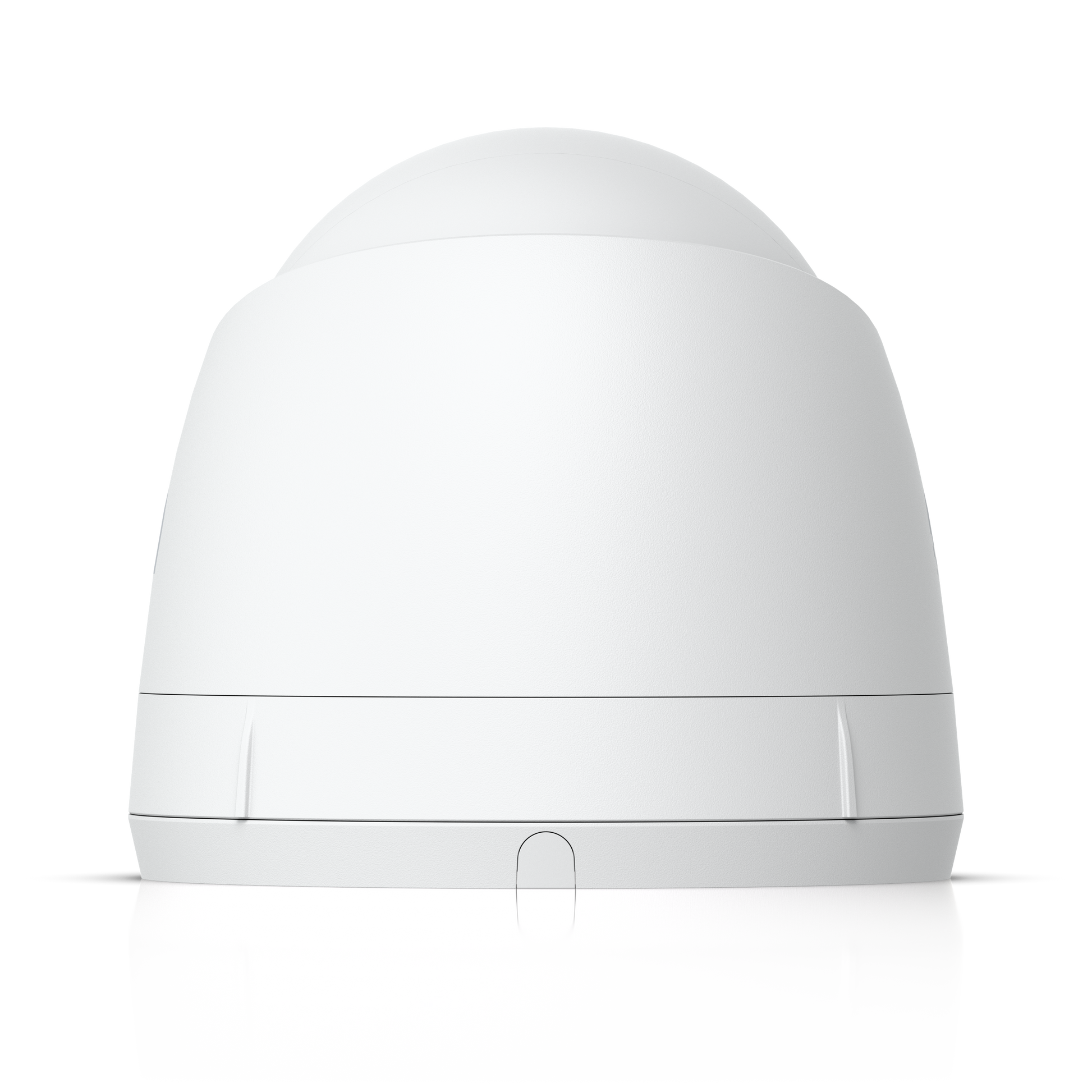

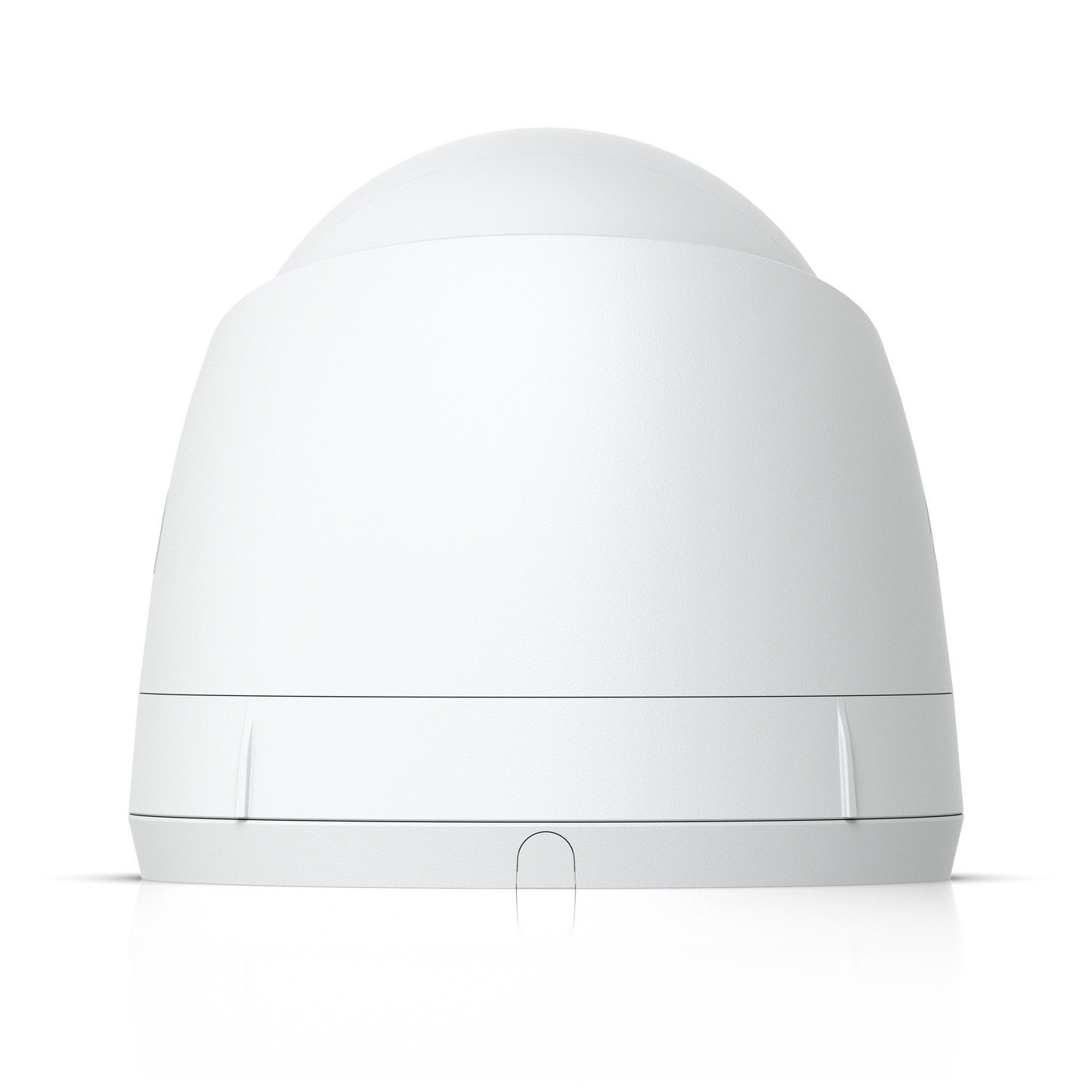

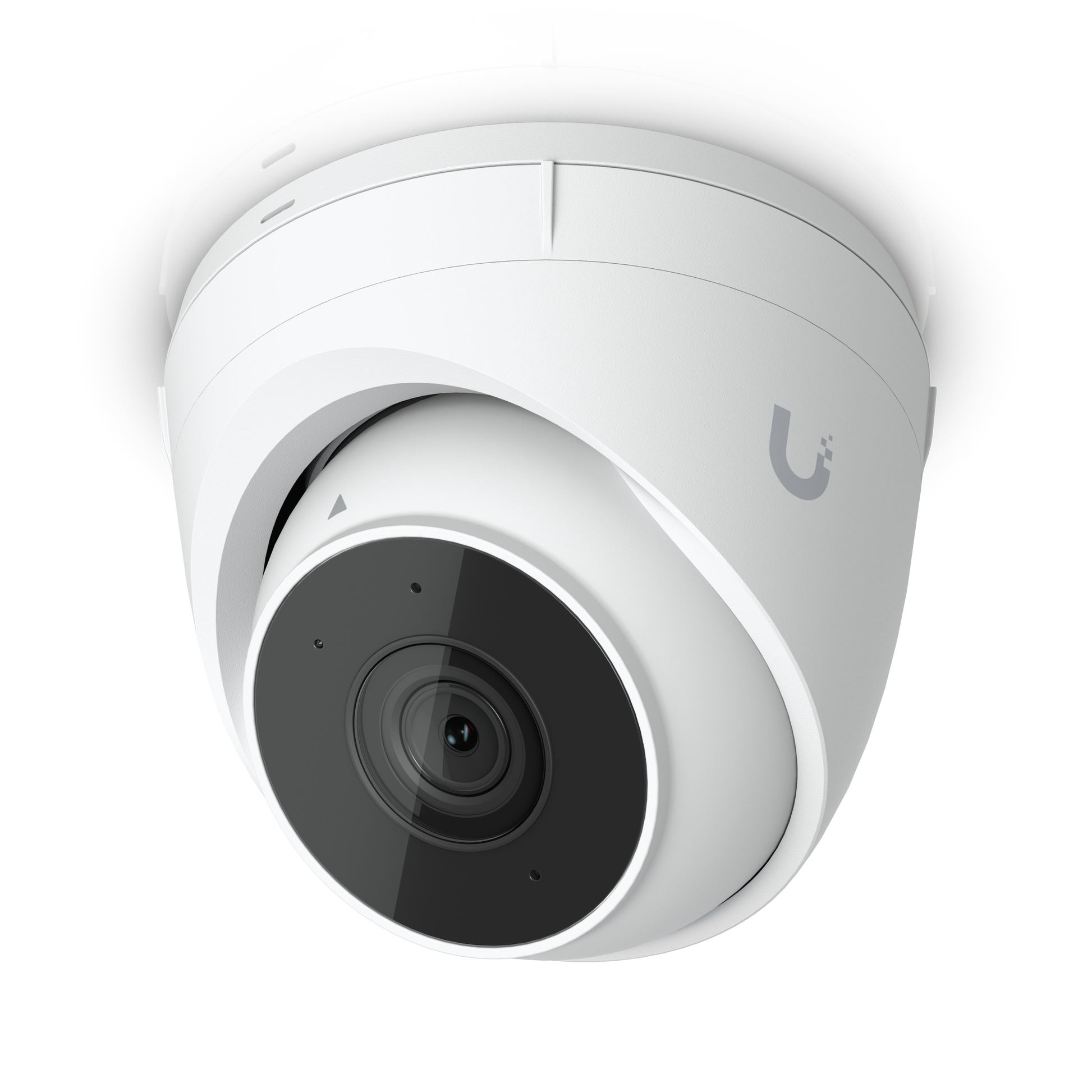

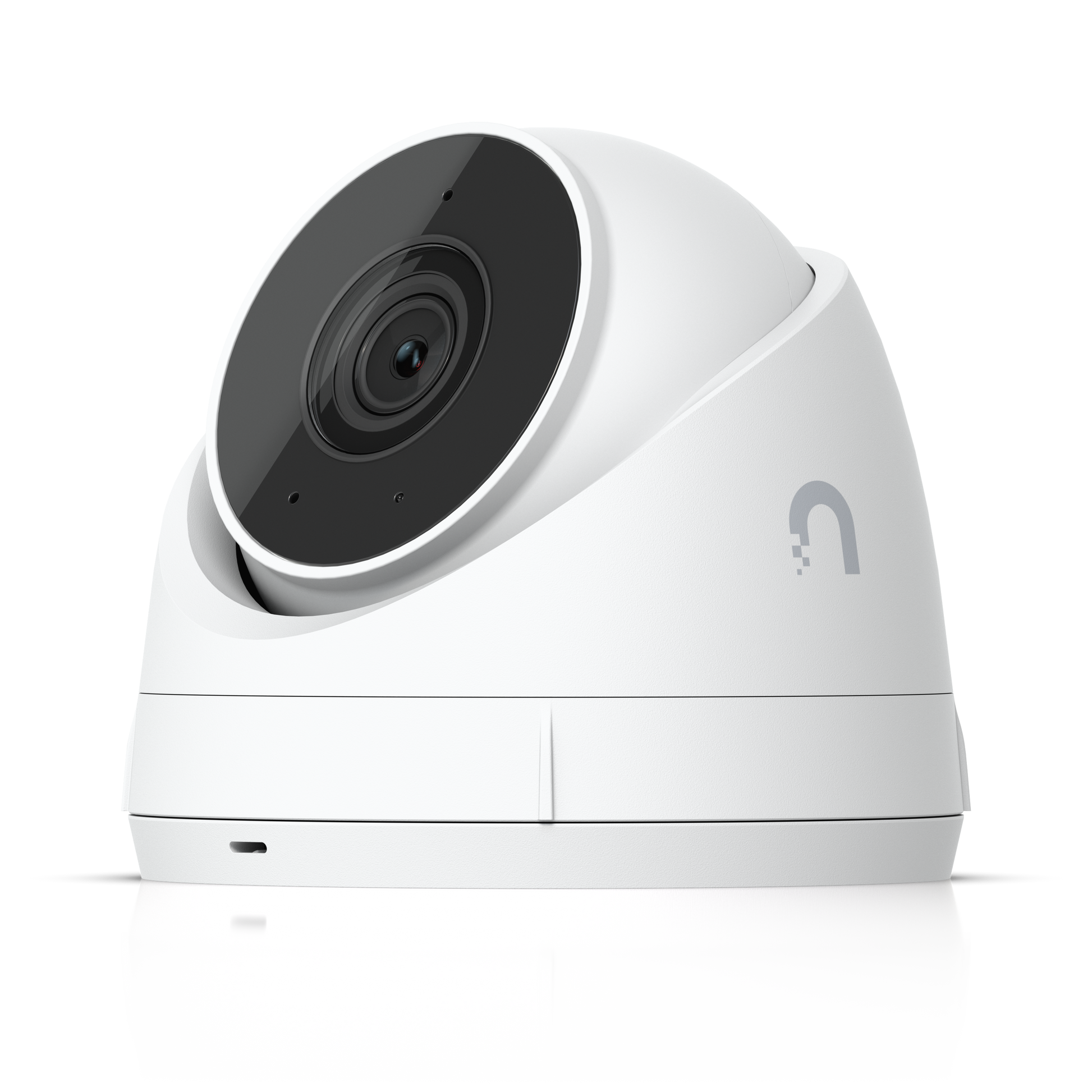

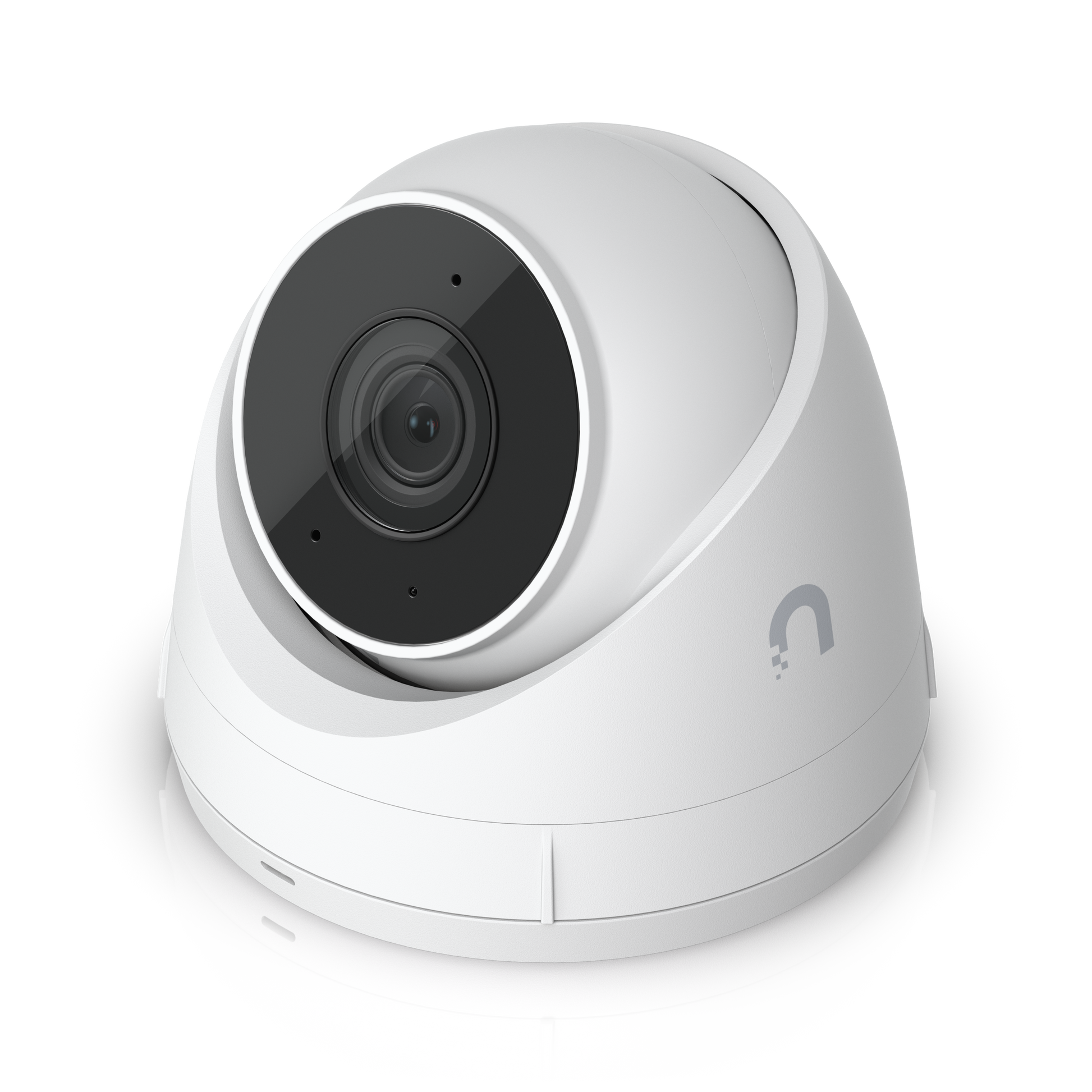

| G5 Turret Ultra | |

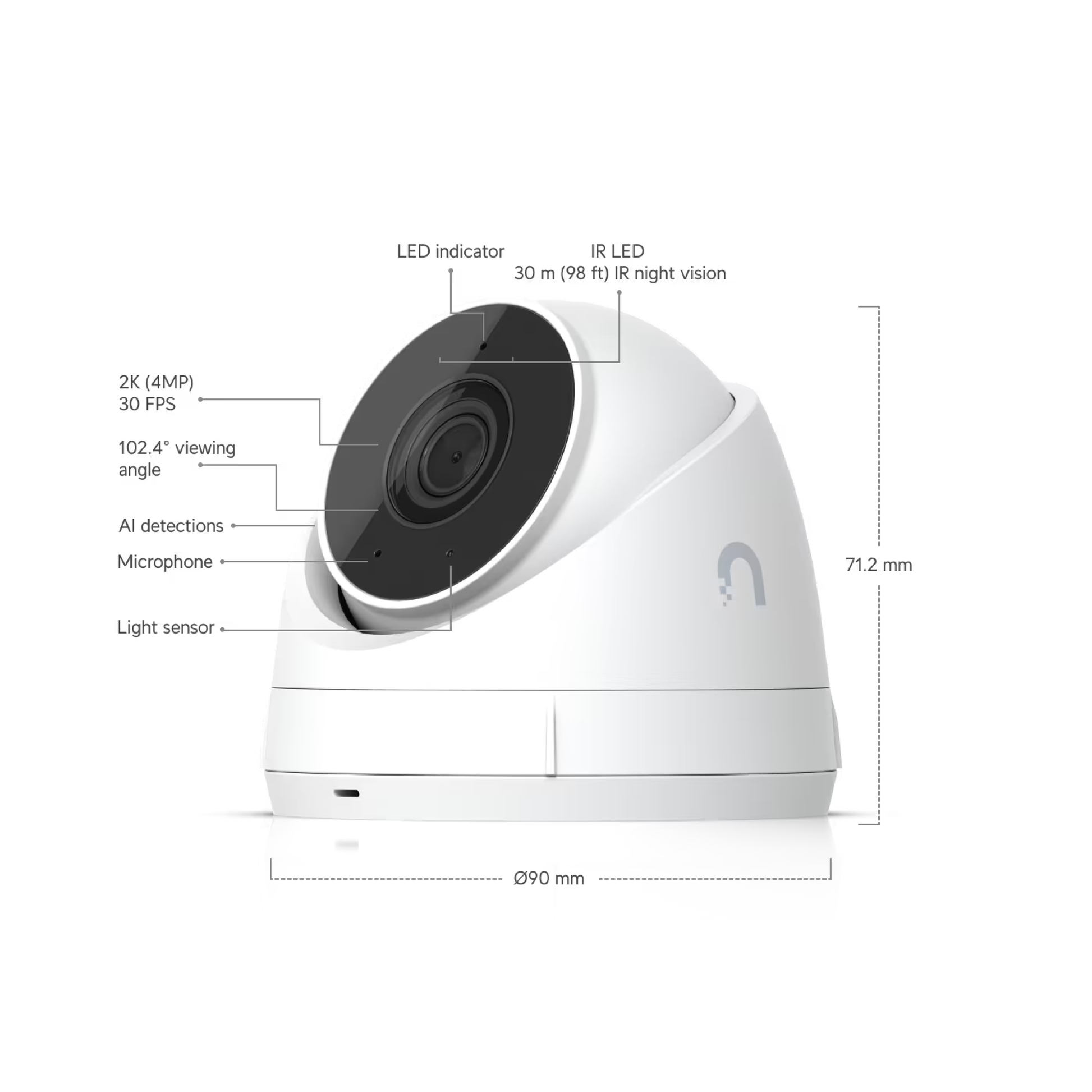

| Dimensions |
Ø90 x 71.2 mm (Ø3.5 x 2.8") |
| IR Night Vision | 30 m (98 ft) |
| Smart Detections (People, Vehicles, Animals) | ✓ |
| Resolution | 2K |
| Field of View | H: 102.4°, V: 54.9°, D: 120.6° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Mounting |
Wall, ceiling mount (Included) Junction box, arm mount (Optional) |
| Networking Interface | 10/100 MbE RJ45 port |
| Video |
Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay Max. Frame Rate: 30 FPS Resolution: 4MP 2688 x 1512 (16:9) |
| Optics |
Sensor: 1/2.4" CMOS Lens:Fixed focal length Night Mode: Built-in IR LED illumination and IR cut filter |
| Max. Power Consumption | 4W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE |
| Processor | Dual-core Arm Cortex-A7 based chip |
| Weight | 330 g (11.6 oz) |
| Enclosure Material | Aluminum alloy, UV-stabilized polycarbonate |
| Mount Material | Polycarbonate |

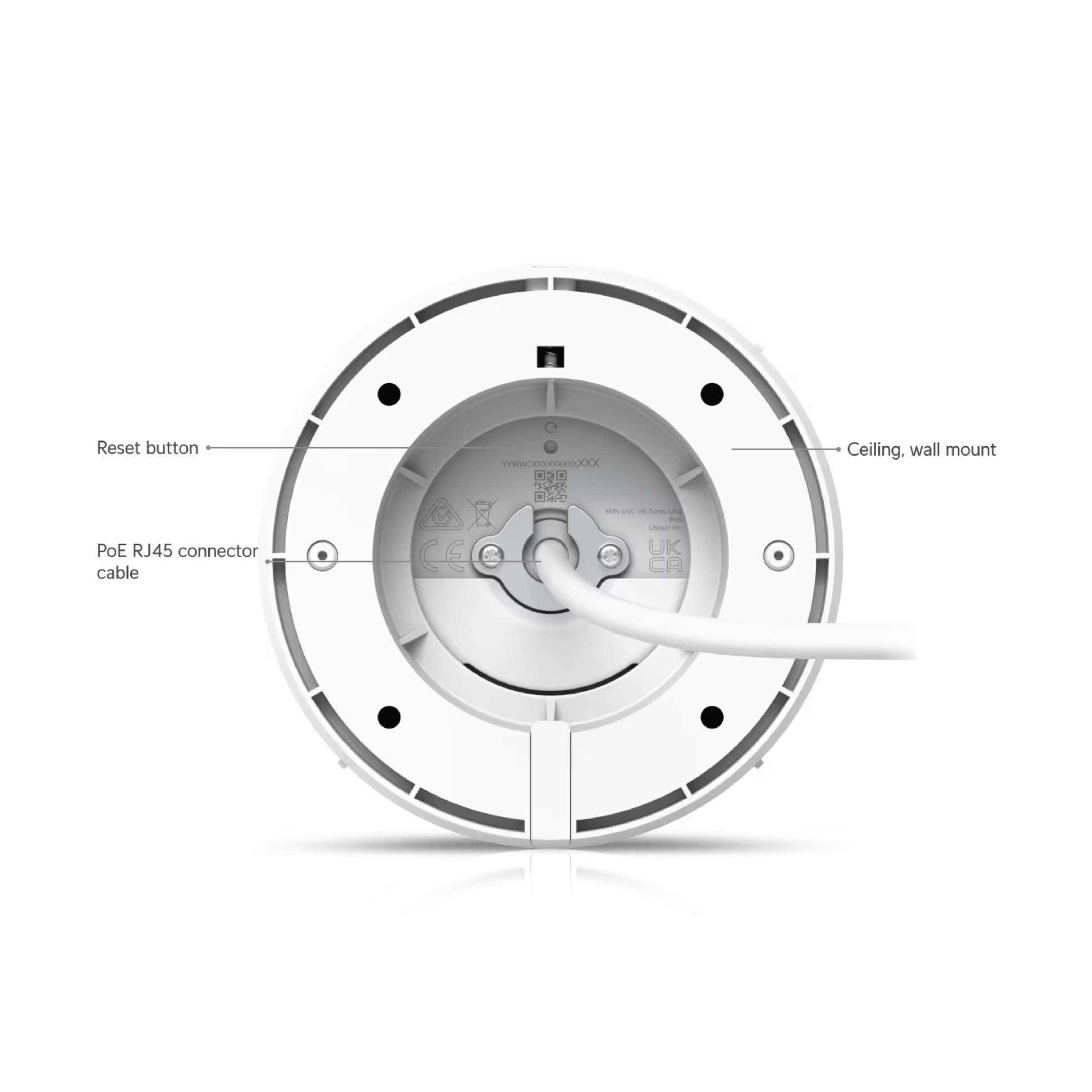

| Button | (1) Factory-reset |
| Cable |
Cable Connector Type: RJ45 Cable Diameter: 5 mm (0.2") Cable Length: 30 cm (1 ft) Jacket Material: Polycarbonate Jacket Enclosure Dimensions: Ø20 x 70.6 mm (0.8 x 2.8") Jacket Enclosure Material: Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |

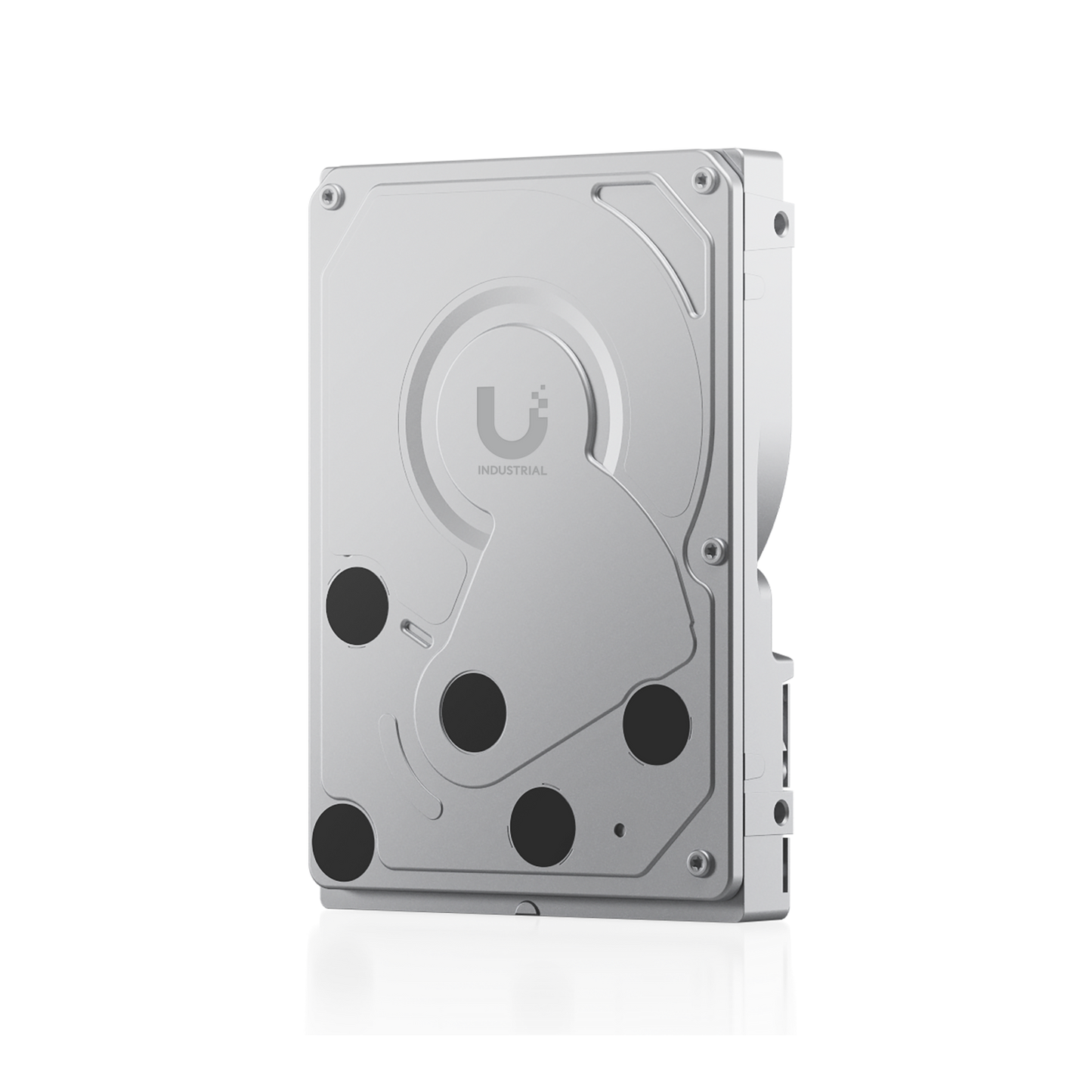

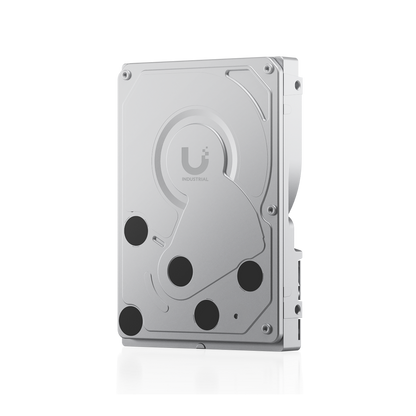

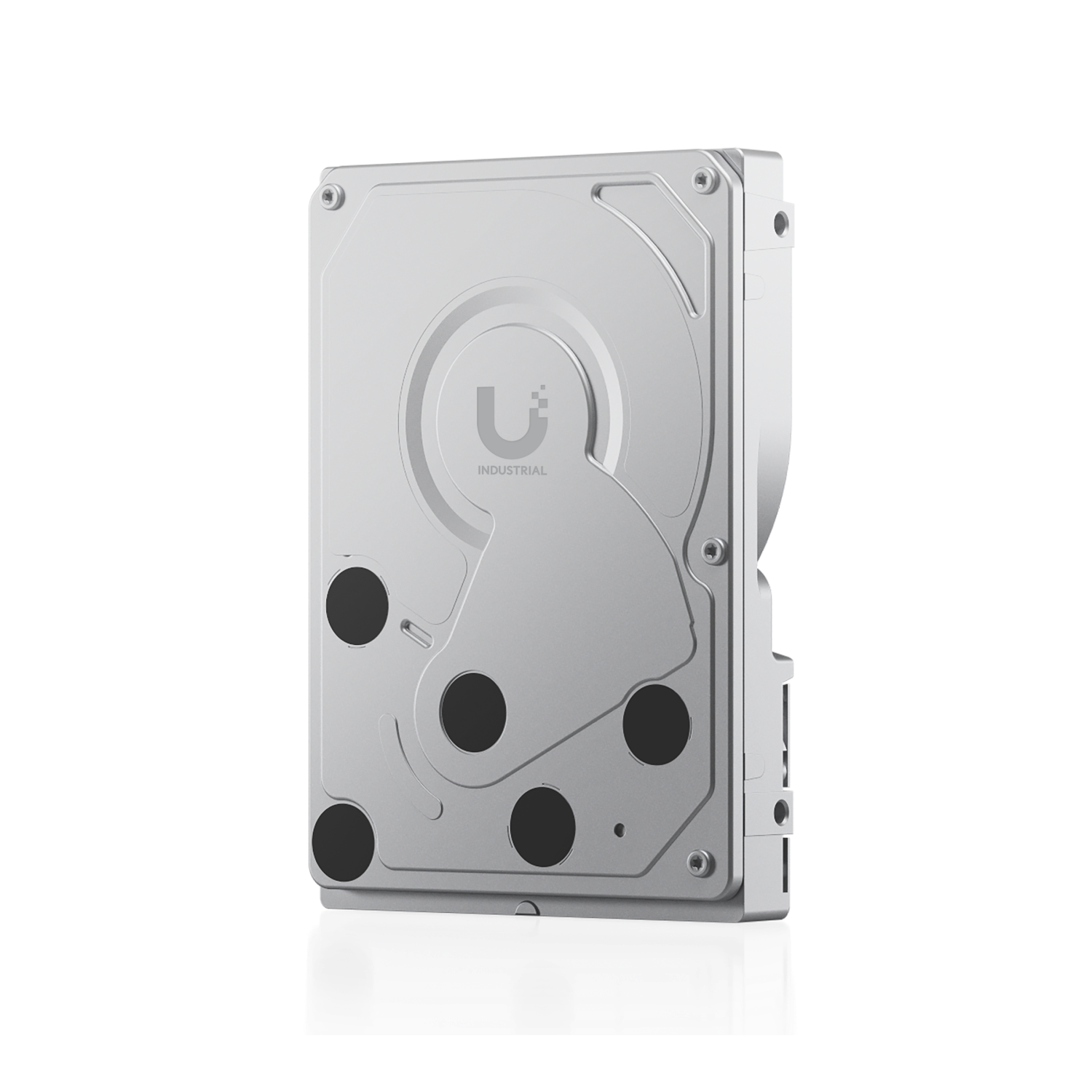

| HDD | |
| Dimensions | 147 x 101.6 x 26.1 mm (5.75 x 4 x 1") |
| Hard Disk Form Factor | 3.5-inch |
| Weight | 0.45 kg (0.99 lb) |
| Storage Capacity | 1 TB |
| Power Method | 5V/12V input |
| Management Interface | SATA 6 Gb/s |
| Rotation Speed | 5400 RPM |
| Workload Rating | 180 TB/year |
| Mean Time Between Failure (MTBF) | 1,000,000 h |
| Ambient Operating Temperature | 0 to 65° C (32 to 149° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, CE, TUV, RCM, KC, BSMI |
Visit Ubiquiti for more information.
