UniFi Pro HD 24 PoE Layer 3 Switch
UniFi Pro HD 24 PoE Layer 3 Switch
SKU:USW-Pro-HD-24-PoE
Regular price
$1,645.00
Regular price
$2,009.00
Sale price
$1,645.00
Taxes included.
Sale Live Now. Limited promotional stock available — don’t miss out!
106 in stock and ready to ship
Quantity
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
Found it cheaper elsewhere? Let us know
Buying for your business? Earn Store Credits

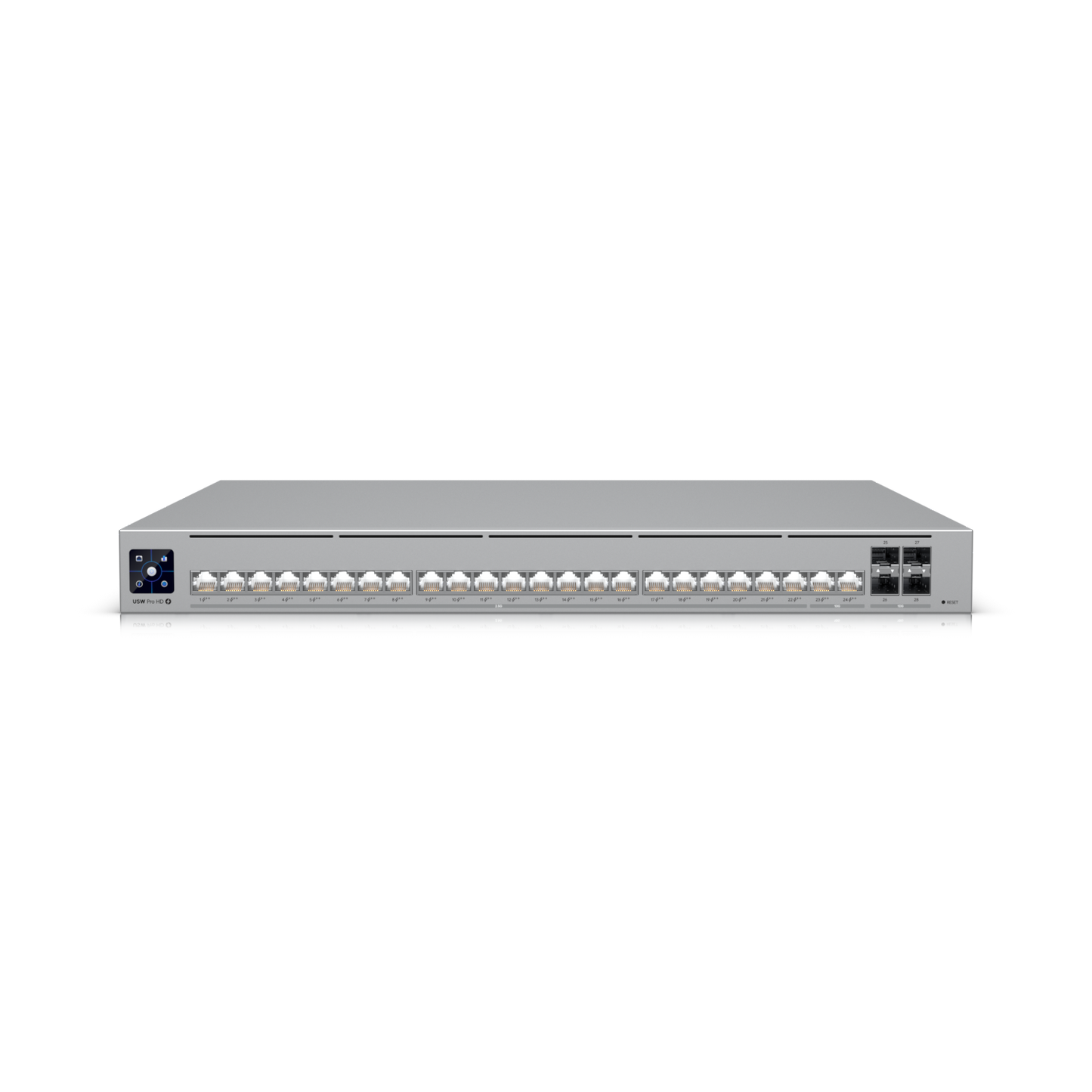

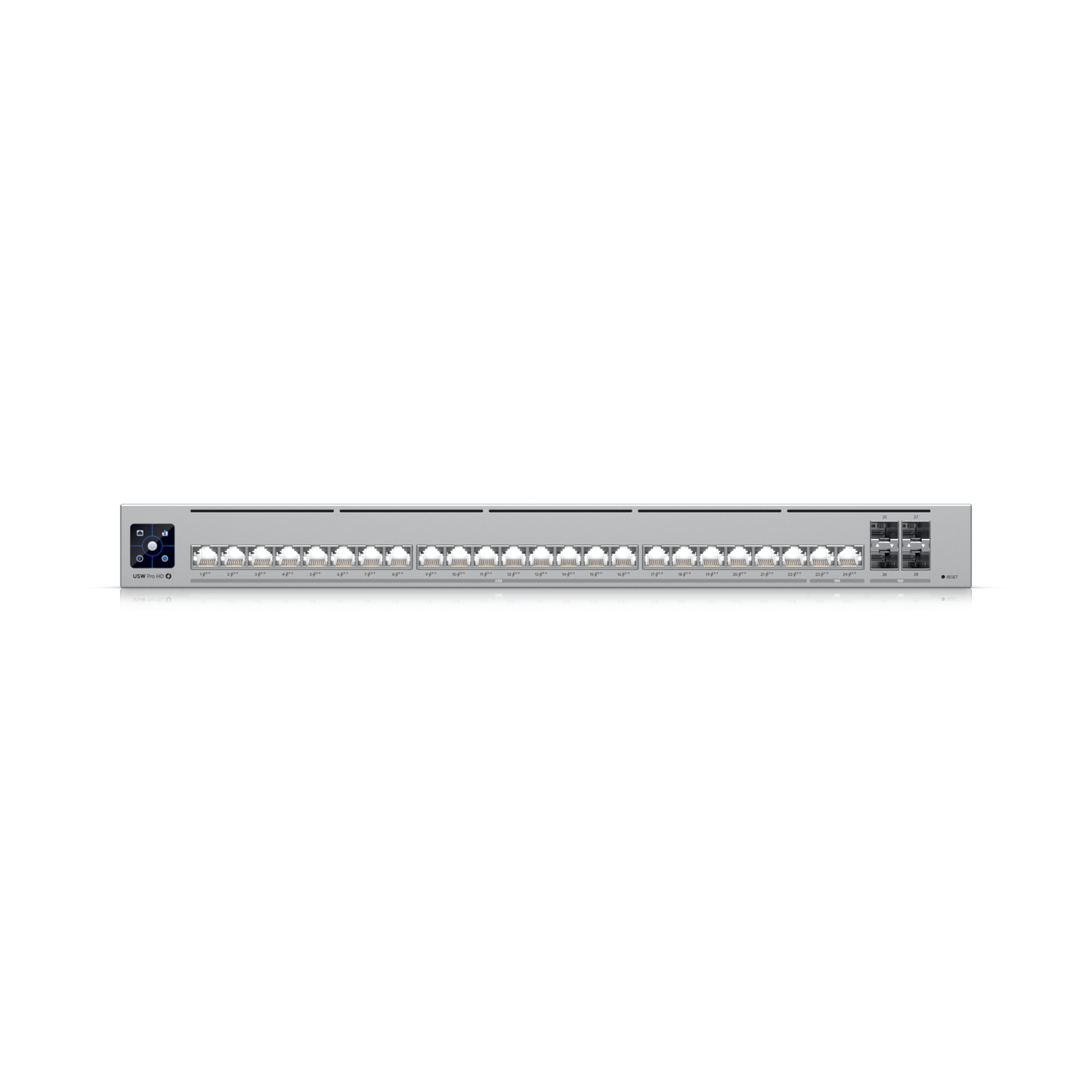

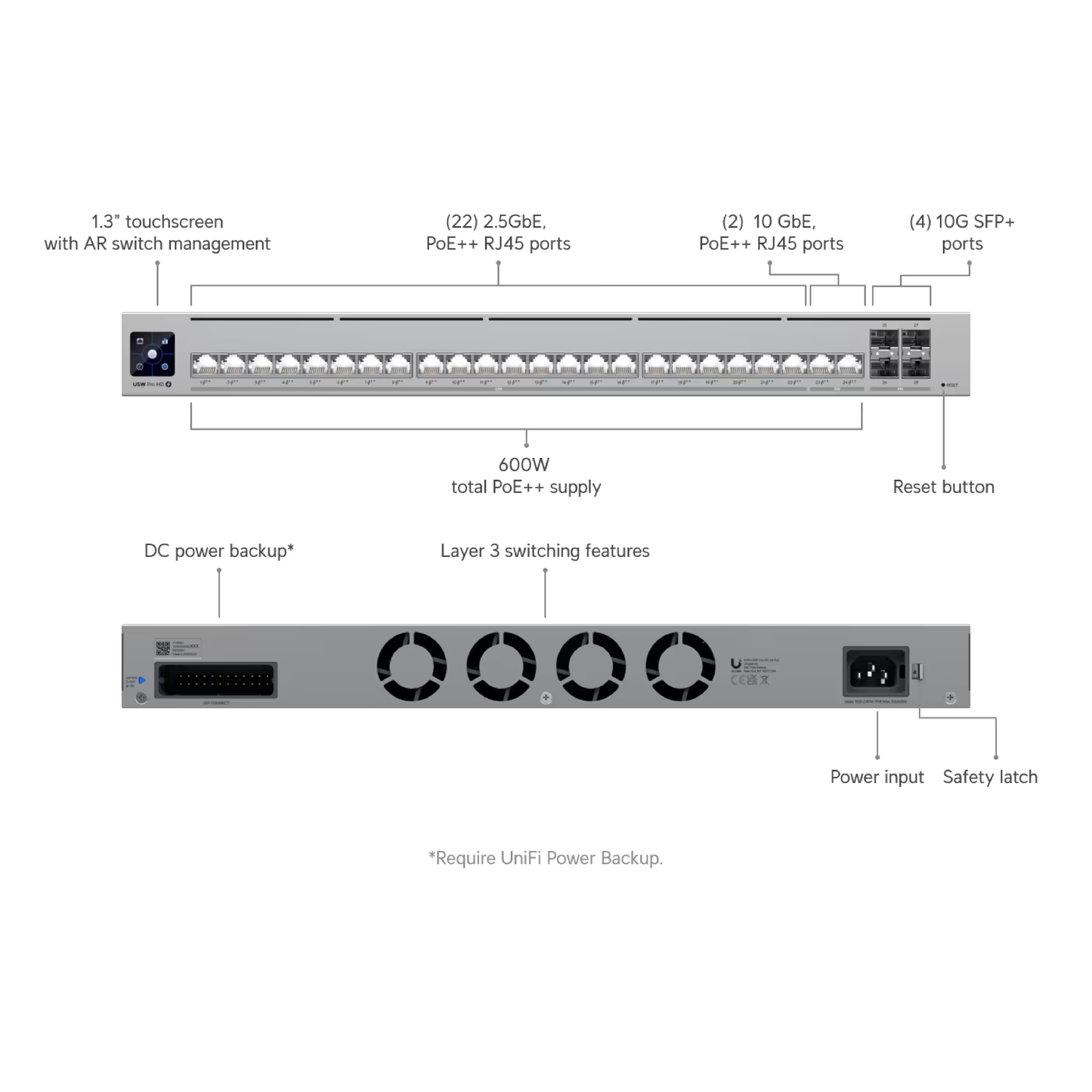

Professional-grade, Layer 3 Etherlighting switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.
- Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network.
- (22) 2.5 GbE, (2) 10 GbE PoE++ ports.
- (4) 10G SFP+ ports.
- DC power backup ready.
- 600W total PoE availability.
Specification
| Overview | |
|---|---|
| Dimensions | 442 x 400 x 44 mm (17.4 x 15.7 x 1.7") |
| Port Layout | 2.5 GbE RJ45: 22 (All PoE++) 10 GbE RJ45: 2 (All PoE++) 10G SFP+: 4 |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 600W |
| Redundancy | DC Power Backup |
| Layer 3 | Yes |
| Form Factor | Rack mount (1U) |
| Etherlighting | Yes |
| Performance | |
| Switching Capacity | 230 Gbps |
| Total Non-Blocking Throughput | 115 Gbps |
| Forwarding Rate | 171 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| L3 Table Size | ARP Entries: 12,000 IPv4 Routes: 12,000 |
| Packet Buffer Size | 2 MB |
| Layer 3 Features | |
| DHCP Server (Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing (Local Networks) | Yes |
| Static Routing (Local Networks) | Yes |
| Layer 2 Features | |
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| QoS (DSCP) | Yes |
| Pro AV Profiles | Yes (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) |
| Advanced IGMP Configuration | Yes (Querier, Fast Leave, Router Port) |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Hardware | |
| PoE Ports | 24 (PoE++) |
| Max. PoE Wattage per Port by PSE | PoE: 15.4W PoE+: 32W PoE++: 64W |
| Max. Power Consumption |
60W (Excluding PoE Output) 660W (Including PoE Output) |

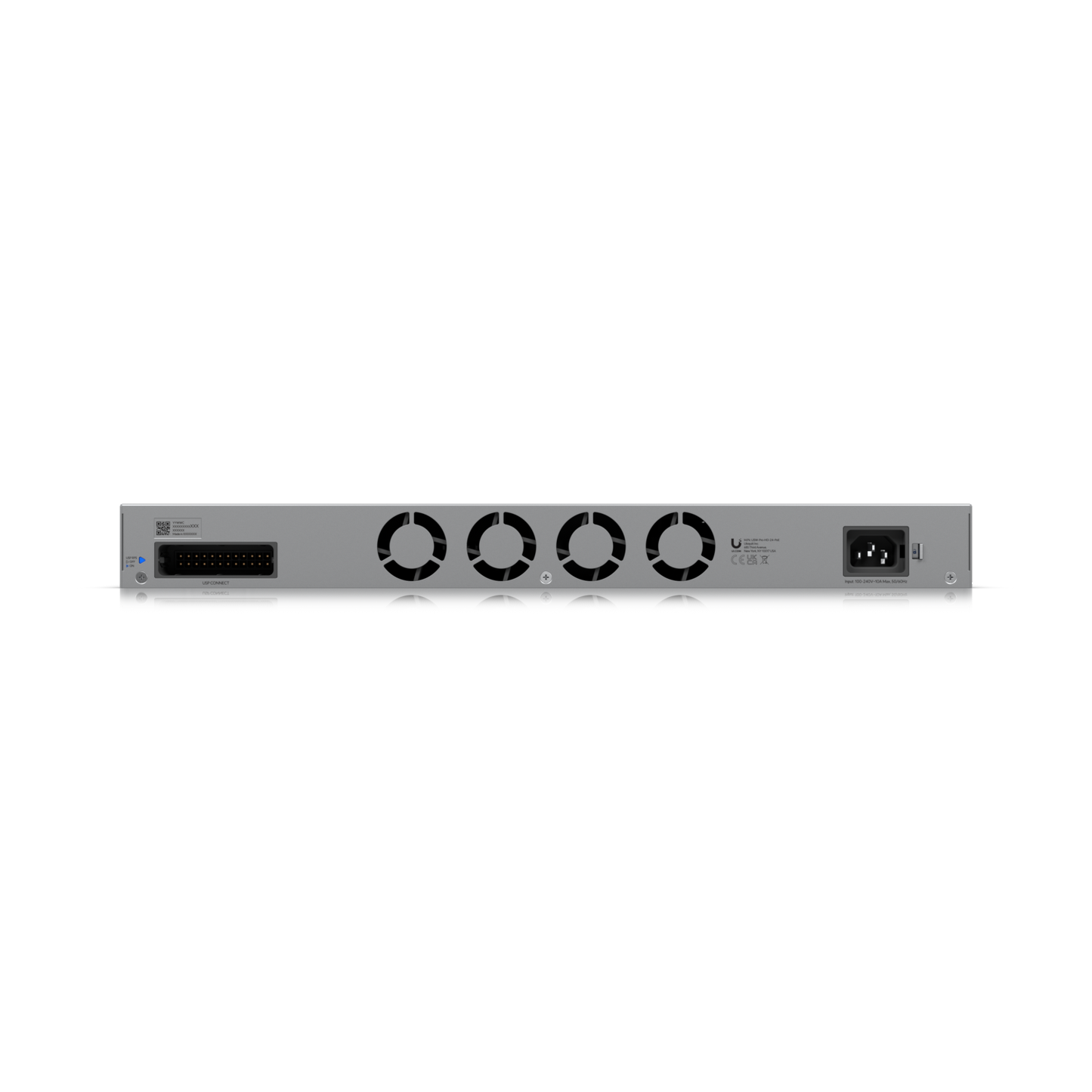

| Power Method | (1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 660W |
| Supported Voltage Range | 100—240V AC |
| Management |
Ethernet AR |
| Weight | Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) |
| Enclosure Material | SGCC steel |
| Supported Rack Depth |
600 - 1,200 mm (23.6-47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Etherlighting |
Ethernet: Yes SFP+: Yes |
