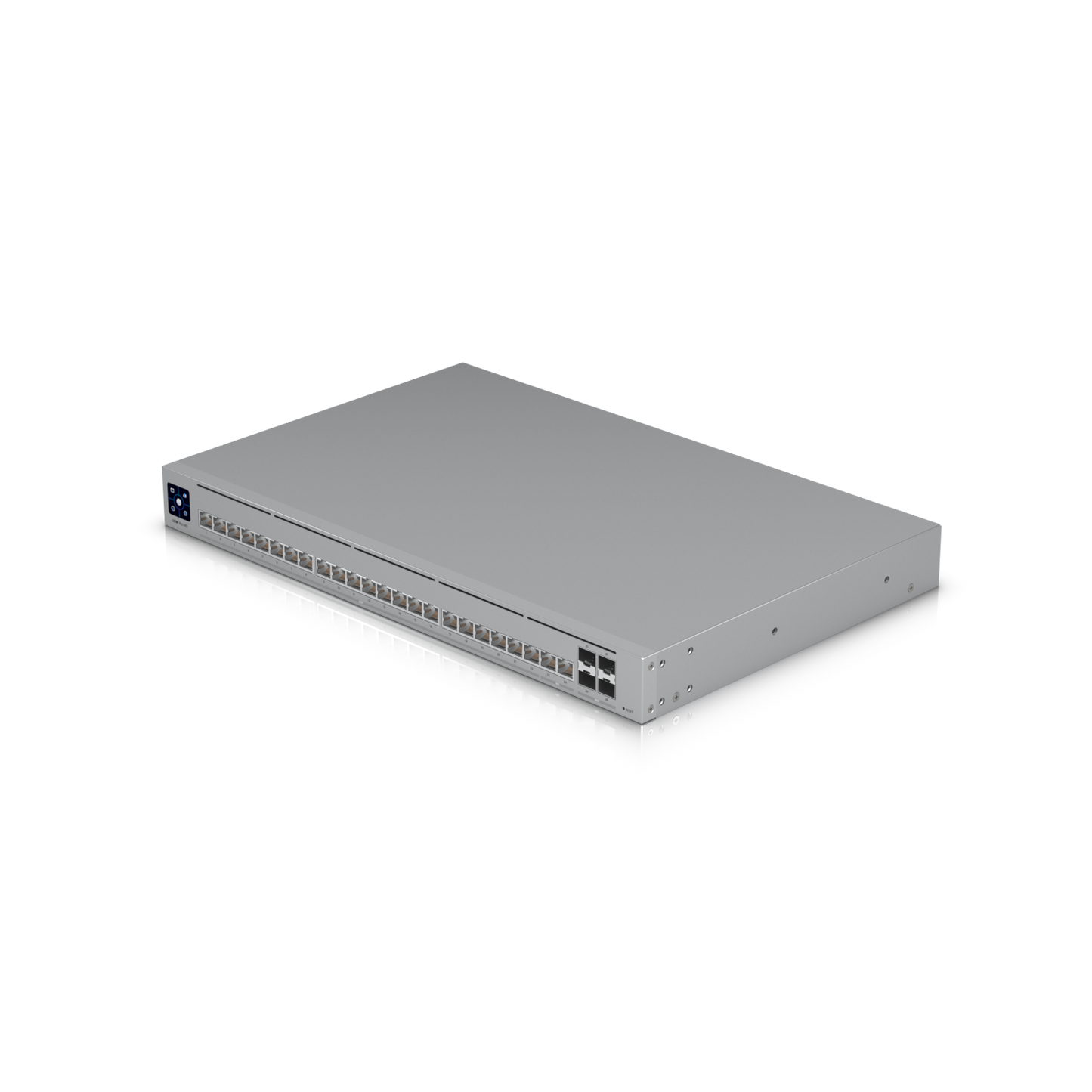

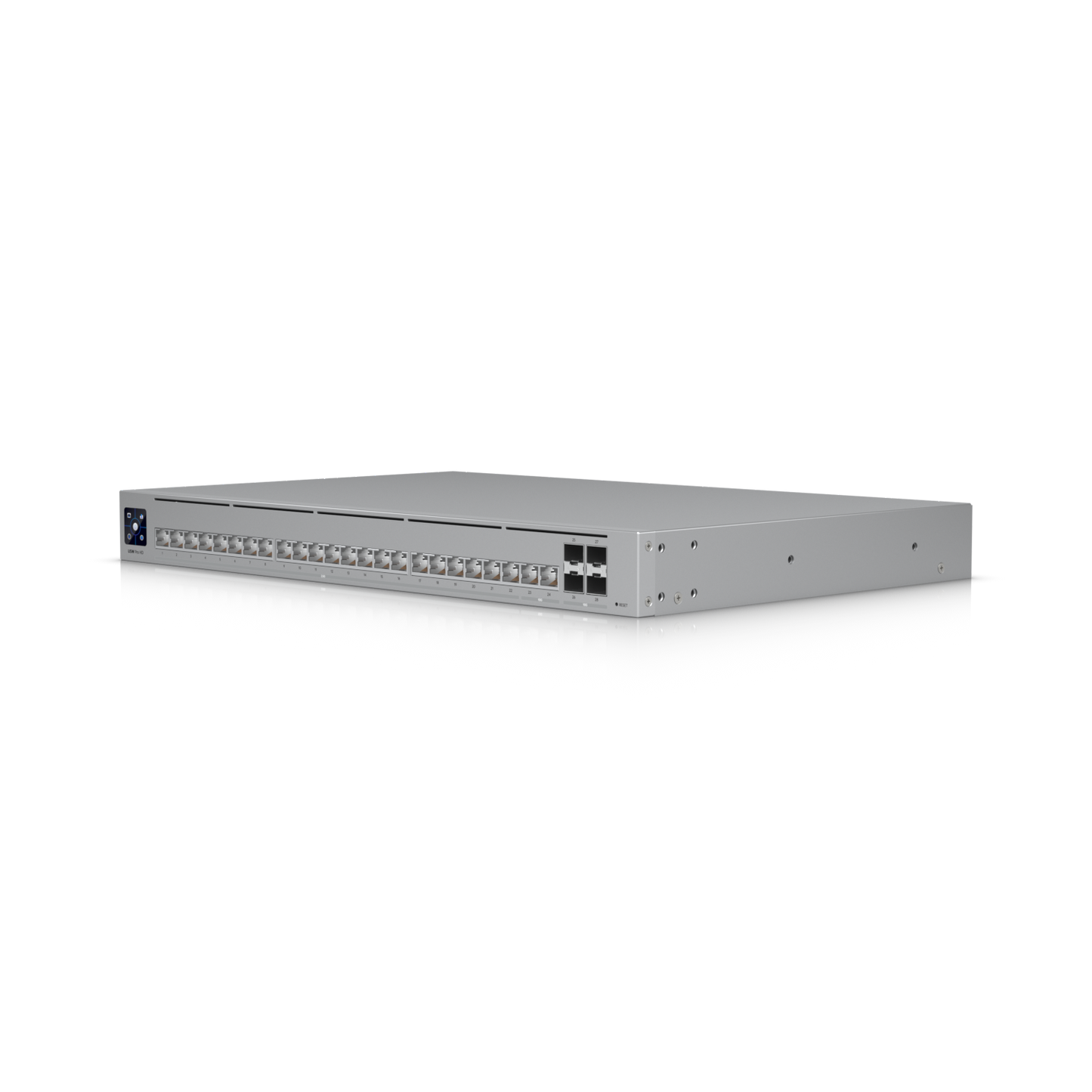

UniFi Pro HD 24 Layer 3 Switch
Ubiquiti USW-Pro-HD-24 UniFi Pro HD 24 Layer 3 Switch
SKU:USW-Pro-HD-24
Regular price
$1,369.00
Regular price
$1,369.00
Sale price
$1,369.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty

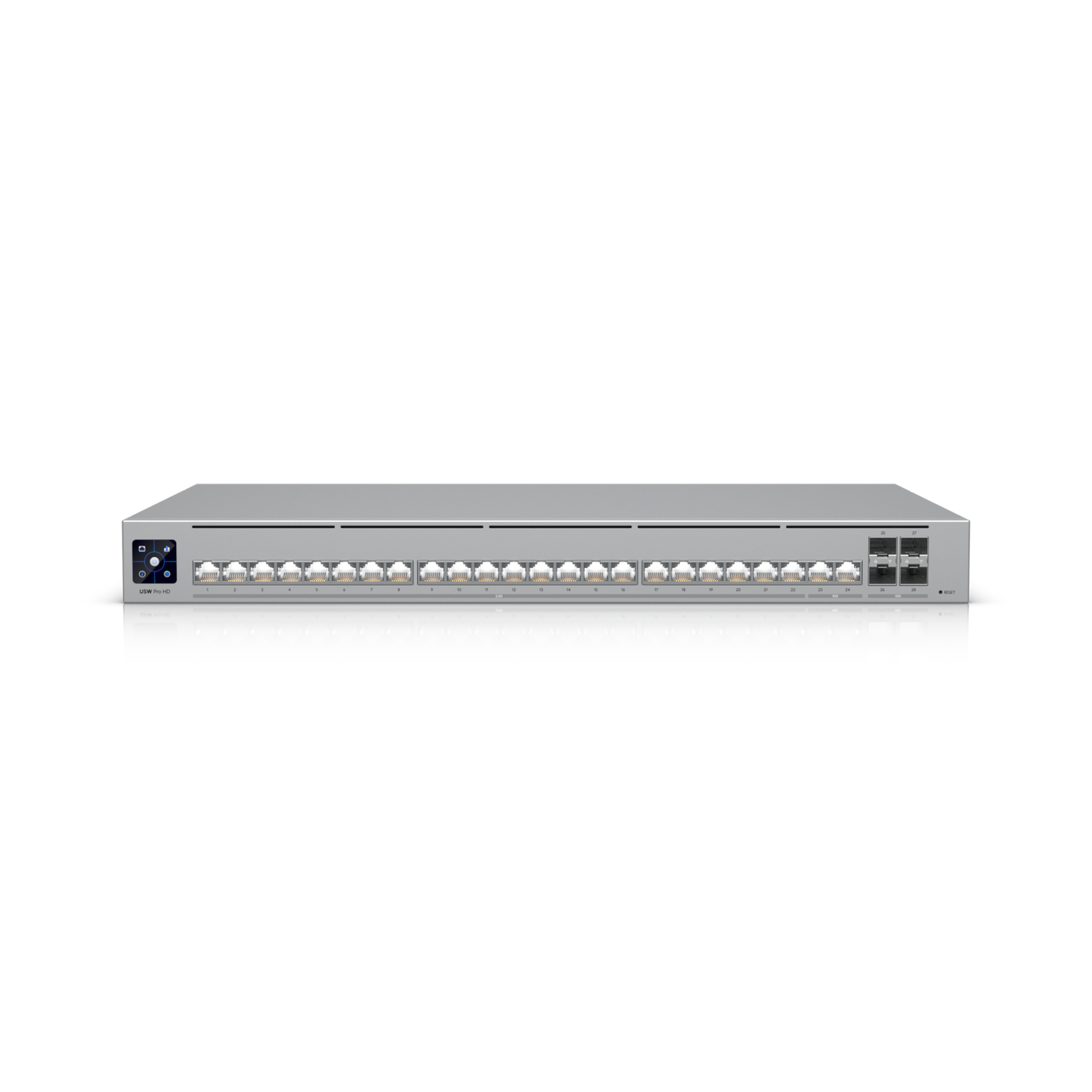

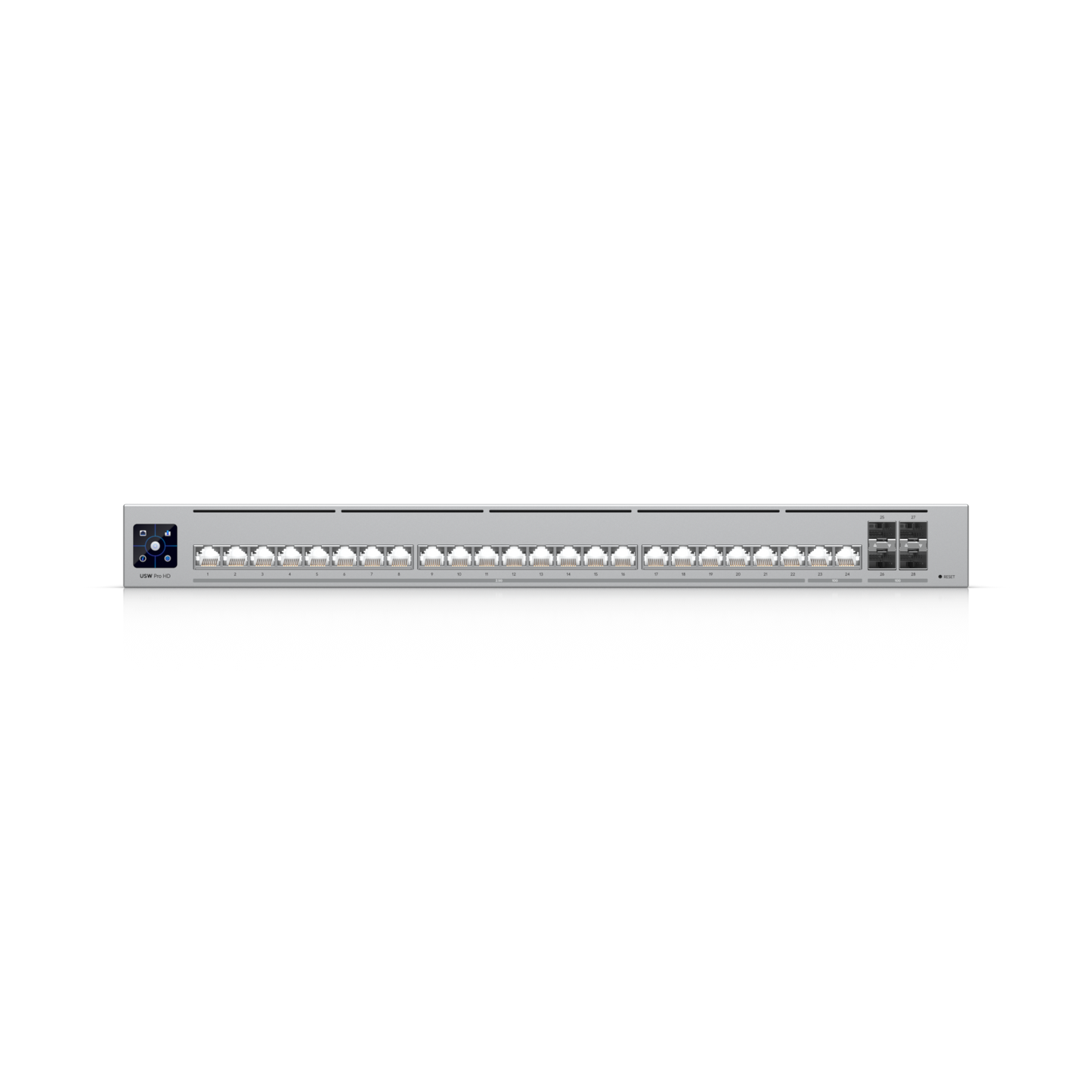

Professional-grade, Layer 3 Etherlighting switch with (2) 10 GbE, (22) 2.5 GbE, and (4) 10G SFP+ ports.
- Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network.
- (22) 2.5 GbE, (2) 10 GbE ports.
- (4) 10G SFP+ ports.

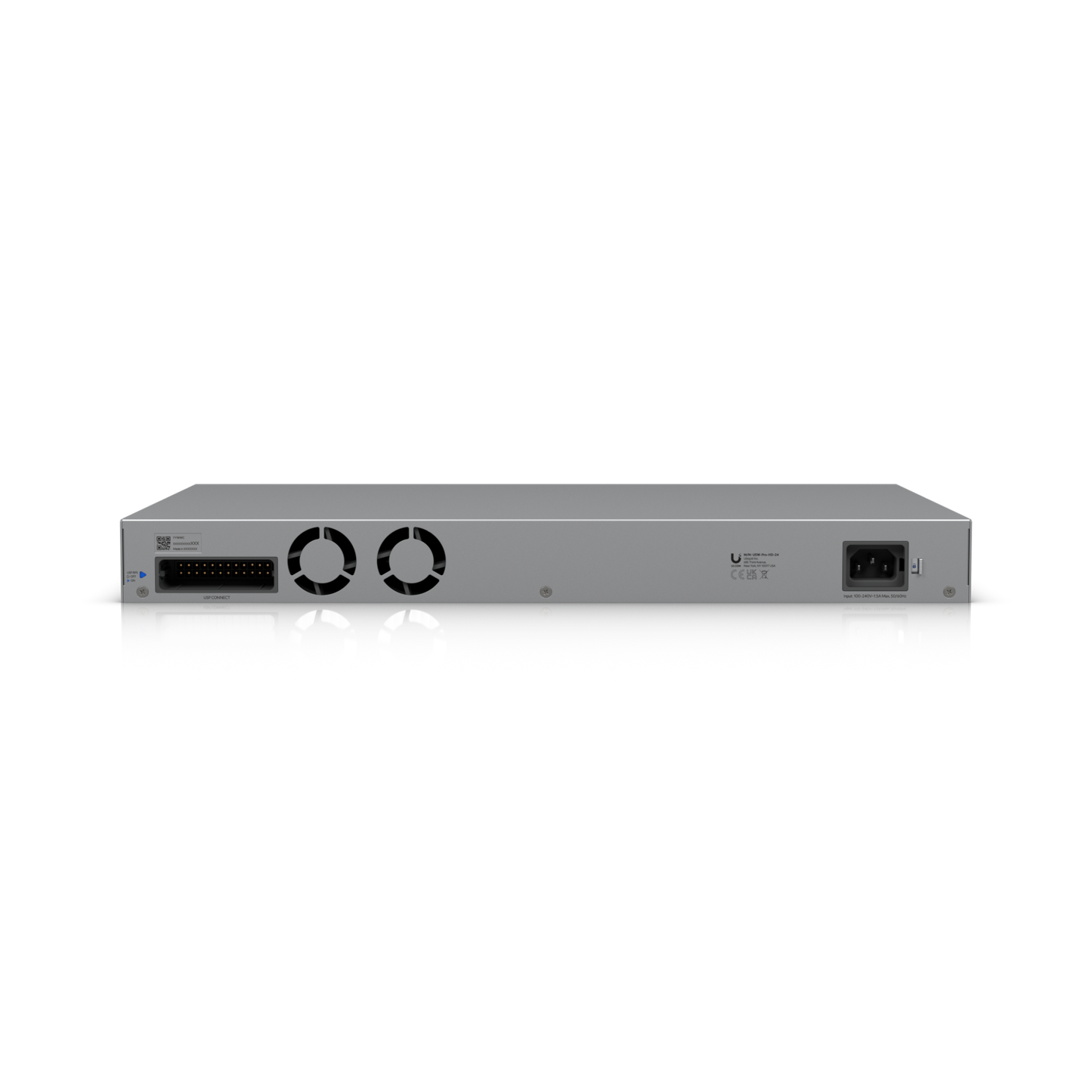

- DC power backup ready.
| Overview | |
|---|---|
| Dimensions |
442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |

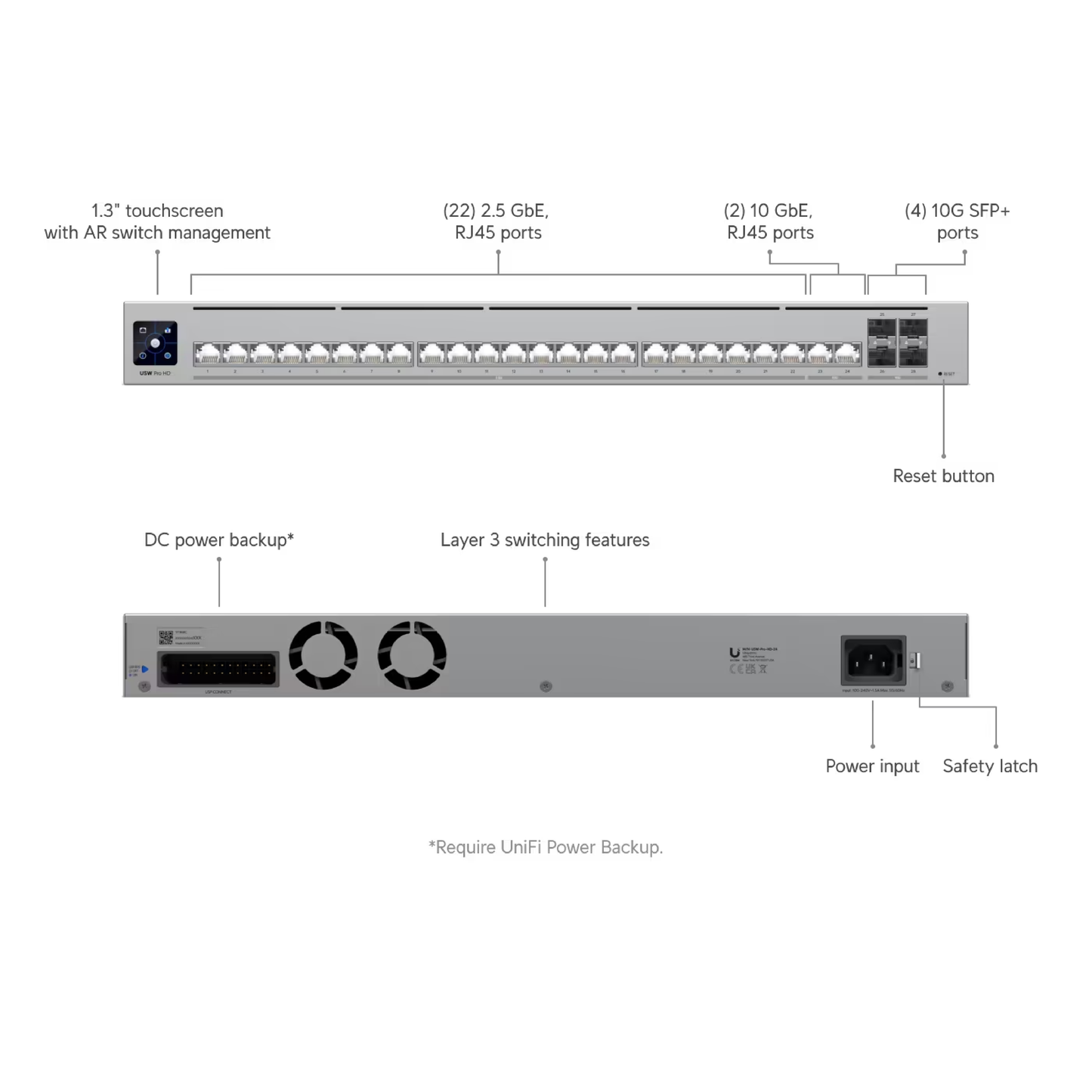

| Port Layout |
2.5 GbE RJ45: 22 10 GbE RJ45: 2 10G SFP+: 4 |
| Redundancy | DC Power Backup |
| Layer 3 | Yes |
| Form Factor | Rack mount (1U) |
| Etherlighting | Yes |
| Performance | |
| Switching Capacity | 230 Gbps |
| Total Non-Blocking Throughput | 115 Gbps |
| Forwarding Rate | 171.12 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| L3 Table Size |
ARP Entries: 12,000 IPv4 Routes: 12,000 |
| Packet Buffer Size | 2 MB |
| Layer 3 Features | |
| DHCP Server (Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing (Local Networks) | Yes |
| Static Routing (Local Networks) | Yes |
| Layer 2 Features | |
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| QoS (DSCP) | Yes |
| Pro AV Profiles | Yes (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) |
| Advanced IGMP Configuration | Yes (Querier, Fast Leave, Router Port) |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Hardware | |
| Max. Power Consumption | 60W |
| Power Method |

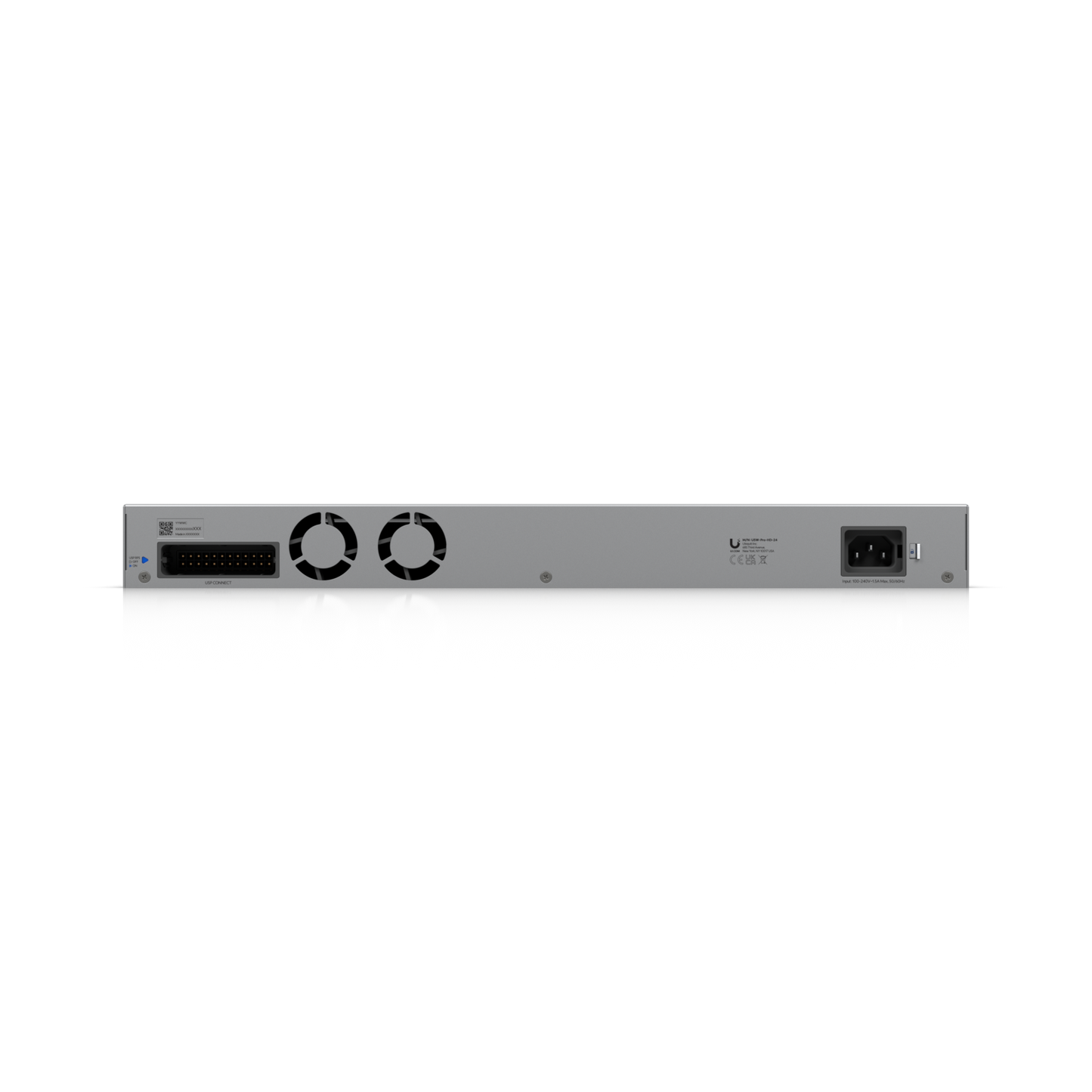

(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 60W |
| Supported Voltage Range | 100—240V AC |
| Management |
Ethernet AR |
| Heat Dissipation (Excluding PoE Output) | 102.36 BTU/hr |
| Weight |
Without mounting brackets: 4.2 kg (9.2 lb) With mounting brackets: 4.3 kg (9.4 lb) |
| Enclosure Material | SGCC steel |
| Supported Rack Depth |
400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Ethernet |
Ethernet: Yes SFP+: Yes |
Visit Ubiquiti for more information.
