Ubiquiti

Pro Max 16 — UniFi Switching

Pro Max 16 — UniFi Switching

Regular price $500.00
Regular price $525.00 Sale price $500.00
4% Off | Save $25.00 Sold out
Tax included. Shipping calculated at checkout.

SKU:USW-Pro-Max-16-AU

Out of stock

View full details

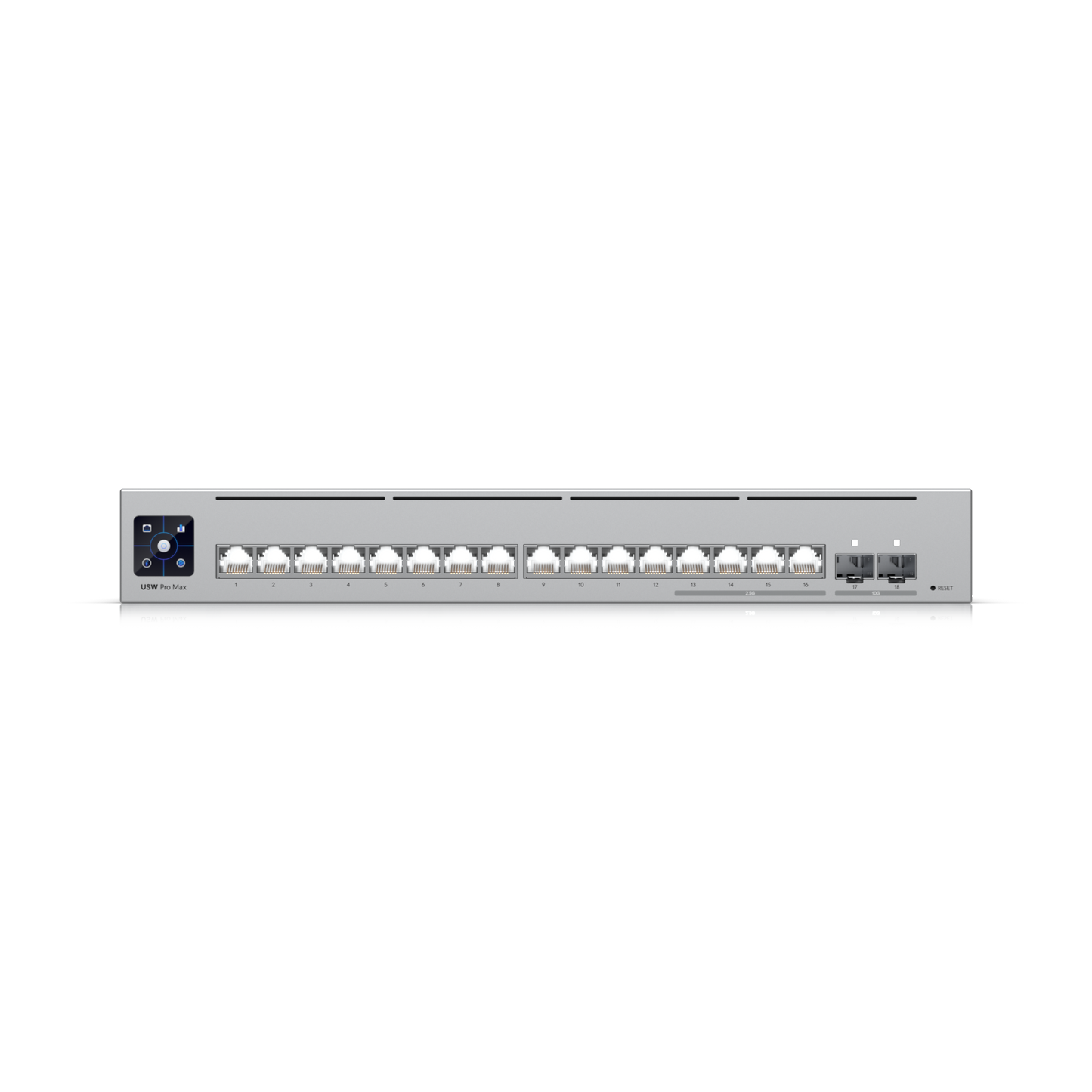

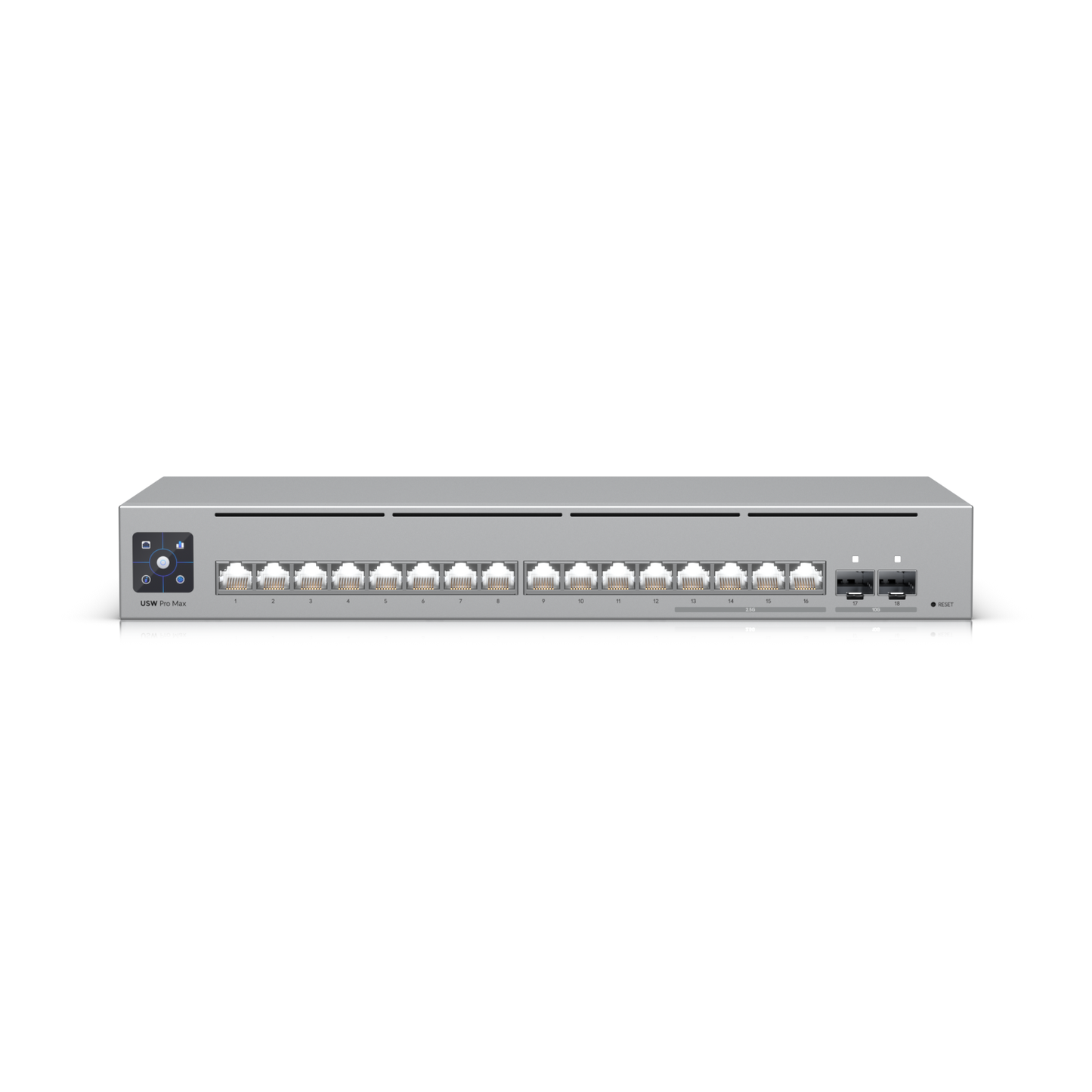

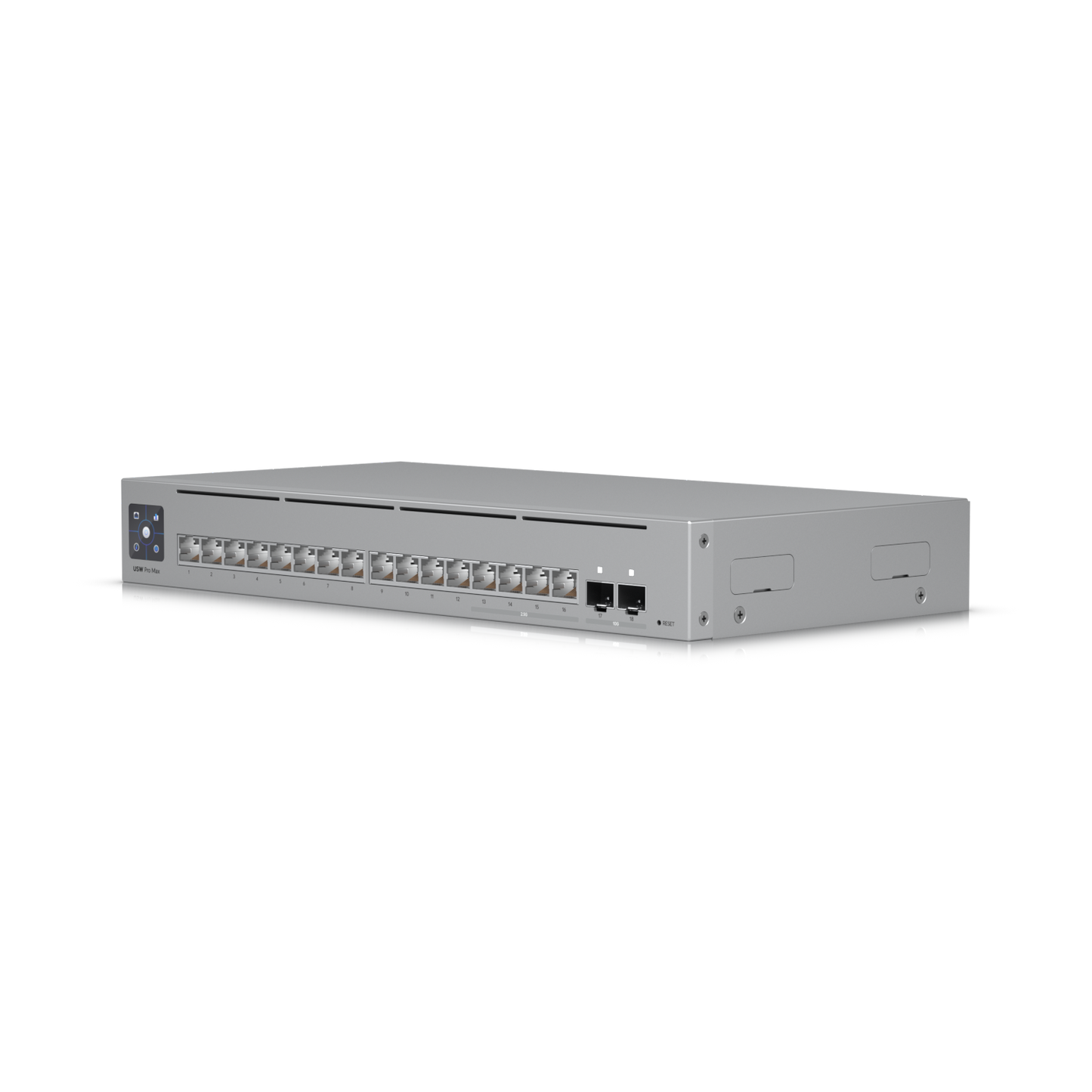

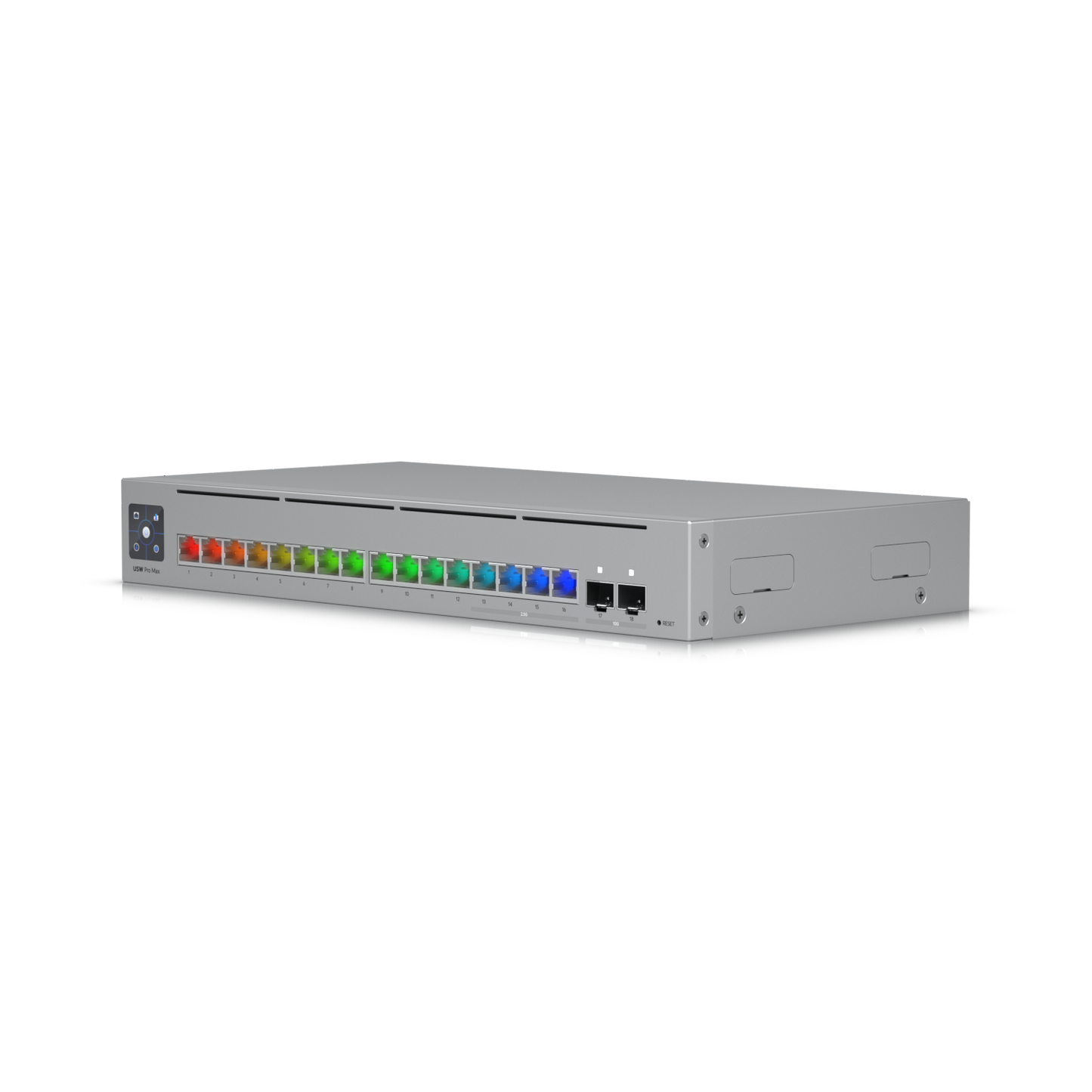

Introducing the Ubiquiti Pro Max 16, a 16-port, Layer 3 Etherlighting switch featuring 2.5 GbE and flexible mounting solutions.

  • Etherlighting ports that light up to show port location, connection speed, and default VLAN/network*
  • (4) 2.5 GbE RJ45 ports
  • (12) GbE RJ45 ports
  • (2) 10G SFP+ ports
  • Adaptable mounting options for desktops, walls, and racks**
  • Quiet, fanless operation ensures efficient cooling without noise

Disclaimers

  • *Pair with UniFi Etherlighting Patch Cables for optimal brightness.
  • **Requires add-on Rack Mount accessory.
Mechanical

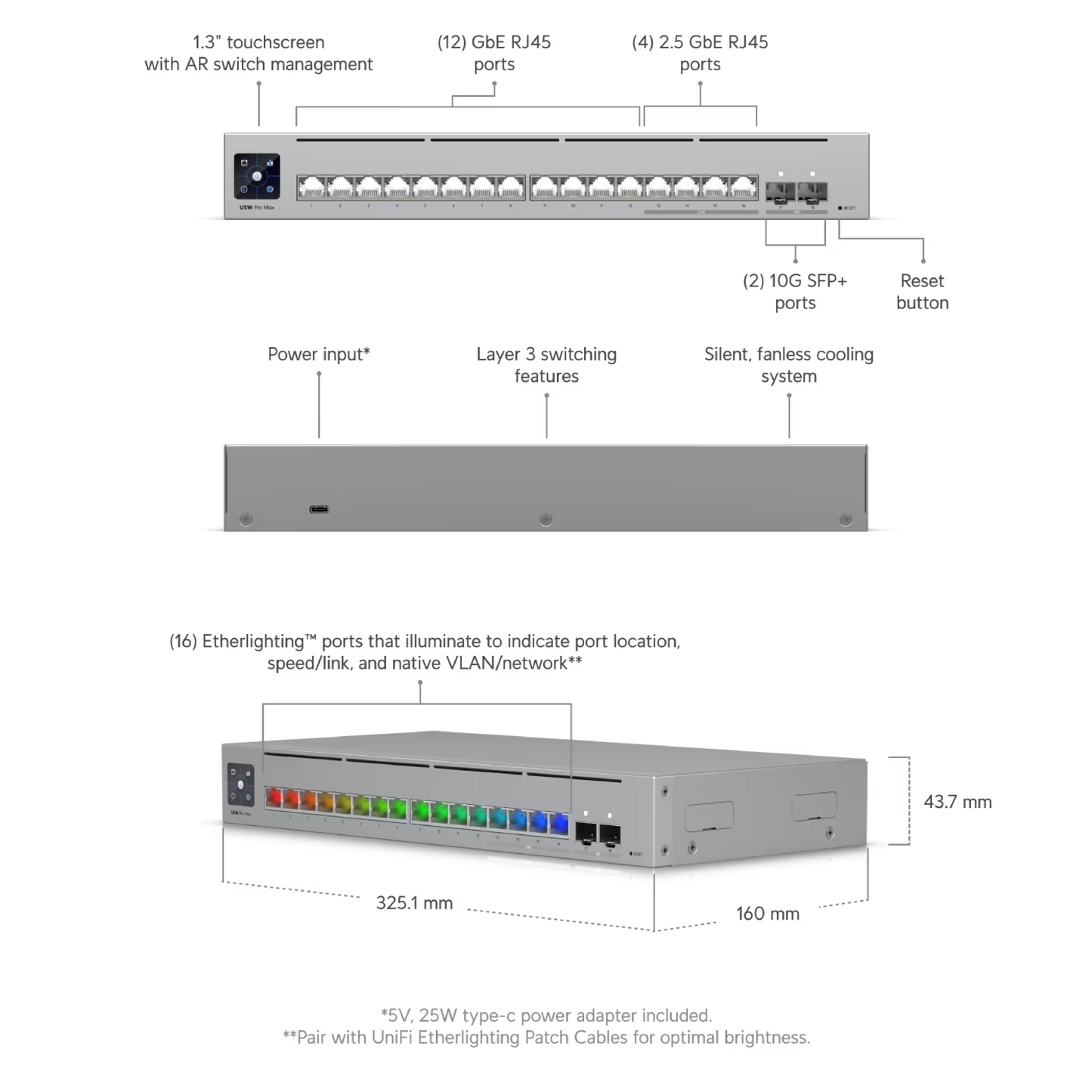

Dimensions 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
Weight 1.95 kg (4.3 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (12) GbE RJ45 ports
(4) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports
Total non-blocking throughput 42 Gbps
Switching capacity 84 Gbps
Forwarding rate 62.496 Mpps

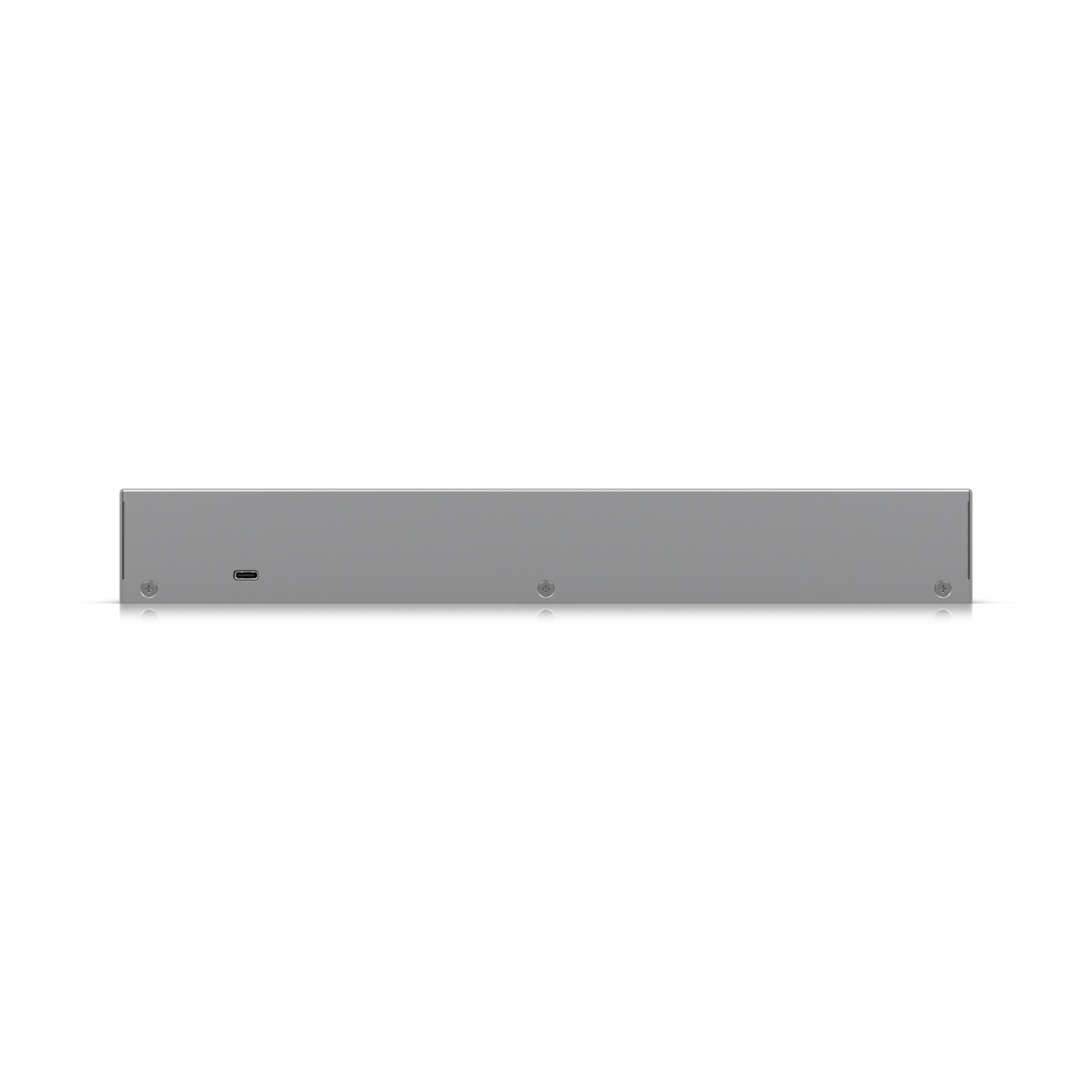

Power method Type-C adapter
Power supply 5V, 25W
Max. power consumption 25W
LCM display (1) 1.3" touchscreen
Button Factory reset
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
Etherlighting™
Ethernet Locating
Speed/link
Native VLAN/network
SFP+ Locating
Speed/link
Native VLAN/network
Application Requirements
UniFi Network Version 8.1.127 and later
