UniFi Pro Max 24 Switch
Ubiquiti USW-Pro-Max-24 UniFi Pro Max 24 Switch
SKU:USW-Pro-Max-24
Regular price
$866.00
Regular price
$957.00
Sale price
$866.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
19 in stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty

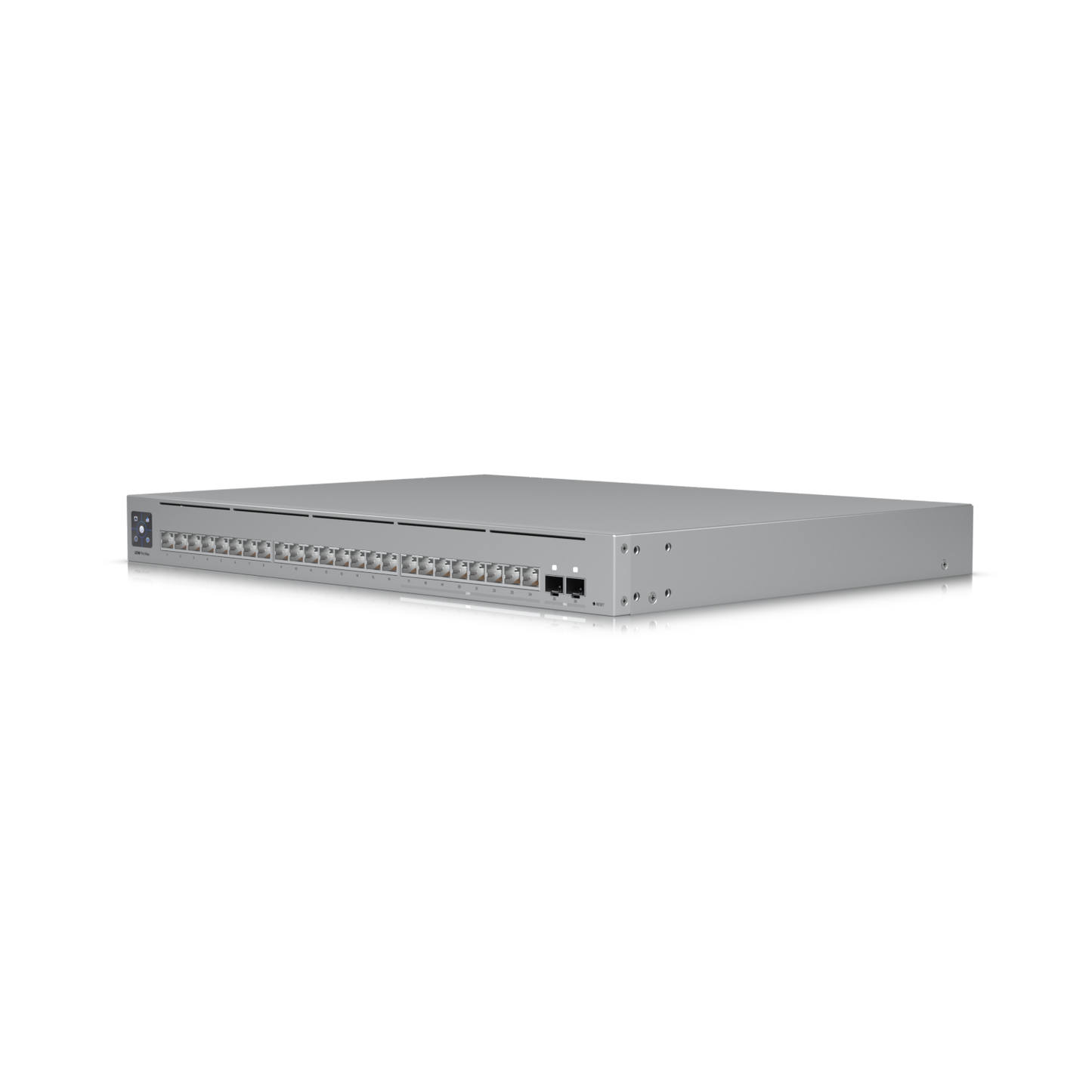

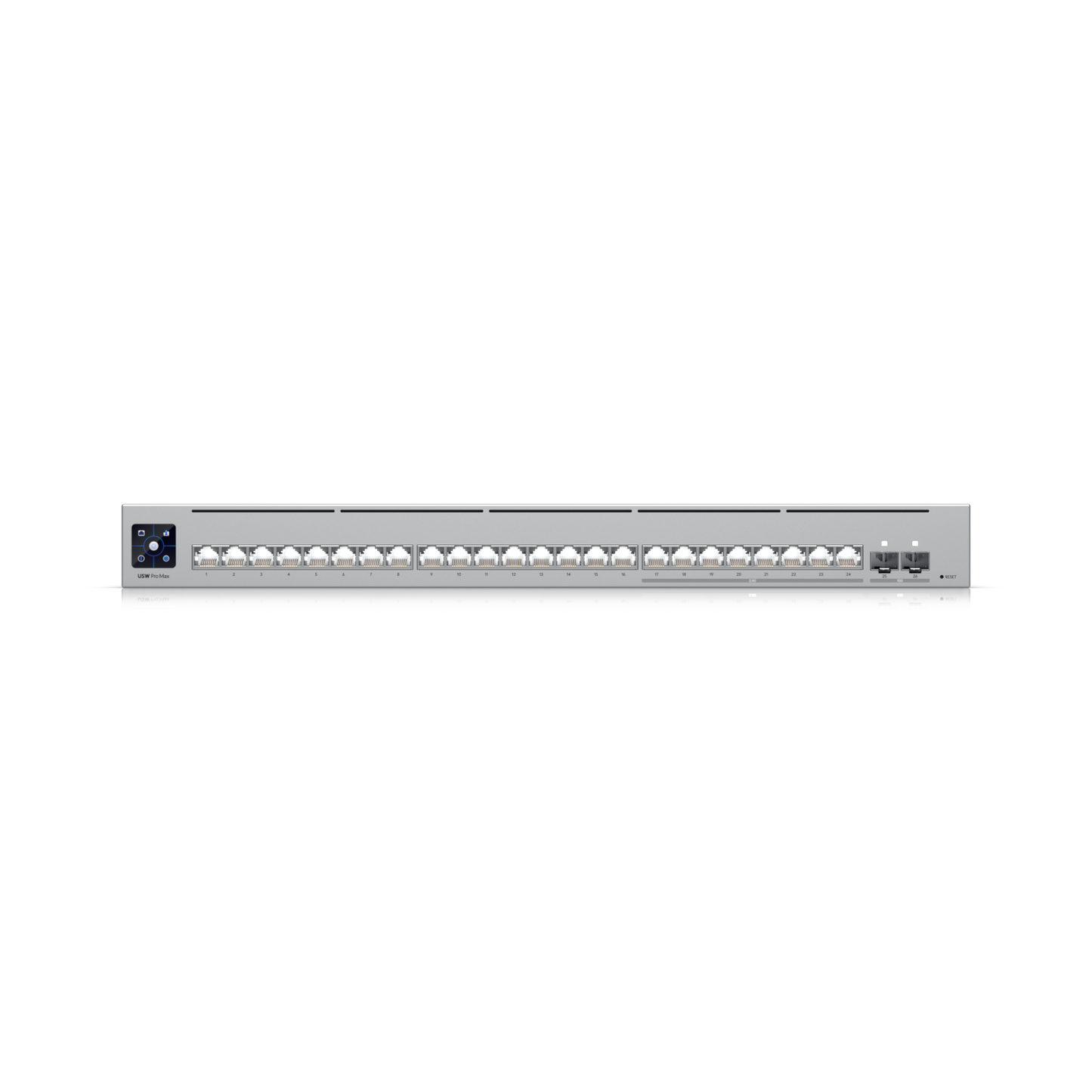

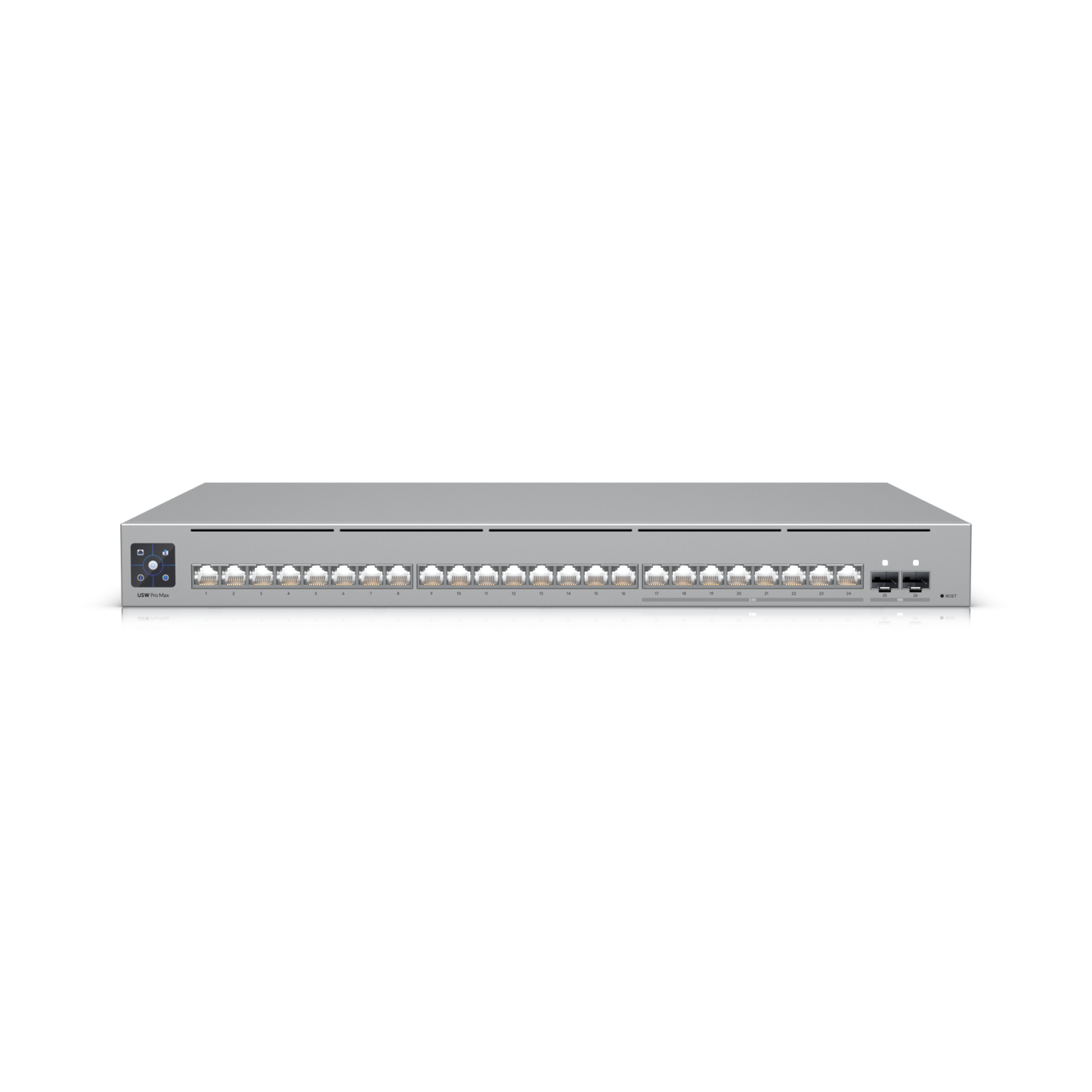

A 24-port, Layer 3 Etherlighting switch with 2.5 GbE.

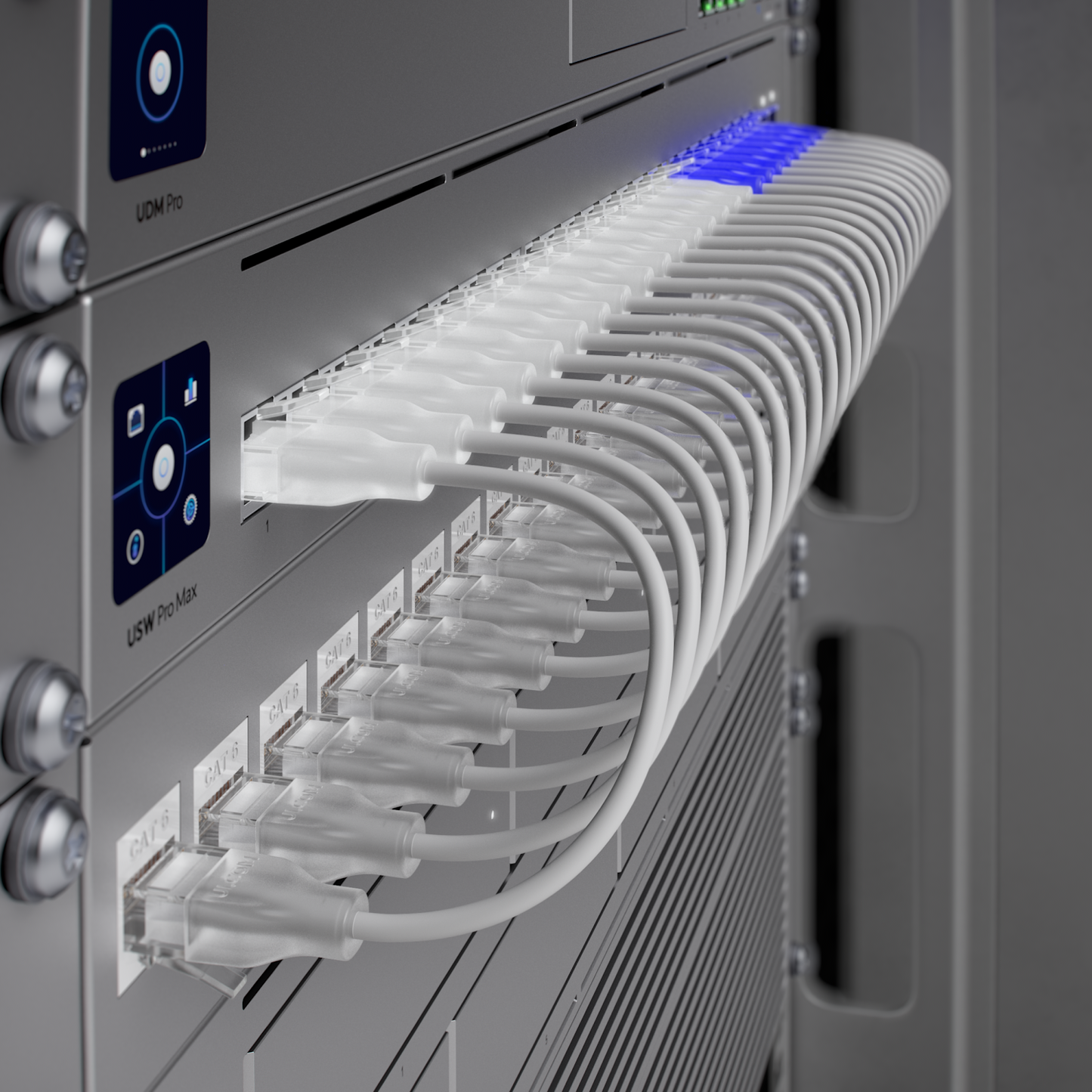

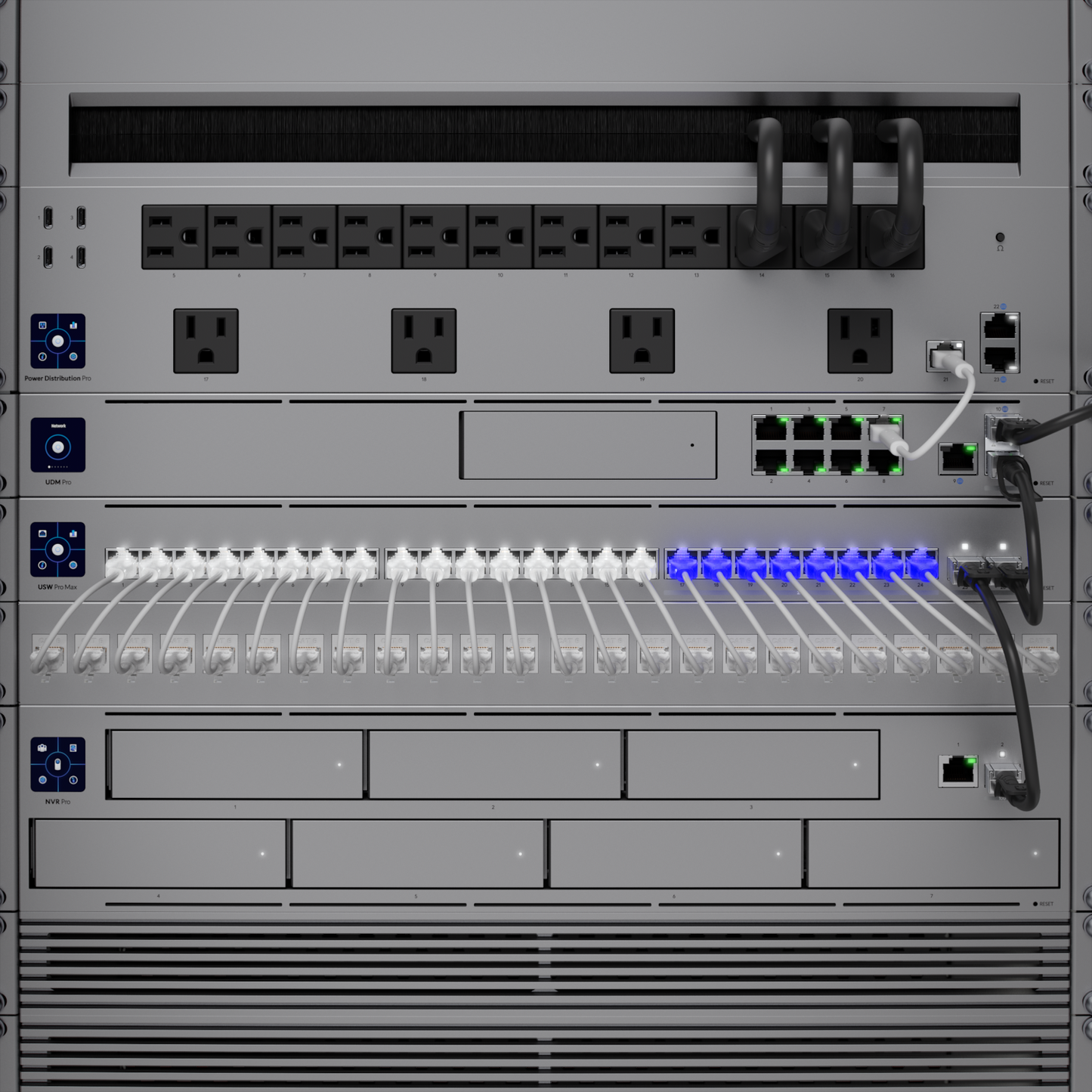

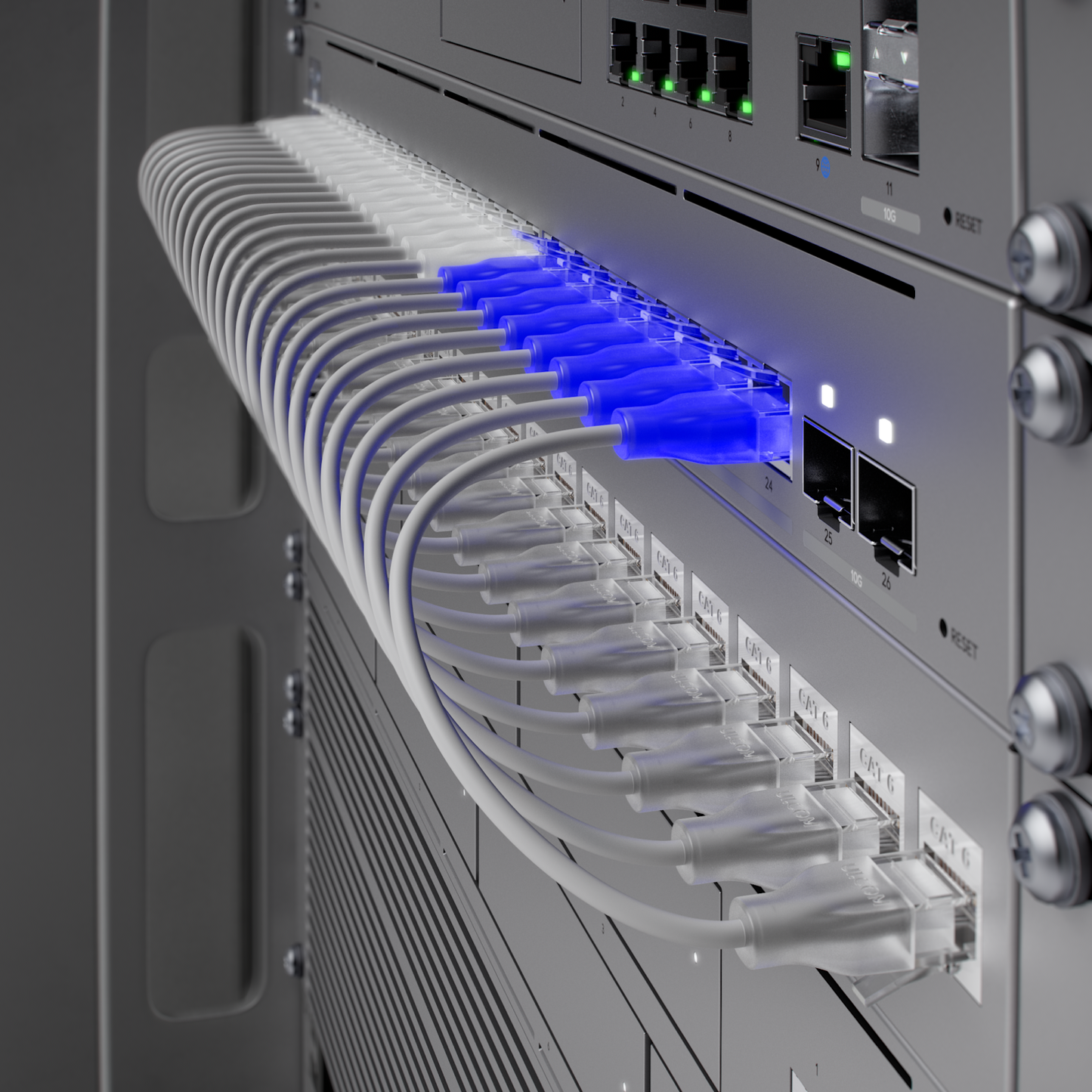

- Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network.

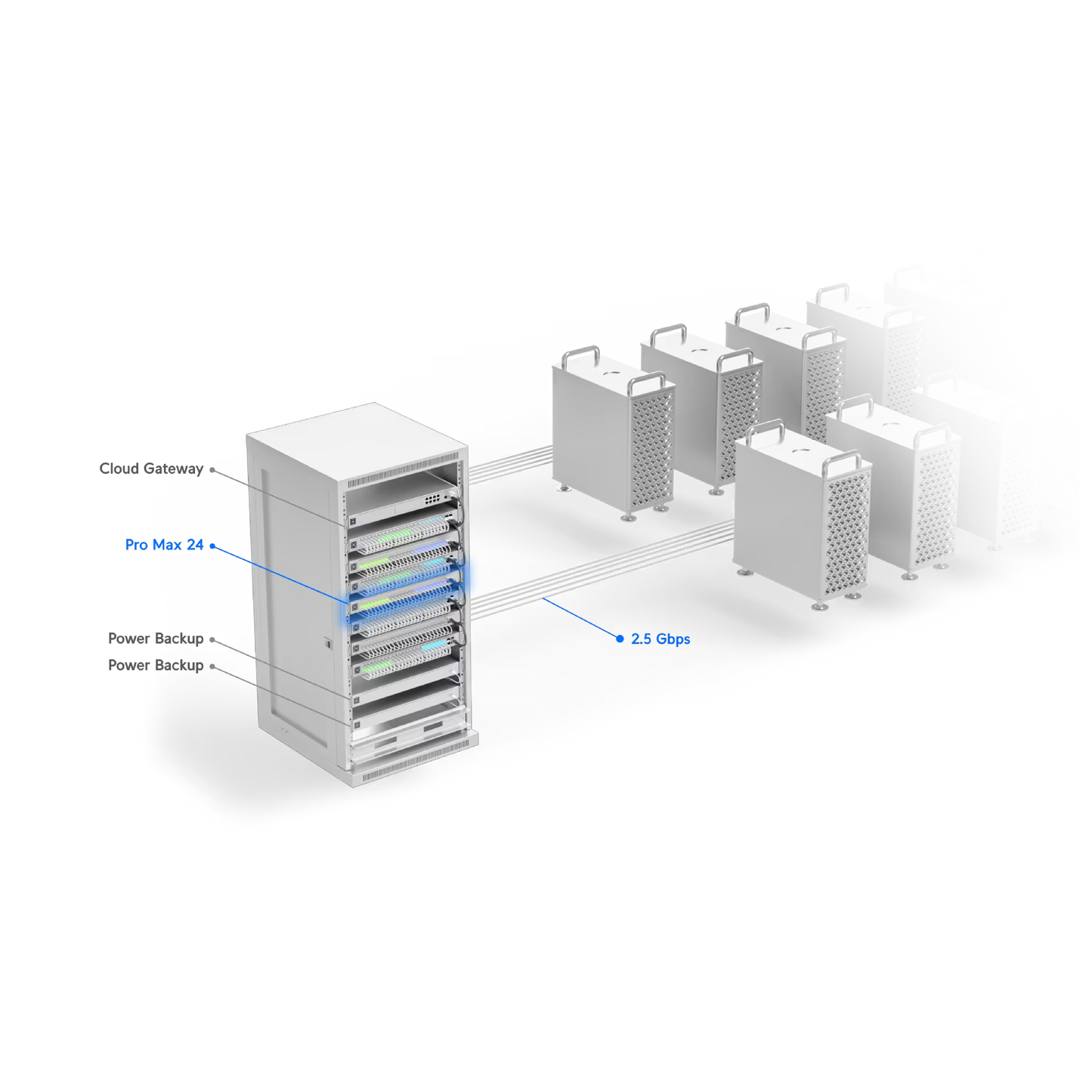

- (8) 2.5 GbE RJ45 ports.
- (16) GbE RJ45 ports.
- (2) 10G SFP+ ports.
- DC power backup ready.
- Managed with UniFi Network 8.0.24 and later.
Pair with UniFi Etherlighting Patch Cables for optimal brightness.
| Mechanical | |
|---|---|

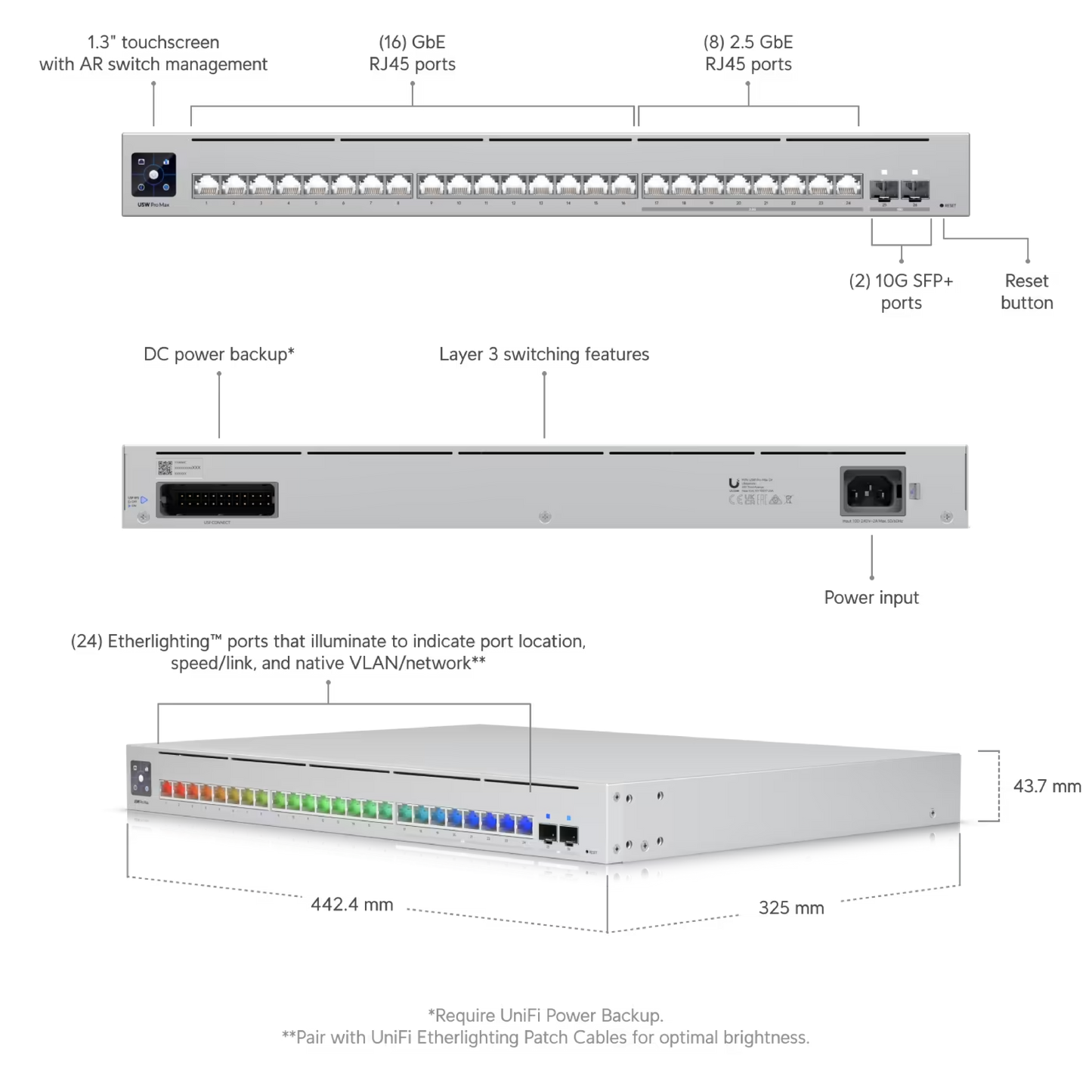

| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
| Weight |
Without mounting brackets: 4.2 kg (9.3 lb) With mounting brackets: 4.3 kg (9.5 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface |
(16) GbE RJ45 ports (8) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports |
| Total non-blocking throughput | 56 Gbps |
| Switching capacity | 112 Gbps |

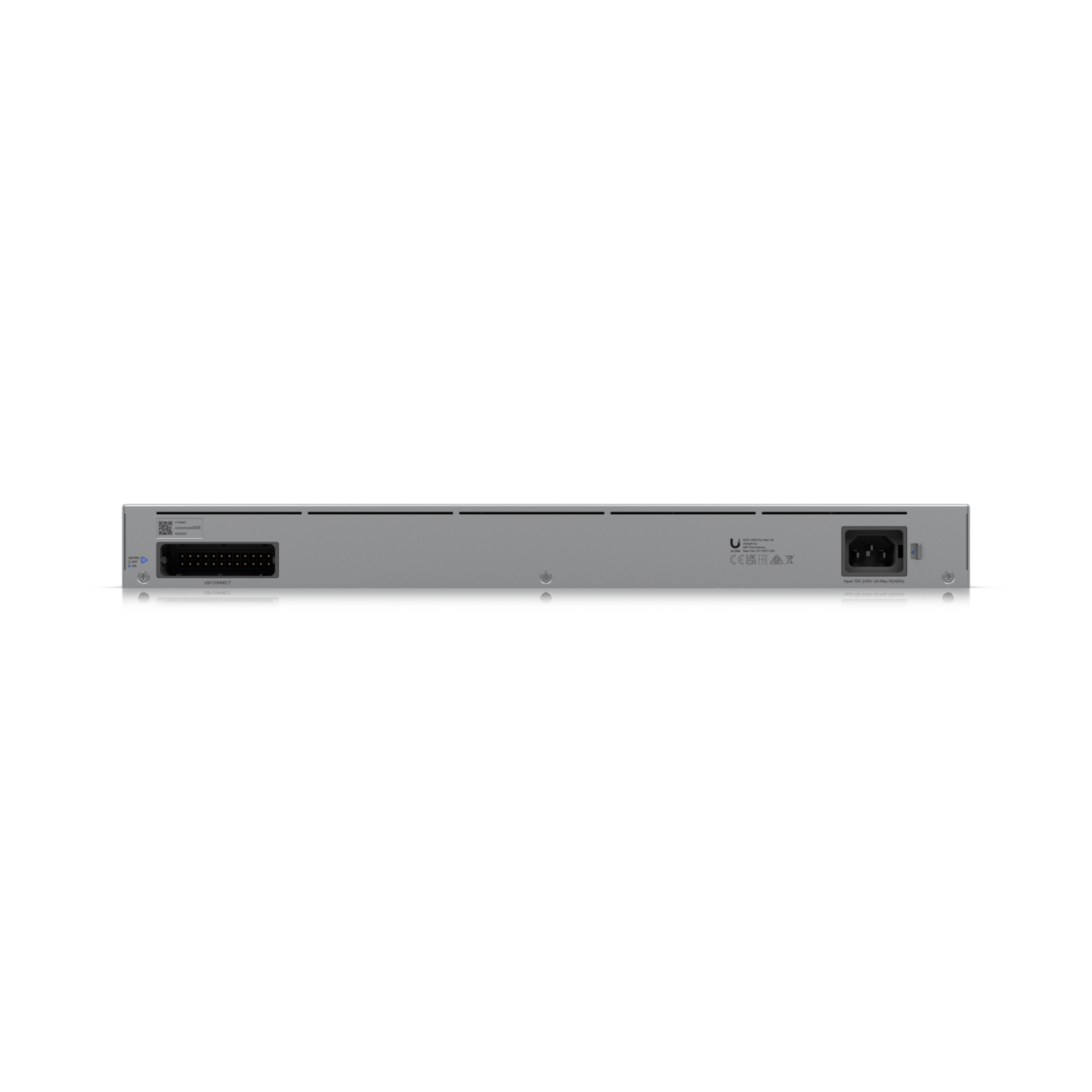

| Power method |
(1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input |
| Power supply | AC/DC, internal, 50W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 50W |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features |
IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features |
DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs |
| Etherlighting | |
| Ethernet |
Locating Speed/link Native VLAN/network |
| SFP+ |
Locating Speed/link Native VLAN/network |
| LEDs | |
| System | Status |
| RPS | Status |
| Application Requirements | |
| UniFi Network | Version 8.0.24 and later |
Visit Ubiquiti for more information.
