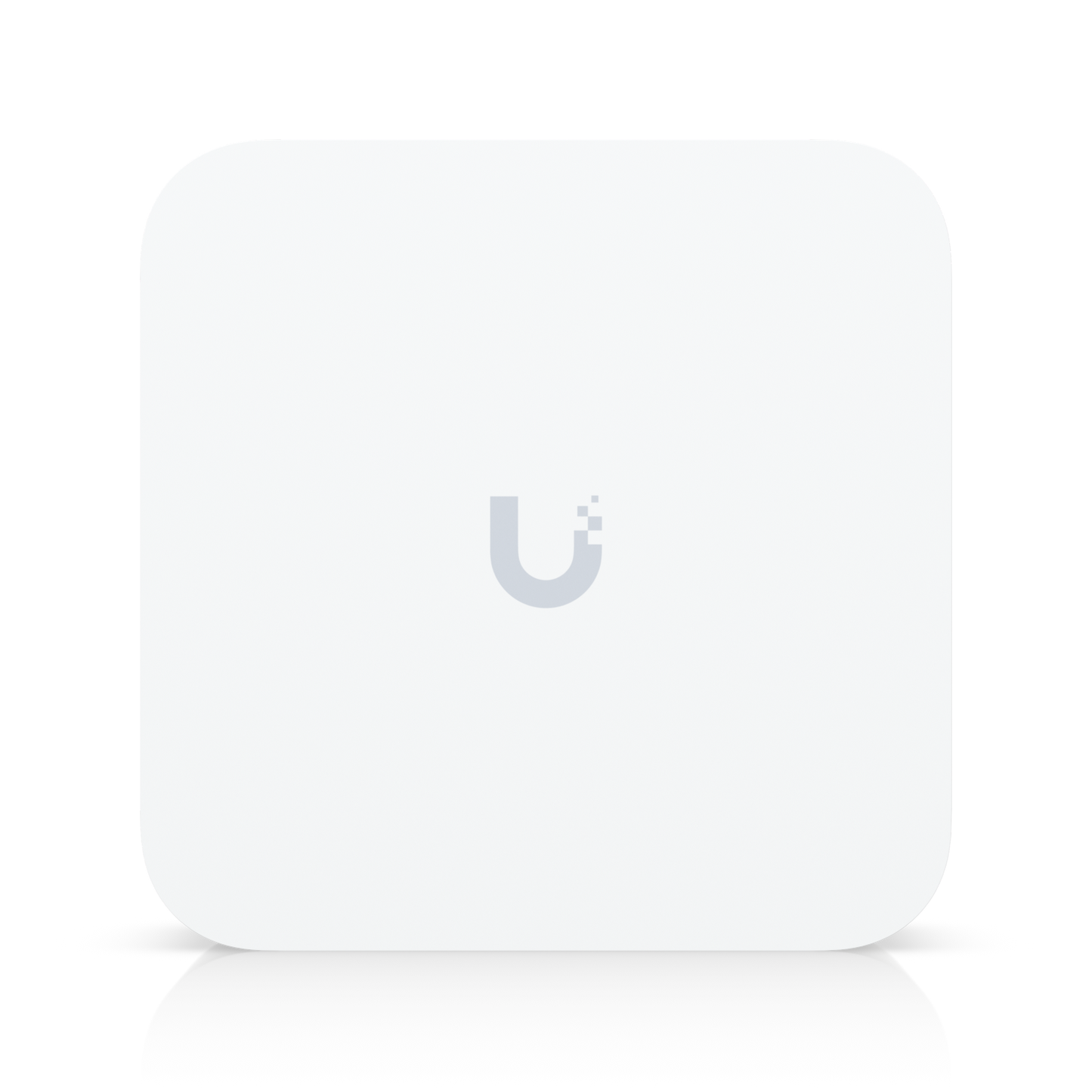

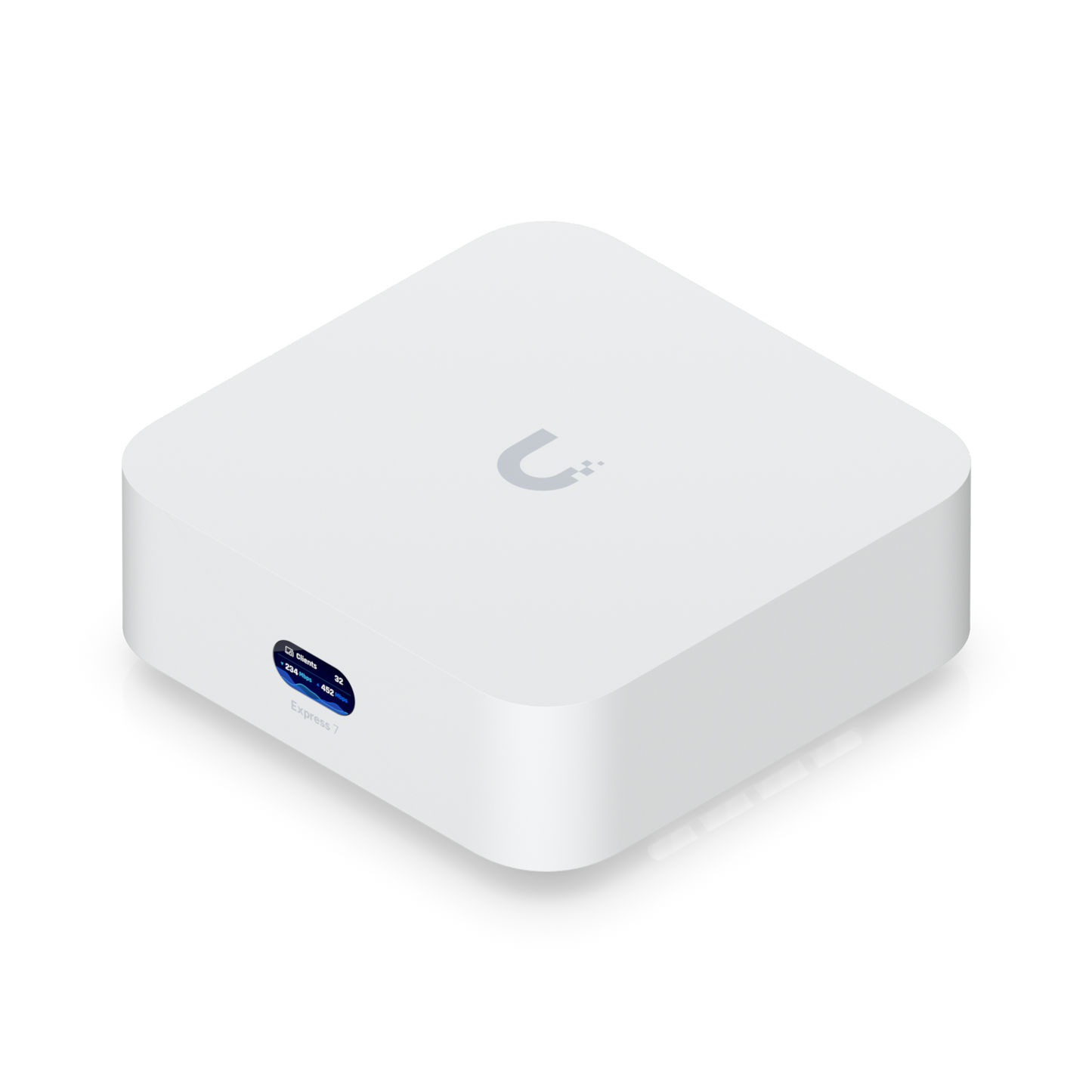

UniFi Express 7

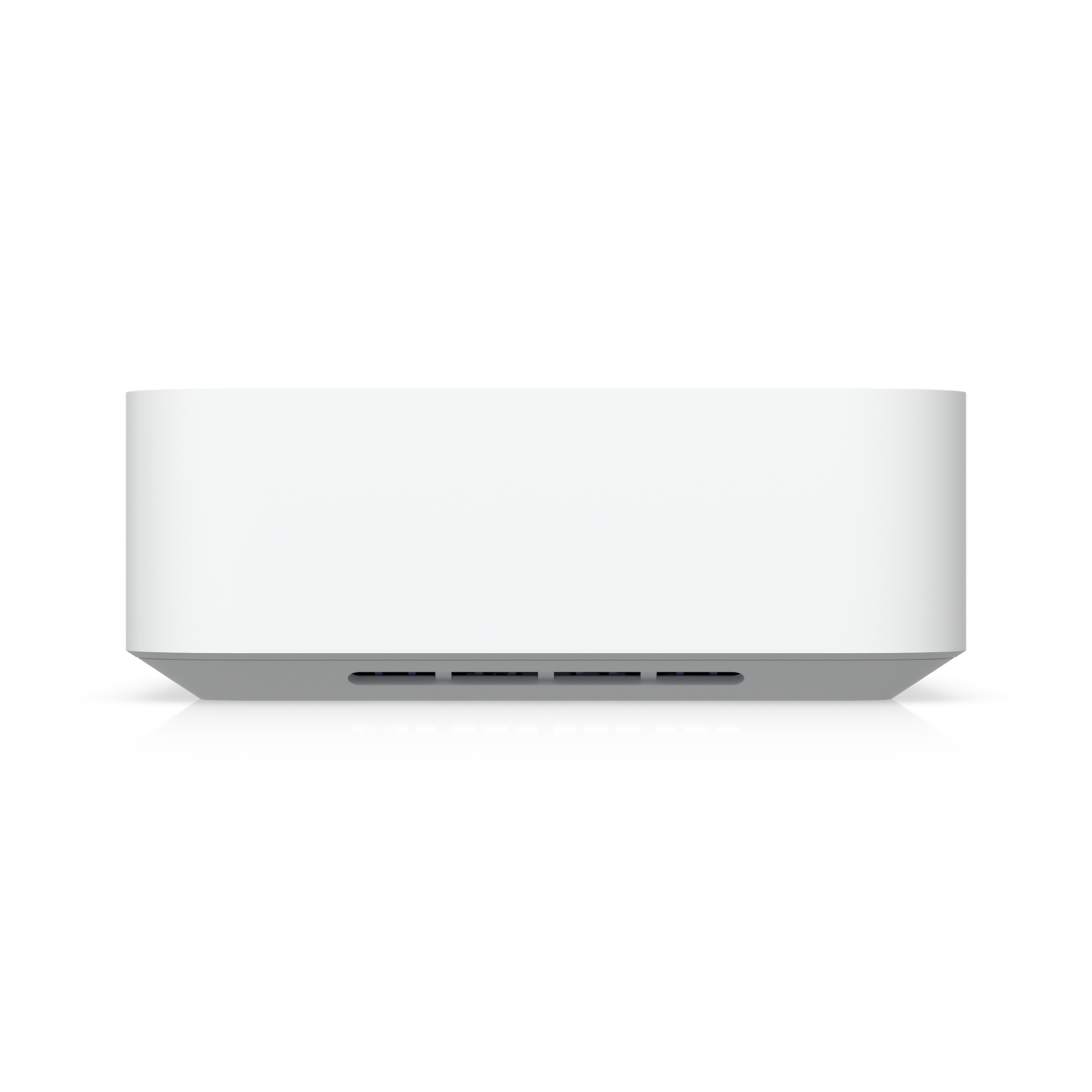

Ubiquiti UX7 UniFi Express 7
SKU:UX7
Regular price
$408.00
Regular price
$499.00
Sale price
$408.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
58 in stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty

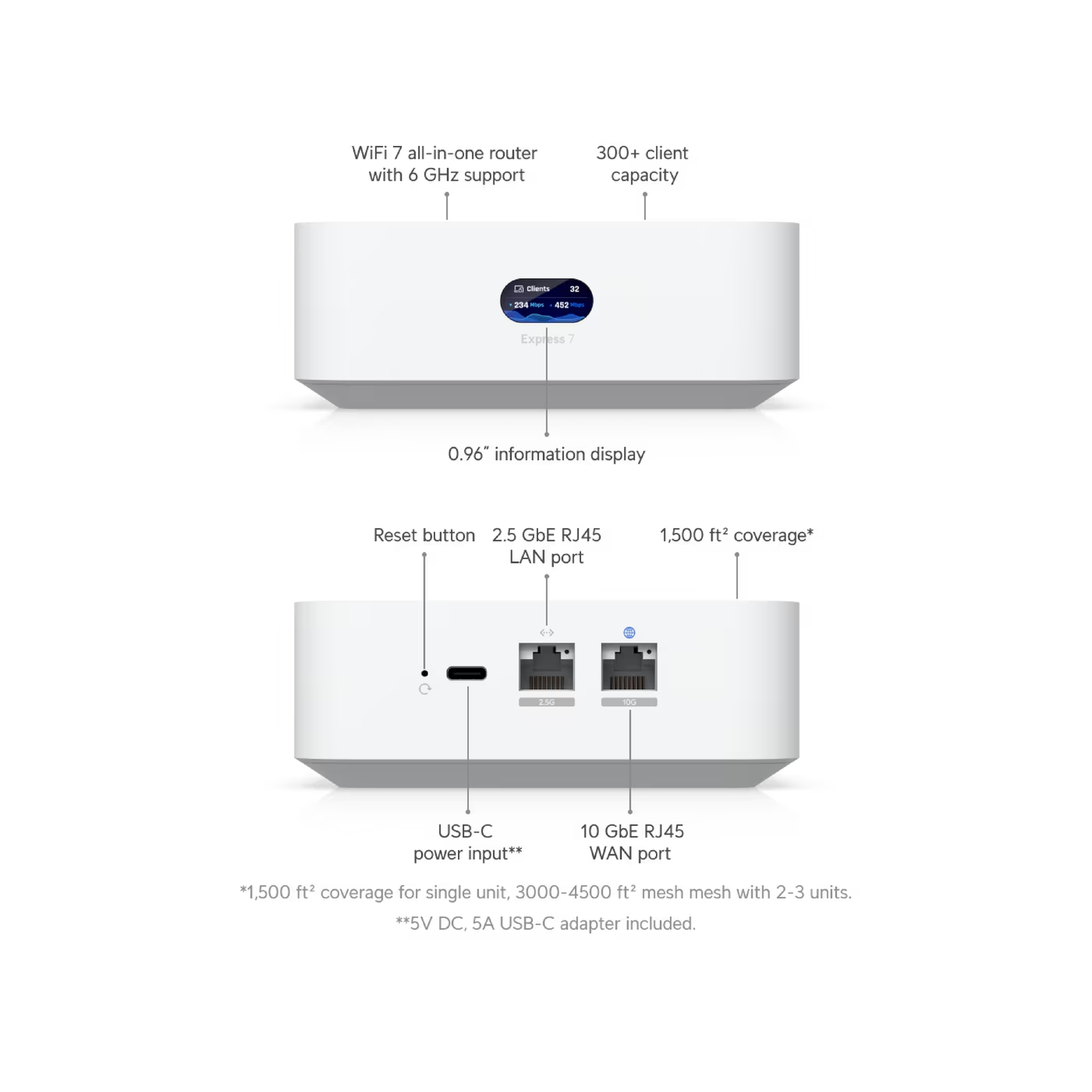

Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.
- Integrated 6-stream WiFi 7 with 6 GHz support.

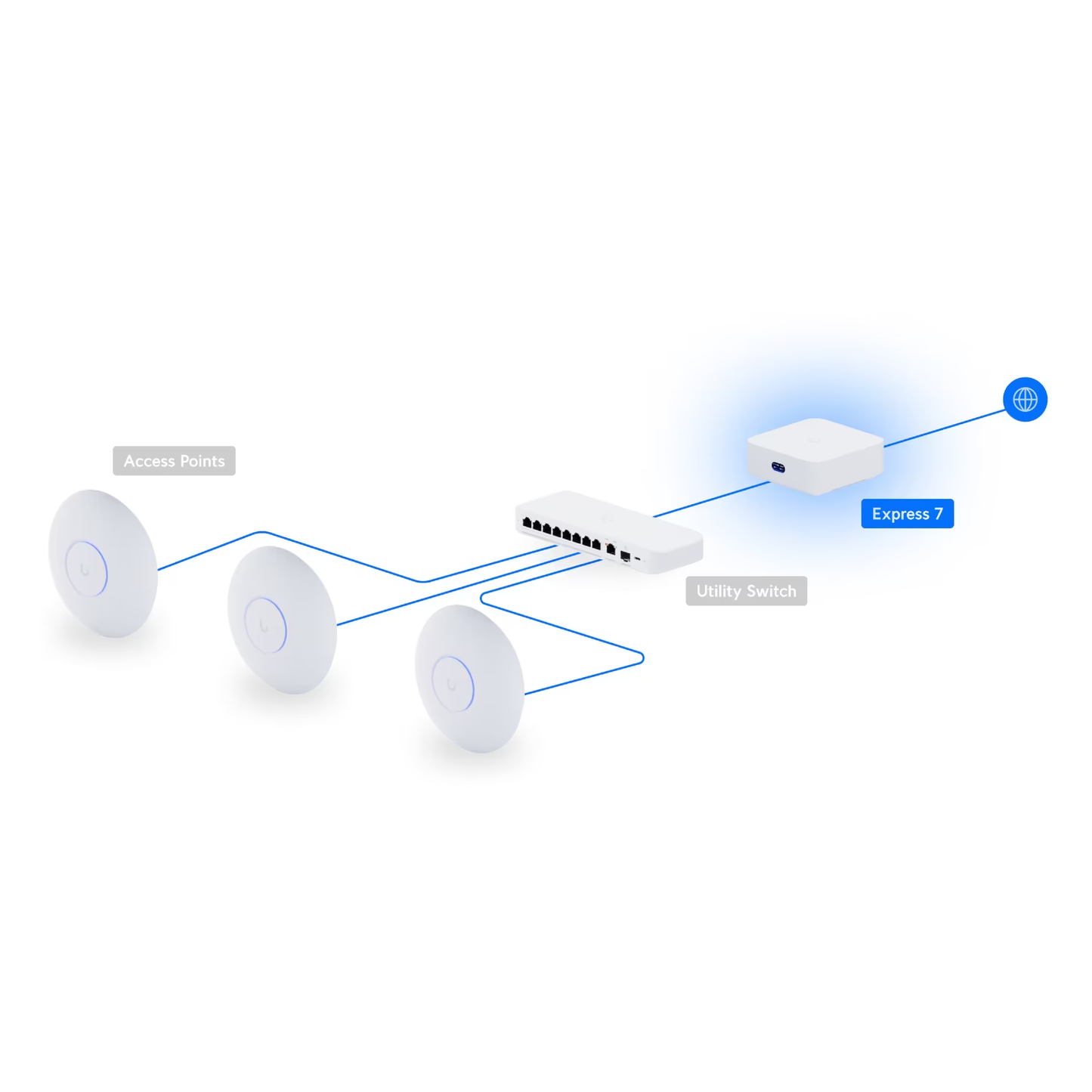

- Optionally adopted as wired or meshed Layer 2 UniFi AP to extend coverage.
- 140 m² (1,500 ft²) coverage.
- Manages 30+ UniFi devices and 300+ clients.

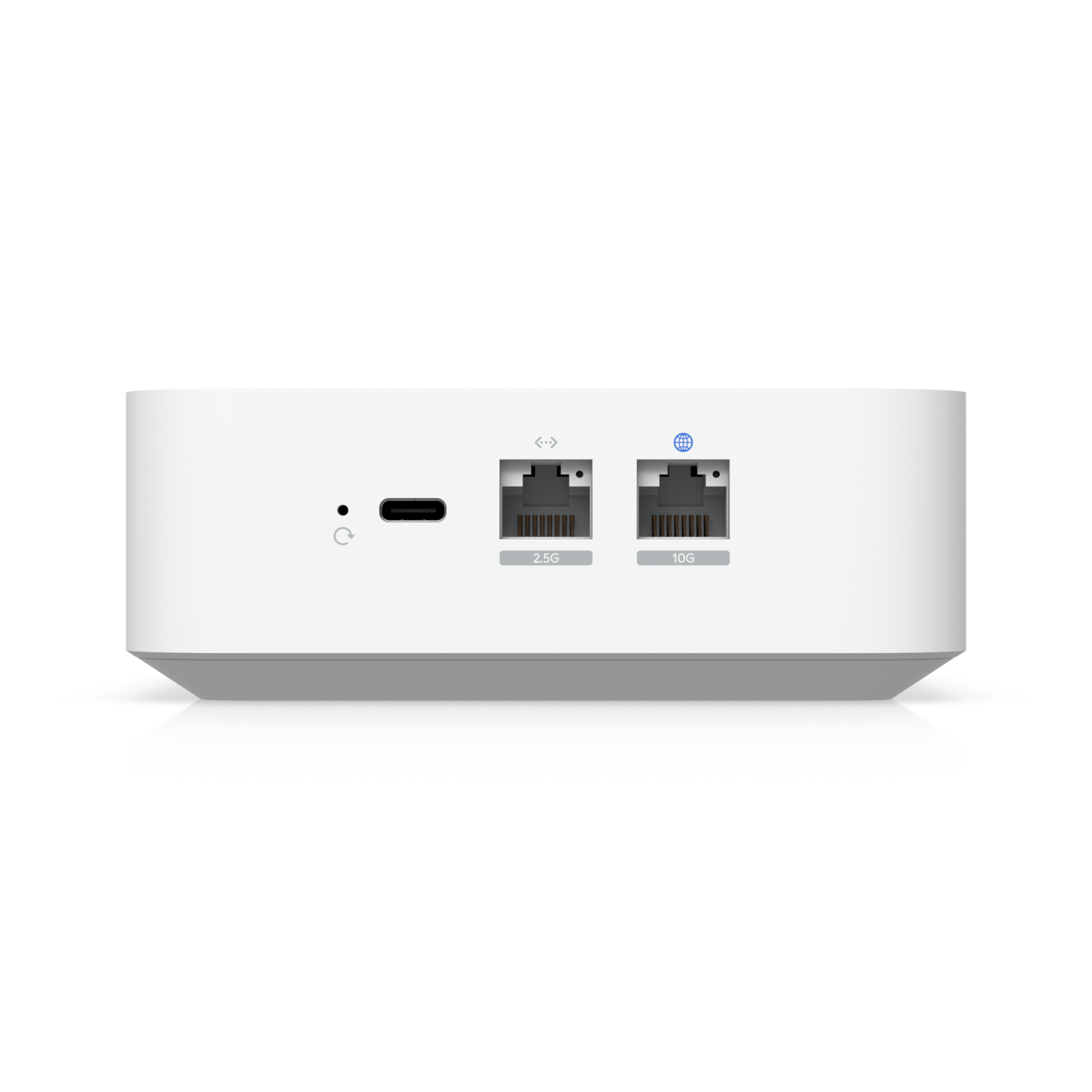

- (1) 10 GbE RJ45 WAN port.
- (1) 2.5 GbE RJ45 LAN port to extend network.
| Overview | |
|---|---|
| Dimensions | 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67") |
|
UniFi Application Suite Network |
Yes |
| Managed UniFi Devices | 30 |
| Simultaneous Users Connected | 300 |
| Default WAN Ports | (1) 10 GbE RJ45 |
| LAN Ports | (1) 2.5 GbE RJ45 |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
| Security | |
| Stateful Firewall | Yes |
| Application-Aware Layer 7 Firewall | Yes |
| DPI & Traffic Identification | Yes |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | Yes |
| Content Filtering | Yes |
| Intrusion Prevention (IPS/IDS) | Yes |
| Ad Blocking | Yes |
| IDS/IPS Signatures | 20,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation | Yes |
| VPN & SD-WAN | |
| License-Free SD-WAN | Yes |
| Site-to-Site VPN Site Magic IPsec OpenVPN |
Yes Yes Yes |
| VPN Server Identity Endpoint One-Click VPN Teleport Zero-Configuration VPN WireGuard OpenVPN L2TP |
Yes Yes Yes Yes Yes |
| VPN Client OpenVPN WireGuard |
Yes Yes |
| Networking | |
| Dynamic Routing OSPF |
Yes |
| Advanced QoS | Yes |
| Multicast DNS (mDNS) | Yes |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | Yes |
| Integrated RADIUS Server | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Additional Internet Failover with UniFi LTE Backup | Yes |
| Internet Quality and Outage Reporting | Yes |
| Policy-based WAN and VPN Routing | Yes |
| Customizable DHCP Server | Yes |
| IPv6 ISP Support | Yes |
| IGMP Proxy | Yes |
| Integrated WiFi | |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| Throughput 6 GHz 5 GHz 2.4 GHz |
5.7 Gbps 4.3 Gbps 688 Mbps |
| MIMO 6 GHz 5 GHz 2.4 GHz |
2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) |
| Antenna Gain 6 GHz 5 GHz 2.4 GHz |
6 dBi 7 dBi 4 dBi |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 4 per Radio (Gateway Mode) 4 per Radio (AP Mode) |
| Supported Data Rates 802.11a 802.11b 802.11g 802.11n 802.11ac (WiFi 5) 802.11ax (WiFi 6/6E) 802.11be (WiFi 7) |
6, 9, 12, 18, 24, 36, 48, 54 Mbps 1, 2, 5.5, 11 Mbps 6, 9, 12, 18, 24, 36, 48, 54 Mbps 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| Hardware | |
| Max. Power Consumption | 22W |
| Power Method | USB type C (5V DC/5A) |

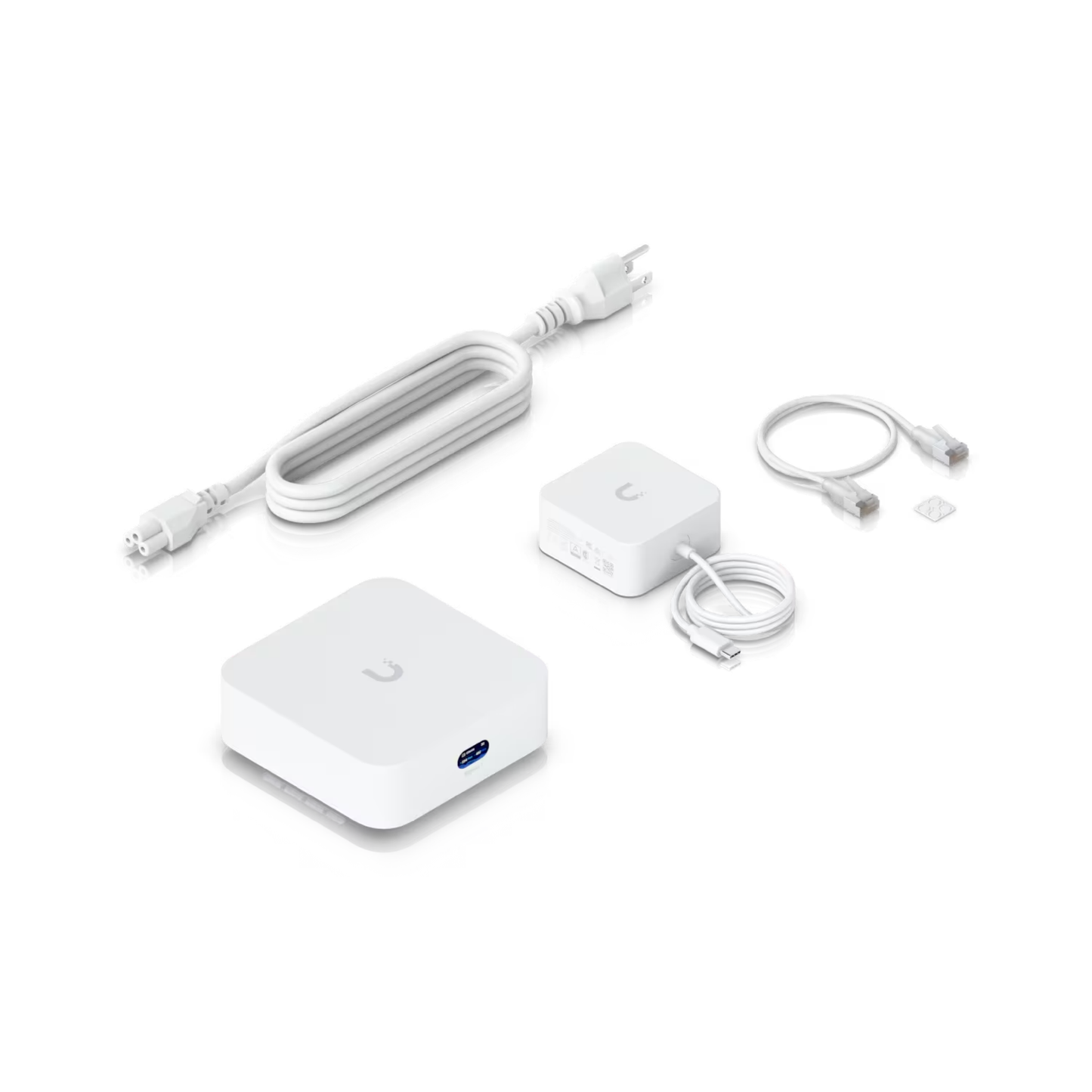

| Power Supply | USB type C (5V DC/5A) (Adapter included) |
| Max. TX Power 6 GHz 5 GHz 2.4 GHz |
24 dBm 26 dBm 23 dBm |
| Supported Voltage Range | 100-240V AC |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | 422 g (14.9 oz) |
| Enclosure Material | Polycarbonate |

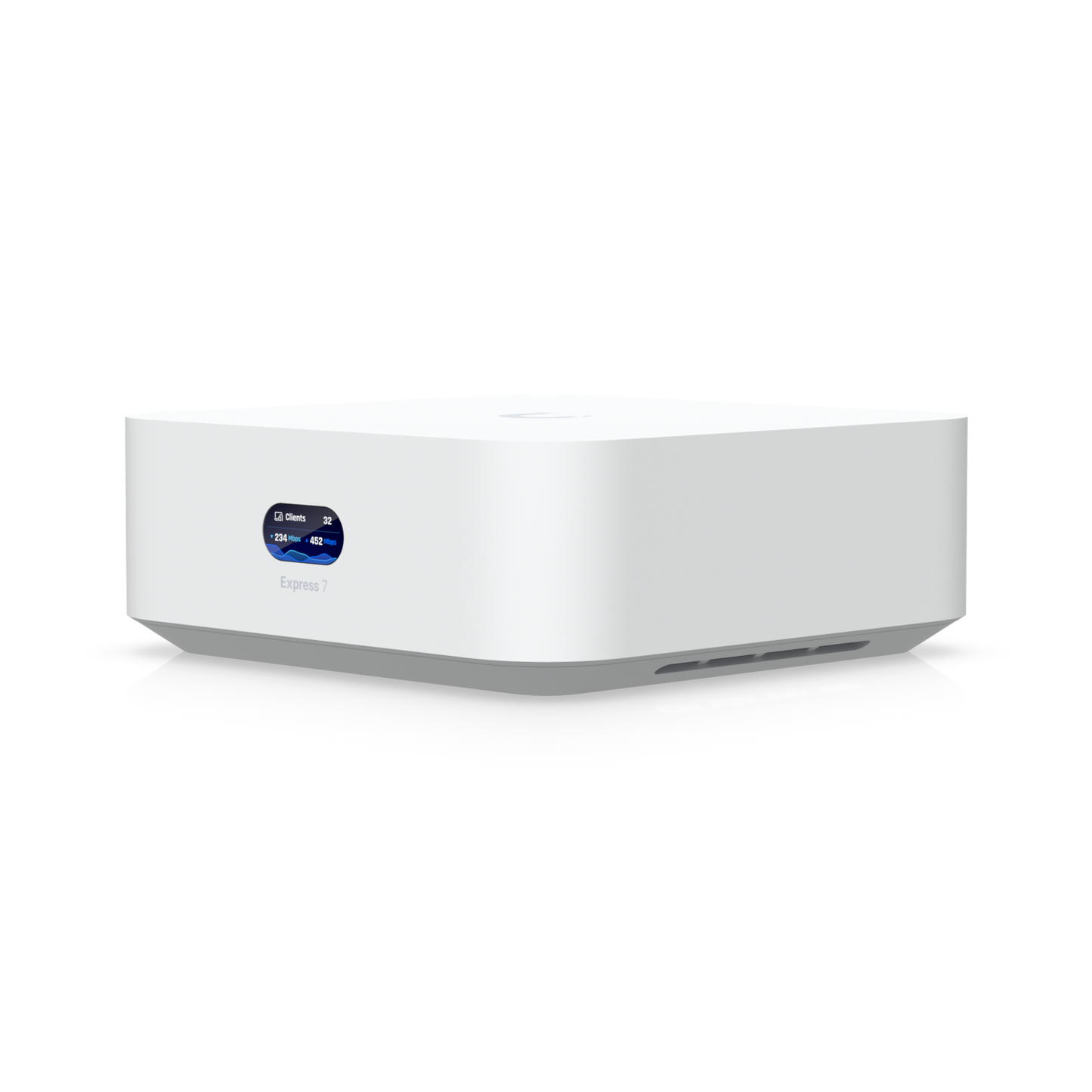

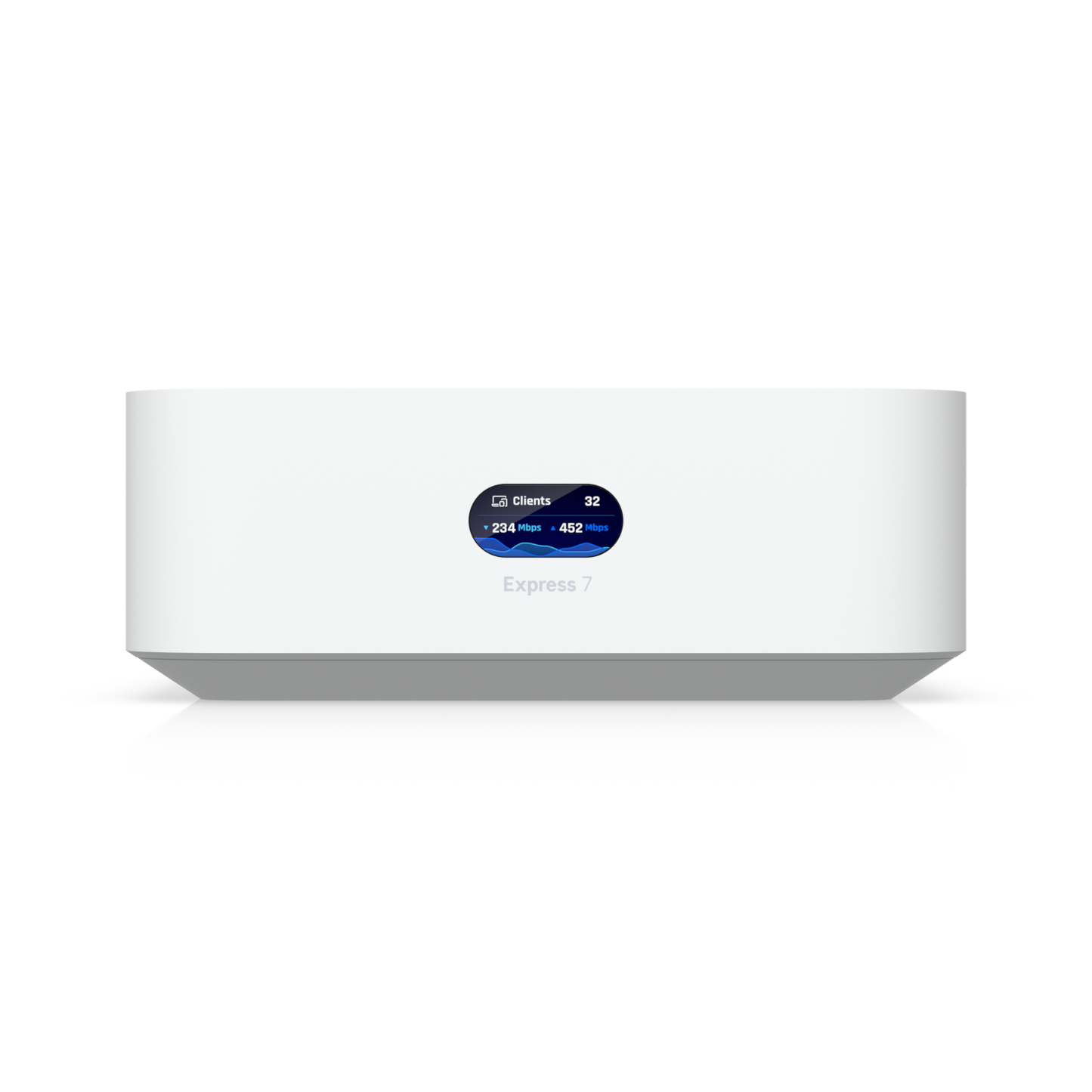

| LCM Display | 0.96" status display |
| Management | Ethernet Bluetooth |
| LEDs Ethernet |
Yes |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Button | (1) Factory-reset |
| Software | |
| VLAN | 802.1Q |
| Guest Traffic Isolation | Yes |
| Application Requirements UniFi Network |
Version 9.0.108 and later |
Visit Ubiquiti for more information.
