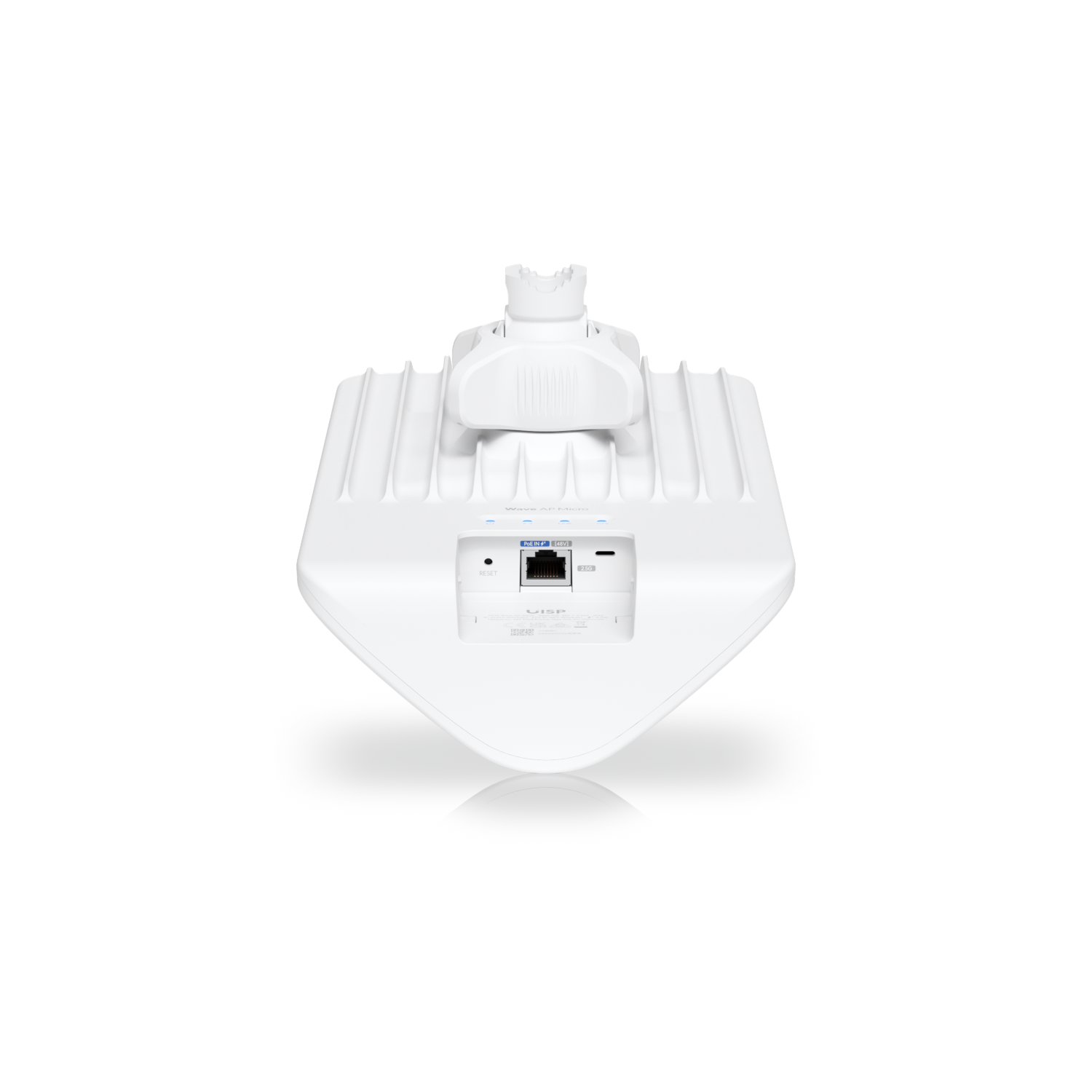

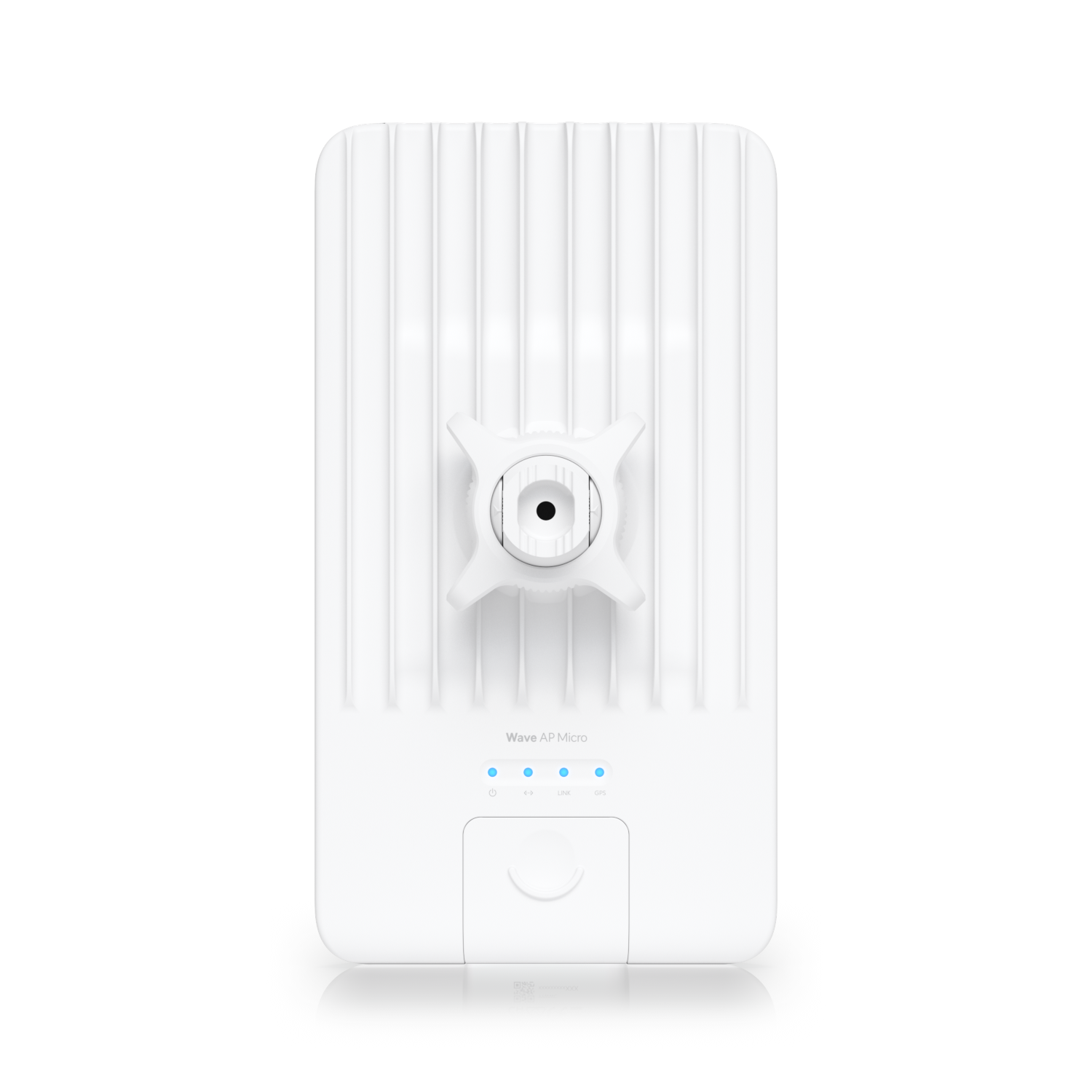

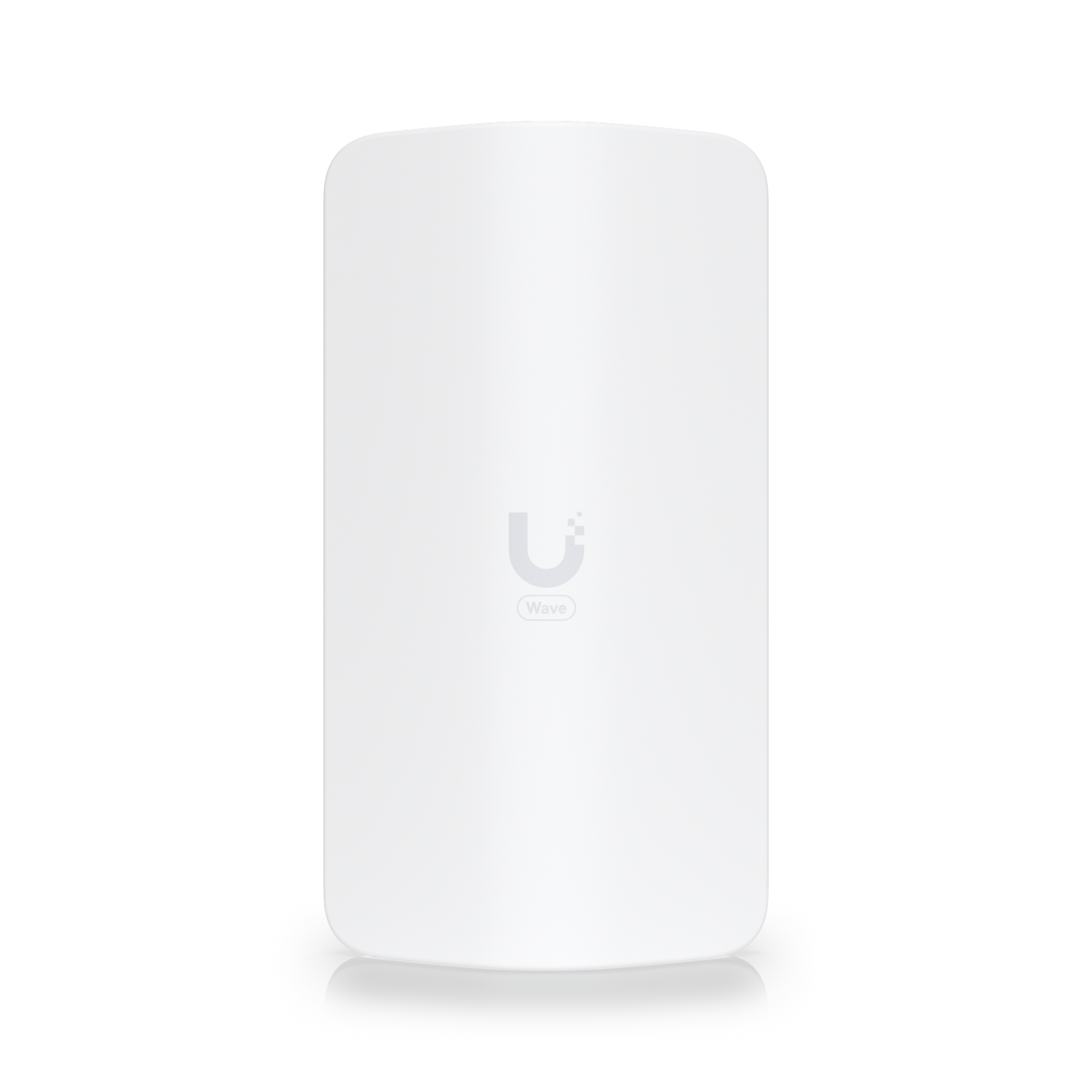

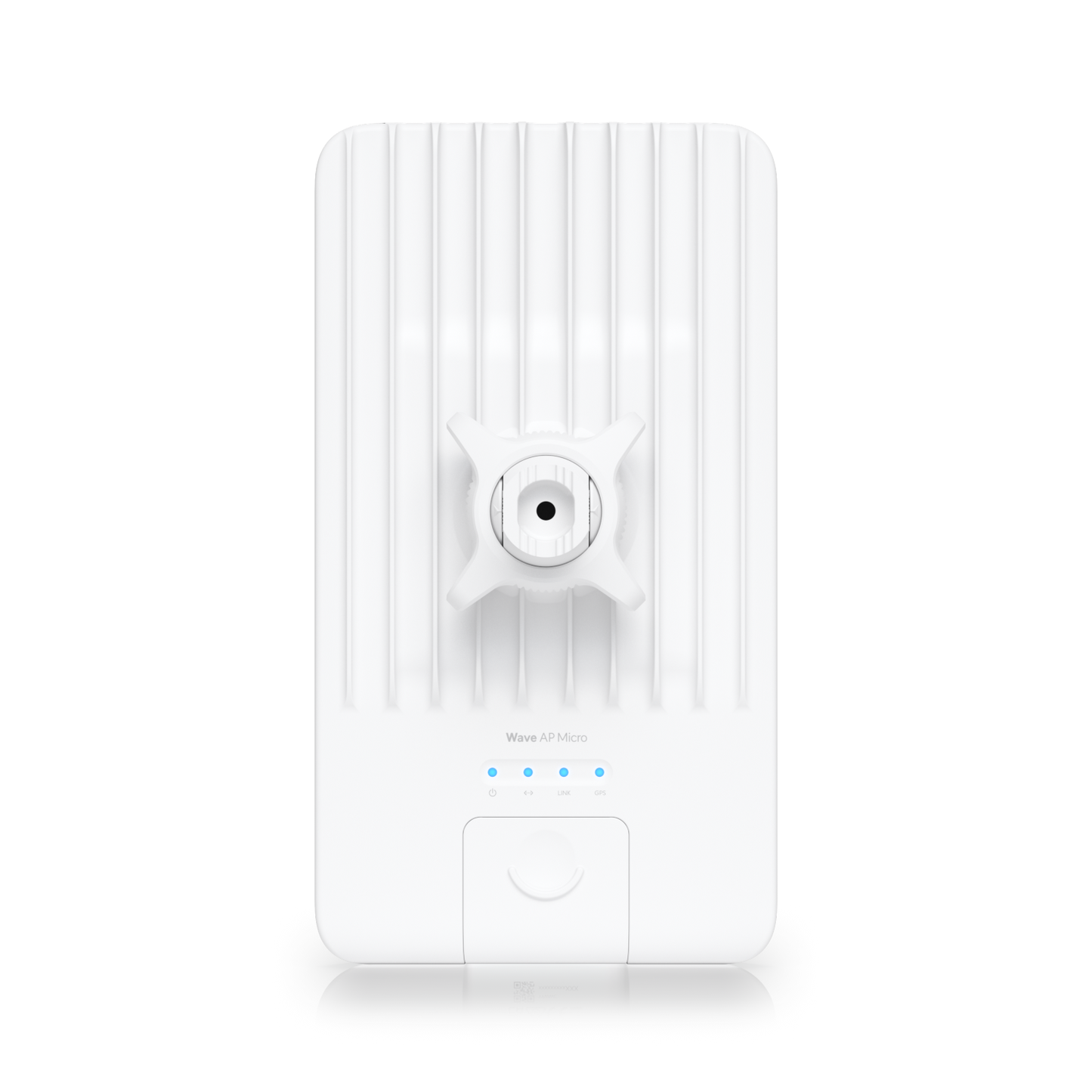

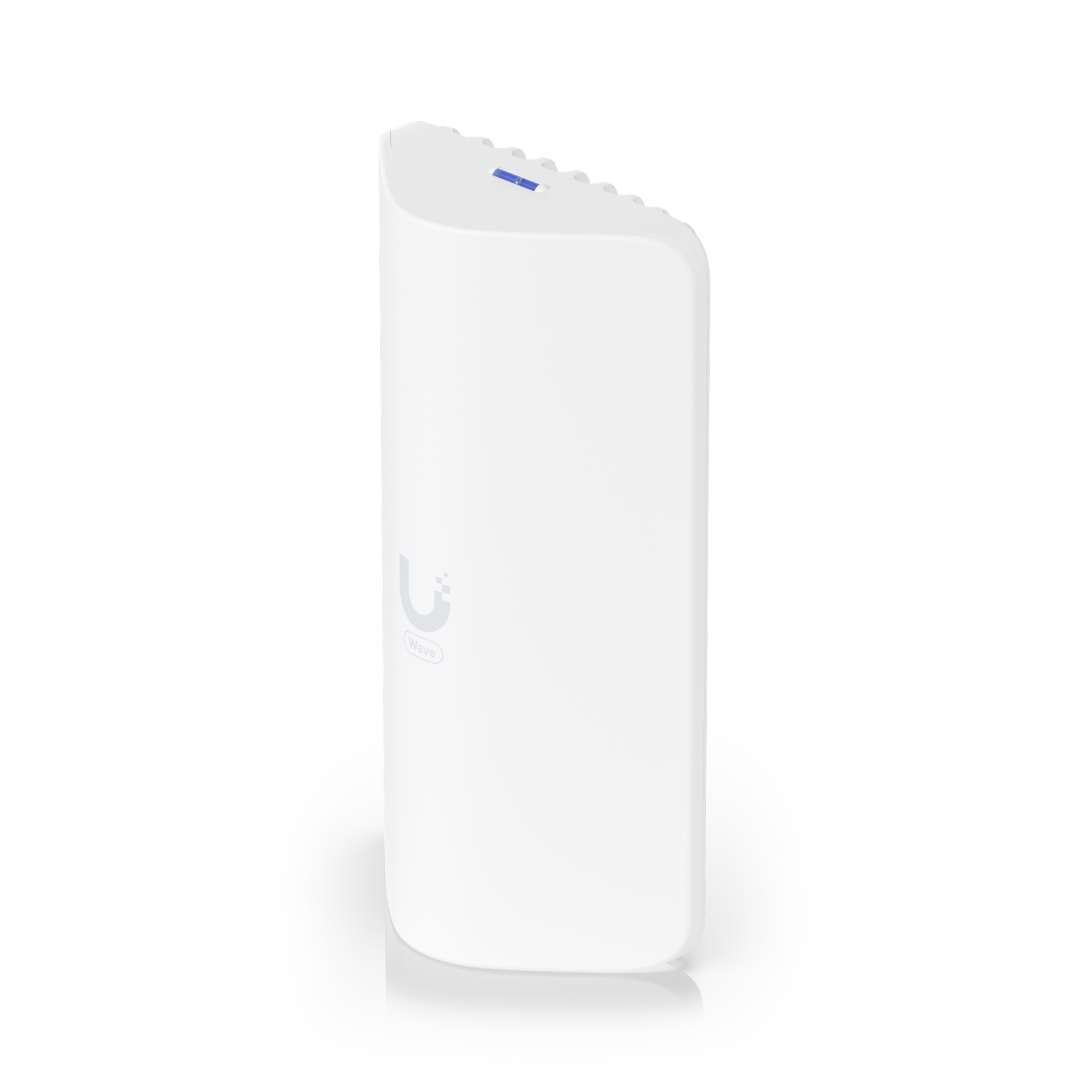

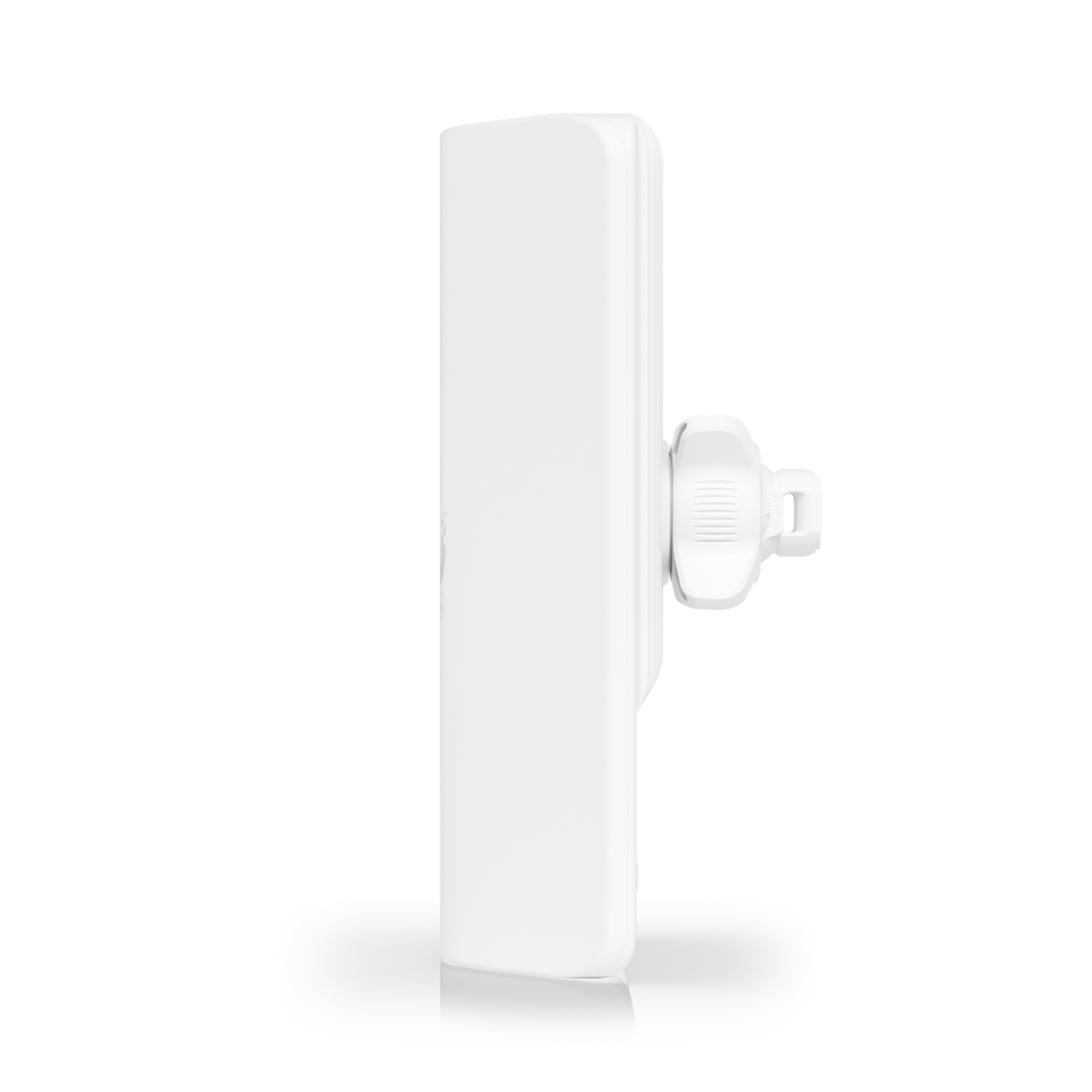

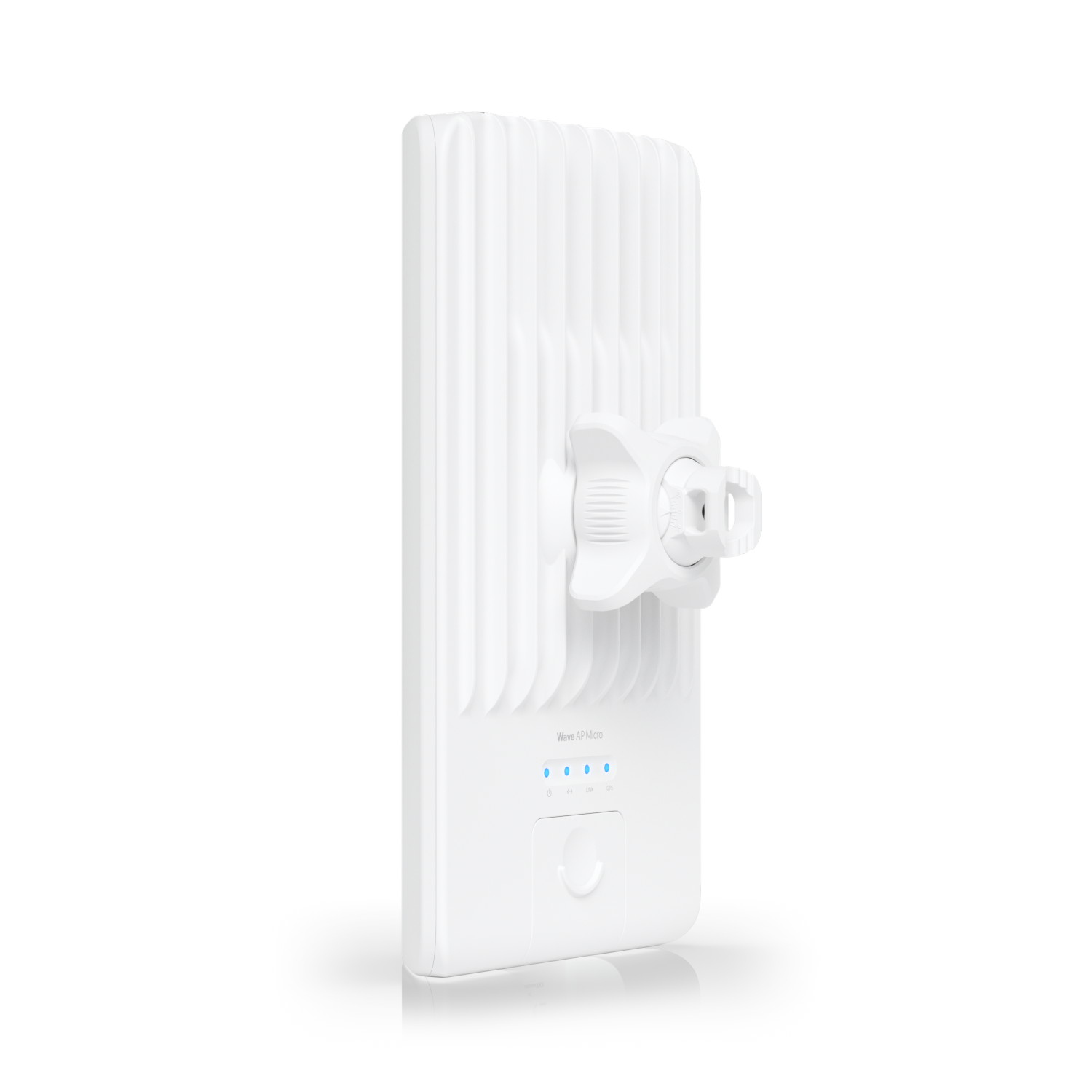

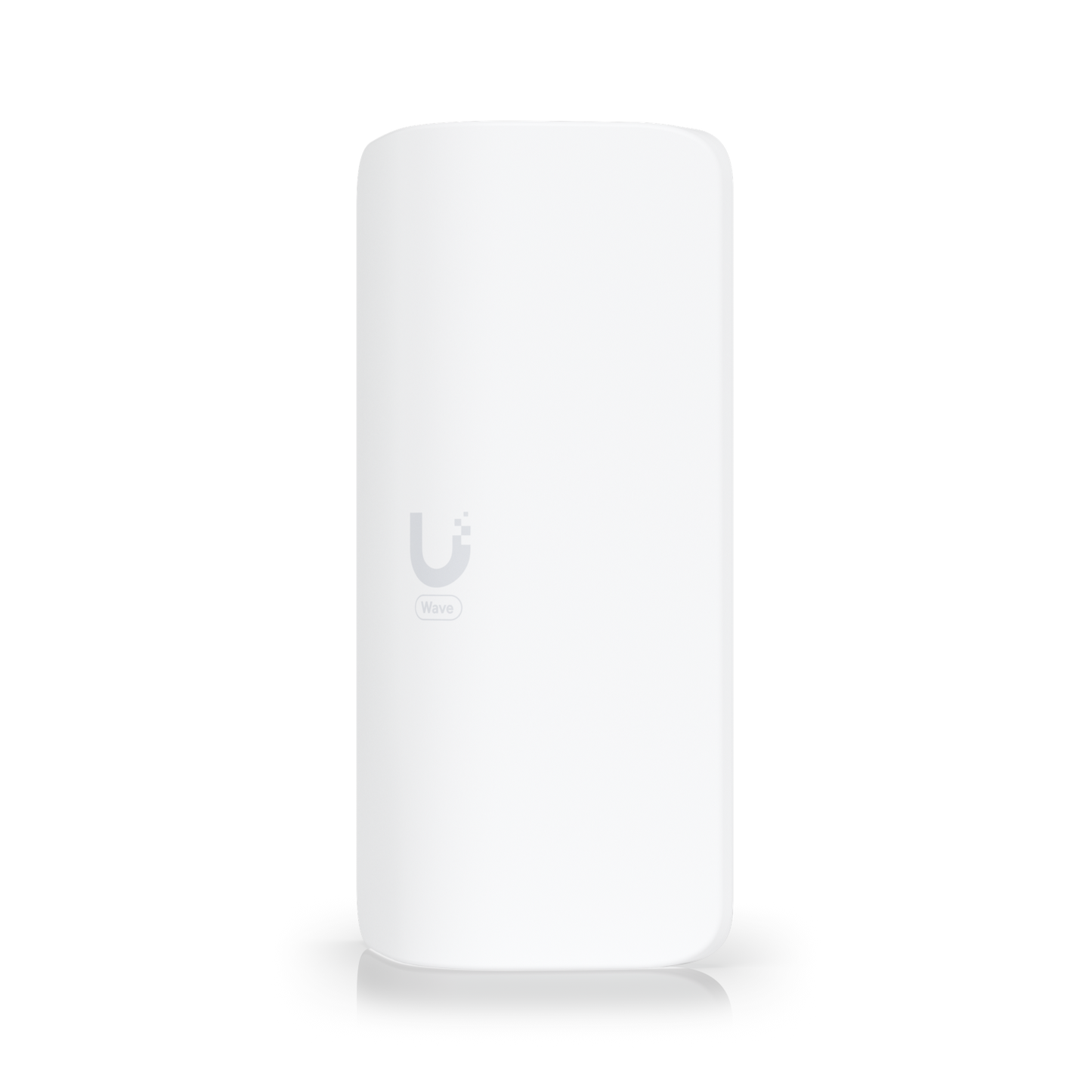

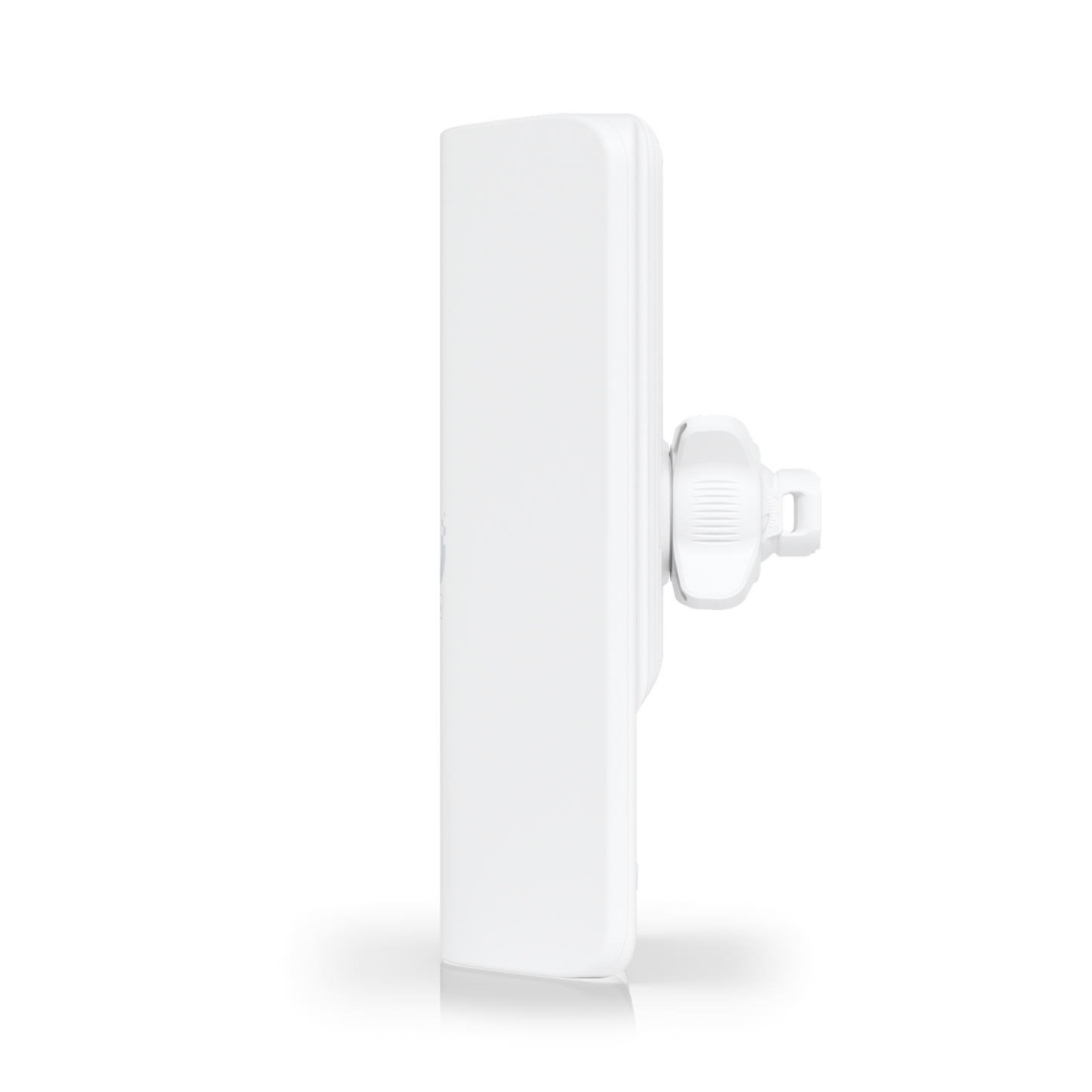

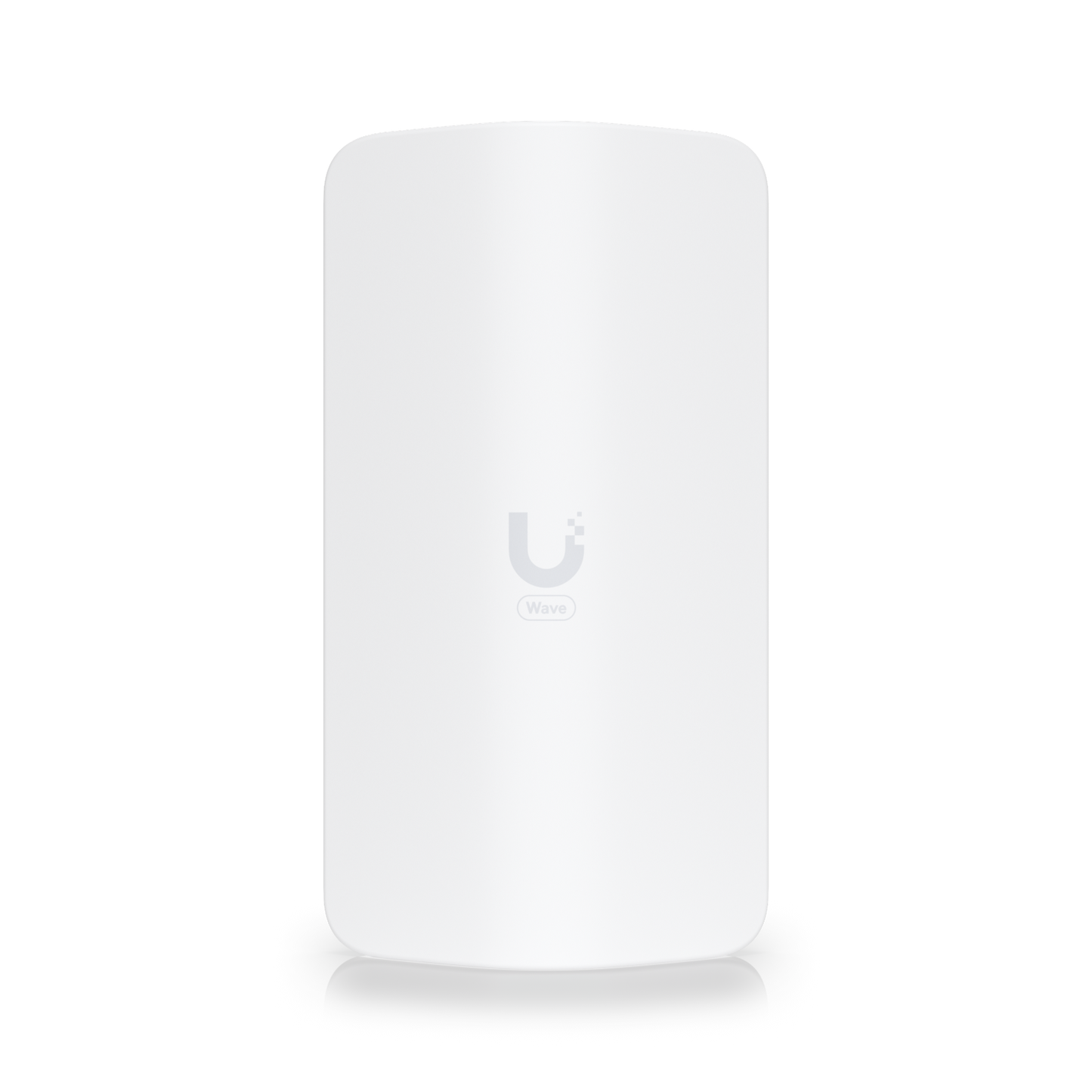

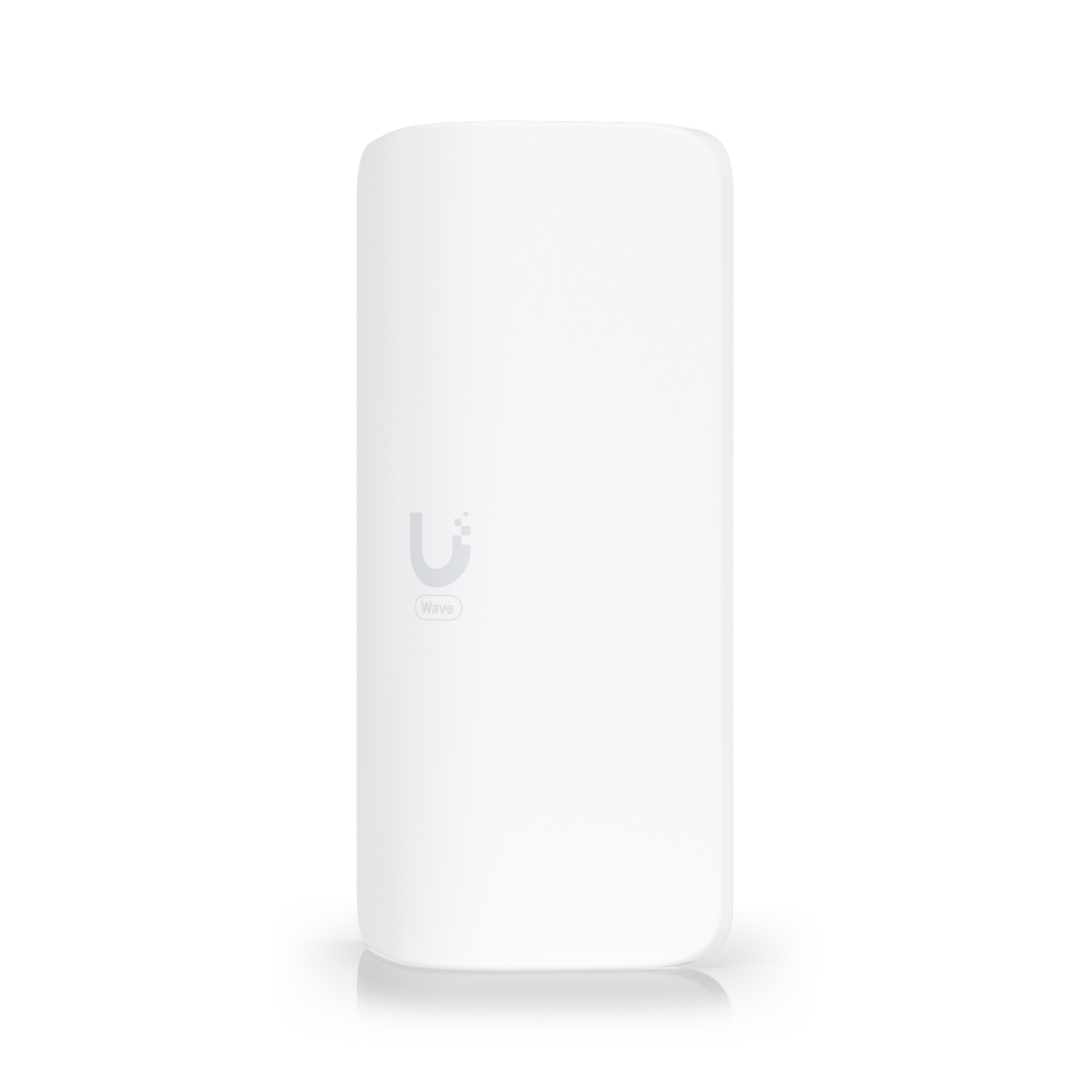

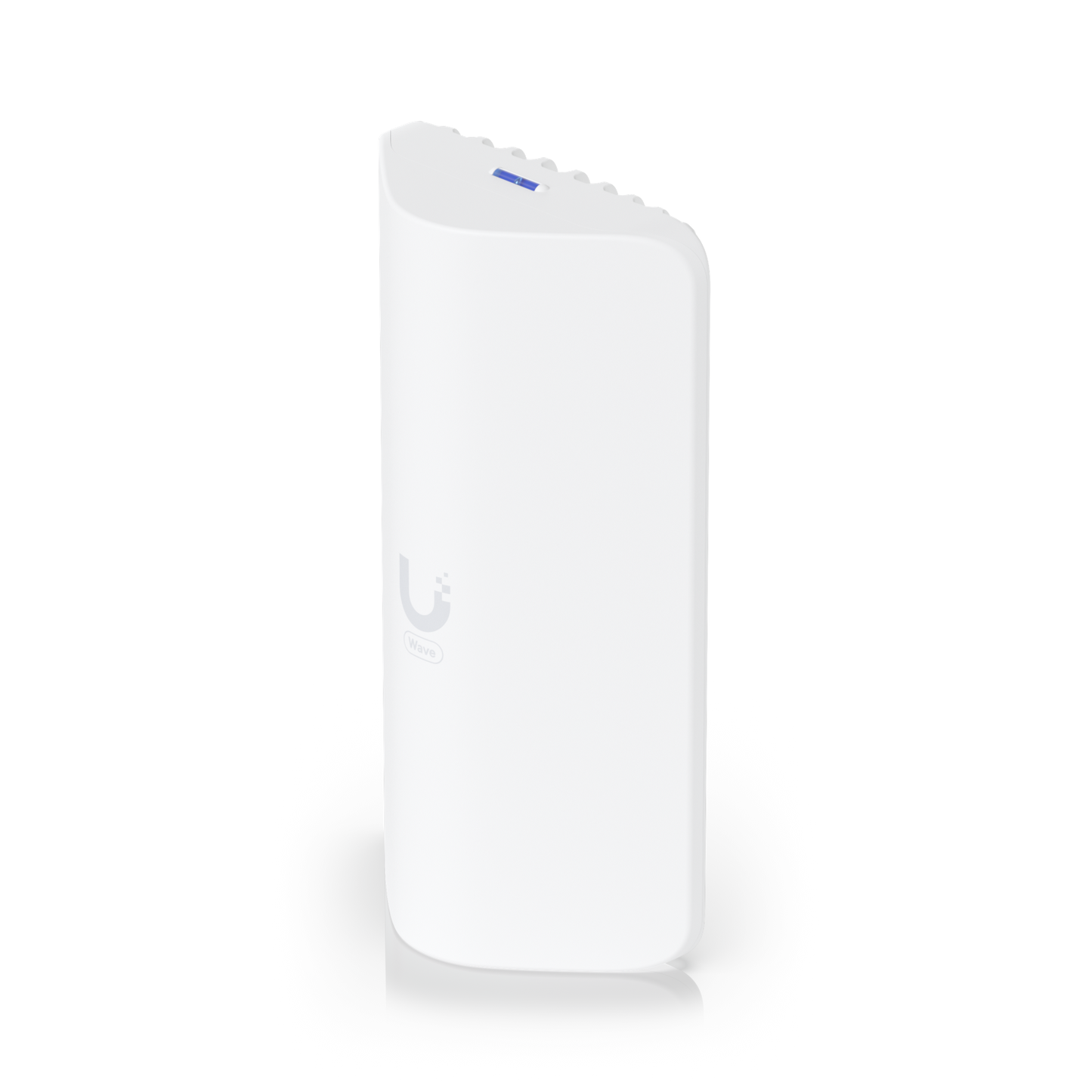

UISP Wave Access Point Micro
Ubiquiti Wave-AP-Micro UISP Wave Access Point Micro
SKU:Wave-AP-Micro
Regular price
$936.00
Regular price
$1,120.00
Sale price
$936.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
127 in stock
Couldn't load pickup availability
Authorised Reseller | Australian Stock | Australian Warranty
Wide-coverage 60 GHz PtMP access point powered by Wave Technology.
- Max. total throughput: 5 Gbps (2.5 Gbps duplex).
- 90° sector coverage.
- 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps).
- (1) 2.5 GbE WAN port.
- 24 client capacity:*
- Wave Pro (6 km link range),
- Wave Long-Range (6 km link range),
- Wave Nano (4 km link range),
- Wave Pico (0.9 km link range).
- Integrated GPS & Bluetooth.
Note: * FW version 3.3.0 and later.
| Mechanical | |
|---|---|
| Dimensions | 284 x 156 x 76 mm (11.2 x 6.1 x 3") |
| Weight | 1.3 kg (2.9 lb) |
| Enclosure material | Aluminum alloy, UV stabilized polycarbonate |
| Mount material | Stainless steel, UV stabilized polycarbonate |
| Pole mount diameter | 35 to 60 mm (1.4 to 2.4") on pipe outer diameter |
| Wind loading | 87 N at 200 km/h (20 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core ARM Cortex-A53 at 1.4 GHz |
| Memory | DDR3L 512 MB |
| Networking interface | (1) 1/2.5 GbE RJ45 port |
| Max. power consumption | 24W |
| Power method |
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power supply | 48V DC, 0.65A, 2.5 GbE PoE adapter (Included) |
| Supported voltage range |
44–54V DC 22–27V DC |
| GPS | Yes |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS, Link |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating mode | PtMP access point |
| Ubiquiti specific features | Wave AI, discovery protocol |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools |
Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey* *FW version 3.3.0 and later. |
| Network | Bridge mode |
| Application requirements |
UISP web: Version 2.2.11 and later UISP mobile iOS: Version 2.25.1 and later UISP mobile Android: Version 2.27.5 and later |
| System | |
| Total throughput | 5 Gbps (2.5 Gbps duplex) |
| Supported clients count |
24* *FW version 3.3.0 and later. |
| Max. range |
Connecting to a Wave Pro: up to 6 km Connecting to a Wave Long-Range: up to 6 km Connecting to a Wave Nano: up to 4 km Connecting to a Wave Pico: up to 0.9 km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* |
57–71 GHz *Depends on regulatory region. |
| Channel bandwidth |
2160, 1080, 540* MHz *FW version 3.3.0 and later. |
| Operating channels* |
58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 20 dBi |
| Polarization | Vertically linear |
| Beamwidth |
Azimuth: 3 dB 90° Elevation: 3 dB 7° |
| Electrical downtilt | 0° |
| Back-Up RF | |
| WiFi standard | 802.11ax (WiFi 6) |
|
Operating frequency* US/CA Worldwide |
U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz *Depends on regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna gain | 13.5 dBi |
| Polarization | Dual-linear |
| Beamwidth |
Azimuth: 6 dB 90° Elevation: 6 dB 25° |
| Cross-pol isolation | 10 dB |
| Electric downtilt | 0° |
| LEDs | |
| Power |
Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
| Ethernet | Flashing blue: Ethernet traffic detected |
| GPS | Blue: receiving at least(4) GPS satellite signal |
| Link |
Blue: 60 GHz link White: 5 GHz link |
Visit Ubiquiti for more information.
