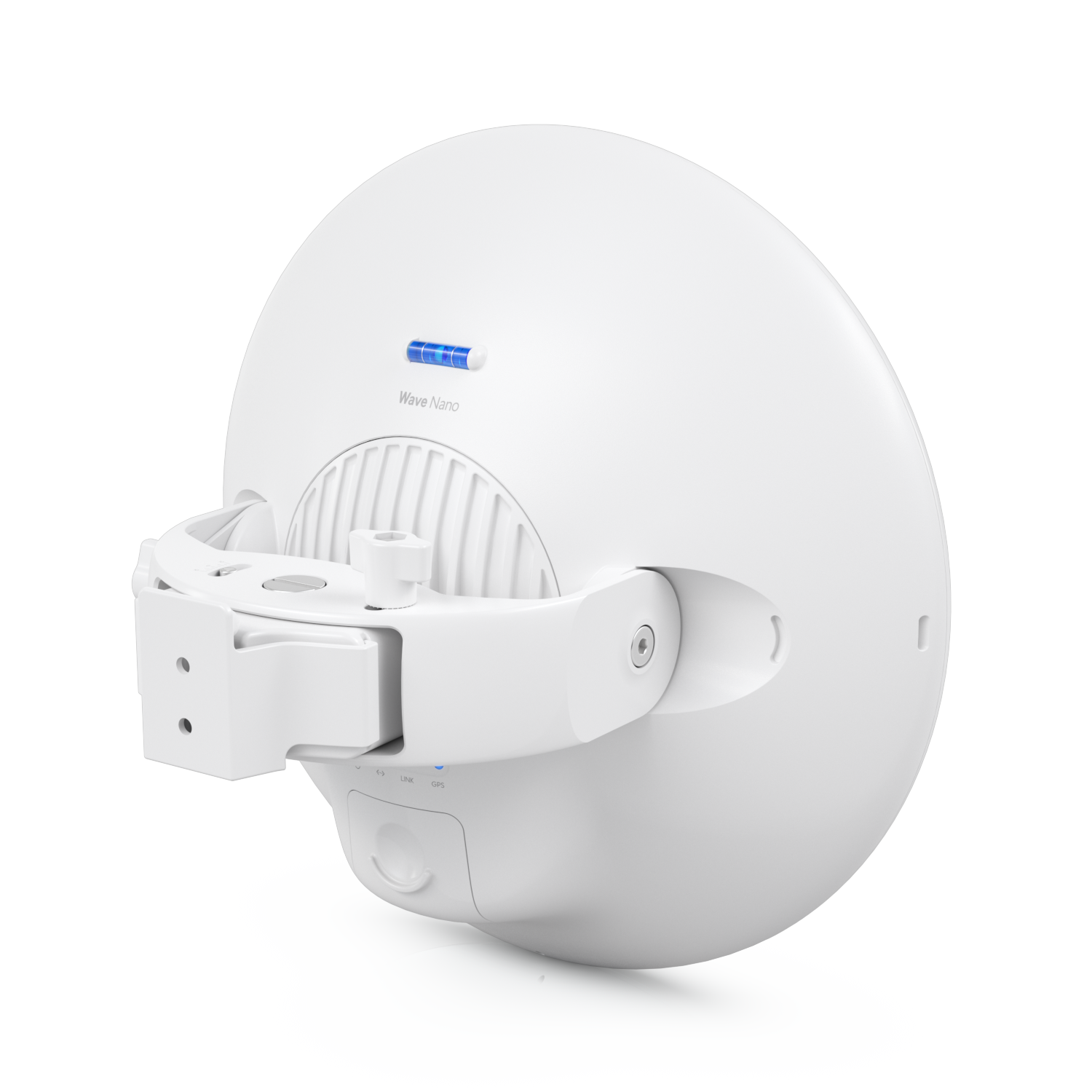

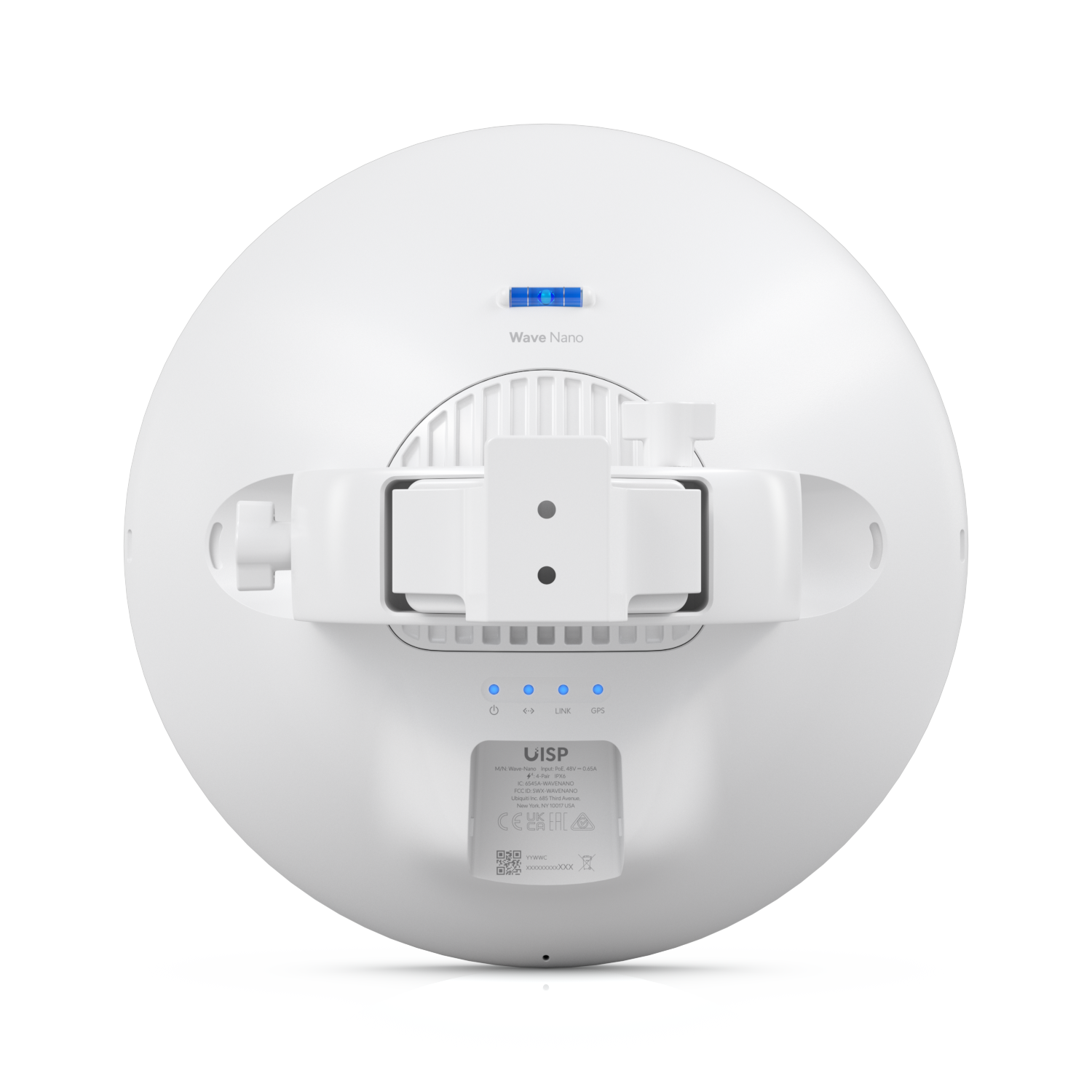

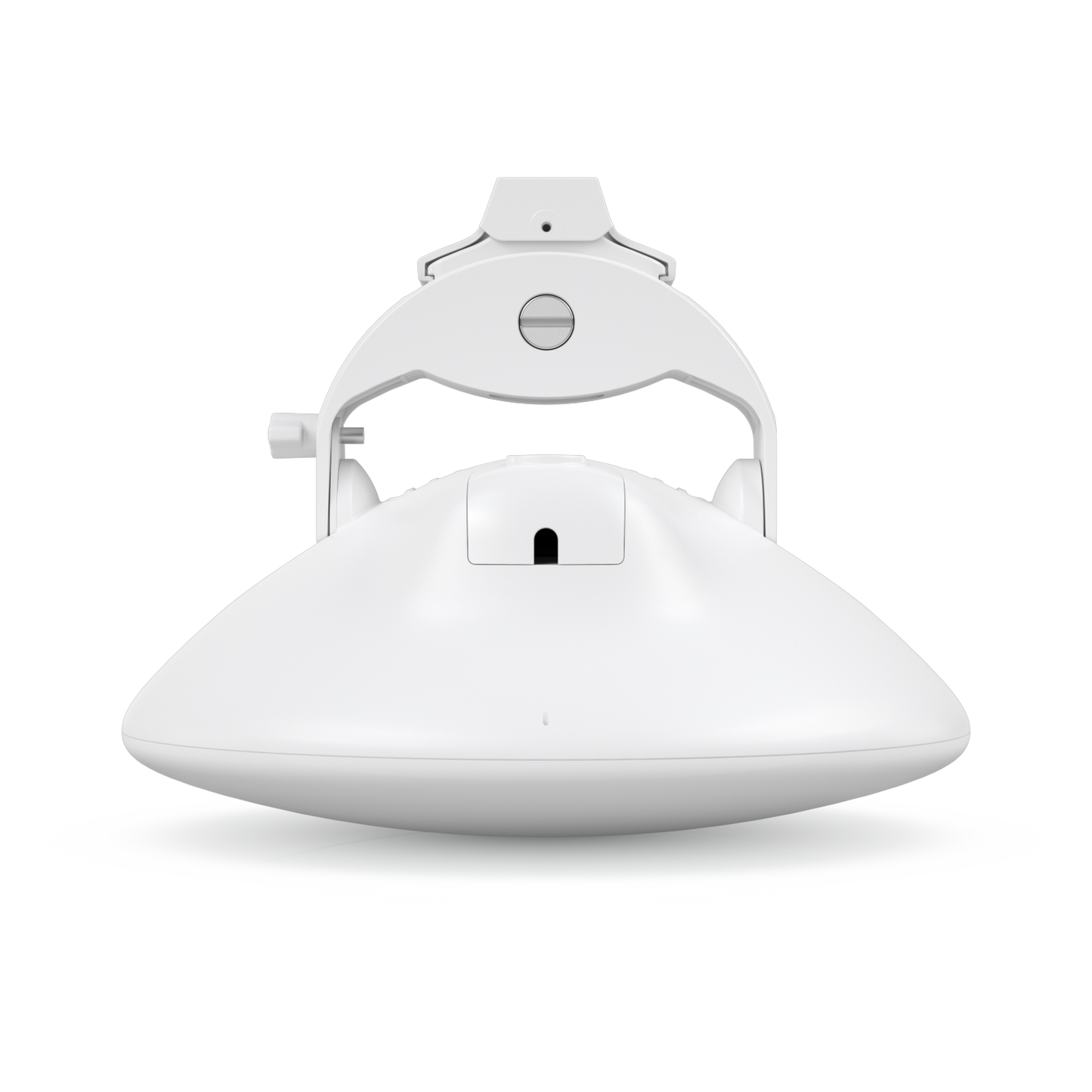

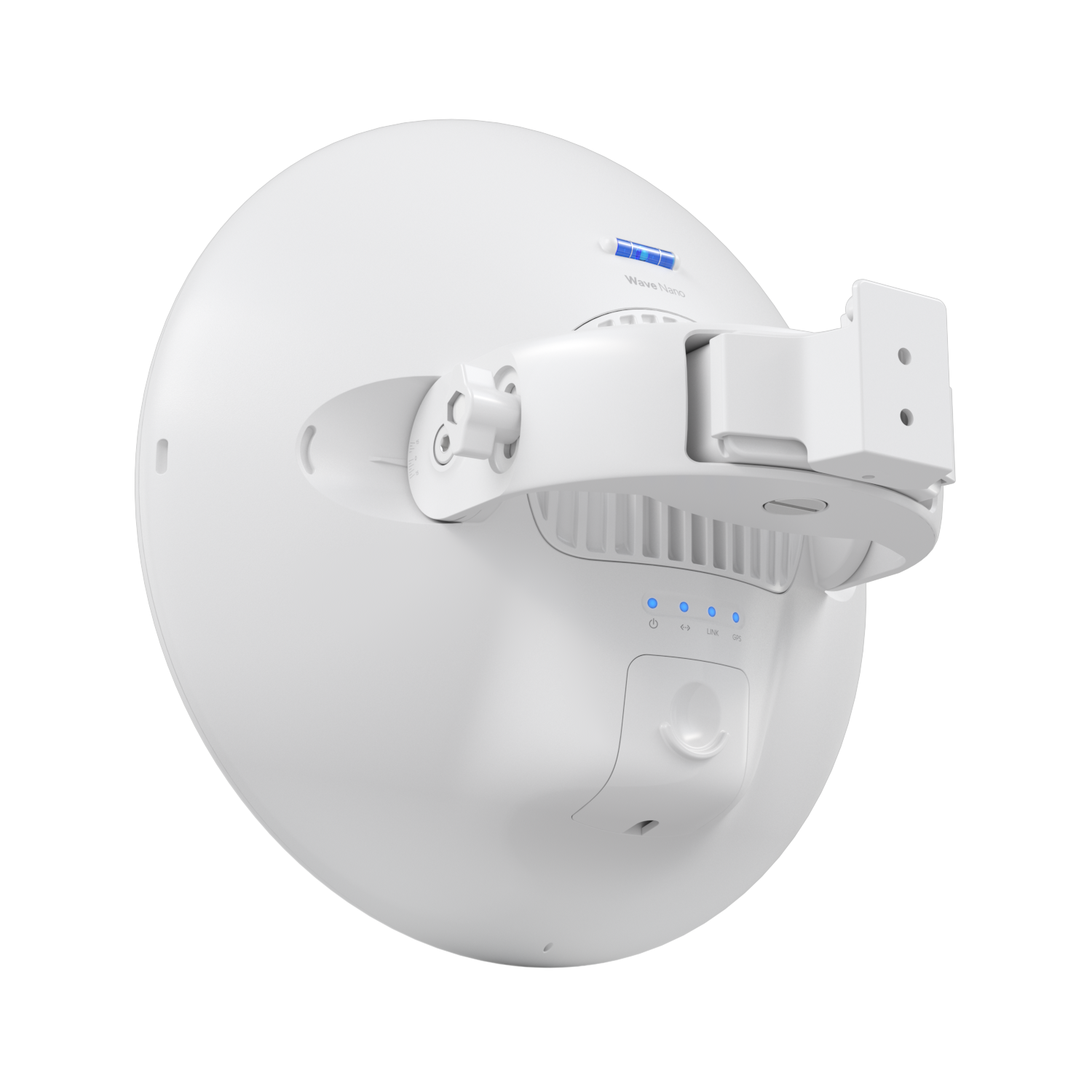

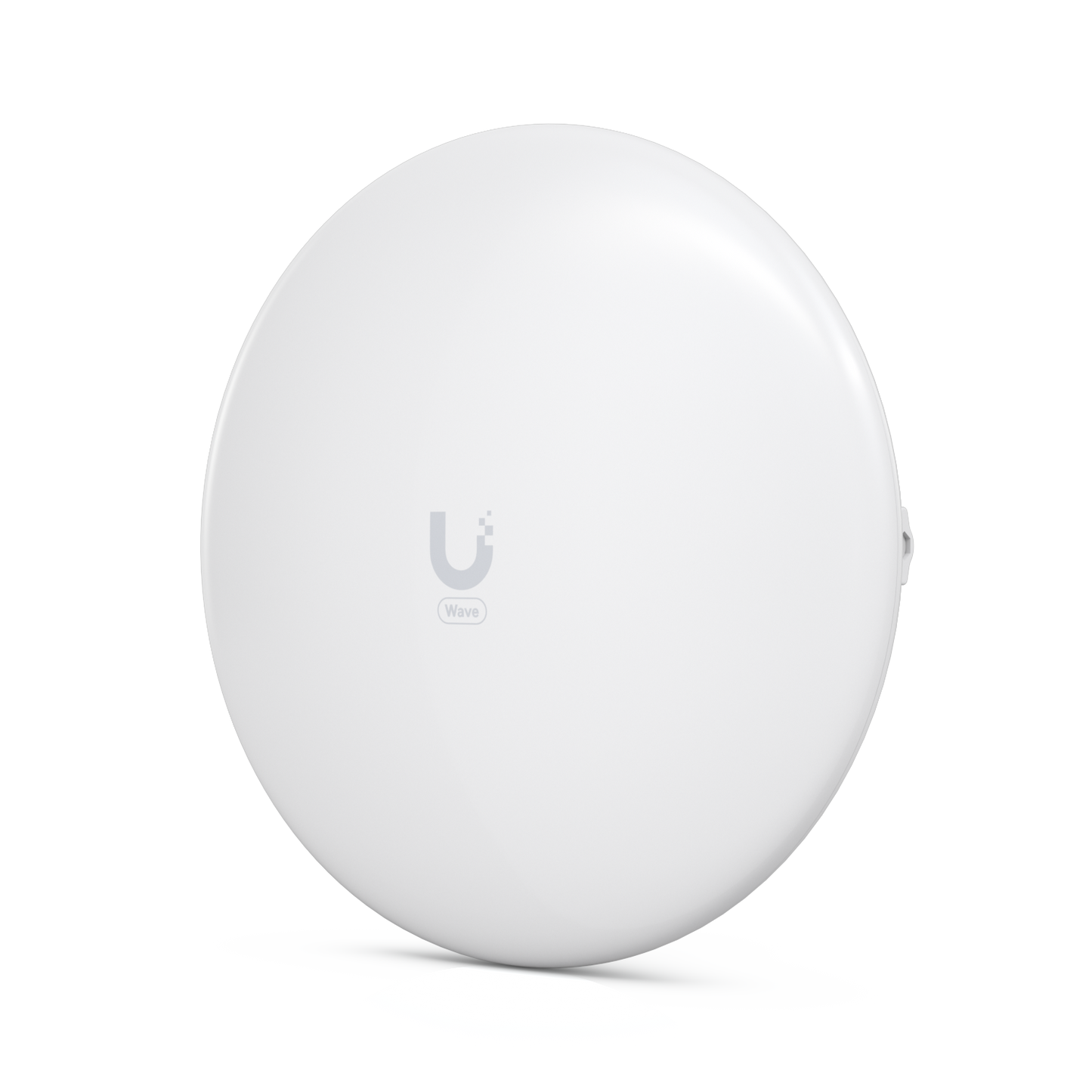

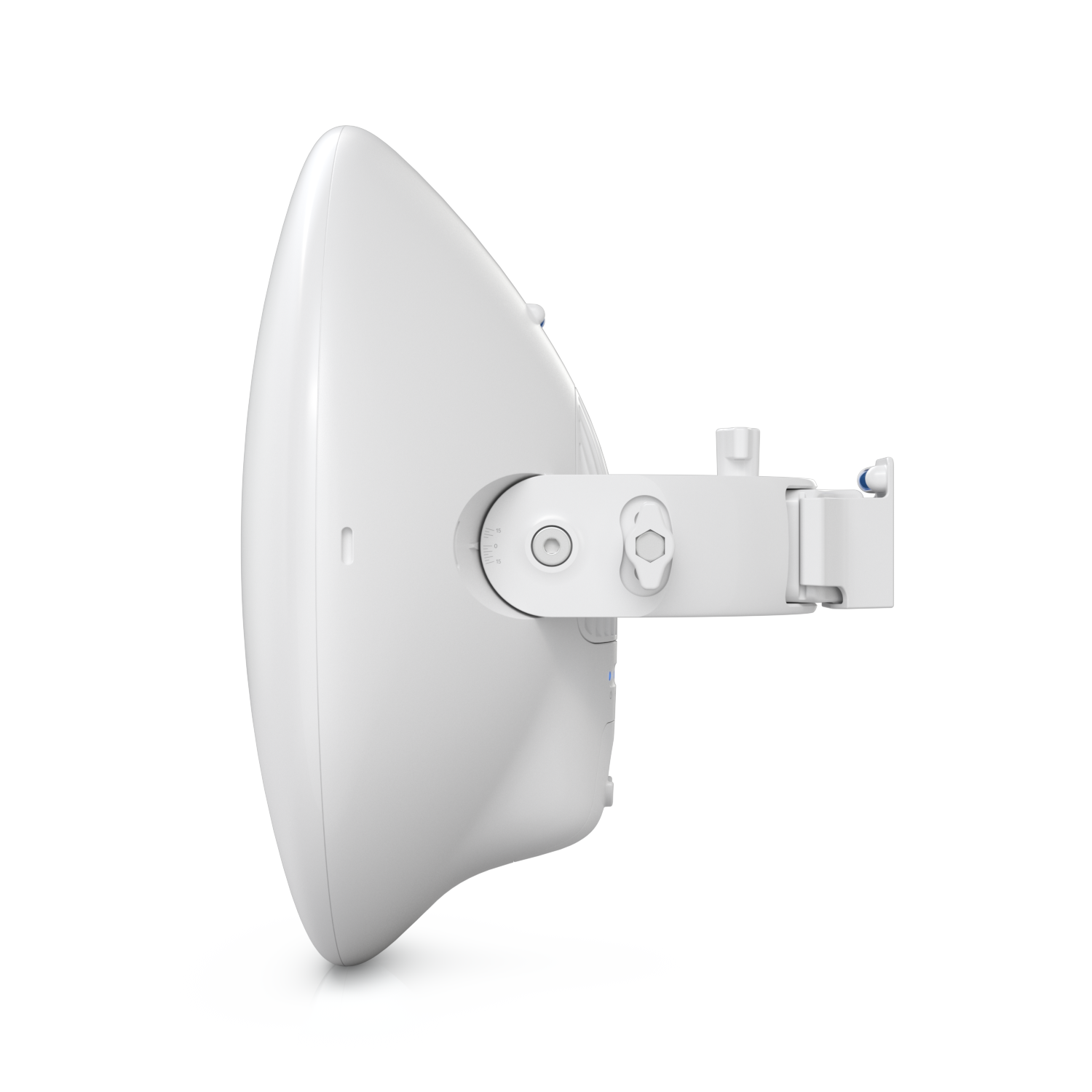

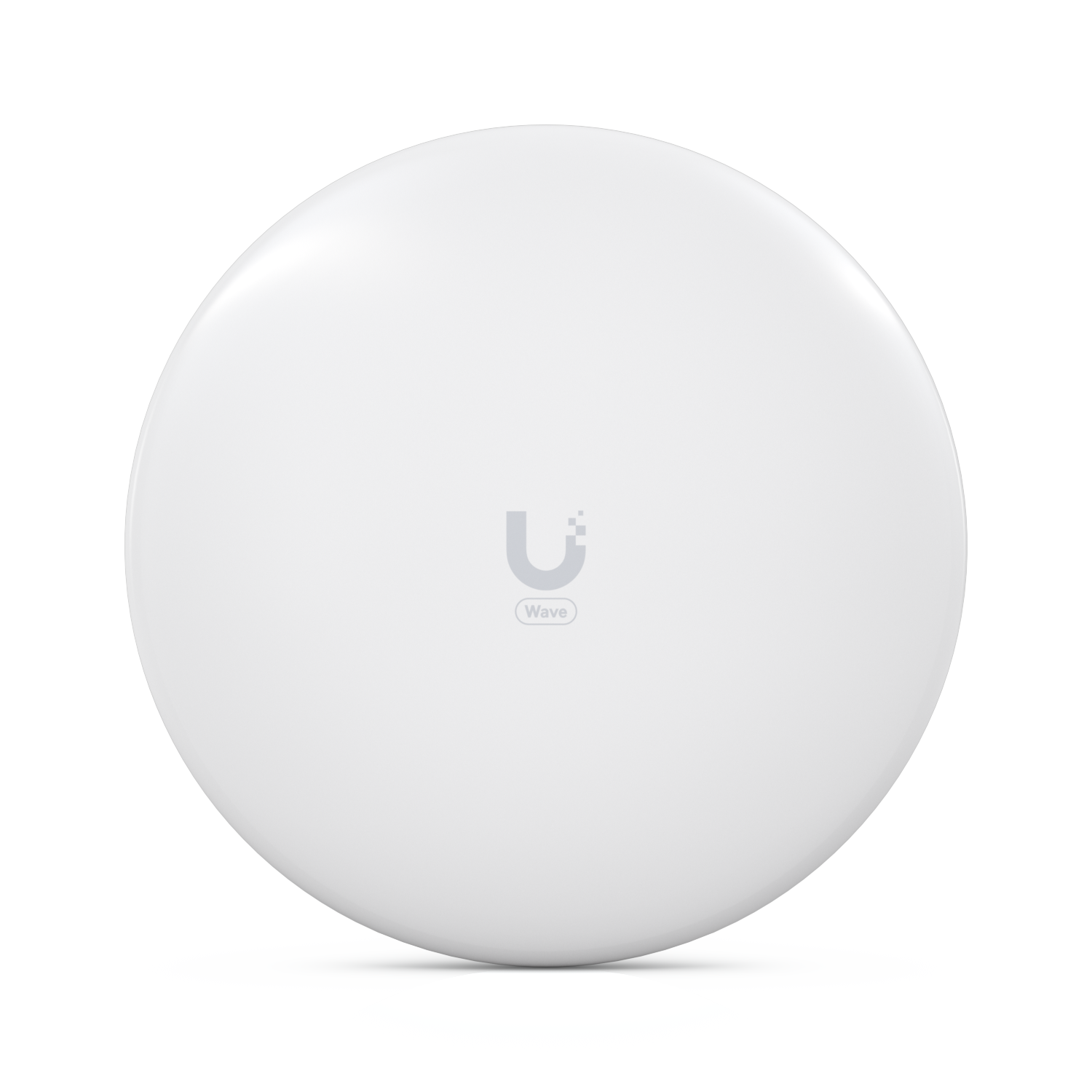

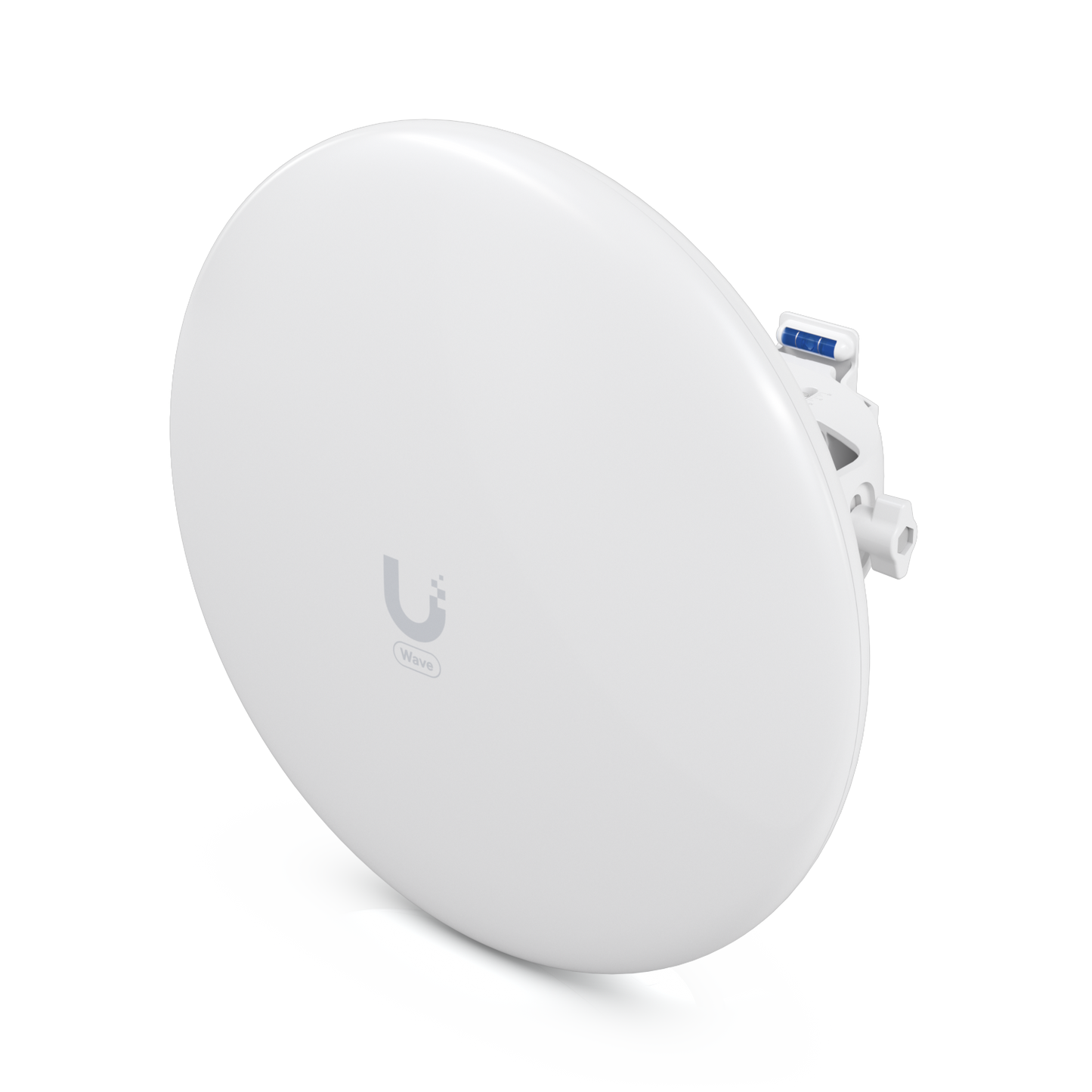

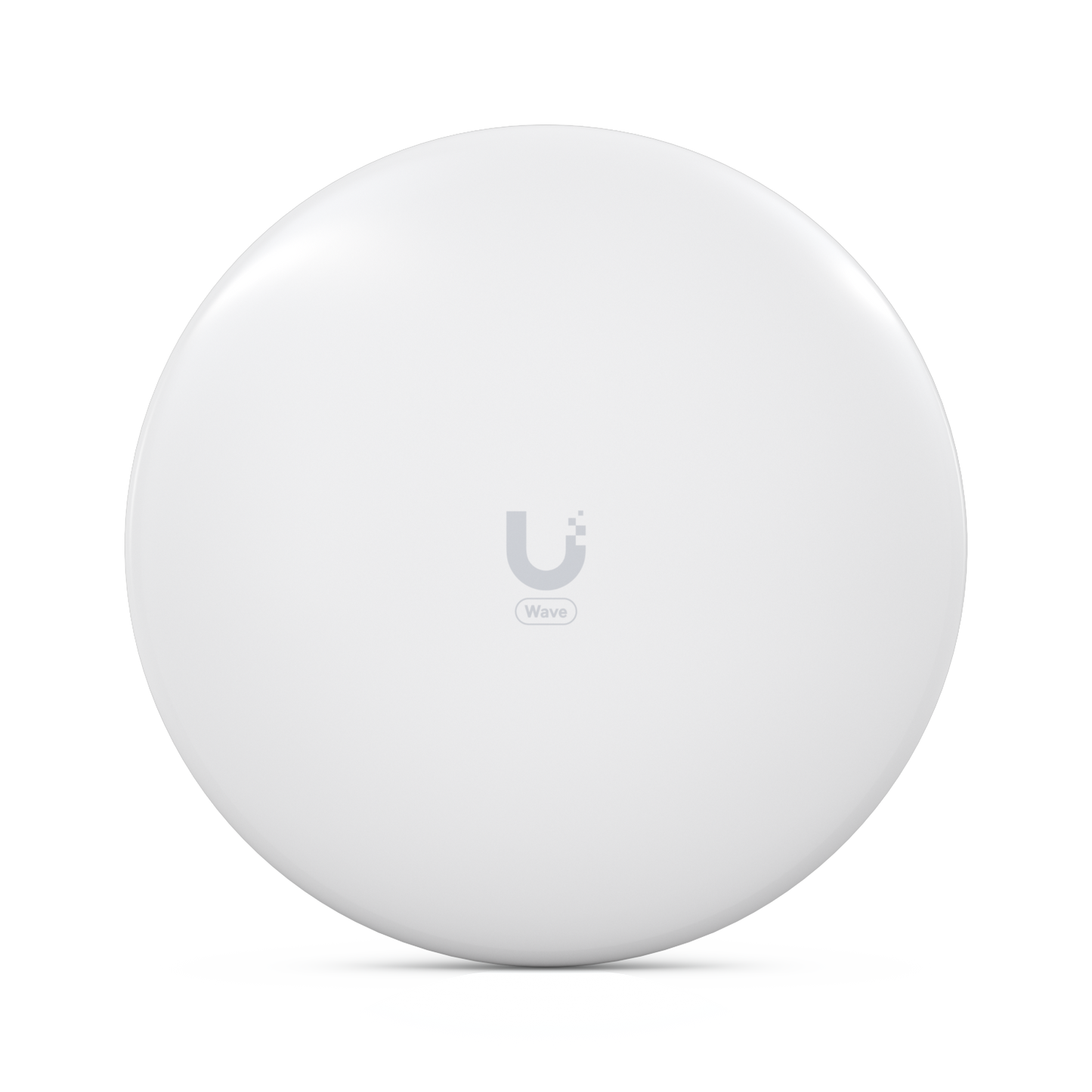

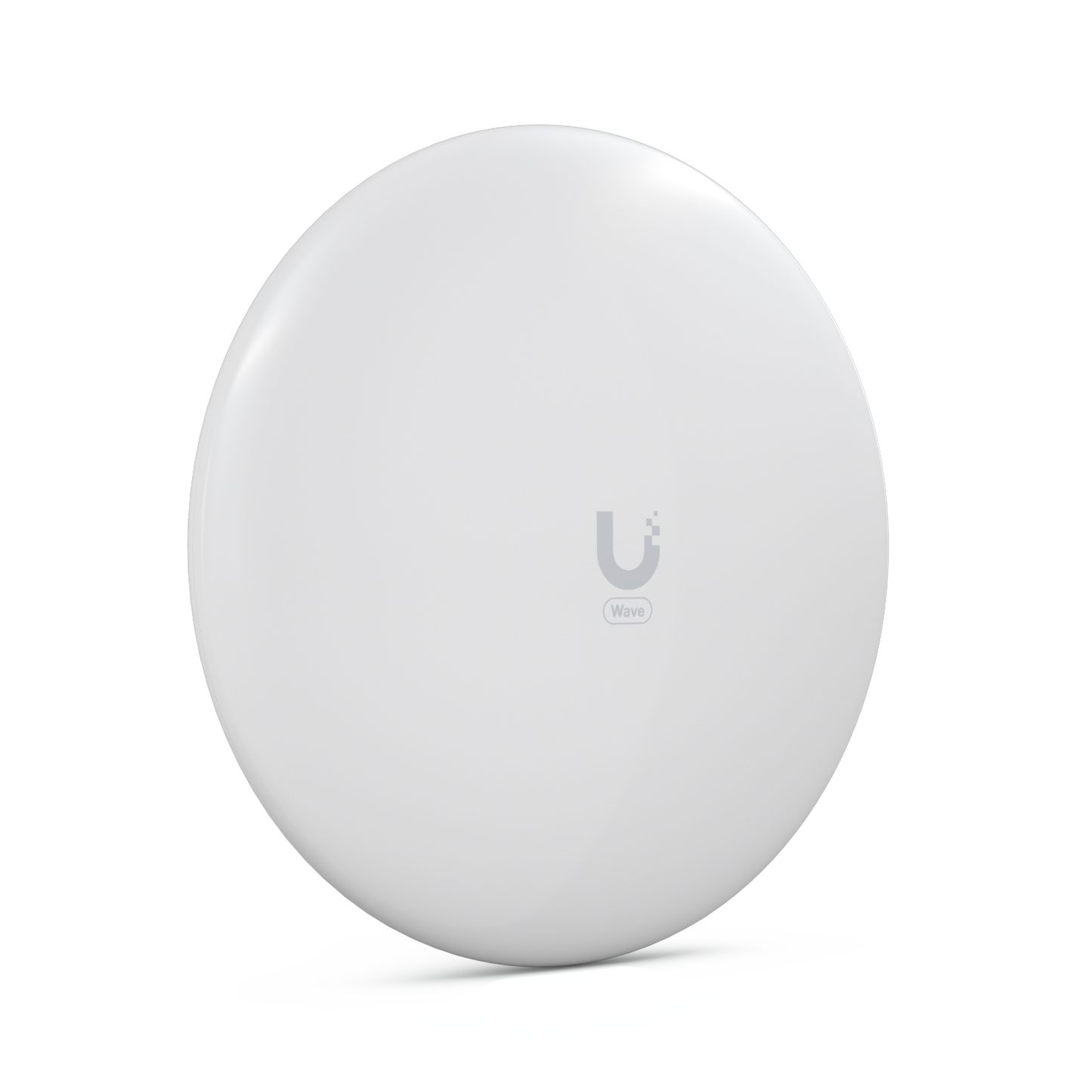

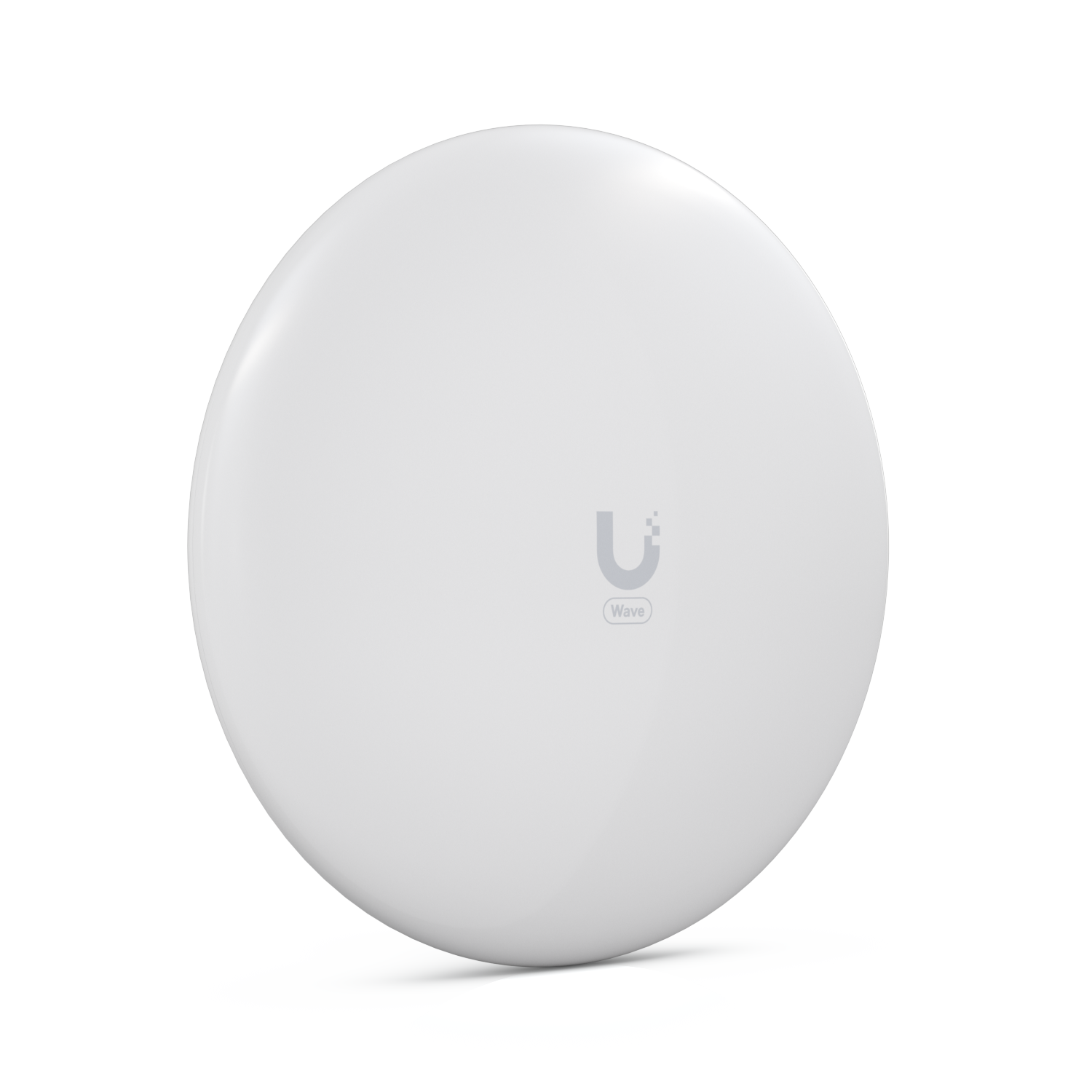

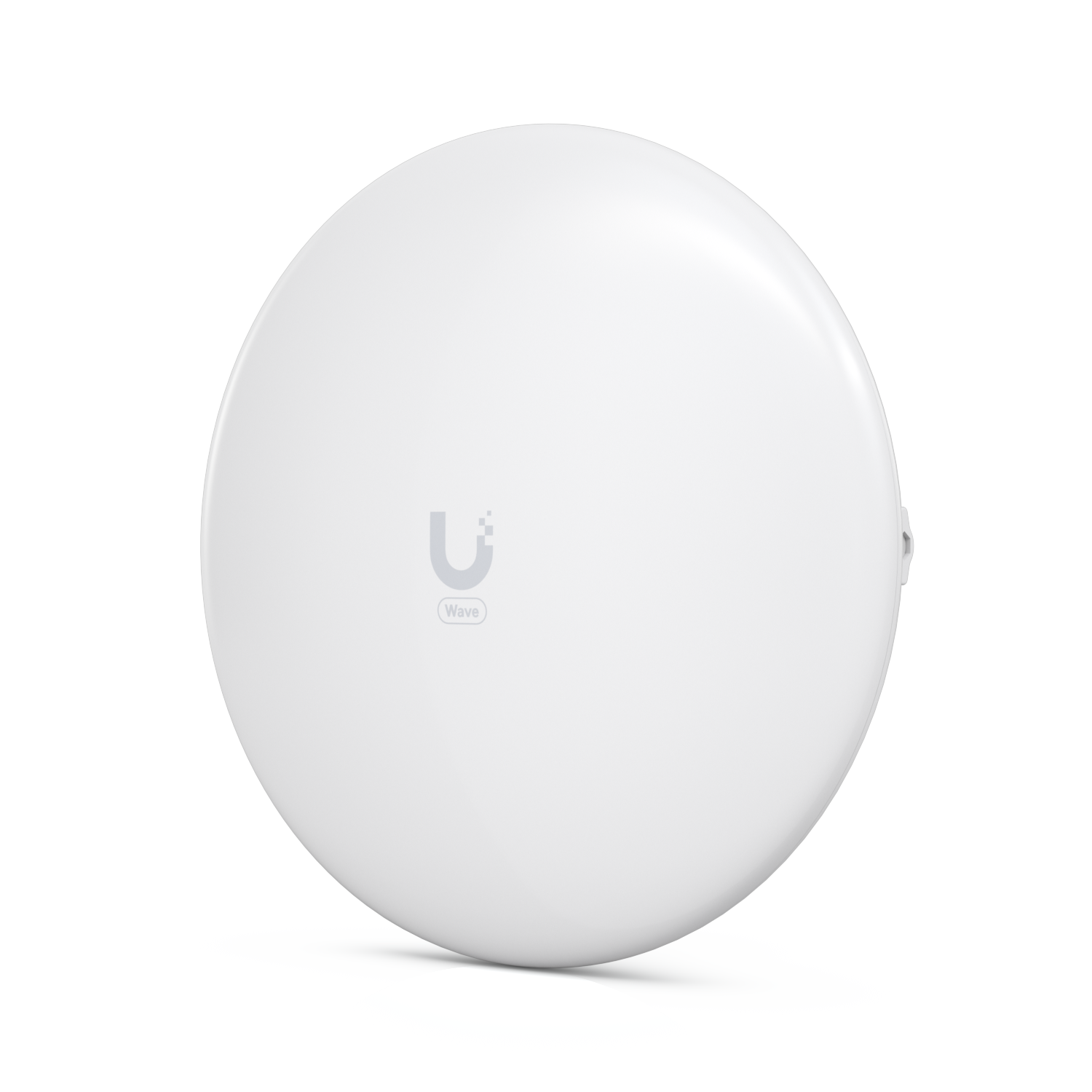

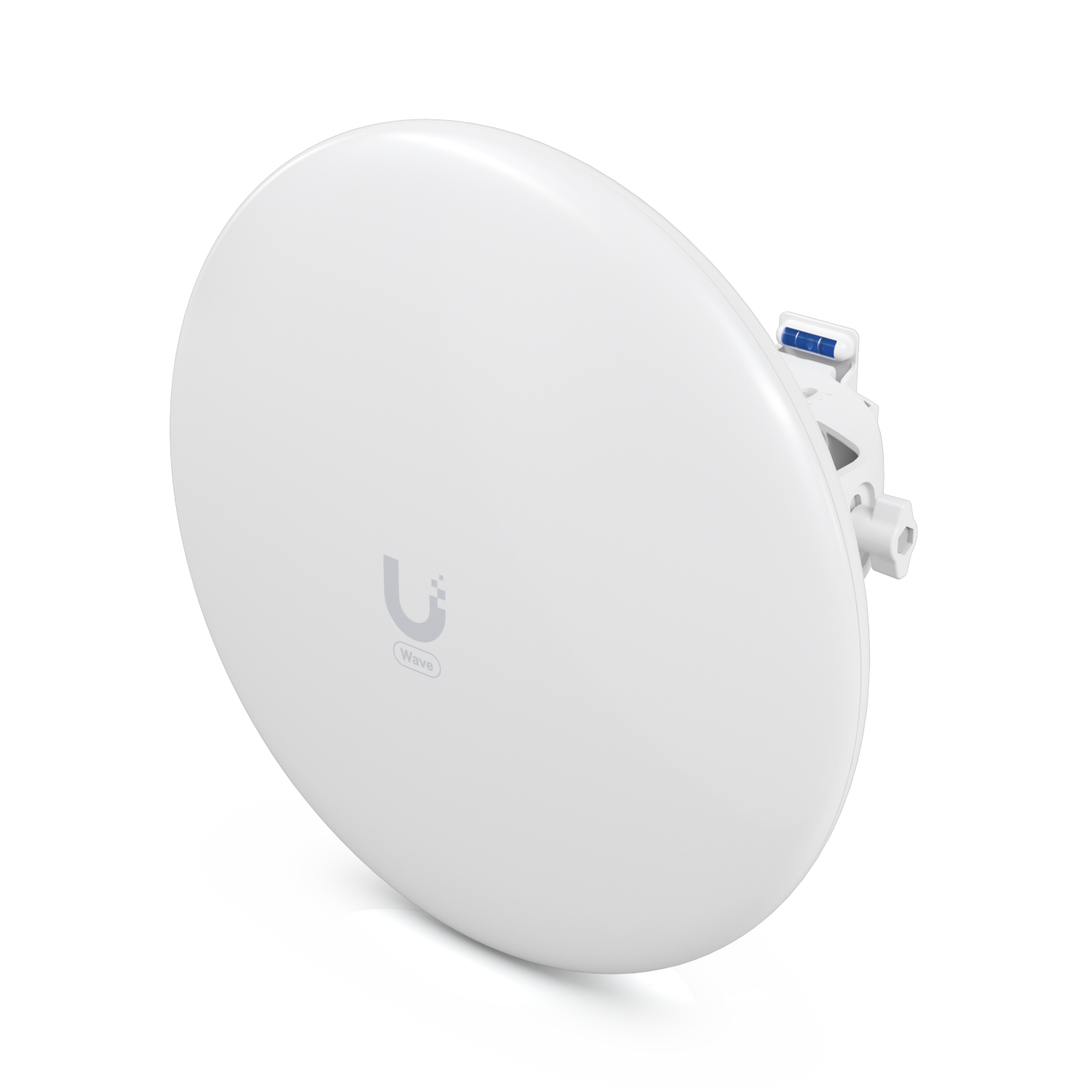

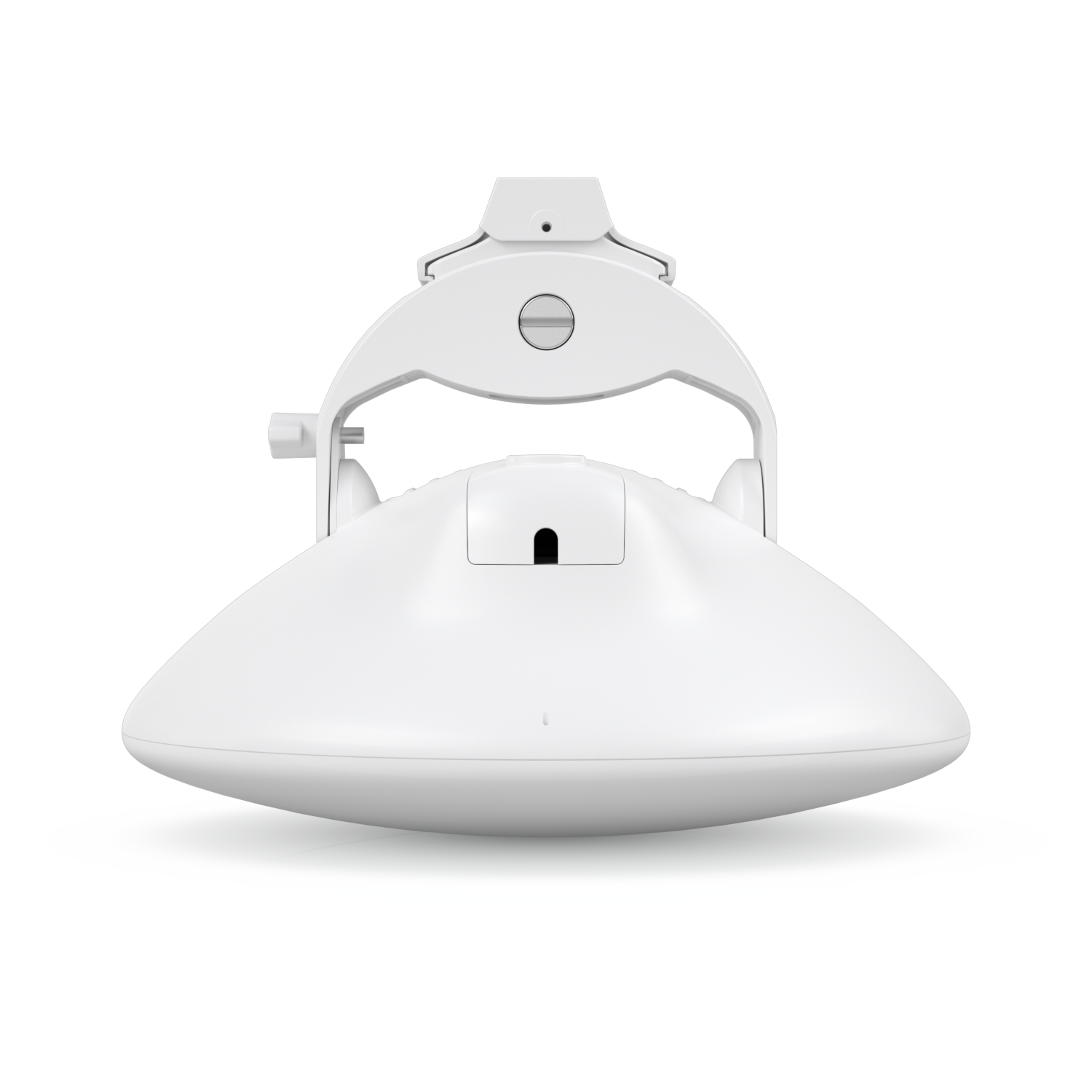

UISP Wave Nano 60 GHz PtMP Station
Ubiquiti UISP Wave Nano 60 GHz PtMP Station
SKU:Wave-Nano
Regular price
$508.00
Regular price
$570.00
Sale price
$508.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Price includes 2-Year Warranty.
Learn more.
Sale ending soon! Limited promotional stock available — don’t miss out!
125 in stock and ready to ship today.
Couldn't load pickup availability
Australian Reseller | Australian Stock | Australian Warranty
60 GHz PtMP station powered by Wave Technology.
- Max. link range:
- Wave AP: 5 km,
- Wave AP Micro: 4 km.
- Max. total throughput: 2 Gbps (1 Gbps duplex).
- 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps).
- (1) GbE RJ45 port.
- Integrated GPS & Bluetooth.
| Mechanical | |
|---|---|
| Dimensions | Ø256.5 x 113.5 mm (Ø10.1 x 4.5") |
| Weight |
Without mount: 932 g (2.1 lb) With mount: 1.2 kg (2.6 lb) |
| Enclosure material | Aluminum alloy, UV stabilized plastic |
| Mount material | Aluminum alloy, UV stabilized plastic |
| Pole mount diameter | 25 to 63.5 mm (1 to 2.5") on pipe outer diameter |
| Wind loading | 127 N at 200 km/h (28.6 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Dual-core ARM Cortex-A53 at 1 GHz |
| Memory | DDR3L 512 MB |

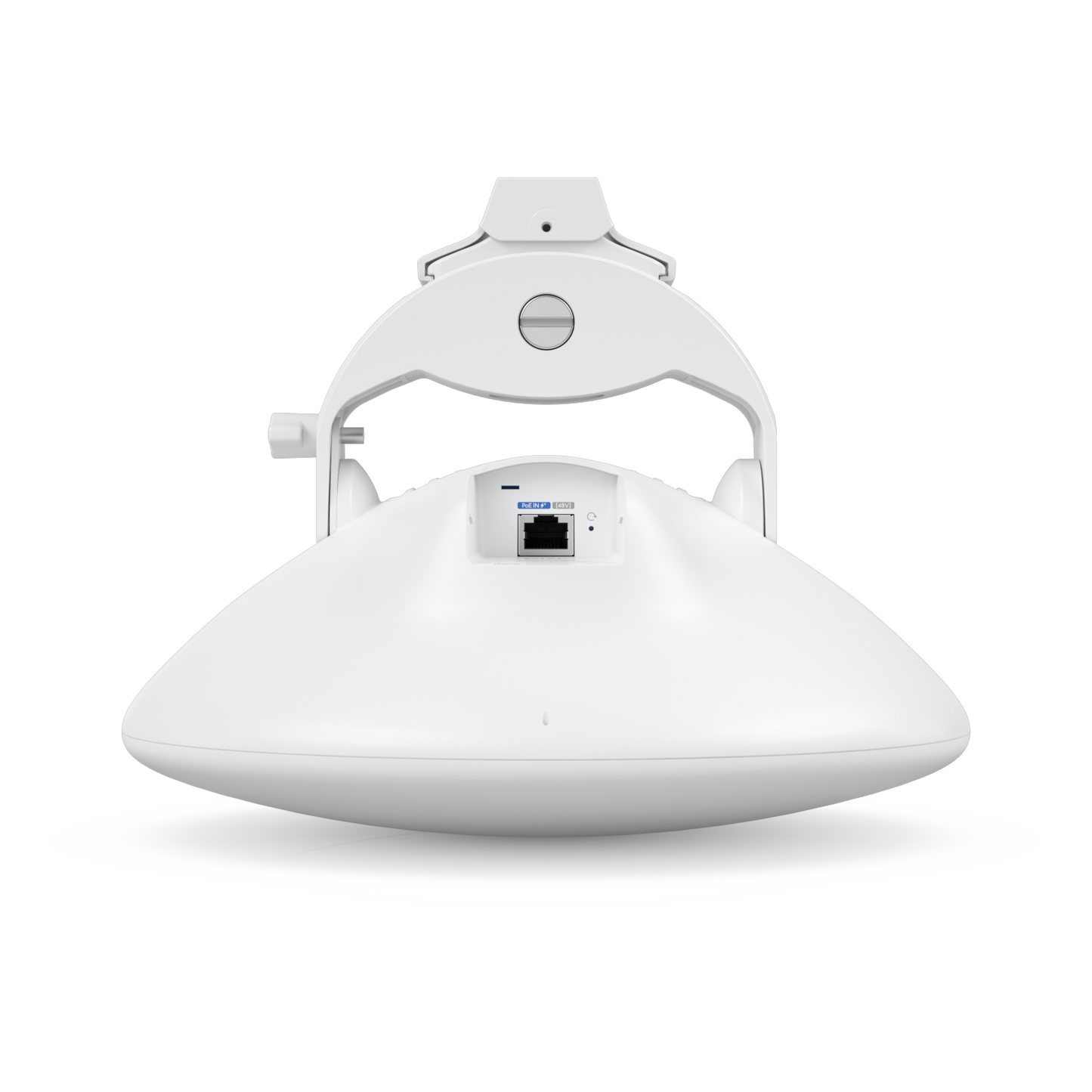

| Networking interface | (1) GbE RJ45 port |
| Max. power consumption | 20W |
| Power method |
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power supply |
48V DC, 0.65A gigabit PoE adapter (Included) Can be powered by a UISP Router or UISP Switch |
| Supported voltage range |
44–54V DC 22–27V DC |
| GPS | Yes |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS, link |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating mode |
PtMP station, PtP* *FW version 3.2.0 and later. |
| Ubiquiti specific features | Wave AI, discovery protocol |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools |
Antenna alignment, discovery utility, ping, trace route, speed test, cable test*, site survey* *FW version 3.3.0 and later. |
| Network |
Bridge/Router* mode *Router is available in PtMP station mode only. |
| Application requirements | UISP: Version 1.4.5 and later |
| System | |
| Total throughput | 2 Gbps (1 Gbps duplex) |
| Max. range | 5+ km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* |
57–71 GHz *Depends on regulatory region. |
| Channel bandwidth |
2160, 1080, 540* MHz *FW version 3.3.0 and later. |
| Operating channels* |
58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 41 dBi |
| Polarization | Vertically linear |
| Beamwidth |
Azimuth: 3 dB 1.4° Elevation: 3 dB 1.4° |
| Back-Up RF | |
| WiFi standard | 802.11ax (WiFi 6) |
|
Operating frequency* US/CA Worldwide |
U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz *Depends on regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna gain | 19 dBi |
| Polarization | Dual-linear |
| Beamwidth |
Azimuth: 3 dB 14° Elevation: 3 dB 14° |
| Cross-pol isolation | 20 dB |

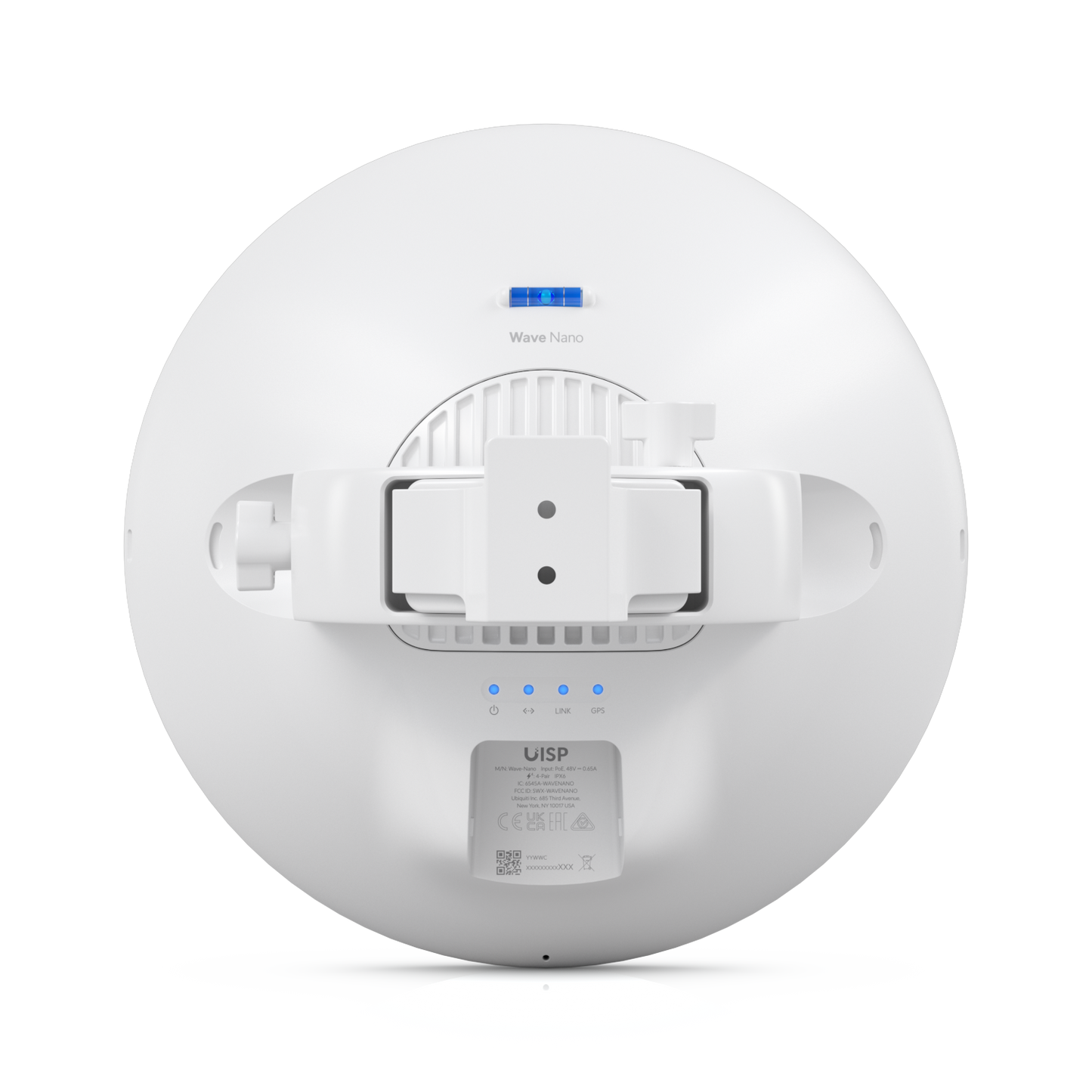

| LEDs | |
| Power |
Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
| Ethernet | Flashing blue: Ethernet traffic detected |
| GPS | Blue: receiving at least (4) GPS satellite signal |
| Links |
White: 5 GHz link Blue: 60 GHz link |
Visit Ubiquiti for more information.
