Ubiquiti
Ubiquiti

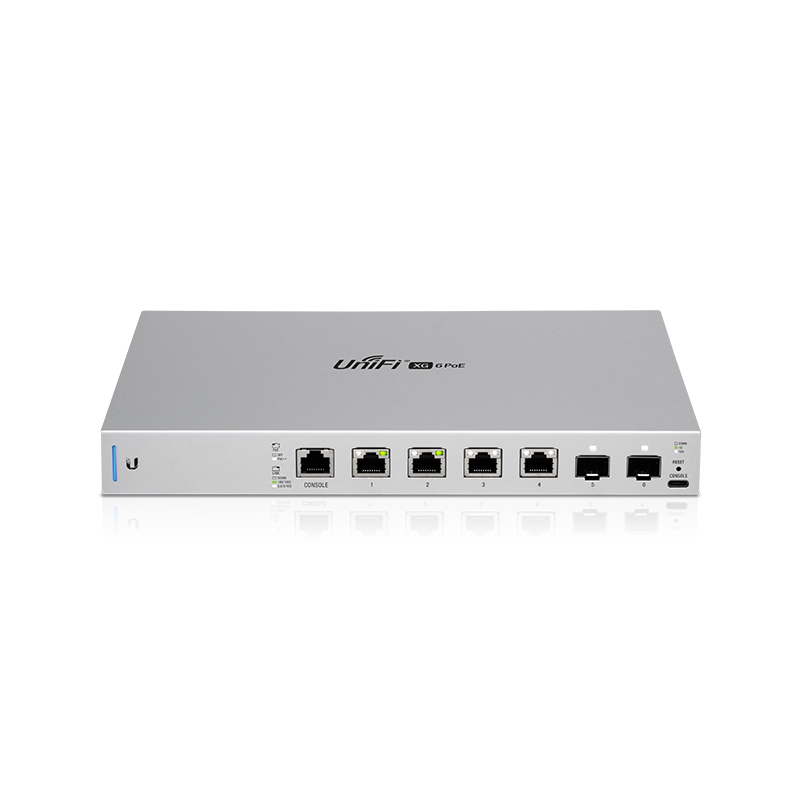

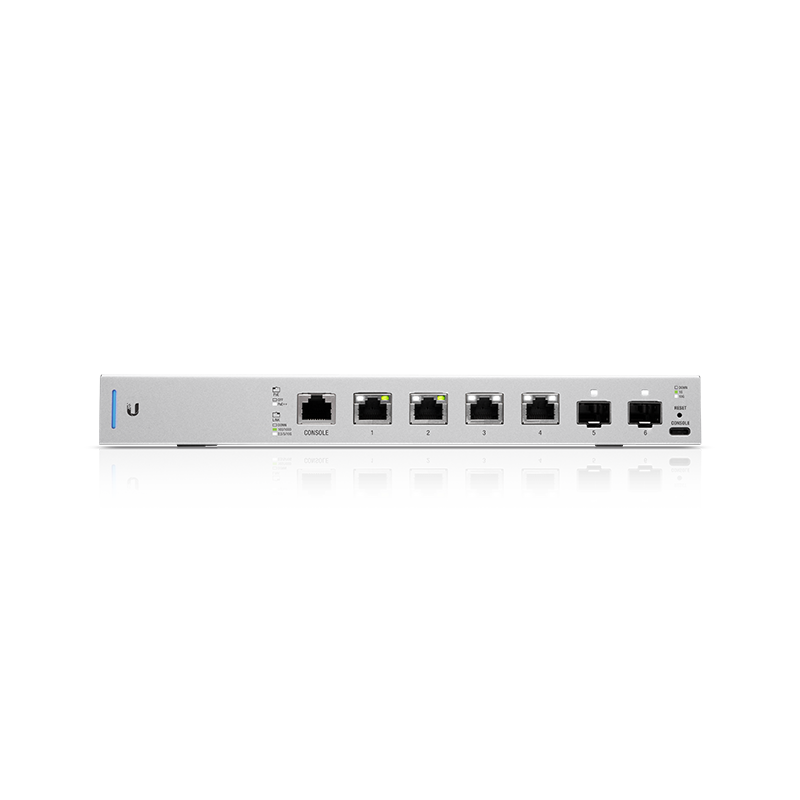

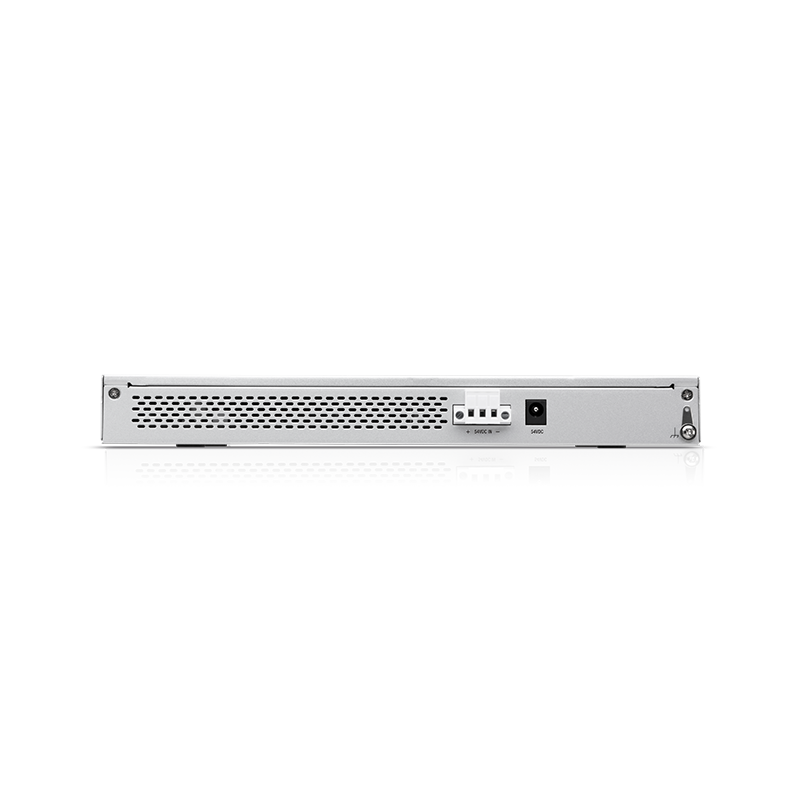

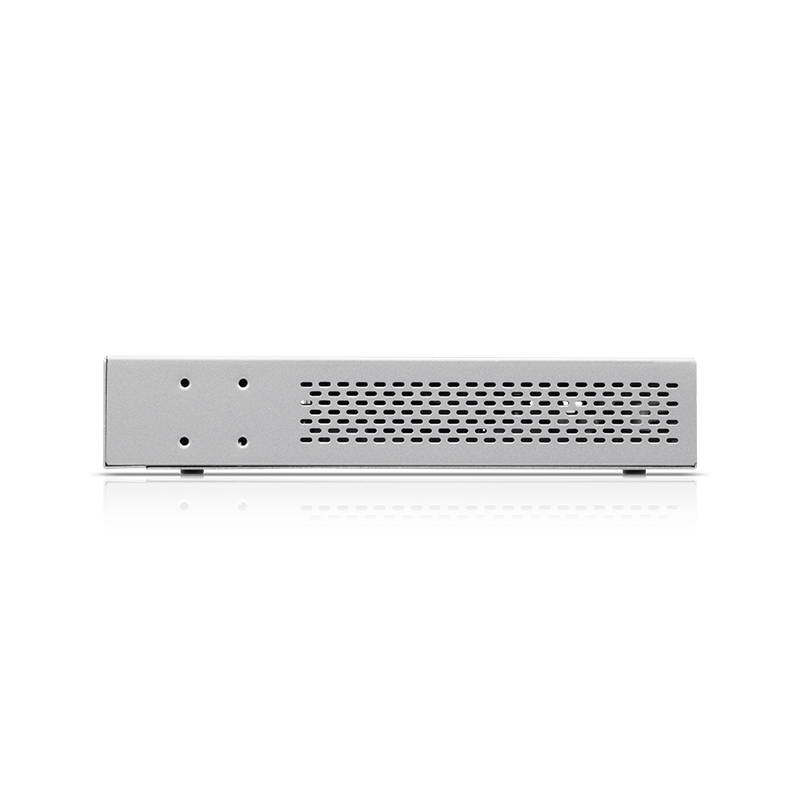

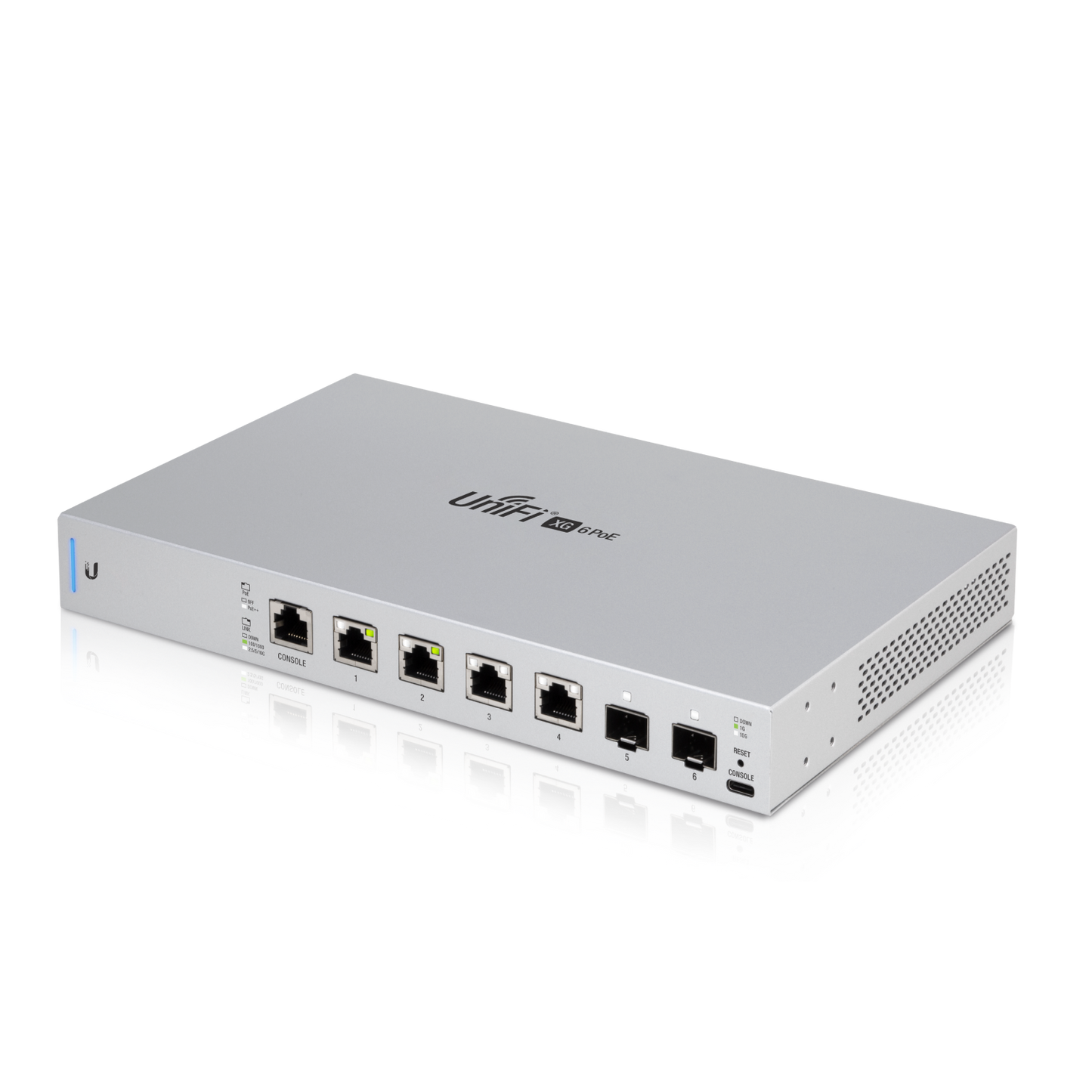

XG 6 PoE (Gen1) — UniFi Switching

XG 6 PoE (Gen1) — UniFi Switching

Regular price $1,330.00
Regular price $1,306.00 Sale price $1,330.00
-2% Off | Save $-24.00 Sold out
Taxes included. Shipping calculated at checkout.

SKU:US-XG-6POE

Out of stock

View full details

A Layer 3, PoE switch with (4) 10 GbE, PoE++ RJ45 ports and (2) 10G SFP+ ports.

  • (4) 1/2.5/5/10 GbE PoE++ ports
  • (2) 10G SFP+ ports
  • 170W total PoE availability
  • Layer 3 switching
  • Wired DC backup power
Mechanical
Dimensions 165 x 268 x 32 mm (6.5 x 10.6 x 1.3")
Weight 1.3 kg (2.9 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
(1) RJ45 Serial port Out-of-Band
(1) USB Type C port Out-of-Band
Networking interface (4) 1/2.5/5/10 GbE RJ45 ports
(2) 1/10G SFP+ ports
PoE interface (4) PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 60 Gbps
Switching capacity 120 Gbps
Forwarding rate 89.3 Mpps
Power method (1) 54V DC, 3.88A power adapter (Included)
(1) DC input with terminal block
Power supply External AC/DC adapter (Included)
DC power source
Supported voltage range 44–57V DC
Max. power consumption 40W (Excluding PoE output)
Total available PoE 170W
Max. PoE wattage per port by PSE PoE++: 60W
Voltage range PoE mode PoE: 44–57V
PoE+/PoE++: 50—57V
ESD/EMP protection Air: ± 18kV, contact: ± 12kV
Ambient operating temperature -5 to 45° C (23 to 113° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet PoE
Link/Speed/Activity
SFP+ Link/Activity
