Ubiquiti
Ubiquiti

UISP Fiber XGS — UISP XGS-PON

UISP Fiber XGS — UISP XGS-PON

Regular price $272.00
Regular price $287.00 Sale price $272.00
5% Off | Save $15.00 Sold out
Taxes included. Shipping calculated at checkout.

SKU:UISP-FIBER-XGS

In stock

View full details

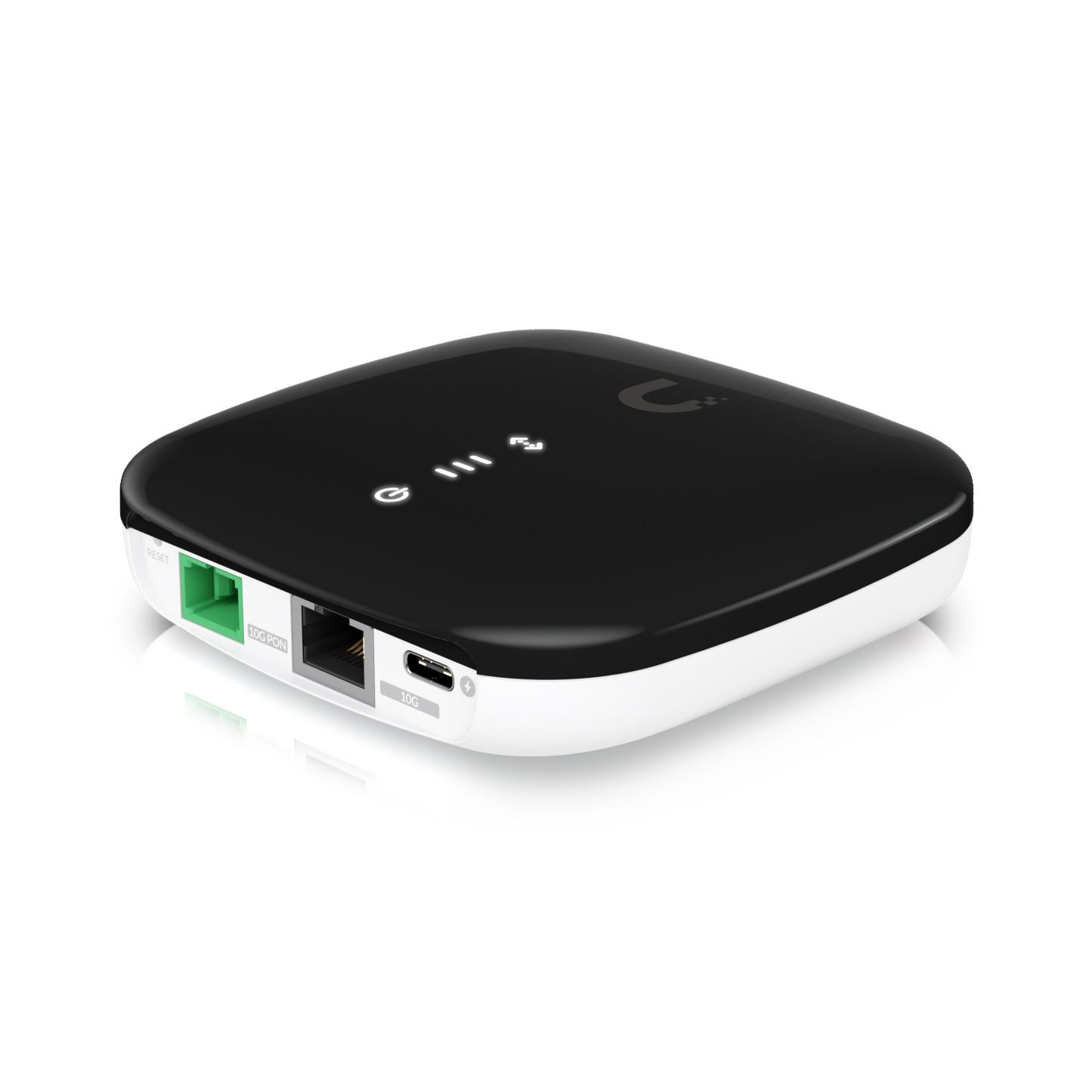

An optical network unit capable of delivering 10 Gbps uplink/downlink speeds over distances up to 20 km.

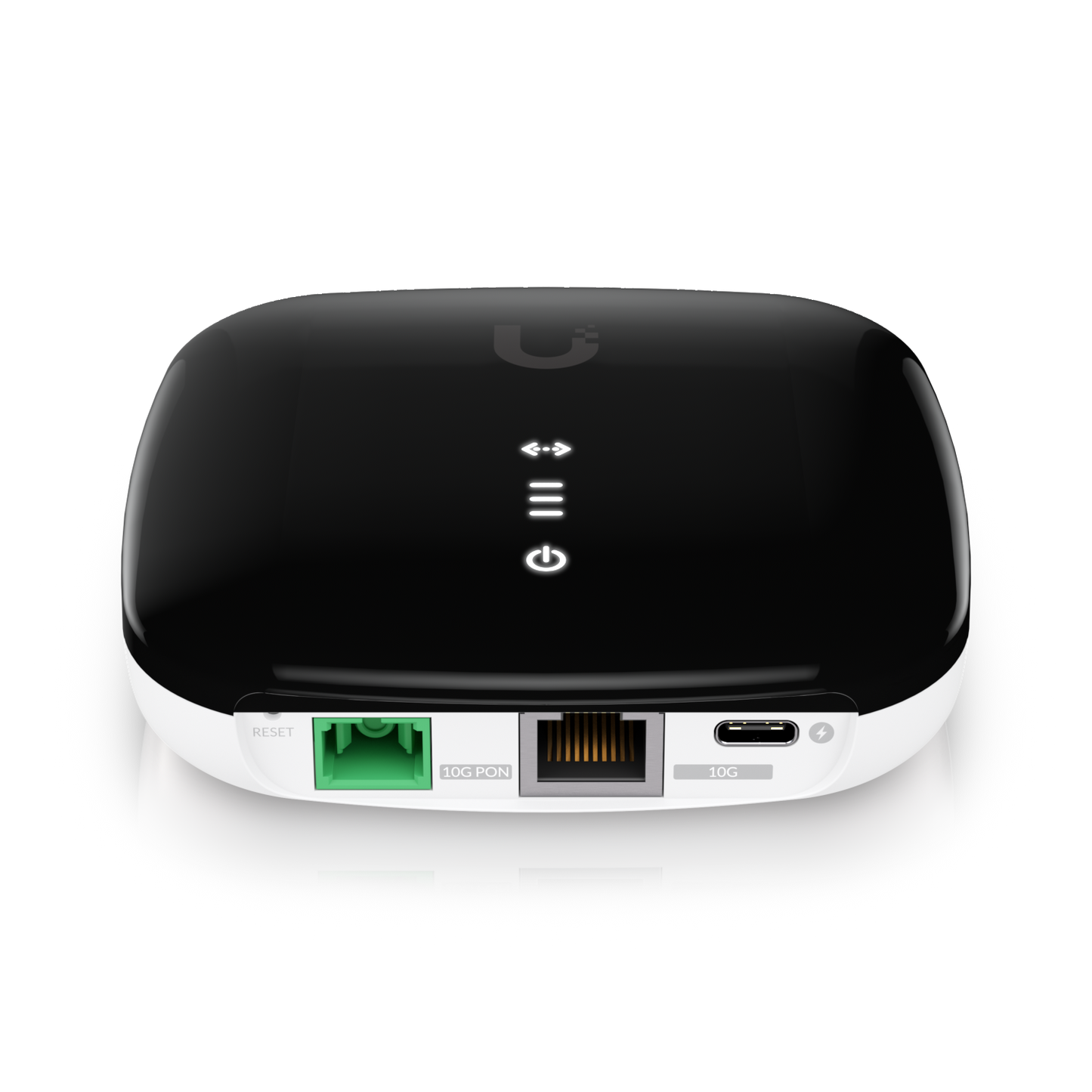

  • (1) XGS-PON port
  • (1) 10GbE RJ45 LAN port

Note. This device is only compatible with the Fiber XGS OLT. It cannot be used with third-party OLTs.

Mechanical
Dimensions 100 x 100 x 27 mm (3.9 x 3.9 x 1.1")
Weight 220 g (0.49 lb)
Enclosure material UV-stabilized polycarbonate
Hardware
Networking interface (1) SC/APC, ITU-G.9807 XGSPON WAN port
(1) 100/1,000/2,500/5,000/10,000 MbE RJ45 LAN ports
Management interface Ethernet in-band
PON
Memory 256 MB DDR
Onboard flash storage 32 MB NOR
Max. power consumption 8W
Power method USB-C 5V DC, 3A
Power supply 5V DC, 3A power adapter
Supported voltage range 5V DC power adapter
Total non-blocking line rate Downstream: 9.95 Gbit/s
Upstream: 9.95 Gbit/s
Normal TX range of optical module 4 to 9dBm
Normal RX range of optical module -9 to -26dBm
Button (1) Factory reset
Ambient operating temperature -15 to 45° C (5 to 113° F)
Ambient operating humidity 10 to 95% non-condensing
Certifications CE, FCC, IC
Fiber
Operating wavelength TX: 1,270nm
RX: 1,577nm
Line code Scrambled NRZ
Physical reach 20 km

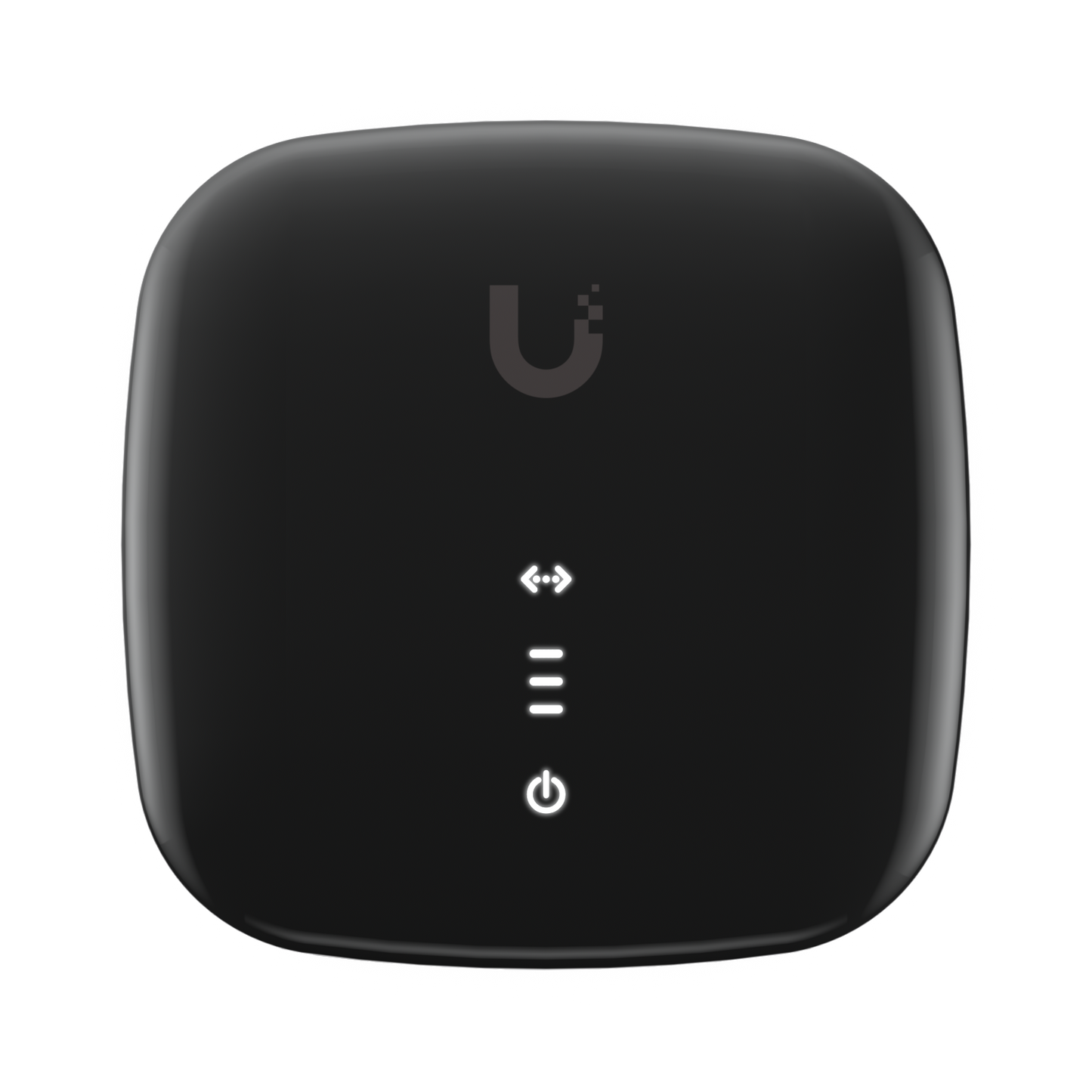

LEDs
Power White: ON
Ethernet Steady white: link up
Blinking white: activity
OFF: link down
PON status (3) signal LEDs
All-OFF: bootup
1x orange: signal too low (< -27 dbm)
1x white: signal low (>= -27 dbm)
2x white: signal good (>= -24 dbm)
3x white: signal strong (>= -12 dbm)
1x orange + 2x white: signal too strong (>= -9 dbm)
3x orange: no signal
LEDs alternate between orange + white + orange and a signal strength indicator: no authority
Software
Management application UISP: Version 1.5.7 and later
