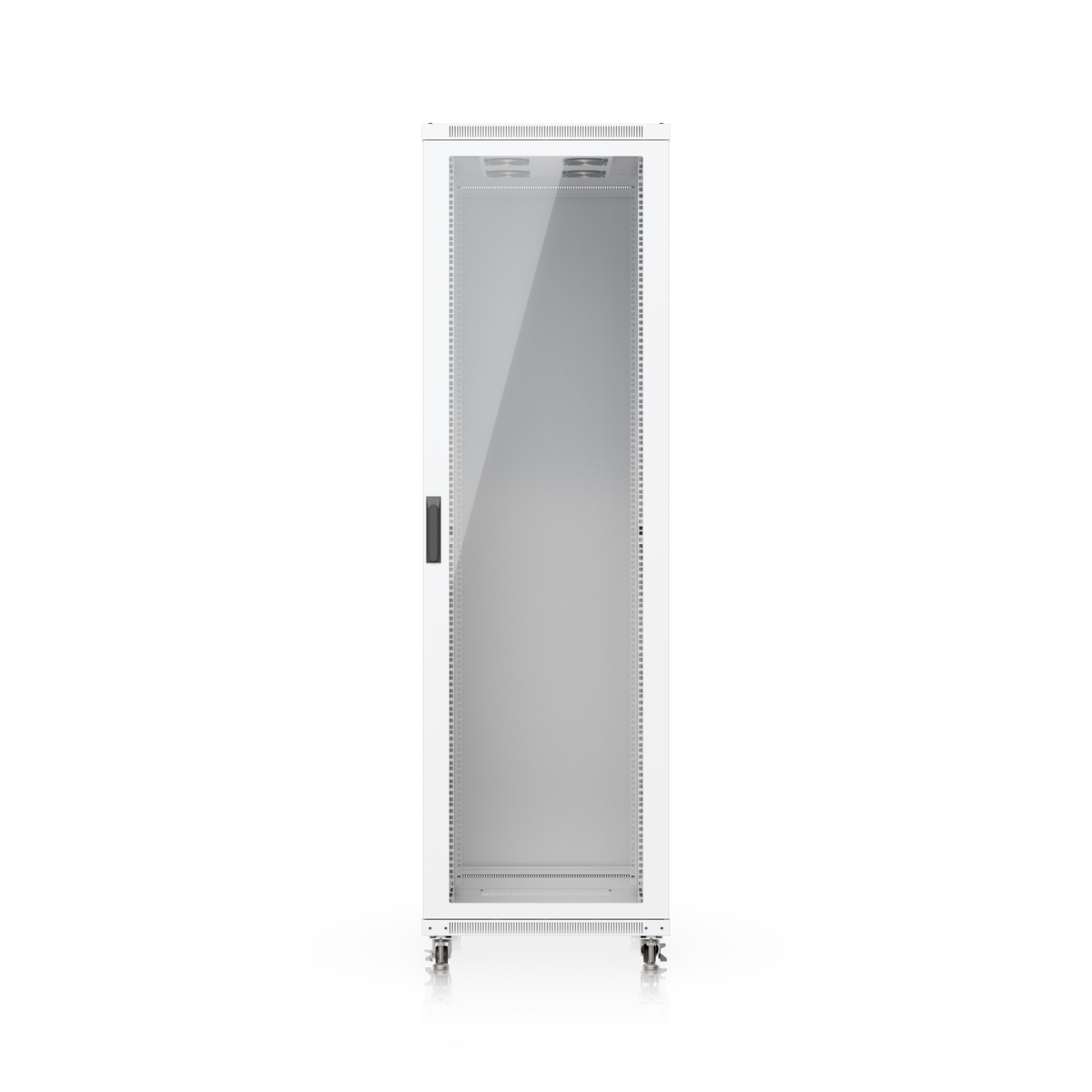

UniFi 1000mm 42U Rack Cabinet 800kg with Glass Front Door

The Ubiquiti UACC-Rack-42U-1000-G is a fully assembled 42U floor-standing rack cabinet with a 1000mm depth, an 800kg static load rating and a tempered glass front door. Four pre-installed AC fan modules, lockable removable side panels and integrated cable management make it a complete, deployment-ready home for your UniFi switching, gateway and server hardware.

Key Features

• 42U of usable height in a 4-post enclosed cabinet, 600 × 1000 × 2050 mm with casters.
• 800kg static load capacity (320kg rolling) on an SPCC steel frame with 2mm posts.
• Tempered glass front door for at-a-glance equipment visibility; reversible swing.

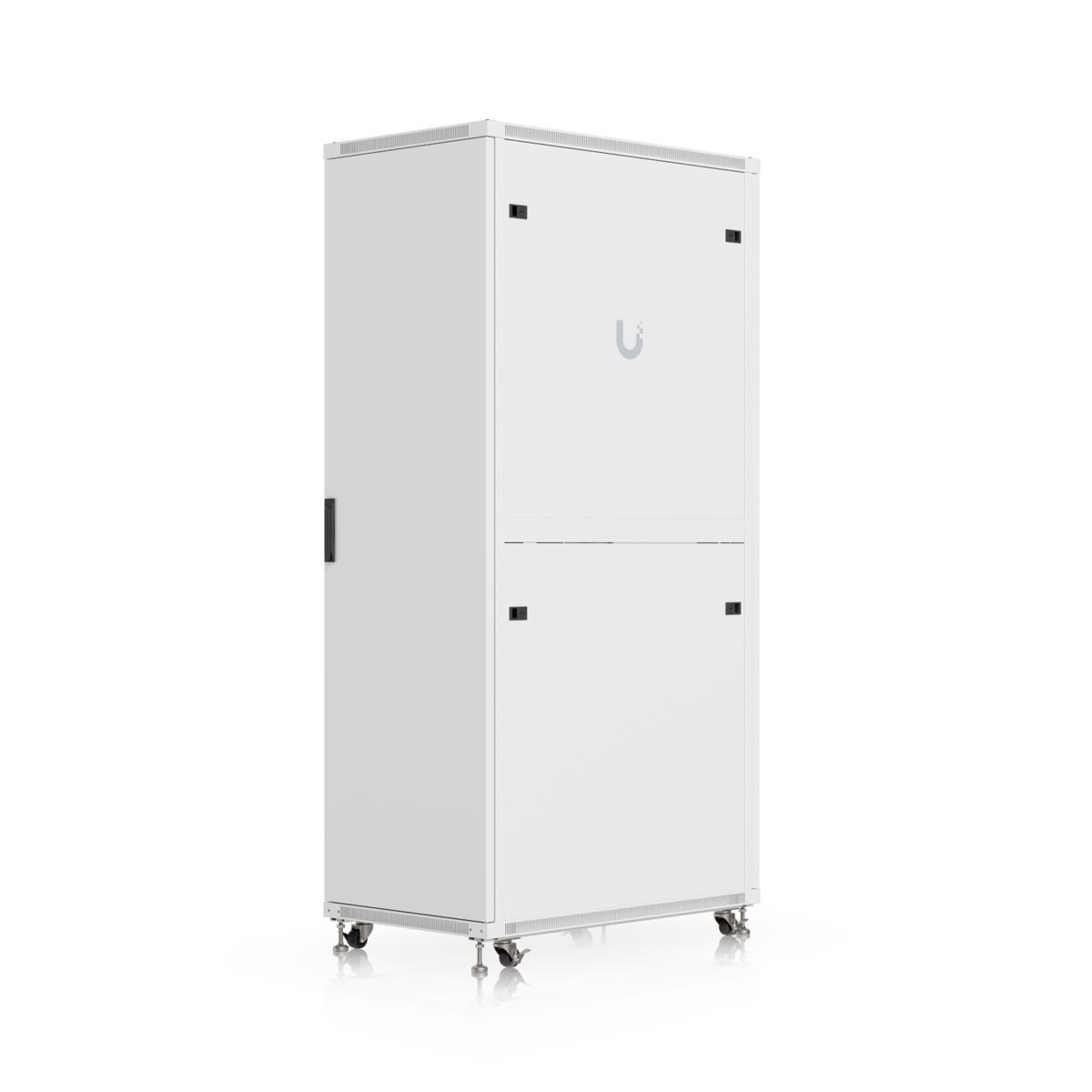

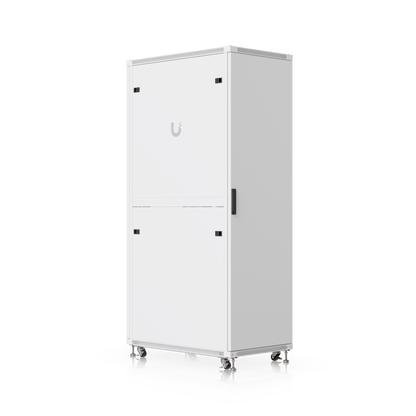

• Solid reversible rear door and four solid, removable, lockable side panels.
• Four pre-installed 120mm AC fan modules for active thermal management.
• Ships fully assembled — no build time on site.
• Adjustable mounting depth 652.3–877.3 mm in 15mm increments, square holes.
• 10 locking points total (front, rear, 8 side panels) with 3 keys supplied.

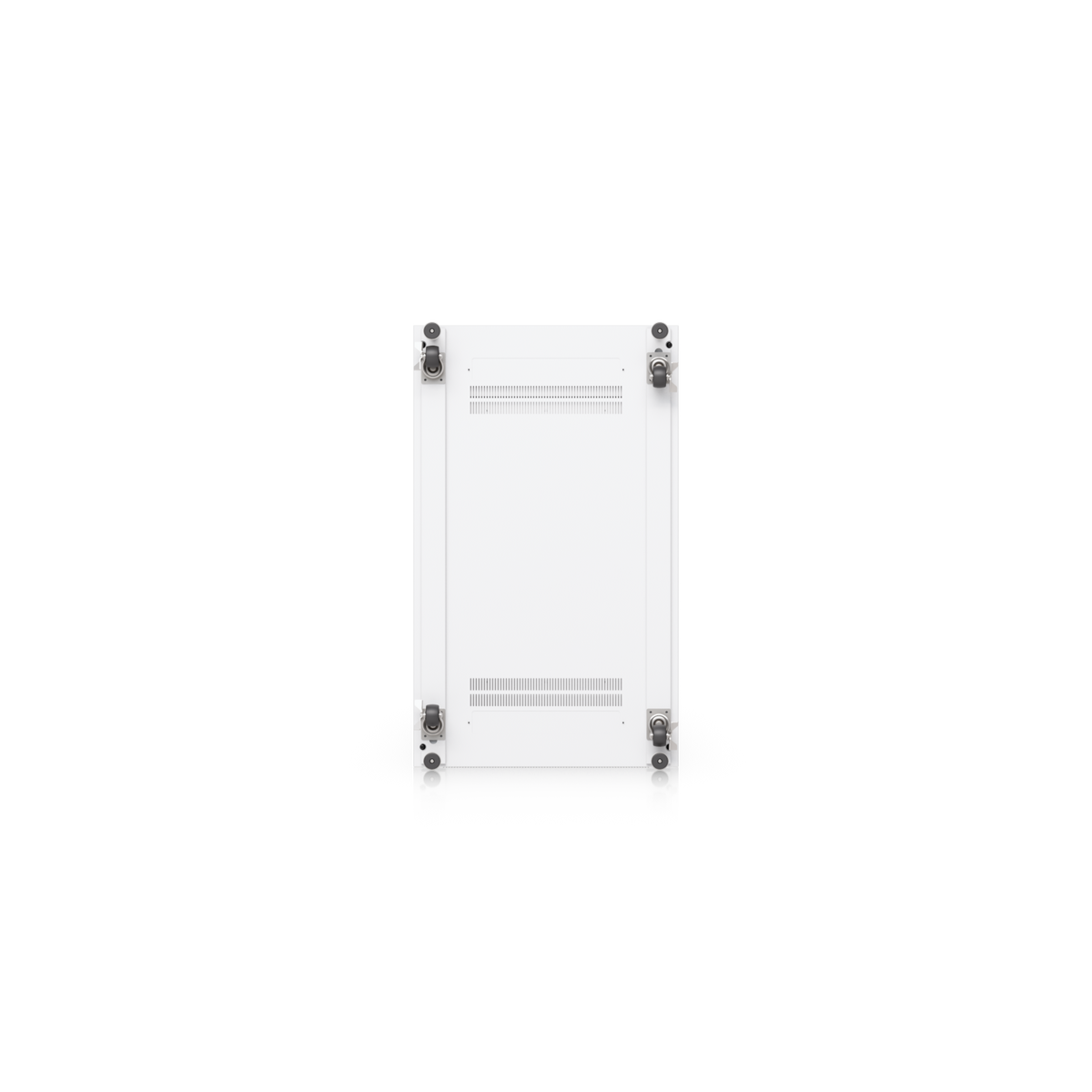

• Lockable casters, levelling stands, floor anchor and cabinet interconnect included.
• Four 335 × 52.5 mm cable entries (2 top, 2 bottom) plus vertical cable management.
• Integrated grounding lugs.
• NDAA compliant; CE, EIA/ECA-310-E and RoHS certified.

Rack-ready from the moment it lands

Most 42U cabinets arrive as a flat-pack puzzle and a lost afternoon. The Ubiquiti UACC-Rack-42U-1000-G ships fully assembled — roll it into position on its lockable casters, drop the levelling stands, and start mounting hardware. For integrators working to a schedule, that's an install window measured in minutes instead of hours.

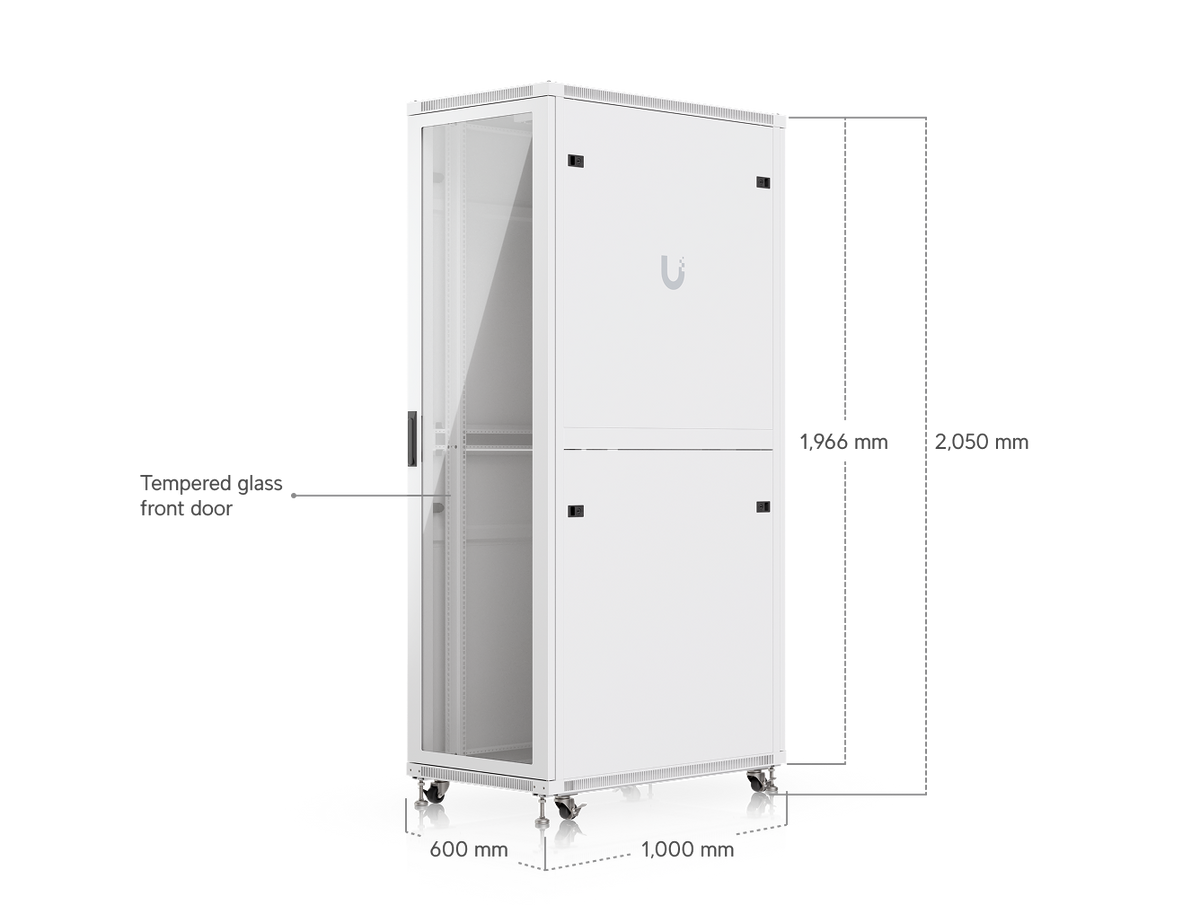

At 600 × 1000 × 2050 mm (with casters fitted), the cabinet delivers a full 42U of usable height with the extra rear depth you need for deep servers, patching, PDUs and cable slack — without cramming the back of the rack.

Built to carry serious weight

The frame is SPCC steel throughout, with 2mm posts, a 1mm main body and 1.2mm door and side panels, all powder-coated in white. That construction supports a static load of 800kg (1,764 lb), and 320kg (705 lb) while rolling, so a fully populated rack of switches, servers and UPS gear sits on a chassis engineered well past its working load.

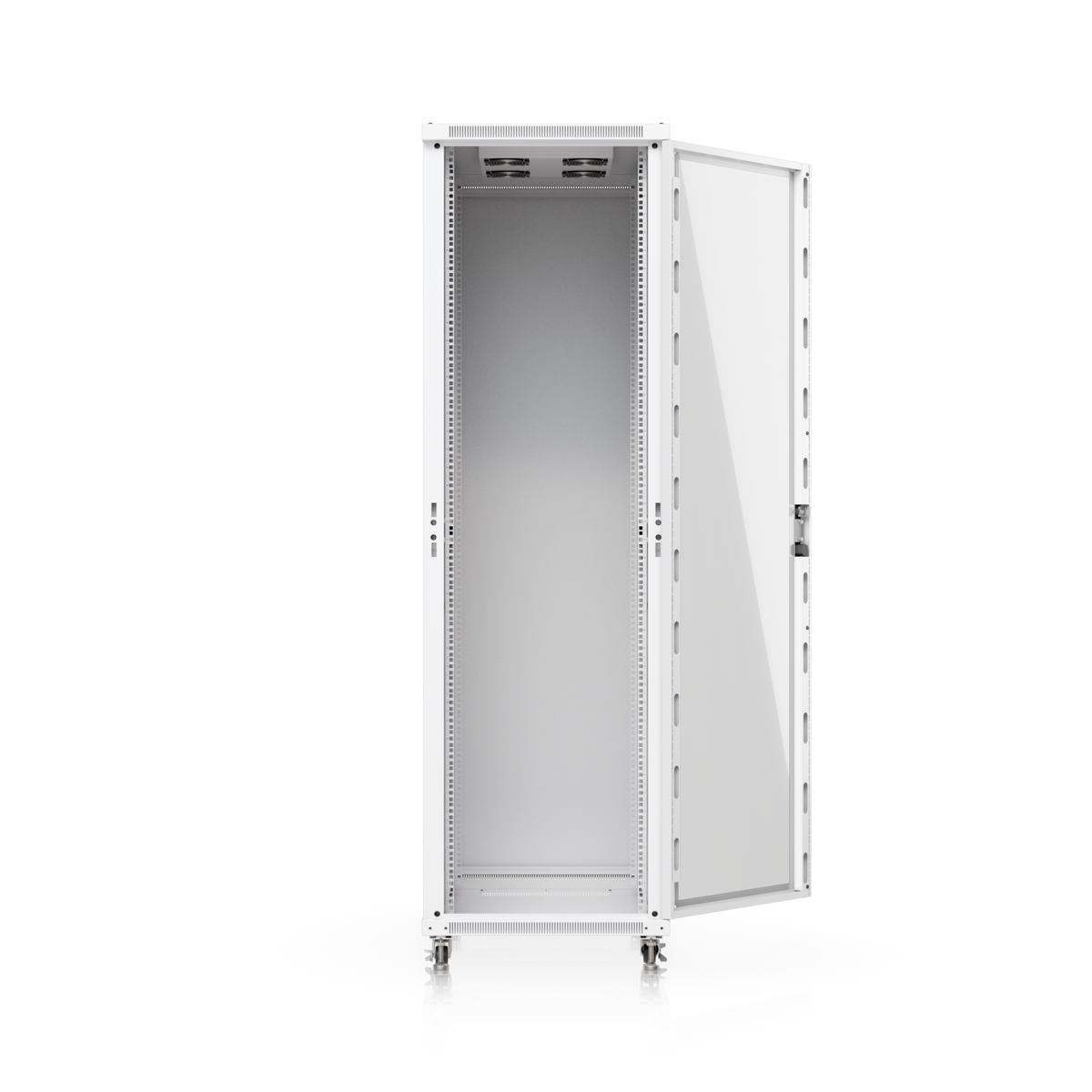

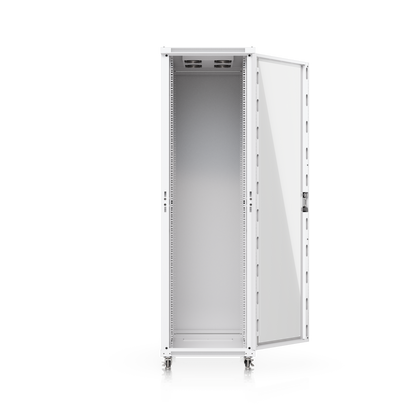

Mounting depth is adjustable from a 652.3mm default out to 877.3mm in 15mm increments, with standard square mounting holes to EIA/ECA-310-E — so anything built to the 19-inch standard drops straight in.

Airflow that's already handled

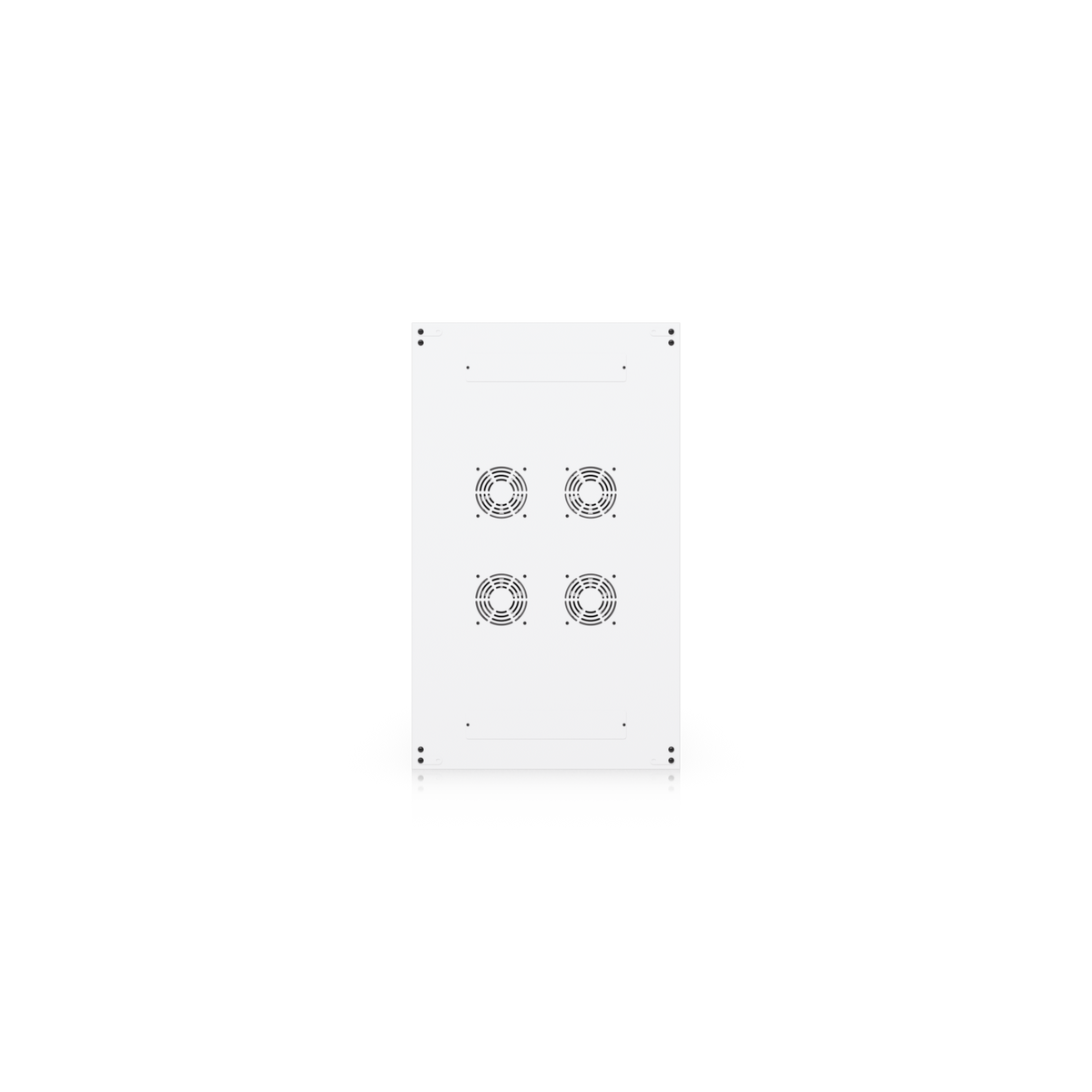

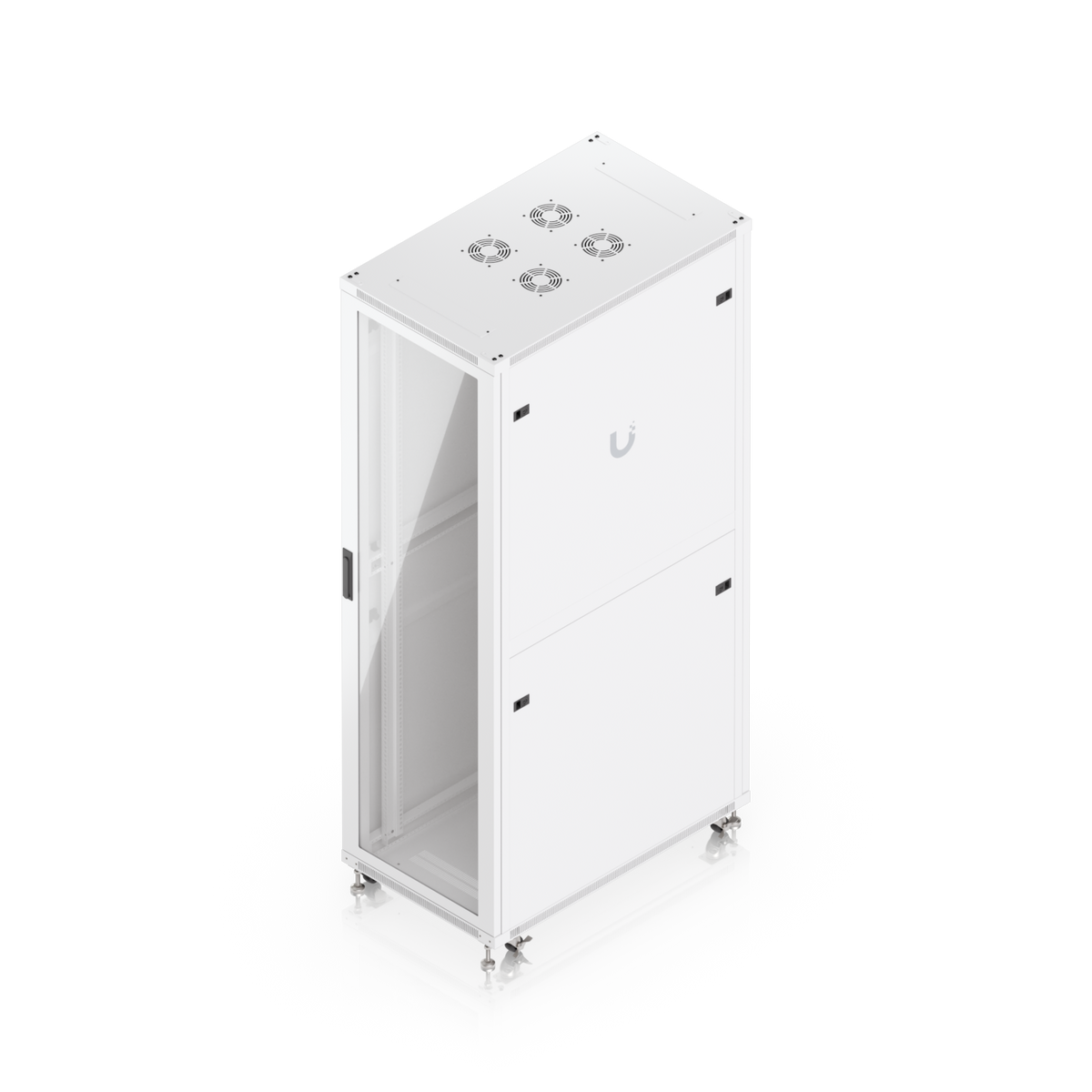

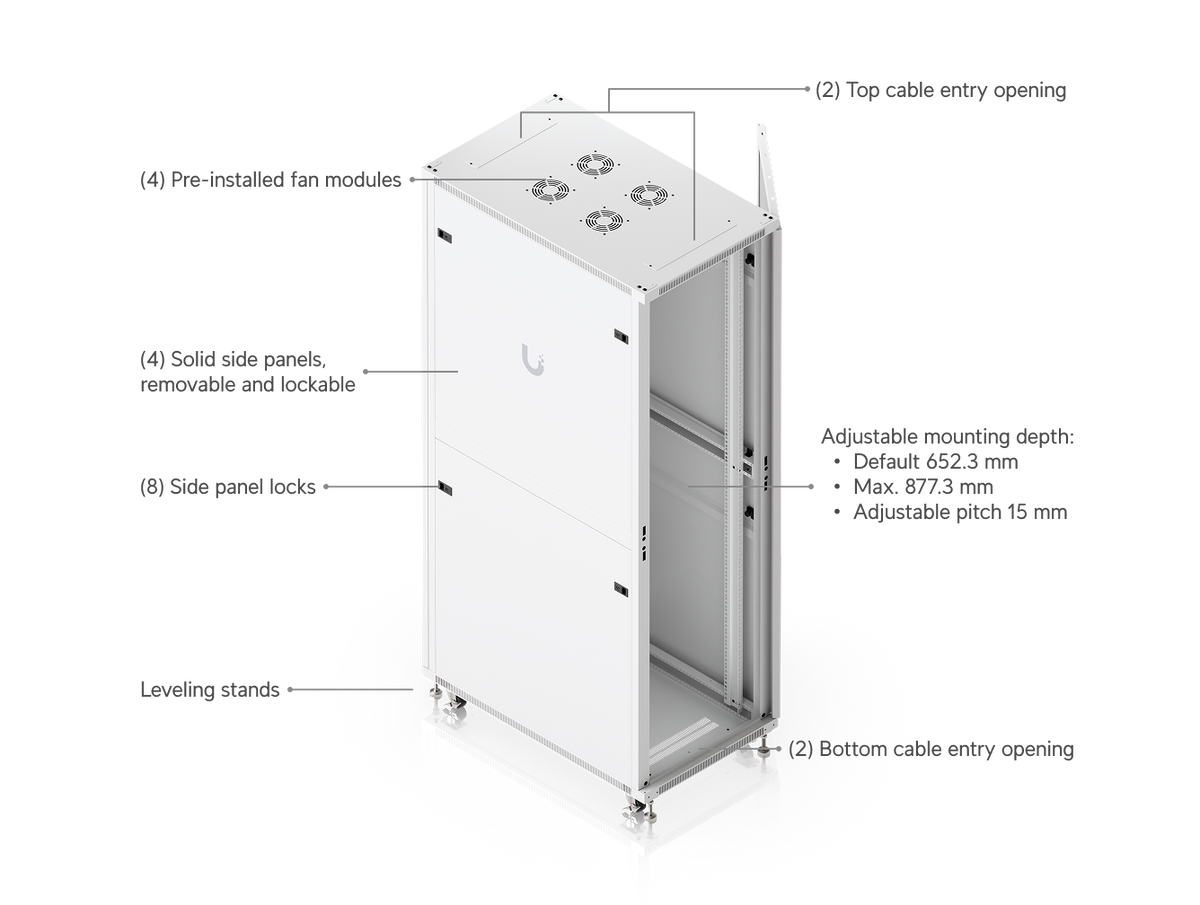

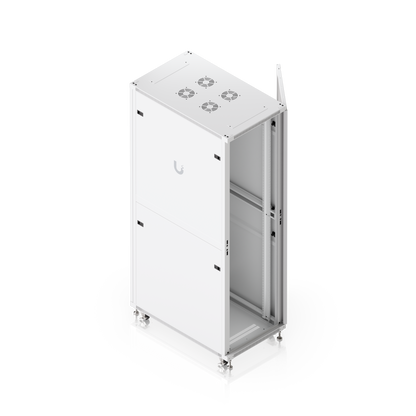

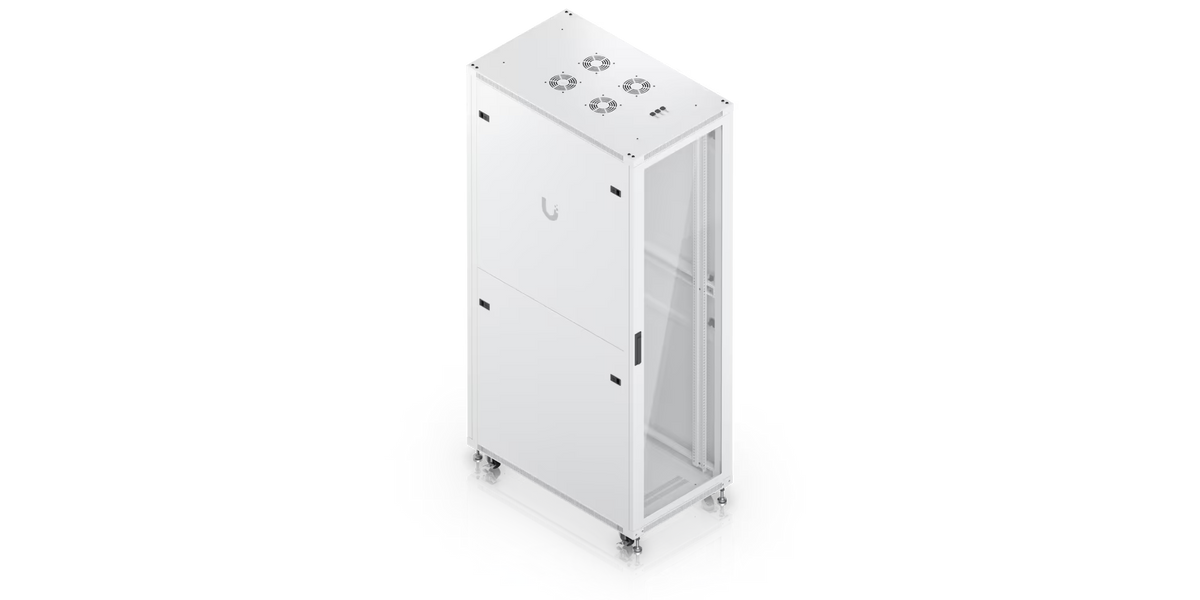

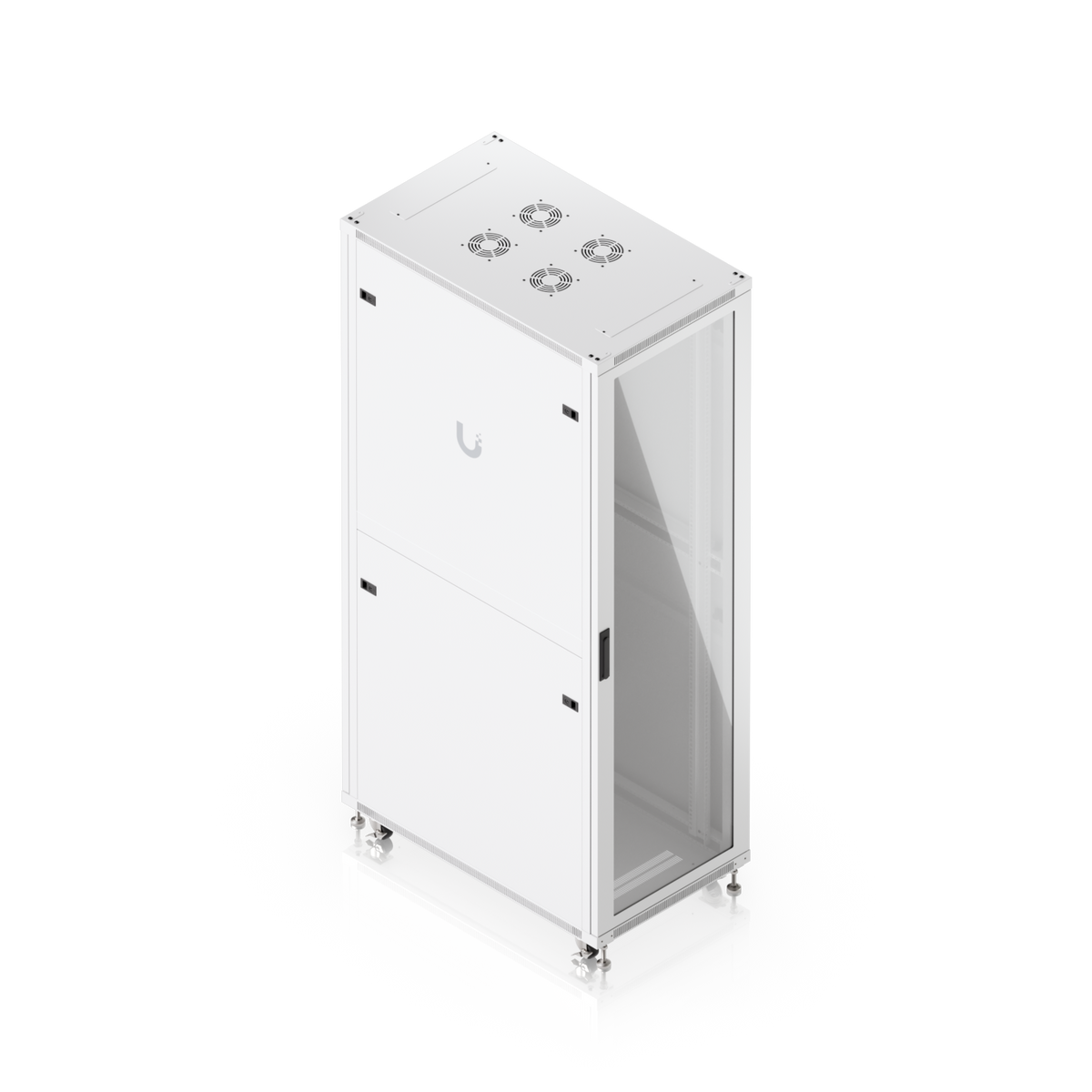

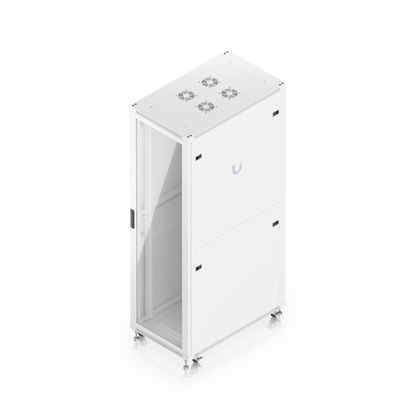

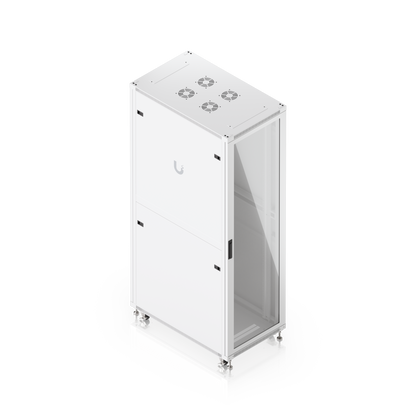

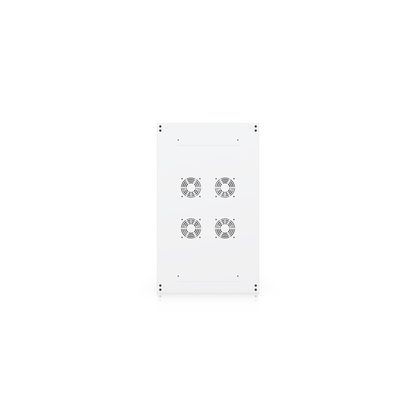

Four 120 × 120 × 38 mm AC fan units come pre-installed in the top panel, actively exhausting heat before it pools around your top-of-rack equipment. Paired with four cable entry openings (two top, two bottom, each 335 × 52.5 mm), the cabinet manages both thermal load and cable routing without aftermarket add-ons.

Visibility without vulnerability

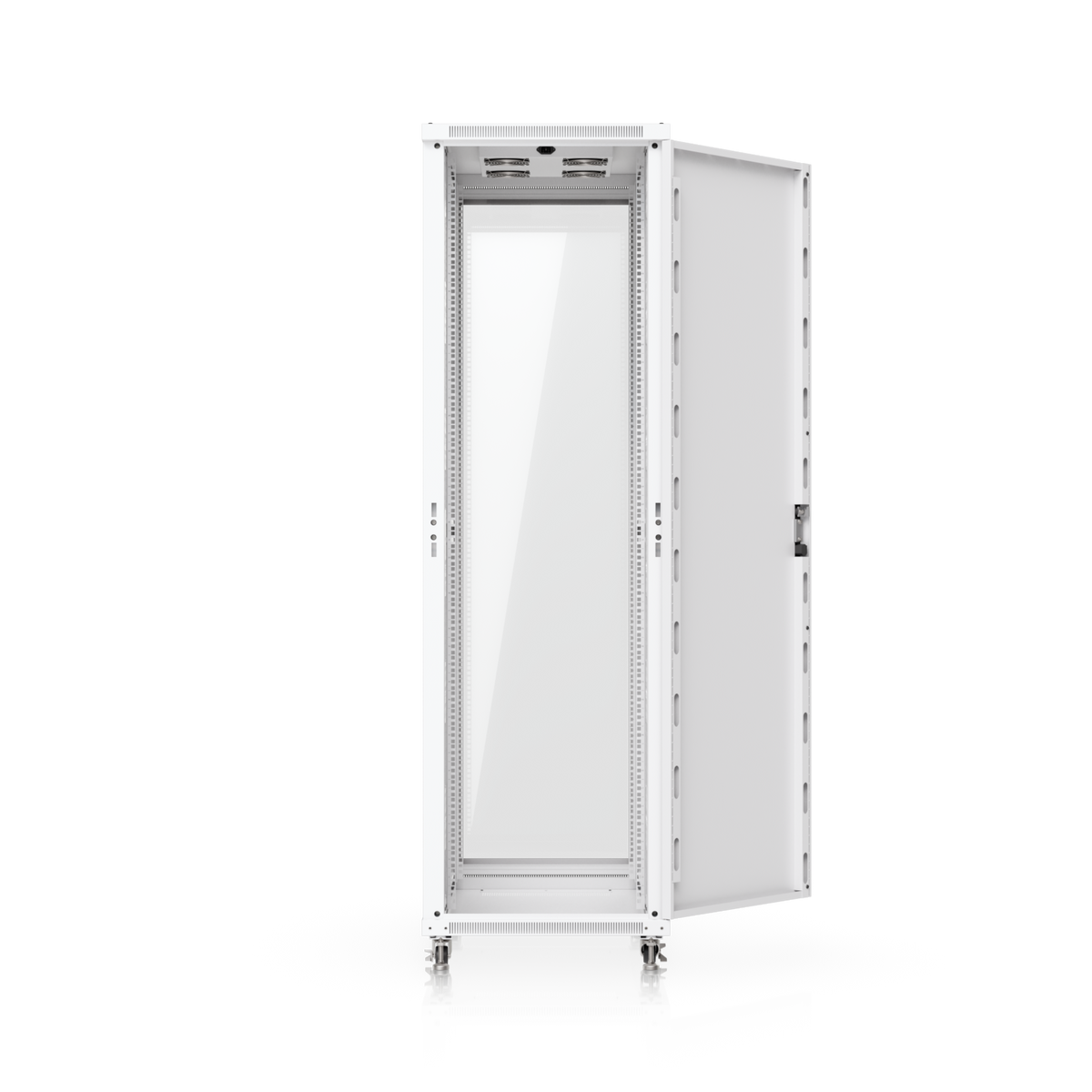

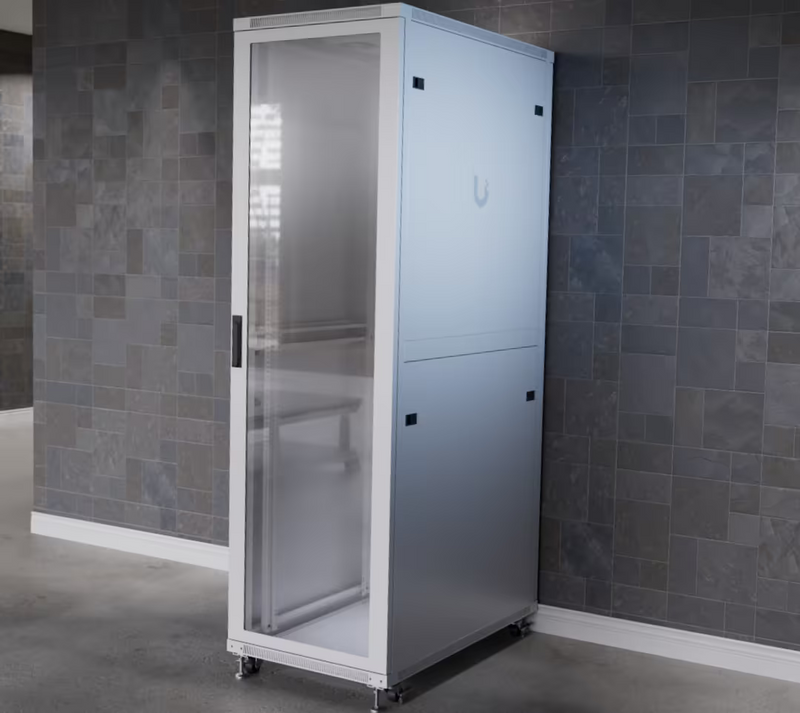

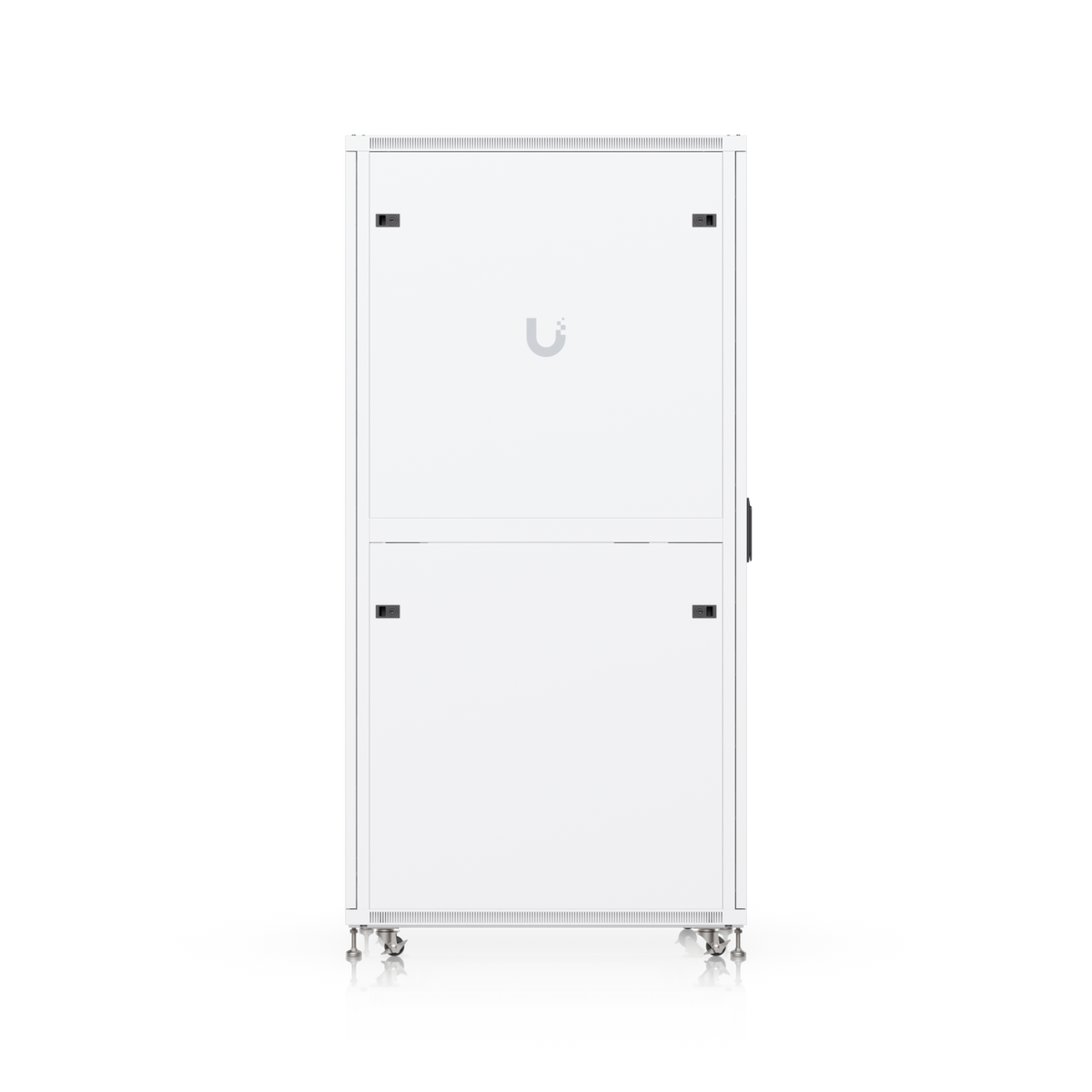

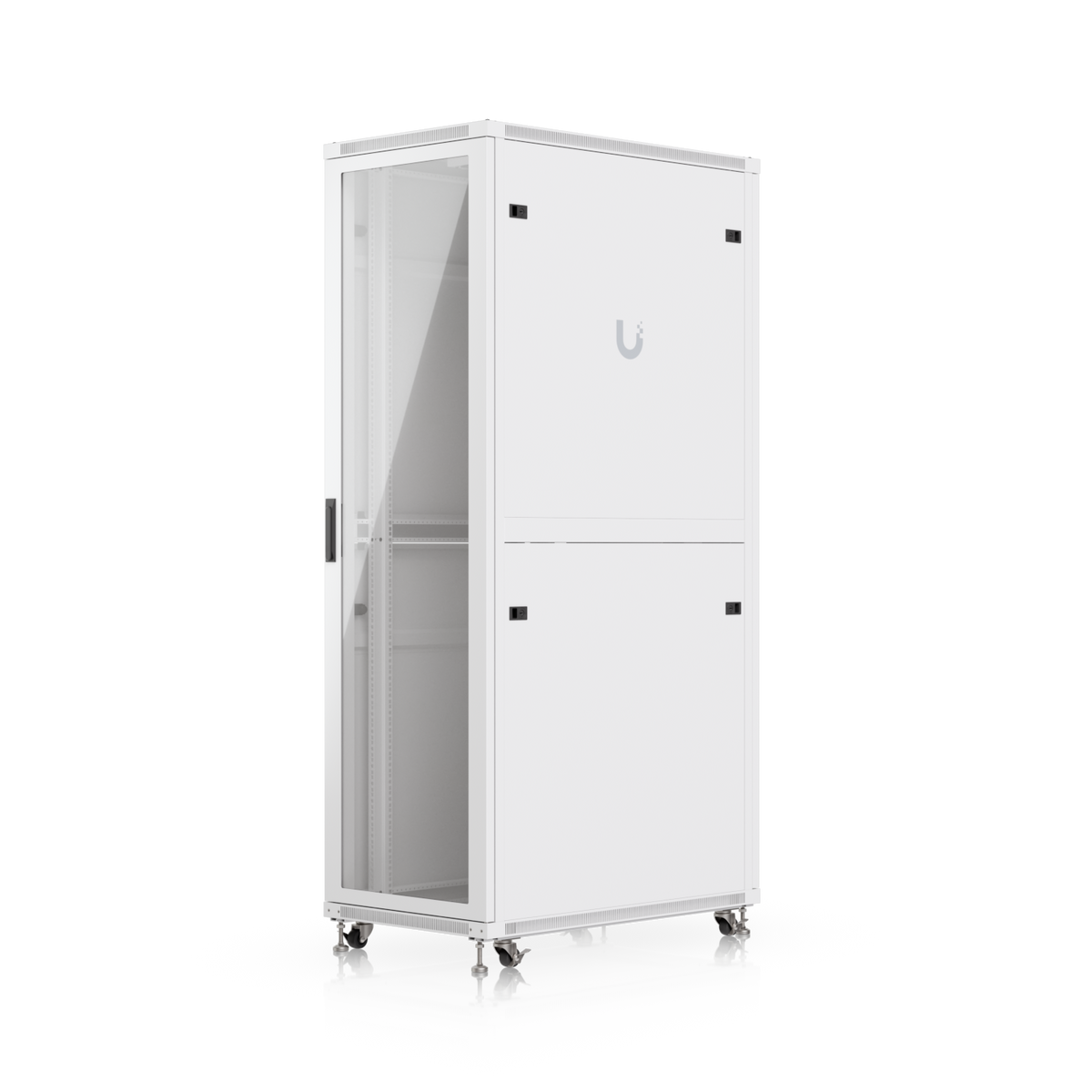

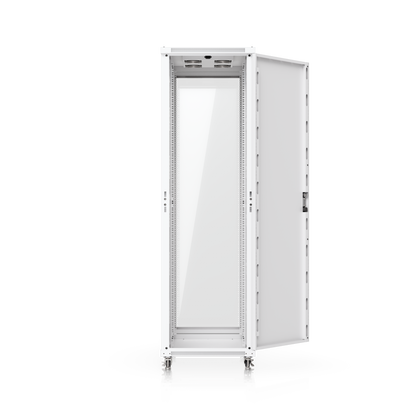

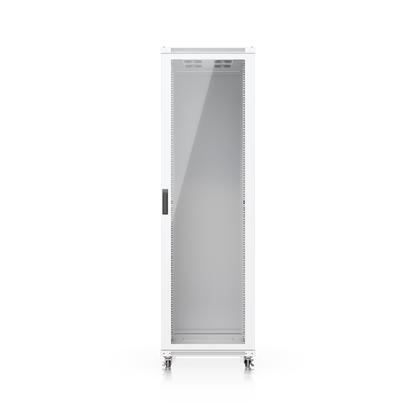

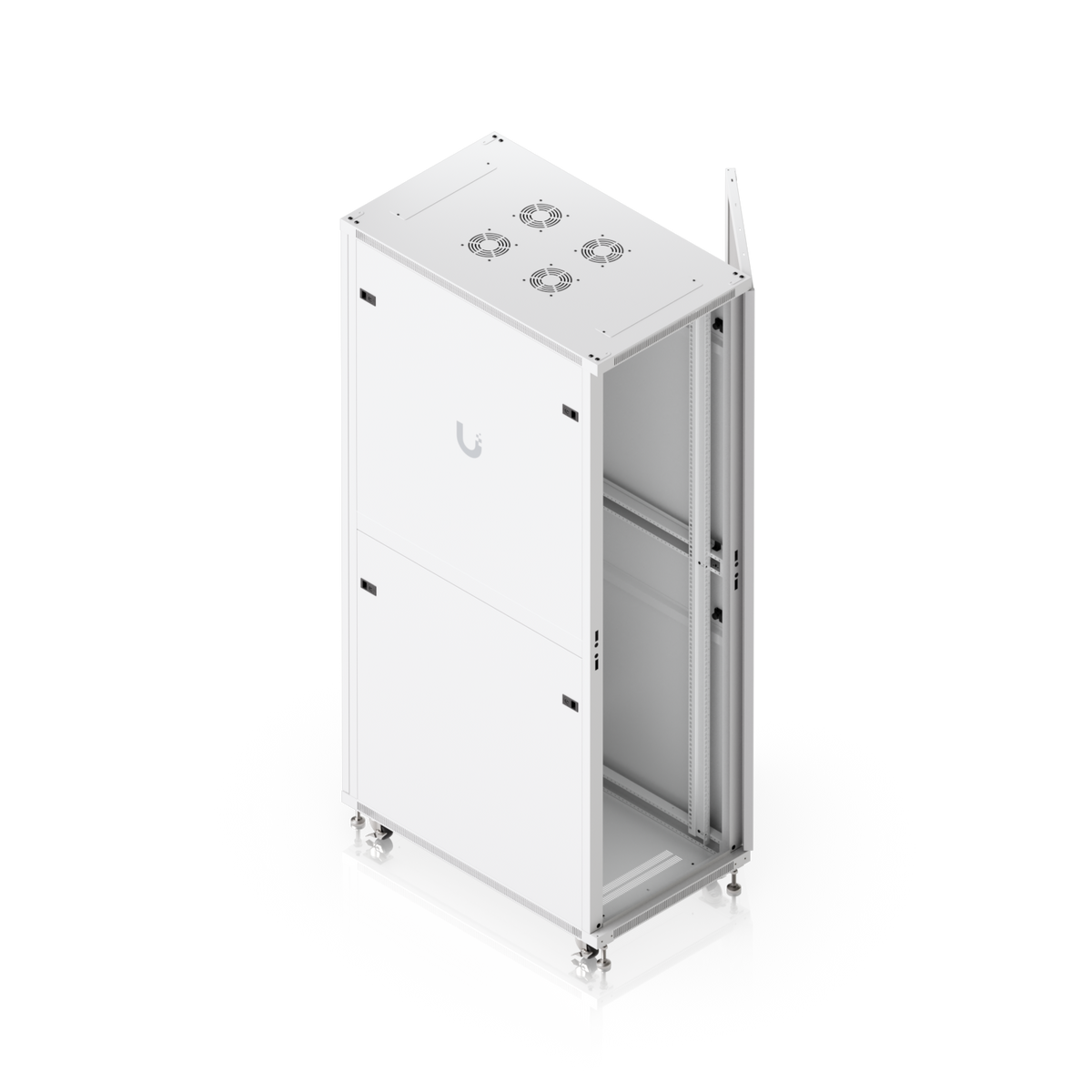

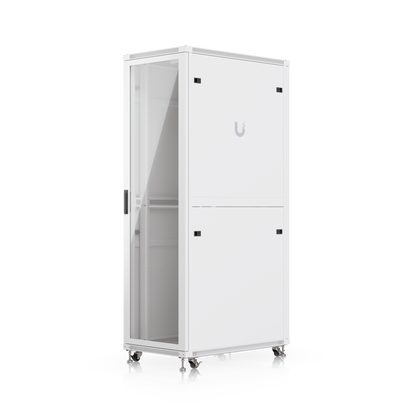

The tempered glass front door keeps status LEDs, port activity and equipment labelling visible at a glance — useful in demo racks, comms rooms with client visibility, and any space where the rack is part of the room rather than hidden in it. Behind it sits a solid rear door and four solid side panels.

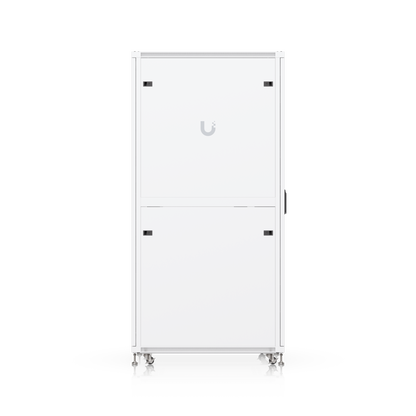

Both doors default to a left-hand outswing and are fully reversible, so the cabinet adapts to the room rather than the other way around.

Locked down at every access point

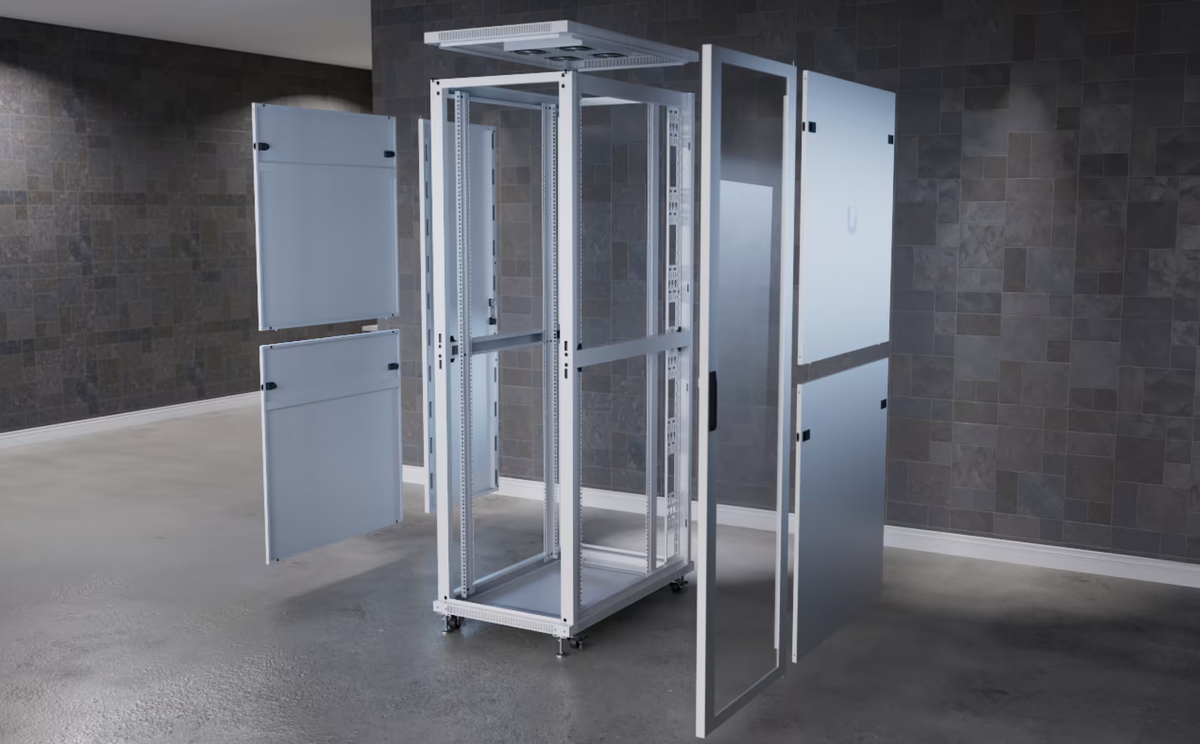

Security is comprehensive rather than token: one front door lock, one rear door lock and eight side panel locks, supplied with three keys. Every removable panel is also a lockable panel, closing off the side-entry route that catches out cheaper cabinets.

Deployment-ready hardware, included

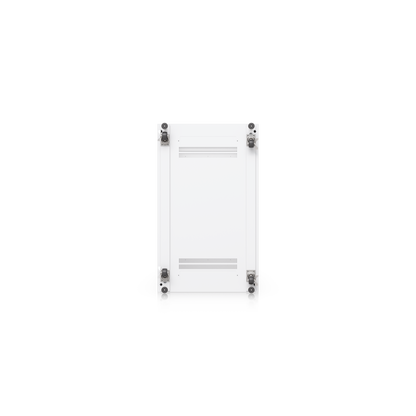

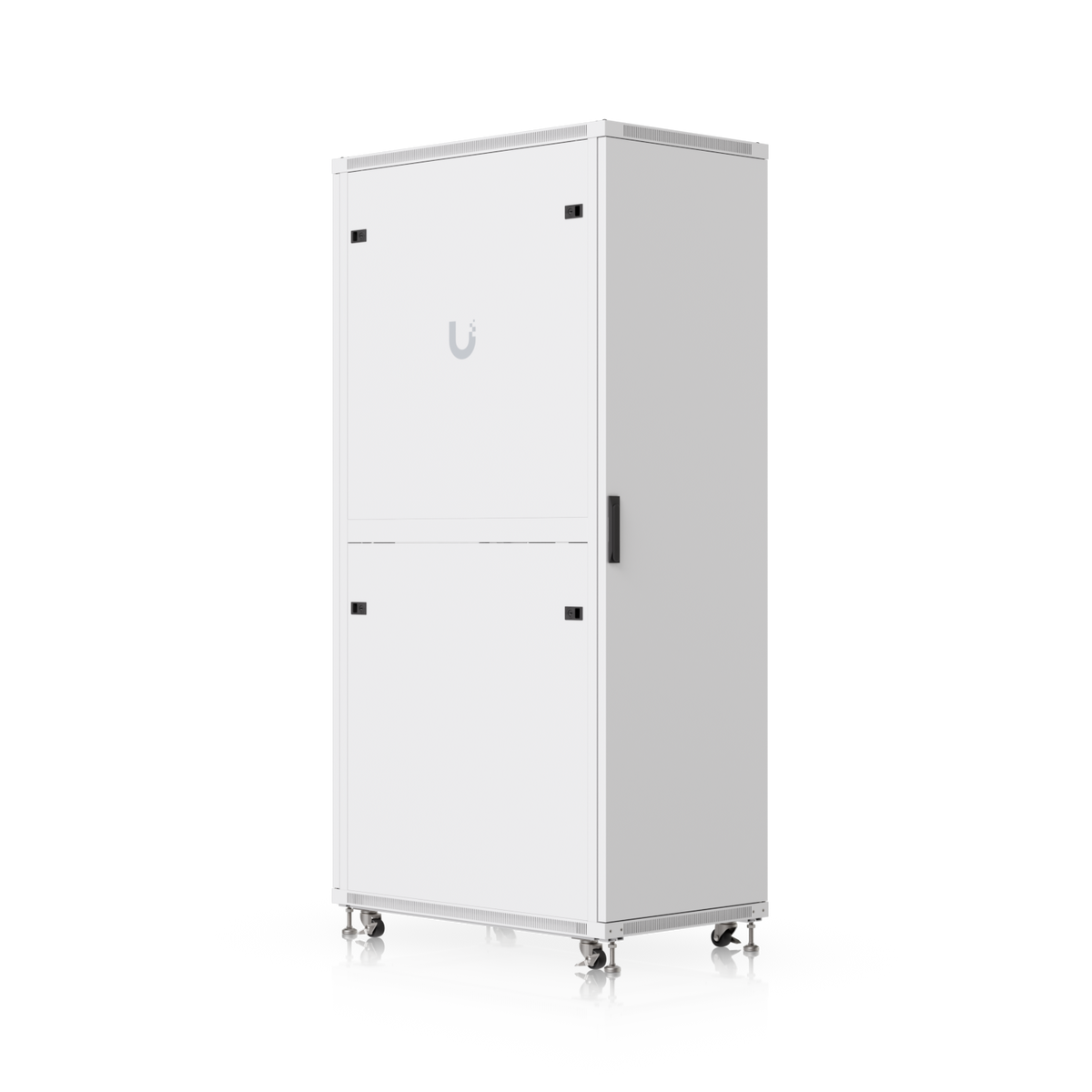

Lockable casters, levelling stands, floor anchoring and cabinet interconnect are all built in — so the same cabinet works as a single free-standing unit, a floor-anchored install in a seismic or high-traffic environment, or one bay in a ganged row. Grounding lugs and vertical cable management are integrated as standard.

Compliance you can put in a tender

The UACC-Rack-42U-1000-G is NDAA compliant and certified to CE, EIA/ECA-310-E and RoHS — meeting the procurement requirements of government, education, defence-adjacent and enterprise buyers.

Shipping Note

Due to this product's size and weight, delivery may be restricted for certain residential addresses. The rack ships fully assembled and may require additional handling and processing time before dispatch. Delivery is door-to-door and will not be delivered inside the premises. Please ensure adequate access, a clear path, and suitable lifting assistance at the destination.
