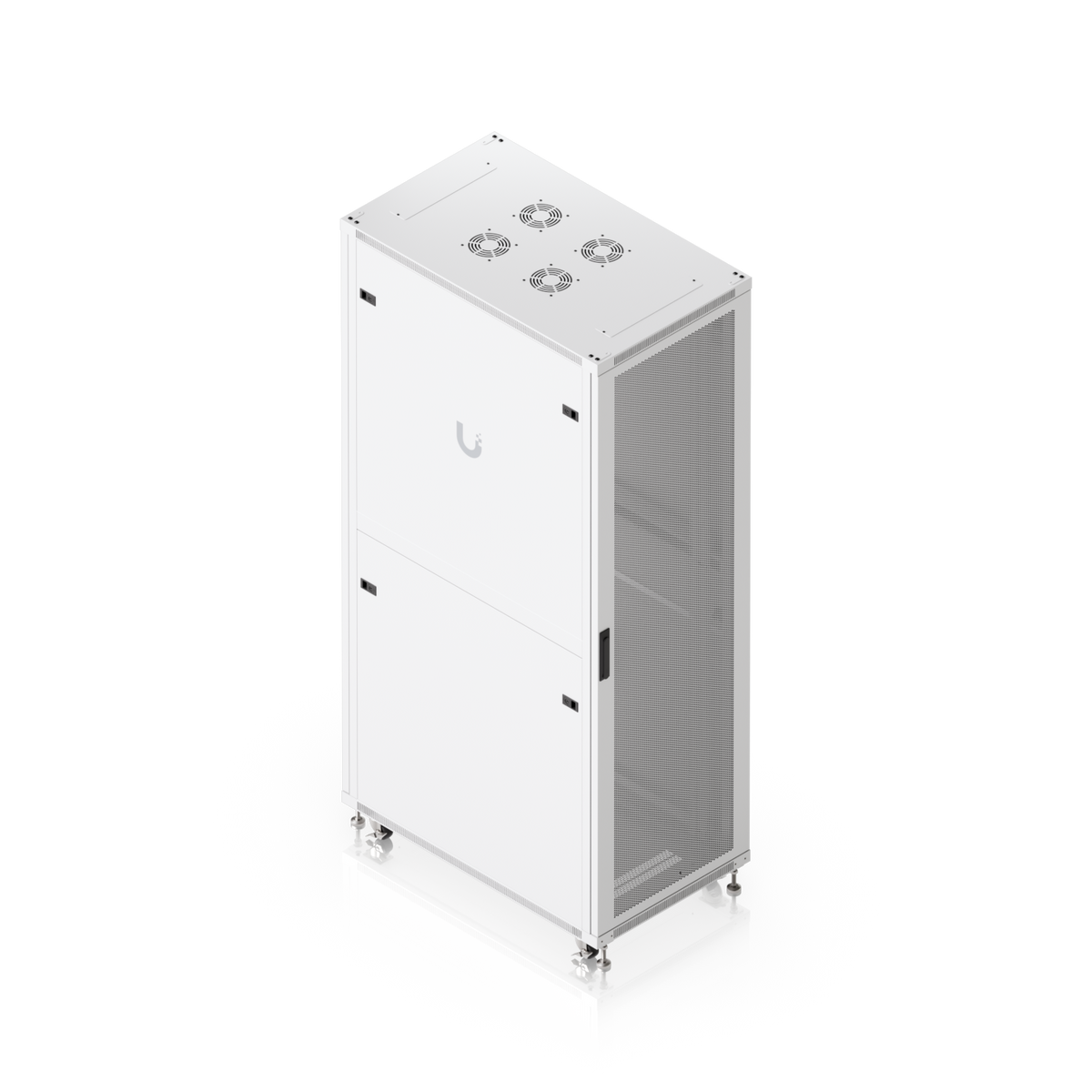

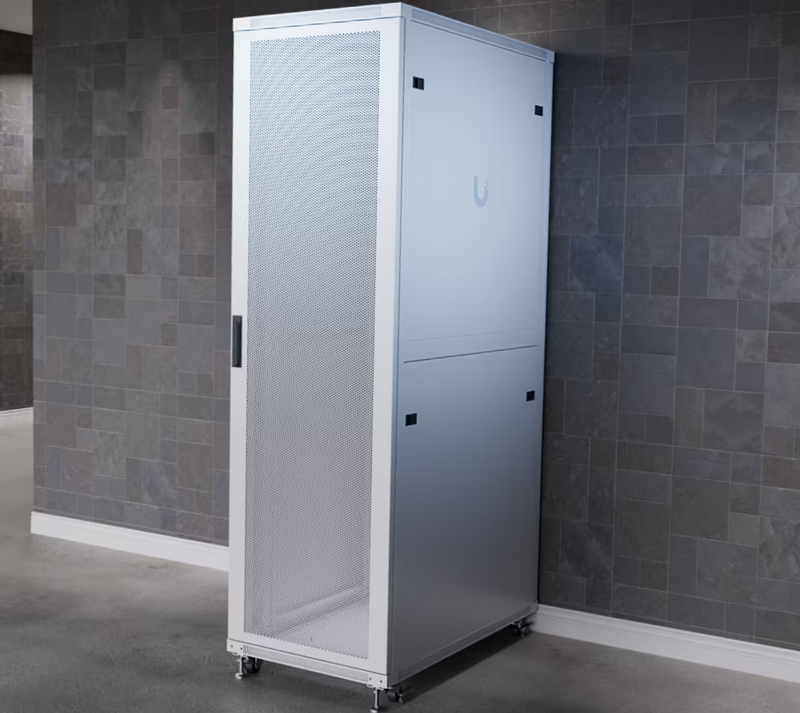

UniFi 1000mm 42U Rack Cabinet 800kg with Perforated Front Door

A fully assembled 42U floor-standing cabinet built for serious loads. The Ubiquiti UACC-Rack-42U-1000-P offers 1000mm of usable depth, an 800kg static weight rating, perforated front and rear doors, and four pre-installed AC fan modules — so airflow, security and cable management are handled before you unbox it.

Key Features

• 42U usable height in a 4-post enclosed cabinet
• 1000mm depth with adjustable rails (652.3–877.3mm, 15mm pitch)
• 800kg static / 320kg rolling weight capacity
• Perforated front and rear doors, reversible, left-hand outswing by default
• 4 x pre-installed 120mm AC fan modules
• 4 x solid, removable, lockable side panels
• 10 locks total (front, rear, 8 side panels) with 3 keys

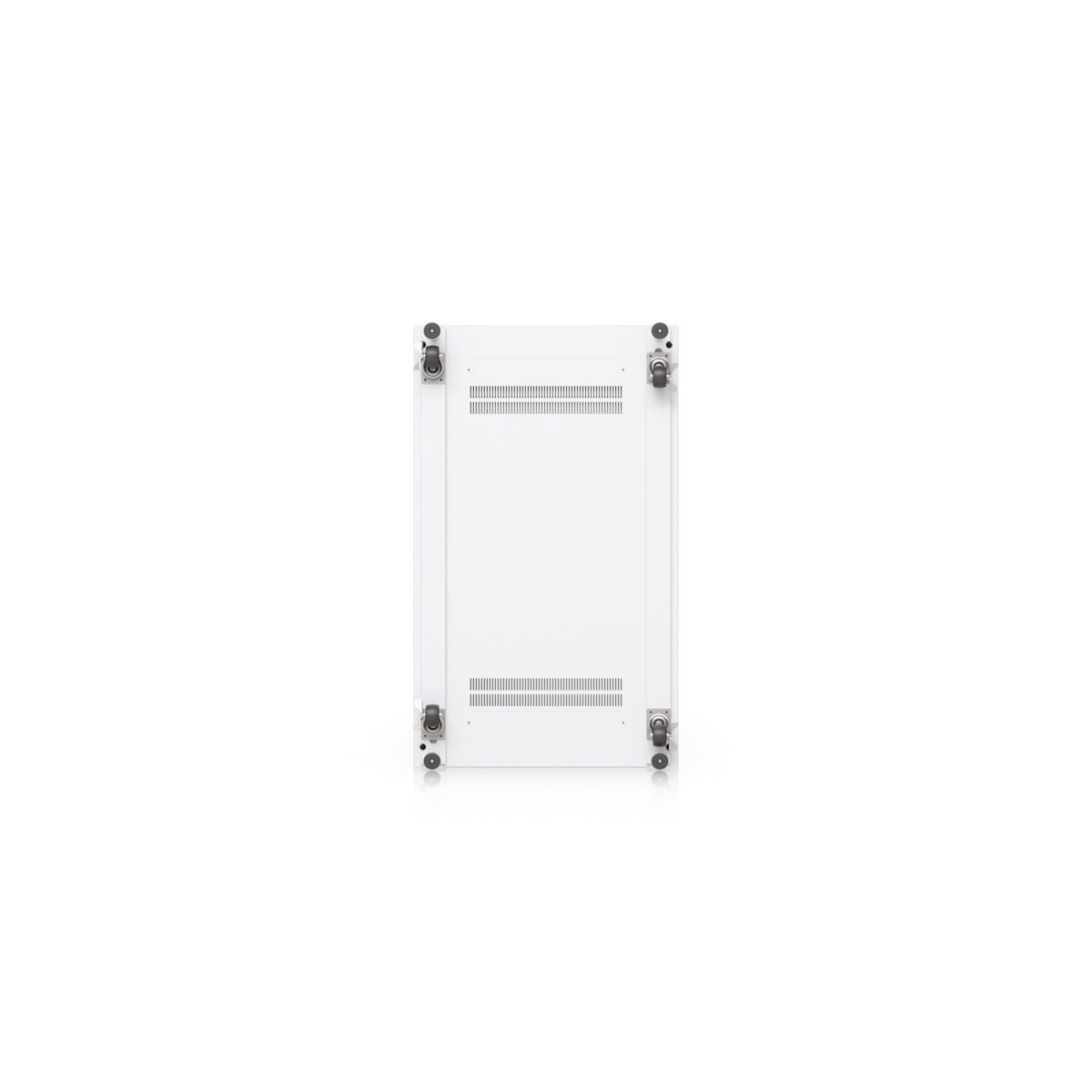

• Lockable casters, levelling stands and floor anchor included
• 4 x cable entry openings (335 x 52.5mm) top and bottom
• Vertical cable management and grounding lugs built in
• Cabinet interconnect for multi-bay rows
• SPCC steel, white powder coat finish
• NDAA compliant; CE, RoHS, EIA/ECA-310-E
• Ships fully assembled

Built for the racks that actually get filled

Most 42U cabinets arrive flat-packed and cost you half a day before a single switch goes in. The Ubiquiti UACC-Rack-42U-1000-P ships fully assembled. Roll it into position on its lockable casters, drop the levelling stands, anchor it, and start populating.

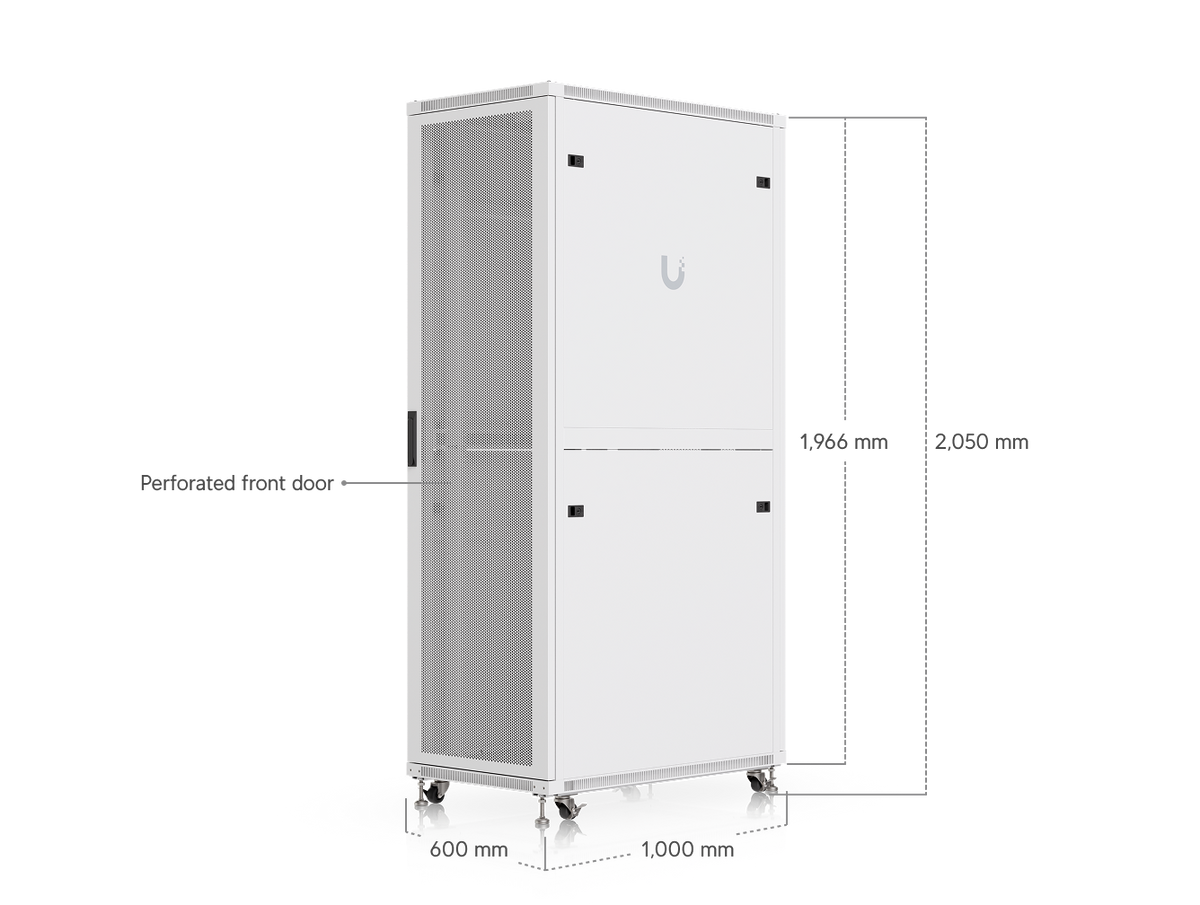

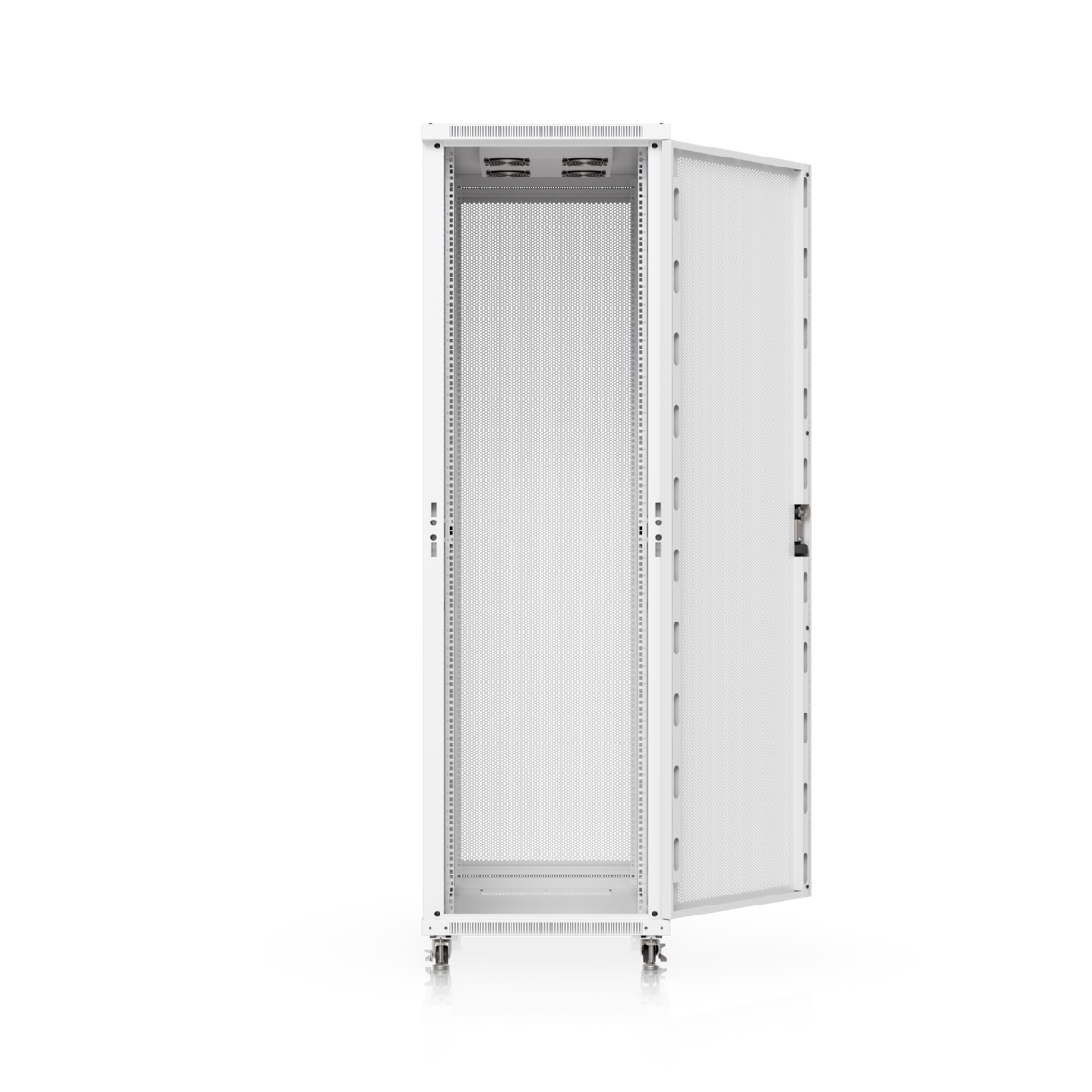

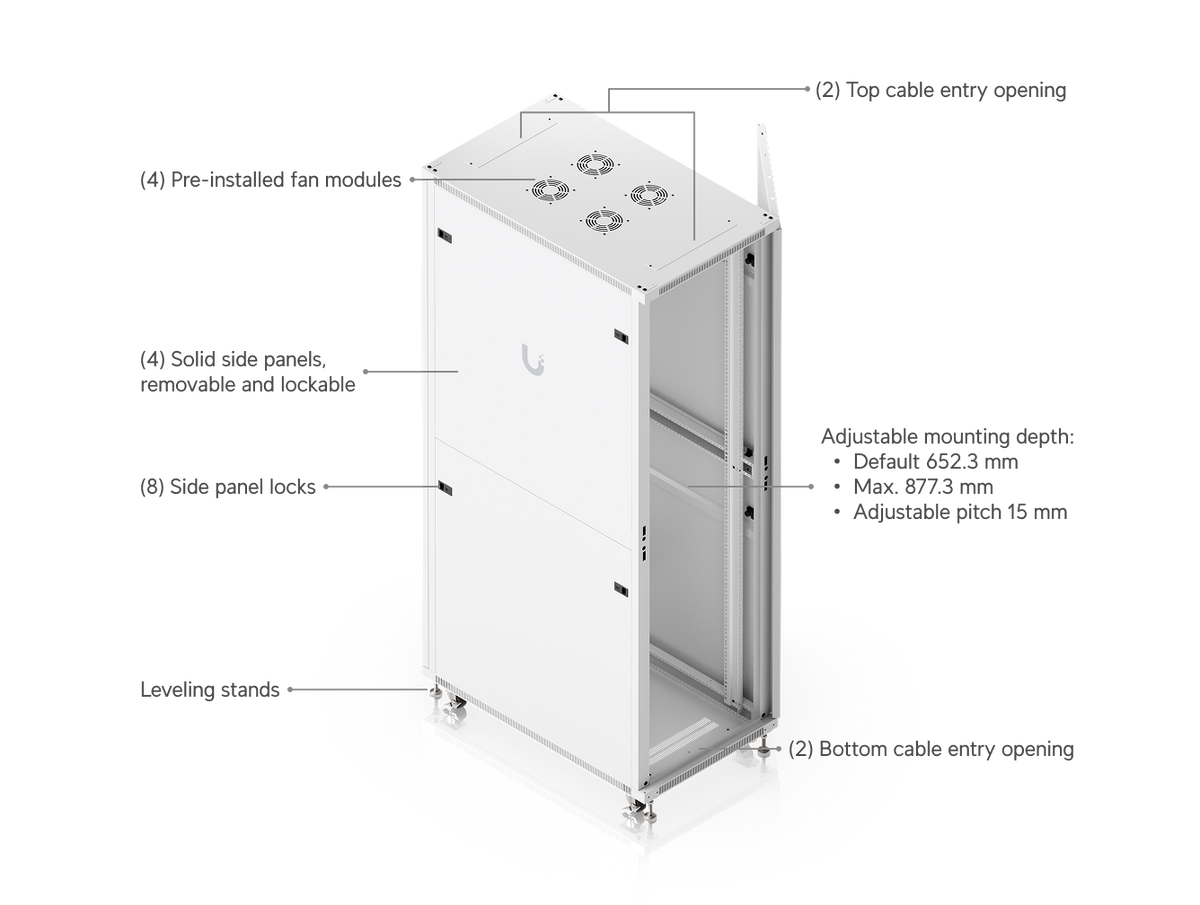

At 1000mm deep, it clears the space that shallower 600mm and 800mm cabinets can't — full-depth servers, rear-facing PDUs, patch panels and cable slack all coexist without a fight. Adjustable mounting depth runs from a default 652.3mm out to 877.3mm in 15mm increments, so the rails meet your hardware instead of the other way around.

Airflow that doesn't need a retrofit

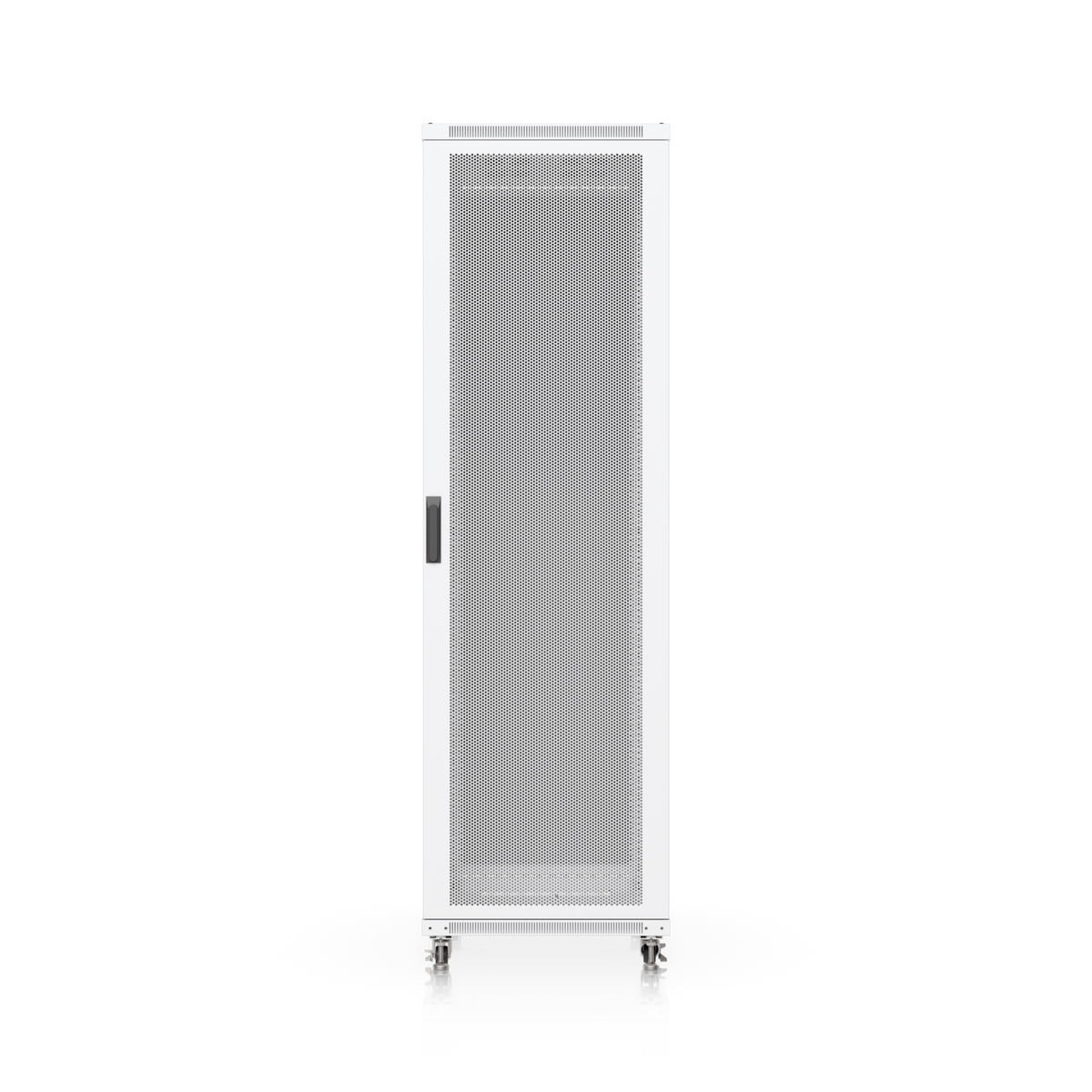

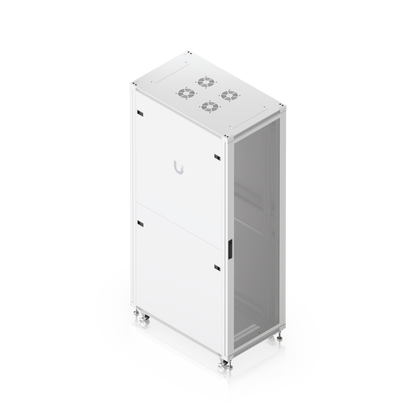

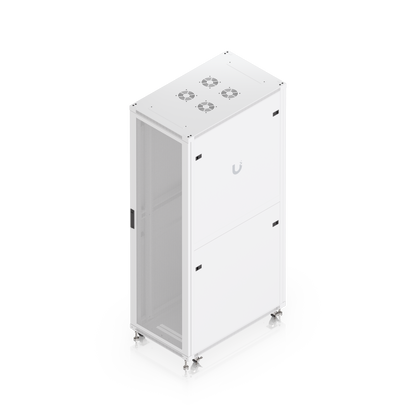

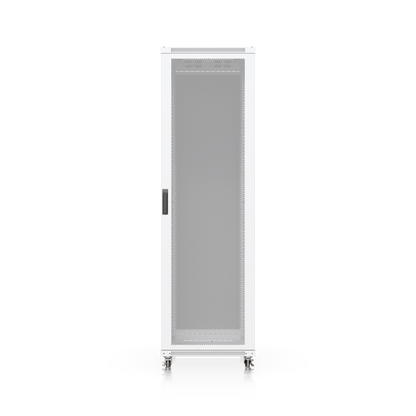

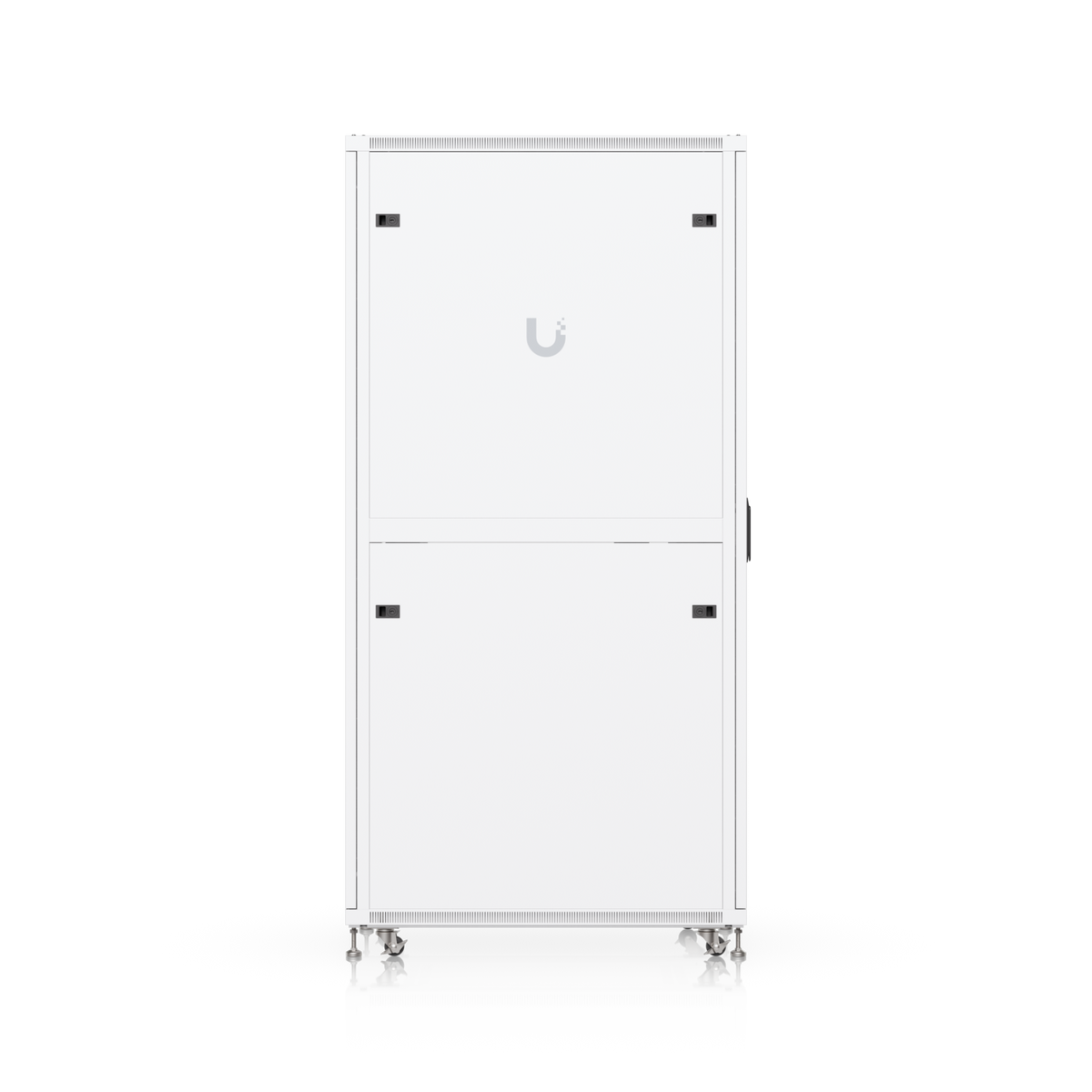

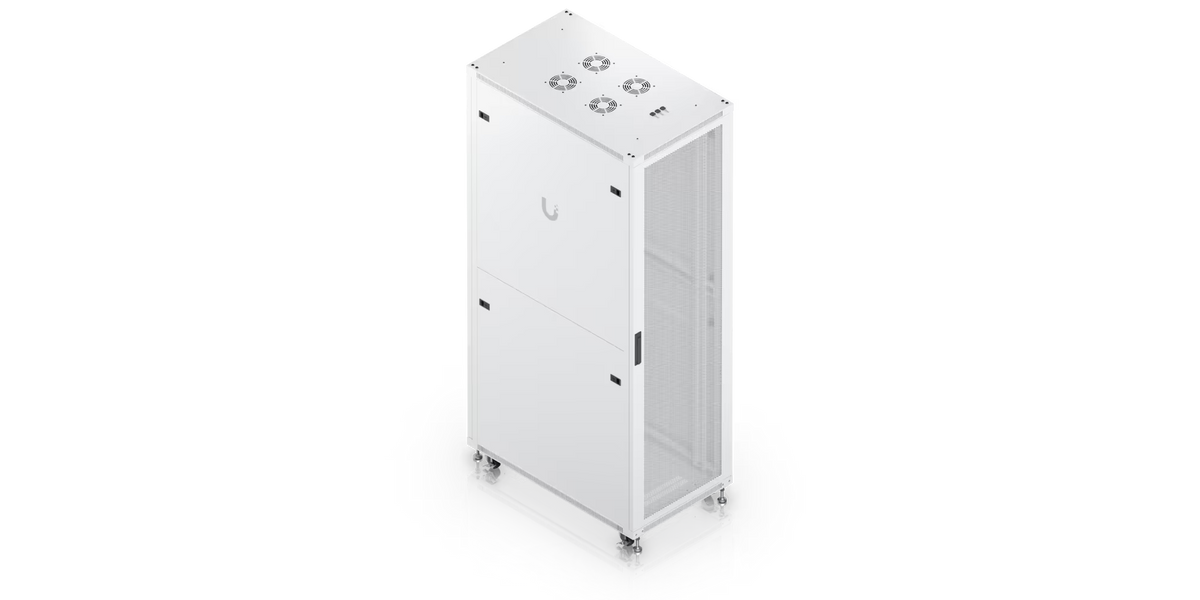

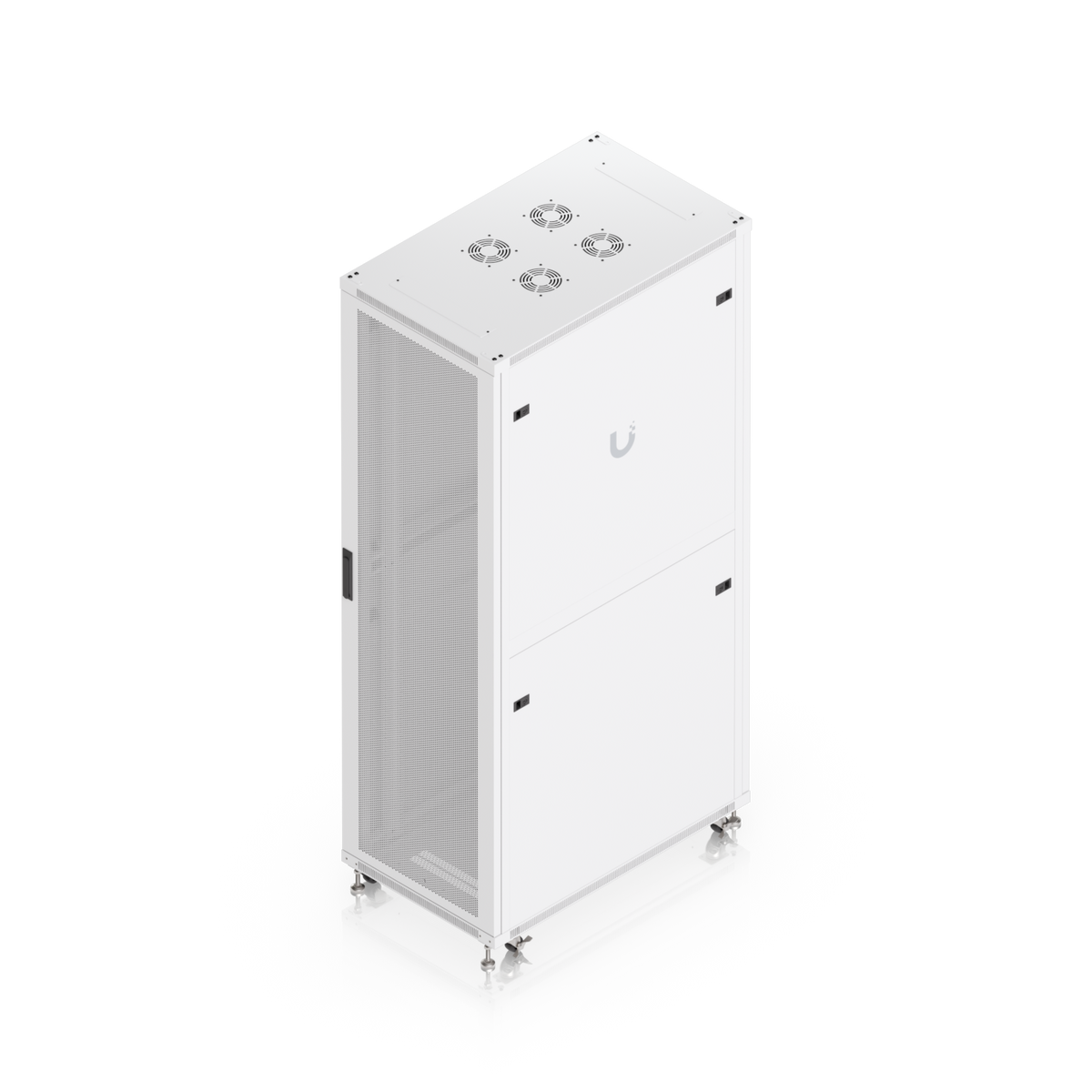

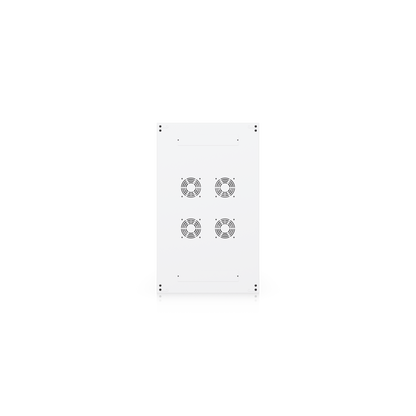

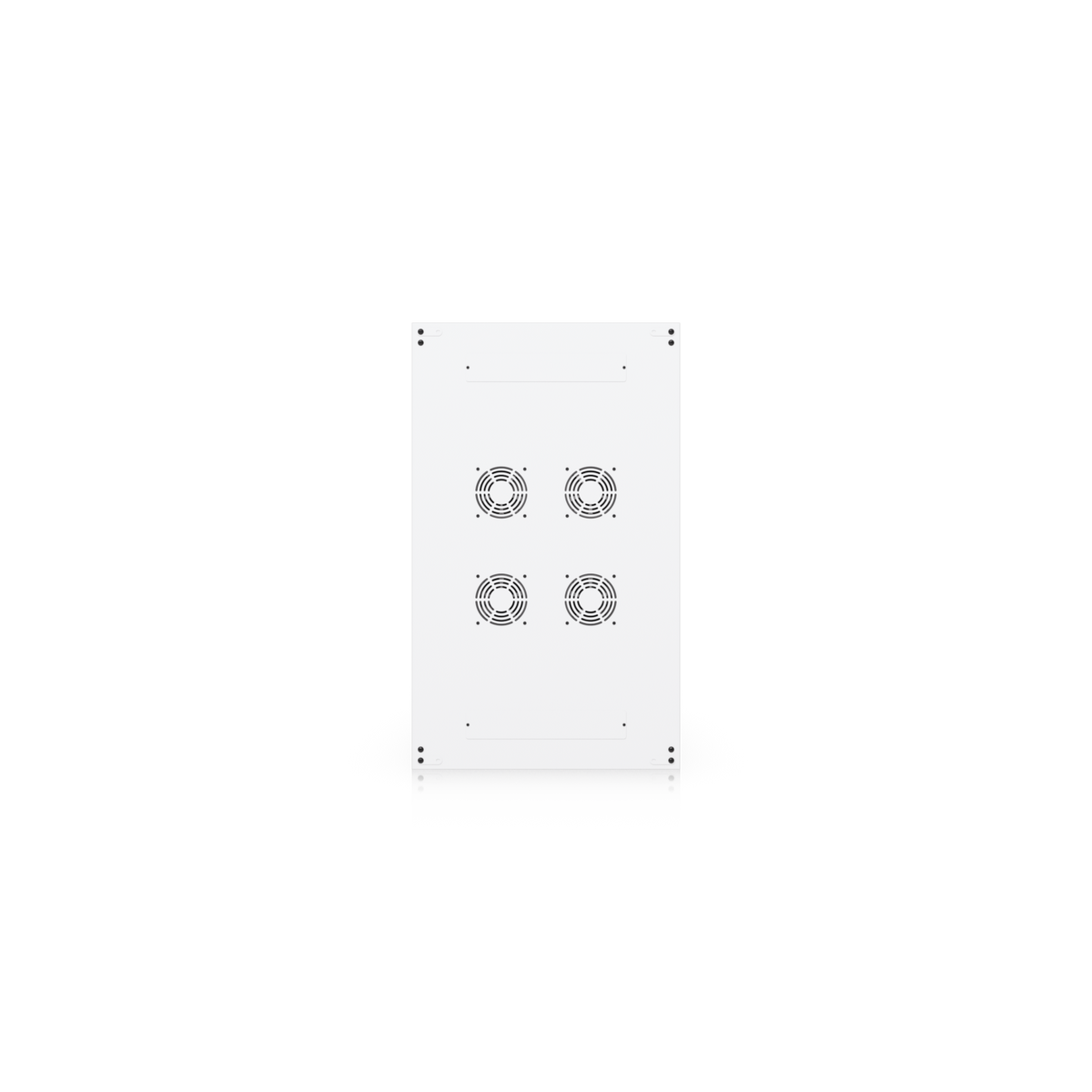

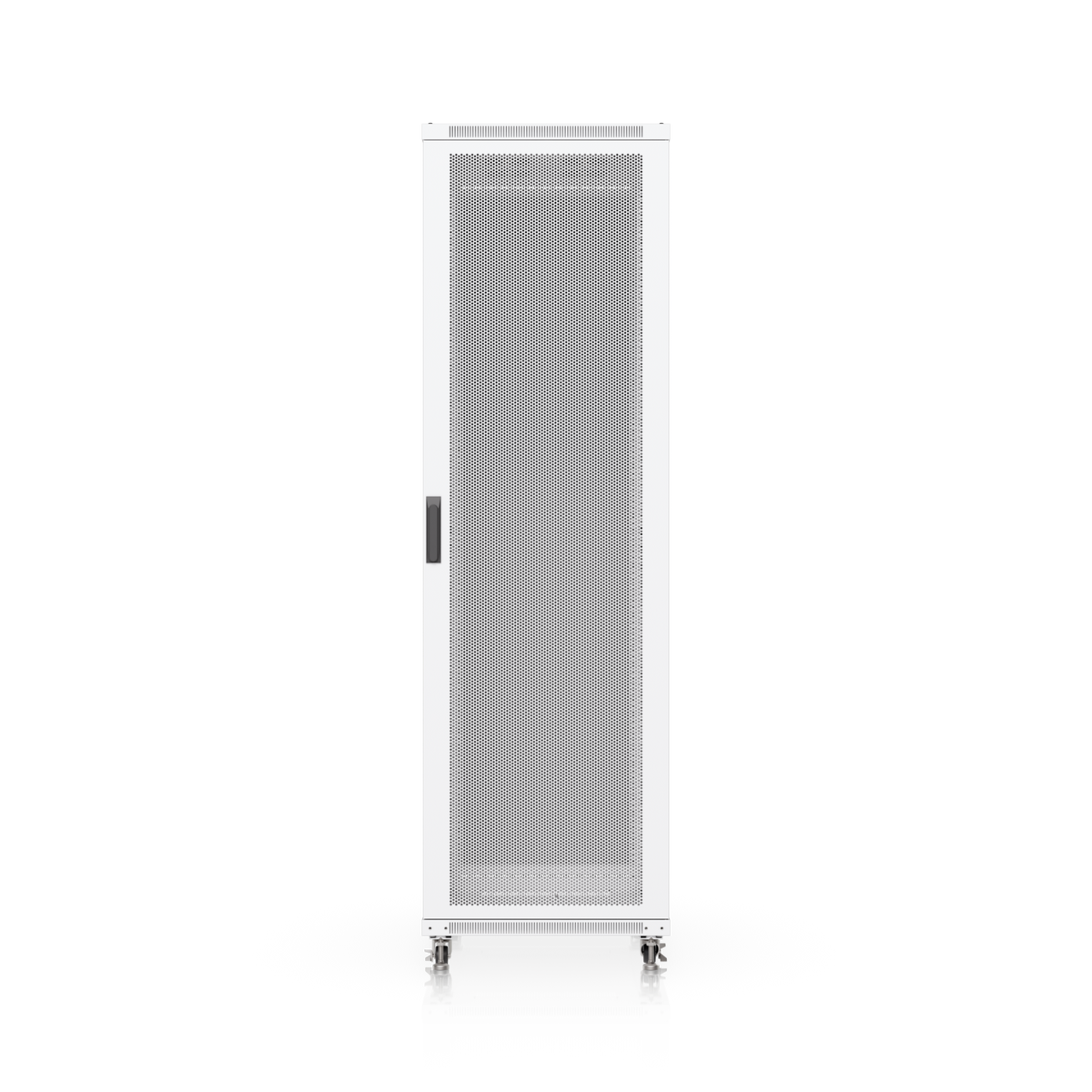

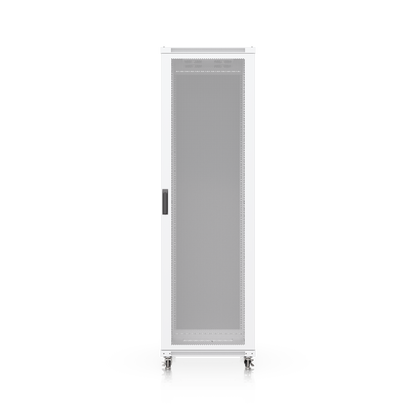

Perforated front and rear doors create a clean front-to-back airflow path, and four pre-installed 120 x 120 x 38mm AC fan units sit ready in the roof to pull heat out of the top of the cabinet. For a rack packed with switches, gateways, NVRs and servers, that's passive intake and active exhaust working together from day one — no aftermarket fan tray, no cutting corners on thermals.

Load ratings you can plan around

• 800kg static capacity — a fully loaded rack of servers, UPS units and storage
• 320kg rolling capacity — move a partially loaded cabinet without stripping it down first

Construction is SPCC steel throughout: 2mm posts, 1.2mm doors and side panels, 1mm main body, finished in a white powder coat. The rack itself weighs 84.2kg empty.

Locked down on every side

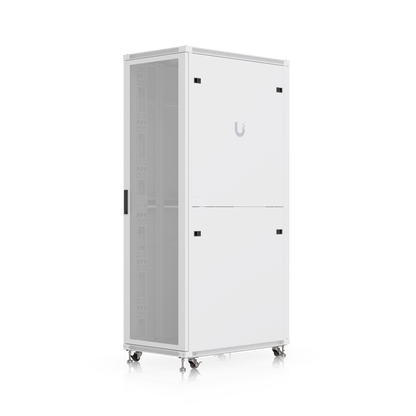

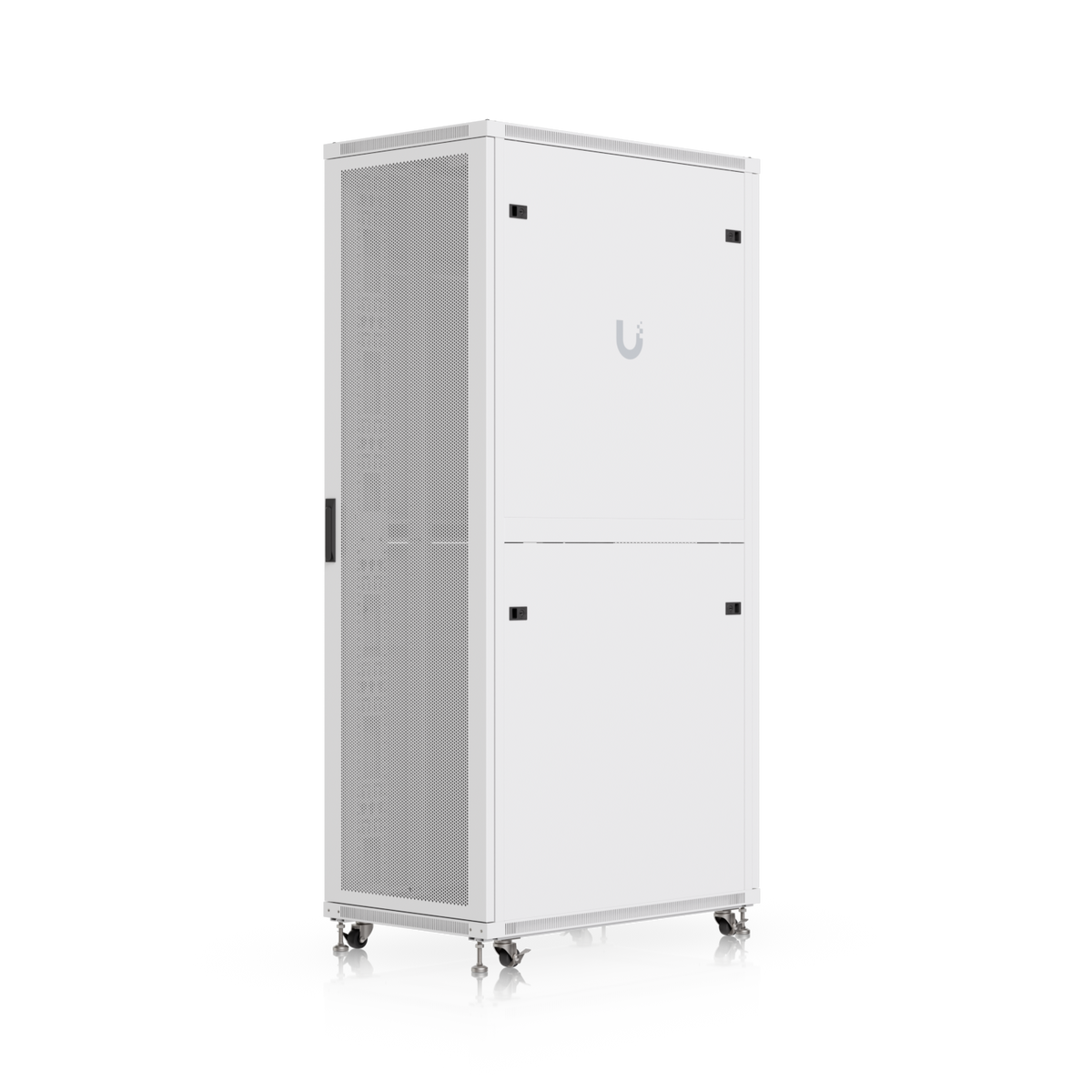

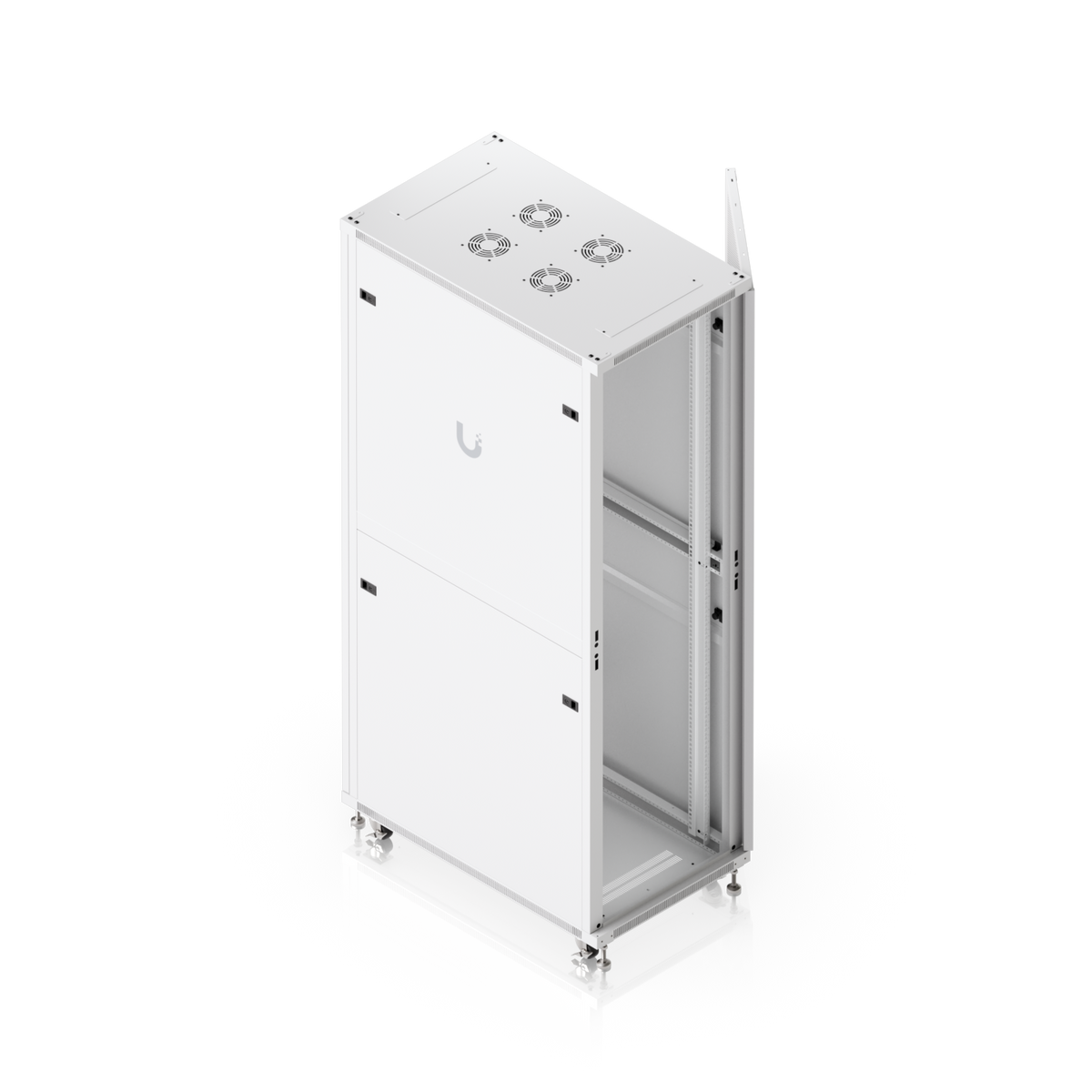

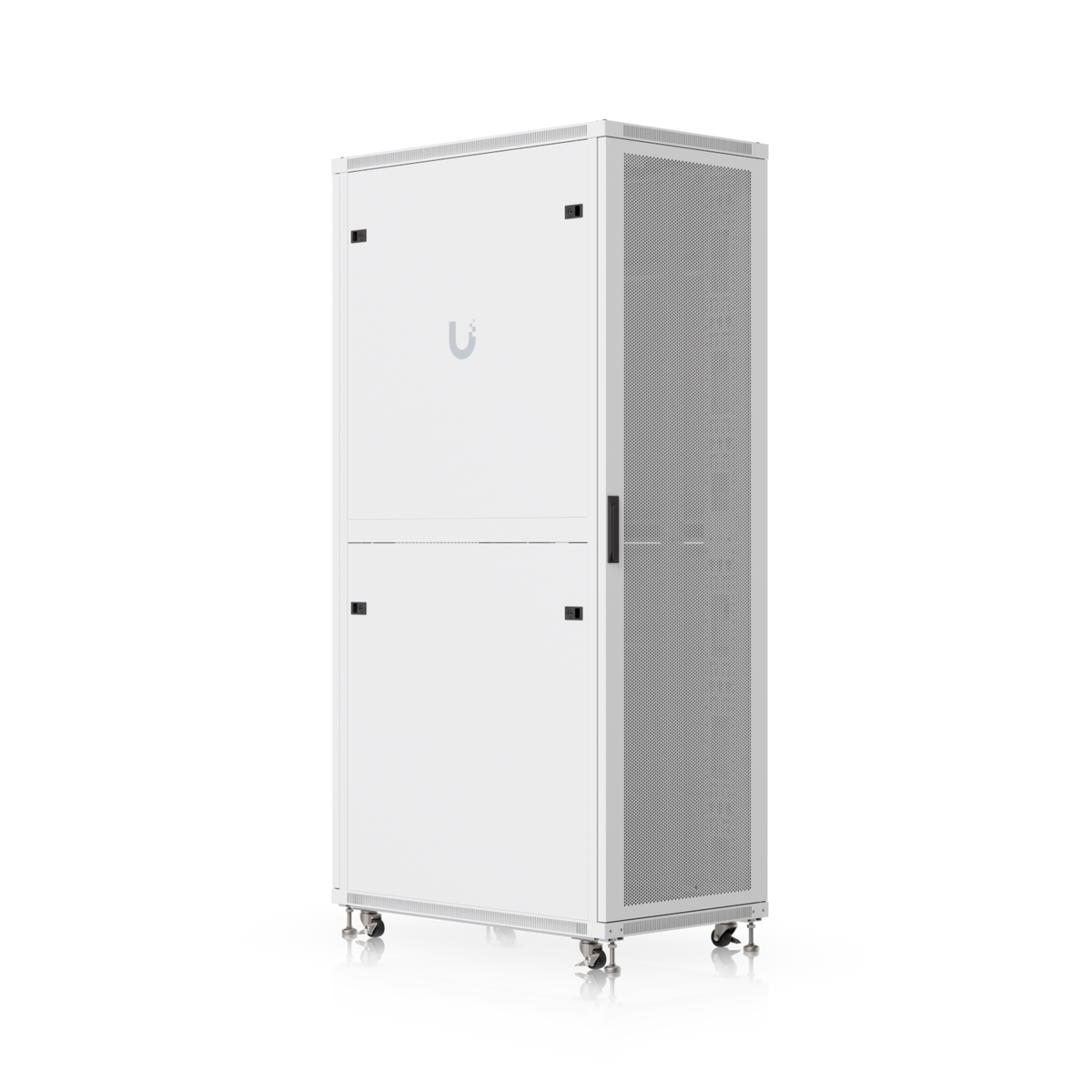

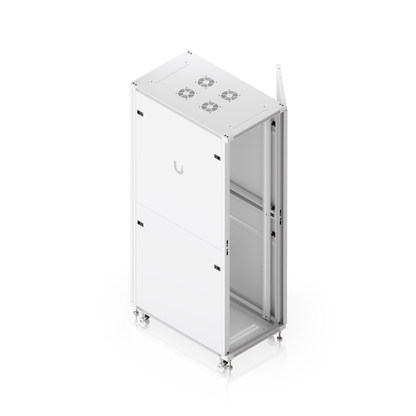

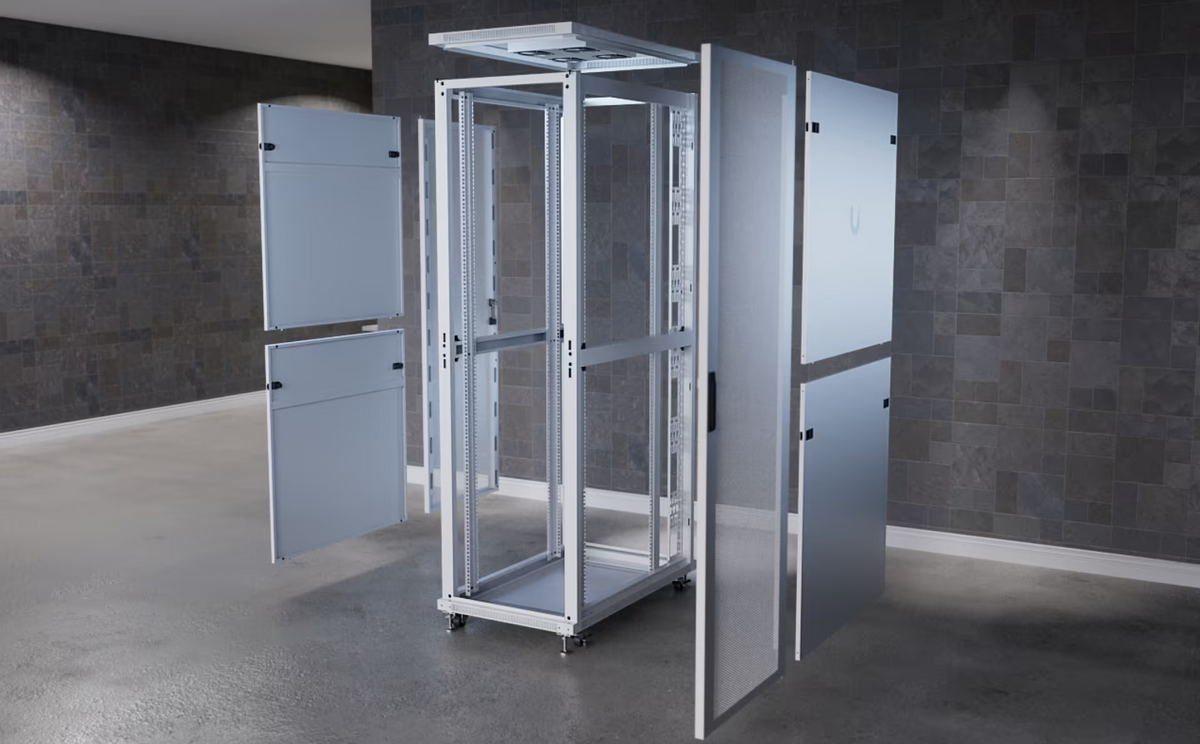

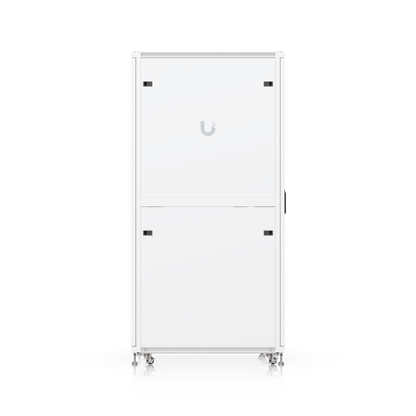

Security is comprehensive rather than token: one front door lock, one rear door lock and eight side panel locks, all keyed and supplied with three keys. All four side panels are solid, removable and individually lockable — useful for quick service access in a comms room without leaving an open cabinet behind you.

Both doors default to a left-hand outswing and are fully reversible, so the cabinet fits the room rather than dictating it.

Cabling and installation details that save time on site

• Four cable entry openings (two top, two bottom), each 335 x 52.5mm.
• Vertical cable management built into the frame.
• Grounding lugs for proper bonding.
• Cabinet interconnect for bays of two or more cabinets.
• Floor anchor points and levelling stands for permanent installs.

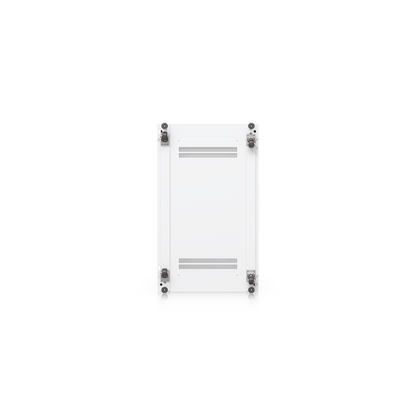

• Lockable casters for staging and repositioning.

Standards and compliance

Compliant with EIA/ECA-310-E square-hole rack standards, CE and RoHS marked, and NDAA compliant — which matters for government, defence, education and enterprise procurement where sourcing requirements apply.

Who it's for

Data rooms, comms rooms and MDF closets running UniFi Dream Machine, Pro Max and Enterprise switches, UNVR/NVR Pro, Cloud Gateways and third-party servers. Equally at home in an integrator's staging bay, a school's network cupboard, or an SMB's server room — anywhere a full-height rack is the right answer and a wall mount isn't.

Shipping & Delivery Notice

This cabinet ships fully assembled. Because of its size and weight, delivery may be restricted for some residential addresses and may require additional handling and processing time. Delivery is door-to-door only and will not be brought inside the premises. Please ensure adequate access, clearance and lifting assistance at the delivery point.
